Air-Zenith OB2 Series User manual

Installation Manual
For All Models AIR-ZENITH OB2 Air Compressors
Congratulations! Thank you for purchasing the world’s fastest DC 12-Volt air compressor
by AIR-ZENITH. Air-Zenith quality products is manufacturing by the people who knows
your pneumatic air suspension systems. Our R&D people who care and take pride in
doing it right the first time, every time.
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATING THIS PRODUCT.

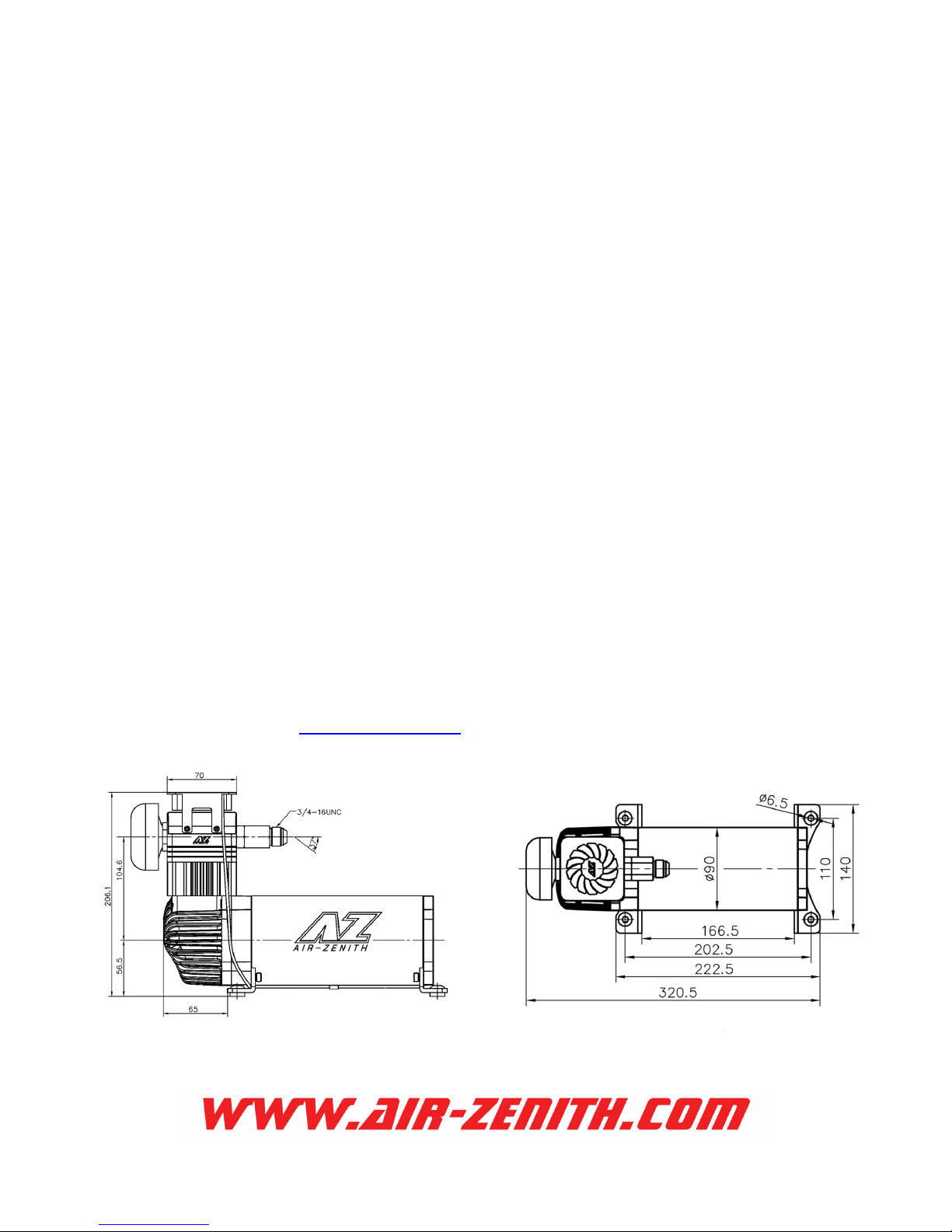

MODELS
●AZOB2
PRODUCT SPECIFICATIONS
●Motor Voltage: DC 12-Volt
●Max. Amp Draw: 35A
●Max. Working Pressure: 200 PSI
●Duty Cycle: 100% (at 72°F at 200PSI)
●Max. Ambient Air Temp.: 158°F
●Min. Ambient Start Temp: -40°F
●Motor Type: Permanent Magnetic
●Thermal Protector: Yes
STANDARD FEATURES
●Oil-free design, non-lube piston & cylinder
●Patented Interchangeable Piston Technology
●Long-life, PTFE compound piston ring
●Balanced connecting rod, low vibration, low sound levels
●Direct driven motor with automatic reset thermal overload protector
●Waterproof cooling fan
●½” Stainless steel braided air hose with ½” NTP air tank fitting
●Heavy duty inline check valve
●Remote mountable weatherproof air filter
●80A heavy duty relay with pre-wired relay socket
●Integrated 3-position mounting brackets with NYLOCK self-locking mounting hardware
* Image shown above is a side mounted Air-Zenith OB2 BLACK (P/N: AZOB2K).

2
1. PRE-INSTALLATION NOTES
•Air-Zenith products must be installed by a qualified professional installation facility
or certified mechanic.
•Product operation and installation is at the customer’s responsibilities. Air-Zenith
accepts no liability for damage of property or persons caused by operation and
installation of this product.
•Air-Zenith accepts no responsibility for products or components provided by other
manufacturers for use with or around the Air-Zenith products.
•Disconnect your vehicles battery before installation. Be sure to wear proper eye
and hand protection during installation.
•Do not attempt to disassemble, modifications or any alternations of this product.
•Make sure that your compressor setup is properly fused. Install a 70A fuse (or
larger) as close to the battery positive post as possible. Note: Air-Zenith do not
recommends circuit breaker, a good quality 70A ANL fuse and fuse holder is highly
recommended. (See Fig. 1 for standard wiring diagram).
•Choose mounting location that is as cool as possible and away from heat source.
The cooler the ambient temperature the less chance the compressor will overheat.
2. INSTALLATION GUIDELINES
•To maximize air compressor performance, locate compressor as close to the battery
as possible so that length of positive power wire is at minimum distance.
•This compressor is moisture & splash resistant, but not water proof! Do not mount
compressor in locations where the unit is likely to come in contact with water.
•Mount this compressor with the four sets of NYLOCK self-locking nuts and bolts
provided. Use of thread sealant is recommended.
•This compressor comes with pre-wired 80A relay with relay socket. Connect your
battery positive power wire to the Red wire on the relay socket. (Run minimum
6AWG wire for wire length runs more than 10 feet, and 8AWG wire for length
shorter than 10 feet). Mount this relay socket to a suitable location.
•Install a 200 PSI (or under) pressure switch on the air tank. (Maximum 5 gallon air
tank for one compressor). Connect one of your pressure switch wires to Key
Ignition positive power wire. Connect the other pressure switch wire to the Yellow
wire on the relay socket. (See Fig. 1 for standard wiring diagram).
•This compressor has a pre-installed check valve located at cylinder head. Do not
remove that check valve; connect supplied air hose to the check valve, and then
connect air hose to the air tank with supplied ½” NPT fitting.
•Find a suitable location to ground your compressor. You will want a place clear of
paint and debris. (You can lightly sand away body paint if needed) Drill a mounting
hole for your fastener. (Caution: Check below where you will be drilling for any
obstacles, wires, or fuel lines). Now attach your compressor ground wire and apply
a light coat of grease or paint to keep the connection clean. Note: If possible, route
compressor ground wire to your battery negative post for maximum performance.

3
Fig. 1 Standard Wiring Diagram
3. OPERATION GUIDELINES
•To prevent unwanted discharge of your vehicle’s battery it is strongly recommended
keep your engine running while operating this compressor.
•This compressor is oil-free. Never try to lubricate piston and cylinder with motor oil
or WD-40. Make sure cylinder and piston is clean and free of obstruction.
•This compressor comes with one stainless steel braided air hose and ½” fitting.
This leader hose is designed to prolong the life of your air line.
•Periodically check all electrical components. Inspect all air line connections for
leaks with soap and water solution. If a leak is detected, the air line may not be cut
squarely or pushed all the way in. Tighten connections if needed.
•This compressor will become very HOT during and immediately after use. Do not
touch this compressor with bare hands during and immediately after usage.
•This product is equipped with Automatic Reset Thermal Protection. In the event this
unit reaches an unsafe operating temperature, thermal protector will cut power to
prevent damage to the motor, and can automatically restart when temperature
returns to a safe operating level. When thermal protector is activated, stop
operation for at least 30 minutes.

4
4. TWO YEARS LIMITED WARRANTY
Air-Zenith warrants this product to be free from defects in material or workmanship
under normal use and service; and limits the remedies to repair or replacement. This
warranty shall extend for a period of two years from the original date of purchase, and
is valid only within the continental limits of the United States and Canada.
Air-Zenith reserves the right to examine any warranty claim to determine the cause of
failure. Air-Zenith obligation under this warranty shall be limited to repairing, replacing,
or crediting at its option any part proven defective. No labor, lift, service or storage
charges will be reimbursed for any reason. Damages to Air-Zenith compressors
resulting from misuse or abuse shall void this limited warranty. Any return freight
charges must be prepaid by the customer. Air-Zenith shall not be liable for any damage
or injury to persons or property resulting from improper installation or misuse of this
product. If it is due to improper installation or misuse, a repair charge will be assessed
and the customer will be contacted before work is performed or replacement parts are
shipped.
5. MERCHANDISE RETURN
A Return Goods Authorization Number (RGA) and Proof of Purchase (dated purchase
receipt) are required for all warranty returns. Call Air-Zenith for RGA number:
AIR-ZENITH
3010 West Post Road, Las Vegas, NV 89118, USA
Telephone: [phone]
Facsimile: [phone]
Web Site: www.air-zenith.com
