User Manual
V8 LOWFLOW
thank you for choosing this Airbox product
Specications:-
Flow Range: Adjustable 2 -10 l/min (with 0.8 micron cellulose lter)
Flow Stability: +/- 3%
Battery Pack: (1x) 12 Volt (8.5 amp min) Lead Acid
Charge Time: 6 - 8 Hours Max
Continuous Duration 8:8+ Hours @ 8 l/min (with 0.8 micron cellulose lter)
Display: OLED, elapsed run time and battery indicator
Material: HF ABS
Waterproof: To IP65
CE Marked: Yes
Dimensions: H38cm x W24cm x D12cm
Mast extends to: Up to 2.0 metres
Weight: 4.6 kg
airbox
sampling products
Find us online at
www.airboxsp.com
t: [phone]
e: [e-mail]
Airbox Sampling Products , Technology Centre,
Easting Close, Worthing, West Sussex BN14 8HQ
airbox
sampling products
V1

Dear Customer
Thank you for purchasing this Airbox product. To ensure that you get the best
possible use from it, please read this manual carefully.
You can also nd a ‘Using the Variow’ video on the website at www.airboxsp.com
under the Resource Centre tab.
Your sincerely
The Airbox Team
Airbox Sampling Products is a wholly owned subsidiary of:
FermionX Ltd,
Technology Centre,
Easting Close, Worthing
West Sussex BN14 8HQ
Declaration of conformity
We herewith conrm, that the unit to which this manual belongs meets the
necessary requirements to obtain the sign
1
TABLE OF CONTENTS
1. Setting up and using the V8 LOWFLOW..........................................................4
1.1 Charging the battery........................................................................................................4
1.2 Running the V8 LOWFLOW from the mains............................................................4
1.3 Removing the waterproof covers.................................................................................4
1.4 Switching on and setting the ow rate .................................................................... 5
1.5 Setting test mode..............................................................................................................6
1.6 If ‘Free Running’ is selected..............................................................................................6
1.7 If ‘Timed Test’ is selected..................................................................................................6
2.Maintenance.........................................................................................................7
2.1 Replacing the battery.......................................................................................................7
2.2 Replacing the mast...........................................................................................................7
2.3 Cleaning the unit ..............................................................................................................8
2.4 Servicing & Warranty........................................................................................................9
3. Troubleshooting..................................................................................................9
3.1 Pump will not start, red LED illuminated..................................................................9
3.2 Pump will not start, no display......................................................................................9
3.3 Flow rate doesn’t reach required level.......................................................................9
3.4 Pump stops while running, red LED illuminated....................................................9
3.5 Pump fails to run for specied duration....................................................................9
4. Parts.....................................................................................................................10
2

1. Setting up and using the V8LOWFLOW pump
Before you use the V8 LOWFLOW pump make sure it is fully charged. A battery level
indicator shows the available power when the unit is rst switched on.
1.1 Charging the battery
When the charger is plugged into the charging socket a red LED will be
illuminated. The LED will change to green when the battery is fully charged. It takes
approximately 6-8 hours to completely charge the battery.
1.2 Running the V8 LOWFLOW from the mains
The V8 LOWFLOW can be run directly from the mains but only when used with the
optional 4A charger (Product Code: PT30592LF) NOTE: Battery must be attached.
1.3 Removing the waterproof covers
IMPORTANT: Before switching the unit on, ensure the yellow waterproof covers are
removed from the air outlet and from the bottom of the air sampling head.
34
Easy use telescopic mast
Designed to be replaceable.
Easy to store hose
(patent pending).
Accessible battery compartment
For fast battery replacement.
Fully waterproof casing (to IP65)
For quick, easy cleaning
for decontamination.
Comfortable to carry case
(i.e 2 back to back in one hand).
CE marked.
Fully EMC compliant.
2 years Warranty
Highly visual display
Custom designed, easy
to use OLED control panel.

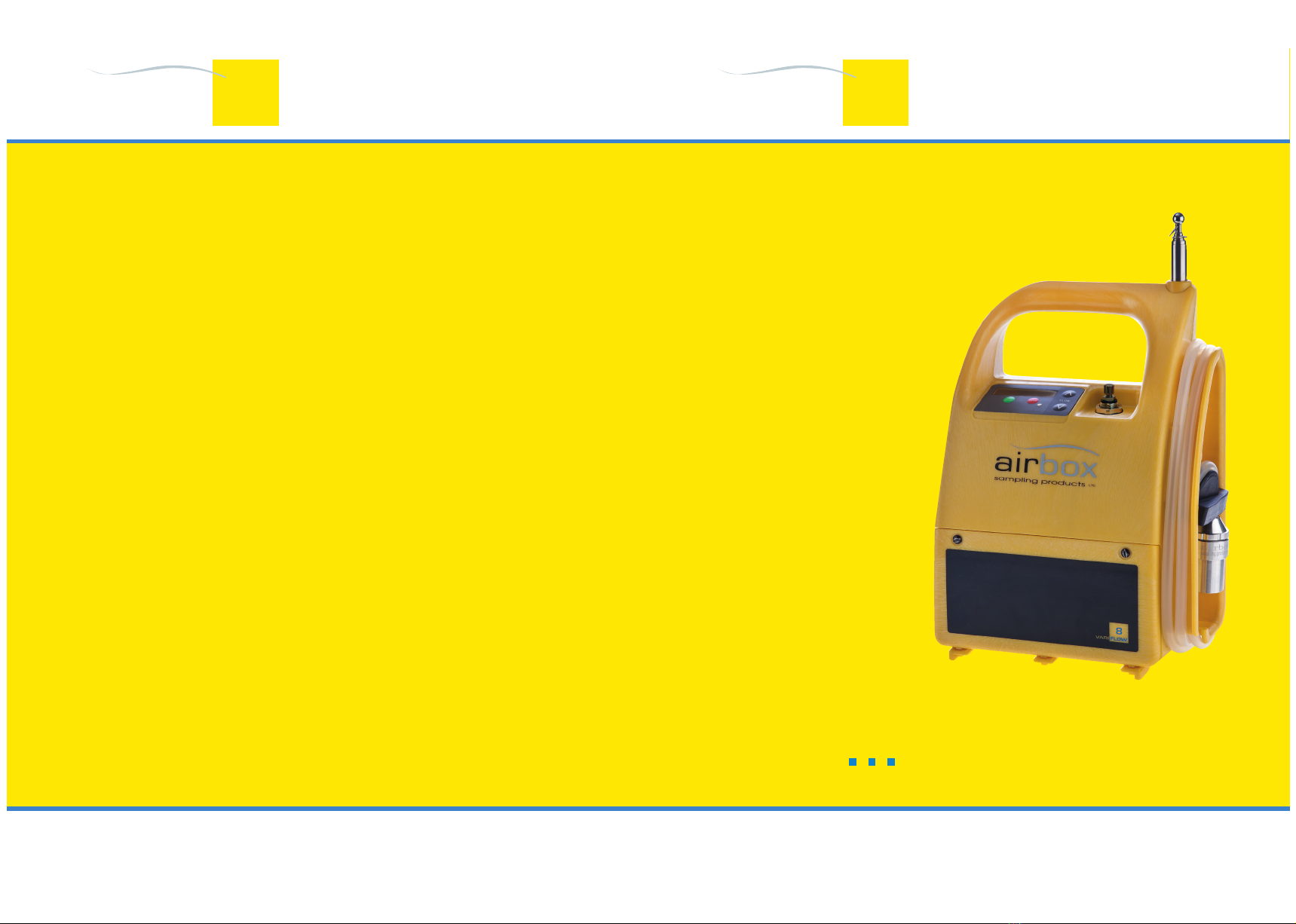

The V8 LOWFLOW
Air outlet cover
Waterproof cap for air
sampling head

5 6
1.7 If Timed Test is selected
Press start/pause the display shows ‘Enter Run Time’
Press arrows to adjust time:-
Press start/pause to move between (Hrs) 00 (Mins) 00 (Sec) 00.
Press start/pause the pump runs and the timer starts. When the time has elapsed
the display shows ‘Test Completed - Check Flow’.
Press stop display shows ‘Test completed - Check Flow’.
Press stop display shows ‘Connect ow meter’ (now reconnect your ow meter to
check the ow rate).
Press start/pause display shows ‘Flow Check’ (any increment changes made when
setting the ow rate (see 1.4) will be shown.
NOTE: Wait 45 seconds for ow rate to stabilise.
Press stop display shows ‘Flow Check Complete’
Press stop to shutdown.
NOTE: If the pump switches itself o during either Free Running or Timed Test (i.e if the battery dies or the sampling
head gets blocked) on restart it will either show:-
1. ‘Test Incomplete, Restart Test?’, in which case just recommence test.
2. ‘Test Completed Check Flow’, in which case continue as instructions above.
3. ‘Low battery’, in which case either replace battery (within 10 minutes of disconnecting old one) or charge pump
directly from the mains for a short time to complete the ow check.
1.4 Switching on and setting the ow rate
Before switching on the V8LOWFLOW connect a ow meter to the air sampling head.
Press start/pause to switch on the unit. The display will show, in this order, the serial
number, the current rmware version and the battery status.
Press start/pause the display shows ‘Flow not set’.
Press either arrow to open and start Calibration Mode and to Set Flow, the pump will
start running. NOTE: Run for 45 seconds to allow to stabilise.
The pump is set at aprox 8 l/min as a default, to ne tune this:-
Ensure mechanical ow rate adjuster is fully open by turning fully anti-clockwise. (see
illustration 1)
Between 5-10 l/min
Press up/down arrows to adjust ow rate. (A single press advances the display by one
increment, holding while pressing advances the display by 10 increments).
Check the ow rate against the ow meter and adjust according to ow requirements.
(Any increment changes will be saved for the post test ow check, see 1.6/1.7).
Once ow is reduced to required ow rate, set the ow rate by pressing stop.
Display shows Flow Set
Between 2-5 l/min
Follow the switch on procedure as above
Press up/down arrows to adjust ow rate down to 5 l/min (see above)
Once 5 l/min has been reached, slowly turn the mechanical ow rate adjuster
clockwise to close needle-valve and reduce ow. (see Illustration 2)
Once ow is reduced to required ow rate, set the ow rate by pressing stop.
Display shows Flow Set
IMPORTANT: If the pump is shut down between setting the ow and starting the test,
ow will have to be reset by repeating the steps above.
1 2
1.6 If Free Running is selected
Press start/pause the pump runs and the timer starts counting, (you can pause
during the test by pressing start/pause)
Press stop when the test is complete and the display shows ‘Test Stop? Are you
sure?’ If you are not sure, press start/pause to continue test, if you are sure:-
Press stop display shows ‘Test completed - Check Flow’.
Press stop display shows ‘Connect ow meter’ (now reconnect your ow meter to
check the ow rate).
Press start/pause, display shows ‘Flow Check’ (any increment changes made when
setting the ow rate (see 1.4) will be shown).
NOTE: Wait 45 seconds for ow rate to stabilise.
Press stop display shows ‘Flow Check Complete’.
Press stop to shutdown.
1.5 Setting test mode
Press start/pause the display will show ‘Set test mode’.
Press arrows to select ‘Free Running’ or ‘Timed test’.
Mechanical ow
rate adjuster

2.1 Replacing the battery
The V8 LOWFLOW pump has been specically designed to make replacing the
battery a quick and easy task. Simply undo the two screws on the front of the
battery housing, pull o the terminal connectors, remove the battery and replace.
NOTE: This process is made easier if pump is lying on it’s back.
IMPORTANT: The terminals on the battery are colour coded red and black to match
the red and black wires of the unit. When tting a new battery make sure that these
match up correctly.
2.2 Replacing the mast
The mast is secured on the unit in a threaded housing, so to replace just unscrew
and remove.
IMPORTANT: Please do not lift the pump by the mast.
2.3 Cleaning the unit
The casing of the V8 LOWFLOW pump is made from a hard wearing ABS structural
foam, making it incredibly rugged and also very easy to clean. Tested to IP65
standards (‘Protected against low pressure water jets from any direction.’) The unit can
be cleaned under a shower hose.
2. Maintenance
7 8
Threaded housing

3. Troubleshooting
3.1 Pump will not start, red LED illuminated
Battery voltage may be too low, check the battery level and recharge the battery.
If the pump still doesn’t start, contact the Airbox service department.
3.2 Pump will not start, no display
Flat battery, recharge or replace the battery.
3.3 Flow rate doesn’t reach required level
Ensure the yellow waterproof safety caps have been removed.
Check tube for kinks and that the sampling head is not blocked.
If ow rate is still insucient, contact the Airbox service department.
3.4 Pump stops while running, red LED illuminated
Check tube for kinks and that the sampling head is not blocked.
If the ow rate is still insucient, contact the Airbox service department.
Check the battery level and recharge if required. Replace the battery if necessary.
3.5 Pump fails to run for specied duration
Check the battery level and recharge if required. Replace the battery if necessary.
2.4 Servicing & Warranty
The V8 LOWFLOW pump is covered by our exclusive warranty and in the event
that the unit fails we will undertake the repair free of charge for up to 2 years from
the date of purchase. The warranty covers the costs of materials and labour (with
the shipping costs to be covered by the customer) and is valid under the following
conditions:-
a) Please complete and return the warranty registration card.
b) The defect must not have been caused by improper handling or misuse.
c) Return the unit to us in the decontamination bag provided by Airbox. We will not
assume responsibility for transport damage under any circumstances.
d) A short description of the defect must be included with the returned unit.
A full warranty statement is available on our website or from our customer service team.
9 10
4. Parts
Spare parts for the V8 LOWFLOW pumps can be ordered from our online shop at
www.airboxsponline.com using the following part numbers:-
Product Code Name Description
PO1866 V8 LOWFLOW V8 LOWFLOW Air Sampling Pump (with
UK/EU charger)
PO1866 /KIT V8 LOWFLOW
V8 LOWFLOW Air Sampling Pump (with
UK/EU charger, sampling head & spare
mast)
PO1617 Sampling head Air sampling head
PO2934347LF 1Ah VARIFLOW
charger
Battery charger VARIFlOW 12V 1A SLA
(standard supply)
PT30592LF 4A VARIFLOW
charger Battery charger 4A Lead Acid
PT27259 Lead acid battery-
VARIFLOW
Battery 12V NP sealed- lead acid 8.5Ah,
(min) Rechargeable.
PT29482LF VARIFLOW mast Telescopic mast for VARIFLOW -2m
PT28297LFKIT Cap & Plug Kit (x10) Sampling head cap & plug kit -
(pack of 10)
PT28299LF Filter support pad Filter support pad 25mm porous plastic
pack (10)
PT28301LF Sampling head
O ring 25mm/OD 1.9mm/CS Virgin PTE (pack 10)
