Airbrush Heaven AS186 User manual

USER GUIDE
Compressor
MODEL NUMBER: AS186
1
YEAR
WARRANTY
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

Contents
1. Welcome Section
2. General Information & Safety Instructions
3. Contents & Features
4. Parts & Assembly
5. General Maintenance
6. Using the Airbrush
7. Specications
7. Trouble Shooting
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

Welcome
Congratulations!
You have made an excellent choice with the purchase of this quality
AIRBRUSH HEAVEN product.
By doing so you now have the assurance and peace of mind which
comes from purchasing a product that has been manufactured to
the highest standards of performance and safety, supported by the
high quality standards of Airbrush Heaven.
We want you to be completely satised with your purchase so this
AIRBRUSH HEAVEN product is backed by a comprehensive
manufacturer’s 1 year warranty and outstanding after sales service
through our helpline.
We hope you enjoy using this product for many years to come.
If you require technical support or in the unlikely event that your
purchase is faulty, please telephone our helpline for immediate
assistance. Faulty product claims made within the 1 year warranty
period will be repaired or replaced free of charge provided that you
have a satisfactory proof of purchase (keep your receipt/invoice
safe). This does not affect your statutory rights. However be aware
that the warranty will become null and void if the product is found
to have been deliberately damaged, misused and/or disassembled
other than directed. See warranty certicate for full details at the back
of this guide.
1
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

General Information &
Safety Instructions
• Industrial applications must follow OSHA requirements.
• Maintain a safe working environment. Keep the work area well lit
and make sure there is adequate work space.
• Use the product only in a well ventilated area with an ambient
temperature of between 5oC & 40oC
• Check for damaged parts including hoses before using this
product. Carefully check that it will operate properly and perform
its intended function. Replace or repair damaged or worn parts
immediately.
• Never leave the compressor exposed to dust, acids, vapours,
explosive or ammable gasses.
• This compressor is not designed for outdoor use.
• Adult supervision is advised when children are using this product.
• Do not tamper with any part of the compressor. Contact an
authorised service centre for all repairs.
WARNING! The warnings, precautions, and instructions discussed
in this manual cannot cover all possible conditions and situations
that may occur. The operator must understand that common sense
and caution are factors, which cannot be built into this product.
2
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

Contents
1 x Single cylinder piston compressor
1 x 3Ltr Air tank
1 x Pressure regulator with gauge and water release valve
1 x 3m Air hose
1 x 3 way adaptor
1 x Compressor mounted twin airbrush holder
1 x 1/8th to 5mm Hose adaptor
1 x 1/4” to 1/8” Hose Adaptor
Features
• Auto pressure restart (43psi/3bar)
• Auto pressure limit stop (57psi/4bar)
• Oil free piston
• 3Ltr Air tank
• Low noise (47db)
• Thermally protected
• Adjustable pressure
• 3 pin UK plug
• Carry handle
Contents & Features
3
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

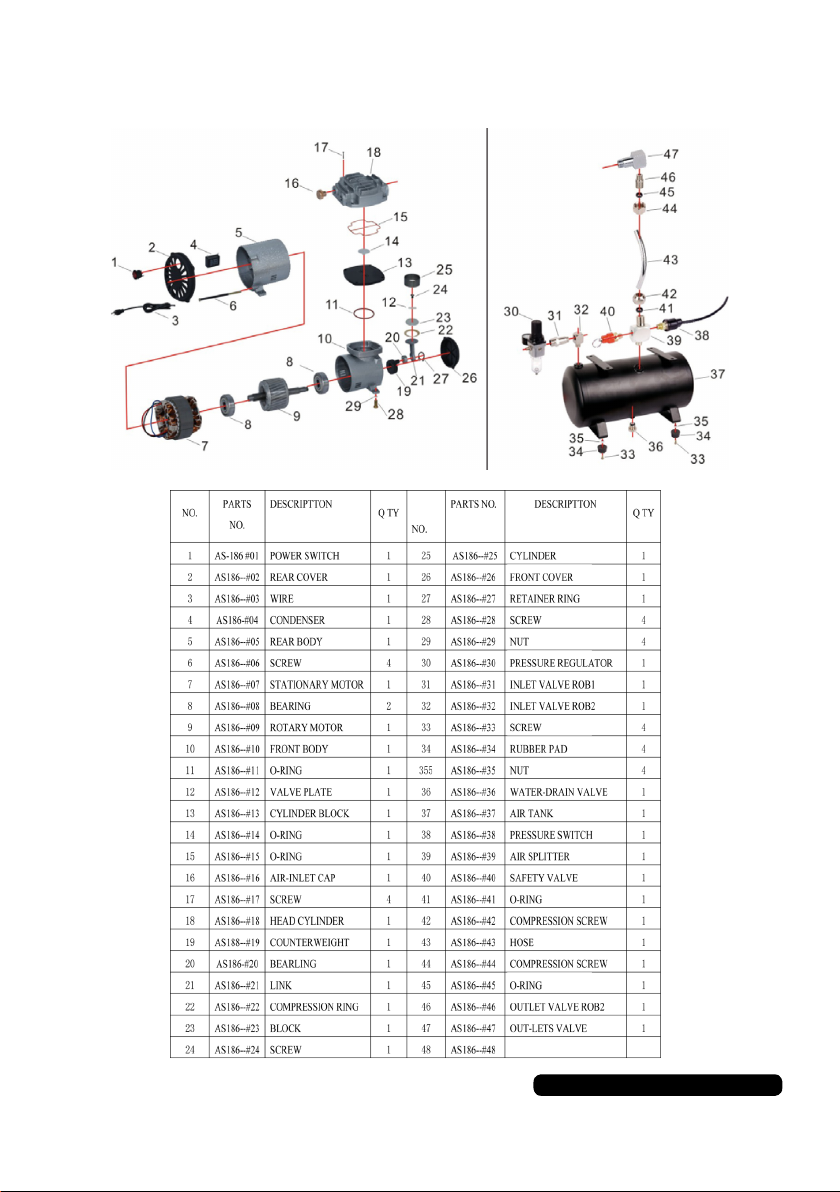

Parts & Assembly
4
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

5
Attaching the 3 Way Adaptor
• Place the female end of the 3 way adaptor to the 1/8” connector
on the regulator valve and turn till tight by hand.
Please Note:
To attach additional hoses please remove the end caps. Using more than one
airbrush simultaneously will lower the output pressure from the select pressure.
Attaching the Twin Airbrush Holder
• Unscrew the nut off the base of the regulator valve.
• Slide the twin airbrush holder over the regulator valve and place
into selected position.
• replace a tighten the nut till nger tight against the holder.
Setup
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

6
Using the Compressor with an Airbrush
• Connect the compressor to a mains outlet.
• Check the 3 way adaptor outlets are screwed on air tight.
• Attach the air hose to the compressor.
• Attach the airbrush to the other end of the air hose.
• Turn on the compressor.
• Set air pressure to 2-40 PSI on the compressor.
• Press down on the trigger of the airbrush and readjust the
regulator valve to the required output pressure level.
Please Note:
Always check your equipment for damage and leaks before use.
Using the Compressor
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]
Setting up & using the Regulator
The gauge shows both PSI (Pounds per Square Inch) and BAR
(Atmospheric Presure at Sea Level) measurments.
These are indicated with 2 rings of measurement.
• BAR - Red
• PSI - Black
The gauge will allow you to setup the pressure accurately.
Pull the regulator up and turn valve clockwise to increase pressure
and counter clockwise to decrease pressure.
Reading the Gauge

• Single cylinder piston compressor
• 3Ltr Air Tank
• 1/6HP
• 1450/1700 rpm
• 20-23 L/Min Airow
• 0-57psi maximum pressure
• 5.2kg total weight
• 275mm X 140mm X 220mm overall dimensions
Specifications
7
Trouble Shooting
PROBLEM
No Air
Compressor always on
Air pressure too low or
high
CAUSE
Not connected to mains
Not switched on
Regulator set incorrectly
Air leaking from 3 way
adaptor
Water trap valve open
regulator set incorrectly
SOLUTION
Check mains is
connected
Check switch
Adjust regulator valve to
allow airow
Check the unused
connector caps are air
tight
Check air hose
connectons
Close water trap valve
adjust regulator valve to
correct pressure
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

Warranty
This product is guaranteed to be free from defects in workmanship and parts for a period of 12 months
from the date of purchase. Defects that occur within this warranty period, under normal use and care,
will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and
labour. The benets conferred by this warranty are in addition to all rights and remedies in respect of
the product the consumer has under existing U.K. laws.
Proof of Purchase
This warranty is valid for the original purchase and is not transferable.
Please keep your purchase receipt as proof of purchase and as proof of the date of when the purchase
was made. The receipt/invoice must be presented with the warranty card when making a claim under
this warranty.
Service during the Warranty Period
Please ensure the product is properly packaged so as to ensure that no damage occurs in transit. Also
make sure that you have included a detailed explanation of the problem.
Extent of the Warranty
This warranty is limited to defects in workmanship or parts. All defective products or parts will be
repaired or replaced. This warranty does not extend to accessories.
Normal Wear and Tear
This warranty does not cover normal wear and tear of the product or parts.
Exclusions
This warranty does not cover the following:
• Any defect caused by accident, misuse, abuse, improper installation or operation, lack of reasonable
care, unauthorised modication, loss of parts, tampering or attempted repair by a person not
authorised by the distributor.
• Any product that has been damaged by lightning strike either directly or indirectly, or on a main’s
or vehicle outlet power surge or liquid ingress.
• Any product that has not been installed, operated or maintained in accordance with the
manufacturer’s operating instructions provided with the product.
• Any product that has been used for purposes other than domestic use.
• The product if it is located outside of the U.K., N. Ireland or Republic of Ireland
• Any damage caused by improper power input or improper cable connection.
Warranty Certificate
1
YEAR
WARRANTY
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]

Warranty Card
Compressor
Please keep your purchase receipt/invoice together with your warranty card
Fault Description:
Name:
Address:
Date of purchase:
Location of purchase:
We recommend that you attach a photocopy of your receipt/invoice, showing the date of purchase, to
this warranty card and keep it for your reference. In the event of a product fault, please call the After
Sales Support team. Please ensure that you have the product details (as shown on this card) to hand
so that the support team are able to respond as quickly and efciently as possible.
1
YEAR
WARRANTY
Model Number: AS186
After Sales Support
UK/N.IRELAND HELPLINE NO:
WEBSITE:
EMAIL:
01270 508530
www.airbrushheaven.co.uk
[email protected]
Service Helpline
QUESH LTD,
B7, FIRST BUSINESS PARK
FIRST AVENUE, CREWE, CHESHIRE.
CW1 6BG

For further help, advice and video demonstrations please visit:
www.airbrushheaven.co.uk
