Aircat 6320 User manual

MODEL: 6320
SPOT SANDER

SPECIFICATIONS
Important Warnings - Sanders & Polishers
1. Eye protection, safety gloves and safety aprons must always we worn when operating a sander or
polisher.
2. Never adjust the sander or polisher or change the backing pad, sanding disc, sanding belt or
polishing bonnet unless the air supply and air hose is disconnected from the tool
3. Only use backing pads and polishing backing pads that have a rated speed then same as the sander
or polisher or higher.
4. Never attempt to modify or adapt a sander or polisher for use with a grinding wheel or cut-off wheel
or wire brush.
5. Only personnel trained in the correct methods to change pads, sanding discs, sanding belts and
polishing bonnets should conduct these operations.
Model No. Free Speed
(RPM)
Pad Size
(in.)
Spindle Thread
(in.)
Orbit
(in.)
Weight
(lbs.)
Length
(in)
Air Cons.
(CFM)
Rec. Hose
Size
(in.)
Air Inlet
(in.)
6320 13,000 1 x 2 1/4 1/8 1.1 6.1 2.5 3/8 1/4 NPT
Tools of this class operate on a wide range of air pressure. It is recommended that air pressure of these tools measures 90 PSI at the tool while running free. Higher
pressure and unclean air will shorten the tool’s life because of faster wear and may create a hazardous condition and void the warranty. Water in the air line will
cause damage to the tool. Drain the air tank daily. Clean the air inlet lter screen on at least a weekly schedule. The recommended hookup procedure can be viewed
in the illustration below. The air inlet, used for connecting air supply, has standard 1/4”NPT American Thread. Line pressure should be increased to compensate for
unusually long air hoses (over 25 feet). Minimum hose diameter should be 3/8”I.D. and ttings should have the same inside dimensions.
Air Supply

MODEL: 6320
SPOT SANDER

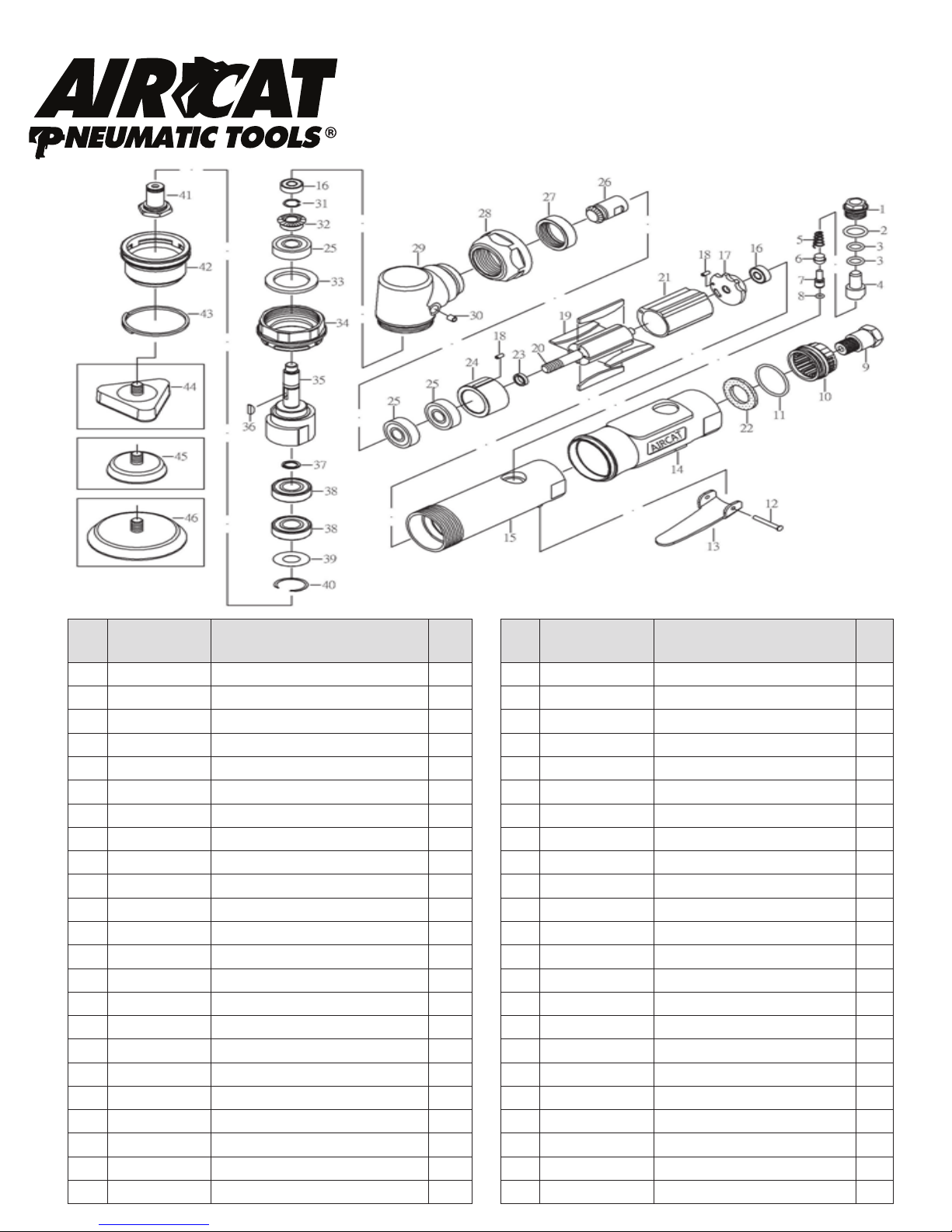

Exploded View & Parts List
Ref
#
Part Number Description Qty Ref
#
Part Number Description Qty.
01 912001 SCREW 1 24 9ST12023 FRONT PLATE 1
02 970002-1 O-RING 1 25 921024 BEARING 3
03 970003-1 O-RING 2 26 9ST13126 BEVEL GEAR (10T) 1
04 912004 AIR REGULATOR 1 27 921026 NUT 1
05 950332 SPRING 1 28 9ST12527 CLAMP NUT 1
06 970429 VALVE STEM BUSHING 1 29 9ST13129 ANGLE HOUSING 1
07 912007 VALVE STEM 1 30 921029 OIL CUP 1
08 9OB-04 O-RING 1 31 9ST12535 SNAP RING 1
09 970009-1 AIR INLET 1 32 9ST13132 BEVEL GEAR 1
10 912010 EXHAUST SLEEVE 1 33 9ST13133 WASHER 1
11 90444 O-RING 1 34 9ST13134 CLAMP NUT 1
12 970432BK PIN 1 35 9ST13135 MOTOR SHAFT BALANCER 1
13 912013.2 LEVER (BLACK) 1 36 9ST21033 KEY 1
14 912014-35 PROTECTING RUBBER (AIRCAT) 1 37 92HG-16A SNAP RING 1
15 9ST12015 HOUSING 1 38 9ST530RXL30 BEARING 2
16 920312 BEARING 2 39 9ST13139 WASHER 1
17 9ST12017A REAR PLATE 1 40 9ST13140 SNAP RING 1
18 912018 PIN 2 41 9ST13141 SHAFT 1
19 912019 ROTOR BLADE 4 42 9ST13142 SHROUD 1
20 912020 ROTOR 1 43 9ST13143 SKIRT BAND 1
21 9ST12021 CYLINDER 1 44 13144 TRIANGLE MINI VELCRO PAD 1
22 912030 CONE MUFFLER 1 45 13145 1.2” VELCRO PAD 1
23 920022-1 BEARING SPACER 1 46 13146 2” VELCRO PAD 1

SERVICE CENTER LISTINGS ENCLOSED
