Aircat 6370 User manual

MODEL: 6370
7”Vertical Polisher

SPECIFICATIONS
Tools of this class operate on a wide range of air pressure. It is recommended that air pressure of these tools measures 90 PSI at the tool while running free. Higher
pressure and unclean air will shorten the tool’s life because of faster wear and may create a hazardous condition and void the warranty. Water in the air line will
cause damage to the tool. Drain the air tank daily. Clean the air inlet lter screen on at least a weekly schedule. The recommended hookup procedure can be viewed
in the illustration below. The air inlet, used for connecting air supply, has standard 1/4”NPT American Thread. Line pressure should be increased to compensate for
unusually long air hoses (over 25 feet). Minimum hose diameter should be 3/8”I.D. and ttings should have the same inside dimensions.
Air Supply
Important Warnings - Sanders & Polishers
1. Eye protection, safety gloves and safety aprons must always we worn when operating a sander or
polisher.
2. Never adjust the sander or polisher or change the backing pad, sanding disc, sanding belt or
polishing bonnet unless the air supply and air hose is disconnected from the tool
3. Only use backing pads and polishing backing pads that have a rated speed then same as the sander
or polisher or higher.
4. Never attempt to modify or adapt a sander or polisher for use with a grinding wheel or cut-off wheel
or wire brush.
5. Only personnel trained in the correct methods to change pads, sanding discs, sanding belts and
polishing bonnets should conduct these operations.

MODEL: 6370
7”Vertical Polisher

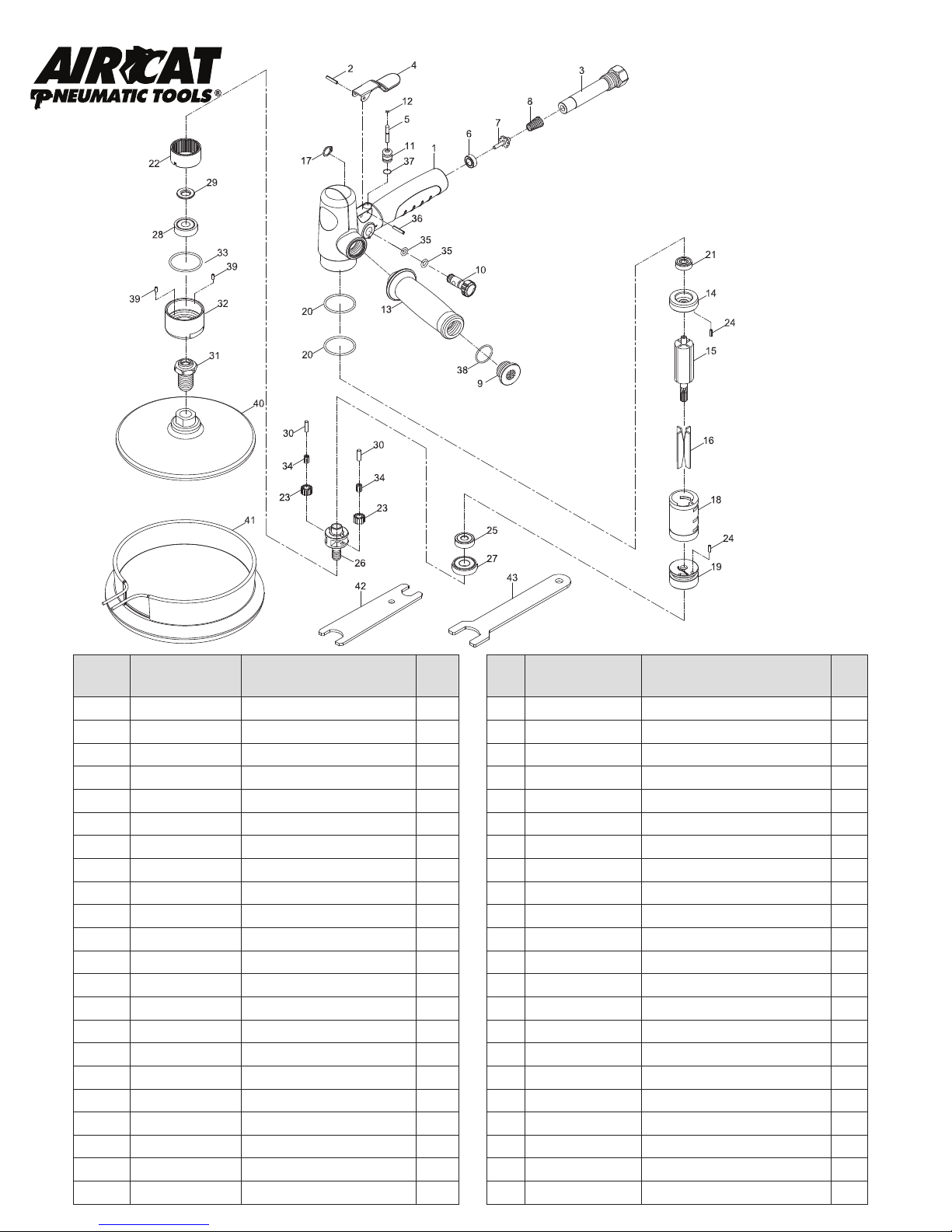

Exploded View & Parts List
Ref
#
Part Number Description Qty Ref
#
Part Number Description Qty.
1 96N-663601 Motor Housing 1 23 96N-663623 Idler Gear 2
2 940317 Spring Pin 1 24 961048 Spring Pin 2
3 96N-663603 Air Inlet 1 25 9030120 Ball Bearing 1
4 96N-663604-28 Throttle Lever 1 26 96N-663626 Idler Planet Cage 1
5 96N-663605 Valve Shaft 1 27 9060313 Ball Bearing 1
6 975-725145 Rubber Spacer 1 28 9051220 Ball Bearing 1
7 975-725146 Valve Stem 1 29 96N-663629 Spacer 1
8 973108 Valve Spring 1 30 930124 Pin 2
9 96N-663609 Silencer 1 31 96P-663631 Spindle 1
10 96N-663610 Air Regulator Knob 1 32 96N-663632 Front Cap 1
11 96N-663611 Bushing 1 33 96N-663633 Decoration Ring 1
12 9OR00200100 O-Ring 1 34 9070428 Needle Bearing 2
13 96N-663643 Side Handle 1 35 9OR00600200 O-Ring 2
14 96N-663614 Rear End Plate 1 36 9SP02001200 Spirng Pin 1
15 96N-663615 Rotor 1 37 972804 O-Ring 1
16 96N-663616 Rotor Blade 4 38 9795820 O-Ring 1
17 960319 Retaining Ring 1 39 972017 Spring Pin 2
18 96N-663618 Cylinder 1 40 96P-663639 Pad 6" 1
19 96N-663619 Front End Plate 1 41 96N-666131-6 Bonnet 1
20 9OR03203108 O-Ring 2 42 951228 Spanner 1
21 9030113 Ball Bearing 1 43 9610145 Spanner 1
22 96N-663622 Internal Gear 1
