Airel Quetin K2 Instruction manual

Manual for Use

2
IMP-BU-500_ind L_EN
04/12/2019

3
1. INTRODUCTION 7
1.1 General Information ...............................................................................7
1.1.1 Purpose of the manual ...................................................................... 7
1.1.2 À About K2 equipment ...................................................................... 7
1.2 Classification/Regulations ......................................................................7
1.3 Safety instructions ................................................................................8
1.4 Guarantee.............................................................................................8
1.5 IGN®-Calbénium® protocol......................................................................9
1.6 Logotypes and icons...............................................................................9
2. DESCRIPTION 10
2.1 General description ..............................................................................10
2.2 Detailed description .............................................................................11
2.2.1 K2 unit and chair ........................................................................... 11
2.2.2 Instrument console ......................................................................... 11
Instruments on whip arms 12
Instruments on hanging cords 12
Calbépuls® (option) 13
2.2.3 Assistant station............................................................................ 13

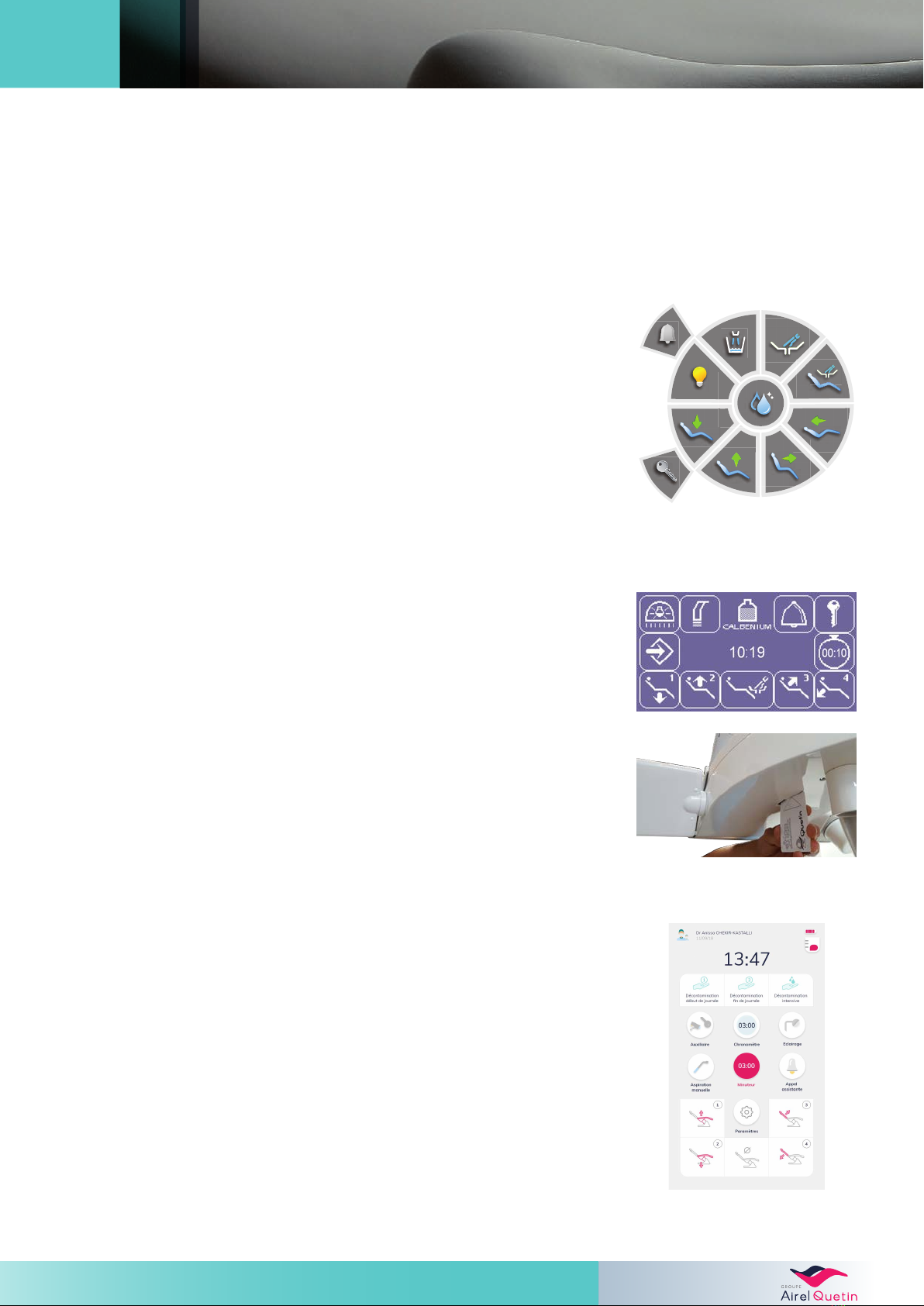

2.2.4 Keyboard or control screen.............................................................. 14
Keyboard with keys 14
NEO touchscreen - Smartcard 14
EVO.2 touch screen - USB stick 14
2.2.5 Foot pedals .................................................................................... 15
2.3 IGN®-CALBENIUM® system..................................................................16
2.4 Optional equipment ..............................................................................16
2.4.1 Basin............................................................................................. 16
2.4.2 Surgical lighting.............................................................................. 17
2.4.3 Amalgam separator ........................................................................ 17
2.4.4 Video surveillance camera................................................................ 17
3. USE 18
3.1 Power on/off.......................................................................................18
3.2 Chair safety ........................................................................................18
3.3 Adjusting the headrest .........................................................................19
3.3.1 Mechanical locking.......................................................................... 19
SUMMARY

4
3.3.2 Pneumatic assistance...................................................................... 19
3.4 Footrest can be disengaged (option on K2 one) .......................................19
3.5 Foot pedals .........................................................................................20
3.5.1 Progressive pedal ........................................................................... 20
3.5.2 Specific characteristics of the progressive wireless pedal .................. 21
3.5.3 K2 one pneumatic pedal .................................................................. 22
3.5.4 Controls under the K2 one shelf ...................................................... 22
3.6 Assistant keyboard controls ................................................................23
3.7 K2 one control keyboard.......................................................................25
3.7.1 Using the keyboard ......................................................................... 25
3.7.2 Settings......................................................................................... 26
3.8 "NEO" monochrome touchscreen controls ..............................................27
3.8.1 Inserting the user card.................................................................... 27
3.8.2 Creating a user card ....................................................................... 27
3.8.3 Using icons on NEO screen .............................................................. 28
3.8.4 Functions on the home screen.......................................................... 28
3.8.5 Settings menu ................................................................................ 30
Navigation in the settings menu 30
Clock and timer 30
Keyboard beep 30
Surgical lighting 31
Chair and basin positions 31
Glass-filling and bowl-rinsing spray 32
Calbépuls 32
3.8.6 Turbine menu.................................................................................. 33
Selecting the turbine variation mode 34
Choice with or without alternospray 34
3.8.7 Motor menu ................................................................................... 35
Motor direction reversal selection using the pedal 36
3.8.8 Plaque remover menu...................................................................... 36
Plaque remover variation selection 37
3.8.9 MX micromotor menu...................................................................... 37
Motor torque as a % 38
Auto-forward time setting 39
3.9 “Evo.2” on-screen controls....................................................................39
3.9.1 User Authentication ........................................................................ 39
3.9.2 User management........................................................................... 40
Creating a user profile 40
Exporting a user profile 41

5
Importing a user profile 42
Changing the Password/Changing the language 43
Deleting a user 43
3.9.3 Functions on the home screen.......................................................... 44
3.9.4 Settings menu ................................................................................ 46
Navigation in the settings menu 46
Chair and basin positions 47
Clock and timer 47
Surgical lighting 48
Glass-filling and bowl rinsing spray 48
Calbépuls 49
Intercom picture 49
Electronic chart diagnostics 49
3.9.5 Work with user programmes............................................................ 50
Turbine menu 50
Selecting the turbine variation mode 51
Choice with or without alternospray 52
Selecting spray on chip 52
3.9.6 Plaque remover menu ..................................................................... 53
Choice with or without alternospray 54
Scaler variation selection 55
3.9.7 MX micromotor menu...................................................................... 55
Speed multiplier coefficient programming 57
Motor direction reversal selection using your foot 58
Auto-forward time setting 58
4. HYGIENE AND MAINTENANCE 59
4.1 Introduction ........................................................................................59
4.2 CALBENIUM® .....................................................................................59
4.2.1 Storage ......................................................................................... 59
4.2.2 Precautions for use......................................................................... 59
4.2.3 CALBENIUM® refill ......................................................................... 60
4.3 Maintenance guide ...............................................................................61
4.4 Maintenance procedures ......................................................................62
4.4.1 Purge the instrument cords............................................................. 62
4.4.2 Cleaning the bowl of the basin.......................................................... 62
4.4.3 Using Calbépuls .............................................................................. 62
4.4.4 Using Aspisept ............................................................................... 63
4.4.5 Cleaning the suction filter................................................................ 63

6
4.4.6 Cleaning the amalgam separator filter .............................................. 64
4.4.7 Replacement of the amalgam separator cassette............................... 65
4.4.8 Disinfection of the suction cords ...................................................... 66
Daily disinfection - 1 L 66
Weekly disinfection - 2 L 68
4.4.9 Maintenance of external surfaces..................................................... 69
4.4.10 Fitting the cords onto the whip arms ................................................ 69
4.4.11 Decontamination of instrument cords (beginning/end of the day)......... 70
4.4.12 Intensive disinfection of the instrument cords.................................... 71
On K2 NEO 71
On K2 EVO.2 71
4.4.13 Cleaning the instrument holders and handles..................................... 72
4.4.14 Replacement of the filter cartridge................................................... 72
4.4.15 Checking air and water pressures - Water filter................................. 73
4.4.16 Cleaning and lubrication of micromotors, turbines, handheld parts ...... 73
5. PREVENTIVE MAINTENANCE 74
6. SIMPLE FAULTS AND TROUBLESHOOTING 74
6.1 FAQ - Symptoms and Remedies .............................................................74
6.2 Foaming of sprays................................................................................76
6.3 Replacing a fuse ..................................................................................76
7. TECHNICAL CHARACTERISTICS 78
7.1 Dimensions of the K2 chair ...................................................................78
7.2 Dimensions of the K2 SIDE chair ...........................................................79
7.3 Technical characteristics ......................................................................80
7.4 Wireless pedal.....................................................................................80
8. RECYCLING 81
9. LIST OF COMPATIBLE INSTRUMENTS 82
10. WIRING DIAGRAMS 83

7
1. INTRODUCTION
1.1 General Information
1.1.1 Purpose of the manual
This manual describes the use of the AIREL-QUETIN K2 dentistry equipment in its three versions:
K2 NEO, K2 EVO.2 and K2 one.
• Read this manual carefully before using the K2 equipment. It has been written to
allow you to use your equipment in the best conditions.
• The numerical values given in this manual and displayed as an example should not
be considered as recommended values, except when specified in the text.
• The figures are intended to illustrate the different functions of the K2. They are not
binding. They do not claim to represent all the equipment variants.
1.1.2 À About K2 equipment
The K2 equipment is a dental chair allowing the operator to detect and treat dental problems
and/or carry out preventive actions.
It must be used by dental professionals. The operator (practitioner) must have a degree in dental
surgery.
Patient population: from 4 years old.
1.2 Classification/Regulations
The AIREL-QUETIN K2 dental equipment complies with the following standards:
EEC Directive 93/42, Class IIa medical device
(2195 - EC marking)
Standard IEC 60950-1 / 60417-
5019 Class I Electrical Protection. Functional insulation
with an earth terminal.
Standard IEC 60601-1 Type B
Standard IEC 60529 Protection against water spray IPX1
Standard EN 60601-1-2 Does not emit electromagnetic interference and
has adequate immunity
Standard IEC 80601-2-60 Special requirements for basic safety and
essential performance of dental equipment

8
1.3 Safety instructions
To avoid all risks of electrical shock, it is imperative that the device is connected to an electrical
supply network equipped with an earth.
Any electrical work on the device must be carried out by our after-sales department or by
qualified personnel.
AIREL-QUETIN provides this staff with any technical information needed for troubleshooting.
IMPORTANT RECOMMENDATIONS
- Do not use in the presence of an inflammable anaesthetic mixture.
- The connection of the fluids must comply with the regulations in force.
ISO 7494-2 Standard for dentistry - Dental units - Part 2: Water and air supply.
- Intermittent service.
- Turn off the PE8 unit every night after use.
- Applied parts: Saddlery, casing (protective cover)
- This device is intended for use by professionals only.
- Any modification of the EM device is prohibited.
- According to the requirements of standard NF EN 60601-1, the device may cause radio
interference and / or disturb the operation of a device located nearby. The use of accessories,
transducers and cables other than those specified, with the exception of equipment sold by the
manufacturer as a replacement for internal components, may result in increased emissions or
decreased immunity. of the device.
- The device must not be used alongside other devices or stacked with them.
If this condition can not be met, test the correct operation in this configuration.
- Portable and mobile RF communications devices must not be used within 30cm of the device.
Otherwise, degradation of the performance of the equipment could be felt.
WARNING ON NOISEY FROM SUCTION TUBE
The existing magnet inside of the suction flexible may interfere with pacemakers and ICD.
Therefore the practitioner shall ensure that the suction tube remains at opposite side of the
area of the device to avoid any risk during curing.
Down below are all the precautions of use :
• Ensure that the magnetic bit of the suction tube remains away from the pacemaker
• In case of audible signal coming from the pacemaker, please move promptly the
magnetic bit of the suction tube until the audible signal stops. The potential risk is so avoided.
1.4 Guarantee
All our devices are manufactured with the utmost care and are tested according to the ISO
7494-1 standard before being delivered to our customers.
Any new K2 appliance is guaranteed against any defective parts for 2 years from the day of
delivery.
The relative information and specific to each device are listed on the serial label next to the
ignition button.
The guarantee includes the exchange or repair of the defective part, according to the
manufacturer's instructions.
The instruments (turbine, micromotor, plaque remover, scalpel, curing light, etc...) are subject
to special guarantee conditions (guarantee period and conditions of use) which are those of the
respective manufacturers.
Operation is only guaranteed for instruments provided by AIREL-QUETIN or for compatible
instruments.

9
The guarantee does not extend to light bulbs, glassware, coals, heat cartridges, capacitors,
fuses, customer-supplied parts, or any part subject to normal wear during the guarantee period.
The guarantee is withdrawn and AIREL-QUETIN is released from any responsibility in the
following cases:
• When modifications have been made to the device, outside the specifications provided by the
manufacturer, or when original parts have been replaced by parts from other sources.
• When the damage is due to faulty maintenance, misuse, fault of the operator or agents not
authorised by AIREL-QUETIN.
- Under no circumstances can the guarantee defined above cover any damage caused to
people and property due to the operation of the device.
- In case of dispute, by the express agreement of the parties, jurisdiction is given to the
Commercial Court of Créteil.
1.5 IGN®-Calbénium® protocol
The K2 dental unit incorporates an IGN®hygiene system for spray water treatment according to
EEC directive 93/42 - Class IIb medical equipment.
An IGN®protocol ensuring the traceability and the conformity of operation according to standard
NF EN 1717 has been implemented in order to reach the "Zero permanent germ" objective.
The operations of this protocol are detailed in chap 4, page 59 with a maintenance guide.
IGN® and CALBENIUM® are a fundamental pairing for the hygiene of your K2 unit:
- No product other than CALBENIUM® should be used in the IGN® system. A study has been
carried out on CALBENIUM® to ensure that it is compatible with all dental units and does not
cause any damage to internal components.
- The use of inappropriate products may result in oxidation of the components and
devulcanization of the conducting membranes. If such defects are noted, AIREL-QUETIN
reserves the right to remove the registration of use related to the IGN® protocol.
1.6 Logotypes and icons
Instruction manual
Dangerous voltage
Protective earthing
Type B
Warning
Manufacturing date
Manufacturer

10
2. DESCRIPTION
2.1 General description
1
3
5
4
2
7
6
1K2 unit
2Foot pedal
3Patient chair
4Instrument console
5Equipment arm
6Basin
7Assistant station
This generic view is not representative of the diversity of equipment variants.

11
2.2 Detailed description

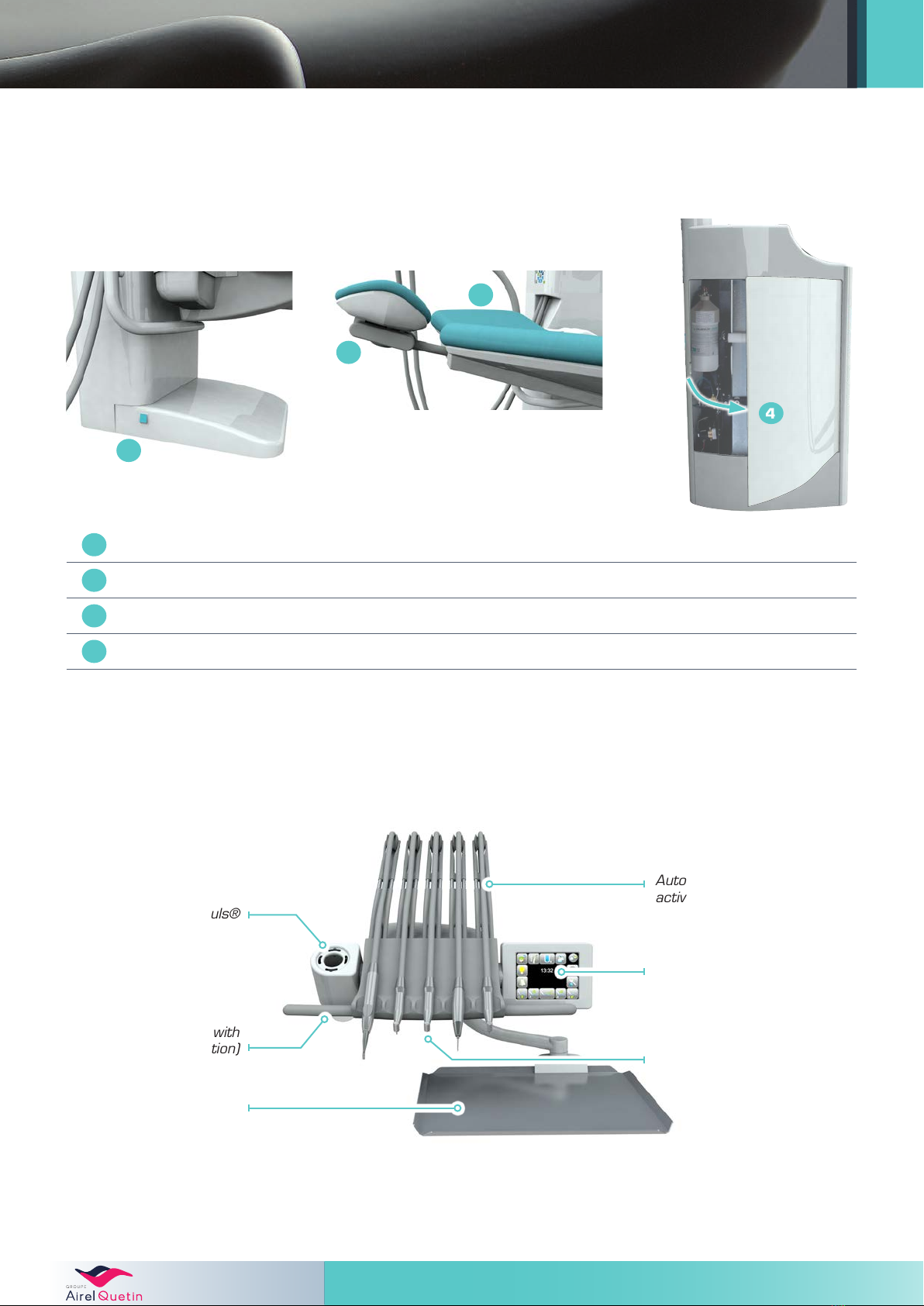

2.2.1 K2 unit and chair
2
1
3
4
1On-off button
2Headrest with mechanical locking or pneumatic assistance
3Imitation leather upholstery with memory foam
4Access door to the unit
2.2.2 Instrument console
The K2 console is available in 2 versions, with instruments the right way up or upside down
depending on the practitioner's preference.
Automatically-
activated cords
Instruments
Calbépuls®
Control keyboard
(3 models)
Sensitive handle with
rotation release (option)
Transthoracic
cervical tablet
The handles are removable and can be autoclaved.
The Calbépuls®and the screen can be installed on the left or the right, when the order is placed.

12
2.2.2.1 Instruments on whip arms
Instruments upside down.
Ensure that no instruments are resting on other ones.
(up to 5 instruments).
Clearance and articulation of whip arms:
Maximum flexibility, combined with a long cord length.
2.2.2.2 Instruments on hanging cords
Instruments pointing up.
The hanging cords have spring-loaded retraction.
Upgradable console:
Option to add other instrument modules (up to 5 instruments).
On the K2 SIDE model, the underside of the shelf is equipped with
silicone cable clips. This system makes it possible to lower the
height of the hanging cords.
Removable guide:
The instruments can be used with or without a guide, by simple
unclipping.

13
Variable inclination of instruments:
Grasp a block to position it, range of around 45°.
2.2.2.3 Calbépuls® (option)
Calbépuls® is used for the external decontamination of instruments
using a pressurised air jet and CALBENIUM® solution
It is used to clean instruments during a consultation, as well as
after each patient for a pre-cleaning of the instruments before they
are sterilised.
The decontamination and drying times are adjustable.
For more details, see the "Settings" menus of the EVO and NEO
keyboards.
2.2.3 Assistant station
Automatically selected
suction cannulas
Aspisept® (option) Touch control keypad
Corrugated cords
Flexible arm
The ergonomics of the assistant station with its flexible suction arm enable 2-handed or 4-handed
treatments.
Aspisept® is a system for the internal decontamination of suction cords using Calbénium®
solution. For its use, refer to § 4.4.4, page 63.

14
2.2.4 Keyboard or control screen
For the K2 equipment there are 3 models of keyboard or control screen: a touch keypad and two
models of touchscreen.
These 3 models are waterproof, which gives them a long life.
2.2.4.1 Keyboard with keys
A polycarbonate keyboard equips the assistant station.
This keyboard is used to control the positions of the chair, the basin,
the glass-filling spray, and one auxiliary function.
Detailed explanations of the commands are on § 3.6, page 23.
2.2.4.2 NEO touchscreen - Smartcard
The image opposite corresponds to the NEO home screen.
It is displayed when no instrument is selected.
As soon as an instrument is selected, the screen changes
automatically and displays the instrument specific commands.
The different menus are detailed in § 3.8, page 27.
This screen requires the insertion of a smart card to operate.
The K2 comes with two "user" cards including default settings and
factory settings.
2.2.4.3 EVO.2 touch screen - USB stick
The image opposite corresponds to the EVO home screen.
It is displayed when no instrument is selected.
As soon as an instrument is selected, the screen changes
automatically and displays the instrument specific commands.
The different menus are detailed in § 3.9, page 39.

15
The K2 EVO.2 is delivered with factory settings stored in the unit
processor.
A USB stick is also supplied.
This allows you to save your customised settings so that you can
switch from one K2 device to another and take your working
parameters with you (see § 3.9.2.3, page 42).

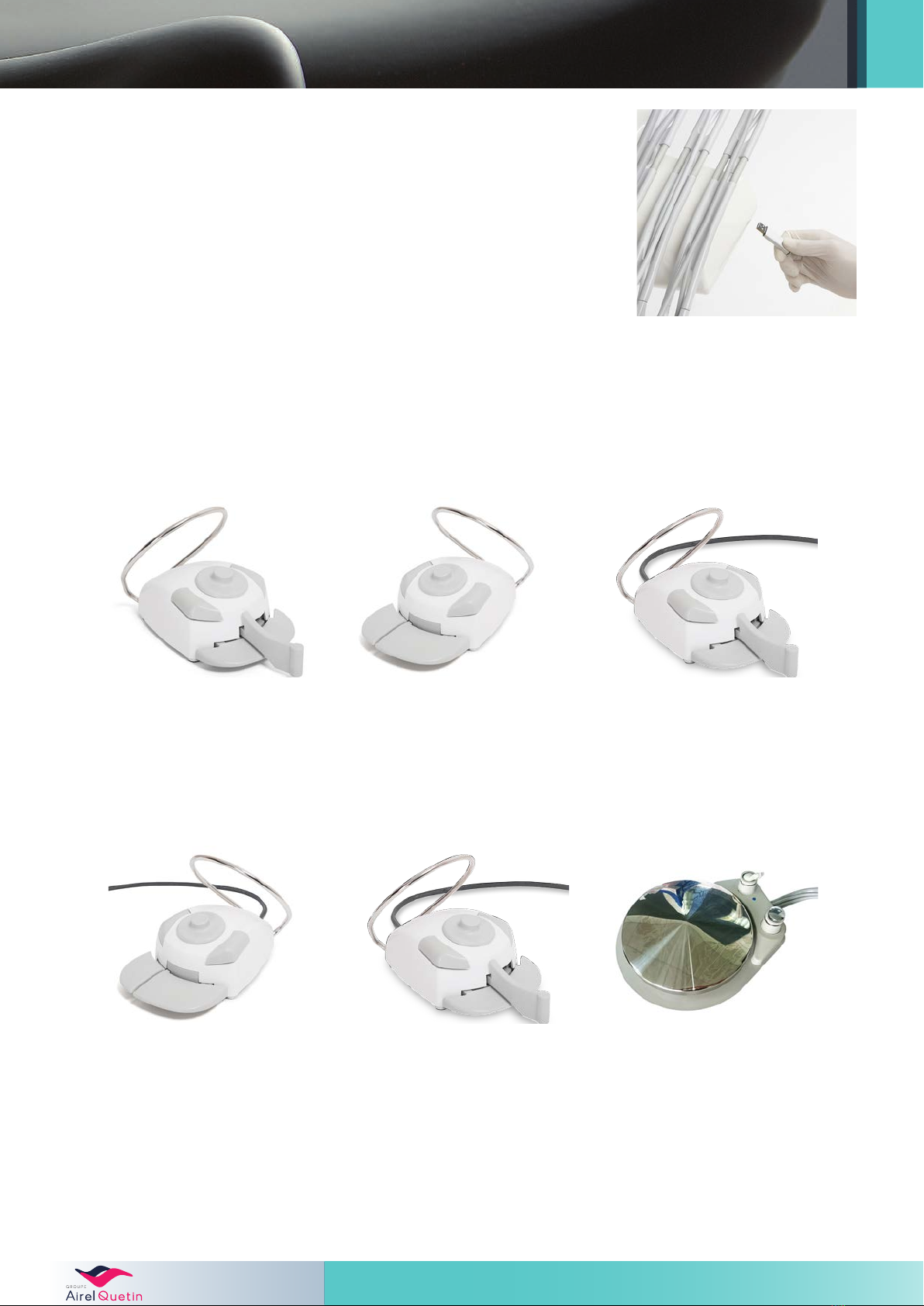

2.2.5 Foot pedals
The K2 pedal comes in 6 versions with a "tread pedal" option for the progressive pedals.
The pedal controls for these different models are detailed in § 3.5, page 20.
Wireless electric progressive
foot control
Wireless electric progressive
crush foot control
Electric progressive foot control
Electric progressive crush foot
control
Pneumatic progressive foot
control
Pneumatic foot control

16
2.3 IGN®-CALBENIUM® system
Filtering cartridge
Decontaminated water
IGN®
Purging
instruments
Aspisept®
Bottle of
Calbénium®
Water from the network
Calpépuls®
The IGN® integrated in the K2 unit allows the practitioner to work with a spray water treated
with CALBENIUM®.
The IGN®-CALBENIUM®system supplies instrument sprays, Calbépuls®and Aspisept®.
IGN® automatically dilutes the CALBENIUM® in the spray water.
Depending on your version of K2, you have the IGN® MAG or EVO.
The IGN® system is delivered ready for use with a full bottle of CALBENIUM®.
To change of bottle refer to § 4.2, page 59.
2.4 Optional equipment
To find out the options compatible with your K2 model, please contact the Sales department.
2.4.1 Basin
Removable bowl
Glass filling hose
Bowl rinsing hose
The bowl rinsing and glass-filling spray can be controlled by the keyboard or the pedal.
The rotating basin is equipped with LED lighting.
The glass bowl is removable for easy maintenance, see § 4.4.3, page 62.

17
2.4.2 Surgical lighting
Optional on the K2, the surgical lighting can be mounted on the unit,
suspended from the ceiling or on a floor column.
Available in halogen or LED version.
The surgical lighting is controlled by the touch screen.
2.4.3 Amalgam separator
Due to amalgam separator standards, a place is provided in the foot of the unit to enable the
basin to be connected to an amalgam separator.
For any operation concerning the amalgam separator, refer to the manufacturer's instructions.
2.4.4 Video surveillance camera
The camera is usually installed near the dental practice's intercom
system.
The Wi-Fi surveillance camera is compatible with the EVO.2 model.
The image is viewed directly on the console screen.

18
3. USE
The K2 unit is delivered with factory settings that were used to check that it is working
properly.
The practitioner will have to modify these pre-settings in order to adapt the chair and the unit
to their setting and working methods.

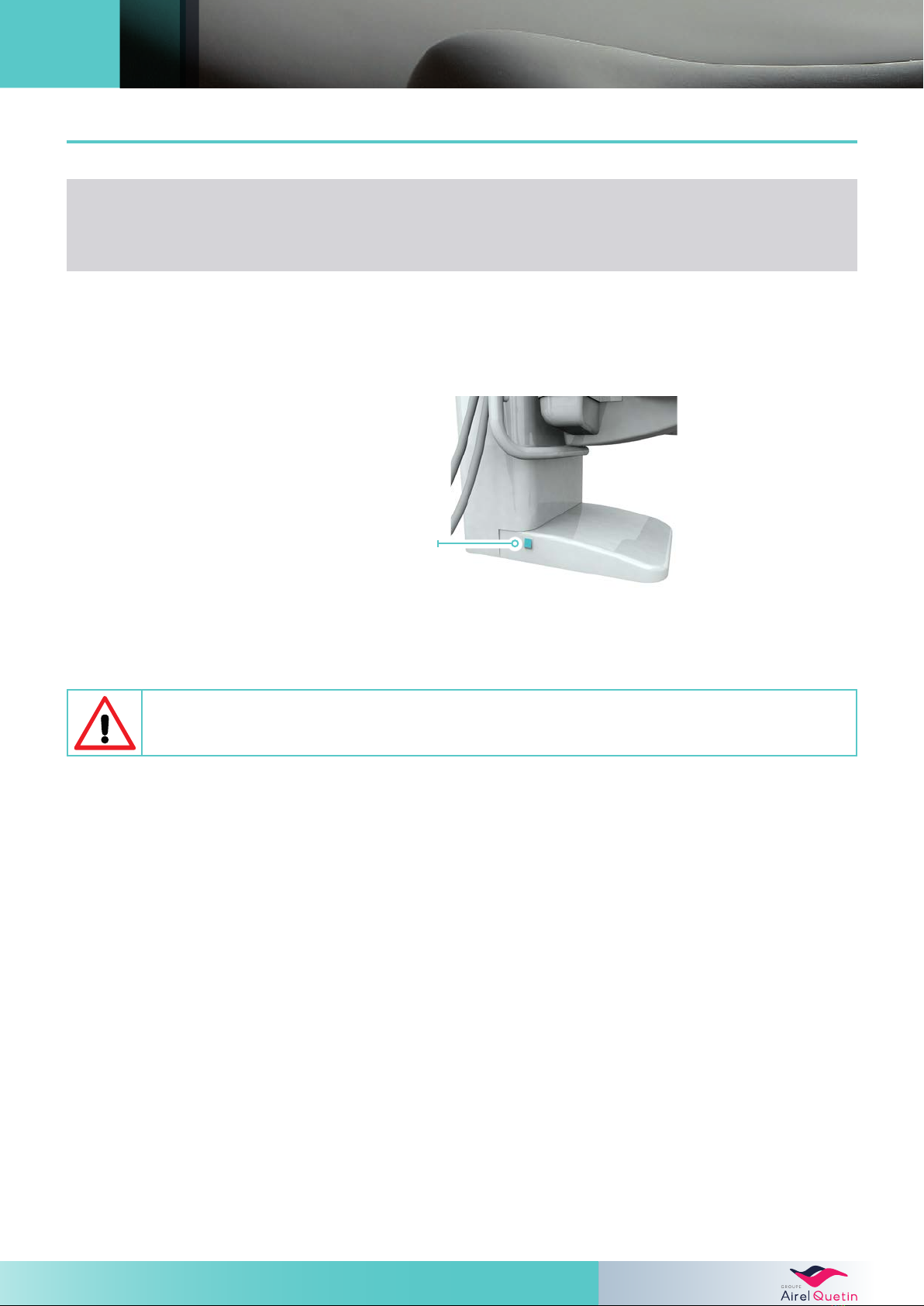

3.1 Power on/off
On-off button
The console screen turns on automatically when the unit is switched on.
- Never switch the K2 unit on/off using your foot. Press the button using your hand.
- Switch off the K2 unit every night after use by turning the button to Off.
3.2 Chair safety
In the event of the footrest movement being blocked, the safety mechanism causes the chair to
rise to its highest position.
When the basin is in the open position, the movements of the chair are limited to avoid any
impact on the patient.

19
3.3 Adjusting the headrest
The tilt, rotation and position settings of the headrest are carried out manually. The K2 headrest
comes in two versions: mechanically locked or pneumatically assisted.
3.3.1 Mechanical locking
Steps Action Illustration
1 Loosen the locking knob.
2 Manually adjust the triple articulation of the headrest.
3 Tighten the knob.
4 The bar can slide without being unlocked.
3.3.2 Pneumatic assistance
Steps Action Illustration
1 Press the setting button.
2 Manually adjust the triple articulation of the headrest, sliding in
the axis and orientation.
3 Release the button while holding the headrest for 1 to 2 seconds.
3.4 Footrest can be disengaged (option on K2 one)
Step 1 Step 2 Step 3
Lift the footrest of the K2 to
disengage the mechanism.
The height to raise it to depends
on the starting point of the
footrest.
Lifting it a few centimetre is
enough to disengage it.
Once the footrest is disengaged
keep it disengaged and press the
button under the seat.
Keep this pressed then gently
release the footrest.
To reset the footrest simply raise
it by a few centimetres.

20
3.5 Foot pedals
3.5.1 Progressive pedal
Progressive with tread pedal Progressive
1
2
3
4
1
2
3
4
5
6
7
8
9
Rep. Function Details
1Instruments control Progressive control of the selected instrument: motor
or plaque remover power variation
2
Basin position call No instrument selected
Chip blower control On selected instrument
Spray control
(K2 one only) With lever (1) selected
3
Bowl rinse control No instrument selected
Chip blower selection
(except K2 one)
On selected instrument
Loop by single presses on the button:
Chip air / Chip spray / No chip
"Motor direction reversal selection
using your foot"
(except K2 one)
Possibility of selecting "Reversal of the motor direction
at the foot" on this button (see motor settings p 36
and p 58)
4
Glass-filling spray control No instrument selected
Spray selection
(except K2 one)
On selected instrument
Loop by single presses on the button:
Spray / alternospray / no spray
5Chair ascent Press and hold down
Chair program call 2 Single press
6Descent of the chair Press and hold down
Chair program call 1 Single press
7Tilting the backrest backwards Press and hold down
Chair program call 4 Single press
8Tilting the backrest forwards Press and hold down
Chair program call 3 Single press
9Chair safety
Pressing on the hoop of the pedal causes all movement
of the chair to stop, and moves the chair up by about 1
cm.
