Airlinkplus AR315W User manual

i
Model # AR315W
USER’S MANUAL

ii
Ver. 1A
Table of Contents
CHAPTER 1 INTRODUCTION ................................................................................ 1
Wireless Router Features.................................................................................................. 1
Package Contents .............................................................................................................. 3
Physical Details .................................................................................................................. 4
CHAPTER 2 INSTALLATION.................................................................................. 6
Requirements ..................................................................................................................... 6
Procedure ........................................................................................................................... 6
CHAPTER 3 SETUP ................................................................................................. 10
Overview .......................................................................................................................... 10
Configuration Program................................................................................................... 11

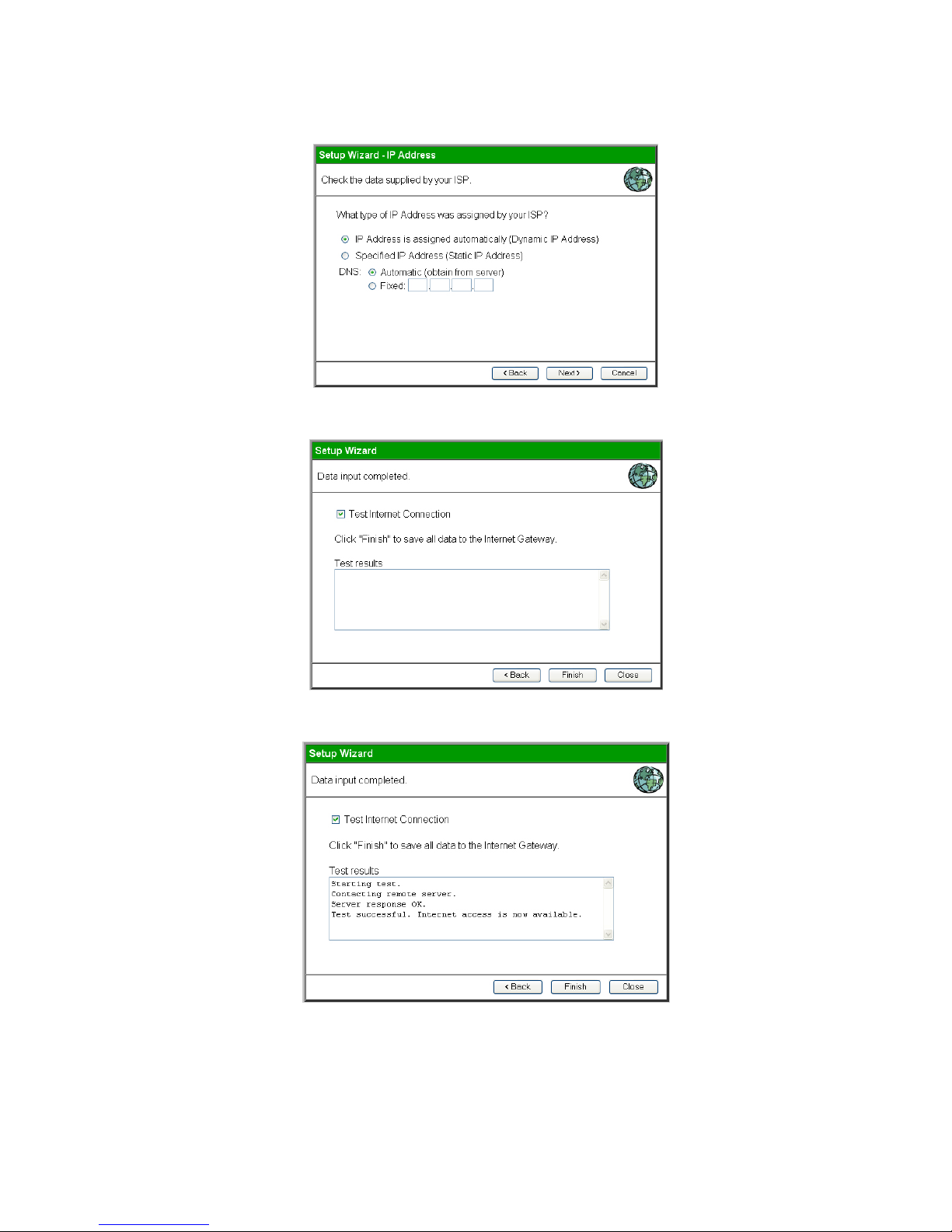

Setup Wizard ................................................................................................................... 12
LAN Screen ......................................................................................................................16
Wireless Screen................................................................................................................ 18
Password Screen .............................................................................................................. 23
CHAPTER 4 PC CONFIGURATION ..................................................................... 24
Overview .......................................................................................................................... 24
Windows Clients .............................................................................................................. 24
Macintosh Clients ............................................................................................................ 34
Linux Clients.................................................................................................................... 34
Other Unix Systems ......................................................................................................... 34
Wireless Station Configuration ...................................................................................... 35
CHAPTER 5 OPERATION AND STATUS ............................................................ 36
Operation ......................................................................................................................... 36
Status Screen.................................................................................................................... 36
Connection Status - PPPoE............................................................................................. 38
Connection Status - PPTP............................................................................................... 40
Connection Status - L2TP............................................................................................... 41
Connection Status - Telstra Big Pond............................................................................ 42
Connection Details - SingTel RAS.................................................................................. 43
Connection Details - Fixed/Dynamic IP Address .......................................................... 46
CHAPTER 6 ADVANCED FEATURES ................................................................. 48
Overview .......................................................................................................................... 48
Access Control ................................................................................................................. 48
Dynamic DNS (Domain Name Server)........................................................................... 55
Advanced Internet Screen............................................................................................... 57
Virtual Servers.................................................................................................................61
WAN Port Configuration................................................................................................ 65
CHAPTER 7 ADVANCED ADMINISTRATION .................................................. 68
Overview .......................................................................................................................... 68
Config File........................................................................................................................ 69

iii
Logs................................................................................................................................... 70
Network Diagnostics........................................................................................................ 72
Options ............................................................................................................................. 73
PC Database.....................................................................................................................75
Remote Admin ................................................................................................................. 79
Routing ............................................................................................................................. 80
Security............................................................................................................................. 84
Upgrade Firmware .......................................................................................................... 86
APPENDIX A TROUBLESHOOTING.................................................................. 87
Overview .......................................................................................................................... 87
General Problems ............................................................................................................ 87
Internet Access.................................................................................................................87
Wireless Access ................................................................................................................ 88
APPENDIX B ABOUT WIRELESS LANS............................................................ 89
Modes ............................................................................................................................... 89
BSS/ESS............................................................................................................................ 89
Channels........................................................................................................................... 90
WEP.................................................................................................................................. 90
Wireless LAN Configuration.......................................................................................... 90
APPENDIX C SPECIFICATIONS........................................................................................ 91
Multi-Function Wireless Router .................................................................................... 91
Wireless Interface............................................................................................................ 91
Regulatory Approvals ..................................................................................................... 92
APPENDIX D .......................................................................................................................... 92
Copyright 2003. All Rights Reserved.
Document Version: 1A
All trademarks and trade names are the properties of their respective owners.

1
Chapter 1
Introduction
This chapter provides an overview of the Wireless Router's features and capabilities.
Congratulations on the purchase of your new Wireless Router. The Wireless Router is a multi-
function device providing the following services:
• Shared Broadband Internet Access for all LAN users.
• 4-Port Switching Hub for 10BaseT or 100BaseT connections.
• Wireless Router for 802.11b and 802.11g Wireless Stations.
Wireless Router Features
The Wireless Router incorporates many advanced features, carefully designed to provide
sophisticated functions while being easy to use.
Internet Access Features
• Shared Internet Access. All users on the LAN or WLAN can access the Internet
through the Wireless Router, using only a single external IP Address. The local (invalid) IP
Addresses are hidden from external sources. This process is called NAT (Network Address
Translation).
• DSL & Cable Modem Support. The Wireless Router has a 10/100BaseT Ethernet port
for connecting a DSL or Cable Modem. All popular DSL and Cable Modems are sup-
ported. SingTel RAS and Big Pond (Australia) login support is also included.
• PPPoE, PPTP, SingTel RAS and Telstra Big Pond Support. The Internet (WAN
port) connection supports PPPoE (PPP over Ethernet), PPTP (Peer-to-Peer Tunneling Pro-
tocol), SingTel RAS and Telstra Big Pond (Australia), as well as "Direct Connection" type
services. Unnumbered IP with PPPoE is also supported.
• Fixed or Dynamic IP Address. On the Internet (WAN port) connection, the Wireless
Router supports both Dynamic IP Address (IP Address is allocated on connection) and
Fixed IP Address.
Advanced Internet Functions
• Communication Applications. Support for Internet communication applications, such
as interactive Games, Telephony, and Conferencing applications, which are often difficult
to use when behind a Firewall, is included.
• Special Internet Applications. Applications that use non-standard connections or port
numbers are normally blocked by the Firewall. The ability to define and allow such appli-
cations is provided, to enable such applications to be used normally.
• Virtual Servers. This feature allows Internet users to access Internet servers on your
LAN. The required setup is quick and easy.
• DDNS Support. DDNS (Dynamic DNS) allows Internet users to connect to Virtual
Servers on your LAN using a domain name, even if your IP address is not fixed.
1

2
• Multi-DMZ. For each WAN (Internet) IP address allocated to you, one (1) PC on your
local LAN can be configured to allow unrestricted 2-way communication with Servers or
individual users on the Internet. This provides the ability to run programs that are incom-
patible with Firewalls.
• URL Filter. Use the URL Filter to block access to undesirable Web sites by LAN users.
• Internet Access Log. See which Internet connections have been made.
• Access Control. Using the Access Control feature, you can assign LAN users to different
groups, and determine which Internet services are available to each group.
• VPN Pass through Support. PCs with VPN (Virtual Private Networking) software
using PPTP, L2TP and IPSec are transparently supported - no configuration is required.
Wireless Features
• Standards Compliant. The Wireless Router complies with the IEEE802.11g (DSSS)
specifications for Wireless LANs.
• Supports both 802.11b and 802.11g Wireless Stations. The 802.11g standard
provides for backward compatibility with the 802.11b standard, so both 802.11b and
802.11g Wireless stations can be used simultaneously.
• Speeds to 54Mbps. All speeds up to the 802.11g maximum of 54Mbps are supported.
• WEP and WPA support. Support for WEP and WPA is included.
• Wireless MAC Access Control. The Wireless Access Control feature can check the
MAC address (hardware address) of Wireless stations to ensure that only trusted Wireless
Stations can access your LAN.
• Simple Configuration. If the default settings are unsuitable, they can be changed
quickly and easily.
LAN Features
• 4-Port Switching Hub. The Wireless Router incorporates a 4-port 10/100BaseT switch-
ing hub, making it easy to create or extend your LAN.
• DHCP Server Support. Dynamic Host Configuration Protocol provides a dynamic IP
address to PCs and other devices upon request. The Wireless Router can act as a DHCP
Server for devices on your local LAN and WLAN.
• Multi Segment LAN Support. LANs containing one or more segments are supported,
via the Wireless Router's RIP (Routing Information Protocol) support and built-in static
routing table.
Configuration & Management
• Easy Setup. Use your WEB browser from anywhere on the LAN or WLAN for configu-
ration.
• Configuration File Upload/Download. Save (download) the configuration data from
the Wireless Router to your PC, and restore (upload) a previously saved configuration file
to the Wireless Router.
• Remote Management. The Wireless Router can be managed from any PC on your LAN.
And, if the Internet connection exists, it can also (optionally) be configured via the Internet.
• Network Diagnostics. You can use the Wireless Router to perform a Ping or DNS
lookup.
• UPnP Support. UPnP (Universal Plug and Play) allows automatic discovery and con-
figuration of the Wireless Router. UPnP is by supported by Windows ME, XP, or later.

Introduction
3
Security Features
• Password - protected Configuration. Optional password protection is provided to
prevent unauthorized users from modifying the configuration data and settings.
• Wireless LAN Security. WEP and WPA are supported, as well as Wireless access
control to prevent unknown wireless stations from accessing your LAN.
• NAT Protection. An intrinsic side effect of NAT (Network Address Translation) tech-
nology is that by allowing all LAN users to share a single IP address, the location and even
the existence of each PC is hidden. From the external viewpoint, there is no network, only
a single device - the Wireless Router.
• Stateful Inspection Firewall. All incoming data packets are monitored and all incom-
ing server requests are filtered, thus protecting your network from malicious attacks from
external sources.
• Protection against DoS attacks. DoS (Denial of Service) attacks can flood your
Internet connection with invalid packets and connection requests, using so much bandwidth
and so many resources that Internet access becomes unavailable. The Wireless Router in-
corporates protection against DoS attacks.
Package Contents
The following items should be included:
• Wireless Router
• Power Adapter
• Quick Installation Guide
• CD-ROM containing the on-line manual.
If any of the above items are damaged or missing, please contact your dealer immediately.

4
Physical Details
Front-mounted LEDs

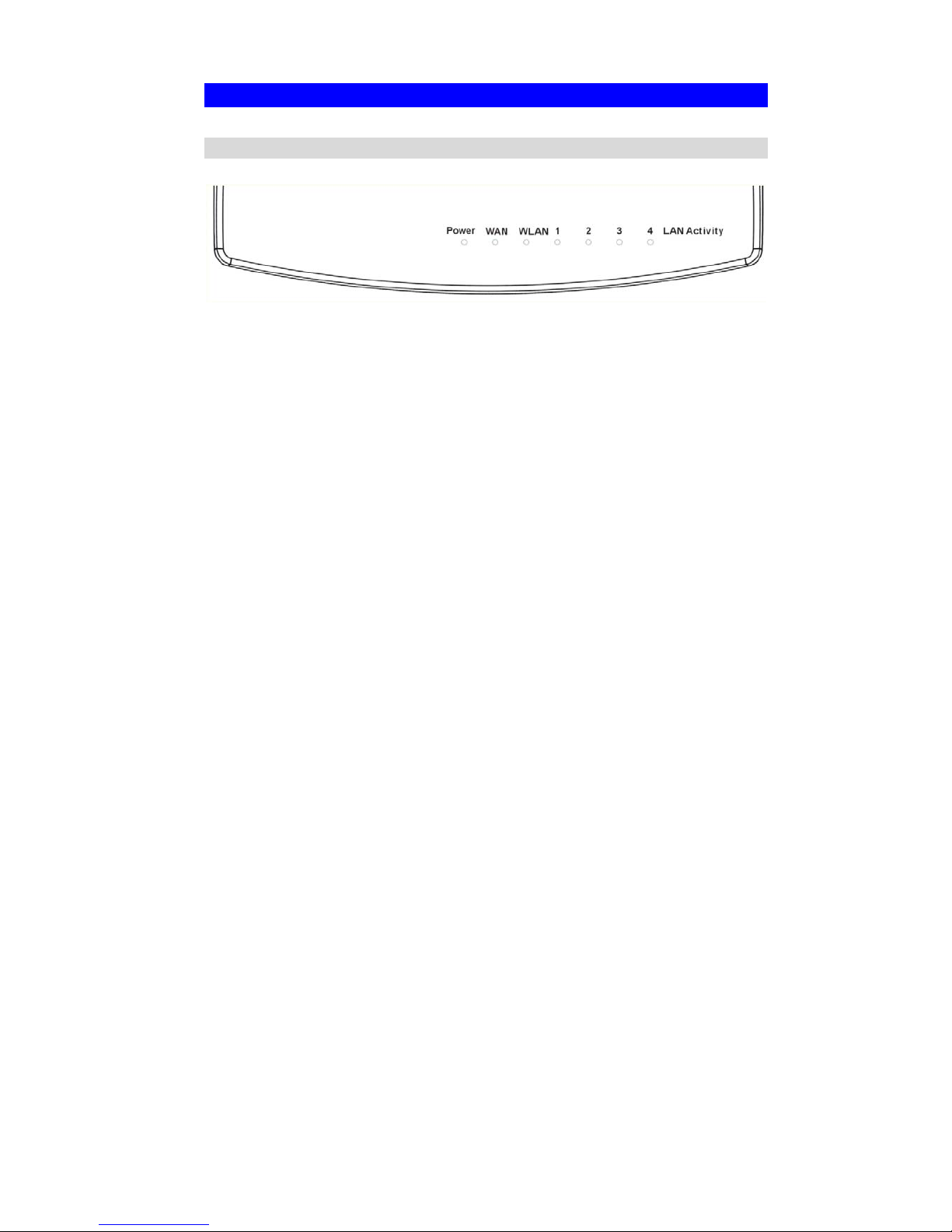

Figure 1: Front Panel
Power LED On - Power on.
Off - No power.
WAN LED On - Connection to the Broadband Modem attached to the WAN (Internet)
port is established.
Off - No connection to the Broadband Modem.
Flashing - Data is being transmitted or received via the WAN port.
WLAN LED On - Wireless connection available; Wireless Router is ready for use.
Off - No Wireless connection available.
Flashing - Data is being transmitted or received via the Wireless Router.
Data includes "network traffic" as well as user data.
LAN LEDs Link/Act
• On - Corresponding LAN (hub) port is active.
• Off - No active connection on the corresponding LAN (hub) port.
• Flashing - Data is being transmitted or received via the corre-
sponding LAN (hub) port.

Introduction
5
Rear Panel
Figure 2: Rear Panel
Power port Connect the supplied power adapter here.
LAN port
(10/100BaseT)
Use standard LAN cables (RJ45 connectors) to connect your PCs to
these ports.
If required, any port can be connected to another hub. Any LAN port
will automatically function as an "Uplink" port when necessary.
WAN (Internet)
port
(10/100BaseT)
Connect the DSL or Cable Modem here. If your modem came with a
cable, use the supplied cable. Otherwise, use a standard LAN cable.
Reset Button This button has two (2) functions:
• Reboot. When pressed and released, the Wireless Router will
reboot (restart).
• Clear All Data. This button can also be used to clear ALL data
and restore ALL settings to the factory default values.
To Clear All Data and restore the factory default values:
1. Power Off.
2. Hold the Reset Button down while you Power On.
3. Keep holding the Reset Button for a few seconds, until the Power
LED has flashed TWICE.
4. Release the Reset Button. The Wireless Router is now using the
factory default values.

6
Chapter 2
Installation
This chapter covers the physical installation of the Wireless Router.
Requirements
• Network cables. Use standard 10/100BaseT network (UTP) cables with RJ45 connectors.
• TCP/IP protocol must be installed on all PCs.
• For Internet Access, an Internet Access account with an ISP, and either of a DSL or Cable
modem (for WAN port usage)
• To use the Wireless Router, all Wireless devices must be compliant with the IEEE802.11b
or IEEE802.11g specifications.
Procedure
Note: Prior to connecting the router, be sure to power off your computer, DSL/Cable modem,
and the router. You should setup the router with a wired connection first before attempting to
setup any wireless connection.
2

7

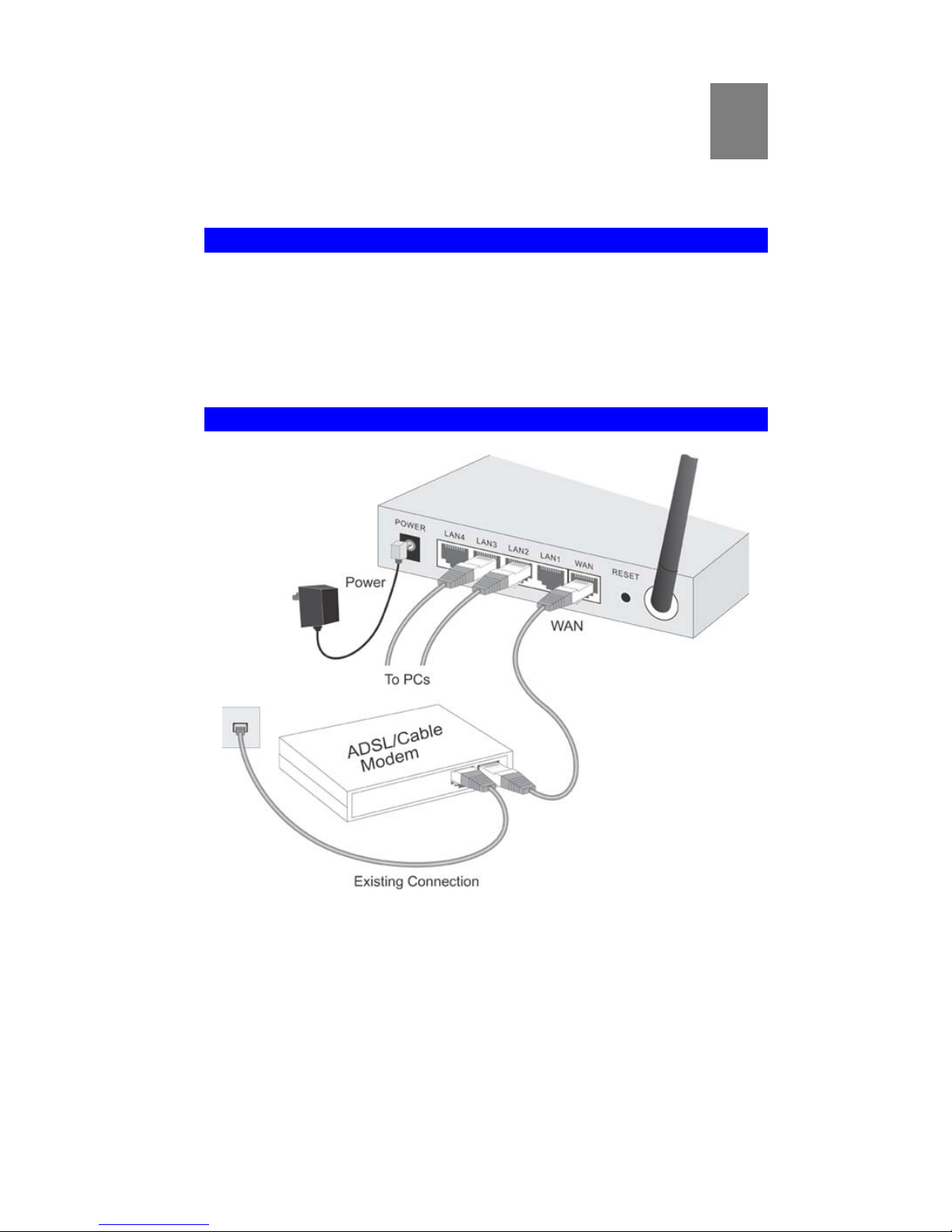

Step 1 Connect one end of a network cable to the WAN port of the router and connect the other
end of the cable to the DSL/Cable modem.
Step 2 With another network cable, connect one end of the cable to your computer’s network
card and connect the other end to one of the LAN ports of the router.
Step 3 Power on the DSL/Cable modem and wait for the lights on the modem to settle down.
Step 4 Power on the router by connecting one end of the supplied power adapter to the power
jack of the router and connecting the other end to an electrical outlet.
Step 5 Power on your computer.
Step 6 Make sure the WAN, WLAN, and the LAN port that the computer is connected to are
lit. If not, try the above steps again.
Verify Connection to Router

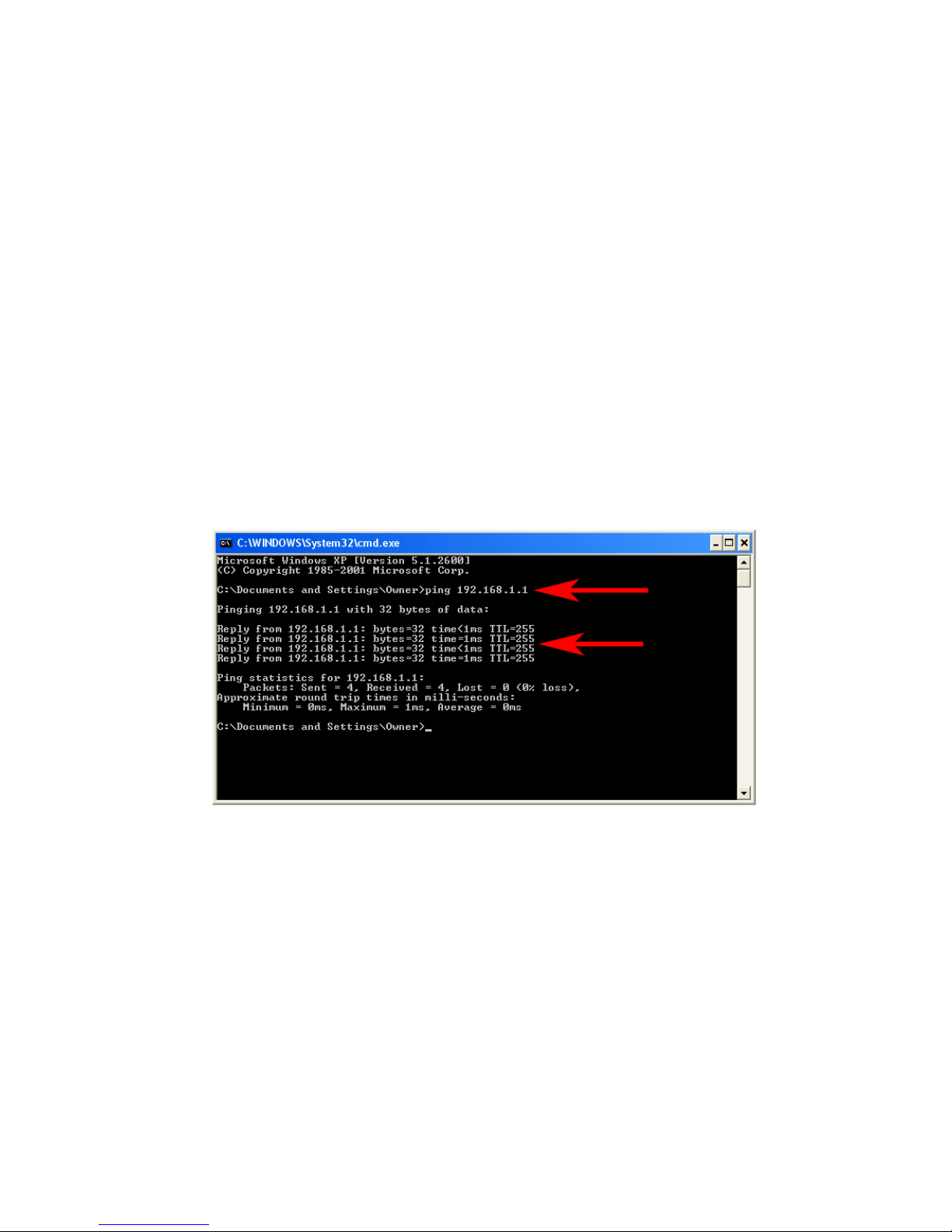

Step 1 Go to Start, Run, type command (for Windows 95/98/ME) or cmd (for Windows
2000/XP) and click OK. You will see the command prompt as below.
Step 2 Type ping 192.168.1.1 and press Enter. You should get four reply responses
back.
Step 3 If you get Request timed out, or Destination host unreachable, double-check the
network cable connection between the computer and the router and try Step 2 again. If you still
encounter problem, go to the next step; otherwise proceed to Chapter 3 Setup.
For Windows 2000/XP
Step 4 At the command prompt, type ipconfig/release and press Enter.

8
Step 5 After the IP address is released, type ipconfig/renew and press Enter. You should get
an IP address of 192.168.1.x (where xis a number between 2 - 254). Proceed to Section 3,
Configuring the Router. If you don’t get an IP address, reset the router by holding in the reset
button at the back of the router for 10 seconds while it is ON and try ipconfig/renew again.

9

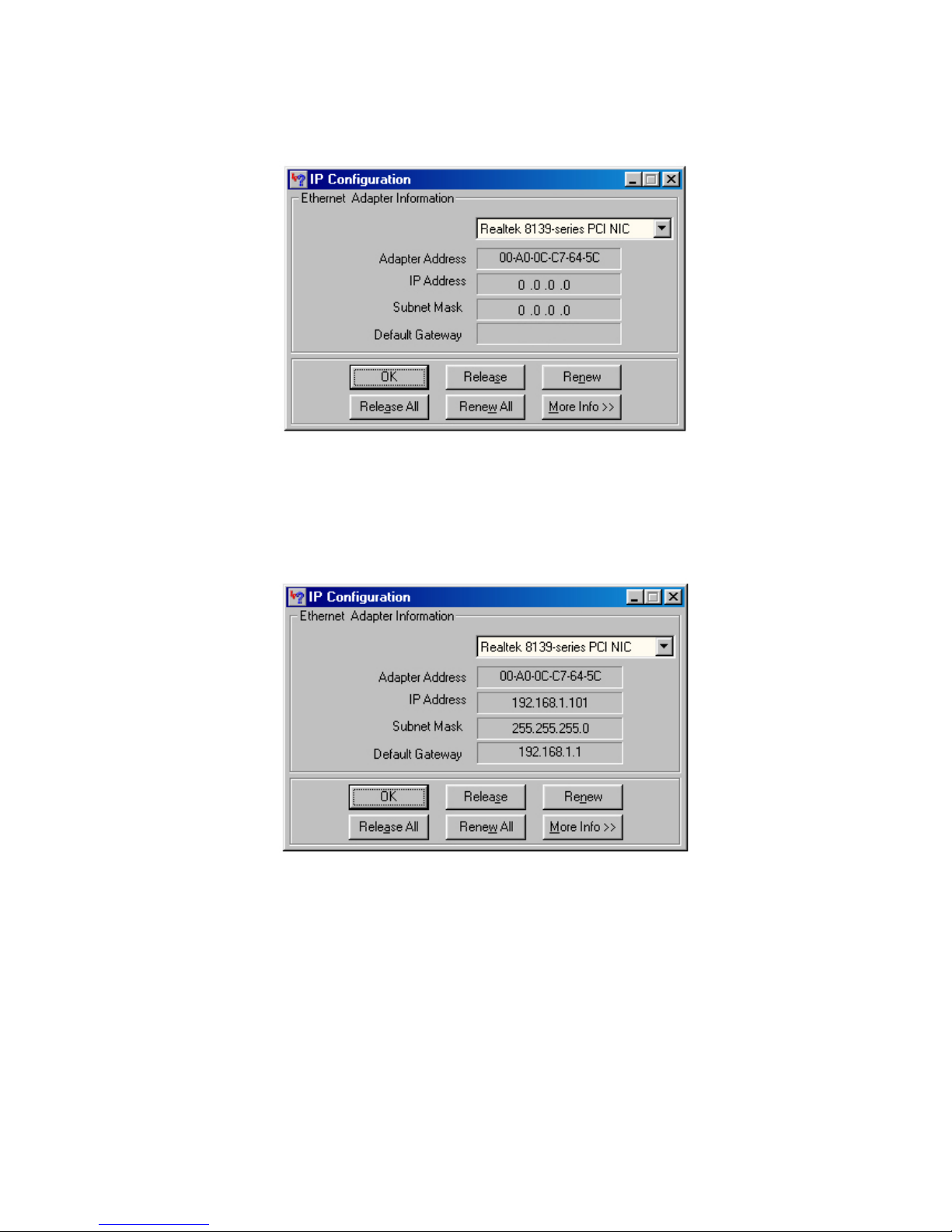

For Windows 95/98/ME
Step 4 Go to Start, Run, type winipcfg and click OK.
Step 5 Select your network card from the drop-down menu and click Release.
Step 6 After the IP address is released, click Renew. You should get an IP address of
192.168.1.x (where x is a number between 2 - 254). If you don’t get an IP address, reset the
router by holding in the reset button at the back of the router for 10 seconds while it is ON and
try Renew again.

10
Chapter 3
Setup
This chapter provides Setup details of the Wireless Router.
Overview
This chapter describes the setup procedure for:
• Internet Access
• LAN configuration
• Wireless setup
• Assigning a Password to protect the configuration data.
PCs on your local LAN may also require configuration. For details, see Chapter 4 - PC Con-
figuration.
Other configuration may also be required, depending on which features and functions of the
Wireless Router you wish to use. Use the table below to locate detailed instructions for the
required functions.
To Do this: Refer to:
Configure PCs on your LAN. Chapter 4:
PC Configuration
Check Wireless Router operation and Status. Chapter 5:
Operation and Status
Use any of the following Advanced features:
• Access Control
• Dynamic DNS
• Advanced Internet (Special Applications, DMZ, URL
Filter)
• Virtual Servers (Port Forwarding)
• WAN Port Setup
Chapter 6:
Advanced Features
Use any of the following Administration Configuration
settings or features:
• Config File download/upload
• Logs
• Network Diagnostics (Ping, DNS Lookup)
• Options (Backup DNS, TFTP, UPnP, Firewall)
• PC Database
• Remote Management
• Routing (RIP and static Routing)
• Security settings
• Firmware Upgrade
Chapter 7
Advanced Administration
3

11
Configuration Program
The Wireless Router contains an HTTP server. This enables you to connect to it, and configure
it, using your Web Browser. Your Browser must support JavaScript.
The configuration program has been tested on the following browsers:
• Netscape V4.08 or later
• Internet Explorer V4 or later

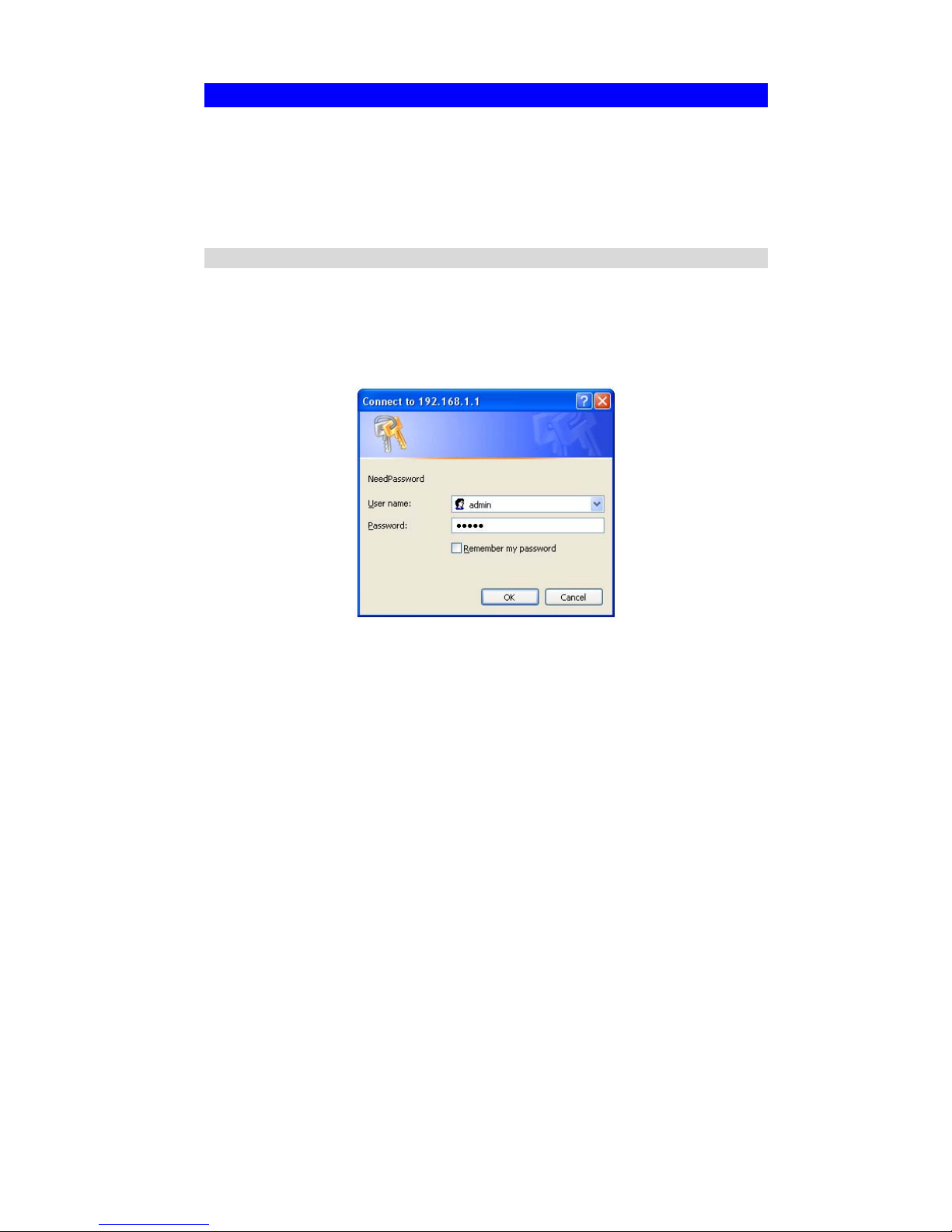

Configuring the Router
Step 1 Open the web browser and type 192.168.1.1 in the URL Address field.
Step 2 Enter admin for both the User name and Password fields and click OK.

12

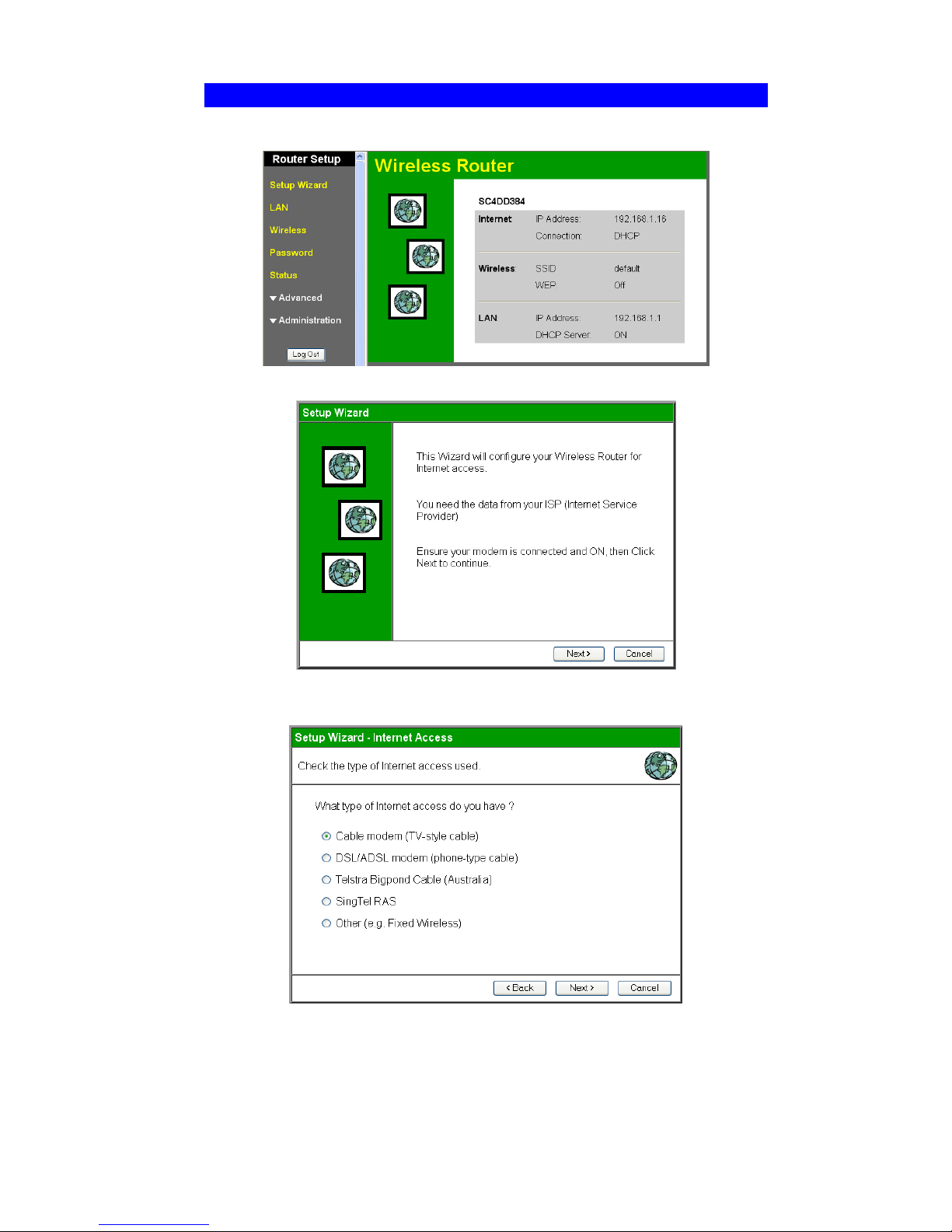

Setup Wizard
Step 1 Click Setup Wizard at the router’s main screen.
Step 2 Click Next at the Setup Wizard.
Step 3 Select your type of Internet Access. If you are not sure what type of connection you
have, please contact your Internet Service Provider (ISP) for assistance.

13
For Cable Modem Users:
Step 4a Click on Clone MAC Address, click OK, then click Next. Proceed to Step 5.
For DSL Users:
Step 4b For most DSL users, select PPPoE and click Next. Otherwise, choose your Login
procedure for connecting to the Internet.
Step 4c For PPPoE users, enter your Username and Password required to get online and click
Next. Note: some ISP’s require the domain name to be included with your username.
Example: [e-mail]

14
Step 5 Choose your IP Address assignment and click Next. For most users, you can use the
default settings (Dynamic IP Address). If you are using a Static IP assigned by your ISP,
select Specified IP Address and enter the applicable values.
Step 6 Make sure the Test Internet Connection box is checked and click Finish then OK to
begin the Internet Connection Test.
Step 7 Verify that the Internet Connection Test is successful and click Close. If the test did not
pass, please refer to Appendix A Troubleshooting.

15
Home Screen
After closing the Setup Wizard, you will see the Home screen.
Navigation & Data Input
• Use the menu bar on the left of the screen, and the "Back" button on your Browser, for
navigation.
• Changing to another screen without clicking "Save" does NOT save any changes you may
have made. You must "Save" before changing screens or your data will be ignored.
On each screen, clicking the "Help" button will
display help for that screen.
From any help screen, you can access the list of all
help files (help index).

16
LAN Screen
Use the LAN link on the main menu to reach the LAN screen. An example screen is shown
below.
Data - LAN Screen
TCP/IP
IP Address IP address for the Wireless Router, as seen from the local LAN. Use
the default value unless the address is already in use or your LAN is
using a different IP address range. In the latter case, enter an unused IP
Address from within the range used by your LAN.
Subnet Mask The default value 255.255.255.0 is standard for small (class "C")
networks. For other networks, use the Subnet Mask for the LAN
segment to which the Wireless Router is attached (the same value as the
PCs on that LAN segment).
DHCP Server • If Enabled, the Wireless Router will allocate IP Addresses to PCs
(DHCP clients) on your LAN when they start up. The default (and
recommended) value is Enabled.
• If you are already using a DHCP Server, this setting must be
Disabled, and the existing DHCP server must be re-configured to
treat the Wireless Router as the default Gateway. See the following
section for further details.
• The Start IP Address and Finish IP Address fields set the values
used by the DHCP server when allocating IP Addresses to DHCP
clients. This range also determines the number of DHCP clients
supported.
See the following section for further details on using DHCP.
Buttons
Save Save the data on screen.
Cancel The "Cancel" button will discard any data you have entered and reload
the file from the Wireless Router.
