Airlinkplus RTW026 User manual

i
Broadband Wireless Router
User’s Manual
Rev:01
2003/04/02

Wireless Broadband Router User’s Manual
ii
No part of this publication may be reproduced in any form by any means without the prior written permission. Other
trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective companies.
2003/04/02
Rev:01
000026-rtw

Safety Notes
iii
Safety Notes
For Installation
!" Use only the type of power source indicated on the marking labels.
!" Use only the power adapter supplied with the product.
!" Do not overload wall outlet or extension cords as this may increase the risk of electric shock or file. If the power
cord is frayed, replace it with a new one.
!" Proper ventilation is necessary to prevent the product overheating. Do not block or cover the slots and openings
on the device, which are intended for ventilation and proper operation. It is recommended to mount the product
with a stack.
!" Do not place the product near any source of heat or expose it to direct sunshine.
!" Do not expose the product to moisture. Never spill any liquid on the product.
!" Do not attempt to connect with any computer accessory or electronic product without instructions from
qualified service personnel. This may result in risk of electronic shock or file.
!" Do not place this product on an unstable stand or table.
For Using
!" Power off and unplug this product from the wall outlet when it is not in use or before cleaning. Pay attention to
the temperature of the power adapter. The temperature might be high.
!" After powering off the product, power on the product at least 15 seconds later.
!" Do not block the ventilating openings of this product.
!" When the product is expected to be not in use for a period of time, unplug the power cord of the product to
prevent it from the damage of storm or sudden increases in rating.
!" Please choose a flat place surface to locate this device in level. If you put the device vertically, it might be
unsteady and might fall down. We are not responsible for such happening.
For Service
Do not attempt to disassemble or open covers of this unit by yourself. Nor should you attempt to service the product
yourself, which may void the user’s authority to operate it. Contact qualified service personnel under the following
conditions:
!" If the power cord or plug is damaged or frayed.
!" If liquid has been spilled into the product.
!" If the product has been exposed to rain or water.
!" If the product does not operate normally when the operating instructions are followed.
!" If the product has been dropped or the cabinet has been damaged.
!" If the product exhibits a distinct change in performance.
Warning
!" This equipment must be installed and operated in accordance with provided instructions and a minimum 20 cm
spacing must be provided between computer mounted antenna and person’s body (excluding extremities of
hands, wrist and feet) during wireless modes of operation.
!" This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution
!" Any changes or modifications not expressly approved by the party responsible for compliance could void the
authority to operate equipment.

Wireless Broadband Router User’s Manual
iv
FCC Information
The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph:
The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction, may cause harmful interference to radio communication. However, there
is no grantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
!" Reorient or relocate the receiving antenna.
!" Increase the separation between the equipment and receiver.
!" Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
!" Consult the dealer or an experienced radio/TV technician for help.

Contents
v
Contents
Before you use ................................................................................vii
Features.................................................................................................vii
System Requirements .............................................................................viii
Unpacking .............................................................................................viii
Chapter 1: Overview..........................................................................1
Physical Outlook....................................................................................... 1
Front Panel..................................................................................... 1

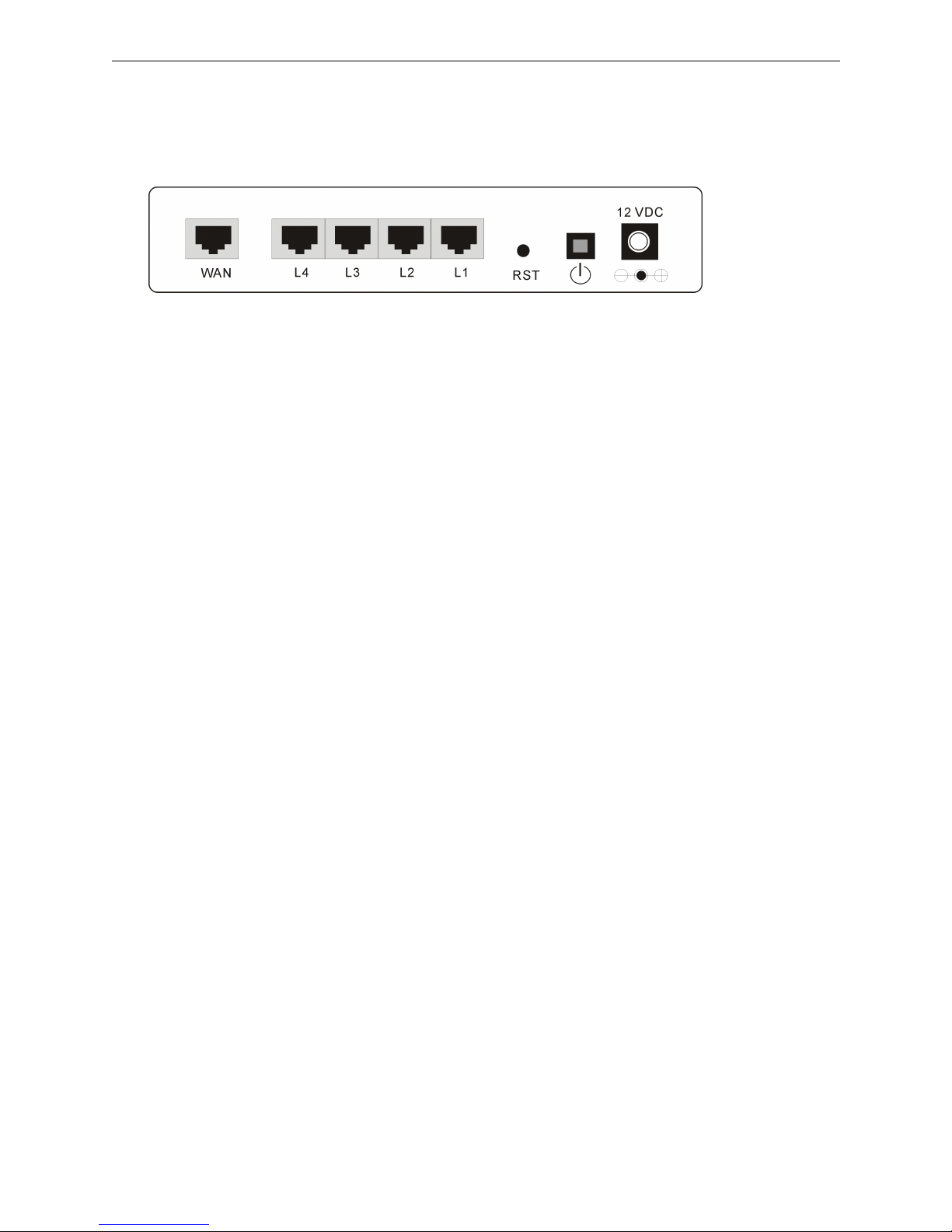

Rear Panel...................................................................................... 2
Chapter 2: Installation ......................................................................3
On Ethernet Client .................................................................................... 3
On Wireless Client .................................................................................... 4
xDSL/ATU-R Modem Connection ................................................................. 5
Connecting to Your xDSL Modem.......................................................5
Chapter 3: Configuration...................................................................7
Setting TCP/IP on Client PC........................................................................ 7

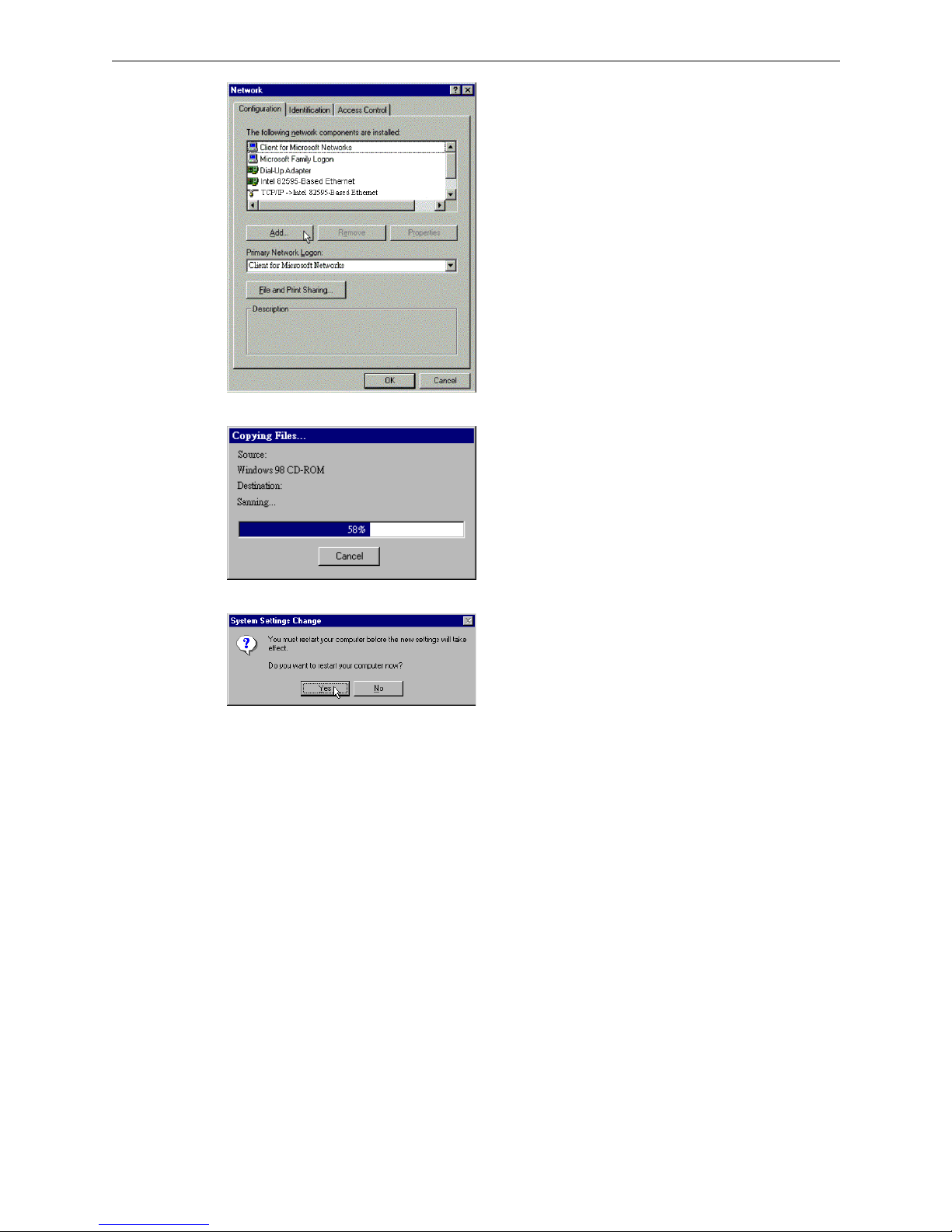

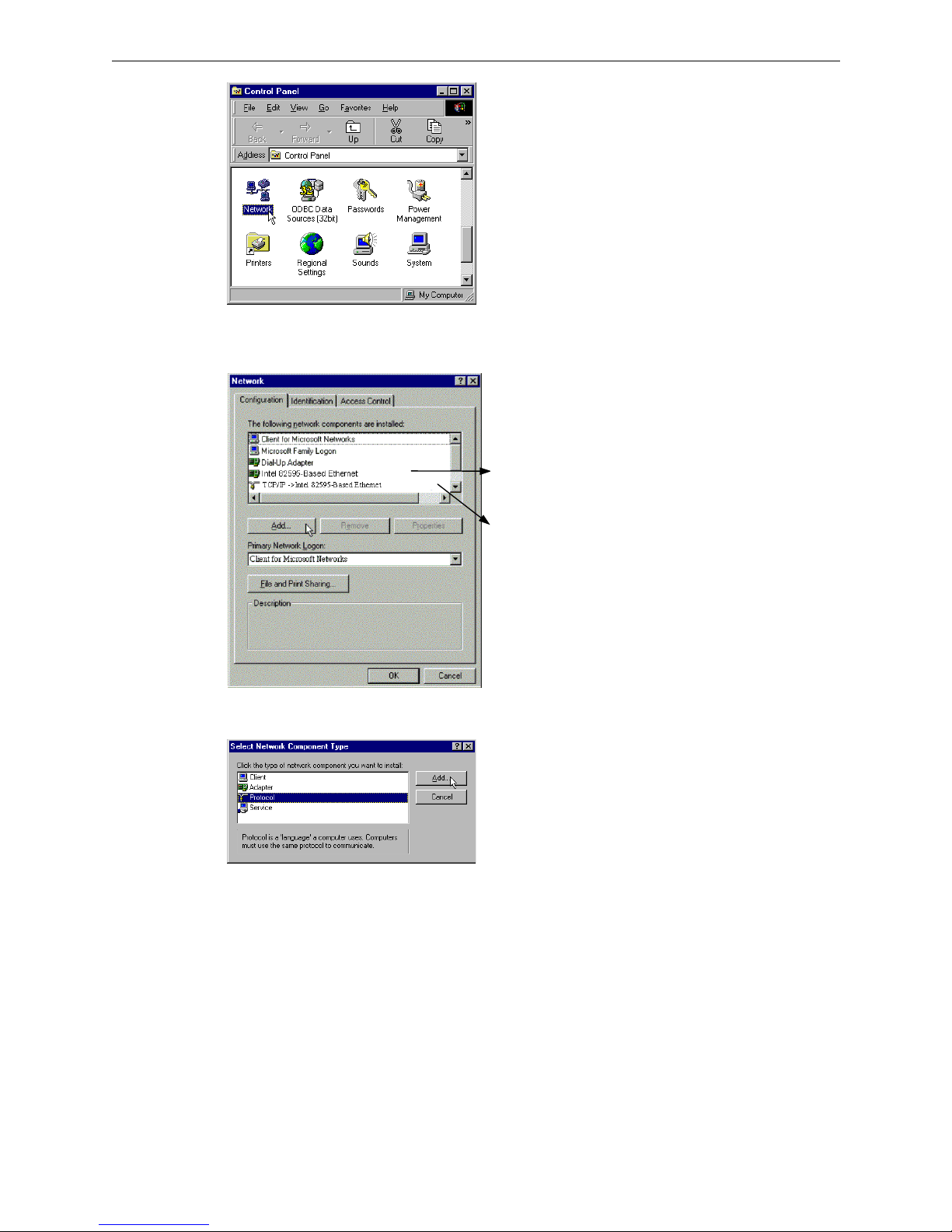

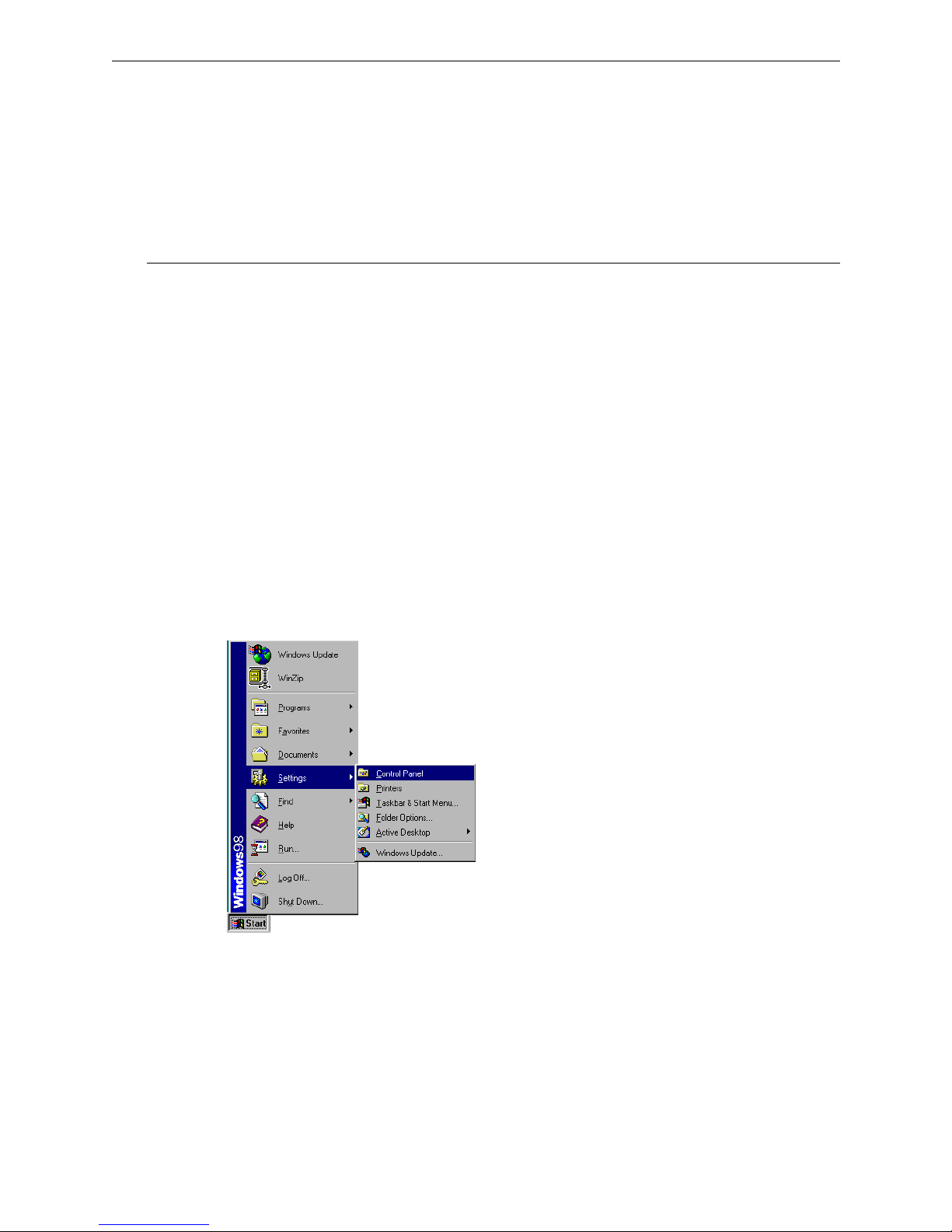

For Windows 98 .............................................................................. 7
For Windows ME............................................................................ 11
For Windows NT............................................................................ 11
For Windows 2000......................................................................... 15
For Windows XP ............................................................................ 17
Configure PC to get IP address from DHCP................................................. 18
For Windows 98 ............................................................................ 18
For Windows ME............................................................................ 19
For Windows NT............................................................................ 19
For Windows 2000......................................................................... 19
For Windows XP ............................................................................ 20
Renew IP Address on Client PC................................................................. 20
For Windows 98 ............................................................................ 20
For Windows ME............................................................................ 21
For Windows NT............................................................................ 21
For Windows 2000......................................................................... 22
For Windows XP ............................................................................ 22
Chapter 4: Web Configuration .........................................................23
Using the Web-Based Manager................................................................. 23
LAN Screen............................................................................................ 24
What DHCP Does........................................................................... 25
Password Screen .................................................................................... 25
Wizard .................................................................................................. 27
WAN Type .................................................................................... 27
Wireless ................................................................................................ 30
Configure WEP.............................................................................. 31
Advance Wireless Settings.............................................................. 33
Advanced Wireless Security............................................................ 33
Advanced .............................................................................................. 35

Wireless Broadband Router User’s Manual
vi
Access Control .............................................................................. 37
NAT............................................................................................. 40
Routing........................................................................................ 47
IGMP ........................................................................................... 50
Time Zone.................................................................................... 51
DNS............................................................................................. 52
Network Clients............................................................................. 53
Upgrade....................................................................................... 54
Backup/Restore............................................................................. 54
Statistics...................................................................................... 55
System Log .................................................................................. 55
Status................................................................................................... 58
Chapter 5: Troubleshooting.............................................................63
Problems with LAN.................................................................................. 63
Problems with WAN................................................................................. 63
Problems with Upgrading......................................................................... 64
Chapter 6: Glossary.........................................................................67
Appendix: Specifications .................................................................69
Software ...................................................................................... 69
Hardware ..................................................................................... 70

Before You Use
vii
B
Be ef fo or re e y yo ou u u us se e
The Wireless Broadband Router is a long-range, high performance wireless LAN product, which provides Access
Point services to a 2.4 GHz RF network and bridges to an Ethernet backbone and routes to an Ethernet WAN port.
The Wireless Broadband Router performs all the necessary inter-networking, bridging and routing functions. It
receives data from both networks, stores them locally for further processing, installs and maintains connections, and
transmits the packets to the proper destination.
The Wireless Broadband Router connects computers and laptops to your local network through wireless connection.
The Radio Frequency (RF) waves link the wireless clients to the Access Point, and the Access Point works as a
bridge between the wireless clients and the wired LAN or Ethernet clients.
The Wireless Broadband Router is compliant with the IEEE 802.11 / IEEE 802.11b DSSS specification and is Wi-Fi
certified. Thus all wireless clients, even from different vendors, that meet the 802.11b standard can access your
Ethernet network through this Wireless Access Point. Also, with throughput performance of up to 11 Mbps, the
wireless connection is as efficient as the wired connection. The wireless LAN security is provided through its WEP
(Wireless Equivalent Privacy) support.
Wireless Broadband Router has 4 10/100 Mbps switch ports. This switching automatically detects the speed of the
device that you plug into it and routes it to the appropriate port.
Features
Router Features
#" NAT let multiple users on LAN to access the Internet for the cost of only one IP address and enjoy various
multimedia applications.
#" ALGs(Application Level Gateways) support. (NetMeeting, MSN Messenger, MSN Game Zone, Battle.net and
else)
#" Trigger port mechanism support that can allow new application through NAT
#" UPnP support (include NAT traversal)
#" DMZ hosting, Multiple Virtual Servers (e.g., Web, FTP, Mail servers) can be setup in local network.
#" Static Route, RIP v1, v2
#" Multiple kind of WAN connection: PPPoE, DHCP Client, Fixed IP, PPTP
#" DHCP Server, DNS Relay, SNTP (Time Zone) setup, DDNS support
#" Mac cloning (for WAN connection is DHCP client)
#" Support VPN PPTP pass through, IPSec Pass through
#" IGMP support Router mode and Proxy mode
Bridging Features
#" Ethernet Switch Supports self-learning bridge specified in IEEE 802.1 D Transparent Bridging
#" Transparent Bridging between 4-port 10/100 MB Ethernet switch and 802.11b Wireless LAN interface.
Security Features
#" PAP(RFC1334), CHAP(RFC1994) for PPPoE session
#" Wireless support WEP (Wired Equivalent Privacy) uses RC4 with 40/64 and 128 bit key length. Passphrase key
generation support.
#" 802.1x support (also include WEP key distribution support)
#" Mac address Filter
#" Schedule and Group base content filtering, URL filtering and IP filtering

Wireless Broadband Router User’s Manual
viii
Wireless LAN Features
#" Fully compatible to 802.1lb standard, allowing up to 11Mbps wireless rate with distance up to 300 feet/90
meters.
#" The 2.4 GHz Direct Sequence Spread Spectrum (DSSS) technology is exploited.
#" Seamless roaming within wireless LAN infrastructure.
#" Wireless clients association list
#" Wireless clients Mac address filter
#" Support disable the broadcast of SSID
Configuration and Management
#" Enable/disable Remote Management (ping and web browse)
#" Login / Logout of web management
#" Configurable through Web Browser
#" HTTP firmware upgrades via Web browser directly
#" Support DHCP Server function for IP distribution to local network users
#" E-mail Alert and Event Logging. Also provide different level of event alert and log
System Requirements
For using Wireless Broadband Router, you have to make sure you have the following that installed on the clients:
For Wireless Clients
#" Operating System must be Windows98/2000/NT/ME/XP
#" Wireless card installed
#" Wireless card driver
For Ethernet Clients
#" Operating System must be Windows98/2000/NT/ME/XP
#" 10/100 Base-T NIC
#" 10/100 Base-T(UTP) network cable
#" A Hub
Note: Be aware that Cable/DSL Modem service registered from your Internet service
provider is required for Internet access.
Unpacking
After unpack the Broadband Cable/DSL Wireless Router package, please check the contents of the package with the
checklist stated below. If you find any item is missing, please contact the dealer directly.
!" Broadband Cable/DSL Wireless Router
!" Power Adapter
!" Power Cord
!" RJ-45 Ethernet Cable
!" Quick Start Guide
!" Driver & Utility Software CD
Subscription for Router Service
To use the Cable/DSL Wireless Router, you have to subscribe for ADSL service from your broadband service

Before You Use
ix
provider. According to the service type you subscribe, you will get various IP addresses:
Dynamic IP: If you apply for dial-up connection, you will be given an Internet account with username and
password. You will get a dynamic IP by dialing up to your service provider.
Static IP address: If you apply for full-time connectivity, you may get either one static IP address or a range of IP
addresses from your service provider. The number of IP addresses varies according to different
ADSL service provider.
