AirLive BU-3025 User manual

Use
r
’s Manual
BU-3025 v2
3-MegaPixel Outdoor 25
meter IR IPCAM

Copyright and Disclaimer
i AirLive BU-3025 v2 User’s Manual
Copyright & Disclaimer
No part of this publication may be reproduced in any form or by any means, whether
electronic, mechanical, photocopying, or recording without the written consent of OvisLink
Corp.
OvisLink Corp. has made the best effort to ensure the accuracy of the information in this
user’s guide. However, we are not liable for the inaccuracies or errors in this guide.
Please use with caution. All information is subject to change without notice
All Trademarks are properties of their respective holders.

Copyright and Disclaimer
AirLive BU-3025 v2 User’s Manual ii
FCC Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the A
user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment. This device complies
with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation. For
product available in the USA/Canada market, only channel 1~11 can be operated.
Selection of other channels is not possible.
This device and its antenna(s) must not be co-located or operation in conjunction with any
other antenna or transmitter.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.

Table of Contents
AirLive BU-3025 v2 User’s Manual
iii
Table of Contents
1. Overview .....................................................................................................1
1.1 Introduction ..........................................................................................1
1.2 Features...............................................................................................2
1.3 Product Specification ...........................................................................2
1.4 System Requirement ...........................................................................5
2. Package Contents and Installation...........................................................6
2.1 Package Content .................................................................................6
2.2 Connections.........................................................................................6
2.3 Mounting the Camera ..........................................................................8
2.4 Connect to IP Camera .........................................................................9
3. Using IP Camera via Web Browser.........................................................12
3.1 Windows Web Browser......................................................................12
4. Operating IP Camera via Mobile Phone .................................................14
4.1 Using IP Camera via iPhone..............................................................14
5. Operating the Network Camera ..............................................................17
5.1 Live View............................................................................................18
5.2 Configuration .....................................................................................20
6. Configuration ...........................................................................................21
6.1 System...............................................................................................22
6.2 Security..............................................................................................23
6.3 Network..............................................................................................25
6.4 IP Filter...............................................................................................29
6.5 Video..................................................................................................30
6.6 Audio..................................................................................................35
6.7 Motion ................................................................................................36
6.8 PTZ Control .......................................................................................37
6.9 Event..................................................................................................39
6.10Recording .........................................................................................45

Table of Contents
AirLive BU-3025 v2 User’s Manual iv
6.11 SDHC...............................................................................................46
6.12Log....................................................................................................48
6.13Device Info........................................................................................49
6.14Maintenance .....................................................................................49
7. Appendix...................................................................................................51
A. Digital I/O User Guide..........................................................................51

1. Overview
AirLive BU-3025 v2 User’s Manual
1
1 1. Overview
This user’s guide explains how to operate this camera from a computer. A user should read
this manual completely and carefully before you operate the device.
1.1 Introduction
AirLive BU-3025 v2 is high-end 3.0 MegaPixel (MP) network camera which is designed for
professional outdoor surveillance and security applications. This 3.0MP IP camera offers
many improvements in image quality as comparing to the conventional surveillance
cameras. Users are able to view live video streaming over the Internet, and it is not the
only one of the benefits for using AirLive IP Camera.
It is also designed to offer high-performance surveillance, and it is equipped with PoE port
which allows power and data to be transmitted via a single Ethernet cable. This useful
function provides an easier installation, lower cabling costs and allows placement of AirLive
PoE cameras in locations without access to electrical source.
With the IP-66 waterproof housing, AirLive BU-3025 v2 suits for environments such as
stairs, main entrance, street, and basement.

1. Overview
AirLive BU-3025 v2 User’s Manual 2
The device is accessible via the LAN or Internet connection. Connect your device directly
to a local area network or xDSL modem, and with Microsoft® Internet Explorer, you get
instant, on demand video streams. Within minutes you can set up the device to capture a
video sequence to a PC. The live video can be uploaded to a website for the world to see.
1.2 Features
This manual will illustrate the steps of how to setup and operate this IP camera, so you’ll
also soon be enjoying the benefits of these product features:
z3MegaPixel CMOS H.264 IP Camera
zCompatible with ONVIF Standard
zUp to 20fps at QXGA Resolution and up to 30fps @1080p Full HD
zSupport 802.3af Power over Ethernet Standard
zMechanical IR-Cut Filter Removable
zBuilt-in Micro-SD Memory Card Slot for Local Storage
zIP-66 Weatherproof Housing for Most of Environments
zEquips High Illuminate IR LED, Project up to 25 Meters!
zSupport H.264, MPEG, MJPEG
zSupport Two-Way Audio
1.3 Product Specification
Model BU-3025v2
Camera Type Outdoor Bullet Type
Max Resolution 2048 x 1536
Image Sensor 1/2.5" CMOS image sensor
Sensor Resolution 2592 X 1920
Board Lens
Lens Type 4mm/F1.8
Night Vision Built-In Removable IR Cut Filter
Max IR Distance 25M
IR LED 5ph*30pcs
Minimum
Illumination
Color: 0.05 Lux@30IRE
B/W: 0 Lux @ IR ON
Camera
Mechanical IR-Cut
Filter Yes

1. Overview
AirLive BU-3025 v2 User’s Manual
3
Auto Iris none
Viewing Angle D70.2°, H58.7°,V45.7°
Analog Video Out Yes
Video Compression H.264 High/Main/Baseline Profile, MPEG4 Simple
Profile and MJPEG
Video Profile 20
20 fps @ 2048 x 1536
30 fps @ 1920 x1080
30 fps @ 1280 x960
30 fps @ 1280 x 720
30 fps @ 720 x 480
30 fps @ 640 x 480
Resolution and
Frame Rate
30 fps @ 320 x 240
Multi-profile streaming
Streaming over UDP, TCP, or HTTP
M-JPEG streaming over HTTP (for non IE browser)
3GPP mobile view
Configurable frame rate and bandwidth
Streaming
Support both CBR and VBR
ROI none
AE, AWB
Noise reduction
Color, brightness, sharpness, contrast, Hue
Mirror/Flip
Image Processing
Text, time and date OSD
Video
Digital Zoom 10X
Audio Encoder G.711 μ-law
Audio Streaming Two-way
Audio
Audio Input/Output speaker port and microphone port
Ethernet One RJ45 Port; IEEE 802.3u Compliant 10/100
Mbps Fast Ethernet with Auto-MDIX
PoE IEEE802.3af
Wireless None
Supported
Protocols
IPv6, TCP/IP, UDP, ICMP, DHCP, NTP, DNS,
DDNS, SMTP, FTP, HTTP, HTTPs, Samba,
PPPoE, UPnP, Bonjour, RTP, RTSP and RTCP
Password protection
Network
Security
IP filter

1. Overview
AirLive BU-3025 v2 User’s Manual 4
HTTPS
Users Up to 20 simultaneous users
Power LED Amber Color
Link/Act. LED Green Color/Flash Green
LED and Button
Reset Button Reboot and Factory Default
(Push and Hold Over 5 Sec)
Network Processor DSP Base
System ROM 128MByte NAND Flash
System RAM 128Mbyte DDR SDRAM
Power Supply DC12V
FAN NO
Power
Consumption 8 Watts Max.
RJ-45 10BaseT/100BaseTX
12V DC power jack
Microphone/Speaker jack
DIDO
Reset button
Connector
BNC
Operation: Temp: -40℃~ 50℃
Humidity: 20% ~ 85% non-condensing
Environment Storage: Temp: -15℃~ 60℃
Humidity: 0% ~ 90% non-condensing
SD card slot Micro-SD/SDHC
General
Dimension HxWxD:208x82x80 mm
CamPro Express 64,CamPro Professional
Software Search & Installation- IP Wizard II
Motion detection
Event Triggers External input via DI interface
Motion Detection Up to 3 zones
FTP or NAS file upload
E-mail alter
HTTP, and TCP notification
Event handler
DO (digital output) alarm
UPNP Yes
ONVIF
System
Integration
Application
Programming Open API for software integration

1. Overview
AirLive BU-3025 v2 User’s Manual
5
Interface SDK
Video Buffer Pre- and post- alarm buffering
File upload via FTP, NAS, E-mail
Notification via email, HTTP, and TCP
External output activation
Alarm Events
Micro-SD
Continuous
recording Yes
OS Windows® XP, Vista, 7
Browser IE 6.0 or later, Firefox 2.0 or later, Safari
Cell Phone With 3GPP player
Viewing System
Video Player VLC, Quick Time, Real Player, Core Player
1.4 System Requirement
For normal operation and viewing of the network camera, it’s recommended that your
system meets these minimum requirements for proper operation:
Item Requirements
CPU Pentium-4 3.6 GHz or higher
VGA Monitor Resolution1280 x 1024 or higher
RAM Minimum 1 GB of RAM
Operating System Window XP, Vista or Windows 7
Web Browser Internet Explorer 7 or later; Apple Safari; Firefox; Google Chrome
Cell Phone 3GPP Player
Note: Please keep updating the latest Windows software and service package.
(Ex: Net Framework, Windows Media Player, Enhance ActiveX Security)

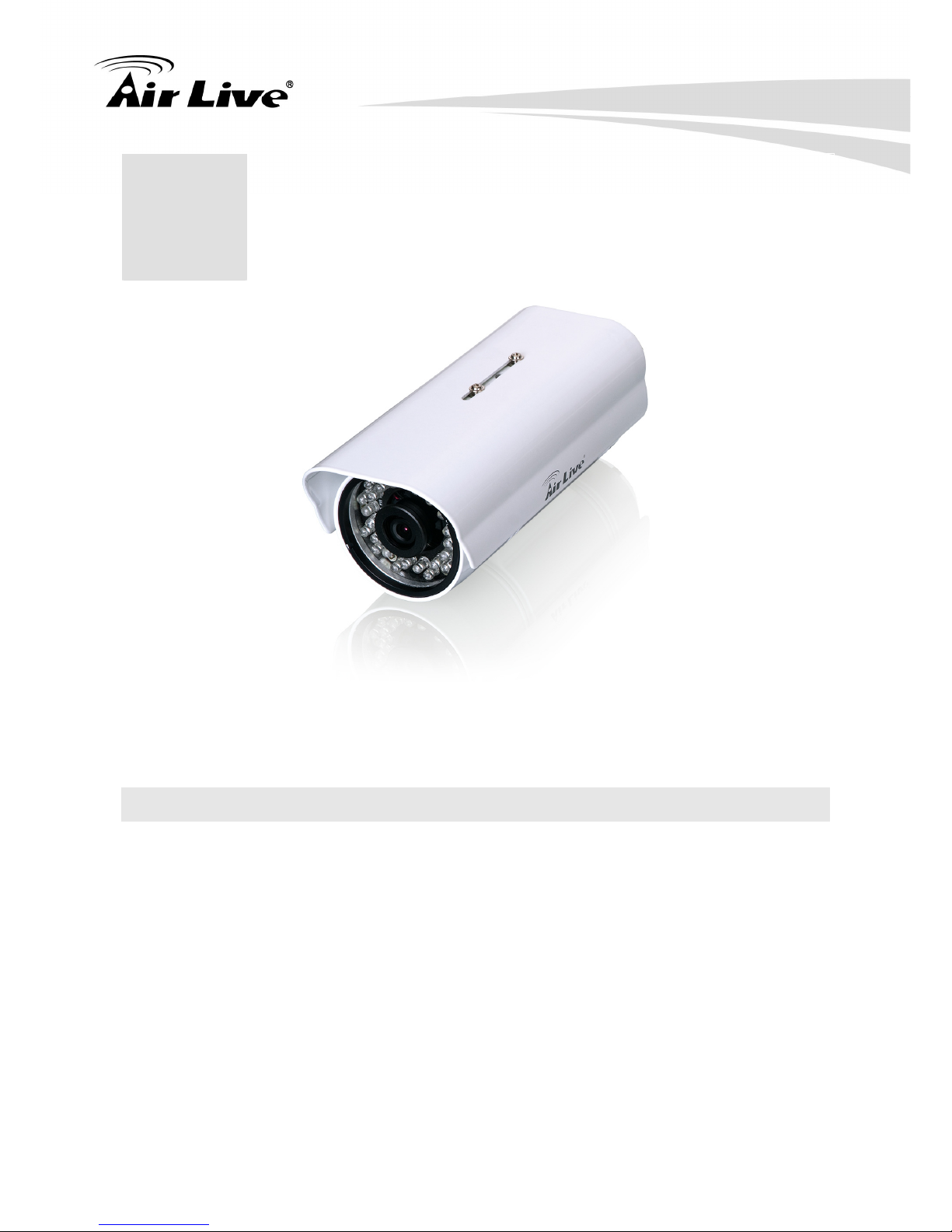

2. Package Contents and Installation
AirLive BU-3025 v2 User’s Manual 6
2 2. Package Contents and
Installation
2.1 Package Content
A user can find the following items in the package as below:
1. AirLive BU-3025 v2 is the main element of the product.
2. Bundle CD includes Setup Wizard II, CamPro Express64, Quick Start Guide, User
Manual, and Video.
3. Quick Start Guide provides important information and instructions for installing this
device.
4. Accessory Package including Wall Mount Kit & Wall Mount Stand
5. Power Adapter: 12V DC electric power adapter

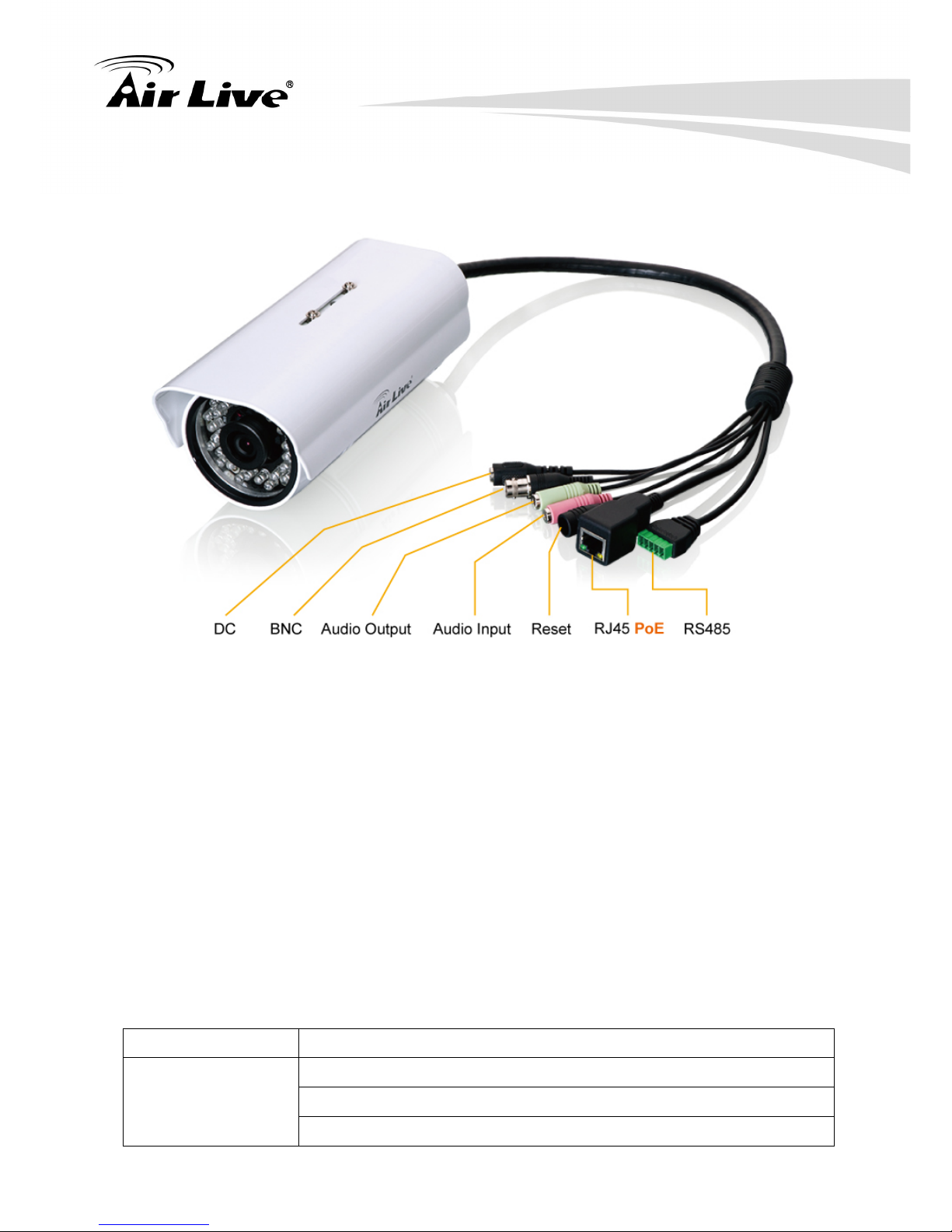

2.2 Connections
Power Source Requirement
This camera can work with 802.3af POE switch without the power adapter. However, if you
don’t have POE switch, you can use power adapter in the box to provide power to camera.
Switch/Connector
There are various connectors of AirLive BU-3025 v2 as shown in the figures below.
Please refer to the diagrams and tables accompanied with for using of each switch /
connector.

2. Package Contents and Installation
AirLive BU-3025 v2 User’s Manual
7
1. RJ45 LAN socket: Connect to PC or Hub/Switch.
For connections to 10Base-T Ethernet or 100Base-TX Fast Ethernet cabling. This
Ethernet port built N-Way protocol can detect or negotiate the transmission speed of
the network automatically. Please use Category 5 cable to connect the Network
Camera to a 100Mbps Fast Ethernet network switch or hub.
In the LAN socket, there are two LEDs embedded:
LAN LED (green color)
Green Link Light indicates good network connection.
Power (orange color)
This LED is used to indicate whether DC power is on or not.
2. RS485:
Item Description
- : RS485-RS-485
+ : RS485+
1 : DO (Digital Output)
(3) (7) (4) (5) (6) (1) (2)

2. Package Contents and Installation
AirLive BU-3025 v2 User’s Manual 8
2 : GND (Ground)
3 : DI (Digital Input)
3. DC-in: The input power is 12VDC/2A.
4. Audio Output
5. Audio Input
6. Reset Button: This button is used to restore all the factory default settings.
7. TV out: BNC Connector

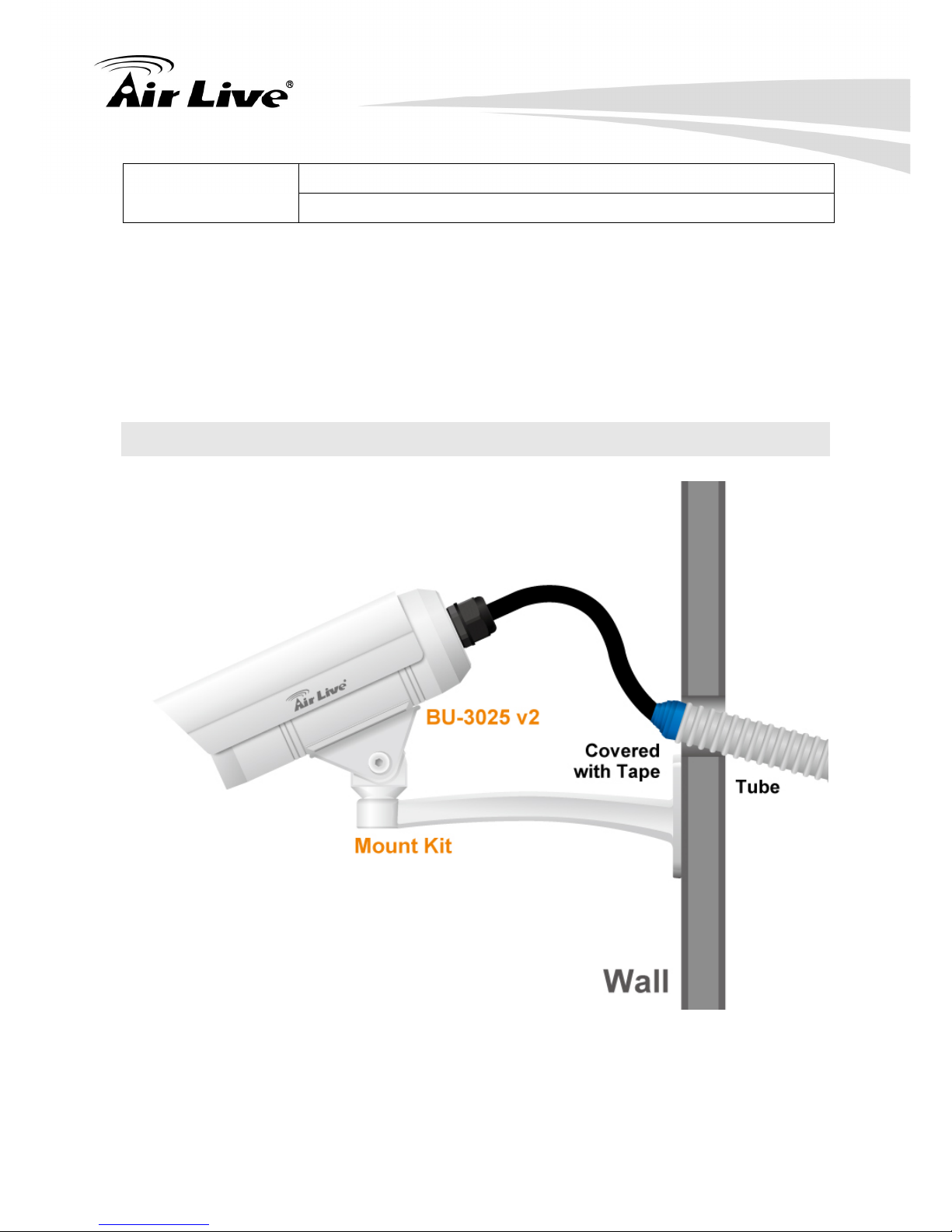

2.3 Mounting the Camera
Fix the camera with bundle wall mount kit as below.

2. Package Contents and Installation
AirLive BU-3025 v2 User’s Manual
9
1. Plug an Ethernet cable into the Camera
Connect an Ethernet cable to the LAN socket and attach it into the network.
2. Connect the external power supply to Camera
Connect the attached power adapter to the DC power jack of the camera.
Note: Use the power adapter, 12VDC, included in the package and connect it to wall
outlet for AC power.
Once you have installed the camera well and powered it on, the power LED (orange) will
turn on later. The power LED turns on, which means the system is booting up
successfully. Furthermore, if you have a proper network connection, and access to the
camera, the LAN LED (green) will flash.
2.4 Connect to IP Camera
1. Insert the bundle CD into your PC/Laptop.
2. Auto Run Screen then shows up; click “Install Software Æ“Camera IP Finder Utility” to
install the configuration tool software.

2. Package Contents and Installation
AirLive BU-3025 v2 User’s Manual 10
3. After completing installation, run the configuration tool software.

2. Package Contents and Installation
AirLive BU-3025 v2 User’s Manual
11
4. The Software scans the network and finds the IP Camera and then lists them in the
dialog box.
5. If the Camera’s IP address is in the same IP segment as your LAN, select the founded IP
Camera and double click on the item. Then, the default browser will show up and connect
to the IP camera’s Web automatically.

3. Using IP Camera via Web Browser
AirLive BU-3025 v2 User’s Manual 12
3 3. Using IP Camera via
Web Browser
3.1 Windows Web Browser
1. Open your web browser, and enter the IP address or host name of the IP camera in the
Location / Address field of your browser.
Note: If you only want to view the video without accessing Setting screen, enter
“http://<IP>/index2.htm” as your web URL.

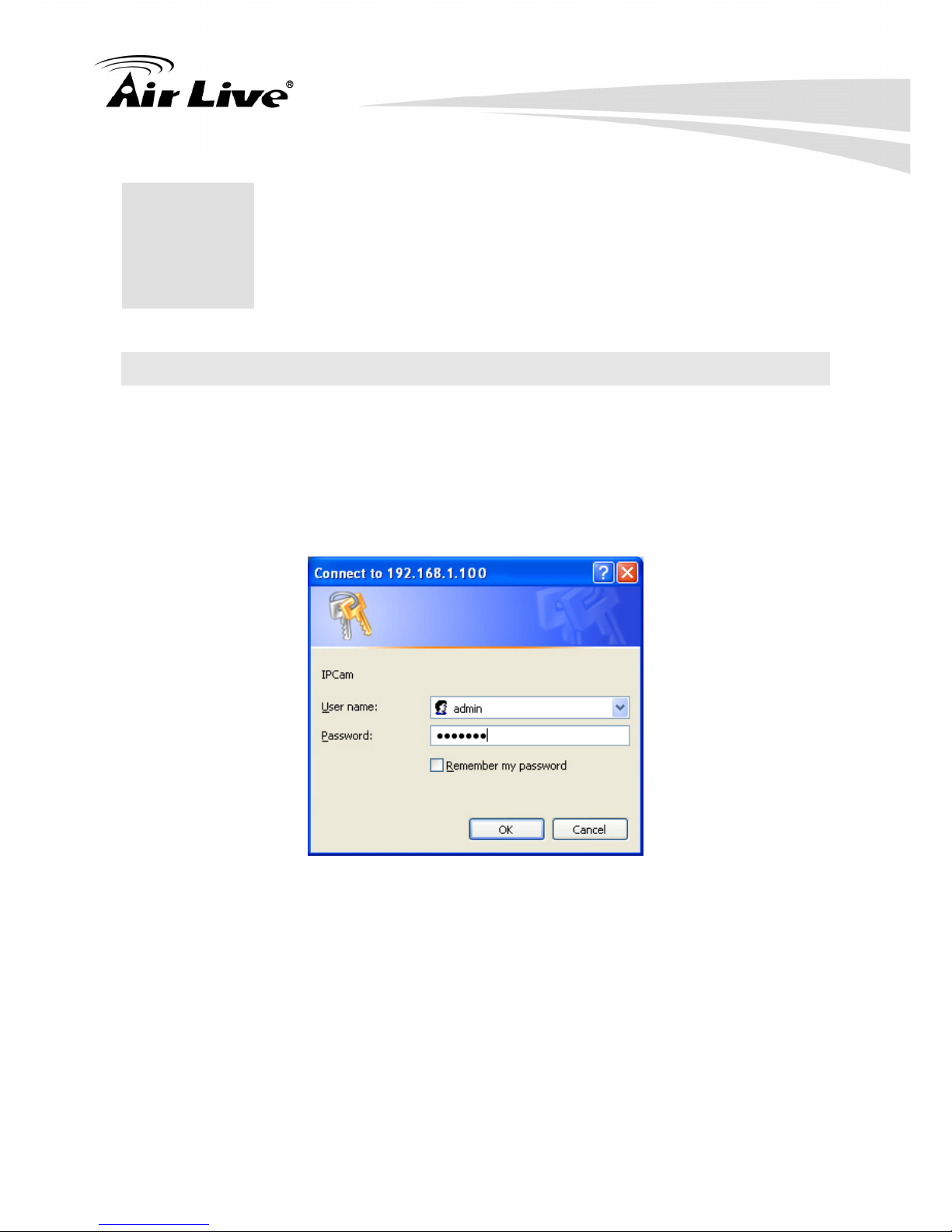

2. Use the default account “admin” and default password “airlive”.
Note: The default user name “admin” and the password “airlive” are set at the factory for
the administrator.

3. Using IP Camera via Web Browser
AirLive BU-3025 v2 User’s Manual
13

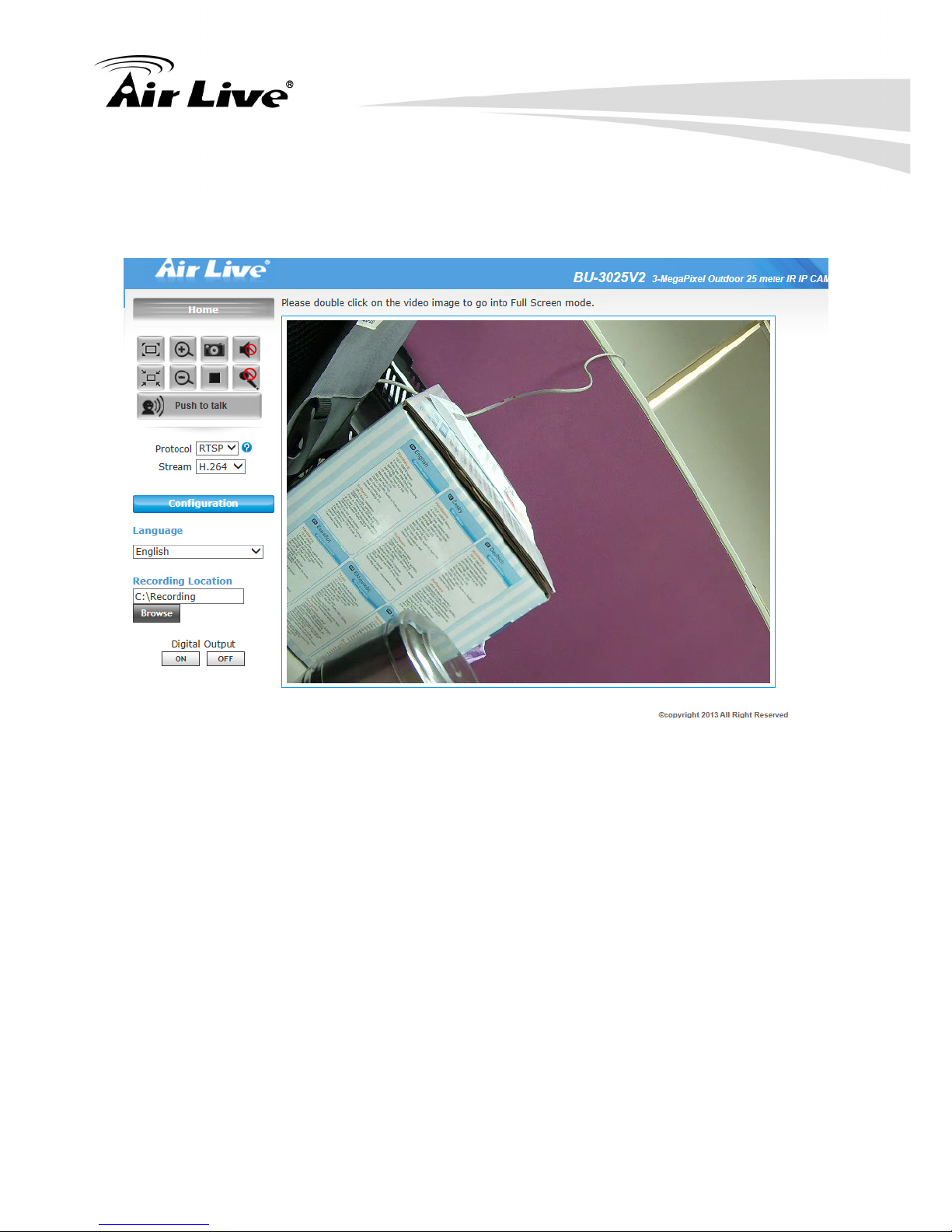

3. The monitor image will be displayed in your browser. In the left side of main window, you
can configure the settings you want. For more details, you can check the following
chapters.

4. Operating IP Camera via Mobile Phone
AirLive BU-3025 v2 User’s Manual 14
4.1 Using IP Camera via iPhone
You can access to your IP camera via your iPhone. Please follow the setting process below.
Then you can see the live view via iPhone.
4 4. Operating IP Camera
via Mobile Phone

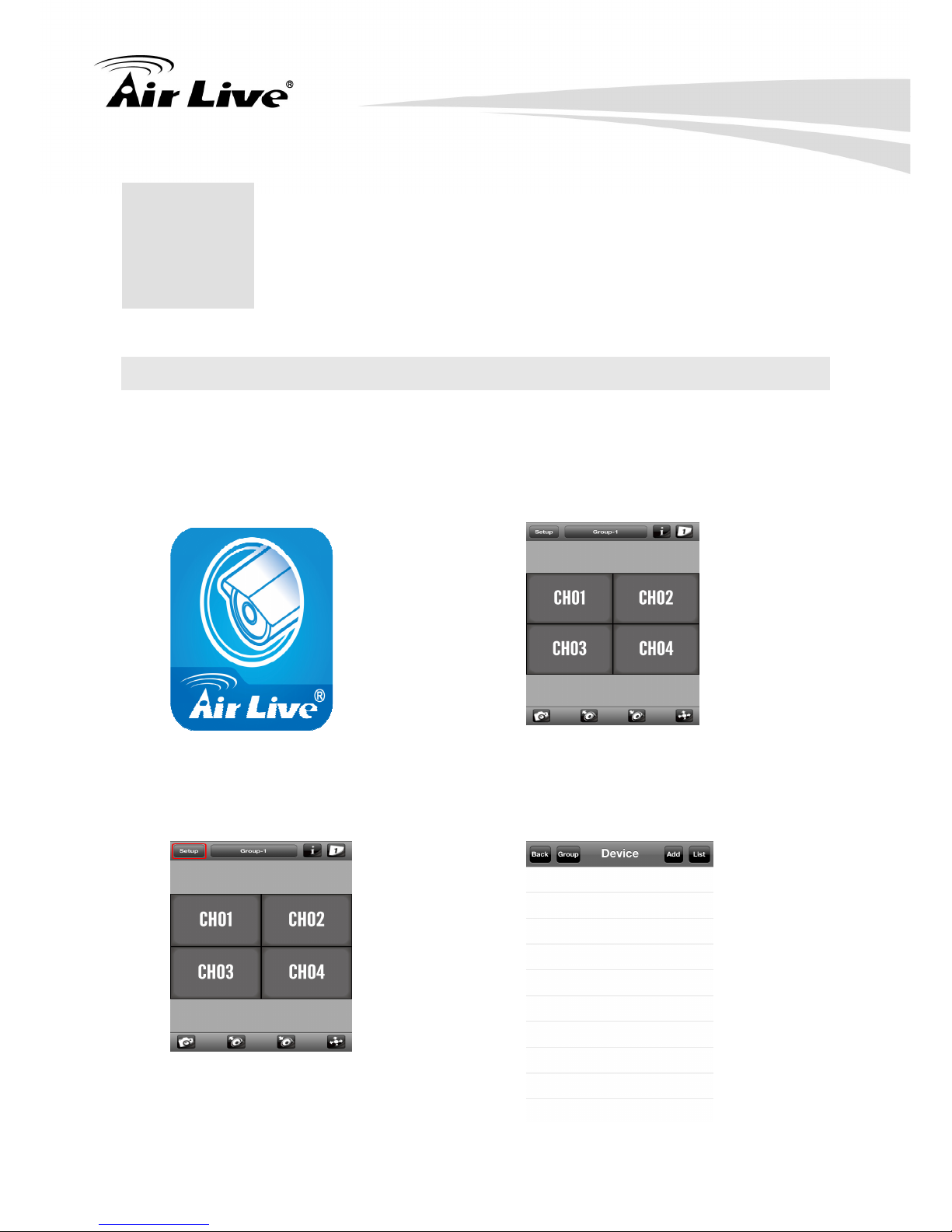

2. Execute AirLive CamPro Mobile
1. Download AirLive CamPro
Mobile from APP store
3. Click Setup button. 4. Setup page appears

4. Operating IP Camera via Mobile Phone
AirLive BU-3025 v2 User’s Manual
15

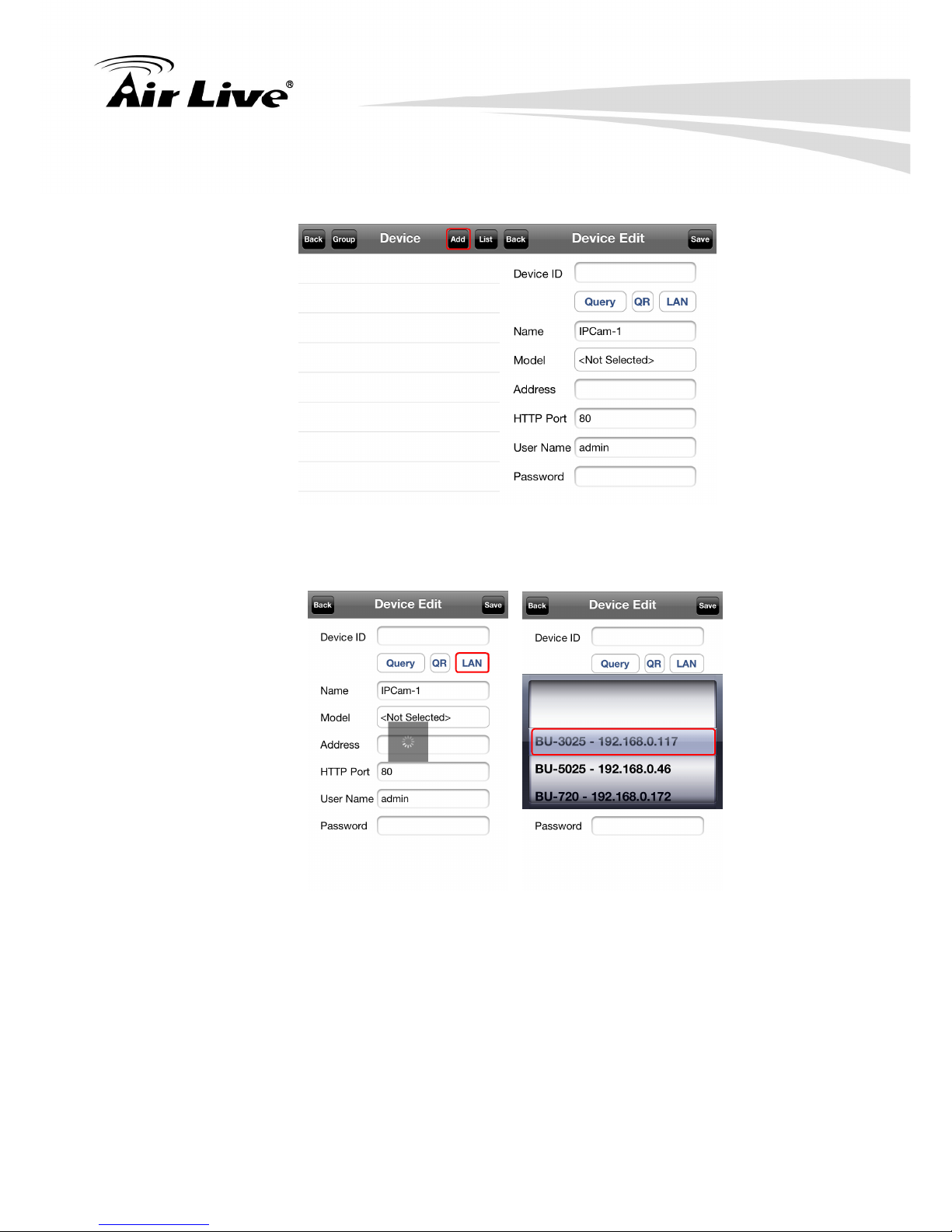

5. Click Add button.
6.Click LAN button and select the camera.
