AirLive IAR-5000 User manual

.
IA
R
-5000
Internet Activity Recorde
r
Use
r
’s Manual

Copyright and Disclaimer
AirLive IAR-5000 User’s Manual
Copyright & Disclaimer
No part of this publication may be reproduced in any form or by any means, whether
electronic, mechanical, photocopying, or recording without the written consent of OvisLink
Corp.
OvisLink Corp. has made the best effort to ensure the accuracy of the information in this
user’s guide. However, we are not liable for the inaccuracies or errors in this guide.
Please use with caution. All information is subject to change without notice
All Trademarks are properties of their respective holders.

Table of Contents
i AirLive IAR-5000 User’s Manual
Table of Contents
1. Introduction................................................................................................1
1.1 Overview..............................................................................................1
1.2 Firmware Upgrade and Tech Support..................................................1
1.3 Features...............................................................................................2
2. Installing the IAR-5000 ..............................................................................3
2.1 Before You Start...................................................................................3
2.2 Package Content .................................................................................3
2.3 Knowing your IAR-5000.......................................................................4
2.4 LED Table ............................................................................................5
2.5 Hardware Installation...........................................................................6
2.6 Restore Settings to Default..................................................................8
3. Configuring the IAR-5000........................................................................11
3.1 Important Information.........................................................................11
3.2 Prepare your PC................................................................................11
3.3 Management Interface.......................................................................12
3.4 Introduction to Web Management......................................................13
3.5 Initial Configurations ..........................................................................16
3.6 About IAR-5000’s Menu Structure......................................................21
4. System......................................................................................................22
4.1 Admin.................................................................................................22
4.2 Interface.............................................................................................24
4.3 Settings..............................................................................................25
4.4 Date/Time ..........................................................................................30
4.5 Permitted IPs .....................................................................................31
4.6 Logout................................................................................................32
4.7 Software Update................................................................................32
5. User List....................................................................................................34
6. Authentication..........................................................................................46

Table of Contents
AirLive IAR-5000 User’s Manual ii
6.1 Settings..............................................................................................46
6.2 Auth User...........................................................................................48
6.3 RADIUS .............................................................................................49
6.4 POP3.................................................................................................60
6.5 LDAP .................................................................................................61
7. IM Management........................................................................................74
7.1 Login Notice.......................................................................................75
7.2 Default Rule.......................................................................................78
7.3 Account Rule......................................................................................79
7.4 Configuration Example.......................................................................80
8. Application Management.........................................................................89
8.1 Default Rule.......................................................................................89
8.2 Custom Rule......................................................................................91
9. Record: Settings ......................................................................................93
9.1 Settings..............................................................................................93
9.2 Settings Example...............................................................................96
10. Record: User and Service ...................................................................109
10.1 SMTP.............................................................................................109
10.2 HTTP .............................................................................................115
10.3 IM...................................................................................................118
10.4 Web SMTP.....................................................................................120
10.5 Web POP3.....................................................................................123
10.6 FTP................................................................................................126
10.7 Telnet .............................................................................................129
10.8 Custom Log ...................................................................................131
11. Record: Access Record ......................................................................135
11.1 Accessing Emails Sent via SMTP Protocol....................................135
11.2 Accessing Emails Sent via POP3/IMAP Protocol...........................139
11.3 Accessing Visited Webpages via HTTP Protocol...........................141
11.4 Accessing Details of an IM Conversation.......................................143

Table of Contents
iii AirLive IAR-5000 User’s Manual
11.5 Accessing Emails Sent via Web-Based Email Service...................146
11.6 Accessing Emails Received via Web-Based Email Service...........147
11.7 Accessing Files Transferred via FTP Protocol................................149
11.8 Accessing Details of Sessions Established via TELNET Protocol..151
12. Content Auditing..................................................................................153
13. Anomaly Flow IP ..................................................................................168
14. Local Disk.............................................................................................174
14.1 Storage Time..................................................................................174
14.2 Disk Space.....................................................................................175
15. Remote Backup....................................................................................177
15.1 Backup Settings.............................................................................177
15.2 Browse Settings.............................................................................180
16. Reporting..............................................................................................182
17. Status....................................................................................................188
17.1 System Info....................................................................................188
17.2 Authentication ................................................................................190
17.3 Current Session.............................................................................190
17.4 IM / Application Log .......................................................................191
17.5 Even Log........................................................................................192
18. Specifications.......................................................................................195

1. Introduction
1AirLive IAR-5000 User’s Manual
1 1. Introduction
1.1 Overview
Instead to restrict the access right of communication software, the AirLive brings you a
brand new model of Internet Activity Recorder, IAR-5000. It can record the defined service
packets in its hard disk, and provide the log to administrator for monitoring. With Sniffer
mode or Bridge mode, network administrator will not need to change current network
topology, and construct the advanced secure mechanism to protect the confidential
information.
1.2 Firmware Upgrade and Tech Support
If you encounter a technical issue that can not be resolved by information on this guide, we
recommend that you visit our comprehensive website support at www.airlive.com. The
tech support FAQ are frequently updated with latest information.
In addition, you might find new firmwares that either increase software functions or provide
bug fixes for IAR-5000. You can reach our on-line support center at the following link:
http://www.airlive.com/support/support_2.jsp
Since 2009, AirLive has added the “Newsletter Instant Support System” on our website.
AirLive Newsletter subscribers receives instant email notifications when there are new
download or tech support FAQ updates for their subscribed airlive models. To become an
AirLive newsletter member, please visit: http://www.airlive.com/member/member_3.jsp
Figure: AirLive Newsletter Support System

1. Introduction
AirLive IAR-5000 User’s Manual 2
1.3 Features
Sniffer and Bridge mode
SMTP, POP3/IMAP, HTTP, IM, Web SMTP, Web POP3, FTP, and Telnet Content
Record
IM, P2P, Web mail signature pattern update
IM Management
Application Management for Peer-to-Peer Sharing, Multimedia Streaming, Online
Gaming, VPN Tunneling, and Remote Controlling program
User Authentication
Content Auditing
Anomaly Flow IP
Remote Backup

2. Install the IAR-5000
3 AirLive IAR-5000 User’s Manual
2 2. Installing the IAR-5000
This section describes the hardware features and the hardware installation procedure for
the IAR-5000. For software configuration, please go to chapter 3 for more details.
2.1 Before You Start
It is important to read through this section before you install the IAR-5000
The IAR-5000 is built-in with hard disk installed, so please install IAR-5000 gently
and carefully.
The default hard disk type and size is IDE 160 GB, you can change higher
capacity of hard disk to replace the original one.
You must power off IAR-5000 before to change hard disk. When new hard disk is
installed and power on IAR-5000, system will format hard disk automatically.
The maximum capacity of IDE hard disk is 750 GB.
2.2 Package Content
The IAR-5000 package contains the following items:
One IAR-5000 main unit
User’s Guide CD
Quick Start Guide
CAT-5 UTP Fast Ethernet cable
CAT-5 UTP Fast Ethernet cross-over cable
RS-232 cable
Power code
Rack mount kits and accessories

2. Install the IAR-5000
AirLive IAR-5000 User’s Manual 4
2.3 Knowing your IAR-5000
Below are descriptions and diagrams of the product:
No Port Description
1 Console Port
9-pin serial port connector for checking setting and
restore to the factory setting
2 Port 1
Use this port to connect to a router, DSL router, or
Cable modem router
3 Port 2
Use this port to connect to hub, switch, or switch’s
mirror port
4 USB
Not Available
5 AC Power
Input voltages ranging from 100 ~ 240 VAC, and with
a maximum power output of 85 watts.

2. Install the IAR-5000
5 AirLive IAR-5000 User’s Manual
2.4 LED Table
IAR-5000:
No LED Color Status Description
1 POWER
Green On Power on the device
2 Hard Disk
Green Blinking Data reading / accessing
Port1 (L) Orange Blinking Sending / Receiving
3 Port1 (R) Green On 100 Mbps
Port2 (L) Orange Blinking Sending / Receiving
4 Port2 (R) Green On 100 Mbps
IAR-5000 v2:
No LED Color Status Description
1 POWER
Green On Power on the device
2 Hard Disk
Green Blinking Data reading / accessing
Port1 (L) Orange Blinking Sending / Receiving
-- Off 10 Mbps
Green On 100 Mbps
3 Port1 (R) Orange On 1000 Mbps
Port2 (L) Orange Blinking Sending / Receiving
-- Off 10 Mbps
Green On 100 Mbps
4 Port2 (R) Orange On 1000 Mbps

2. Install the IAR-5000
AirLive IAR-5000 User’s Manual 6
2.5 Hardware Installation
Bridge Mode: Connect the Port 1 to the firewall or gateway and Port 2 to a LAN
hub or switch.

2. Install the IAR-5000
7 AirLive IAR-5000 User’s Manual
Sniffer Mode: Connect the Port 1 to the mirror port of a core switch or any port
available on a LAN hub and Port 2 to the network adaptor of the management PC.
Sniffer Mode Bridge Mode
Deployment Connect Port1 to hub or
switch’s mirror port Between LAN and firewall Router
Anomaly Flow IP Alert only Alert and Block connection
Application Management N/A Yes
IM Management N/A Yes
Authentication N/A Yes

2. Install the IAR-5000
AirLive IAR-5000 User’s Manual 8

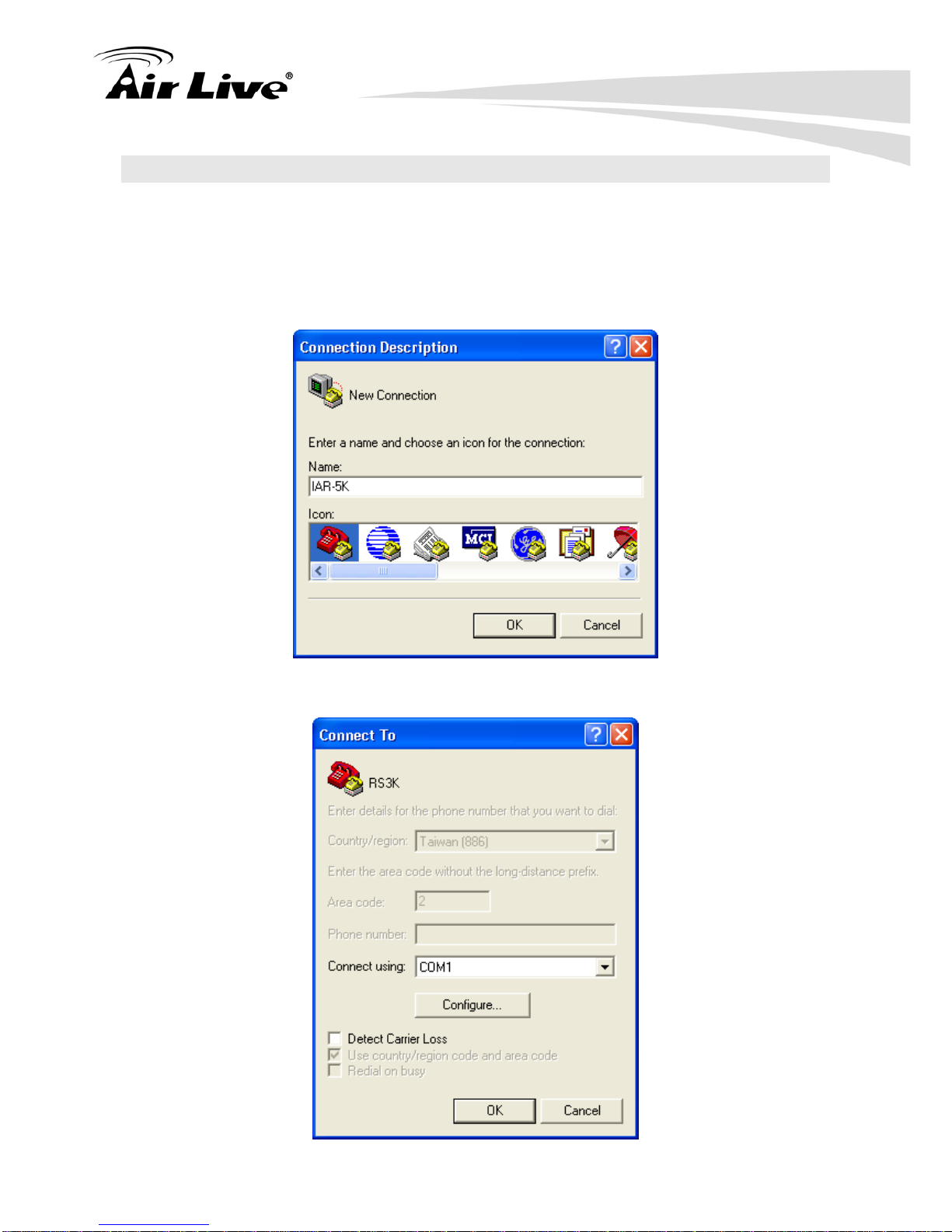

2.6 Restore Settings to Default
If you have forgotten your IAR-5000s IP address, you can restore your IAR-5000 to the
default settings by console. Please see diagram below for details.
1. Connect 9-pin RS-232 cable to PC and IAR-5000 console port.
2. Open Hyper Terminal program and configure the following settings.
3. Specify a name to the program
4. Select COM1 as the connecting type

2. Install the IAR-5000
9 AirLive IAR-5000 User’s Manual
5. Fill in Port Setting as following value and click OK to save the setting
6. Press “Enter” and input Login name “admin” and password “airlive”.

2. Install the IAR-5000
AirLive IAR-5000 User’s Manual 10
7. Type “ls” to display the command list
8. Type “reset” to reset the device as default.

3. Configuring the IAR-5000
11 AirLive IAR-5000 User’s Manual
You can configure through standard web browser (http), secured web (https) management.
In this chapter, we will explain IAR-5000’s available management interfaces and how to get
into them. Then, we will provide the introduction on Web Management and recommended
initial settings.
3.1 Important Information
The following information will help you to get start quickly. However, we recommend you
to read through the entire manual before you start. Please note the password is case
sensitive.
The default IP address is: 192.168.1.1 Subnet Mask: 255.255.255.0
The default user name: admin
The default password: airlive
3.2 Prepare your PC
The IAR-5000 can be managed by a PC. The default IP address of the IAR-5000 is
192.168.1.1 with a subnet mask of 255.255.255.0. This means the IP address of the PC
should be in the range of 192.168.1.2 to 192.168.1.254.
To prepare your PC for management with the IAR-5000, please do the following:
1. Connect your PC directly to the Port1 on the of IAR-5000
2. Set your PC’s IP address manually to 192.168.1.100 (or other address in the same
subnet)
3 3. Configuring the
IAR-5000

3. Configuring the IAR-5000
AirLive IAR-5000 User’s Manual 12
You are ready now to configure the IAR-5000 using your PC.
3.3 Management Interface
The IAR-5000 can be configured using one the management interfaces below:
Web Management (HTTP): You can manage your IAR-5000 by simply typing its IP
address in the web browser. Most functions of IAR-5000 can be accessed by web
management interface. We recommend using this interface for initial configurations.
To begin, simply enter IAR-5000’s IP address (default is 192.168.1.1) on the web
browser. The default password is “airlive”.

3. Configuring the IAR-5000
13 AirLive IAR-5000 User’s Manual
Secured Web Management (HTTPS): HTTPS is also using web browser for
configuration. But all the data transactions are securely encrypted using SSL
encryption. Therefore, it is a safe and easy way to manage your IAR-5000. We
highly recommend the Internet service provider to use HTTPS for management.
To begin, simply enter https://192.168.1.1 on your web browser. A security alert
screen from your browser will pop up. Please grant all permission and get certificate
to IAR-5000. After you pass the security warning screen, you will enter the
IAR-5000’s secured web management interface. The default password is “airlive”.
3.4 Introduction to Web Management
The IAR-5000 offers both normal (http) and secured (https) Web Management interfaces.
Their share the same interface and functions, and they can both be accessed through web
browsers. The only difference is HTTPS are encrypted for extra security. Therefore, we
will discuss them together as “Web Management” on this guide.
If you are placing the IAR-5000 behind router or firewall, you might need to open virtual
server ports to IAR-5000 on your firewall/router
HTTP: TCP Port 80
HTTPS: TCP/UDP Port 443
This procedure is not necessary in most cases unless there is a router/firewall between
your PC and IAR-5000.

3. Configuring the IAR-5000
AirLive IAR-5000 User’s Manual 14
Normal Web Management (HTTP)
To get into the Normal Web Management, simply type in the IAR-5000’s IP address (default
IP is 192.168.1.1) into the web browser’s address field.
Secured Web Management (HTTPS)
To get into the Secured Web Management, just type “https://192.168.1.1” into the web
browser’s address field. The “192.168.1.1” is IAR-5000’s default IP address. If the IP
address is changed, the address entered in the browser should change also.
A security warning screen from your browser will then pop-up depending on the browser
you use. Please follow step below to clear the security screen.
Internet Explorer: Select “Yes” to proceed

3. Configuring the IAR-5000
15 AirLive IAR-5000 User’s Manual

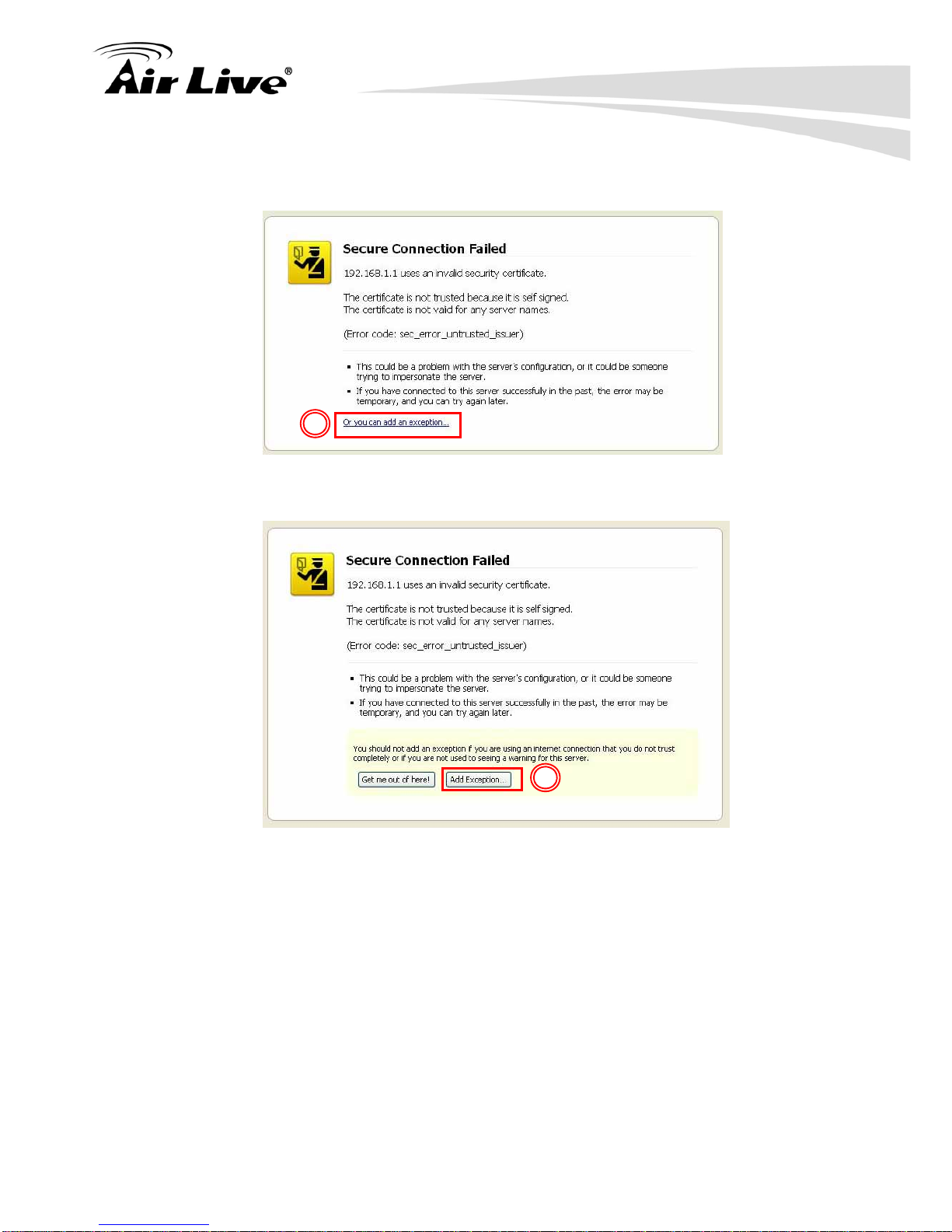

Firefox:
1. Select “or you can add an exception”
2. Click on “Add Exception”
3. Click on “Get Certificate”. Then, please enter IAR-5000’s IP address. Finally,
please click on “Confirm Security Exception.”
2
1
