Airmax PondSeries User manual

Included
PondSeries™
Floating Fountain
Owner’s Manual
1/2 HP Fountain 115V/60Hz #652597
1/2 HP Fountain 230V/60Hz #652596
1 HP Fountain 230V/60Hz #652150
2 HP Fountain 230V/60Hz #652151
UNIT IDENTIFICATION
Safe, Simple Solutions™
Please Keep for Your Records
Classic
Trumpet
Crown & Trumpet
Included
Included

Airmax® Inc. | P.O. Box 38, Romeo, MI 48065 | Phone: [phone] | www.airmaxeco.com
THANK YOU FOR CHOOSING
The Airmax®PondSeries™
Floating Fountain
Ftn
PondSeries 1/2 HP, 1 HP & 2 HP
Floating Fountain
OWNER’S MANUAL FOR:
See in Action | PondSeries Spray Patterns
airmaxeco.com/pondseriesfountains
SECTION
TABLE OF CONTENTS
PAGE
1 System Components 4
2 Safety 4
3 System Installation 5
4 Maintenance & Winter Storage 5
5 Troubleshooting - Fountain 5
6 Replacement Parts 6-8
7 Warranty 11
2

1. System Components
PondSeries™ Floating Fountain
Owner’s Manual
Available up to 500’ in length.
• Under NO circumstances should anyone enter the water with the electrical equipment plugged in
and/or in operation.
• WARNING - Risk of electric shock - This fountain is supplied with a grounding conductor and
grounding-type attachment plug. To reduce the risk of electric shock, be certain that it is
connected only to a properly grounded, grounding-type receptacle. This fountain has not been
investigated for use in swimming pool areas.
• ALWAYS use an Airmax NEMA 3R Powder Coated Control Panel.
• NEVER run the unit out of the water. It will damage the seals and create a dangerous situation for
the operator.
• NEVER lift or drag the fountain by the power cord.
• During freezing temperatures, remove fountain and store inside.
• If installing the fountain from a boat or raft ALWAYS wear a Coast Guard approved personal
flotation device.
• ALWAYS use a qualified electrician to install a power source.
• Easy to Install
• Continuous Duty Water Cooled Motor, Silicon Carbide (SiC) and Alumina Thrust Bearing
• Fully Sealed Motor, UL Listed
• Composite and Stainless Steel Suction Screen & Body
• Composite Discharge & Nozzle Parts
• Operates in as Little as 36” of Water Depth
• Includes 3 Spray Patterns, Classic, Trumpet and Crown & Trumpet, Premium Nozzles
Available
• Power cords available in up to 500’ lengths (1/2 HP 115V only available up to 200’)
• 3 Year Warranty
Airmax PondSeries Floating Fountain
Spray Patterns
Power Cord
w/strain relief cable attachment
2. Important Safety Instructions
Crown & Trumpet
Trumpet
Airmax NEMA 3R Powder
Coated Control Panel
Classic
(No nozzle required)
Airmax® Inc. | P.O. Box 38, Romeo, MI 48065 | Phone: [phone] | www.airmaxeco.com 3

Power Cord
*Shown with optional mooring kit
Cord Strain
Relief Attachment
Carabiner
Mooring Line
(Vinyl Coated Galvanized Wire)
PondSeries™Fountain
Control
Panel
Mooring Stake
Installing the PondSeries™Fountain
A. System Components:
1. Fountain Pump with Quick Disconnect, Float Mount Ring and
Classic Spray Pattern (installed)
2. Fountain Float
3. Power Cord
4. Control Panel
5. Crown & Trumpet Spray Pattern (interchangeable)
6. Trumpet Spray Pattern (interchangeable)
B. Prepping the PondSeries for Installation:
1) Ensure you have power close to your pond. If you don’t, we recommend to ALWAYS use a
licensed electrician to properly run power down to the pond.
2)Mount the Control Panel in a fixed position next to the power source. (For control panel
installation and wiring instructions for your fountain and light set, please see control panel
manual for details.)
a) If you are unable to perform installation of your control panel or light set please contact
your Certified Airmax Service Technician and they can perform this installation for you.
3)Choose Your Spray Pattern (Fig. 3)
a) The PondSeries automatically creates the classic pattern without a nozzle installed;
however, the PondSeries includes two additional spray patterns
(Trumpet and Crown & Trumpet).
b) To change a pattern, simply unscrew the nozzle nut, replace the pattern and reinstall the
nozzle nut. We recommend removing the nozzle nut while displaying the classic pattern.
4)Assembling the Unit (Fig. 4)
a) Lay the float flat on the ground with Airmax logo facing up.
b) Place the fountain pump assembly into the center of the float.
c) Lift the float straight up and ensure that the fountain pump lead power cord passes
through the center hole. Gently lay the fountain to one side.
d) Securely attach the power cord to the fountain pump lead quick disconnect.
e) Attach the power cord strain relief to the loop underneath the float mount ring. (Fig. 2)
f) Attach a mooring cable (not included) using two outside mounting locations on opposite
sides of the fountain float (Fig. 2).
3. Setup & Installation
Classic
Trumpet Crown & Trumpet
Fig. 3
Fig. 4
Unscrew Nozzle Nut to
change Patterns
Mooring Kit Options:
#651052 – 150’ Mooring Kit
#651054 – 250’ Mooring Kit
#651055 – 500’ Mooring Kit
* Mooring Kit Not Included with Fountain
ENGLISH
• 2 stakes
• 2 carabiners
• 2 cable clamps
• 150’, 250’ or 500’ black vinyl
coated galvanized cable
(Mooring Line)
Recommended Mooring Kit
Fig. 1
Fig. 2
Strain Relief Mooring Kit
4

g) Installing the Airmax LED Fountain Light Set (sold separately) (Fig. 5)
i) To attach the light, clip the light into the mounting spot on the float and use the vertical tension
screw to secure the light into place. Continue until all lights are attached. Be mindful of the different
lengths of interconnect cord between lights. We recommend clipping up to an 8-light set into the
inside mounting positions.
ii) After attaching the Airmax LED Fountain Light Set to the float, connect the power cord to the light
kit quick disconnect. Adjust the lights to point to desired direction.
iii) Attach the light set power cord strain relief on to one of the loops underneath the float mount ring.
Once lights are installed and
clipped into position, adjust
lights for desired direction.
Note
A. Maintenance
1) Disconnect ALL power from the fountain and lights before attempting any maintenance.
2) Periodically clean fountain intake screen of debris, algae and/or aquatic weeds.
3) Periodically clean light set lens with a non-abrasive brush and cleaner.
B. Winter Removal & Storage
1) Remove the fountain and lights from the pond before ice begins to form.
2) This is the perfect time to clean or power wash any debris on the unit before storing.
3) It is recommended to disconnect lights from fountain and store in an area above freezing temperatures.
C. Spring Installation Inspection
1) Before re-installing the fountain and lights in the spring, check the condition of the power cord, quick disconnect connectors and replace any o-rings
that may be cracked or missing.
4. Maintenance & Winter Storage
3. Setup & Installation, cont. ENGLISH
LED Light
PondSeries
Floating Fountain
Fig. 5
IF FOUNTAIN WILL NOT TURN ON
ISSUE CORRECTION
GFCI Tripped Reset GFCI
Power Cord Cut Repair or replace power cord
Intake plugged Clean intake
Timer not running Check power to timer & battery back up
Not enough water in reservoir Bring water level up to at least 36” at fountain
Fountain impeller stuck Remove fountain, clean or replace impeller
Breaker tripped due to overcurrent Reduce current load on circuit, check other equipment
Breaker tripped to GFCI 1/2 HP check GFCI & breaker
1 & 2 HP check overload & breaker
IF NOZZLE HAS POOR QUALITY STREAMS
ISSUE CORRECTION
Intake plugged Clean intake
Not enough water in reservoir Bring water level up to at least 36” at fountain
Debris caught in nozzle hole Remove nozzle, clean, replace
Water coming over the float Check fountain float for water
IF FOUNTAIN STARTS AND STOPS
ISSUE CORRECTION
Intake plugged Clean intake
Not enough water in reservoir Bring water level up to at least 36” at fountain
IF STREAMS RAISE AND LOWER
ISSUE CORRECTION
Not enough water in reservoir Bring water level up to at least 36” at fountain
Water coming over the float Check fountain float for water, replace if any
IF FOUNTAIN IS HUMMING - RUNNING
ISSUE CORRECTION
Normal running Nothing
IF FOUNTAIN IS HUMMING - NOT RUNNING
ISSUE CORRECTION
Intake plugged Clean intake
Voltage not high enough for starting Make sure voltage at receptacle is correct
Fountain impeller stuck Remove fountain, clean replace impeller
5. Troubleshooting - Fountain
h) Installing the PondSeries Fountain into your Pond or Lake
i) Pick up the fountain by the float and place into the water. Note: a minimum of 36” of water is required for proper operation.
ii) Tie one side of the mooring rope to a stake and place the stake securely into the ground.
iii) Take the other stake and mooring rope and walk around the pond, carefully pulling the fountain across the water. Once the fountain is in position, tie
the 2nd mooring rope to the 2nd stake and place securely into the ground.
iv) Ensure both mooring ropes are snug to prevent the fountain from twisting and shifting during operation.
v) To anchor the fountain using blocks, spread the blocks far apart so the mooring lines are snug and the fountain can not spin from the force of the
motor, which could cause the lines to get tangled.
* If your issue persists or is not covered in the troubleshooting guide above, please contact your Certified Airmax Service Technician
to perform any troubleshooting measures you are uncomfortable or unable to perform yourself. For fountain light set troubleshooting
measures please see the manual included with your light set.
5

12
11
10
9
8
7
6
5
4
1
3
2
7. Replacement Parts ENGLISH

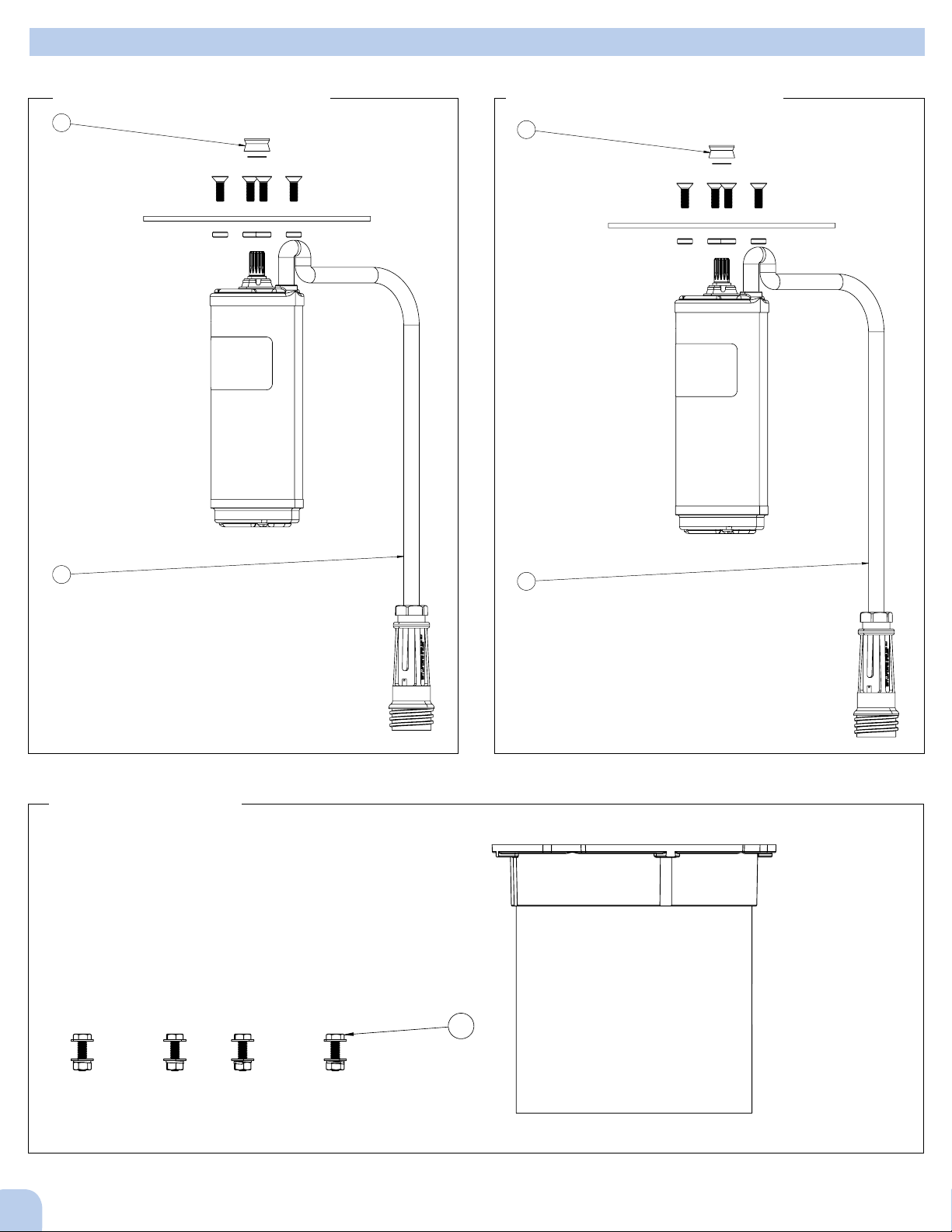

1/2 HP Replacement Parts
PondSeries 1/2 HP Floating Fountain
1. #653100 – Float Mount Ring Assembly, 12”
2. #652164 – Float Mount Ring Hardware Assembly
3. #653102 – PondSeries Discharge Horn Assembly
4. #653103 – Upper Shroud with Bearing Assembly
5. #651620 – Lower Shroud, 4”
6. #653104 – Impeller and Clip Assembly, 1/2 HP
7. #653107 – Thrust Bearing Assembly
8. #651174 – 3/4” Stainless Coated Shaft
9. #653108 – Stainless Shaft Coupler Assembly
10. #652158 – Power Unit, 115v, 1/2 HP
#652159 – Power Unit, 230v, 1/2 HP
11. #651861 – Cooling Shroud Assembly, 1/2 HP
12. #653109 – Intake Basket Assembly, 1/2 HP
13. #651500 – Float, 32”, Blue w/Airmax Logo
Included Spray Patterns (not pictured)
N/A – Classic Pattern
#651887 – Trumpet Pattern
#651889 – Crown & Trumpet Pattern
For information on premium spray visit us online
32" FLOAT
2
1
FLOAT MOUNT RING, 12"
ASSEMBLY
ITEM NO. PART NUMBER DESCRIPTION QTY.
1
651500-R FLOAT 02-11-13_SMD-
Part-1
1
ITEM NO. PART NUMBER DESCRIPTION QTY.
1
651324_FLOAT_MOUNT
_RING-Part-1-1
2
2
94070A540 4
1/2HP POND SERIES
FOUNTAIN
A
DO NOT SCALE DRAWING
652597- Half HP 120V FNT External
SHEET 5 OF 6
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
1.0 BEND
TWO PLACE DECIMAL 0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE POND GUY INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
THE POND GUY INC. IS
PROHIBITED.
A A
B B
C C
D D
4
4
3
3
2
2
1
1
13
6

1
3
4
5
6
7
9
10
11
12
8
2
7. Replacement Parts ENGLISH
1 HP 230V Replacement Parts
PondSeries 1 HP 230V Floating Fountain
1. #653101 – Float Mount Ring Assembly, 1 & 2 HP
2. #652164 – Float Mount Ring Hardware Assembly
3. #653102 – PondSeries Discharge Horn Assembly
4. #653103 – Upper Shroud with Bearing Assembly
5. #651620 – Lower Shroud, 4”
6. #653105 – Impeller Assembly, 1 HP
7. #653107 – Thrust Bearing Assembly
8. #651174 – 3/4” Stainless Coated Shaft
9. #653108 – 3/4” Stainless Shaft Coupler Assembly
10. #652160 – Power Unit, 230v, 1 HP
11. #651862 – Cooling Shroud Assembly, 1 HP
12. #653209 – Intake Basket Assembly, 1 HP
13. #651502 – Float, 46”, 1 & 2 HP
Included Spray Patterns (not pictured)
N/A – Classic Pattern
#651907 – Trumpet Pattern
#651909 – Crown & Trumpet Pattern
For information on premium spray visit us online
1
2
653101
FLOAT MOUNTI RING, 14"
ASSEMBLY
652164
FLOAT MOUNTI RING
HARDWARE ASSEMBLY
651502
46" FLOAT
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
651502_46float_9Mar2016-Part-
11
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
94070A540
4
2
651872_float_mt_ring-
5jan17#2-Part-1
2
1HP POND SERIES
FOUNTAIN
B
DO NOT SCALE DRAWING
652150- 1HP FNT
SHEET 5 OF 6
2/25/19
MM
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
1.0 BEND
TWO PLACE DECIMAL
0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE POND GUY INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
THE POND GUY INC. IS
PROHIBITED.
A A
B B
C C
D D
4
4
3
3
2
2
1
1
13
7

1
3
4
5
6
7
8
10
11
12
9
2
7. Replacement Parts ENGLISH
2 HP 230V Replacement Parts
PondSeries 2 HP 230V Floating Fountain
1. #653101 – Float Mount Ring Assembly
2. #652164 – Float Mount Ring Hardware Assembly
3. #653102 – PondSeries Discharge Horn Assembly
4. #653103 – Upper Shroud with Bearing Assembly
5. #651620 – Lower Shroud, 4”
6. #653106 – Impeller Assembly, 2 HP
7. #653107 – Thrust Bearing Assembly
8. #651174 – 3/4” Stainless Shaft
9. #653108 – 3/4” Shaft Stainless Coupler Assembly
10. #652161 – Power Unit, 230v, 2 HP
11. #651863 – Cooling Shroud Assembly 2 HP
12. #653110 – Intake Basket, 2 HP
13. #651502 – Float, 46”, 1 & 2 HP
Included Spray Patterns (not pictured)
N/A – Classic Pattern
#651897 – Trumpet Pattern
#651899 – Crown & Trumpet Pattern
For information on premium spray visit us online
1
2
653101
FLOAT MOUNTI RING, 14"
ASSEMBLY
652164
FLOAT MOUNTI RING
HARDWARE ASSEMBLY
651502
46" FLOAT
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
651502_46float_9Mar2016-Part-
11
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
94070A540
4
2
651872_float_mt_ring-
5jan17#2-Part-1
2
1HP POND SERIES
FOUNTAIN
B
DO NOT SCALE DRAWING
652150- 1HP FNT
SHEET 5 OF 6
2/25/19
MM
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
1.0 BEND
TWO PLACE DECIMAL
0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE POND GUY INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
THE POND GUY INC. IS
PROHIBITED.
A A
B B
C C
D D
4
4
3
3
2
2
1
1
13
8

7. Replacement Parts ENGLISH
3
1
2
652158
POND SERIES POWER UNIT,
1/2HP, 115V
651861
POND SERIES PVC COOLING SHROUD, 1/2HP
1
2
3
652162
POND SERIES COOLING SHROUD SCREW ASSEMBLY
ITEM NO. PART NUMBER DESCRIPTION
1
652162 - Pond Series
Cooling Shroud Screw
Assy
4
2
651650_cooling_shrd_
mt_28feb15#2-Part-1
1
3
651467 - 6inch cool
tube
1
ITEM
NO.
PART NUMBER DESCRIPTION
1 651871 - Airmax Half HP 115V 2 Wire Motor 1
2
651878 - Airmax 2 Wire Motor Lead 1
3
652156 - Half HP Sand Slinger Washer Assembly 1
1/2HP,115V
POND SERIES FOUNTAIN
B
DO NOT SCALE DRAWING
652597- Half HP 115V FNT
SHEET 2 OF 6
2/13/19
MM
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
1.0 BEND
TWO PLACE DECIMAL 0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE POND GUY INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
THE POND GUY INC. IS
PROHIBITED.
A A
B B
C C
D D
4
4
3
3
2
2
1
1
3
1
2
652159
POND SERIES POWER UNIT,
1/2HP, 115V
651861
POND SERIES PVC COOLING SHROUD, 1/2HP
1
2
3
652162
POND SERIES COOLING SHROUD SCREW ASSEMBLY
ITEM NO. PART NUMBER DESCRIPTION
1
652162 - Pond Series
Cooling Shroud Screw
Assy
4
2
651650_cooling_shrd_
mt_28feb15#2-Part-1
1
3
651467 - 6inch cool
tube
1
ITEM
NO.
PART NUMBER DESCRIPTION
1 651870 - Airmax Half HP 230V 2 Wire Motor 1
2
651878 - Airmax 2 Wire Motor Lead 1
3
652156 - Half HP Sand Slinger Washer Assembly 1
1/2HP,230V
POND SERIES FOUNTAIN
A
DO NOT SCALE DRAWING
652596- Half HP 230V FNT
SHEET 2 OF 6
5/1/19
MM
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
1.0 BEND
TWO PLACE DECIMAL 0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE POND GUY INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
THE POND GUY INC. IS
PROHIBITED.
A A
B B
C C
D D
4
4
3
3
2
2
1
1
#652158 – 1/2 HP 115V Power Unit
1. #652156 – Half HP Sand Slinger Washer Asm
2. #651878 – Airmax 2 Wire Motor Lead
1/2 HP 115V Power Unit
#652159 – 1/2 HP 230V Power Unit
1. #652156 – Half HP Sand Slinger Washer Asm
2. #651878 – Airmax 2 Wire Motor Lead
1/2 HP 230V Power Unit
3
1
2
652158
POND SERIES POWER UNIT,
1/2HP, 115V
651861
POND SERIES PVC COOLING SHROUD, 1/2HP
1
2
3
652162
POND SERIES COOLING SHROUD SCREW ASSEMBLY
ITEM NO. PART NUMBER DESCRIPTION
1
652162 - Pond Series
Cooling Shroud Screw
Assy
4
2
651650_cooling_shrd_
mt_28feb15#2-Part-1
1
3
651467 - 6inch cool
tube
1
ITEM
NO.
PART NUMBER DESCRIPTION
1 651871 - Airmax Half HP 115V 2 Wire Motor 1
2
651878 - Airmax 2 Wire Motor Lead 1
3
652156 - Half HP Sand Slinger Washer Assembly 1
1/2HP,115V
POND SERIES FOUNTAIN
B
DO NOT SCALE DRAWING
652597- Half HP 115V FNT
SHEET 2 OF 6
2/13/19
MM
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
1.0 BEND
TWO PLACE DECIMAL 0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE POND GUY INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
THE POND GUY INC. IS
PROHIBITED.
A A
B B
C C
D D
4
4
3
3
2
2
1
1
#651861 – 1/2 HP Cooling Shroud with Hardware
#651862 – 1 HP Cooling Shroud
#651863 – 2 HP Cooling Shroud
1. #652162 – Pond Series Cooling Shroud Screw Asm
3
1
2
652158
POND SERIES POWER UNIT,
1/2HP, 115V
651861
POND SERIES PVC COOLING SHROUD, 1/2HP
1
2
3
652162
POND SERIES COOLING SHROUD SCREW ASSEMBLY
ITEM NO. PART NUMBER DESCRIPTION
1
652162 - Pond Series
Cooling Shroud Screw
Assy
4
2
651650_cooling_shrd_
mt_28feb15#2-Part-1
1
3
651467 - 6inch cool
tube
1
ITEM
NO.
PART NUMBER DESCRIPTION
1 651871 - Airmax Half HP 115V 2 Wire Motor 1
2
651878 - Airmax 2 Wire Motor Lead 1
3
652156 - Half HP Sand Slinger Washer Assembly 1
1/2HP,115V
POND SERIES FOUNTAIN
B
DO NOT SCALE DRAWING
652597- Half HP 115V FNT
SHEET 2 OF 6
2/13/19
MM
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
1.0 BEND
TWO PLACE DECIMAL 0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE POND GUY INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
THE POND GUY INC. IS
PROHIBITED.
A A
B B
C C
D D
4
4
3
3
2
2
1
1
1
1
Cooling Shroud
9

7. Replacement Parts ENGLISH
652160
POND SERIES POWER UNIT, 1HP
2
1
3
1
2
3
652162
POND SERIES COOLING SHROUD SCREW ASSEMBLY
651862
POND SERIES PVC COOLING SHROUD, 1HP
ITEM NO. PART NUMBER DESCRIPTION
1
652162 - Pond Series
Cooling Shroud Screw
Assy
4
2
651650_cooling_shrd_
mt_28feb15#2-Part-1
1
3
651467 - 1HP Cooling
Tube
1
ITEM
NO.
PART NUMBER DESCRIPTION
1 652157 - 1&2HP Sand Slinger Washer Assy 1
2
651874 - Airmax 1HP, 230V, 4 Wire Motor 1
3
651933 - Airmax 3 Pin 4 Wire Motor Lead 1
1HP POND SERIES
FOUNTAIN
B
DO NOT SCALE DRAWING
652150- 1HP FNT
SHEET 2 OF 6
2/25/19
MM
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
1.0 BEND
TWO PLACE DECIMAL 0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE POND GUY INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
THE POND GUY INC. IS
PROHIBITED.
A A
B B
C C
D D
4
4
3
3
2
2
1
1
POND SERIES POWER UNIT, 1/2HP
652161
POND SERIES POWER UNIT, 2HP
1
2
3
1
2
3
651863
POND SERIES PVC COOLING SHROUD, 2HP
652162
POND SERIES COOLING SHROUD SCREW ASSEMBLY
ITEM NO. PART NUMBER DESCRIPTION
1
652162 - Pond Series Cooling Shroud
Screw Assy
4
2
651650_cooling_shrd_mt_28feb15#2-
Part-1
1
3
651467 - 2HP Cooling Tube 1
ITEM NO. PART NUMBER DESCRIPTION
1
652157 - 1&2HP Sand
Slinger Washer Assy
1
2
651875 - Airmax 2HP,
230V, 4 Wire Motor
1
3
651933 - Airmax 3 Pin 4
Wire Motor Lead
1
2HP POND SERIES
FOUNTAIN
B
DO NOT SCALE DRAWING
652151- 2HP FNT
SHEET 2 OF 6
2/24/19
MM
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
1.0 BEND
TWO PLACE DECIMAL 0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE POND GUY INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
THE POND GUY INC. IS
PROHIBITED.
A A
B B
C C
D D
4
4
3
3
2
2
1
1
#652158 – 1 HP 230V Power Unit
1. #652156 – Half HP Sand Slinger Washer Asm
2. Airmax 3 Wire Motor Lead
(Installed only at Airmax)
1 HP 230V Power Unit
#652159 – 2 HP 230V Power Unit
1. #652156 – Half HP Sand Slinger Washer Asm
2. Airmax 3 Wire Motor Lead
(Installed only at Airmax)
2 HP 230V Power Unit
2
2
1. #653108 – Shaft Coupler Asm
2. #653107 – Thrust Bearing Asm
3. #651174 – SS Shaft Nitrided-Part-1
1
2
1
2
3
1
1
2
1
653108
3/4" SHAFT
STAINLESS COUPLER
ASSEMBLY
653107
PONDSERIES
THRUST BEARING ASSEMBLY
653104
POND SERIES
1/2HP IMPELLER
AND CLIP
ASSEMBLY
651174
NITRIDE COATED STAINLESS
3/4" X 5" PUMP SHAFT
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651175_splined_coupl
er_SS-Part-1
1
2
651197-R _250-20_875 -
316 SS SHCS
1
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651855 -
Thrust_bearing_holder29
NOV2015-Part-1-1
2
2
651649 silicon carbide
bearing-Part-1
1
3
651639 alumina bearing-
Part-1
1
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651474 -
93513A130_SPIRAL
EXTERNAL RETAINING
RING-Part-1
1
2
651857 - Half HP
Impeller
1
ITEM NO. PART NUMBER DESCRIPTION QTY.
1
651174 SS Shaft
Nitrided-Part-1
1
1/2HP,115V
POND SERIES FOUNTAIN
B
DO NOT SCALE DRAWING
652597- Half HP 115V FNT
SHEET 3 OF 6
2/13/19
MM
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
1.0 BEND
TWO PLACE DECIMAL 0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE POND GUY INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
THE POND GUY INC. IS
PROHIBITED.
A A
B B
C C
D D
4
4
3
3
2
2
1
1
3
1
2
1
2
3
1
1
2
1
653108
3/4" SHAFT
STAINLESS COUPLER
ASSEMBLY
653107
PONDSERIES
THRUST BEARING ASSEMBLY
653104
POND SERIES
1/2HP IMPELLER
AND CLIP
ASSEMBLY
651174
NITRIDE COATED STAINLESS
3/4" X 5" PUMP SHAFT
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651175_splined_coupl
er_SS-Part-1
1
2
651197-R _250-20_875 -
316 SS SHCS
1
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651855 -
Thrust_bearing_holder29
NOV2015-Part-1-1
2
2
651649 silicon carbide
bearing-Part-1
1
3
651639 alumina bearing-
Part-1
1
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651474 -
93513A130_SPIRAL
EXTERNAL RETAINING
RING-Part-1
1
2
651857 - Half HP
Impeller
1
ITEM NO. PART NUMBER DESCRIPTION QTY.
1
651174 SS Shaft
Nitrided-Part-1
1
1/2HP,115V
POND SERIES FOUNTAIN
B
DO NOT SCALE DRAWING
652597- Half HP 115V FNT
SHEET 3 OF 6
2/13/19
MM
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
1.0 BEND
TWO PLACE DECIMAL 0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE POND GUY INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
THE POND GUY INC. IS
PROHIBITED.
A A
B B
C C
D D
4
4
3
3
2
2
1
1
4
8
1
2
1
2
3
1
1
2
1
653108
3/4" SHAFT
STAINLESS COUPLER
ASSEMBLY
653107
PONDSERIES
THRUST BEARING ASSEMBLY
653105
POND SERIES
1HP IMPELLER
AND CLIP
ASSEMBLY
651174
NITRIDE COATED STAINLESS
3/4" X 5" PUMP SHAFT
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651175_splined_coupler_SS-
Part-1
1
2
651197-R _250-20_875 - 316
SS SHCS
1
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651855 -
Thrust_bearing_holder29
NOV2015-Part-1-1
2
2
651649 silicon carbide
bearing-Part-1
1
3
651639 alumina bearing-
Part-1
1
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651474 -
93513A130_SPIRAL
EXTERNAL RETAINING
RING-Part-1
1
2
651840 - 1HP
Impeller_000s
1
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 651174 SS Shaft Nitrided-Part-1 1
1HP POND SERIES
FOUNTAIN
B
DO NOT SCALE DRAWING
652150- 1HP FNT
SHEET 3 OF 6
2/25/19
MM
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
1.0 BEND
TWO PLACE DECIMAL 0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE POND GUY INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
THE POND GUY INC. IS
PROHIBITED.
A A
B B
C C
D D
4
4
3
3
2
2
1
1
4
10
1
2
1
2
3
1
1
2
1
653108
3/4" SHAFT
STAINLESS COUPLER
ASSEMBLY
653107
PONDSERIES
THRUST BEARING ASSEMBLY
653106
POND SERIES
2HP IMPELLER
AND CLIP
ASSEMBLY
651174
NITRIDE COATED STAINLESS
3/4" X 5" PUMP SHAFT
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651175_splined_coupl
er_SS-Part-1
1
2
651197-R _250-20_875 -
316 SS SHCS
1
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651855 -
Thrust_bearing_holder29
NOV2015-Part-1-1
2
2
651649 silicon carbide
bearing-Part-1
1
3
651639 alumina bearing-
Part-1
1
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651474 -
93513A130_SPIRAL
EXTERNAL RETAINING
RING-Part-1
1
2
651918 - 2HP Impeller 1
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 651174 SS Shaft Nitrided-Part-1 1
2HP POND SERIES
FOUNTAIN
B
DO NOT SCALE DRAWING
652151- 2HP FNT
SHEET 3 OF 6
2/24/19
MM
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
1.0 BEND
TWO PLACE DECIMAL 0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE POND GUY INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
THE POND GUY INC. IS
PROHIBITED.
A A
B B
C C
D D
4
4
3
3
2
2
1
1
4
12
4. #653104 – 1/2 HP Impeller and Clip Asm
5. #651474 – SPIRAL RETAINING RING
6. #653105 – 1 HP Impeller and Clip Asm
7. #651474 – SPIRAL RETAINING RING
8. #653106 – 2 HP Impeller and Clip Asm
9. #651474 – SPIRAL RETAINING RING
Drive Components
1
2
1
2
3
1
1
2
1
653108
3/4" SHAFT
STAINLESS COUPLER
ASSEMBLY
653107
PONDSERIES
THRUST BEARING ASSEMBLY
653104
POND SERIES
1/2HP IMPELLER
AND CLIP
ASSEMBLY
651174
NITRIDE COATED STAINLESS
3/4" X 5" PUMP SHAFT
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651175_splined_coupl
er_SS-Part-1
1
2
651197-R _250-20_875 -
316 SS SHCS
1
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651855 -
Thrust_bearing_holder29
NOV2015-Part-1-1
2
2
651649 silicon carbide
bearing-Part-1
1
3
651639 alumina bearing-
Part-1
1
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651474 -
93513A130_SPIRAL
EXTERNAL RETAINING
RING-Part-1
1
2
651857 - Half HP
Impeller
1
ITEM NO. PART NUMBER DESCRIPTION QTY.
1
651174 SS Shaft
Nitrided-Part-1
1
1/2HP,115V
POND SERIES FOUNTAIN
B
DO NOT SCALE DRAWING
652597- Half HP 115V FNT
SHEET 3 OF 6
2/13/19
MM
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
1.0 BEND
TWO PLACE DECIMAL 0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE POND GUY INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
THE POND GUY INC. IS
PROHIBITED.
A A
B B
C C
D D
4
4
3
3
2
2
1
1
1
2
1
2
1
2
3
1
1
2
1
653108
3/4" SHAFT
STAINLESS COUPLER
ASSEMBLY
653107
PONDSERIES
THRUST BEARING ASSEMBLY
653104
POND SERIES
1/2HP IMPELLER
AND CLIP
ASSEMBLY
651174
NITRIDE COATED STAINLESS
3/4" X 5" PUMP SHAFT
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651175_splined_coupl
er_SS-Part-1
1
2
651197-R _250-20_875 -
316 SS SHCS
1
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651855 -
Thrust_bearing_holder29
NOV2015-Part-1-1
2
2
651649 silicon carbide
bearing-Part-1
1
3
651639 alumina bearing-
Part-1
1
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651474 -
93513A130_SPIRAL
EXTERNAL RETAINING
RING-Part-1
1
2
651857 - Half HP
Impeller
1
ITEM NO. PART NUMBER DESCRIPTION QTY.
1
651174 SS Shaft
Nitrided-Part-1
1
1/2HP,115V
POND SERIES FOUNTAIN
B
DO NOT SCALE DRAWING
652597- Half HP 115V FNT
SHEET 3 OF 6
2/13/19
MM
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
1.0 BEND
TWO PLACE DECIMAL 0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE POND GUY INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
THE POND GUY INC. IS
PROHIBITED.
A A
B B
C C
D D
4
4
3
3
2
2
1
1
2
4
3
3
4
5
6
7
8
9
10

1
2
1
3
1
2
651620
POND SERIES
LOWER SHROUD
653103
POND SERIES
UPPER SHROUD WITH BEARING
ASSEMBLY
653102
POND SERIES
12" DISCHARGE HORN
ASSEMBLY
652163
POND SERIES
PUMP SCREW
ASSEMBLY
652163
POND SERIES
PUMP SCREW
ASSEMBLY
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651620_lower_shroud_2
8FEB2015#1-Part-1
1
ITEM
NO.
PART NUMBER DESCRIPTION
1
651858A_upper_shroud_mod-
5jan17-Part-2
1
2
652163 - Pump Screw Assy 6
ITEM NO. PART NUMBER DESCRIPTION
1 651169 - DISCHARGE HORN 1
2
652163 - Pump Screw Assy 6
3
651311-R Discharge Horn
O-Ring, 4in
1
1/2HP,115V
POND SERIES FOUNTAIN
B
DO NOT SCALE DRAWING
652597- Half HP 115V FNT
SHEET 4 OF 6
2/13/19
MM
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
1.0 BEND
TWO PLACE DECIMAL 0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE POND GUY INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
THE POND GUY INC. IS
PROHIBITED.
A A
B B
C C
D D
4
4
3
3
2
2
1
1
2
5
1
7. Replacement Parts ENGLISH
#653102 PondSeries 12” Discharge Horn ASM
1. #651311 – Discharge Horn O-Ring, 4in
2. #652163 – Pump Screw Asm
#653103 PondSeries Upper Shroud with Bearing
1. #652163 – Pump Screw Asm
2. PondSeries Lower Shroud
PondSeries Shroud
#653109 1/2 HP Intake Basket Asm
#653209 1 HP Intake Basket Asm
#653110 2 HP Intake Basket Asm
1. #651196 – T-Knob Asm
2. #653112 – Intake Extension
with Hardware
3. #652165 – Intake Basket 875in
Bolt Asm
4. #652166 – Intake Bottom Plate with
Hardware (750in Bolt Asm)
PondSeries Intake
1
2
1
3
1
2
651620
POND SERIES
LOWER SHROUD
653103
POND SERIES
UPPER SHROUD WITH BEARING
ASSEMBLY
653102
POND SERIES
12" DISCHARGE HORN
ASSEMBLY
652163
POND SERIES
PUMP SCREW
ASSEMBLY
652163
POND SERIES
PUMP SCREW
ASSEMBLY
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651620_lower_shroud_2
8FEB2015#1-Part-1
1
ITEM
NO.
PART NUMBER DESCRIPTION
1
651858A_upper_shroud_mod-
5jan17-Part-2
1
2
652163 - Pump Screw Assy 6
ITEM NO. PART NUMBER DESCRIPTION
1 651169 - DISCHARGE HORN 1
2
652163 - Pump Screw Assy 6
3
651311-R Discharge Horn
O-Ring, 4in
1
1/2HP,115V
POND SERIES FOUNTAIN
B
DO NOT SCALE DRAWING
652597- Half HP 115V FNT
SHEET 4 OF 6
2/13/19
MM
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
1.0 BEND
TWO PLACE DECIMAL 0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE POND GUY INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
THE POND GUY INC. IS
PROHIBITED.
A A
B B
C C
D D
4
4
3
3
2
2
1
1
3
1
653109
POND SERIES
INTAKE BASKET ASSEMBLY
1/2HP & 1HP
1
2
3
4
5
6
651196
INTAKE BASKET
T-KNOB SET
652165
INTAKE BASKET
7/8" BOLT SET
652166
INTAKE BOTTOM PLATE
3/4" BOLT SET
2
1
653112
POND SERIES
INTAKE BASKET
EXTENSION SCREEN
WITH 7/8" HARDWARE
1
2
653111
POND SERIES
INTAKE
BOTTOM PLATE
WITH 3/4" HARDWARE
ITEM NO. PART NUMBER DESCRIPTION
1 651196 - T-Knob Assy 4
2
653175-R - Ribbed Carriage Bolt 4
3
651177 modular basket sceen-
Part-2
3
4
652165 - Intake Basket 875in Bolt
Assembly
8
5
652166 - Bottom Plate 750in Bolt
Assembly
4
6
652153 SS BOTTOM PLATE-Part-1 1
ITEM
NO.
PART NUMBER DESCRIPTION
1
652165 - Intake Basket 875in Bolt
Assembly
4
2
651177 modular basket sceen-
Part-2
1
ITEM NO. PART NUMBER DESCRIPTION QTY.
1
652153 SS BOTTOM
PLATE-Part-1
1
2
652166 - Bottom Plate
750in Bolt Assembly
4
1/2HP,230V
POND SERIES FOUNTAIN
A
DO NOT SCALE DRAWING
652596- Half HP 230V FNT
SHEET 6 OF 6
5/1/19
MM
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
1.0 BEND
TWO PLACE DECIMAL 0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE POND GUY INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
THE POND GUY INC. IS
PROHIBITED.
A A
B B
C C
D D
4
4
3
3
2
2
1
1
1
8
2
3
4
5
1/2 HP & 1 HP Intake Basket
653110
POND SERIES
INTAKE BASKET ASSEMBLY,
2HP
1
2
3
4
5
6
651196
INTAKE BASKET
T-KNOB SET
652165
INTAKE BASKET
7/8" BOLT SET
652166
INTAKE BOTTOM PLATE
3/4" BOLT SET
2
1
653112
POND SERIES
INTAKE BASKET
EXTENSION SCREEN
WITH 7/8" HARDWARE
1
2
653111
POND SERIES
INTAKE
BOTTOM PLATE
WITH 3/4' HARDWARE
ITEM
NO.
PART NUMBER DESCRIPTION
1 651196 - T-Knob Assy 4
2
98060A130 4
3
652165 - Intake Basket 875in Bolt
Assy
12
4
651177 modular basket sceen-
Part-2
4
5
652166 - Bottom Plate 750in Bolt
Assy
4
6
652153 SS BOTTOM PLATE-Part-1 1
ITEM
NO.
PART NUMBER DESCRIPTION
1
652153 SS BOTTOM PLATE-
Part-1
1
2
652166 - Bottom Plate 750in
Bolt Assy
4
ITEM
NO.
PART NUMBER DESCRIPTION
1
652165 - Intake Basket 875in Bolt
Assy
4
2
651177 modular basket sceen-
Part-2
1
2HP POND SERIES
FOUNTAIN
B
DO NOT SCALE DRAWING
652151- 2HP FNT
SHEET 6 OF 6
2/24/19
MM
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
1.0 BEND
TWO PLACE DECIMAL 0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE POND GUY INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
THE POND GUY INC. IS
PROHIBITED.
A A
B B
C C
D D
4
4
3
3
2
2
1
1
5
4
3
3
8
1
2 HP Intake Basket
1
2
1
3
1
2
651620
POND SERIES
LOWER SHROUD
653103
POND SERIES
UPPER SHROUD WITH BEARING
ASSEMBLY
653102
POND SERIES
12" DISCHARGE HORN
ASSEMBLY
652163
POND SERIES
PUMP SCREW
ASSEMBLY
652163
POND SERIES
PUMP SCREW
ASSEMBLY
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1
651620_lower_shroud_2
8FEB2015#1-Part-1
1
ITEM
NO.
PART NUMBER DESCRIPTION
1
651858A_upper_shroud_mod-
5jan17-Part-2
1
2
652163 - Pump Screw Assy 6
ITEM NO. PART NUMBER DESCRIPTION
1 651169 - DISCHARGE HORN 1
2
652163 - Pump Screw Assy 6
3
651311-R Discharge Horn
O-Ring, 4in
1
1/2HP,115V
POND SERIES FOUNTAIN
B
DO NOT SCALE DRAWING
652597- Half HP 115V FNT
SHEET 4 OF 6
2/13/19
MM
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
C
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
ANGULAR: MACH
1.0 BEND
TWO PLACE DECIMAL 0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
THE POND GUY INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
THE POND GUY INC. IS
PROHIBITED.
A A
B B
C C
D D
4
4
3
3
2
2
1
1
2
PondSeries Horn
2
11

Airmax®, Inc.
Airmax PondSeries Fountain
Limited Warranty
Airmax, Inc. warrants to the original purchaser (the end user) of any Airmax PondSeries Fountain manufac-
tured by Airmax, Inc. that any component which proves to be defective in materials or workmanship, as
determined by the factory within 3 years from the original purchased date, will be repaired or replaced at
no charge with a new or remanufactured part, and returned freight prepaid. The end user shall assume all
the responsibility and expense for removal, packaging, and freight to ship to Airmax, Inc. to determine the
warranty claim and for all reinstallation expenses.
The warranty is void in cases where damage results from: improper installation, improper electrical con-
nection, improper voltage, alteration, lightning, careless handling, misuse, abuse, disassembly of motor or
failure to follow maintenance or operating instructions. Modication or repair by an unauthorized repair
facility will void the warranty.
In no case will Airmax, Inc. or its dealers accept responsibility for any costs incurred by the user during
installation, removal, inspection, evaluation, repair, parts replacement, or for return freight. Nor will any
liability be accepted for loss of use, loss of prots, loss of goodwill, for consequential damage, or for person-
al injuries to the purchaser or any person.
In the event of problems believed to be covered under warranty, it will be necessary to notify the dealer
who will try to help resolve the problem and who may contact the factory for additional assistance. If it is
concluded that there may be a defect which may be covered under warranty, it will be necessary to get a
Return Material Authorization (RMA) from the dealer before shipment. Freight collect shipments will not
be accepted by the factory on warranties or repairs.
The product or part(s) must be returned freight prepaid, to the factory, as directed, and in its original pack-
aging or in a container which will prevent damage. Parts returned under warranty and damaged during
shipping will not be covered under warranty for the shipping damage. If the factory evaluation of the
returned goods concludes that the failure is due to defects in materials or workmanship, the part or parts
in question will be replaced under warranty with new parts, remanufactured parts, or will be repaired; at
the factory’s option. The warranty period for all parts supplied under warranty will terminate at the end of
the original product’s warranty. All warranty shipments from the factory will be shipped freight prepaid.
Warranty registration is HIGHLY recommended.
No implied warranties of any kind are made by Airmax, Inc. for its products, and no other warranties,
whether expressed or implied, including implied warranties of merchantability and tness for a par-
ticular purpose, shall apply. Should an Airmax, Inc. product prove to be defective in materials or work-
manship, the retail purchaser’s sole remedy shall be repair or replacement of the product as expressly
provided above.
The manufacturer’s warranty will begin from the dealer’s original purchase date if the product is not reg-
istered. To register a product, you are required to ll out the warranty registration form at airmaxeco.com/
warranty. Warranty registration must be submitted directly to Airmax within 30 days of the end-users pur-
chase date.
12

Airmax® Inc.
Safe, Simple Solutions™
P.O. Box 38
Romeo, MI 48065
(866) 4-AIRMAX
airmaxeco.com
Optional Single Arch Pattern
Optional Double Arch and Geyser Pattern Optional Double Arch Pattern
For Information on Optional Spray Patterns,
Visit Us Online at airmaxeco.com/pondseriesfountains
#651190 V1.1 DIGITAL
