AirPatrol Lite Nordic User manual

1
User manual
Bedienungsanleitung

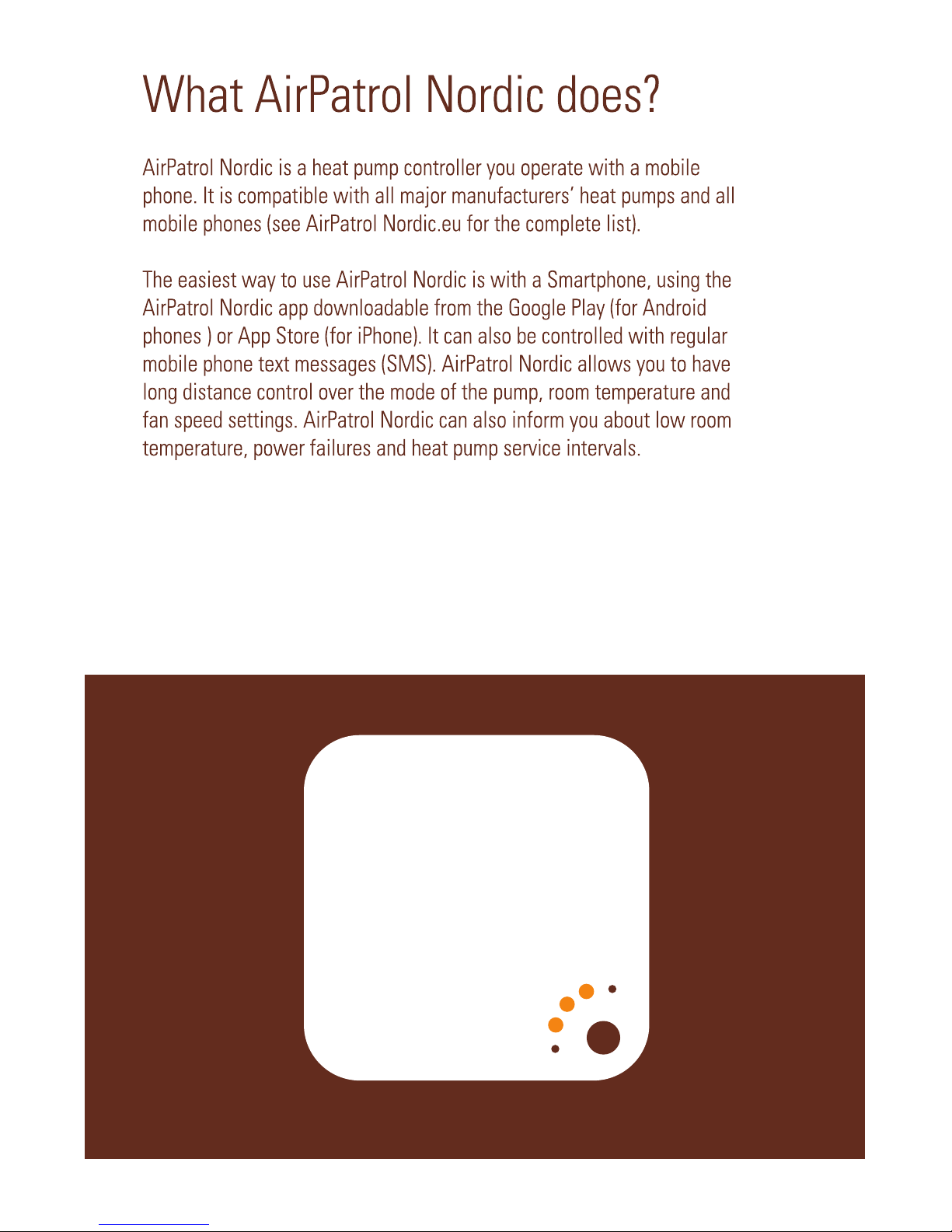

2

3
LED 1 - Power
LED 2 - GSM
network LED
LED 3 - IR LED

4

5

6

7

8

9
ON
sms: sms:
OFF
turns heat pump on turns heat pump off

10
Commands
The range of heat pump temperature values AirPatrol Nordic controls is 16-30 °C
(default +20 °C) and the fan speeds are MIN, NORM, MAX (the default is NORM).
After selecting a mode (AUTO, DRY, COOL, HEAT, T8, T10) heat pump is turned
on with 20 °C maximum temperature and normal fan speed, if not assigned
differently by the Owner or the Users.
The pump can be assigned different temperature and fan speed values with
AirPatrol Nordic.
For example, the SMS: “COOL 19 MAX” orders the pump to cool until 19 °C and
fan at maximum speed. When you change a heat pump function AirPatrol Nordic
always responds with an SMS that reports its STATUS.
MIN
NORM
MAX
AUTO
DRY
COOL
HEAT
T8; T9; T10
16
18
...
28
30
Combine the pump mode, room temperature and fan speed values for a
home atmosphere you like the best.

11
User levels
The amount of control AirPatrol Nordic users have over the device and the
amount of information they receive from the device can be set on a 3 level
scale:
1. The Owner can send commands, report queries, setup commands and
receive AirPatrol Nordic report messages and alarm messages.
2. The Users can send commands and report queries to AirPatrol Nordic
but cannot send Setup commands.
3. The All-level users can make report queries about the status of the
controller.

12
Owner setup
Setup can only be performed by the Owner. When no Owner has been
previously set, Owner number can be sent from any mobile phone number.
There are 2 ways to do this:
The to-be Owner sends the SMS “93” to the controller. The SMS
containing “93” followed
by the mobile number of the to-be Owner –
e.g. “935012345”– is sent from any mobile phone.
The Owner number can be international (with the “+” symbol and country
code) or local. The length of the number must be between 3-16 symbols
(“+” counts as 1 symbol).
Successful Owner number entry/Owner number change is confirmed by
“VERSION” report SMS sent to the new Owner.
After Owner number has been set up, setup can be done from this Owner
number. All other numbers attempting to change setup will be ignored.
When no Owner number has been entered all numbers have Owner rights
(all numbers can assign themselves as owners and no alarm messages
will be sent). When the Owner has not set User numbers, all numbers have
User rights.
Should you suspect AirPatrol Nordic could be controlled from unapproved
numbers, we recommend you set the Owner and User numbers.
Owner number reset
Once set, Owner number can be reset via mobile phone only by the Owner
himself or by performing a hard reset by pushing both controller hidden
buttons simultaneously for 3 seconds (hard reset can also be used when a
wrong Owner number is entered by mistake).

13
Advanced setup
For the brave!

14
Setup reset
For setup reset send the SMS “90” to the controller. AirPatrol Nordic responds
with SETUP report:
“Owner: All; Users: All; Pump: All; Param: 5, 24, 180, 30”.
This means Owner is not specified; all users can send commands;
the pump model is not specified, call commands are set to default;
“LOW TEMPERATURE” message will be sent when room temperature drops
below 5 °C , “NO POWER” message blackout is in 24 hours and the “SERVICE”
alarm message interval is 180 days; “HIGH TEMPERATURE” message will be sent
when room temperature rises abowe 30 °C
Setup SMS command
you send
Response
SMS
Controller function you activate
90 SETUP Setup reset (Owner deleted)
and controller restart
93 VERSION First time Owner number entry
User setup
To set User numbers start your command SMS with “91”, followed by the mobile
phone number of the User. For example: “91+495012345” or “915012345” to
enter User1 number where “5012345” is the cell phone number of User1 and +49
is the country code. User numbers (Owner, User1, User2) can be international
(with the “+” symbol and country code) or local. The length of the number must
be between 3-16 symbols
(“+” counts as one symbol). Multiple commands can be combined into one
SMS. When a User has been set, AirPatrol Nordic responds with a SETUP report
message.

15
Setup SMS command you send Controller function you activate
91xx* User1 number entry (to delete: 910)
92xx* User2 number entry (to delete: 920)
93xx* Owner number entry (to delete: 930)
*xx marks the place of mobile phone number
Multiple commands
If you want to set up several parameters with one SMS, separate commands with
one of the following:
space
comma “,”
semicolon “;”
For example, the SMS „91+49550111111 92+49550222222 9513 9720”
sets the User1 and User2 numbers, specifies the heat pump model as “Fujitsu
Nocria”, and determines that NO POWER message is sent immediately in case of
a power failure.
When a command in the multi-setup is incorrect, the Owner will receive an error
message. All the correct commands that precede the error command in the multi-
setup command will be activated.
Multi-setup sender will always receive SETUP report SMS from AirPatrol Nordic
to confirm that all commands arrived to the controller. There can be spaces before
and after a command but not inside a command as this will interfere with the
code.

16
Heat pump model setup
The pump can be chosen on 3 levels of precision:
1. The precise name of the pump: the manufacturer and the model. This is
recommended for the most efficient operation.
2. Pump manufacturer.
If you only choose the pump manufacturer, functions T8/T9/T10 will not be
checked and the command will be sent even if the pump does not have
T8/T9/T10 mode. If the exact pump model is not listed on our webpage or in this
manual, AirPatrol Nordic may or may not work with the heat pump, for which the
AirPatrol Nordic manufacturer will not be held responsible.
3. All pump models.
If you choose All pump models (SMS: “950”), then all supported brands IR
commands will be sent to the pump, and AirPatrol Nordic can be used without
choosing the pump more precisely.
Setup SMS
command
you send
Heat pump model and series T8/T10*
950 All pump models T8/T10
951 Fujitsu T10
9511 Fujitsu LTC T10
9512 Fujitsu LEC(N) T10
9513 Fujitsu LAC T10
9514 Fujitsu Nocria
953 Panasonic T8
9531 Panasonic HE T8
9532 Panasonic NE T8
9533 Panasonic XE T8
9534 Panasonic RE
9535 Panasonic E
Setup SMS
command
you send
Heat pump model and series T8/T10*
9536 Panasonic CE
9537 Panasonic E-GFE
954 Mitsubishi Electric T10
9541 Mitsubishi Electric FD
9542 Mitsubishi Electric GE T10
9543 Mitsubishi Electric EF T10
9544 Mitsubishi Electric KA
9545 Mitsubishi Electric FH T10
955 Bosch T10
9551 Bosch EHP-AA T10
956 IVT T10
9561 IVT KHR-N T10

17
* T8/T10 is a heat pump function that keeps the room temperature from dropping below 8 ; 9 or 10 °C respectively.
Setup SMS
command
you send
Heat pump model and series T8/T10*
9562 IVT LR-N T10
9563 IVT HR-N T10
957 Mitsubishi Heavy
9571 Mitsubishi Heavy
SRK-ZJX
9572 Mitsubishi Heavy
SRK-ZK
9573 Mitsubishi Heavy
SRF-ZJX
9574 Mitsubishi Heavy FDEN
958 LG T9
9581 LG Gallery
9582 LG ArtCool
9583 LG Libero
9584 LG Prestige
9585 LG Noric Prestige T9
9586 LG Nordic ArtCool T9
95A Electrolux
95A1 Electrolux EXH-HL
95A2 Electrolux EACS
95B Midea T8
95B1 Midea Premier T8
95B2 Midea MSAN T8
95B3 Midea ALPS T8
95B4 Midea MSR1
95C Daikin T10
95C1 Daikin Nexura (FVXG) T10
95C2 Daikin Emura (FTXG) T10
95C3 Daikin Ururu Sarara
(FTXR) T10
Setup SMS
command
you send
Heat pump model and series T8/T10*
95C4 Daikin FTXL T10
95C5 Daikin FVXS T10
95D Hitachi
95D1 Hitachi Summit
95D2 Hitachi Premium
95E Samsung
95E1 Samsung K-series
95E2 Samsung Y-series
95E5 Samsung P-series
95E6 Samsung T-series
95F Sharp T10
95F1 Sharp AY-ZP-KR T10
95F2 Sharp AY-XP-GHR
95F3 Sharp AY-XPC-JR
95F4 Sharp AY-XPC-JHR
95F5 Sharp AY-XPC-LR
95G General T10
95G1 General LTCA/LTCN T10
95G2 General LEC/LECN T10
95G3 General LVCB/LVCN T10
95G4 General LBC
95H Fuji T10
95H1 Fuji LU T10
95H2 Fuji LEC/LEC(N) T10
95H3 Fuji Nocria(LB)
95H4 Fuji LA T10
95H5 Fuji LF T10
95J Altech T8
95J1 Altech VP T8

18
Alarm messages setup
The Owner can change the default values of the conditions on which alarm messages
are sent. For example, SMS “9713” lowers the room temperature value at which “LOW
TEMPERATURE” SMS is sent from the default 5 °C to 3 °C.
Setup SMS
command you
send
Response
SMS format
AirPatrol Nordic function you activate Default
values
971xx* SETUP temperature treshold for
„LOW TEMPERATURE” message 5 °C
972xx* SETUP “NO POWER” message blackout
in hours 24 h
973xx* SETUP “SERVICE” message interval
in days 180 days
974XX* SETUP temperature treshold for
„HIGH TEMPERATURE” message 30 °C
* xx marks the place of the numeric value
The „LOW TEMPERATURE” parameters (971) can be between 0-16
The “NO POWER” parameters (972) can be between 0-48
The “SERVICE” parameters (973) can be between 0-360
The „HIGH TEMPERATURE” parameters (974) can be between 17-40
When you set parameter 971 to 0, (e.g. you send a text message “9710”) then the controller
will not send you a “LOW TEMPERATURE” message.
When you set parameter 972 to 0, then “NO POWER” message will not be sent.
When you set parameter 973 to 0, then “SERVICE” message will not be sent.
When you set parameter 974 to 0, then “HIGH TEMPERATURE” message will not be sent.

19
Alarm messages
Alarm messages are only sent to the Owner.
AirPatrol Nordic alarm SMS Alarm message meaning Message blackout/alarm
treshold
e.g. “LOW TEMPERATURE:
6 °C” (when the limit is 7 °C) Room temperature is low 24h / +5 °C
NO POWER 220V power failure Default: 24h
e.g. ”SERVICE: 1 days” Service date Default: 180 days
VERSION New Owner After setting a new Owner
or changing Owner
HIGH TEMPERATURE Room temperature is high 24h / +30 °C
Error messages
“Error command: text”
SMS will be sent if there was an error in your command.
For example, an SMS “cool19max” receives the response “Error command:
cool19max”. Note that AirPatrol Nordic will only return your incorrect command
without suggesting a correct one (the error in the example is the absence of
spaces between commands).
“Error userrights: text”
SMS will be sent if the user had no rights for that command.
“Error pump command: text“
SMS means the operation T8/T9/T10 is not available for the specified pump.
When AirPatrol Nordic fails to send an SMS it will retry after 1 minute.

20
Report messages
You can send report requests to AirPatrol Nordic about your heat pump status,
controller status and the setup of the controller. Report messages are sent only to
the sender of the request.
SMS
command
you send
SMS
command
function
Response SMS example
STATUS Pump status
request
Pump: ON; Mode: HEAT; Fan: MAX; Temp: 21C; Room:
20 C
VERSION Controller
status request
Ver: 1.01b05; Pump: Panasonic, ON; Power: ON (4.37V);
Room: 19C; GSM: 14,1; Life: 00.05;
Owner: [phone];
SETUP Setup request
Owner: [phone]; Users: All; Pump: Panasonic, ON/
OFF/NO POWER;
Param: 5,24,180;30
Pump ”STATUS” report explanation
Pump “STATUS” report
SMS Format
Response SMS example
Pump: ON/OFF/NO POWER Pump ON/OFF/NO POWER
Mode: AUTO/DRY/COOL/HEAT/T8/T10 Pump mode
Fan: AUTO/MIN/NORM/MAX Fan speed
Temp: xxC Pump temperature
Room: xxC Room temperature
