AirSep Walker Ford / Lehman User manual

Walker Ford / Lehman AirSep Kit
NOTE: Since this installation may require some kit parts to be modified it is advisable to contact
your mechanic for installation.
**INSTALLATION INSTRUCTIONS - WALKER FORD / LEHMAN**
This AIRSEP kit is designed to fit most Ford/ Lehman Diesel engines. You may require some additional fittings to
complete the installation, so it is advisable that you "LAY-OUT" the parts prior to installation to become more familiar
with the parts you have, and the fittings you may need. Some installations inside an engine compartment may require
some thought as to positioning the unit. Most installations may require a fitting to connect the AIRSEP oil drain to the
dipstick or to an auxiliary oil port above the oil pan. It may be necessary to use some of the Factory parts to complete this
installation.
1) Remove the Factory Air Filtration system and clean the mounting surface. Use caution not to damage the gasket.
2) Using the Assembly Schematic, "DRYFIT" the Walker AirSep plenum to the inlet to check for any obstructions, the
plenum is designed to fit facing either fore or aft, positioning the AirSep so that the 3/8" N.P.T. oil drain fitting is in the 6
O'clock position.
3) Once the positioning has been verified, re-install the plenum gasket and tighten the bolts, install the 2.5" I.D. hose to the
plenum and the AirSep to the 2.5" hose, tighten the hose clamps. Drain position is critical.
4) After installing and securing the AirSep, locate the engine crankcase breather. This will be on top or on the side of the
engine block.
5) Locate the 3/4" to 1/2" hose reducer and attach to a 6" x 1/2" I.D. hose supplied, next install the Vacuum Regulator into
the 3/4" I.D. straight hose. Check to guarantee that the flow direction is correct; the arrow should point toward the
AirSep. Attach to the 1/2" O.D. breather outlet
6) Connect the 3/4" Walker Flex hose from the AirSep to the Vacuum Regulator. Trim the hose as necessary to insure that
there are no "low-spots" in the flow to the AirSep blow-by inlet.
7) Using the 1/2" oil drain hose, connect to the fitting on the bottom of the Air Sep, routing to the oil return position on the
crankcase. Trim this hose as necessary to insure that there are no "low-spots" in the flow to the check valve. The check
valve must be installed no closer than 18" from the AirSep. Install check valve to supplied oil fill cap and replace existing
cap. Use caution not to leave the hose open to "chafing". The Walker check valve must be installed vertical or within 30° of
vertical to operate properly, check to guarantee the flow direction is correct, the arrow should point down from the
AirSep.
This system closes the crankcase, all other openings to the crankcase, such as breathers, down draft tubes and vents
need to be closed and / or removed.
The air filter should be cleaned every 250 hours or once a year. If the air restriction gauge on the AirSep turns red the air
filter must be cleaned or replaced. The filter supplied with the AirSep can under normal circumstances be cleaned and re-
oiled up to three times. Cleaning and re-oiling kits, part # DDF9016, are sold by Walker Engineering and our Dealers.
If you have any questions during the installation of the AirSep please call:
Walker Engineering Enterprises
[phone] (Phone)
[phone] (Fax)
Visit the Walker AirSep web site: www.walkerairsep.com

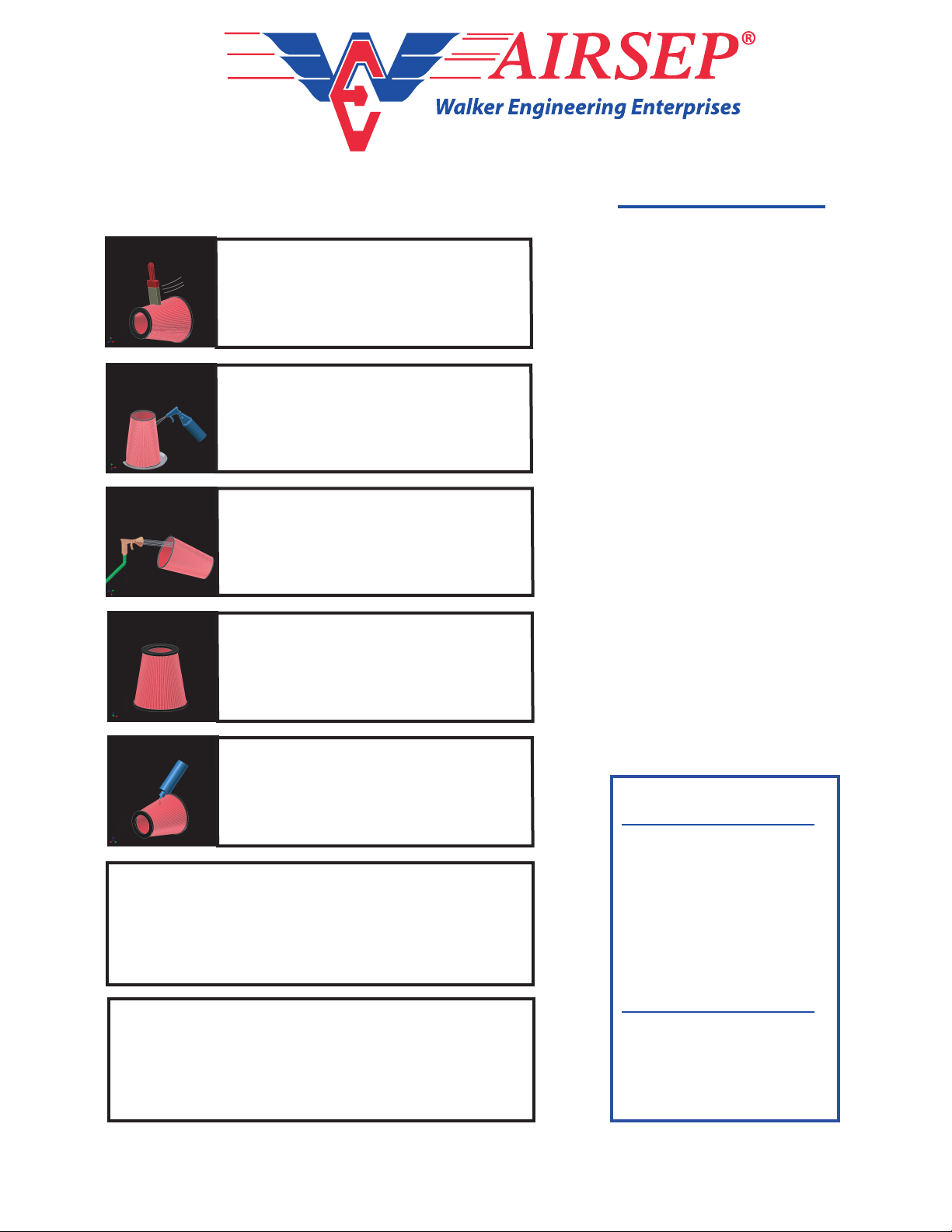

AIR FILTER CLEANING
INSTRUCTIONS
1) PRE-CLEANING
Remove air filter from AIRSEP.
Tap filter element to dislodge
any large dirt particles. Gently
brush with a soft bristle brush.
2) SPRAY ON CLEANER
Spray liberal amount of cleaning
solution onto entire filter element
and allow to soak for 10 minutes.
3) RINSE OFF
Rinse off the element with low
pressure water. Always flush
from the clean side to dirty side.
This removes the dirt and does
not drive it into the filter.
4) DRYING THE FILTER
Always dry naturally. After
rinsing, shake off all excess
water and allow the element to
air dry naturally or in the sun.
5) RE-OILING THE FILTER
After cleaning air filter always
re-oil before using. Apply oil
down each pleat. Wait ten
minutes and re-oil any light
visible spots
6) CLEAN VACUUM REGULATOR/LIMITER
Using a slot head screwdriver, loosen clamp
and remove filter. Then follow steps 1 through
5. To clean the Vacuum Limiter do not attempt
to remove the filter. Remove the entire
vacuum limiter and follow steps 1 through 5.
7) AIR FILTER INSTALLATION
Reinstall air filter on AIRSEP. Use Walker
Air Filter Sealing Compound (CD955) when
reinstalling air filter. Be sure to inspect
springs and replace if worn.
Walker Engineering Enterprises, Sun Valley CA 91352
www.walkerairsep.com
© 2005 Walker Engineering Enterprises. All Rights Reserved.
CAUTION
NEVER CLEAN USING:
Gasoline
Part Cleaner Solvents
Caustic Cleaning Solutions
Strong Detergents
High Pressure Water
High Pressure Air
Steam Cleaners
NEVER OIL FILTER:
Using Transmission Fluid
Using Motor Oil
Using Diesel Fuel
Using WD-40
Using Other Oils
FAQ’s and Air
Filter Cleaning Tips
Made in U.S.A.
This kit cleans and oils up to four
(4) 9x12 or equivalent sized filters.
How often do I need to clean my
air filter? You should clean your
air filter every 250 to 300 hours, or
every year whichever comes first.
How often should I replace my air
filter? Replace your air filter after
four (4) cleanings or every 3 or 4
years depending on condition of
filter.
Is it better for my engine if I clean
the air filter more often? No,
follow the cleaning interval listed
above. Cleaning too often will
impair the vacuum action of the
AIRSEP.
Can I use other liquids to clean
and oil my air filter? No, your
AIRSEP air filter may be damaged
by harsh detergents or liquids other
than the recommended cleaner in
this kit. Other oils may be too light
or too heavy to properly capture
airborne dirt. Use the appropriate
Walker kit to clean and recondition
your standard or blue air filters.
W a lk e r E n g in e e r in g E n te r p r is e s

9255 San Fernando Road –Sun Valley, CA 91352 –P 818-252-7788 –F 818-252-7785
AirSep Air Filter Cleaning Kit Guide
Each Kit Contains:
(1) 32 OZ Cleaner Bottle with pump spray applicator and (1) 12 OZ Oil Bottle or (1) 12 OZ Spray oil.
Look for the RED and BLUE colored dots on the boxes to identify the kit you need.
BAF2016 Air Filter Cleaning Kit
For all Blue air filters.
Find Walker Engineer i ng produc ts on -line at www.wal k erairs ep.c om.
Spring Installation Tool
PN: ST500196
AAF1016 Air Filter Cleaning Kit
Spray on Air Filter Oil!
(For all RED air filters)
Air Filter Sealing Compound
PN: CD959
DDF9016 Standard Air Filter
Cleaning Kit
(For all RED air filters)
Look For
The BLUE
Dot On The
Box
Shop sizes of our Air Filter
Oil and Cleaner are also
available.
Look For
The RED
Dot On The
Box
