Airsight 62A Series User manual

720p HD Outdoor Wireless/Wired
P2P Network Camera
Model XX62A
User Manual

2
CONTENTS
1. INTRODUCTION ..........................................................................................................................................3
1.1 FEATURES ............................................................................................................................................................................................. 4
1.2 PACKING LIST ....................................................................................................................................................................................... 4
1.3 PRODUCT VIEWS ................................................................................................................................................................................... 5
1.4 PC SYSTEM REQUIREMENTS ................................................................................................................................................................. 7
1.5 HARDWARE INSTALLATION ................................................................................................................................................................... 7
1.6 SOFTWARE INSTALLATION ..................................................................................................................................................................... 8
2. SOFTWARE OPERATION...........................................................................................................................9
2.1 IP CAMERA TOOL.................................................................................................................................................................................. 9
2.2 CAMERA LOGIN .................................................................................................................................................................................. 13
2.3 FOR IE BROWSER................................................................................................................................................................................ 15
2.4 FOR SAFARI,FIREFOX,AND GOOGLE BROWSER.................................................................................................................................. 18
2.5 FOR MOBILE PHONE ........................................................................................................................................................................... 19
2.6 ACTIVEXMODE (FOR IE BROWSER) .................................................................................................................................................. 19
2.7 FOR VISITOR ....................................................................................................................................................................................... 19
2.8 FOR OPERATOR ................................................................................................................................................................................... 23
2.9 FOR ADMINISTRATOR .......................................................................................................................................................................... 24
3 SETTINGS AS ADMINISTRATOR..............................................................................................................25
3.1 MULTI-DEVICE SETTINGS ................................................................................................................................................................... 25
3.2 NETWORK SETTINGS ........................................................................................................................................................................... 31
3.3 BASIC NETWORK SETTINGS ................................................................................................................................................................ 31
3.4 WIRELESS LAN SETTINGS .................................................................................................................................................................. 33
3.5 ADSL SETTINGS ................................................................................................................................................................................. 35
3.6 UPNPSETTINGS .................................................................................................................................................................................. 35
3.7 DDNS SERVICE SETTINGS .................................................................................................................................................................. 36
3.8 P2P SETTINGS...................................................................................................................................................................................... 40
3.9 SYSTEM SETTINGS .............................................................................................................................................................................. 41
3.10 ALIAS SETTINGS ............................................................................................................................................................................... 41
3.11 DATE &TIME SETTINGS..................................................................................................................................................................... 42
3.12 USERS SETTINGS ............................................................................................................................................................................... 42
3.13 BACKUP &RESTORE ......................................................................................................................................................................... 43
3.14 OTHER SETTINGS .............................................................................................................................................................................. 44
3.15 MAIL SERVICE SETTINGS .................................................................................................................................................................. 45
3.16 FTP SERVICE SETTINGS .................................................................................................................................................................... 46
3.17 ALARM SERVICE SETTINGS ............................................................................................................................................................... 47
3.18 SEND MAIL ON ALARM ..................................................................................................................................................................... 49
3.19 PAT H SETTINGS ................................................................................................................................................................................. 50
3.20 SERVER PUSH MODE (FOR SAFARI,FIREFOX,AND GOOGLE BROWSER) ........................................................................................... 52
3.21 SIGN IN MOBILE PHONE ..................................................................................................................................................................... 53
4. APPENDIX .................................................................................................................................................54
4.1 FREQUENTLY ASKED QUESTIONS ........................................................................................................................................................ 54
4.2 DEFAULT PARAMETERS ....................................................................................................................................................................... 56
5. SPECIFICATIONS......................................................................................................................................57
6. OBTAINING TECHNICAL SUPPORT .......................................................................................................58

3
1. INTRODUCTION
It is recommended that you first read the Quick Setup Guide. This shows you how to set up your camera using
Peer to Peer (P2P). This setup method is extremely fast and easy, and will get you set up in a matter of
minutes. You can then refer to this Owner’s Manual for more advanced features.
IMPORTANT NOTICE
The various screens throughout this owner’s manual will look different depending on the browser you use. Full
functionality is available when using Internet Explorer (IE) with ActiveX (OCX) installed. Limited functionality is
available with other browsers, such as Safari, Chrome, and Firefox.
Please Read this manual carefully, according to the browser you are using.
This is an integrated wireless IP Camera solution. It combines a high quality digital Video Camera with network
connectivity and a powerful web server to bring clear pictures to your Desktop from anywhere on your local
network or over the Internet.
The main function of the camera is to transmit remote video over IP network. The high quality video image can
be transmitted with 30fps speed on the LAN/WAN by using MJPEG hardware compression technology. It is
based on the TCP/IP standard, build-in WEB server which supports Internet Explorer. Therefore the
management and maintenance of your camera becomes simple by using the network to achieve the remote
configuration, start-up and to upgrade firmware.
You can use your IP Camera to monitor your home or your office. Also, controlling and managing images are
simple by visiting the web site.

4
1.1 Features
☆Powerful high-speed video protocol processor
☆High-sensitivity 1/4’’ CMOS sensor
☆Picture total 300K pixels
☆Optimized MJPEG video compression for transmission
☆Multi-level user management and passwords definition
☆Embedded Web Server for users to visit by IE
☆Supports wireless network (WI-FI/802.11/b/g)
☆Supports Dynamic IP (DDNS) and UPNP LAN and Internet (ADSL, Cable Modem)
☆Gives alarm in case of motion detection
☆Supports Peer to Peer (P2P)
☆Supports image snapshot
☆Supports multiple protocols：HTTP TCP/IP UDP SMTP DDNS SNTP DHCP FTP
☆Supports WEP/WPA/WPA2 encryption
☆Supports Smart phone control and surveillance
☆Supports Firefox, Safari, Google chrome browser
1.2 Packing List
Please check that the following items are included:
●IP Camera
●Wi-Fi Antenna
●User Manual & Quick Setup Guide
●DC Power Supply
●CD
●Network Cable
●Mounting bracket

5
1.3 Product Views
1.3.1 Front View
Figure 1.1
Light Sensitive Hole: For light sensitive photocell. Infrared
LEDs: For night Vision.
LENS: CMOS sensor with fixed focus lens. (3.6mm). Antenna:
WI-FI Antenna.
Aluminum Shell: For protection fromsun and waterproofing.
1.3.2 Connections
Figure 1.2

6
Network Indicator LED: The green LED is on when connected to the network, the yellow LED blinks when
data is transferred.
RJ45 Port: RJ-45/10-100 base T, connect the network cable here.
Power Jack: DC 5V/2A power supply.
RESET BUTTON: Press and hold the RESET BUTTON for 30 Seconds to reset the camera back to the
factory default settings. (Please keep the power on when doing a RESET)
1.3.3 Bottom View
Figure 1.3
Please note the unique MAC and DDNS addresses on the bottom of the camera (different for every camera).
Note QR code label for easy P2P setup. (See Quick Setup Guide).

7
1.4 PC System Requirements
System configuration requirements:
CPU: 2.06 GHZ or above.
Memory: 256M or above.
Network Card: 10M or above.
Display Card: 64M or above memory.
Recommendable Operating system: Windows XP, Windows Vista, Windows 7.
1.5 Hardware Installation
You need to set up your camera using a network cable (wired) first before you attempt to use it wirelessly. It is
recommended that you set the camera up indoors first, before routing the cables through an external wall to
mount it outdoors.
1. Install the Wi-Fi antenna.
2. Plug the power adaptor into the camera.
3. Plug the network cable into camera and router/switch.
4. It takes approx 30 seconds to boot up the camera, then you will find the IP address from “IP Camera Tool”
(Figure: 1.9).
5. When the power is on and the network cable is connected, the green LED on the rear panel will stay on.
The yellow LED will keep flashing, and the Indicator LED on the front of the camera will flash. (The
indicator LED can be controlled by software).
Figure 1.4

8
1.6 Software Installation
Attention:In order to make the installation correctly, we suggest that you turn off your Firewall and Antivirus
software before installing ActiveX. Correct software installation is essential to the successful use of this
product. Install the following software:
1. IP Camera Tool: Download the program from the XX62A Product Description Page at X10.com , double-
click “IPCamSetup.exe”, then click next, to complete the software installation. (Figures 1.6, 1.7, 1.8).
2. ActiveX:Double click “Appinstall.exe”—“Next”—“Install”—“Finish”.
Figure 1.5
Figure 1.6
Figure 1.7

9
Figure 1.8
After this is done, the icon “IP Camera Tool” will be displayed on your desktop.
CAUTION: Before installing and using the product, please read the following precautions carefully and make
sure they are fully understood.
Use only the power adaptor included with the product. Use of an unauthorized power adapter may cause
damage to your IP Camera.
IP Camera can be installed in an outdoor environment.
Do not touch the lens of the IP Camera. The optimum focus range has been set for you. If you turn the lens, it
may cause incorrect focus and blurry images.
For firmware upgrading, refer to detailed instructions contained in the CD.
2. SOFTWARE OPERATION
2.1 IP Camera Tool
When the Device has been mounted properly, you can double-click the Icon “IP Camera Tool”
and a dialog box as Figure 1.9 will pop up.

10
Figure 1.9
Note: The software searches IP Servers automatically over your LAN. There are 3 cases:
1. No IP Cameras found within LAN. After about 1 minute search, the Result Field will show “not found IP
Server” and the program shut down automatically.
2. IP Cameras have been installed within LAN. All the IP Cameras will be listed and the total number is
displayed in the result field as shown in Figure 1.9.
3. The IP Cameras installed within LAN do not share the same subnet with the monitoring PC. A prompt will
be shown in result field (prompt: Subnet doesn’t match, double click to change!). Click the left mouse
button to choose the prompt and click the right mouse button, choose Network Configuration to set the
static IP address of the Camera to the same subnet as your LAN. (Figure 2.3).
NOTE: If it shows” Subnet doesn’t match, double click to change!” you can also choose ”Obtain IP from
DHCP Server” to get a dynamic IP. (Figure 2.2).
2.1.1 Six Options
Choose the IP Camera list and Click the right mouse button, there are six options: (Figure 2.0).
Basic Properties, Network Configuration, Upgrade Firmware,
Refresh Camera List, Flush Arp Buffer, About IP Camera Tool.
Figure 2.0

11
2.1.1 .1 Basic Properties
There is some device information in the Basic Properties, such as Device ID, System Firmware Version, and
Web UI Version.（Figure 2.1).
The Device ID is the camera’s MAC ID, which should be the same as shown on the sticker on the bottom of
the camera. Every camera has a unique MAC ID. So if there are many IP addresses shown in the list, check
the MAC ID on the bottom of the camera, so you can ensure which camera it is.
Sometimes, if there is no IP address shown on the IP Camera tool, it could be blocked by a firewall, in this
case you need to add the MAC ID to the router, and give it a fixed IP or add the MAC ID as a trusted site.
There are two MAC Addresses, one is the Device MAC ID, the other is the WIFI MAC ID.
WIFI MAC ID, you can find it on the sticker on the bottom of the camera, you can also login to your WIFI router,
check the host status, which will show all the WIFI devices connected to your router, you can also find the
IPCAM’s WIFI MAC ID there.
Figure 2.1
2.1.1.2 Network Configuration
Below shows how you can configure the Network parameters.
Figure 2.2

12
Obtain IP from DHCP server: If clicked, the device will obtain IP from DHCP server. In other words, the
camera will have a dynamic IP. (Make sure the Router which the camera connects to has DHCP function and
DHCP is enabled). (Figure 2.2).
Figure 2.3
IP address: Fill in the IP address assigned and make sure it is in the same subnet as the Gateway, and the
subnet should be the same as your computer or router. (I.e. the first three sections are the same).
Subnet Mask: The default subnet mask of the equipment is: 255.255.255.0. You can find the subnet mask
from your PC or router.
Gateway: Make sure it is in the same subnet with PC’s IP address .Here gateway is the LAN IP of your router.
DNS Server: IP address of ISP network provider. You can also set it to the same as the Gateway.
NOTE: You can find the Subnet Mask, Gateway, DNS Server from your router, or check the local connection
status of your computer, to get all the parameters. Normally two DNS servers are optional.
Http Port: LAN port assigned for the equipment, default is 80. You could set another port number like 81, 801,
8001 etc.
User: Default administrator username is: admin (please make sure all are lowercase letters).
Password: Default password is bank, i.e. no password.
NOTE: If the prompt “subnet doesn’t match, double chick to change!” appears, please set the IP Address,
Subnet Mask, Gateway,DNS Server once again, or enable Obtain IP from DHCP server.
2.1.1.3 Upgrade Firmware
Enter the correct User and Password to upgrade system Firmware and Web UI. Please upgrade system
firmware first and then upgrade Web UI or it may damage the camera.（Figure 2.4).

13

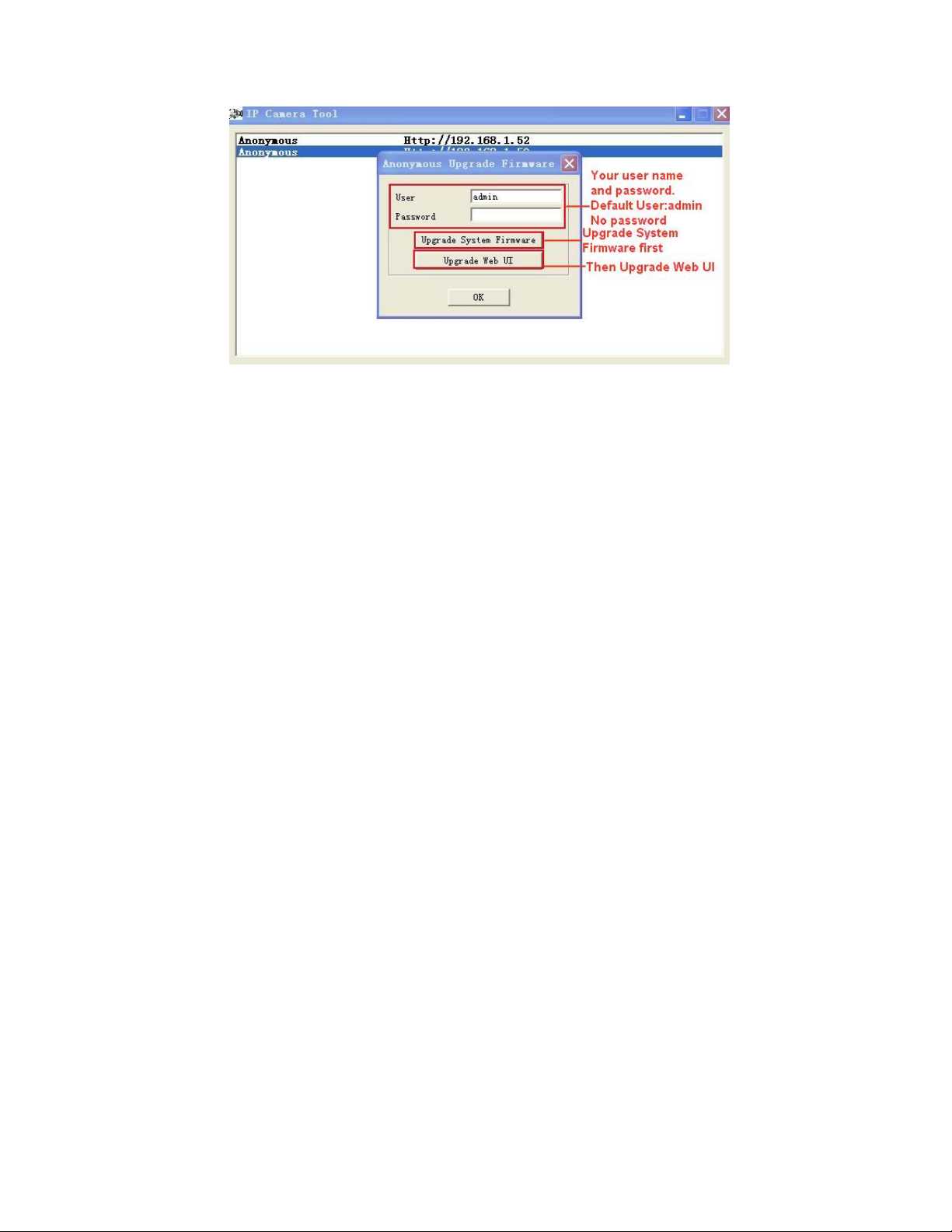

Figure 2.4
Please download the firmware package for the correct type of your camera before you upgrade.
Follow the upgrade document carefully to upgrade. Please see readme file first before you upgrade.
CAUTION: You should not upgrade the firmware unnecessarily. It is possible to damage the camera if a
mistake is made during the upgrade. If your camera works well with the current firmware, we recommend that
you don’t upgrade it.
NOTE: When doing an upgrade, remember you must keep the power on, and it’s best to use wired mode,
connected via the network cable.
2.1.1.4 Refresh Camera List
Refresh camera list manually.
2.1.1.5 Flush Arp Buffer
When cable network and wireless network of the device are fixed IP address, you may encounter a problem
where you can search the camera IP but can’t open the camera web page. In this case use Flush Arp Buffer.
2.1.1.6 About IP Camera Tool
Check the IP Camera Tool Version and IP Camera ActiveX Control Version here.
2.2 Camera Login
You can access the camera through IP Camera Tool or IE, Firefox, Safari, Google Chrome or other standard
browser directly.
1. Double click the IP address of the IP Camera listed (Figure 1.9). The default browser you use will run
automatically and go to the camera login interface. (Figure 2.6).
2. To access the camera by IE Browser directly, just type the camera’s IP address, for example, if the
camera’s IP address is 192.168.1.123:

14
Figure 2.5
Figure 2.6
The default user name is admin, no password (leave blank).
Input the correct user name and password, the Sign In interface will pop-up.
There are three models to login (figure 2.7).
Figure 2.7
(1) Active Mode (For IE Browser): available in IE 6.0 or above.
(2) “Server Push Mode”: available in Firefox, Safari, and Google Chrome browser.
(3) “Sign in mobile phone”: available in Mobile phone.

15
2.3 For IE Browser
Choose ActiveX Mode(For IE Browser), and sign in. Download Active X and install if required.
Figure2.8
Figure 2.9
The first time you login to the camera, you might get an ActiveX prompt as in the picture above, please click
the prompt and choose Run Add-on, refresh and login to the camera again, then will see live video, as in
Figure 3.0.

16
Figure 3.0
Note: If there is still no live video after you run ActiveX, and a red cross shows in the center of the
screen, or even just a black screen, please try to enable the ActiveX options of IE security settings.
Please do the following steps:
1. Close the firewall of your computer.
2. Change the ActiveX settings, open your IE browser, select Tools then Internet Options then Security then
Custom Level (See Figure 1.3).
Figure 1.3
Then set the ActiveX controls and plug-ins. Set the ActiveX options to Enable or Prompt as indicated in
Figure 1.4.
Note especially:
Prompt: Download unsigned ActiveX controls
Prompt: Initialize and script ActiveX controls not marked as safe
Enable: Run ActiveX controls and plug-ins

17
Figure 1.4
Click OK and restart the browser.
You can also click “Start” menu->“Internet Explorer”, and choose “Internet attributes”, or via “Control
Panel” ->“Internet Explorer”, to access Security settings.
NOTE: Make sure that your firewall or anti-virus software doesn’t block the software or ActiveX. If you couldn’t
see live video, please close your firewall or anti-virus software, and try again.
If you allowed the ActiveX to run, but still cannot not see live video, only a Red Cross in the center of
the video, and the device status light changed to yellow color not green, please change to another port
number. Don’t use port 80, use another port such as 128, 1008 etc.
Figure 3.2
NOTE: Make sure that the firewall or anti-virus software doesn’t block the software or ActiveX. If you couldn’t
see live video, please close your firewall or anti-virus software, and try again.

18
2.4 For Safari, Firefox, and Google Browser
Choose Server Push Mode (For Safari, Firefox, and Google Browser), and sign in.
Server Push Mode doesn’t support ActiveX, so some functions are not available, such as Play, Stop, Record,
etc. If you want to use these functions, please use IE browser.
Figure 3.3

19
2.5 For Mobile Phone
Choose Sign in mobile phone, and sign in.
Mobile phone doesn’t support ActiveX, only some basic functions can be available in this mode.
It supports iPhone, Smart phone, 3G phone etc. Normally, if the mobile phone supports network video, then it
can work with our IP Camera.
Figure 3.4
2.6 ActiveX Mode (For IE Browser)
Login to the camera in ActiveX mode, the main User Interface is as below:
NOTE: There are 3 levels of users, Visitor, Operator, Administrator, if you login with different users, the use
authority is different. (See 3.11 User Settings, Figure 8.5).
2.7 For Visitor
When you login as Visitor, you can enter the IP Camera for visitor.
Visitor is the lowest level with only some operation available.

20
Figure 3.5
Channels:
The IE software supports 9 channels. Click to get different windows.
Click this one to view the main channel of the camera you login to.
Click this one to view 4 Channels of cameras that are connected, from CH1 to CH4.
Click this one to view 9 Channels of cameras that are connected, from CH1 to CH9.
NOTE:If you want to view 4/9 channels, you should set the Multi-Device first (See 3.1 Multi-Device
Settings).
Status of Channels:
There are 9 icons at the bottom of the UI which show the status of each channel of the camera.
Grey color, means there is no device connected to the main device for this channel.
Green color, means the device is connected for this channel, and it works well.
Red color, means the device for this channel is recording.
Yellow color, means this channel is set in multi-device already, but it fails to connect to the main device.
