AirTies Air 4240 User manual

Гарантия 3 года
CD простой установки
Поддержка 7/24
8 800 100 02 80
8 800 507 44 40

2
1INTRODUCTION 4
1.1 Minimum System Requirements 4
1.2 Package Contents 4
1.3 Front Panel 4
1.4 Back Panel 5
1.5 Main Features 5
2. INSTALLATION 5
2.1 Installing the Air 4240 as an Access Point 5
2.1.1 Connecting the Cables for Access Point Mode 6
2.1.2 Connecting to the Air 4240 6
2.1.3 Advanced Settings Using the AirTies
Access Program 6
2.1.4 Accessing the advanced settings with a Static IP 10
2.2 Installing the Air 4240 as a Router 10
2.2.1 Connecting the Cables for the Router Mode 10
2.2.2 Connecting to the Air 4240 (In Router mode) 10
2.2.3 Advanced Settings Using the AirTies
Access Program (in Router mode) 10
3 ADVANCED SETTINGS 12
3.1. Operation Mode 12
3.2 Internet settings 12
3.2.1 Internet status and statistics 12
3.2.2 Internet Settings 12
3.2.3 DNS Settings 13
3.3 LAN 13
3.3.1 IP and DHCP Settings 13
3.3.2 LAN Clients 14
3.4 Wireless Settings 15
3.4.1 Connecting to the Air 4240 15
3.4.2 Wireless Network Settings 15
3.4.3 Wireless Security Settings 16
3.4.4 MAC Address Filtering 18
3.4.5 AirTies Mesh Settings 18
Manual Overview 3
Safety and Maintenance 3
3.5 FIREWALL Settings 20
3.5.1 Access Control 20
3.5.2 MAC Address Filtering 21
3.5.3 URL Filters 21
3.5.4 Anti-DoS 21
3.6 NAT 22
3.6.1 Port Forwarding 22
3.6.2 DMZ 23
3.7 Routing 23
3.7.1Static Routing 23
3.8 Management 24
3.81 Password Settings 24
3.8.2 Remote Management 24
3.9 DDNS 25
3.9.1 DDNS Settings 25
3.10 Tools 26
3.10.1 Firmware Upgrade 26
3.10.2 Time Settings 26
3.11 Reports 26
3.11.1 System Logs 27
3.11.2 Log Settings 27
4 TECHNICAL PROPERTIES 27
5 PHYSICAL CHARACTERISTICS 27
Contents

3
This manual guides you through the steps necessary for setting up and conguring your
AirTies device. Please read this manual carefully before beginning the installation process.
The Warranty does not cover failure or damage as a result of not following the instructions
in the manual. AirTies will not be held responsible in such circumstances.
The User Manual is an important resource you can refer to for safe and proper use of your
device. Please retain it for future reference.
• In order to prevent damage to your device, be sure to keep it in its original box during
transportation.
• The device must be used solely with its original power adapter.
• Do not insert a PSTN (phone) plug into the LAN port.
• If you encounter any problems, do not open or disassemble the device. Call AirTies
Technical Support.
• In order to prevent electric shock, do not operate the device in wet or damp areas.
• In the event of a gas leak, do not use the device. Do not turn the device on or off. Do not
plug or unplug the power cord.
• Avoid using the device in dusty environments. If dust buildup should occur, use a dry
cloth to remove the dust.
• To clean the exterior of the device use a dry cloth. Do not attempt to clean the interior.
There are no user serviceable components inside.
• For information regarding the installation and conguration of the device consult the
remainder of this manual.
• Remove all protective plastic on the top and bottom of your device before you start
using it.
• The average usage life of the device is 7 years as determined by the Authority of
Industry and Trade.
This manual has been prepared by AirTies Wireless Networks Corporation. All rights reserved.
Manual Overview
Safety and
Maintenance

4
The AirTies Air4240 is an IEEE 802.11b/g compliant, 54 Mbps wireless communication
device that can be used as a Wireless Access Point, Repeater, or a Router.
You can connect the AirTies Air4240 to a wired modem or router through one of the Ethernet
ports to setup a wireless local network and enable your wireless computers to access the
Internet.
As a repeater, the Air4240 makes it possible to extend the coverage area of a wireless
network. AirTies Mesh Technology is used for this purpose.
The AirTies Mesh Technology resolves problems such as loss of wireless signal or limited
coverage area often encountered in multiple-story or reinforced concrete buildings. To
extend your wireless coverage, all you need to do is to add new Air4240 devices to your
wireless network and set them to function as repeaters. Computers on the network connect
to the Air4240 with the strongest signal, and reach the router or the wired network through
the AirTies Mesh Network.
• For installation and conguration: a PC that has an Ethernet interface or 802.11 b/g/n
compatible wireless capability, and is running any version of Windows, UNIX, Linux or
Mac Operating Systems and a Web browser
• For the AirTies ADSL Utility: 32 bit Windows 98/ME/2000/XP/Vista
The device does not need to be connected to a PC during normal operation.
1INTRODUCTION
1.1 Minimum System
Requirements
1.3 Front Panel
1.2 Package
Contents
LED LIGHT STATUS
Blue The device is “ON”.
Off The device is “OFF”.
Red Internet connection established and active
Red Flashing Connecting to the Internet
Off No Internet connection
Red Wireless network connection established and
active
Red ashing Data exchange on the wireless network
connection
Off No wireless network connection
Red WAN connection established and active
Red ashing Data exchange on the WAN connection
Off No WAN connection.
Red LAN connection established and active
Red ashing LAN connection active. There is data
exchange.
Off No LAN connection
ETHERNET
WAN
4
1 2 3
5 6
Please check to make sure all the parts listed below are included in the box:
1. Air 4240 54 Mbps Wireless 4-port Router
2. 9V Power adapter
3. Ethernet cable
4. AirTies Easy Setup CD
5. Quick Installation Guide
6. Warranty Card and Certicate of Compliance
3 Warranty
Card
Wireless life
7/24 people support
[phone]
Three year warranty
Lifetime enjoyment
One touch setup
Simple & easy to use
Quik Installation
Guide
Wireless life
Air 4240 54 Mbps Wireless 4-port Router
C D Ε ύ κ ολ η ς Ε γ κ α τ ά σ τ α σ η ς
Ai r T i e s AD S L Ut i l i t y ve r s i o n : v4 . 3 . 3 . 3
7/24 τηλ εφω νι κή γρα μμή
τεχνι κής υπ οστ ήρ� ���
801 100 0911
WAN

5
1.4 Back Panel
WAN Internet line port, connects to Internet gateway devices
ETHERNET 1-4 Ethernet ports
9V Power Port 9V power port, connects to the power adapter
• Multi-function: Router, 54Mbps Wireless Access Point, Repeater
• Repeater: AirTies Mesh Technology support for extending wireless coverage area in
concrete buildings where signal range problems are common.
• Router: Advanced router with DHCP server, NAT, NAPT, DMZ, VLAN*, RIPv1/v2 support
• USB Plug and Share feature gives you printer and le sharing capability throughout
your entire network from a single point*
• Advanced Wireless Security: WPA2- PSK, WPA2-802.1x, WPA-PSK, WPA-802.1x, WEP
wireless encryption standards support
•Firewall: Advanced anti-DoS SPI Firewall; MAC and IP address based ltering for
Internet access
• Uninterrupted technical support: 7/24 AirTies Call Center and Technical Support
(engineering support by the AirTies R&D team when needed)
•3 year extended warranty
* To be added with a rmware upgrade
1.5 Main Features
In Access Point mode, the Air 4240 provides wireless access capability on any network
where access to the Internet is through a wired ADSL modem, essentially making a wired
network wireless.
Note: How to change the mode of your device is explained in section 3.1 Operation Mode of
this manual.
Reset: Button to reset your device to default factory settings. (at the bottom of the device).
To reset the Air4240 to the default factory settings, while the device is on, press and hold the
reset button at the bottom of the device with the tip of a pencil or similar pointed object for 5
seconds.
2. INSTALLATION
2.1 Installing the
Air 4240 as an
Access Point

6
1. Connect the 9V power adapter included in the box to the power port of your device and
plug it into the wall outlet.
2. Using the Ethernet cable provided, connect one of the LAN ports of the Air 4240 to
the Ethernet port of your ADSL modem or an Ethernet port of a Switch on your wired
network.
The Air 4240 cable connections must be complete before you can establish a wireless
connection to it.
1. First, check to make sure the wireless network client (802.11b/g) of your computer is
enabled.
2. Find the “AirTies_Air4240” network (SSID) on the wireless network search page of your
wireless network client and connect to it.
Important: To be able to use the AirTies Access Program, your device must be connected to
an ADSL modem or a wired network and must have an IP address assigned to it.
1. By using the AirTies Access Program you can access the Web interface of your device to
congure the encryption settings and other advanced settings of your wireless network.
2. Insert the Air 4240 Easy setup CD into your computer.
3. The AirTies Access Program installation wizard will start automatically. Click Next> to
start the installation.
4. To complete the installation process, click “Finish” in the installation wizard.
2.1.1 Connecting the
Cables for Access
Point Mode
2.1.2 Connecting to
the Air 4240
2.1. 3 Advanced
Settings Using the
AirTies Access
Program
2
1

7
5. Once the installation is complete, the AirTies Access Program will start looking for AirTies
products that are connected to your computer.
6. At the end of the search, a list of all AirTies products connected to your computer will be
displayed.
7. Select the AirTies product whose Web interface you’d like to access and click “Connect”.
The login screen will come up. You do not need a password to access the Web interface.
Click “OK” to enter.
In Access Point mode, you can congure the advanced settings by connecting the Air 4240
directly to your computer. For this, you need to assign a static IP address to your computer’s
network adapter. The IP address has to be within the same network block as the default IP
address of the Air 4240 (192.168.2.254) and must be static (example: 192.168.2.5). Below
you will nd instructions for assigning a static IP address under various operating systems.
1. Go to Start -> Control Panel.
2. Click Network Connections.
2.1.4 Accessing the
Advanced Settings
with a Static IP
Windows XP
Air 4240

8
3. In the Network Connections window, right-click on the network adapter from which you
will connect to the Air 4240 (Wireless Network Connection, Local Area Connection) and
select Properties.
4. Right-click on Internet Protocol (TCP/IP) and select Properties.
5. In the Internet Protocol (TCP/IP) Properties window click on the Use the following IP
address button and enter an address in the 192.168.2.1 – 192.168.2.253 range in the IP
address eld.
6. The Subnet mask eld will have a default value of 255.255.255.0. You do not need to
change this value.
7. Click the OK button at the bottom of the window
1. Go to Start -> Control Panel.
2. Select Network and Sharing Center.
Windows Vista

9
3. At the Network and Sharing Center, select Manage network connections from the
menu on the left.
4. In the window that comes up, right-click on the network adapter from which you will
connect to the Air 4240 (Wireless Network Connection, Local Area Connection) and
select Properties.
5. In the Network Connection Properties window, double-click on Internet Protocol
version 4 (TCP/IPv4).
6. In the Internet Protocol version 4 (TCP/IPv4) window click on the Use the following IP
address button and enter an address in the 192.168.2.1 – 192.168.2.253 range in the IP
address eld.
7. The Subnet mask eld will have a default value of 255.255.255.0. You do not need to
change this value.

10
8.Click the OK button at the bottom of the window.
When nished, you can open a browser window (e.g. Internet Explorer, Firefox) and enter
192.168.2.254 in the address eld to access the Web interface for conguring advanced
settings
In Router mode, the Air 4240 allows you to connect your entire wired network to the Internet
wirelessly through a modem that does not have NAT or Firewall features.
Note: How to change the mode of your device is explained in section 3.1 Operation Mode of
this manual.
2.2 Installing the Air
4240 as a Router
1. Connect the 9V power adapter included in the box to the power port of your device and
plug it into the wall outlet.
3. Using the Ethernet cable provided, connect the WAN port of the Air 4240 to a cable
modem or Internet gateway.
2.2.1 Connecting the
Cables for the Router
Mode
The Air 4240 cable connections must be complete before you can establish a wireless
connection to it.
1. First, check to make sure the wireless network client (802.11b/g or 802.11n) of your
computer is enabled.
2. Find the “AirTies_Air4240” network (SSID) on the wireless network search page of your
wireless network client and connect to it.
1. By using the AirTies Access Program you can access the Web interface of your device to
congure the encryption settings and other advanced settings of your wireless network.
2. Insert the Air 4240 Easy setup CD into your computer.
3. The AirTies Access Program installation wizard will start automatically. Click Next> to
start the installation.
2.2.2 Connecting
to the Air 4240 (In
Router mode)
2.2.3 Advanced Set-
tings Using the
AirTies Access
Program (in Router
mode)
1
2

11
4. To complete the installation process, click “Finish” in the installation wizard.
5. Once the installation is complete, the AirTies Access Program will start looking for AirTies
products that are connected to your computer.
6. At the end of the search, a list of all AirTies products connected to your computer will be
displayed.
7. Select the AirTies product whose Web interface you’d like to access and click “Connect”.
The login screen will come up. You do not need a password to access the Web interface.
Click “OK” to enter.
Air 4240

12
On this screen you can choose the operation mode of your device as either an Access Point
or Router. Choose the operation mode of your device and click “Save”.
When you click “Internet” on the main menu of your device’s Web interface, the “Internet
(WAN) Status” page will come up. Here, you can see detailed information about your
Internet connection and upstream/ downstream data rates. You can also check the status of
your current PVC connection.
Connection Status shows whether your device and the devices connected to it have
Internet access or not.
Link Type shows the type of connection your device has to the Internet. Your device
connects to the Internet over Ethernet.
Link Mode is the connection mode. It also indicates the maximum data rate for the
connection.
Internet Connection Speed shows the speed of upload and download trafc (in Kbps)
measured at every refresh.
3 ADVANCED
SETTINGS
3.1. Operation Mode
3.2 Internet settings
3.2.1 Internet status
and statistics
When you click INTERNET on the main menu of the Web interface, you will see Internet
Settings as the rst submenu. Go to Internet Settings to congure the Internet settings of
your device. If you are connected to the Internet through a direct connection to a cable
modem, then the information necessary for conguring the settings must be on your
computer. If you are a rst time user, you can obtain the necessary information from your
Internet Service Provider.
1. When you click on the Internet Settings submenu, a table showing your default PVC
settings will be displayed.
3.2.2 Internet
Settings
2. To enter your Internet settings, click the “Edit” button in this table. The “VLAN Settings”
screen will come up.
3. First, you need to know which connection protocol your connection supports (PPPoE,
DHCP, Bridge or static).
4. Depending on the protocol you choose, your Internet provider must have given you the
necessary information to enter on this page. After you enter the necessary values, click
“Save”.

13
DNS (Domain Name Service) is an Internet service that translates domain names into IP
addresses. For example, when you try to go to the www.airties.com address, rst your
Internet service provider’s DNS will try to translate it to the corresponding IP address. The
DNS system is, in fact, its own network. If one DNS server doesn’t know how to translate
a particular domain name, it asks another one, and so on, all the way to the main InterNIC
DNS server, until the correct address is returned. Most service providers will provide
Domain Name services for security and speed.
Go to DNS Setup under the INTERNET menu of your device’s Web interface. Check the
“Use ISP assigned DNS Servers” checkbox if you’d like to use the DNS servers assigned
by your Service Provider. If you prefer to use DNS servers of your choice, do not check this
box, and enter the IP address(es) of the server(s) you would like to use in the “201.11.43.11”
format.
3.2.3 DNS Settings
Any device that you connect to your Air 4240, such as a PC, network printer, IP camera,
etc., is a client. For settings related to clients that will have a local network connection to
your device, you can use the LAN menu and its submenus.
When you click on the LAN menu, the “LAN Client List” screen will come up. On this
screen, all clients that are connected to your device and their connection details are listed.
3.3 LAN
Every client that is connected to your Air 4240 is given a local IP address. The module that
assigns these IP addresses is the DHCP (Dynamic Host Conguration Protocol) module.
You can congure the IP and DHCP settings of your device, from the IP and DHCP
Settings submenu under the LAN menu.
3.3.1 IP and DHCP
Settings
You can change the IP address and Netmask of your device in this section. The default
IP Address of your Air 4240 when it is not connected to any other network device is
192.168.2.254 in Access Point mode and 192.168.2.1 in Router mode. The default Netmask
is 255.255.255.0 in either case. You can change these values based on the needs of your
existing network.
Local IP Settings

14
This section is for DHCP related settings. The settings you can change are the following:
DHCP is enabled by default. In this section you can assign an address range from which
your device can assign local IP addresses to clients and the lease time. The default IP
address range is 192.168.2.2 through 192.168.2.254. Maximum lease time for an assigned
IP address is set as 3600 seconds, which means the assigned IP address will be renewed
every 3600 seconds.
Enable DHCP Server
DHCP Settings
DHCP relay makes it possible for a DHCP server on a different network to assign local IP
addresses to clients connected to your device. To enable this, the address of the device
(modem, server, etc.) that runs the DHCP service needs to be known.
Important: If DHCP Relay is enabled, the DHCP server on your device is disabled and can
not assign IP addresses to clients.
Enable DHCP Relay
Stops all DHCP activity on the device. When in this mode, clients connected to the Air 4240
need to be assigned an IP address manually or they have to get an IP address from another
DHCP server in order to communicate with the network.
Πρέπει να κάνετε κλικ στο “Save” για να αποθηκεύσετε οποιεσδήποτε αλλαγές στις
ρυθμίσεις IP ή DHCP.
Disable DHCP
You can see all the clients connected to your device and their connection details by
selecting LAN Clients under the LAN menu of the Web interface. Through this menu, you
can also reserve an IP address for a client. When an IP address is reserved for a client, it
cannot be assigned to any other client. Whenever the client connects to the router, it gets
the IP address reserved for it.
You can see the IP addresses that are reserved in the “Static Addresses” table. “Dynamic
Addresses” table shows the IP addresses assigned but not reserved.
Click “Save” for the changes you have made in the “LAN Clients” page to take effect.
3.3.2 LAN Clients

15
Your AirTies router can be used as a wireless access point to set up a wireless hotspot.
With the 802.11g standard it supports, you can setup a wireless network with data rates of
up to 54Mbps allowing you to share les between PCs at very high speeds. Your router is
backward compatible with the 802.11b standard and can also work with 802.11b devices
without affecting the performance of 802.11g devices.
3.4 WIRELESS
SETTINGS
Your router has Wireless networking enabled by default. No additional router conguration
is needed for your wireless computers to access the Internet. It is recommended that you
congure wireless security as explained in the sections that follow.
In order to connect your laptop to the AirTies router wirelessly:
Go to Start-Settings-Network Connections- Wireless Network Connection-View
Wireless Networks. On the “Wireless Network Connection” screen, select the wireless
network named AIRTIES_ 4240 and click “Connect”.
802.11B 802.11G
802.11N
3.4.1 Setting up a
wireless connection
3.4.2 Wireless
Network Settings
When you click the “WIRELESS” menu of your router’s Web interface, you will be in the
“Wireless Connections” screen that lists all the wireless clients connected to the router. You
can block the access of any client to your wireless network by using the “MAC Filtering”
option.
To congure your wireless network settings, go to “Wireless Setup” under the
“WIRELESS” menu. On the screen that comes up you can see whether wireless
networking is enabled or not.

16
It is not necessary to congure wireless security to enable wireless communication. Howe-
ver, for your data security, it is recommended that you choose one of the security protocols
described below that best ts your needs.
WPA2, WPA, and WEP are wireless encryption protocols that are used to encrypt the data
trafc within a wireless network.
MAC Address Filtering allows you to control which wireless terminals can connect to your
AirTies device. Access to the device by unauthorized terminals is blocked. For your wireless
network security, it is recommended that both MAC Address ltering and WPA2 wireless
encryption protocol be activated.
3.4.3 Wireless
Security Settings
WPA2, dened by the IEEE 802.11i standard, is one of the latest wireless encryption
methods. If you would like to use WPA2 in your wireless network, all the wireless adapters
in your network must support WPA2. For Centrino platform computers, it is necessary
to download the WPA2 updates for the Windows XP operating system to be able to use
WPA2 ( www.microsoft.com ).

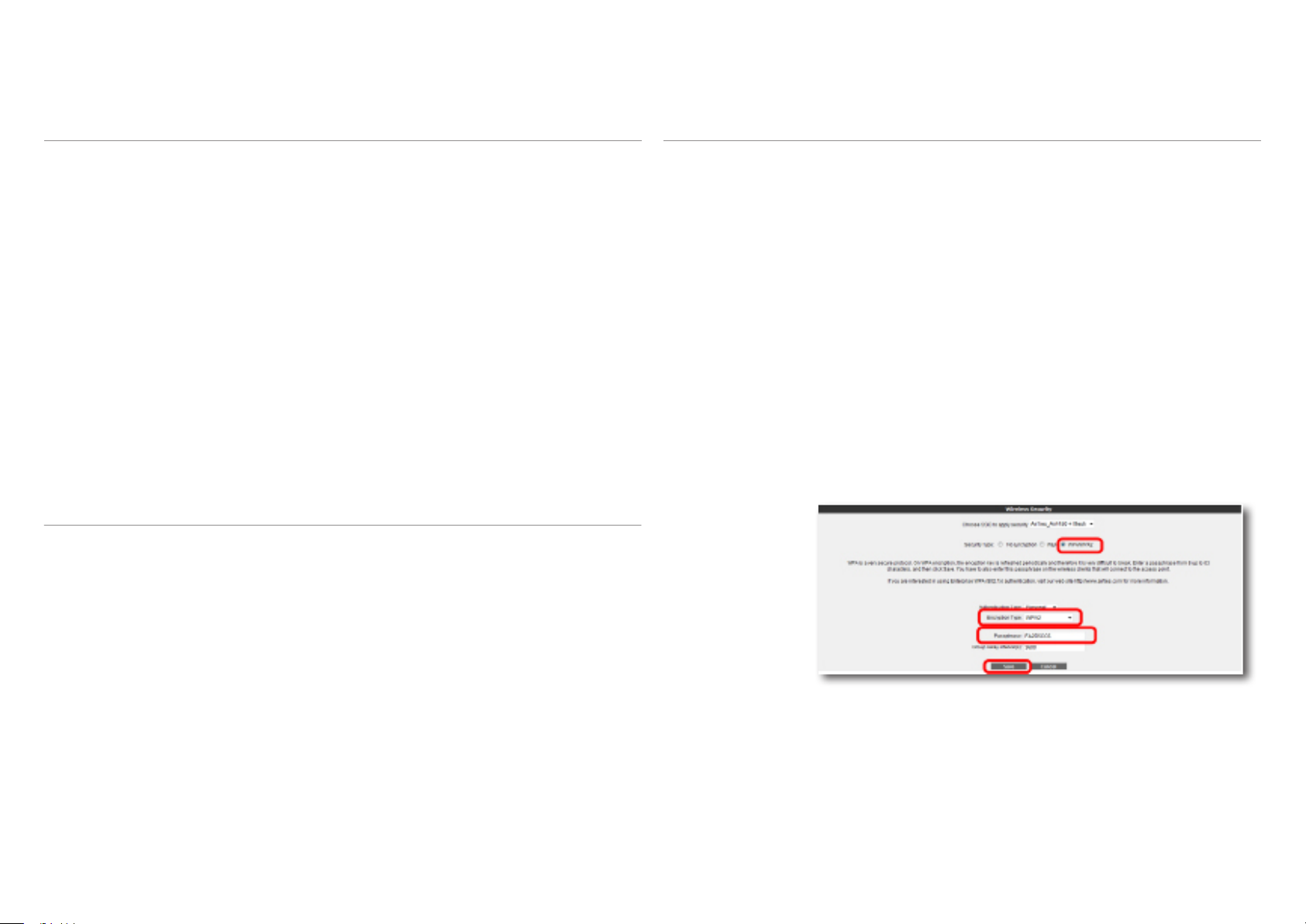

To enable WPA2 encryption and congure the necessary settings:
1. Go to Wireless Security Settings under the WIRELESS menu of the Web user
interface of your device.
2. Click on the “WPA/WPA2” button in the “Security Type” section of the “Wireless
Security” screen.
3. Select “Personal” as “Authentication Type”.
4. In the “Encryption Type” eld you can choose between “WPA2” and
“WPA and WPA2 . If all the wireless devices on your network support WPA2, then
select “WPA2”. If some of the wireless clients support WPA only, then select “Both”
in which case the devices that support WPA2 will use WPA2 and those that do not
support it will use WPA over their wireless connection.
5. Enter a network key that is 8 to 63 characters long (use a combination of letters and
digits) in the “Passphrase” eld. Make sure you choose a key that is not easy to
guess. Click “Save”.
You must enter the same passphrase for all the wireless clients that will communicate with
your device.
WPA2 Security
Settings
The next set of settings is for conguring your wireless network.
• “Primary SSID”: Enter a wireless network name (SSID). This is the name your router
broadcasts.
• “Hidden SSID”: Checking this box will hide your SSID during broadcast. This is not
recommended since hiding the SSID will prevent laptops from seeing your network
within their range.
• “User Isolation”: Checking this box will prevent wireless clients connected to your
network from accessing other client PCs on the network.
• “Security”: Shows the security protocol currently used by your network.
Click “Save” to store your settings.

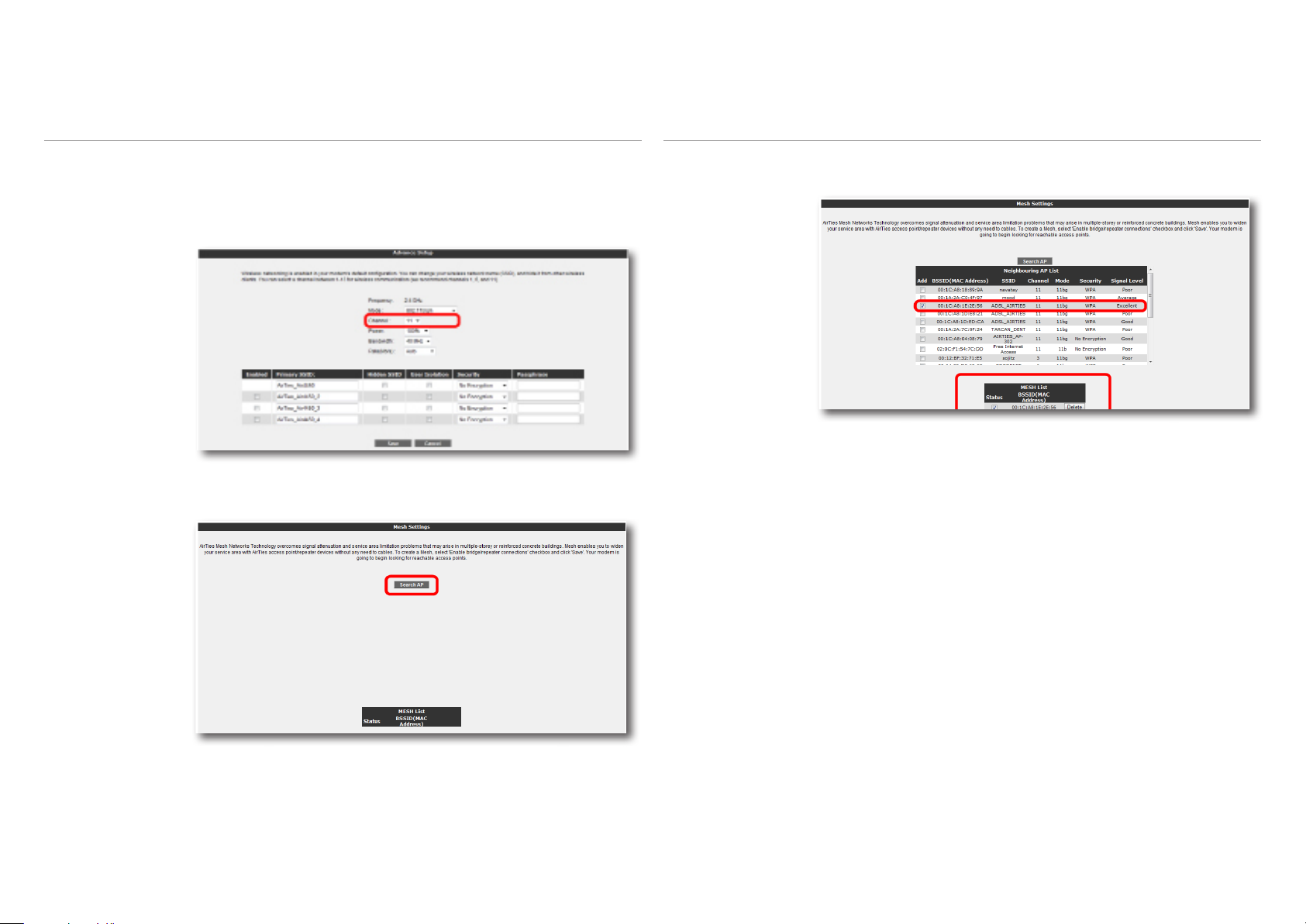

Wireless settings are in two different categories: General wireless settings for your router
and settings for your particular wireless network (SSID).
• “Frequency” shows the main frequency band your router is using. Depending on the
frequencies supported it could be 2.4GHz or 5GHZ.
• “Mode” shows the IEEE 802.11 mode actively used by your router. The default mode is
802.11b/g, supporting both 802.11b and 802.11g devices.
• “Channel” eld allows you to choose the channel your router will broadcast in. It is
recommended that you choose one of channels 1,6, or 11.
• “Power” displays the total transmitted power from the device
• “Rate” shows the highest wireless data transfer rate supported by your router. It is set
to “Auto” by default. This allows for automatic adjustment of data transfer rate based
on distance and signal quality.

17
WPA Security
Settings
WPA (Wi-Fi Protected Access) encryption standard is one of the current wireless encryption
standards that provide a high level of data protection. All AirTies wireless products and
802.11g compliant wireless communication devices support WPA. If you would like to use
WPA on your wireless network, all the wireless adapters on your network must support
WPA.
To enable WPA encryption and congure the necessary settings:
1. Go to Wireless Security Settings under the WIRELESS menu of the Web user interface
of your device.
2. Click on the “WPA/WPA2” button in the “Security Type” section of the “Wireless
Security” screen.
3. Select “Personal” as “Authentication Type”.
4. In the “Encryption Type” eld you have two choices: “WPA2” and “WPA and WPA2”.
To be able to use WPA encryption, select “Both” in which case the devices that support
WPA2 will use WPA2 and those that do not support it will use WPA over their wireless
connection.
5. Enter a network key that is 8 to 63 characters long (use a combination of letters and
digits) in the “Passphrase” eld. Make sure you choose a key that is not easy to guess.
Click “Save”.
6. You must enter the same passphrase for all the wireless clients that will communicate
with your device.
Your Air 4240 supports WEP encryption in addition to the WPA and WPA2 encryption
standards. If any of the devices in your wireless network does not support WPA or WPA2,
it is recommended that you choose WEP encryption.
To enable WEP encryption and congure the necessary settings:
1. Go to Wireless Security Settings under the WIRELESS menu of the Web interface of
your device.
2. Click on the “WEP” button in the “Security Type” section of the “Wireless Security”
screen.
3. Select “Open” for “Authentication Mode”.
4. In the “WEP Security Type” eld, there are four choices for specifying a network key.
a. 10 hexadecimal characters(A-F and 0-9) for 64-bit encryption
b. 5 ASCII characters for 64-bit encryption
c. 26 hexadecimal characters(A-F and 0-9) for 128-bit encryption
d. 13 ASCII characters for 128-bit encryption
You can enter up to 4 network keys and also choose the one you want to use. Click
“Save”.
5. You must enter the same password for all the wireless clients that will communicate
with your device.
WEP Security
Settings

18
You can specify those clients that will be allowed access to your wireless network using
MAC Filtering. MAC Address Filtering is not required for wireless security, but it is
recommended that you use it in addition to encryption for your data protection.
To enable MAC Address ltering and make the necessary settings for blocking clients:
1. Select MAC Filtering under the WIRELESS menu of the Web interface of your device.
2. In the window that appears, check the Enable MAC Filtering box.
3. Select “Just Deny MAC Addresses in MAC List”.
4. For each device to be denied access, enter the wireless MAC address of the device in
the “New MAC Address” eld or select from “Existing LAN Clients” and then click the
“ADD” button.
5. When you are done entering the MAC addresses, click “Save”.
6. To add the devices that will be allowed access to the wireless network, select “Just
Allow MAC Addresses in MAC List” instead of “Just Deny MAC Addresses in MAC
List” and enter the MAC addresses.
3.4.4 MAC Address
Filtering
AirTies Mesh Technology resolves the signal loss and limited coverage area problems often
encountered in multi-story, concrete buildings. To extend wireless coverage area, one or
more AirTies Wireless Access Point devices functioning in repeater mode are connected to
your device to set up a “Mesh Network”.
The Wireless Access Points communicate with each other via the Mesh protocol and boost
the signal wherever the signal strength is low, thus, increasing wireless range. Computers
connect to the access point with the strongest signal and get to the router over the Mesh
Network. In this way, the weak signal or dead spots due to barriers such as concrete walls
are eliminated and the coverage area can be expanded to the maximum.
3.4.5 AirTies Mesh
Settings
Phone line
Air 4450
Air 4450
Air 5450
Internet
Air 7120
Air 2410

19
1. Go to Wireless Setup under the WIRELESS menu of the Web interface. Select a
channel for your “Mesh Network” to operate in (it is recommended that you use one
of channels “1”, “6”, or “11”) from the ones listed in the “Channel” eld. You should
select the same channel on all the wireless access point devices that form the “Mesh
Network”.
To setup a Mesh Network with your device:
2. Go to MESH under the WIRELESS menu of the Web interface. In the “Mesh Settings”
screen that comes up, click the “Search AP” button.
3. When you click the “Search AP” button, the Air 4240 will start searching for wireless
access points to connect to within its range and list the access points detected.
4. Check the box for the access point(s) that you would like your device to setup a Mesh
connection with. Select only those access points that have a signal level of “Average” or
better. Click “Save” to complete the Mesh settings of your device.
5. The same Mesh settings should be made on all the AirTies access points selected
above. You can nd detailed information about Mesh settings for each type of access
point device in their respective user manuals.
Important: All AirTies devices that form the Mesh Network should operate on the same
channel.

20
A rewall prevents unauthorized Internet users from accessing your local network and
computer.
AirTies Firewall has SPI (Stateful Packet Inspection) feature. SPI monitors the protocol and
packet addresses being received to determine if the information should be passed through
the rewall to the connected computers. Internet addresses that are a source of malicious
attacks are permanently blocked from accessing your network.
You can also limit or block the Internet access of any local user by dening advanced rules
for Internet access.
The following sections describe the submenus under the FIREWALL menu of the Web
interface.
3.5 FIREWALL
Settings
You can allow or block Internet access of any computer on your local network using the
Access Control feature. These access restrictions can be based on IP or MAC address.
Click “New” to dene a new access rule.
3.5.1 Access Control
In the window that appears:
• Enter a name for the access rule you would like to dene in the “RULE NAME” eld.
Choose a name that is easy to remember.
• In the “LAN Interface” eld, enter the LAN interface to which the rule will apply. (Routers
that support VLAN have more than one LAN interface.)
• Select the PVC to which the access rule will apply in the “WAN Interface” eld.
• In the “Select Client” section, enter the IP or MAC addresses of the clients whose
access you would like to restrict with this rule and click “Add >”.
• In the “Select Applications” section, specify the applications you would like to block
access to by the clients you have dened in the “Select Clients” section previously. You
can select the application from the “Existing Applications” list and click “Add >””.
• You can specify the times that the Access Rule will be in effect by checking the
“Scheduling” box. If you dene scheduling rules, then the access rule will be in effect
only during the times specied.
• To add a new application to the “Existing Applications” list, click “New”. In the window
that appears:
o Enter a name for the application you are going to dene in the “Application
Name” eld.
o Enter the LAN and WAN ports the application uses and click “Save”.
• Click “Save” when you are done.
• To activate the rule you have dened, check the “Enable Access Control” box and click
“Save”.
