INTRODUCTION
The DGS/DXS-3300 Layer 3 stackable Gigabit Ethernet switches are members of the D-Link xStack family. Ranging from
10/100Mbps edge switches to core gigabit switches, the xStack switch family has been future-proof designed to provide a
stacking architecture with fault tolerance, flexibility, port density, robust security and maximum throughput with a user-friendly
management interface for the networking professional.
This manual provides a reference for all of the commands contained in the CLI for members of the xStack DGS/DXS-3300
series, including the DGS-3324SRi, DGS-3324SR, DXS-3326GSR, and the DXS-3350SR. Examples present in this manual
may refer to any member of the xStack DGS/DXS-3300 series and may show different port counts, but are universal to this
series of switches, unless otherwise stated. Configuration and management of the Switch via the Web-based management agent
is discussed in the User’s Guide.
Please take note that if this device was purchased outside of Europe, certain cosmetic differences between the actual switch and
images in this document will be apparent to the reader, such as the faceplate and the manual cover. Changes are made to the
appearance of the device only and no configuration or internal hardware alterations occur.
The Switch can be managed through the Switch’s serial port, Telnet, or the Web-based management agent. The Command Line
Interface (CLI) can be used to configure and manage the Switch via the serial port or Telnet interfaces.
Accessing the Switch via the Serial Port
The Switch’s serial port’s default settings are as follows:
• 115200 baud
• no parity
• 8 data bits
• 1 stop bit
A computer running a terminal emulation program capable of emulating a VT-100 terminal and a serial port configured as
above is then connected to the Switch’s serial port via an RS-232 DB-9 cable.
With the serial port properly connected to a management computer, the following screen should be visible. If this screen does
not appear, try pressing Ctrl+r to refresh the console screen.

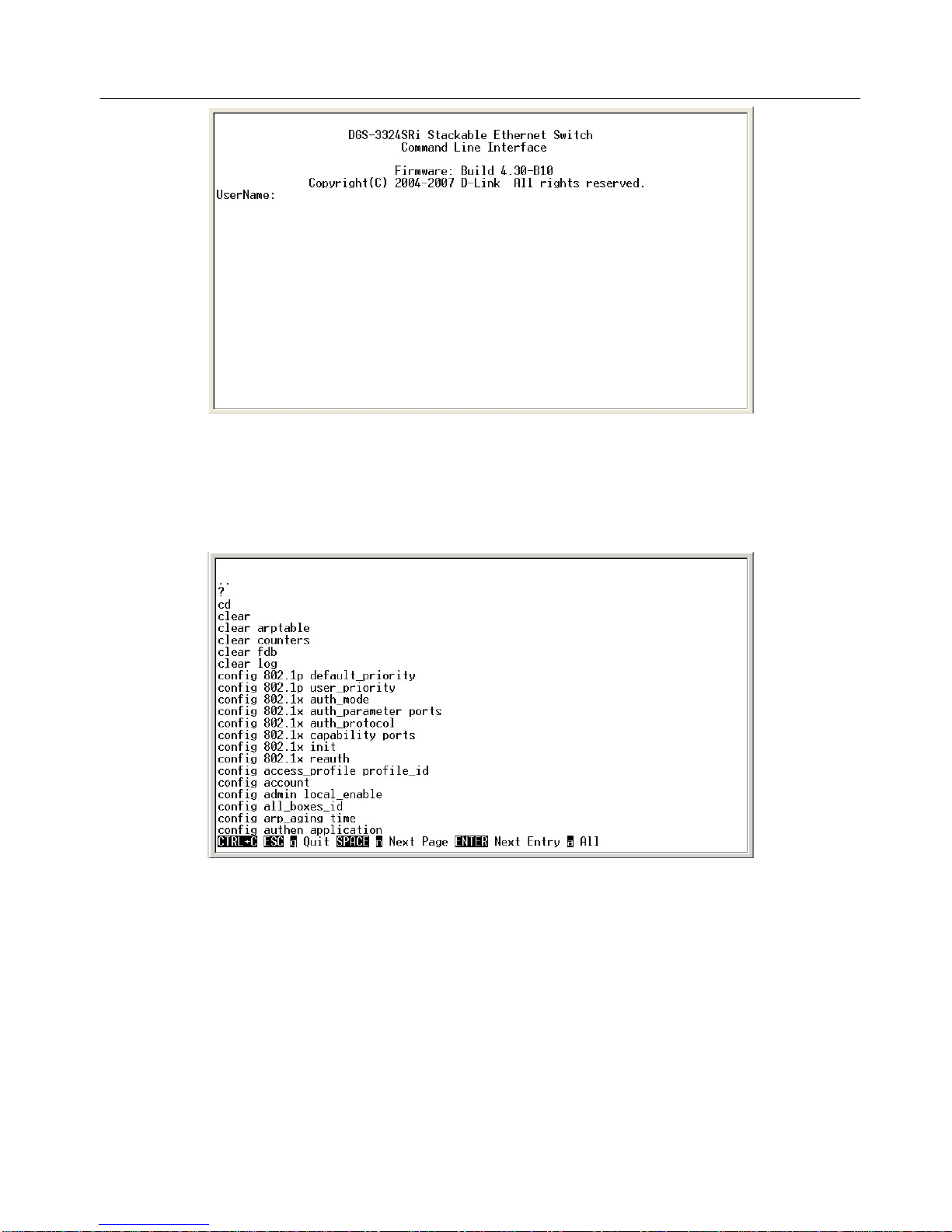

Figure 1-1. Initial CLI screen

xStack DGS/DXS-3300 Series Layer 3 Stackable Gigabit Ethernet Switch CLI Manual
2
There is no initial username or password. Just press the Enter key twice to display the CLI input cursor −DGS-3324SRi:4#.
This is the command line where all commands are input.
Setting the Switch’s IP Address
Each switch must be assigned its own IP Address, which is used for communication with an SNMP network manager or other
TCP/IP application (for example BOOTP, TFTP). The Switch’s default IP address is 10.90.90.90. The default switch IP address
can be changed to meet the specification of your networking address scheme.
The Switch is also assigned a unique MAC address by the factory. This MAC address cannot be changed, and can be found on
the initial boot console screen – shown below.

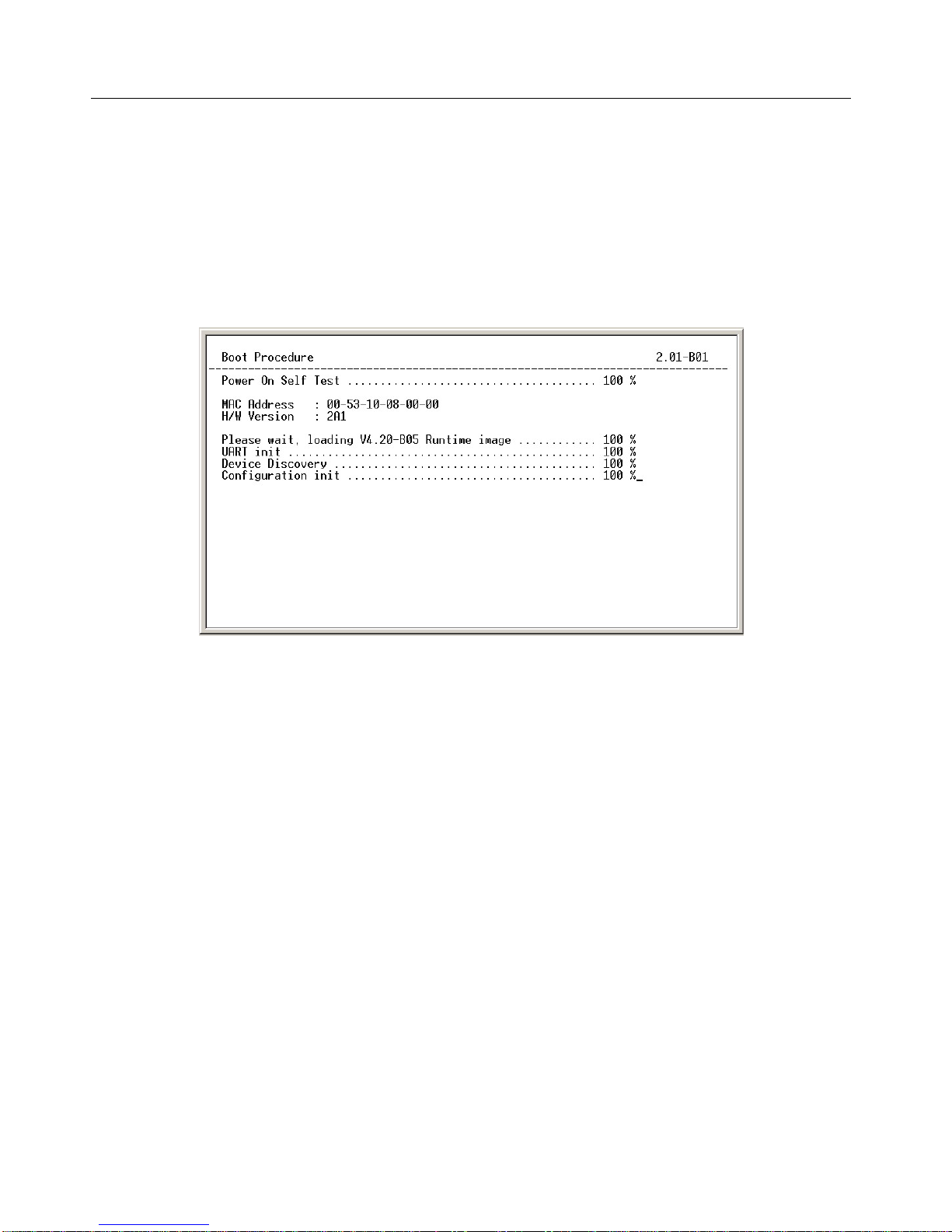

Figure 1-2. Boot Screen
The Switch’s MAC address can also be found in the Web management program on the Switch Information (Basic Settings)
window on the Configuration menu.
The IP address for the Switch must be set before it can be managed with the Web-based manager. The Switch IP address can be
automatically set using BOOTP or DHCP protocols, in which case the actual address assigned to the Switch must be known.
The IP address may be set using the Command Line Interface (CLI) over the console serial port as follows:
1. Starting at the command line prompt, enter the commands config ipif System ipaddress
xxx.xxx.xxx.xxx/yyy.yyy.yyy.yyy. Where the x’s represent the IP address to be assigned to the IP interface named
System and the y’s represent the corresponding subnet mask.
2. Alternatively, the user may enter config ipif System ipaddress xxx.xxx.xxx.xxx/z. Where the x’s represent the IP
address to be assigned to the IP interface named System and the zrepresents the corresponding number of subnets in
CIDR notation.
The IP interface named System on the Switch can be assigned an IP address and subnet mask which can then be used to connect
a management station to the Switch’s Telnet or Web-based management agent.

xStack DGS/DXS-3300 Series Layer 3 Stackable Gigabit Ethernet Switch CLI Manual
3

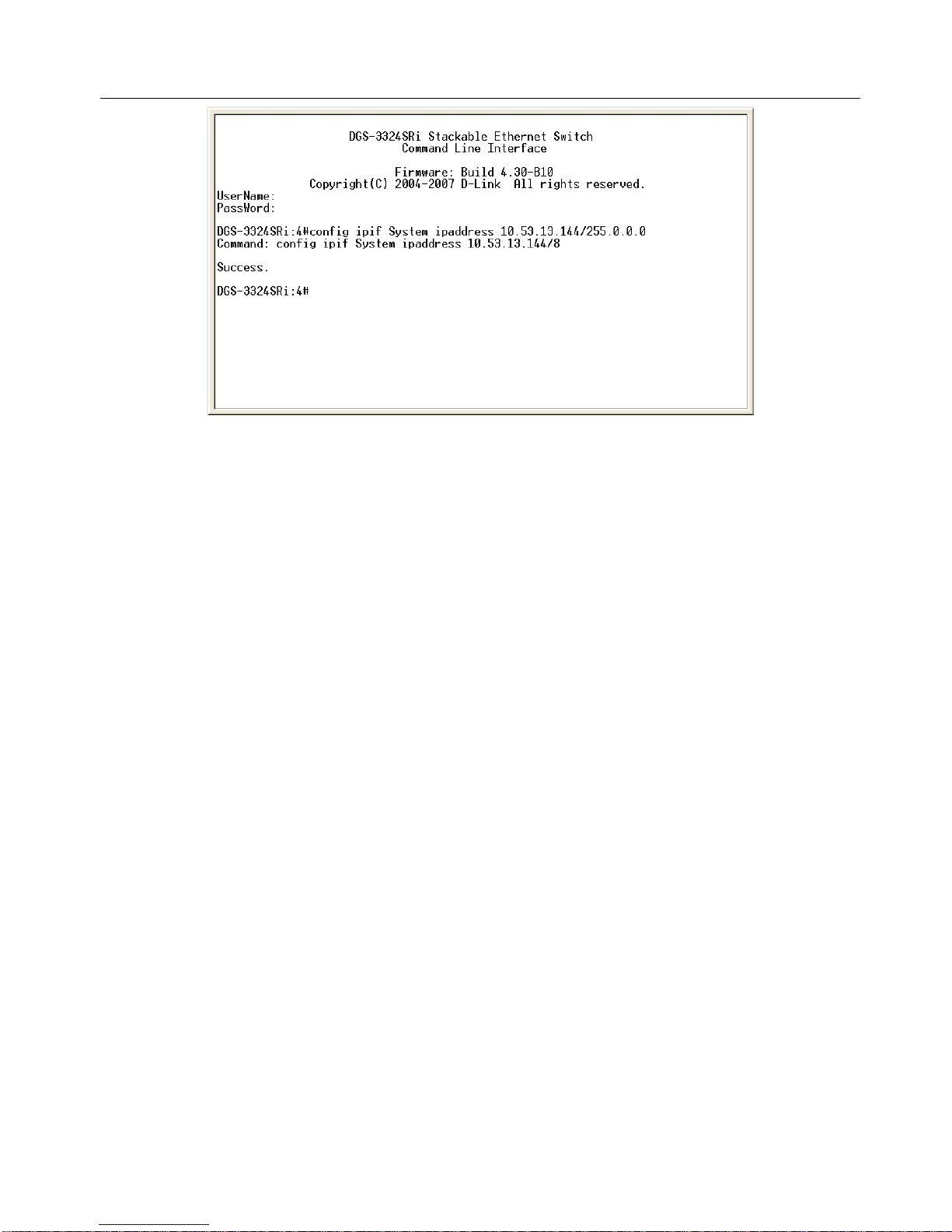

Figure 1-3. Assigning an IP Address
In the above example, the Switch was assigned an IP address of 10.53.13.144 with a subnet mask of 255.0.0.0. The system
message Success indicates that the command was executed successfully. The Switch can now be configured and managed via
Telnet and the CLI or via the Web-based management agent using the above IP address to connect to the Switch.

xStack DGS/DXS-3300 Series Layer 3 Stackable Gigabit Ethernet Switch CLI Manual
4
2
USING THE CONSOLE CLI
The xStack DGS/DXS-3300 Series supports a console management interface that allows the user to connect to the Switch’s
management agent via a serial port and a terminal or a computer running a terminal emulation program. The console can also be
used over the network using the TCP/IP Telnet protocol. The console program can be used to configure the Switch to use an
SNMP-based network management software over the network.
This chapter describes how to use the console interface to access the Switch, change its settings, and monitor its operation.
Note: Switch configuration settings are saved to non-volatile RAM using
the save command. The current configuration will then be retained in the
Switch’s NV-RAM, and reloaded when the Switch is rebooted. If the
Switch is rebooted without using the save command, the last configuration
saved to NV-RAM will be loaded.
Connecting to the Switch
The console interface is used by connecting the Switch to a VT100-compatible terminal or a computer running an ordinary
terminal emulator program (e.g., the HyperTerminal program included with the Windows operating system) using an RS-232C
serial cable. Your terminal parameters will need to be set to:
• VT-100 compatible
• 115200 baud
• 8 data bits
• No parity
• One stop bit
• No flow control
The same functions can be accessed over a Telnet interface. Once an IP address has been set for your Switch, a Telnet program
(in VT-100 compatible terminal mode) can be used to access and control the Switch. All of the screens are identical, whether
accessed from the console port or from a Telnet interface.
After the Switch reboots and the user has logged in, the console looks like this:

xStack DGS/DXS-3300 Series Layer 3 Stackable Gigabit Ethernet Switch CLI Manual
5

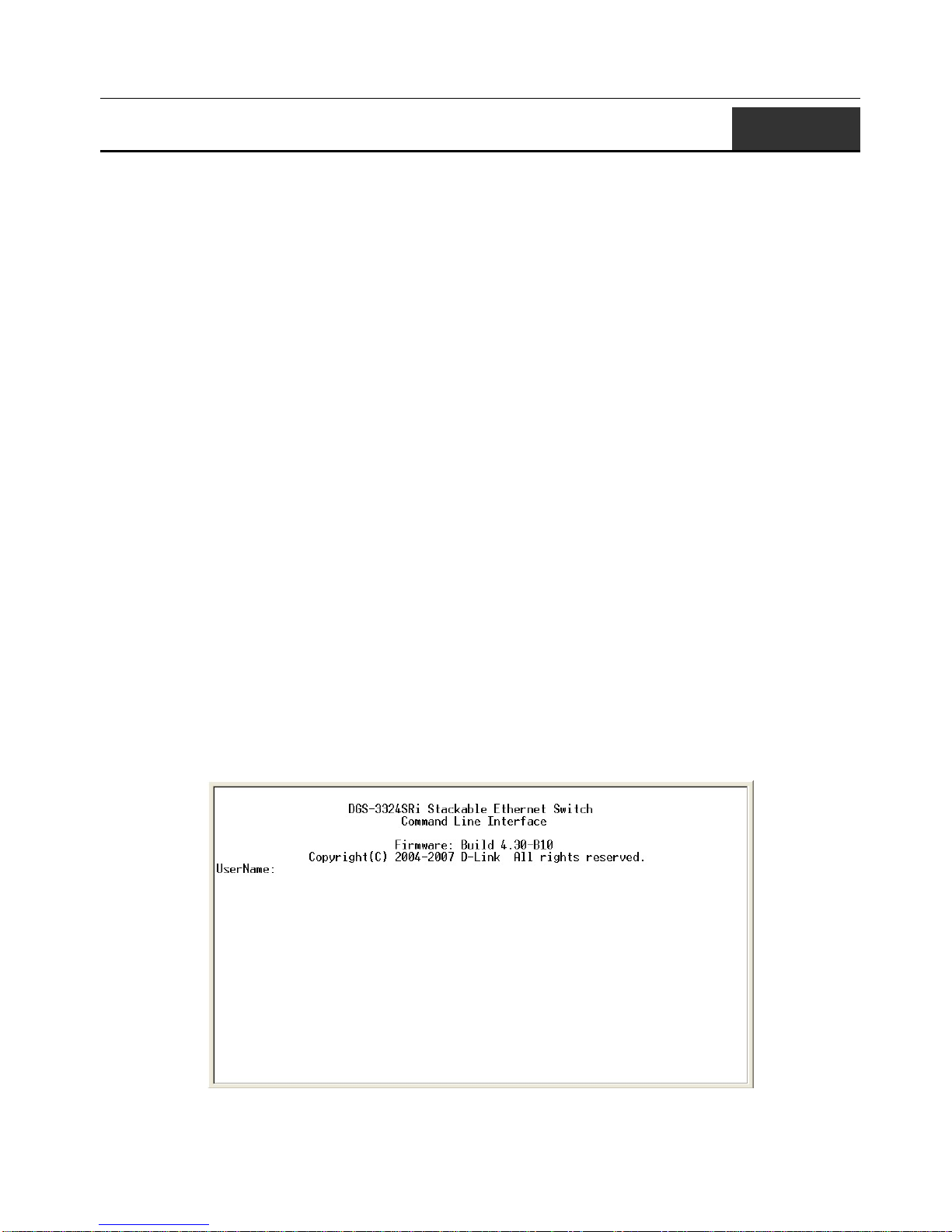

Figure 2-1. Initial Console Screen
Commands are entered at the command prompts, DGS-3324SRi:4#, DGS-3324SR:4#, DXS-3326GSR:4#, DXS-3350SR:4#.
There are a number of helpful features included in the CLI. Entering the ?command will display a list of all of the top-level
commands.
Figure 2-2. The ? Command
When a command has been entered without its required parameters, the CLI will prompt a Next possible completions: message.

xStack DGS/DXS-3300 Series Layer 3 Stackable Gigabit Ethernet Switch CLI Manual
6
Figure 2-3. Example Command Parameter Help

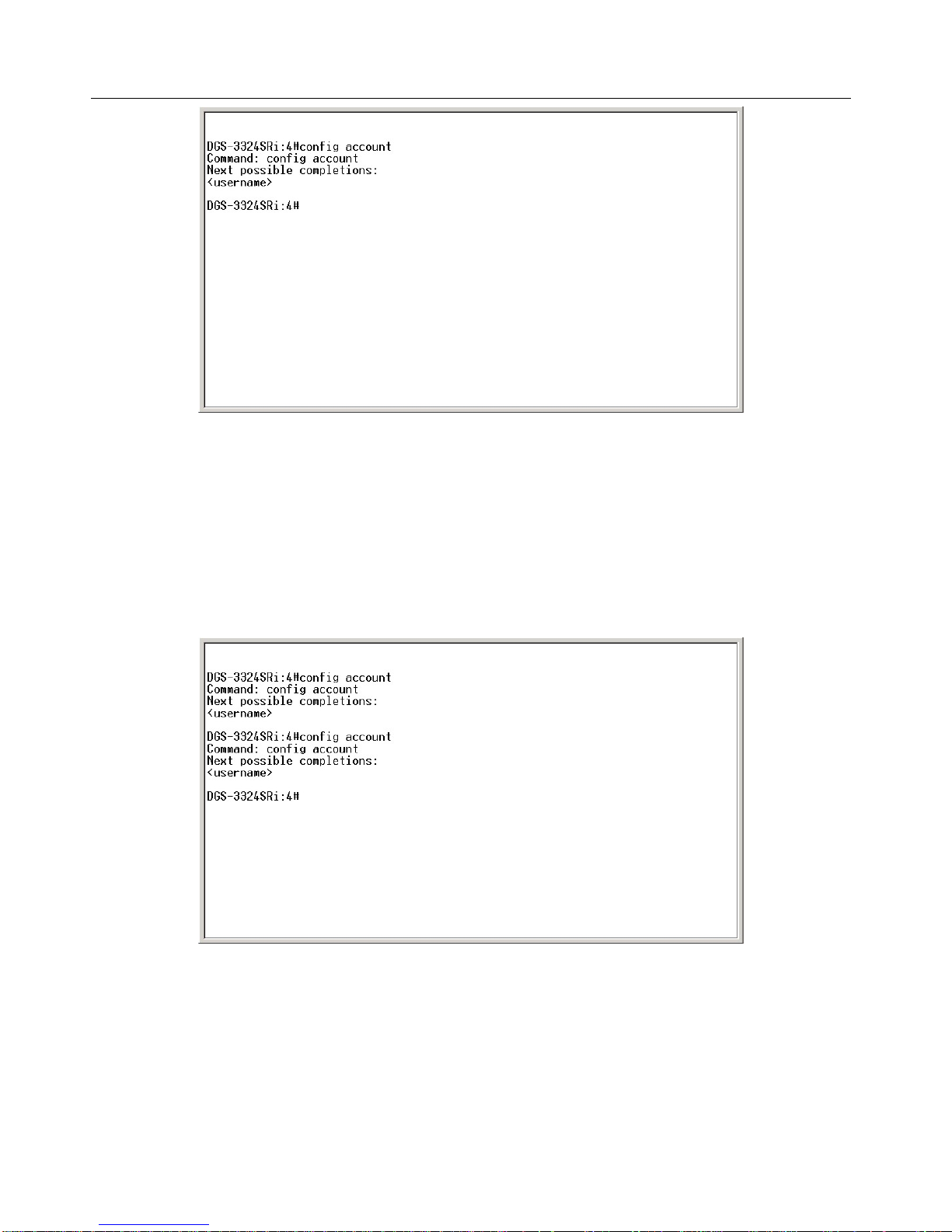

In this case, the command config account was entered with the parameter <username>. The CLI will then prompt to enter the
<username> with the message, Next possible completions:. Every command in the CLI has this feature, and complex
commands have several layers of parameter prompting.
In addition, after typing any given command plus one space, all of the next possible sub-commands can be viewed, in sequential
order, by repeatedly pressing the Tab key.
To re-enter the previous command at the command prompt, press the up arrow cursor key. The previous command will appear at
the command prompt.
Figure 2-4. Using the Up Arrow to Re-enter a Command
In the above example, the command config account was entered without the required parameter <username>, the CLI returned
the Next possible completions: <username> prompt. The up arrow cursor control key was pressed to re-enter the previous
command (config account) at the command prompt. Now the appropriate User name can be entered and the config account
command re-executed.
All commands in the CLI function in this way. In addition, the syntax of the help prompts are the same as presented in this
manual −angle brackets < > indicate a numerical value or character string, braces { } indicate optional parameters or a choice of
parameters, and brackets [ ] indicate required parameters.

xStack DGS/DXS-3300 Series Layer 3 Stackable Gigabit Ethernet Switch CLI Manual
7
If a command is entered that is unrecognized by the CLI, the top-level commands will be displayed under the Available
commands: prompt.

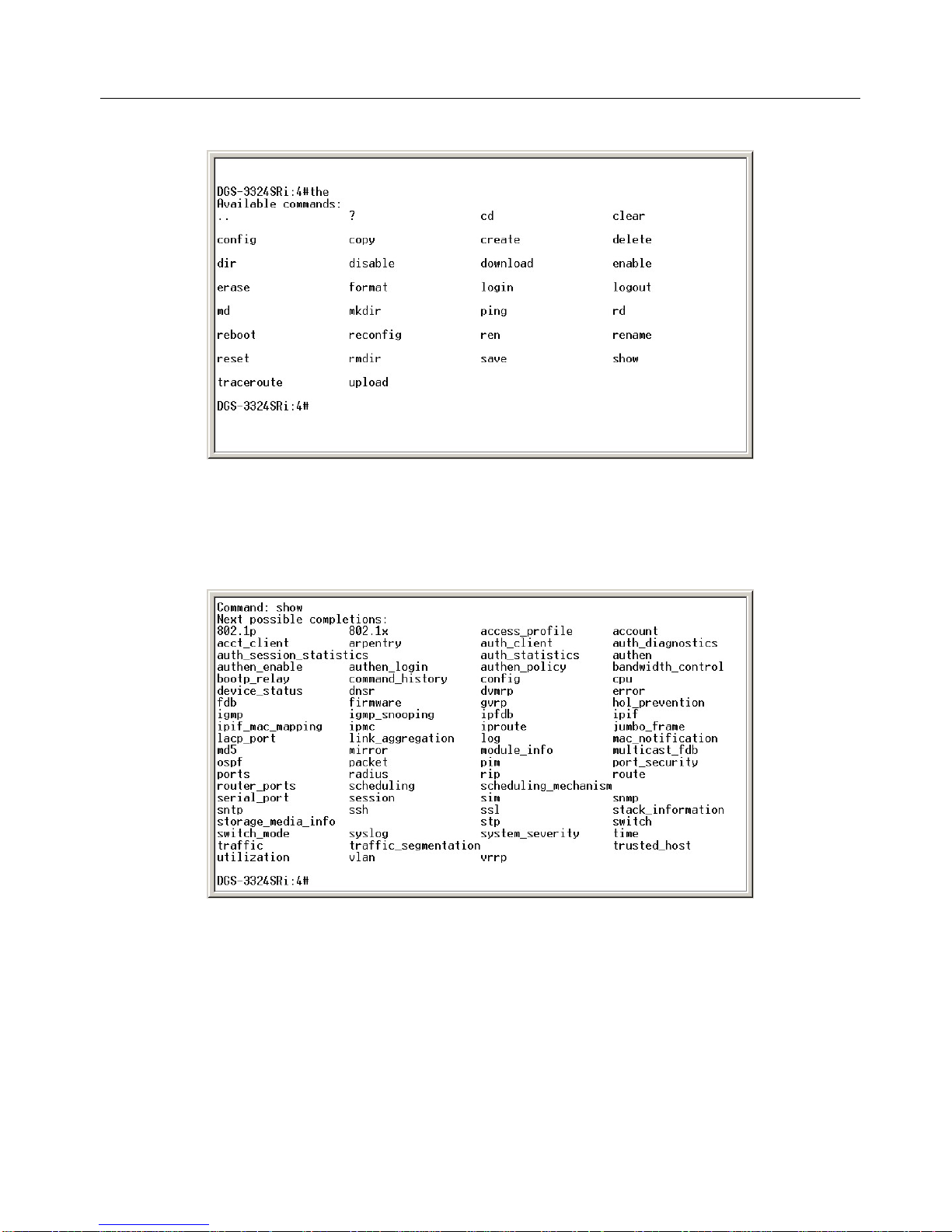

Figure 2-5. The Available Commands Prompt
The top-level commands consist of commands such as show or config. Most of these commands require one or more parameters
to narrow the top-level command. This is equivalent to show what? or config what? Where the what? is the next parameter.
For example, if the show command has been entered with no additional parameters, the CLI will then display all of the possible
next parameters.
Figure 2-6. Next possible completions: Show Command
In the above example, all of the possible next parameters for the show command are displayed. At the next command prompt,
the up arrow was used to re-enter the show command, followed by the account parameter. The CLI then displays the user
accounts configured on the Switch.

xStack DGS/DXS-3300 Series Layer 3 Stackable Gigabit Ethernet Switch CLI Manual
8
3
COMMAND SYNTAX
The following symbols are used to describe how command entries are made and values and arguments are specified in this
manual. The online help contained in the CLI and available through the console interface uses the same syntax.
Note: All commands are case-sensitive. Be sure to disable Caps Lock or
any other unwanted function that changes text case.
<angle brackets>
Purpose Encloses a variable or value that must be specified.
Syntax create ipif <ipif_name> <network_address> <vlan_name
32> {secondary | state [enable | disable]}
Description In the above syntax example, supply an IP interface name in the
<ipif_name> space, a VLAN name in the <vlan_name 32>
space, and the network address in the <network_address>
space. Do not type the angle brackets.
Example Command create ipif Engineering 10.24.22.5/255.0.0.0 Design
[square brackets]
Purpose Encloses a required value or set of required arguments. One
value or argument can be specified.
Syntax create account [admin | user] <username 15>
Description In the above syntax example, specify either an admin or a user
level account to be created. Do not type the square brackets.
Example Command create account admin
| vertical bar
Purpose Separates two or more mutually exclusive items in a list, one of
which must be entered.
Syntax create account [admin | user] <username 15>
Description In the above syntax example, it is necessary to specify either
admin, or user. Do not type the backslash.
Example Command create account admin

xStack DGS/DXS-3300 Series Layer 3 Stackable Gigabit Ethernet Switch CLI Manual
9
{braces}
Purpose Encloses an optional value or set of optional arguments.
Syntax reset {[config | system]}
Description In the above syntax example, the user has the option to specify
config or system. It is not necessary to specify either optional
value, however the effect of the system reset is dependent on
which, if any, value is specified. Therefore, with this example
there are three possible outcomes of performing a system
reset. See the following chapter, Basic Commands for more
details about the reset command.
Example command reset config
Line Editing Key Usage
Delete Deletes the character under the cursor and then shifts the
remaining characters in the line to the left.
Backspace Deletes the character to the left of the cursor and shifts the
remaining characters in the line to the left.
Left Arrow Moves the cursor to the left.
Right Arrow Moves the cursor to the right.
Up Arrow Repeat the previously entered command. Each time the up
arrow is pressed, the command previous to that displayed
appears. This way it is possible to review the command history
for the current session. Use the down arrow to progress
sequentially forward through the command history list.
Down Arrow The down arrow will display the next command in the command
history entered in the current session. This displays each
command sequentially as it was entered. Use the up arrow to
review previous commands.
Tab Shifts the cursor to the next field to the left.
Multiple Page Display Control Keys
Space Displays the next page.
CTRL+c Stops the display of remaining pages when multiple pages are to
be displayed.
ESC Stops the display of remaining pages when multiple pages are to
be displayed.
n Displays the next page.
p Displays the previous page.
q Stops the display of remaining pages when multiple pages are to
be displayed.
r Refreshes the pages currently displayed.
a Displays the remaining pages without pausing between pages.
Enter Displays the next line or table entry.

xStack DGS/DXS-3300 Series Layer 3 Stackable Gigabit Ethernet Switch CLI Manual
10
4
BASIC SWITCH COMMANDS
The basic switch commands in the Command Line Interface (CLI) are listed (along with the appropriate parameters) in the
following table.
Command Parameters
create account [admin | user] <username 15>
config account <username 15>
show account
delete account <username 15>
show config [current_config | config_in_NVRAM]
show session
show switch
show switch_mode
show device status
show module_info
show serial_port
config serial_port {baud_rate [115200] auto_logout [never | 2_minutes | 5_minutes |
10_minutes | 15_minutes]}
enable clipaging
disable clipaging
enable telnet <tcp_port_number 1-65535>
disable telnet
enable web <tcp_port_number 1-65535>
disable web
save {[log | all]}
reboot
reset {[config | system]}
login
logout
Each command is listed, in detail, in the following sections.

xStack DGS/DXS-3300 Series Layer 3 Stackable Gigabit Ethernet Switch CLI Manual
11
create account
Purpose Used to create user accounts.
Syntax create [admin | user] <username 15>
Description The create account command is used to create user accounts
that consist of a username of 1 to 15 characters and a password
of 0 to 15 characters. Up to 8 user accounts can be created.
Parameters admin <username> - Entering this parameter will give the
specified user administrative-level privileges over configuring
functions of the Switch. This user may perform any function listed
in this manual. A username of up to 15 characters must be
created with this command to identify the admin user.
user <username> - Entering this parameter will give the specified
user user-level privileges over configuring functions of the Switch.
User-level privileges limit the execution of many commands listed
in this manual. A username of up to 15 characters must be
created with this command to identify the user.
Restrictions Only Administrator-level users can issue this command.
Usernames can be between 1 and 15 characters.
Passwords can be between 0 and 15 characters.
Example usage:
To create an administrator-level user account with the username “dlink”.
DGS-3324SRi:4#create account admin dlink
Command: create account admin dlink
Enter a case-sensitive new password:****
Enter the new password again for confirmation:****
Success.
DGS-3324SRi:4#
config account
Purpose Used to configure user accounts
Syntax config account <username>
Description The config account command configures a user account that
has been created using the create account command.
Parameters <username>- Enter the username of the account to be configured.
Restrictions Only Administrator-level users can issue this command.
Usernames can be between 1 and 15 characters.
Passwords can be between 0 15 characters.
Example usage:

xStack DGS/DXS-3300 Series Layer 3 Stackable Gigabit Ethernet Switch CLI Manual
12
To configure the user password of “dlink” account:
DGS-3324SRi:4#config account dlink
Command: config account dlink
Enter a old password:****
Enter a case-sensitive new password:****
Enter the new password again for confirmation:****
Success.
DGS-3324SRi:4#
show account
Purpose Used to display user accounts.
Syntax show account
Description Displays all user accounts created on the Switch. Up to 8 user
accounts can exist on the Switch at one time.
Parameters None.
Restrictions None.
Example usage:
To display the accounts that have been created:
DGS-3324SRi:4#show account
Command: show account
Current Accounts:
Username Access Level
--------------- ------------
dlink Admin
DGS-3324SRi:4#
delete account
Purpose Used to delete an existing user account.
Syntax delete account <username>
Description The delete account command deletes a user account that has
been created using the create account command.
Parameters <username>- Enter the username of the account to be deleted.
Restrictions Only Administrator-level users can issue this command.
Example usage:
To delete the admin account “System”:

xStack DGS/DXS-3300 Series Layer 3 Stackable Gigabit Ethernet Switch CLI Manual
13
DGS-3324SRi:4#delete account System
Command: delete account System
Are you sure to delete the last administrator account?(y/n)y
Success.
DGS-3324SRi:4#
Example usage:
To delete the user account “System2”:
DGS-3324SRi:4#delete account System2
Command: delete account System2
Success.
DGS-3324SRi:4#
show config
Purpose Used to display a list of configuration commands entered into the
Switch.
Syntax show config [current_config | config_in_NVRAM]
Description This command displays a list of configuration commands entered
into the Switch.
Parameters current_config – Entering this parameter will display configurations
entered without being saved to NVRAM.
config_in_NVRAM - Entering this parameter will display
configurations entered and saved to NVRAM.
Restrictions None.
Example usage:
To view configurations entered on the Switch that were saved to NVRAM:

xStack DGS/DXS-3300 Series Layer 3 Stackable Gigabit Ethernet Switch CLI Manual
14
DGS-3324SRi:4# show config config_in_NVRAM
Command: show config config_in_NVRAM
#------------------------------------------------------------------------------------------------------
# DGS-3324SRi Configuration
#
# Firmware: Build 4.20-B08
# Copyright(C) 2004-2007 D-Link Corporation. All rights reserved.
#------------------------------------------------------------------------------------------------------
# BASIC
config serial_port baud_rate 115200 auto_logout never
enable telnet 23
enable web 80
enable clipaging
# STORM
config traffic control 1:1-1:26 broadcast disable multicast disable dlf disable
threshold 128
config traffic control 2:1-2:24 broadcast disable multicast disable dlf disable
CTRL+C ESC q Quit SPACE n Next Page ENTER Next Entry a All
show session
Purpose Used to display a list of currently logged-in users.
Syntax show session
Description This command displays a list of all the users that are logged-in at
the time the command is issued.
Parameters None.
Restrictions None.
Example usage:
To display the way that the users logged in:
DGS-3324SRi:4#show session
Command: show session
ID Live Time From Level Name
-- --------- -------------- ----- ---------------
*8 03:36:27 Serial Port 4 Anonymous
Total Entries: 1

xStack DGS/DXS-3300 Series Layer 3 Stackable Gigabit Ethernet Switch CLI Manual
15
show switch
Purpose Used to display information about the Switch.
Syntax show switch
Description This command displays information about the Switch.
Parameters None.
Restrictions None.
Example usage:
To display the Switch information:

xStack DGS/DXS-3300 Series Layer 3 Stackable Gigabit Ethernet Switch CLI Manual
16
DGS-3324SRi:4#show switch
Command: show switch
Device Type : DGS-3324SRi Stackable Ethernet Switch
Unit ID : 1
MAC Address : DA-10-21-00-00-01
IP Address : 10.41.44.22 (Manual)
VLAN Name : default
Subnet Mask : 255.0.0.0
Default Gateway : 0.0.0.0
Boot PROM Version : Build 2.01-B01
Firmware Version : Build 4.30-B08
Hardware Version : 2A1
Device S/N :
System Name : DGS-3324SRi_#3
System Location : 7th_flr_east_cabinet
System Contact : Julius_Erving_212-555-6666
Spanning Tree : Disabled
GVRP : Disabled
IGMP Snooping : Disabled
RIP : Disabled
DVMRP : Disabled
PIM : Disabled
OSPF : Disabled
TELNET : Enabled (TCP 23)
WEB : Enabled (TCP 80)
RMON : Enabled
SSL Status : Disabled
SSH Status : Disabled
802.1x : Disabled
Jumbo Frame : Off
Clipaging : Enabled
MAC Notification : Disabled
Port Mirror : Disabled
SNTP : Disabled
Bootp Relay : Disabled
DNSR Status : Disabled
VRRP : Disabled
HOL Prevention State : Enabled
Syslog Global State : Disabled
Single IP Management : Disabled
Dual Image : Supported
CPU Interface Filter : Disabled
DGS-3324SRi:4#

xStack DGS/DXS-3300 Series Layer 3 Stackable Gigabit Ethernet Switch CLI Manual
17
show switch_mode
Purpose Used to display the current switch mode.
Syntax show switch_mode
Description This command displays the current mode of operation of the
Switch.
Parameters None.
Restrictions None.
Example usage:
To view the current switch mode:
DGS-3324SRi:4#show switch_mode
Command: show switch_mode
Switch is in Layer 3 mode
DGS-3324SRi:4#
show device_status
Purpose Used to display the current status of the hardware of the Switch.
Syntax show device_status
Description This command displays the current status of the Switch’s physical
elements.
Parameters None.
Restrictions None.
Example usage:
To show the current hardware status of the Switch:
DGS-3324SRi:4#show device_status
Command: show device_status
ID Internal Power External power Side Fan Back Fan
--- ---------------- ---------------- ---------- ----------
2 Active Fail OK OK
CTRL+C ESC q Quit SPACE n Next Page ENTER Next Entry a All
