Airvom W201 User manual

Features 2

Parts 3

Preparation before use 3

Operations guide 3

Use environment 4

Product manual 4

Maintenance 4

Disassembly guide 5

Precautions 5

Filter 7

Specifications 7

KC certificate 7

Warranty 8

Model No: Airvom W201

Table of Contents:

Before using the product, be sure to read the precautions and use them correctly.

Keep this manual in a place where anyone using the product can refer to it at any time.

A product warranty is included in the user manual.

- Safety warnings are intended to prevent accidents or dangers in advance by using the product safely and correctly.

- Safety warnings are divided into two categories, warning and caution, and the meaning of warning and caution are as

follows.

WARNING

CAUTION

Potentially dangerous situations

that, if not avoided, could result in

death or serious injury

Potentially dangerous situations that

can lead to minor injuries if not

avoided

This symbol is a sign that calls attention to matters that may

provoke a danger under certain conditions.

Read carefully and use according to instructions to avoid danger.

This is a sign that prohibits any action.

This symbol is an indication of an action.

USER’s MANUAL

1 - 8

使用说明书 9 – 18

Guía de usuario

19 - 28

한국어 사용설명서 29 – 37

Wall-mounted slim air sterilizer

with excellent space sterilization purifier

Effect of air purification

Four stage filters such as hepa filter to

remove fine dust and odor

Double sterilization with

cold plasma and Photocatalyst

Effect of Sterilization1

Features

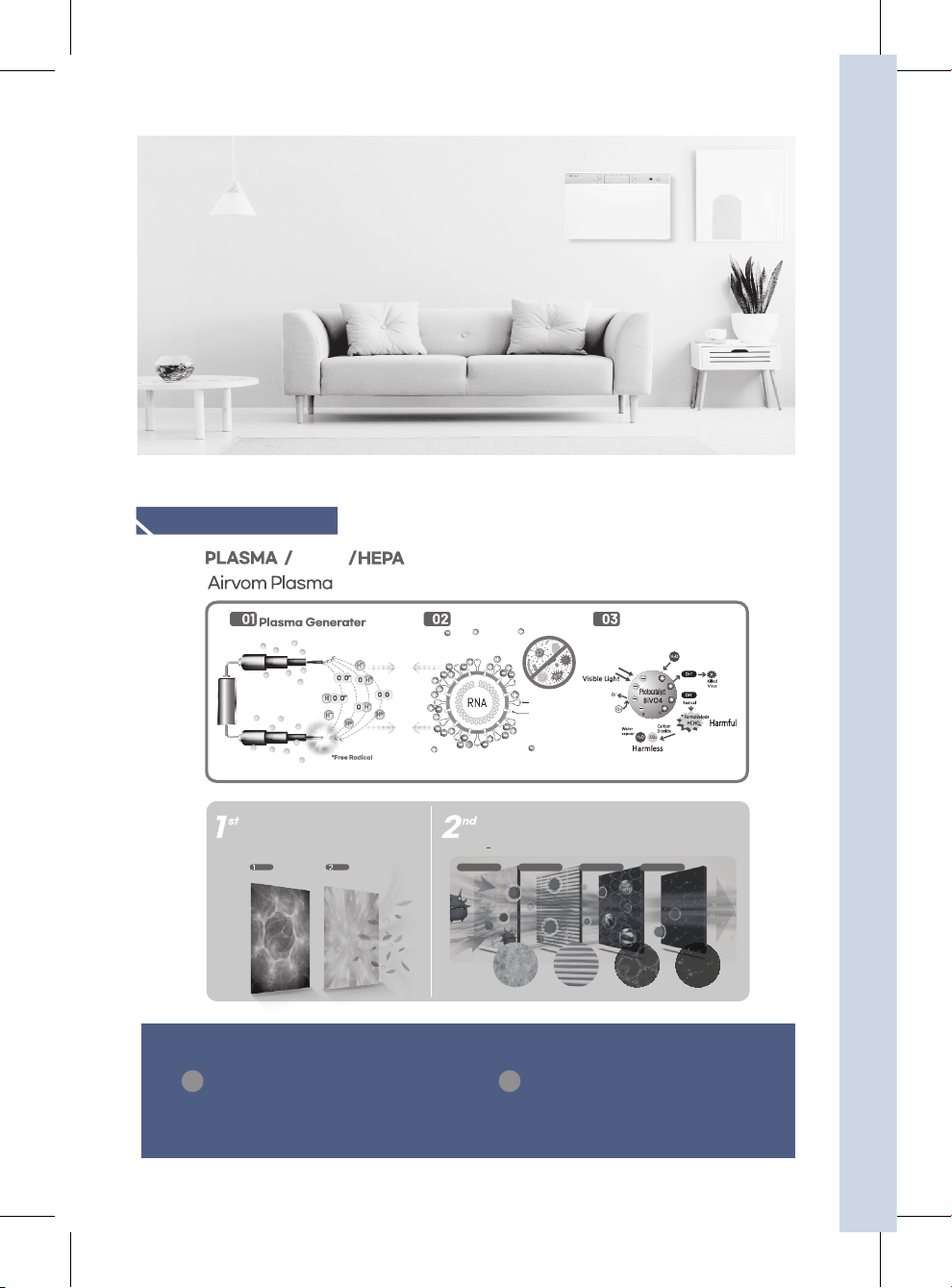

AIRVOM PLASMA Sterilization System

Pathogen Destruction Re-sterilization with

Photocatalyst

Plasma Generater

High voltage

BINDING

Enjoy the effect of two with one

Double sterilization with plasma

and Photocatalyst

Four stage filters such as hepa filter to

remove fine dust and odor

PLASMA

EFFECT OF STERILIZATION EFFECT OF AIR PURIFICATION

COTTON LAYER HEPA FILTER CARBON FILTER

COLD CATALYST FILTER

PLASMA / Photocatalyst / HEPA

new air purification technology applied

STERILIZATION EFFECT

Photocatalyst

Part 1 Part 2

Parts

Preparation before use

- Be sure to remove the filter protection vinyl before use.

- If the filter is used without removing the vinyl, air purification will not be performed and it may cause a malfunction.

You can use it as aromatherapy by adding various dry air fresheners to the fragrance box according to your individual taste.

If you add solid perfume, potpourri, or dry air freshener, you can fill the entire room with a healthy, fresh and attractive

fragrance. (Liquid perfumes or fragrances are absolutely prohibited)

Operations Guide

Place the device on a stable, dry, horizontal surface, and place it at least 30cm away from other objects Before connecting

power, make sure that the socket and power wire meet the requirements of this product.

This is a product is researched and developed by a

professional design team suitable for various spaces and

to suit the domestic environment and lifestyle. Cleans

indoor air to remove harmful indoor gases (eg. formalde-

hyde, etc.), secondhand smoke, harmful particles (eg. fine

dust), viruses, bacteria and odors.

· Suitable for use on an area of 23㎡(247ft2)

· Antibacterial and deodorizing by plasma effect

· Photocatalyst sterilization

· Multiple air cleaning, odor removal, sterilization system

· High efficiency complex HEPA filter

· Honeycomb-shaped dense carbon filter,

wireless remote control

· Cool catalyst filter

· The air quality is monitored by applying the

AUTO function sensor, and the air quality is

automatically adjusted.

· Quiet sleep mode

Airvom W201

AIRVOM PLASMA W

Wall-mounted Slim

Space sterilization purifier

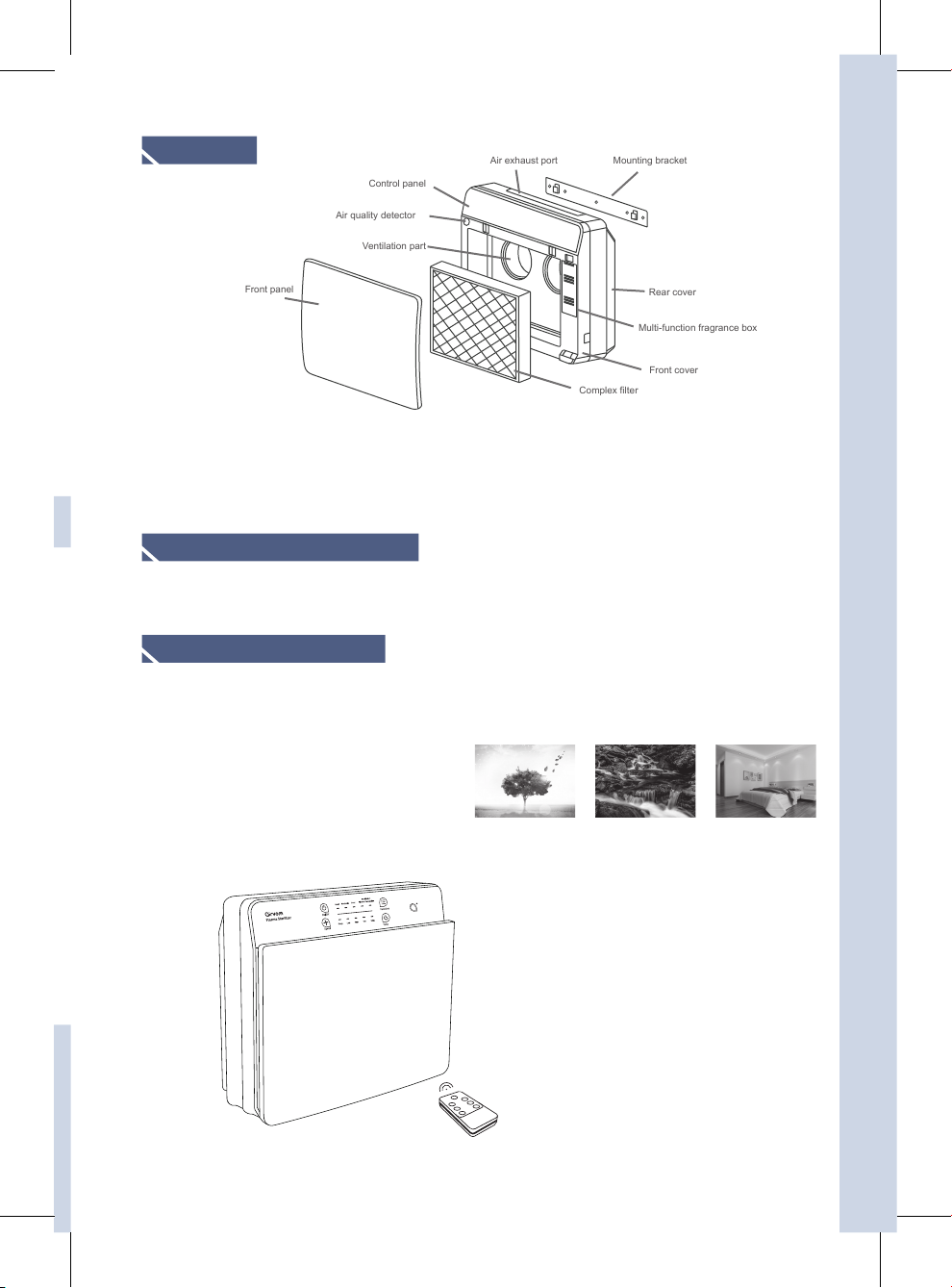

Front panel

Ventilation part

Rear cover

Mounting bracketAir exhaust port

Control panel

Air quality detector

Multi-function fragrance box

Front cover

Complex filter

Photocatalysis sterilizationPhotocatalysis sterilization

Wall-mounted slim air sterilizer

with excellent space sterilization purifier

Effect of air purification

Four stage filters such as hepa filter to

remove fine dust and odor

Double sterilization with

cold plasma and Photocatalyst

Effect of Sterilization1

Features

AIRVOM PLASMA Sterilization System

Pathogen Destruction Re-sterilization with

Photocatalyst

Plasma Generater

High voltage

BINDING

Enjoy the effect of two with one

Double sterilization with plasma

and Photocatalyst

Four stage filters such as hepa filter to

remove fine dust and odor

PLASMA

EFFECT OF STERILIZATION EFFECT OF AIR PURIFICATION

COTTON LAYER HEPA FILTER CARBON FILTER

COLD CATALYST FILTER

PLASMA / Photocatalyst / HEPA

new air purification technology applied

STERILIZATION EFFECT

Photocatalyst

Part 1 Part 2

Parts

Preparation before use

- Be sure to remove the filter protection vinyl before use.

- If the filter is used without removing the vinyl, air purification will not be performed and it may cause a malfunction.

You can use it as aromatherapy by adding various dry air fresheners to the fragrance box according to your individual taste.

If you add solid perfume, potpourri, or dry air freshener, you can fill the entire room with a healthy, fresh and attractive

fragrance. (Liquid perfumes or fragrances are absolutely prohibited)

Operations Guide

Place the device on a stable, dry, horizontal surface, and place it at least 30cm away from other objects Before connecting

power, make sure that the socket and power wire meet the requirements of this product.

This is a product is researched and developed by a

professional design team suitable for various spaces and

to suit the domestic environment and lifestyle. Cleans

indoor air to remove harmful indoor gases (eg. formalde-

hyde, etc.), secondhand smoke, harmful particles (eg. fine

dust), viruses, bacteria and odors.

· Suitable for use on an area of 23㎡(247ft2)

· Antibacterial and deodorizing by plasma effect

· Photocatalyst sterilization

· Multiple air cleaning, odor removal, sterilization system

· High efficiency complex HEPA filter

· Honeycomb-shaped dense carbon filter,

wireless remote control

· Cool catalyst filter

· The air quality is monitored by applying the

AUTO function sensor, and the air quality is

automatically adjusted.

· Quiet sleep mode

Airvom W201

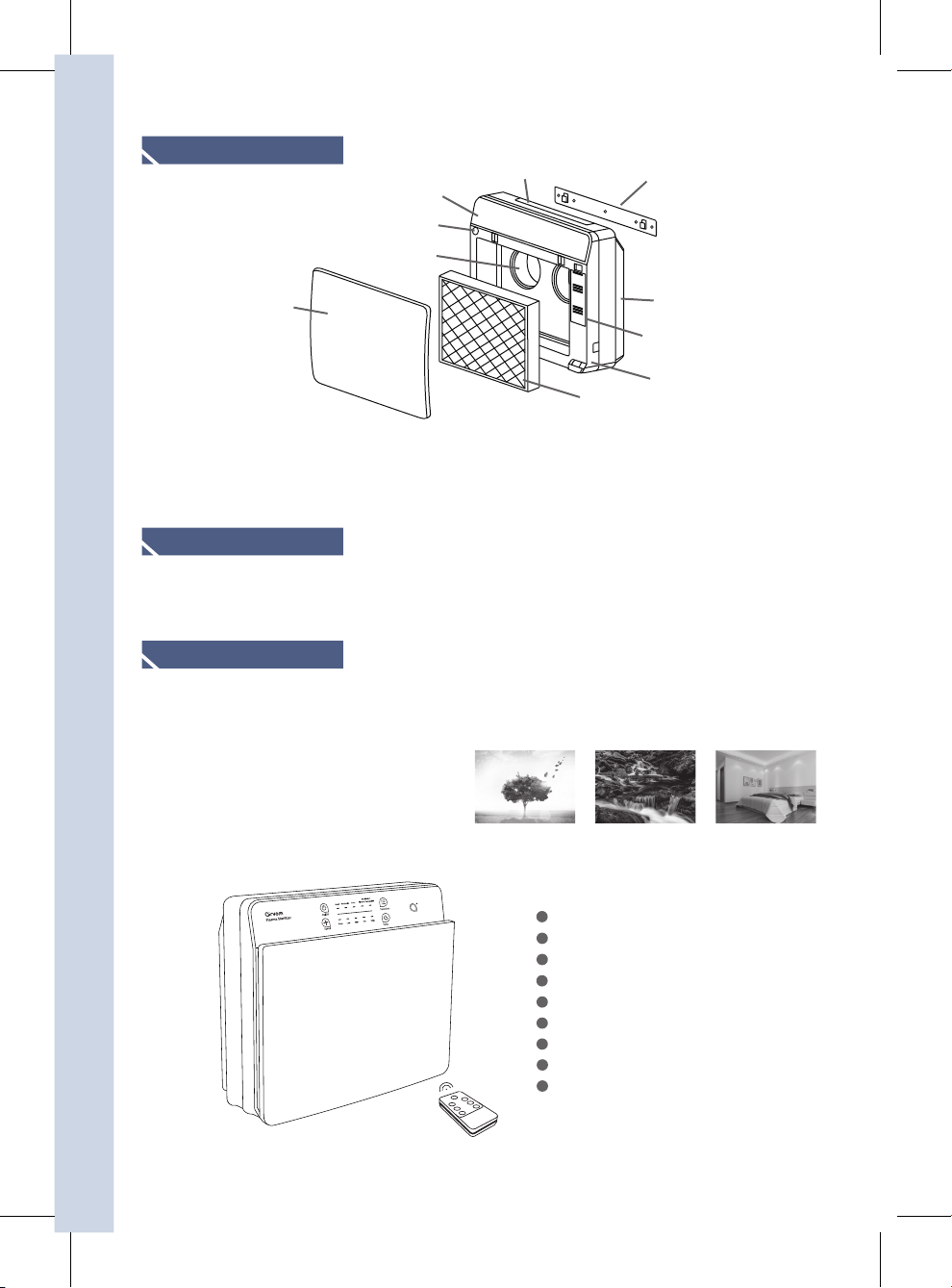

AIRVOM PLASMA W

Wall-mounted Slim

Space sterilization purifier

Front panel

Ventilation part

Rear cover

Mounting bracketAir exhaust port

Control panel

Air quality detector

Multi-function fragrance box

Front cover

Complex filter

Photocatalysis sterilizationPhotocatalysis sterilization

Product manual

1. Operation: After connecting the power, press "On/Off" gently to activate the air purifier, and press the "On/Off" button

again to turn off the device.

2. Purification speed: "Sleep (sleep mode), Low (standard mode), Fast (fast mode)" can be operated in 3 steps. When you

are suspicious of severe air pollution or contamination, it is recommended to select “Fast” for quick cleaning and select

“Sleep” mode when going to bed.

3. Timer: There are two options, “1 hour, 3 hours”, please adjust the operating time.

4. Sterilization: When the power is turned on, the “Plasma” function is automatically activated. You can activate the "photoca-

talysis" function by touching the function key.

5. While the power is on, the plasma continues to run. If you want to stop the plasma function while power is running, you

can operate it with the plasma button on the remote controller.

6. Automatic air quality recognition: Built-in high-sensitivity odor detection sensor, detects air quality right after start-up,

switches to "Fast" mode when air quality is "bad" and when air quality is "good" or "normal" It is automatically adjusted

according to the system.

7. Filter replacement alarm: When the cumulative use time reaches 1,500 hours, three air quality indicators light up, and at

the same time, the alarm sound “DED” sounds. After replacing the filter, you can reset the device and cancel the alarm by

pressing the "Speed" and "Time" buttons simultaneously for 5 seconds (except for some models).

8. Remote control: The infrared remote control receiver is installed, and the effective distance is 4~5m. When using, point

the remote control towards the IR receiver located on the right side of the control panel.

Maintenance

Issues Possible Causes Solutions

Power plug disconnected Try using different power outlet and check the power

Unit fails to turn-on /power outlet with no electricity plug is properly connected

Power switch is off Press “ON/OFF” button

Filter life span is over Replace filter

Purification ability is weak Air intake/Exhaust port is blocked or dirty Clean the Air intake/Exhaust port

Filter is installed in the wrong direction Re-install the filter in the correct direction

Amount of purified Filter is extremly dirty Replace filter

air is low Make sure all dirt and dusts have been removed

After making sure that all dirt and dusts have been removed, check the surface for damage.

Abnormal noise If there are substances in the air intake and exhaust port, wipe it clean.

While the plasma function is on, some noise is normal

- If the above solutions did not solve the problem, please contact our designated retailer and A/S designated shop.

- For safety, do not disassemble the product yourself, and keep it in the original condition to avoid further damage.

Use environment

1. This product is for home or similar environments only, do not use outdoors.

2. Do not use this product in environments with high temperature, high humidity, excessive dust, corrosive, flammable and

combustible gases (eg. kitchen and bathroom).

3. Do not use the device near or in direct sunlight (eg. ovens, fans, heaters, or other heating devices).

4. Do not use the device during severe temperature fluctuations. Do not select the Aromatherapy or a similar mode when

turning on or prior to turn on the device.

5. While the machine is operating, place it on a stable and dry horizontal surface.

6. While the device is operating, check that the air intake and exhaust ports are 30cm (12 in) or more away from other

substances.

7. For details on the power parameters of this product, check the product specifications column below.

8. For safety reasons, children, elderly, and mentally weak people should use the product with supervision.

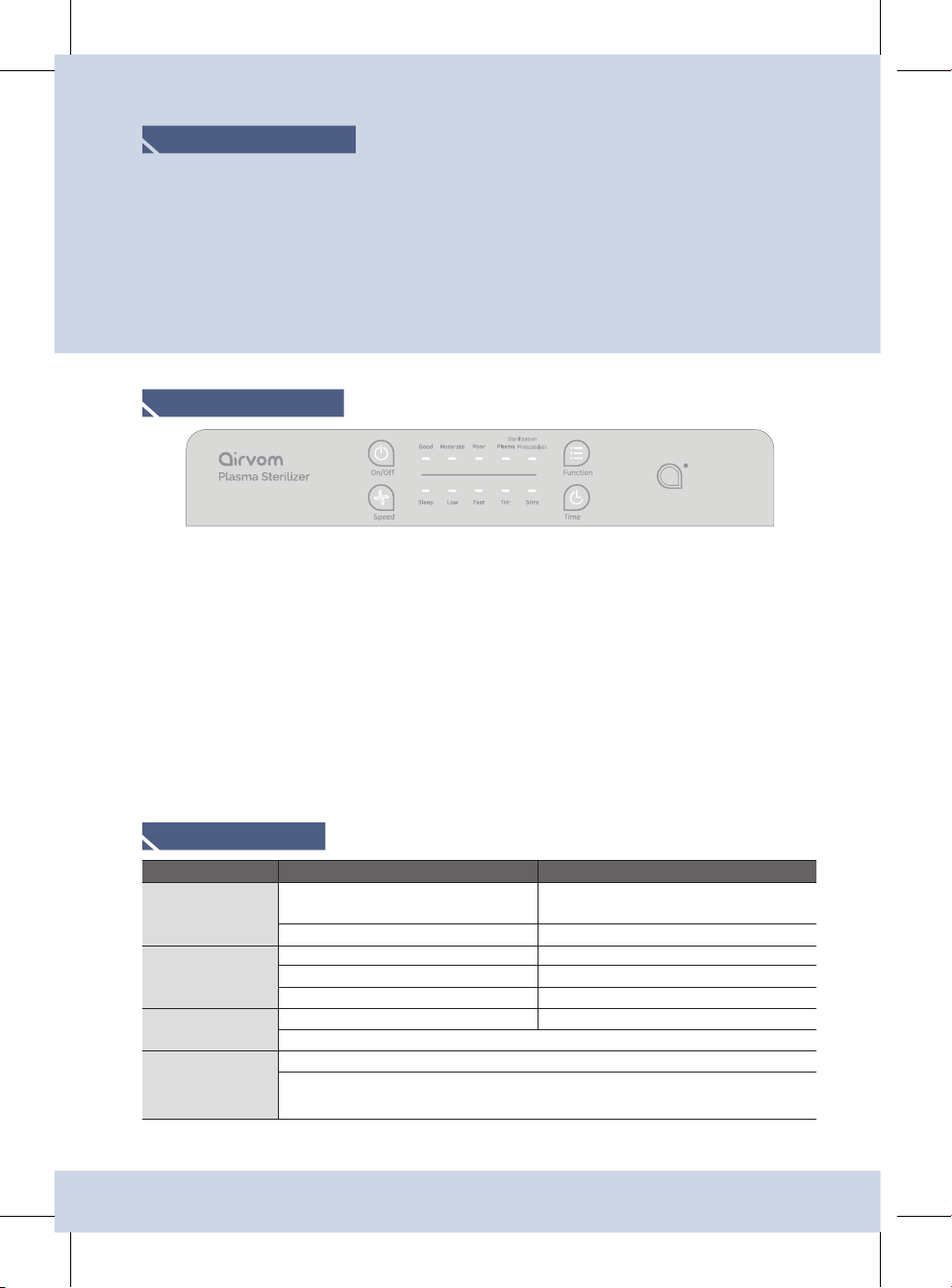

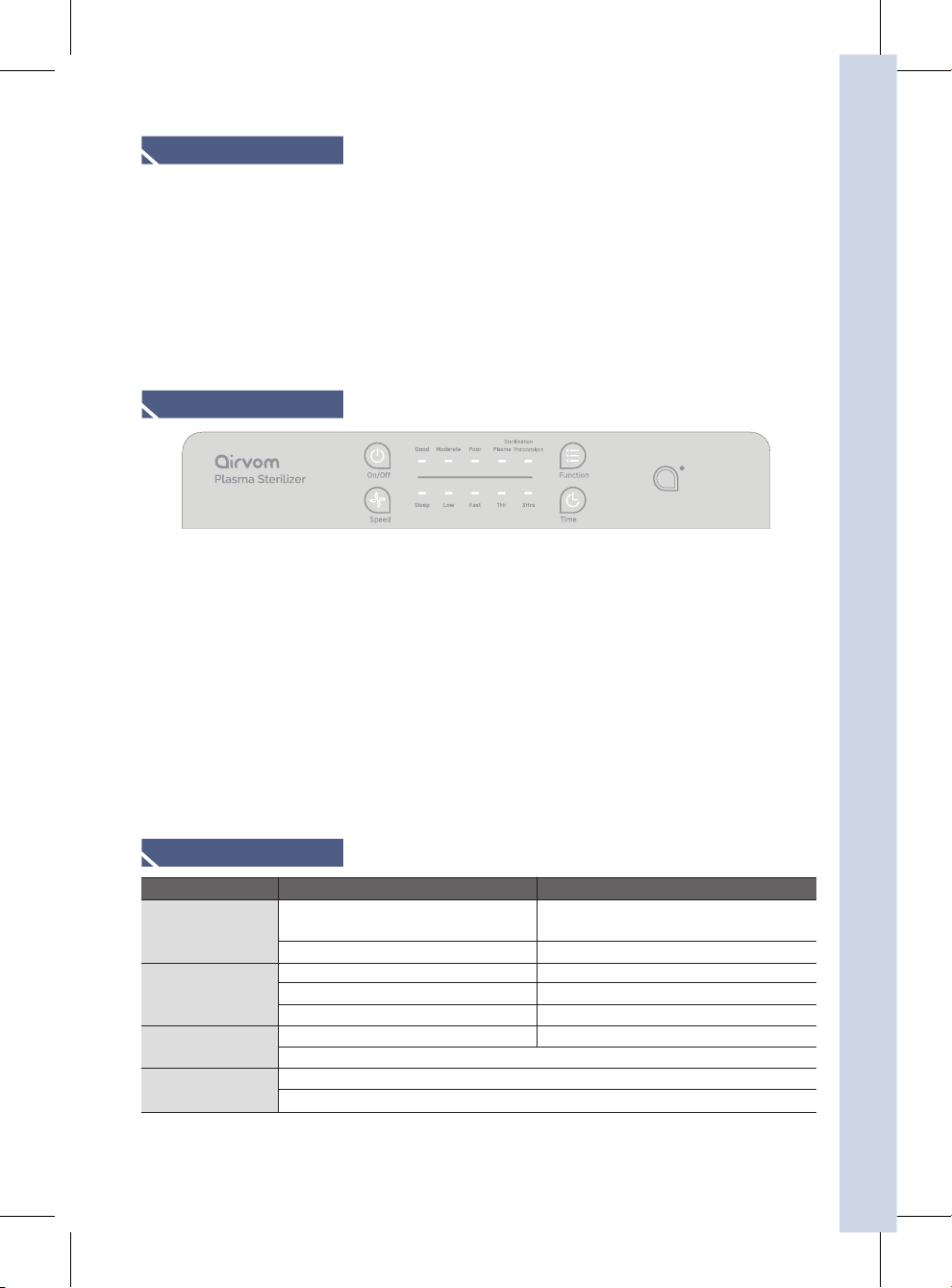

Control panel

Disassembly Guide

• Do not let the charging cable be crushed by heavy objects or bent excessively, and keep away from pets.

- It may cause product failure, injury or electric shock.

• Do not connect and unplug the power plug consecutively.

- It may cause electric shock, fire or product failure.

• Do not connect or plug random cables or altered power cords.

- It may cause electric shock, fire or product failure.

• Do not allow any particles to enter the charging terminal.

- It may cause electric shock, fire or product failure.

• Do not leave the product in a hot and humid environment such as a sauna, in a place where water splashes, or is humid, such as

under a blanket, swimming pool, or bathrooms.

- It may cause deformation, malfunction or explosion of the product.

• Avoid direct contact with the product during water splashing.

- It may cause electric shock, fire or product failure.

• During severe thunder and lightning, do not use the product outdoors, and disconnect the power cord and charger from the product.

- It may cause electric shock, fire or product failure.

• Do not operate the product while driving, walking or moving.

-There is a risk of injury or safety issue.

• Do not install on an uneven or inclined place, or on a pallet, cushion or floor.

- It cause malfunction and noise, and may cause injury. Check the product status from time to time.

Precautions

Before disassembling the product, make sure that the power plug is unplugged.

Tip: To increase stability during disassembly, proceed with the product on a wall or on other fixed object.

1.Hold the top with your left hand, the top edge of the front panel with your right hand, pull the panel at a 45 degree angle,

and then lift the panel. / Disassemble the composite filter by gently pulling the two handles on both sides

2. Raise the filter towards the outer edge, then gently push it into the body. / Insert the lower hook into the front cover hole,

and then assemble the front panel close to the body.

3. The life of the filter is approximately 1,500 hours and may vary depending on the indoor environment, usage time and

location of use. To improve the efficiency of the filter, purchase a filter sold by us.

4. Before replacing with a new filter, be sure to turn off the power of the machine and then replace it.

5. For the life of the filter, remove large particles such as hair with a soft brush once every two weeks.

• Do not place it where the temperature is too high or too cold.

- It may shorten the life span of the product or cause a malfunction.

• Do not put your hands, metal objects, or inflammables into the air intake and exhaust port, including the air quality sensor.

- It may cause electric shock, fire or product failure.

• Only the repair technician of Airvom Service Center Co., Ltd. is permitted to disassemble, repair, or modify the product.

- It may cause electric shock, fire or product failure.

• If the product is submerged in water, stop the use and contact Airvom Service Center.

• Do not use or store firearm, flammable substances, or combustible substances near the product.

- It may cause an explosion or fire.

• If the product emits an unusual sound, smell or smoke, stop using it immediately and contact Airvom Service Center Co., Ltd.

• Persons with lack of physical sensory, mental abilities, or those with limited experience and knowledge (including minors), should not

use this product without the supervision or direction of a parent or guardian.

- It may cause product failure, injury or electric shock.

• Do not dissemble the product nor parts of the product, and stop using the product in a damaged state.

- It may cause electric shock, fire or product failure.

• Do not put foreign objects inside the product while the cover is open.

- It may cause electric shock, fire or product failure.

• When not using the product for a long period of time, separate the charging cable from the product.

• Do not use the product other then intended.

- It may cause electric shock, fire or product failure.

• Be careful not to get on the product or fall due to excessive impact.

• Do not turn the power ON/OFF with wet hands. Be sure to disconnect the power supply when moving the air purifier.

• If you are not a technician, do not disassemble or repair. If necessary, contact the service center for repair.

• If the power plug does not match your socket or the power wire is damaged, contact a service center for an exchange. Never replace

the product's power plug at your discretion. If the product is not used for a long time, keep the unit unplugged.

• This product cannot remove or filter carbon monoxide, do not use in case of fire or for ventilation purposes.

• Turn off the power and remove the power plug while replacing the filter or cleaning the internal parts.

WARNING Potentially dangerous situations that, if not avoided,

could result in death or serious injury
