Airwell AWAU-YBDE012-H11 User manual

FWDE Series
Indoor Units Outdoor Units
AWSI-FWDE012-N11 AWAU-YBDE012-H11
AWSI-FWDE018-N11 AWAU-YBDE018-H11
AWSI-FWDE024-N11 AWAU-YBDE024-H11
REFRIGERANT
R410A HEAT PUMP
SM FWDE 1-A.1 GB
MAY - 2013
Version:1

LIST OF EFFECTIVE PAGES
A Revision 01 SM FWDE 1-A 1 GB
LIST OF EFFECTIVE PAGES
ote: Changes in the pages are indicated by a “Revision#” in the footer of each effected page
(when none indicates no changes in the relevant page) All pages in the following list represent
effected/ non effected pages divided by chapters
Dates of issue for original and changed pages are:
Original 01 May 27, 2013
Total number of pages in this publication is 30 consisting of the following:
Page
No
Revision
No #
Page
No
Revision
No #
Page
No
Revision
No #
Title 1
A 1
i 1
1-1 - 1-3 1
2-1 - 2-3 1
3-1 - 3-3 1
4-1 - 4-5 1
5-1 1
6-1 – 6-12 1
* Zero in this column indicates an original page

TABLE OF CO TE TS
SM FWDE 1-A 1 GB i
Table of Contents
1. I TRODUCTIO ............................................................................................................................. 1-2
2. PRODUCT DATA SHEET............................................................................................................... 2-1
3. OUTLI E DIME SIO S................................................................................................................. 3-1
4. WIRI G DIAGRAMS ...................................................................................................................... 4-1
5. REFRIGERATIO DIAGRAMS...................................................................................................... 5-1
6. EXPLODED VIEWS A D SPARE PART LISTS............................................................................ 6-1

TABLE OF CO TE TS
ii
1. I TRODUCTIO
1.1 General
FWDE series split celling mounted range comprise RC (heat pump) models, as follows:
 AWSI-FWDE012-N11// AWAU-YBDE012-H11
 AWSI-FWDE018-N11// AWAU-YBDE018-H11
 AWSI-FWDE024-N11// AWAU-YBDE024-H11
1.2 Main Features
The FWDE series benefits from the most advanced technological innovations, namely:
•
••
• DCI R410A models
•
••
• Microprocessor control
•
••
• Infrared remote control RC8 with LED
•
••
• Remote operation By connecting a special cable(7m length) to display box
•
••
• Fresh Air & Distribution treated air to adjacent room
•
••
• Indoor centrifugal fan
•
••
• High COP
•
••
• Ability to work on Low room temperature, up to 12℃
•
••
• Cooling operation at outdoor temperature down to -10℃
•
••
• Easy access to the interconnecting tubing and wiring connections, main control
panel can slide out for service
•
••
• Automatic treated air sweep
•
••
• Low indoor and outdoor noise levels
•
••
• Easy installation and service
•
••
• Precharged refrigerant up to the max allowing tubing distance of 20m(Model
18/24)
1.3 Indoor Unit
The indoor unit is celling mounted, and can be easily fitted to many types of residential
and commercials applications
It includes:
•
••
• Coil with hydrophilic aluminum fins
•
••
• Motorized flaps (two step motors)
•
••
• Advanced electronic control box assembly (DCI storm)
•
••
• Mounting plate
1.4 Filtration
The FWDE series presents several types of air filters:

I TRODUCTIO
1-2
SM FWD 1-A 1 GB
•
••
• Easily accessible, and re-usable pre-filters (mesh)
1.5 Control
The microprocessor indoor controller, and an infrared remote control, supplied as
standard, provide complete operating function and programming For further details
please refer to the Operation Manual
1.6 Outdoor Unit
The FWDE outdoor units can be installed as floor or wall mounted units by using a wall
supporting bracket The metal sheets are protected by anti- corrosion paint work
allowing long life resistance All outdoor units are pre-charged For further information
please refer to the Product Data Sheet, Chapter 2
It includes :
•
••
• Compressor mounted in a soundproofed compartment :
•
••
• Axial fan
•
••
• Outdoor coil with hydrophilic louver fins for RC units
•
••
• Outlet air fan grill
•
••
• Service valves” flare” type connection
•
••
• Interconnecting wiring terminal block
1.7 Tubing Connections
Flare type interconnecting tubing to be produced on site
For further details please refer to the Installation Manual, Chapter 10
1.8 Accessories
RCW Wall Mounted Remote Control
The RCW remote control is mounted on the wall, and controls the unit either as an
infrared remote control or as a wired controller The wired controller can control up to 10
indoor units with the same program settings and adjustment
For further details please refer to the Technical Service Manual
1.9 Inbox Documentation
Each unit is supplied with its own installation, operation and remote control manuals

I TRODUCTIO
SM FWDE 1-A 1 GB 1-3

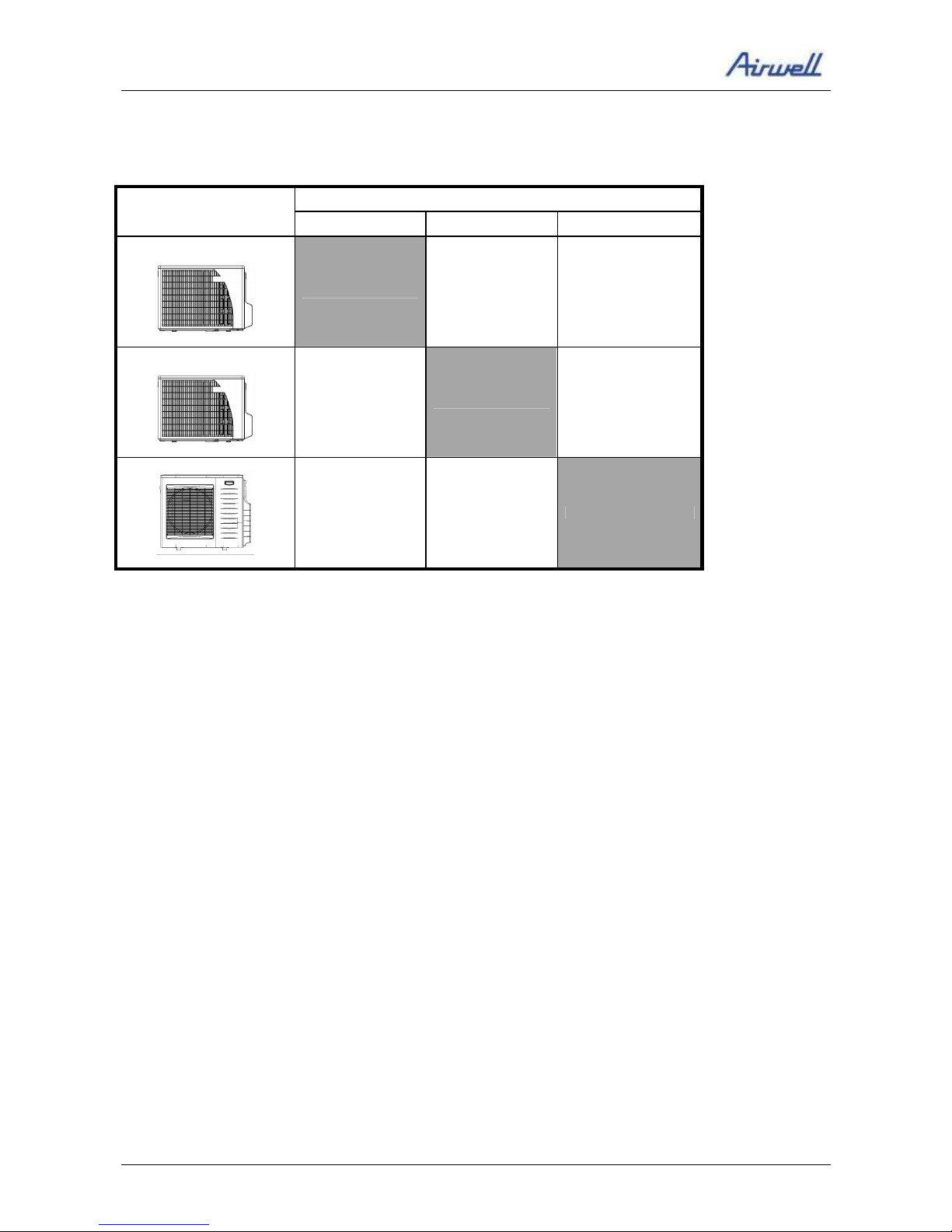

1.10 Matching Table
I DOOR U ITS
OUTDOOR U ITS
AWSI-FWDE012- 11
AWSI-FWDE018- 11
AWSI-FWDE024- 11
AWAU-YBDE009-H11
√
AWAU-YBDE018-H11
√
AWAU-YBDE024-H11
√

PRODUCT DATA SHEET
SM FWDE 1-A 1 GB 2-1
2. PRODUCT DATA SHEET
2.1 AWSI-FWDE012- 11// AWAU-YBDE012-H11
Model Indoor Unit AWSI-FWDE012- 11
Model Outdoor Unit AWAU-YBDE012-H11
Installation Method of Pipe Flared
Characteristics Units Cooling Heating
Btu/hr 11940(5120~15010) -
Capacity (4) kW 3 5(1 5~4 4) -
Pdesign(5) kW 3 5 -
Power input (4) kW 0 98 -
EER (Cooling) or COP(Heating) (4) W/W 3 57 -
Energy efficiency class A -
SEER/Energy Label 5 3/A -
Power supply V/Ph/Hz 230V/Single/50Hz
Rated current A 4 4 -
Starting current A 10 5
Circuit breaker rating A 16
Fan type & quantity Centrifugal x 2
Fan speeds H/M/L RPM 830/760/500
Air flow (1) H/M/L m3/hr 450/400/300
External static pressure Min-Max Pa 0
Sound power level (2) H/M/L dB(A) 56/53/51
Sound pressure level(3) H/M/L dB(A) 45/41/30
Moisture removal l/hr 1 5
Condenstate drain tube I D mm 16
Dimensions WxDxH mm 820x190x630
Weight kg 22
Package dimensions WxDxH mm 890x280x710
Package weight kg 26
Units per pallet units 14
INDOOR
Units stacking units 7 levels
Refrigerant control EEV
Compressor type,model Single Rotary,DC Inverter,Panasonic 5RS102XAB
Fan type & quantity Propeller(direct) x 1
Fan speeds H/L RPM 830
Air flow H/L m3/hr 1780
Sound power level H/L dB(A) 62
Sound pressure level(3) H/L dB(A) 52
Dimensions WxDxH mm 790x290x610
Weight kg 38 5
Package dimensions WxDxH mm 970x394x650
Packaged weight kg 42 5
Units per pallet units 12
Stacking height units 3 levels
Refrigerant type R410A
Refrigerant charge kg 1 2
Additional charge per 1 meter g/m No Need
Liquid line In (mm) 1/4"(6 35)
Suction line In (mm) 3/8"(9 53)
Max tubing length m Max 20
OUTDOOR
Connections
between units
Max height difference m Max 10
Operation control type Remote control
Heating elements (Option) kW
Others
(1)Airflow in ducted units;at nominal external static pressure
(2)Sound power in ducted units is measured at air discharge
(3)Sound pressure level measured at 1-meter distance from unit
(4)Rating conditions in accordance to ISO 5151 and ISO 13253 (for ducted units)
(5)According to EN14825-2012

PRODUCT DATA SHEET
2-2 SM FWD 1-A 1 GB
2.2 AWSI-FWDE018- 11// AWAU-YBDE018-H11
Model Indoor Unit AWSI-FWDE018- 11
Model Outdoor Unit AWAU-YBDE018-H11
Installation Method of Pipe Flared
Characteristics Units Cooling Heating
Btu/hr 17000(5120~19790) -
Capacity (4) kW 5 0(1 5~5 8) -
Pdesign(5) kW 5 0 -
Power input (4) kW 1 51 -
EER (Cooling) or COP(Heating) (4) W/W 3 31 -
Energy efficiency class A -
SEER/Energy Label 5 1/A -
Power supply V/Ph/Hz 230V/Single/50Hz
Rated current A 7 2 -
Starting current A 10 5
Circuit breaker rating A 20
Fan type & quantity Centrifugal x 2
Fan speeds H/M/L RPM 1050/950/700
Air flow (1) H/M/L m3/hr 870/750/600
External static pressure
Min-Max Pa 0
Sound power level (2) H/M/L dB(A) 65/60/56
Sound pressure level(3)
H/M/L dB(A) 51/48/40
Moisture removal l/hr 2
Condenstate drain tube I D mm 16
Dimensions WxDxH mm 1200x190x630
Weight kg 30
Package dimensions WxDxH mm 1300x273x726
Package weight kg 35
Units per pallet units 7
INDOOR
Units stacking units 7 levels
Refrigerant control EEV
Compressor type,model Single Rotary,DC Inverter,Panasonic
5RS132ZAD21
Fan type & quantity Propeller(direct) x 1
Fan speeds H/L RPM 920
Air flow H/L m3/hr 2160
Sound power level H/L dB(A) 63
Sound pressure level(3)
H/L dB(A) 53
Dimensions WxDxH mm 795x290x610
Weight kg 38
Package dimensions WxDxH mm 970x395x650
Packaged weight kg 41
Units per pallet Units 9
Stacking height units 3 levels
Refrigerant type R410A
Refrigerant chargE kg 1 26kg
Additional charge per 1 meter g/m No Need
Liquid line In (mm) 1/4"(6 35)
Suction line In (mm) 1/2"(12 7)
Max tubing length m Max 20
OUTDOOR
Connections
between units
Max height difference
m Max 10
Operation control type Remote control
Heating elements (Option) kW
Others
(1)Airflow in ducted units;at nominal external static pressure
(2)Sound power in ducted units is measured at air discharge
(3)Sound pressure level measured at 1-meter distance from unit
(4)Rating conditions in accordance to ISO 5151 and ISO 13253 (for ducted units)
(5)According to EN14825-2012

PRODUCT DATA SHEET
SM FWDE 1-A 1 GB 2-3
2.3 AWSI-FWDE024- 11 // AWAU-YBDE024-H11
Model Indoor Unit AWSI-FWDE024- 11
Model Outdoor Unit AWAU-YBDE024-H11
Installation Method of Pipe Flared
Characteristics Units Cooling Heating
Btu/hr 23200(5120~25930) -
Capacity (4) kW 6 80(1 50~7 60) -
Pdesign(5) kW 6 8 -
Power input (4) kW 2 25 -
EER (Cooling) or COP(Heating) (4) W/W 3 02 -
Energy efficiency class B -
SEER/Energy Label 5 1/A -
Power supply V/Ph/Hz 230V/Single/50Hz
Rated current A 10 -
Starting current A 15
Circuit breaker rating A 25
Fan type & quantity Centrifugal x2
Fan speeds H/M/L RPM 1300/1200/1050
Air flow (1) H/M/L m3/hr 1020/950/800
External static pressure
Min-Max Pa 0
Sound power level (2) H/M/L dB(A) 66/64/60
Sound pressure level(3)
H/M/L dB(A) 54/51/46
Moisture removal l/hr 2 5
Condenstate drain tube I D mm 16
Dimensions WxDxH mm 1200x190x630
Weight kg 32
Package dimensions WxDxH mm 1300x273x726
Package weight kg 36
Units per pallet units 7
INDOOR
Units stacking units 7 levels
Refrigerant control EEV
Compressor type,model Two Rotary, C-7RZ233H1A
Fan type & quantity Propeller(direct) x 1
Fan speeds H/L RPM 850
Air flow H/L m3/hr 3600
Sound power level H/L dB(A) 69
Sound pressure level(3)
H/L dB(A) 59
Dimensions WxDxH mm 950x340x864
Weight kg 65 5
Package dimensions WxDxH mm 1140x510x930
Packaged weight kg 73
Units per pallet Units 4
Stacking height units 2 levels
Refrigerant type R410A
Refrigerant charge kg 2 3
Additional charge per 1 meter g/m Length≤20m:+0g；20m＜Length≤30m:+300g
Liquid line In (mm) 3/8"(9 53)
Suction line In (mm) 5/8"(15 88)
Max tubing length m Max 30
OUTDOOR
Connections
between units
Max height difference
m Max 15
Operation control type Remote control
Heating elements (Option) kW
Others
(1)Airflow in ducted units;at nominal external static pressure
(2)Sound power in ducted units is measured at air discharge
(3)Sound pressure level measured at 1-meter distance from unit
(4)Rating conditions in accordance to ISO 5151 and ISO 13253 (for ducted units)
(5)According to EN14825-2012

OUTLI E DIME SIO S
SM FWD 1-A 1 GB 3-1
3. OUTLI E DIME SIO S
3.1 FWDE012
3.2 FWDE018/024

OUTLI E DIME SIO S
3-2 SM FWD 1-A 1 GB

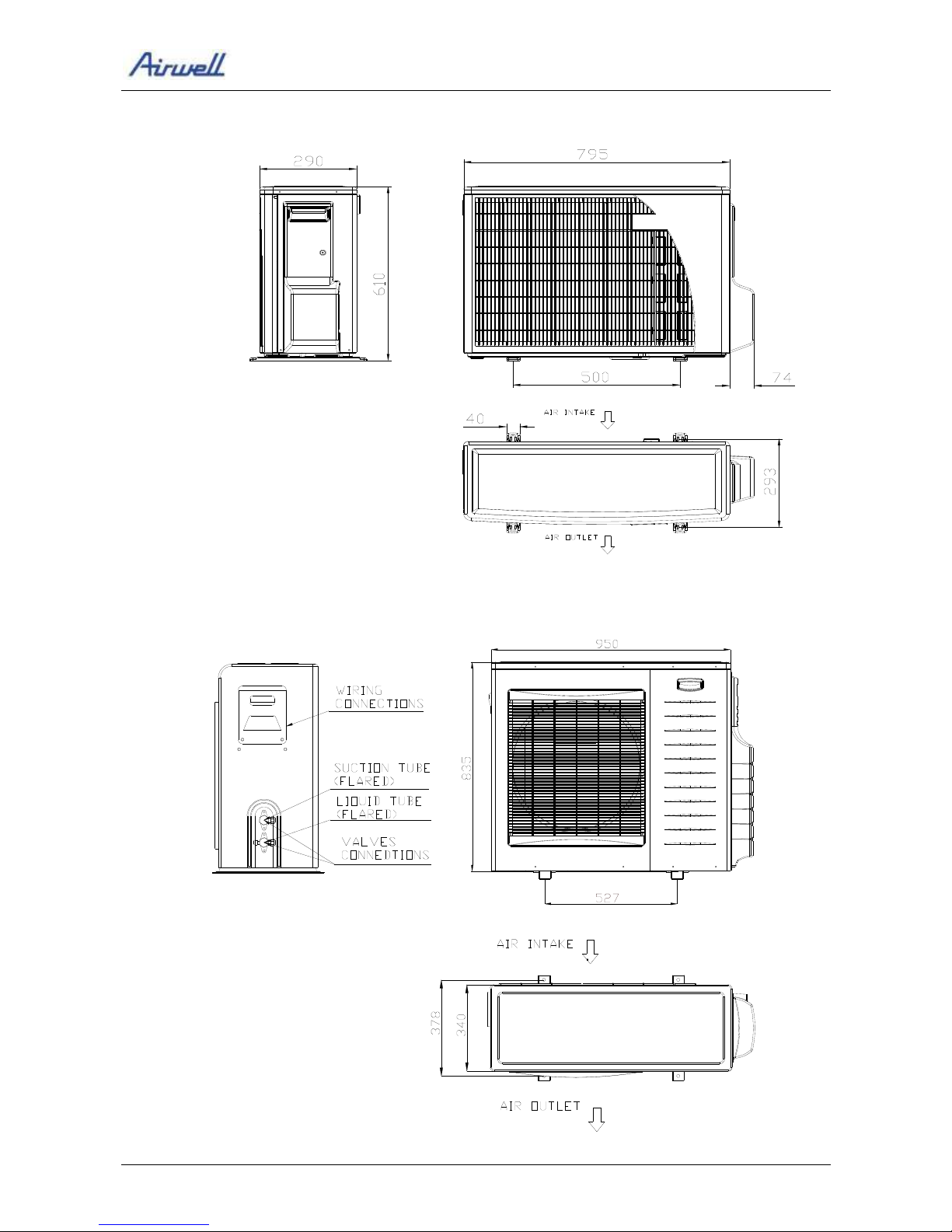

3.3 Outdoor Unit: YBDE 012/018
3.4 Outdoor Unit: YBD 024

WIRI G DIAGRAMS
SM FWDE 1-A 1 GB 4-1
4. WIRI G DIAGRAMS
4.1 Indoor Unit: FWDE012/018

WIRI G DIAGRAMS
4-2
SM FWDE 1-A 1 GB

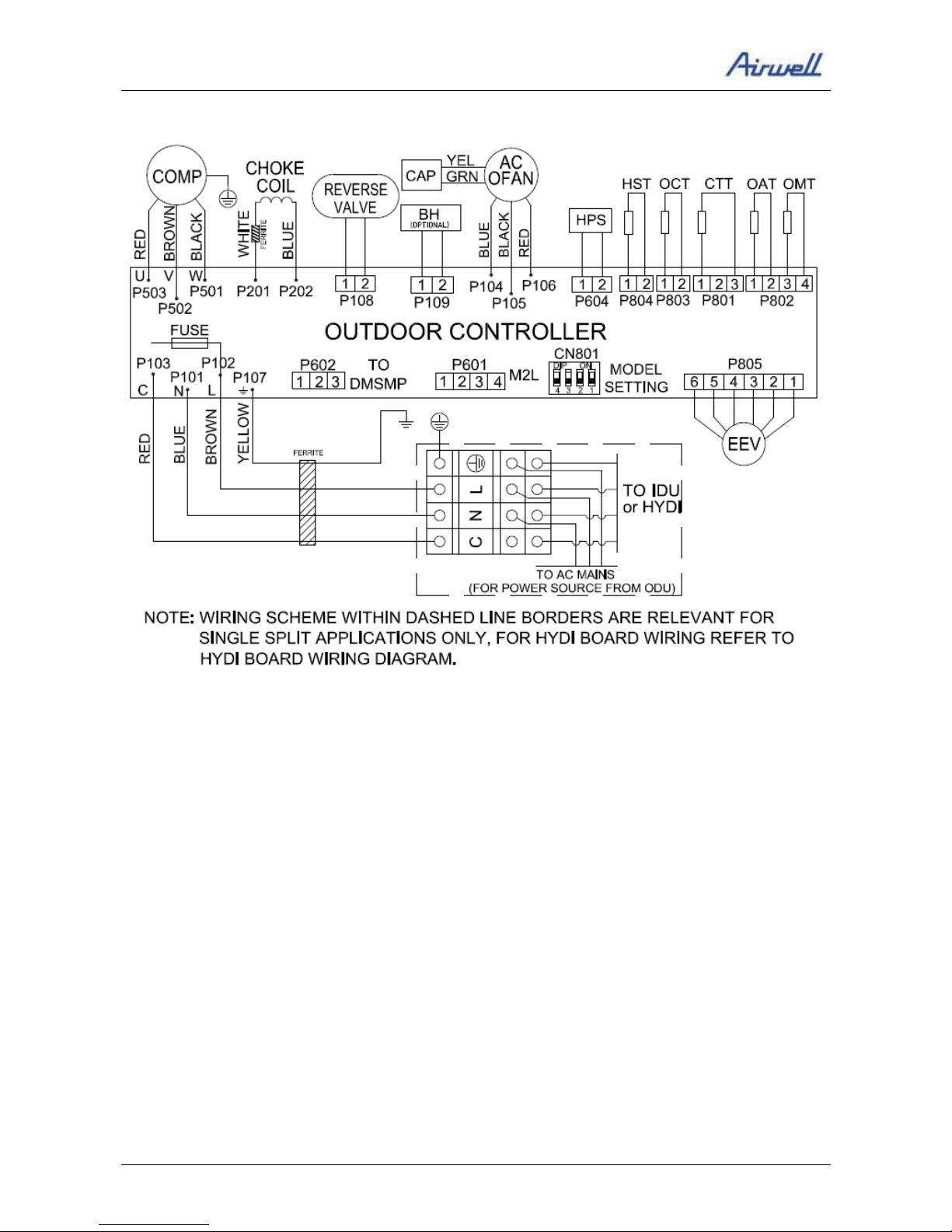

4.2 Outdoor Unit: YBDE012

WIRI G DIAGRAMS
SM FWDE 1-A 1 GB 4-3

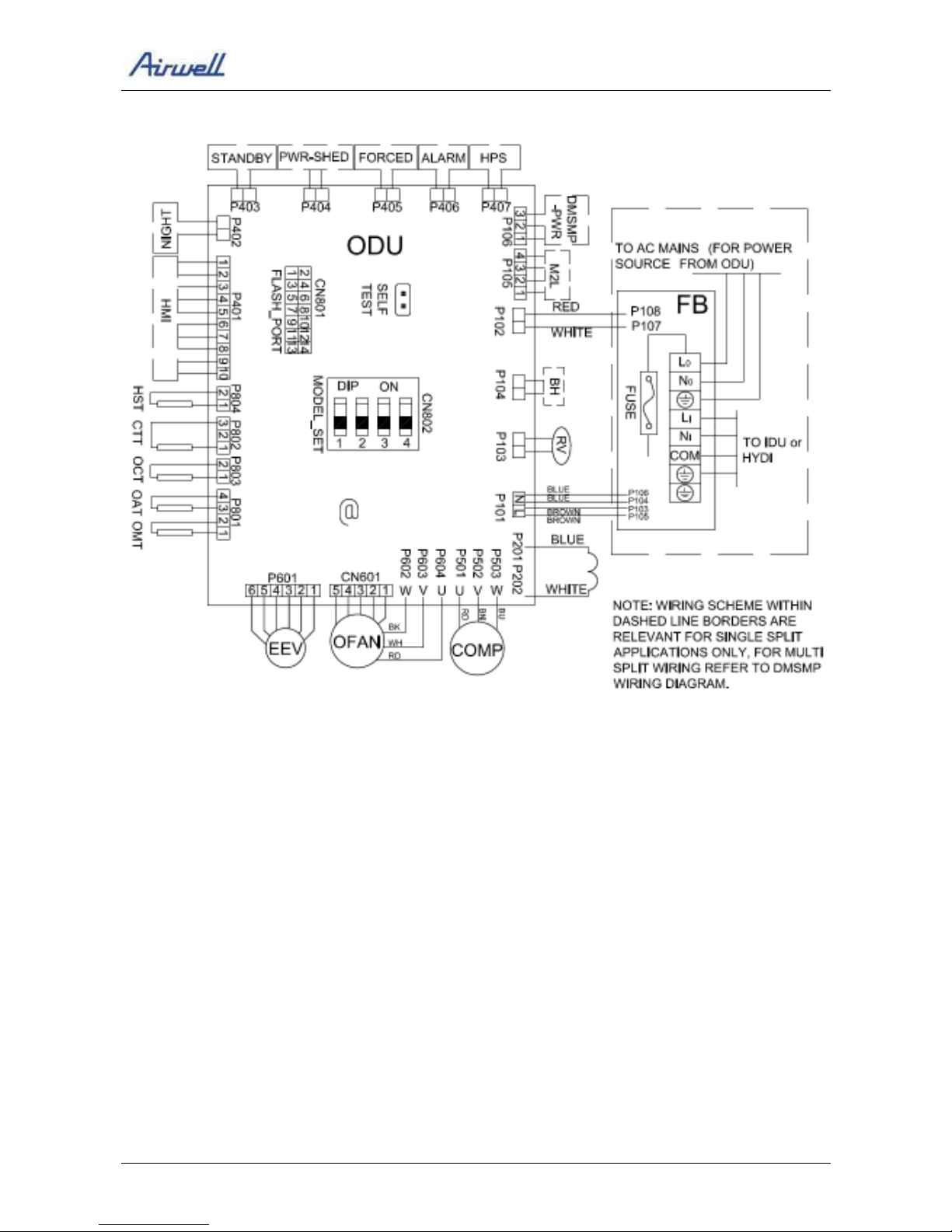

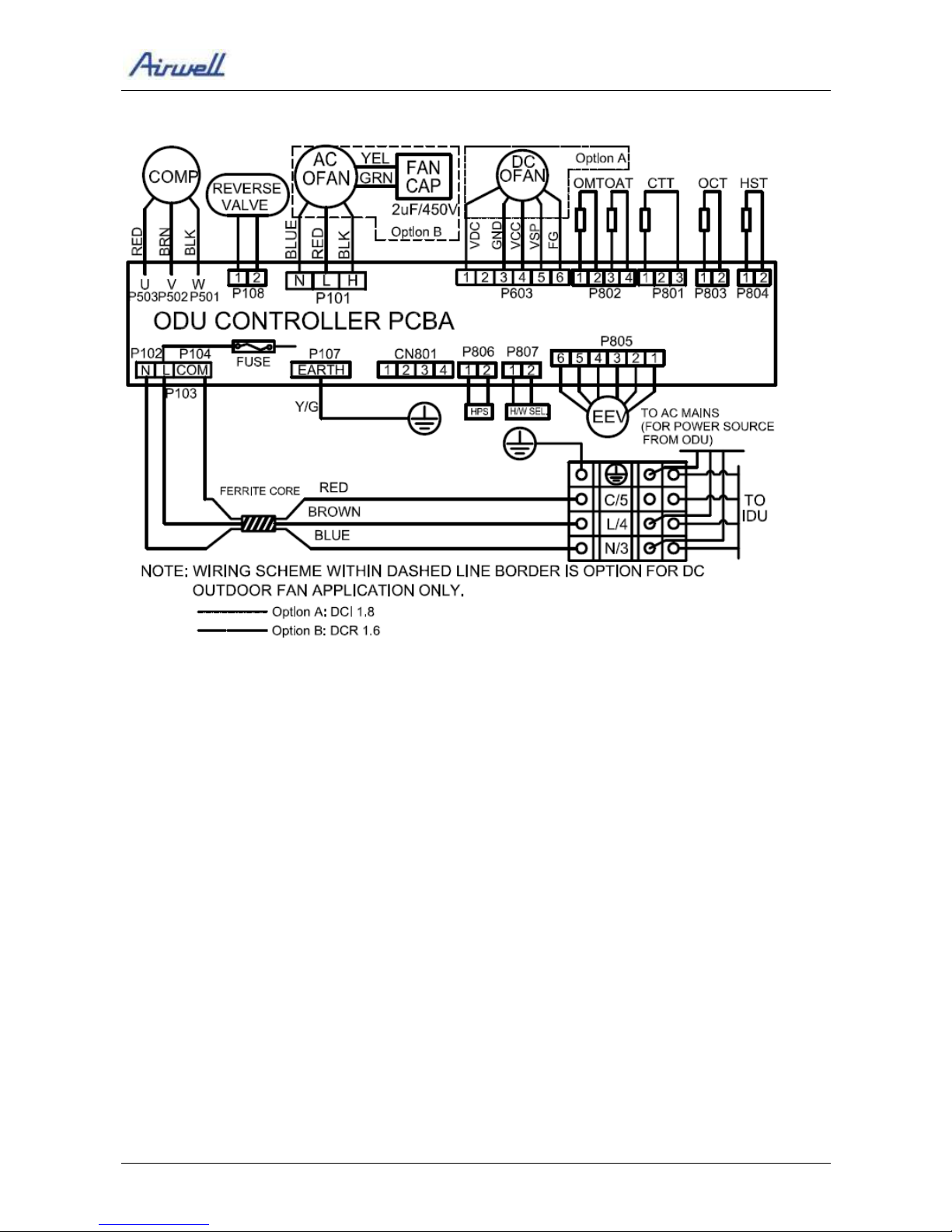

4.3 Outdoor Unit: YBDE018

WIRI G DIAGRAMS
SM FWDE 1-A 1 GB 4-1
4.4 Indoor Unit: FWDE024

WIRI G DIAGRAMS
4-2
SM FWDE 1-A 1 GB
4.5 Outdoor Unit: YBDE024

REFRIGERATIO DIAGRAMS
SM FWDE 1-A 1 GB 5-1

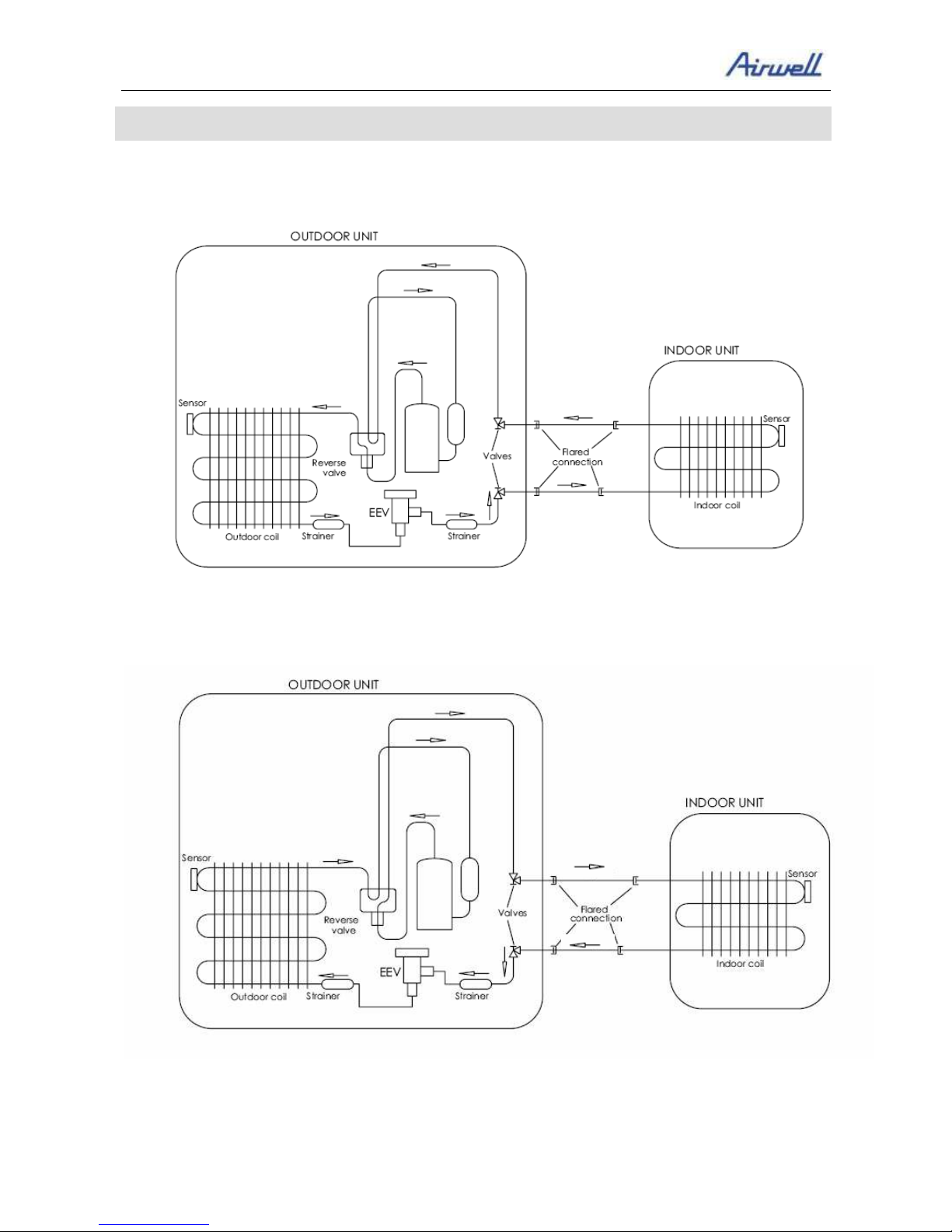

5. REFRIGERATIO DIAGRAMS
5.1 Cooling Mode
5.2 Heating Mode
