Airwheel Mars Rover A3 User manual

www.airwheel.net
Airwheel
A-series
MARS ROVER User Manual

www.airwheel.net
Airwheel Intelligent Pioneer

Airwheel
www.airwheel.net Get Linked to Airwheel.net
Scan QR Code to
About Airwheel
Our Success, Built by Our Customers
Our Concept, Originated From the Nature and Innovation
Our Design, Inspired by Interactions and Experience
Our Advantage, Contributed by Cooperation and Service
Established in 2004, Airwheel Technology was initiated by a group of pioneers who took constant adventure to reshape the world with edged
technology. With a global view, the U.S.-based enterprise started to build since its establishment R&D centers located in L.A., Beijing, and Changzhou,
a marketing center in Beijing and a manufacturing center in Changzhou. As the leader in global portable intelligent transport industry, we have been
dedicated to extend the fun and benefit of cutting-edge technology to everywhere in the world.
Airwheel is keen to exchange opinions and share its fruitful achievements with customers in a simple manner. It is Airwheel's unyielding aim to satisfy and exceed
customers'anticipation. We believe that trust is a pleasure worth passing down via every customer, which in turn challenges us to give genuine responses everyday.
The brand name “Airwheel”consists of two elements: Air and Wheel. Air implies the environment, our living space. And wheel symbolizes the spirit
of constant progress and the endless vitality of life. Being an adventurer of science-tech, Airwheel is more of a pilgrim of the nature deep inside. Following
the notion of “Eco-friendly Innovation”, we've always been seeking the balance between science-tech and the nature, which runs through every part of the
design, R&D, manufacturing and sales. It is our ideal to bring our customers back to the nature with Airwheel's portable intelligent transport products.
Focusing on the development of safe, solid and humanized products, Airwheel is broadly identified with its modern concise design and fresh comfortable user
experience. Airwheel owes its standard-setting products to the care of details and a customer-oriented design concept. We persist with continuous upgrade of user
experience of material, function and safety propelled by customers'opinions and our innovation.
As the leader in global portable intelligent transport industry, Airwheel has built long-term partnership with tech titans like SONY, Panasonic, Google and Qualcomm. A
strong tie with premium business partners will not only bring win-win scenarios, but also create for customers more reliable products with guaranteed user experience.
With advantages in capital and global strategy, Airwheel will continue to provide customers with all-around and interactive service via efficient and humanized resource
integration and cooperation.

This manual includes safety use instructions. Please make sure this manual is read through and fully understood before use.
Packing Details
About User Manual
Airwheel A series (A3) scooter body 1 unit hexagon wrench 2 pcs
scooter stem, saddle 1 pcs battery charger 1 unit
remote key 2 pcs user manual 1 pcs
warranty card 1 pcs other accessories 1 pcs

- 01 -
About Airwheel-------------------------------------------------------------------------------------------------------------------------------------------------------------
About User Manual-------------------------------------------------------------------------------------------------------------------------------------------------------
Directory---------------------------------------------------------------------------------------------------------------------------------------------------------------------
1. Introduction--------------------------------------------------------------------------------------------------------------------------------------------------------------
2. Installation---------------------------------------------------------------------------------------------------------------------------------------------------------------
2.1 Unpack-----------------------------------------------------------------------------------------------------------------------------------------------------
2.2 Check Packing Contents------------------------------------------------------------------------------------------------------------------------------
2.3 Preparation-----------------------------------------------------------------------------------------------------------------------------------------------
2.4 Installation------------------------------------------------------------------------------------------------------------------------------------------------
3. Safety---------------------------------------------------------------------------------------------------------------------------------------------------------------------
3.1 Safety Guidelines and Riding Etiquettes----------------------------------------------------------------------------------------------------------
3.2 Initiative Safety Measures----------------------------------------------------------------------------------------------------------------------------
3.3 Warned Scenarios--------------------------------------------------------------------------------------------------------------------------------------
4. Learning Tips------------------------------------------------------------------------------------------------------------------------------------------------------------
4.1 Before Getting Started---------------------------------------------------------------------------------------------------------------------------------
4.2 Learning Tips---------------------------------------------------------------------------------------------------------------------------------------------
4.3 Go Forward and Backward---------------------------------------------------------------------------------------------------------------------------
4.4 Stop and Brake------------------------------------------------------------------------------------------------------------------------------------------
4.5 Make Turns-----------------------------------------------------------------------------------------------------------------------------------------------
4.6 Get Off-----------------------------------------------------------------------------------------------------------------------------------------------------
4.7 Important Note for Starters---------------------------------------------------------------------------------------------------------------------------
4.8 Download APP --------------------------------------------------------------------------------------------------------------------------------------------
Directory
01
03
04
04
05
06
06
08
09
11
12
13
13
14
15
16
17
18
19
19

www.airwheel.net
Airwheel Intelligent Pioneer
- 02 -
5. Usage --------------------------------------------------------------------------------------------------------------------------------------------------------------------
5.1 Components---------------------------------------------------------------------------------------------------------------------------------------------
5.2 Get Started-----------------------------------------------------------------------------------------------------------------------------------------------
5.3 Kick Stand------------------------------------------------------------------------------------------------------------------------------------------------
5.4 Remote Key----------------------------------------------------------------------------------------------------------------------------------------------
6. Maintenance------------------------------------------------------------------------------------------------------------------------------------------------------------
6.1 Cleaning and Storage---------------------------------------------------------------------------------------------------------------------------------
6.2 Screw Connection--------------------------------------------------------------------------------------------------------------------------------------
6.3 Tire Pressure--------------------------------------------------------------------------------------------------------------------------------------------
6.4 Transportation and Storage--------------------------------------------------------------------------------------------------------------------------
6.5 Remove Battery Pack--------------------------------------------------------------------------------------------------------------------------------
7. Limited Warranty-------------------------------------------------------------------------------------------------------------------------------------------------------
8. Specifications-----------------------------------------------------------------------------------------------------------------------------------------------------------
9. Appendix-----------------------------------------------------------------------------------------------------------------------------------------------------------------
9.1 Drafts------------------------------------------------------------------------------------------------------------------------------------------------------
9.2 Charging Notes-----------------------------------------------------------------------------------------------------------------------------------------
9.3 Relation between Range and Load----------------------------------------------------------------------------------------------------------------
9.4 FAQ--------------------------------------------------------------------------------------------------------------------------------------------------------
9.5 Road Test-------------------------------------------------------------------------------------------------------------------------------------------------
9.6 Contact Us------------------------------------------------------------------------------------------------------------------------------------------------
- 02 -
20
20
20
21
22
23
23
24
24
24
25
26
27
28
28
30
31
32
34
35

- 03 -
www.airwheel.net
Airwheel Intelligent Pioneer
Airwheel A3 is the state-of-the-art means of transportation adopting aerospace attitude control theory, fuzzy software algorithm,
and gyroscope system to maintain balance by leaning forward and backward. Riders can control the vehicle to go forward, accelerate,
decelerate, brake, etc. by leaning forward or backward. Also, turning A3 is achieved by simply turning the handlebar which will cause the
differential of rotational speed on both wheels, e.g. when the handlebar is turned anti-clockwise, the rotational speed on the right wheel will
be faster than that on the left wheel, thus the unit will turn left. In the meantime, the turning-sensing system will be activated (turn light will
flash).
Being green and eco-friendly, Airwheel A3 can be stowed in the trunk of a car, facilitating a low-carbon travel style.
Forward Accelerate Decelerate Brake Backward
1. Introduction

www.airwheel.net
Airwheel Intelligent Pioneer
- 04 -
2. Installation
2.1 Unpack
After receiving the package, hold the two clasps and place the box vertically on the ground. Open the box and make sure the foam box inside is
placed with the Top side upwards. Open the small cover to take out user manual and charger, then open the big cover to take out the scooter stem.
When taking out the scooter stem, lift it firstly to the height of the scooter body, then move it horizontally through the clasp area. Take out the saddle and
then lift up the foam box. Pull the scooter body carefully towards the ground. When the scooter body tilts to a certain angle, it will roll out.
Charger
Scooter stem
Saddle
Scooter body
TOP symbol
User manual
Clasp Clasp area
TOP
The box includes three main parts: scooter body, scooter stem and saddle. Please follow the
above steps when unpacking so as to avoid potential injuries caused by improper operation.
Given the weight of the scooter body, please lift it upward with care. Better find someone for
necessary help. Please pay attention to the front and rear end of the scooter body, and do not
lift it by the fenders, otherwise your fingers may be caught.

- 05 -
www.airwheel.net
Airwheel Intelligent Pioneer
2.2 Check Packing Contents
After opening the packing box, take out the scooter stem and the saddle. Then take out the scooter body.
Given the weight of the scooter body, please lift it upward with care. Better find someone
for necessary help. Please pay attention to the front and rear end of the scooter body, and
do not lift it by the fenders and the tires, otherwise your fingers may be caught.

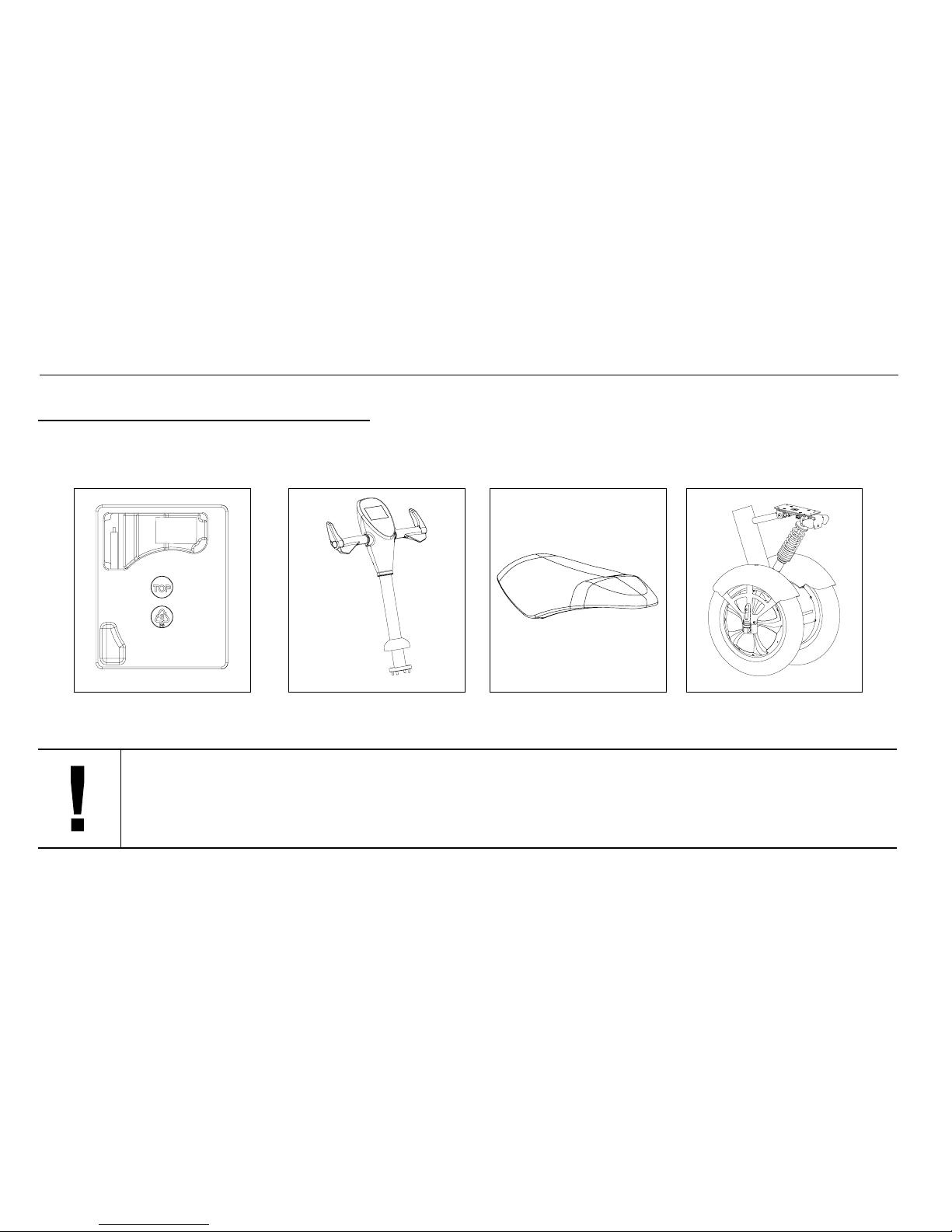

Scooter stemFoam box Saddle Scooter body

www.airwheel.net
Airwheel Intelligent Pioneer
- 06 -
2.3 Preparation
2.4 Installation
Before installation, please find in the standard accessories a set of 2 hexagon wrenches. Please retain this tool kit, it is useful for
maintenance and transportation of the unit. As metric standard tools, you may find replacement at home or in a hardware store.
A pair of work gloves is recommended to protect your hands from dirt and scratches.
1. Take out the scooter stem and put down the kick stand (see 5.3) to fix the scooter body. Insert the connector below the stem into the
15-pin plug, then fix them with 5 M6*20 screws and the hexagon wrench. (see I-1)
2. Fix the front and rear supporting plates of the saddle with 2 M6*20 screws. (see I-2)
3. Fix the saddle on the scooter body with 6 M6 screws. (see I-3)
I-1 I-2 I-3

- 07 -
www.airwheel.net
Airwheel Intelligent Pioneer
When installing the scooter stem, please check the direction of the 15-pin connector and
make sure the stem is inserted correctly. (see I-1) Also make sure to align the fool-proof
groove properly and then fasten it with 4 exclusive screws. (see I-2)
I-1 I-2

www.airwheel.net
Airwheel Intelligent Pioneer
- 08 -
Important Note:
There are risks of riding or driving any vehicle. Airwheel A3 is no exception. Please make sure this manual is read through and fully
understood before getting started, and be alert when riding.
1. Sharp acceleration or deceleration or speeding via overly leaning forward or backward are strictly forbidden. When power level
indicators show only one bar left, riding is not recommended. When it happens during the riding, please keep a low speed and
recharge the Airwheel as soon as possible. Use the electronic brake button with special caution before getting proficient control of the
Airwheel or under uncontrollable situation.
2. Do not ride Airwheel when risking any accidental falls. Safety goes first.
Attention:
1.Do wear helmet, gloves, elbow/knee pads or other necessary protection gears.
2.Do not ride Airwheel on rough or bumpy surfaces,
such as muddy or gravel roads.
3.Do not ride Airwheel on wet, slippery surafces, especially icy ones.
4.Do not ride Airwheel on slopes of over 15°gradient.
5.Do not allow children under 15 or the aged above 60 to ride Airwheel.
3. Safety
The user must do a great deal of practice and get full controlling skills before going on
road. Lack of controlling skills or improper operation deviated from user manual may lead
to injuries and damages to the user or the third party. Airwheel is only responsible for
failure and damages of the product, and takes no responsibility for any personal injuries
and property damages.
6.Drunk or drug riding Airwheel is prohibited.
7.Do not allow persons with high blood pressure,
cardiac-cerebral vascular disease, or other high risk
diseases to ride Airwheel.
8.Do not ride Airwheel in extremely cold winter.
9.Do not ride Airwheel in the rain.
10.Do keep slow speed when riding Airwheel on slopes.
11.Do not ride Airwheel in other unadvised situations
caused by either personal or objective reasons.

- 09 -
www.airwheel.net
Airwheel Intelligent Pioneer
3.1 Safety Guidelines and Riding Etiquettes
Please learn and abide by local laws and regulations when riding Airwheel A3. Be careful and considerate of others, and take precaution
of accidents and collisions.
Please ride at safe and proper speed and make sure your Airwheel is under control.
Respect pedestrians and avoid startling pedestrians, especially children. When approaching from behind, announce yourself and slow
down to walking speed when passing.
Keep a safe distance from other Airwheel A3 riders and always avert from obstacles. Unless there's ample space for other pedestrians,
please do not ride side by side with fellow Airwheel players.
Please avoid riding in poor light unless necessary, and make sure in this scenario you ride at slow, safe speed with care and geared with
mounted driving lights if possible.
Please relax your body when riding, bend your knees and elbows slightly and look straight forward.
Riding backward can be dangerous. For emergency, ride slowly backward in necessary avoidance of obstacles.
1.
2.
3.
4.
5.
6.
7.
Please accelerate slowly by leaning forward slightly and avoid sharp acceleration. You may
lose balance and get yourself hurt in aggressive acceleration. Ignorance to instructions is
the main cause of accidental falling over.

www.airwheel.net
Airwheel Intelligent Pioneer
- 10 -
FCC statement
This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to Part 15 of the FCC
Rules.These limits are designed to provide reasonable protection against harmfulinterference in a residential installation. This equipment
generates, uses and canradiate radio frequency energy and, if not installed and used in accordance withthe instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particularinstallation.
• If this equipment does cause harmful interference to radio or televisionreception, which can be determined by turning the equipment
off and on, theuser is encouraged to try to correct the interference by one or more of thefollowing measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment andreceiver.
—Connect the equipment into an outlet on a circuitdifferent from that to whichthe receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
RF exposure warning
• The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment.
The equipment must not be co-located or operating in conjunction with any other antenna or transmitter.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: Any changes or modifications not expressly approved by the granteeof this device
could void the user's authority to operate the equipment.
FCC ID:2AHQH-CHJ-C70K2

- 11 -
www.airwheel.net
Airwheel Intelligent Pioneer
3.2 Initiative Safety Measures
Please read through this manual and make sure it is fully understood.
Do not allow others try your Airwheel A3, unless he/she has read through this manual.
Please do wear safely gears while riding Airwheel A3. Make sure your helmet is comfortably fit and qualified for safety protection.
Riders may wear glasses, elbow/knee pads according to their own experiences.
Please do not ride Airwheel A3 when you are feeling unwell or not able to follow the instructions in the manual.
Please stop riding immediately when Airwheel A3 starts alerting for low battery or over speed. Charge your Airwheel in time to ensure
safe and smooth use.
Make sure to power off Airwheel before moving it. Do not lift Airwheel A3 on the wheel in case your fingers get caught between the tire
and case.
Check your Airwheel A3 carefully for any loosened or damaged parts every time prior to use and do not ride before proper
troubleshooting.
The maximum speed of Airwheel A3 is 17km/h. High speed may bring risk to the riding. For safety concern, please ride
with steady speed.
Steering with your body leaning against the scooter stem is very likely to cause accidents
and injuries. Always make sure to keep one-fist distance from the scooter stem and the
handlebar. Do not lean against the scooter stem, this contributes to most of the accidents.

www.airwheel.net
Airwheel Intelligent Pioneer
- 12 -
3.3 Warned Scenarios
Stand/hands-free riding
Bumpy Terrains Staircases Press power button of the remote key when riding
Slope Angle > 15°
slippery upward slope
Slope Angle > 15°
slippery downward slope
!!
!
!
! !

- 13 -
www.airwheel.net
Airwheel Intelligent Pioneer
For first-timers, be sure to equip yourself with comfortable sportswear and sneakers. Warm up your body and keep your body agile.
Considering the average human athletic skills, the height of pedal is set 247mm from ground only, which guarantees your safety in case of
falling over. A Helmet, gloves, knee and ankle pads are also essential for first-timers. To start, please bring Airwheel A3 to open space and
watch out for obstructions and bumpy terrains.
4. Learning Tips
4.1 Before Getting Started

www.airwheel.net
Airwheel Intelligent Pioneer
- 14 -
Learning Airwheel A3 is much easier than learning how to ride a bicycle. Most starters only needs 3 minutes to get a hang of it. You'll
need a learning partner standing in front of Airwheel A3 and holding the handlebar with both hands to help stabilize the handlebar for the
first time.
Turn on power switch, then press A on the remote control. Fold up the kick stand.
Sit on the saddle and put down the paddles at each side. Hold the handlebars and look straight forward.
Keep calm and relaxed and look forward as shown below.
4.2 Learning Tips
Please keep calm and relaxed, it is much easier than learning how to ride a bicycle. Starters
can stand upright and relaxed and rely on your learning partner to hold on to the handlebar.
After getting used to standing on Airwheel A3, you're good to go. Note: The more relaxed
you are, the better balance you'll get.

- 15 -
www.airwheel.net
Airwheel Intelligent Pioneer
Push the handlebar gradually forward to feel the acceleration and stopping of Airwheel A3 and then restore the status quo ante to feel
the acceleration and deceleration. Steer at a slow speed and feel the motion controlled by your center of gravity.
Look back and lean gradually backward to control Airwheel A3 fall back, and then restore the status quo ante to feel the deceleration
and brake. Keep practicing and pay attention to the wall and other obstacles to avoid falling over.
Backward Balance Forward
4.3 Go Forward and Backward
For starters, please steer in a slow and mild manner. Remember that the more relaxed
your body is, the better balance you'll get. Please avoid drastic shakes in the fore-and-
aft direction or an abrupt shift on your center of gravity, which will probably cause slip or
falling over.
----------------------------------------------------
----------------------------------------------------
----------------------------------------------------
