Quintana Roo bicycle User manual
owner’s manual
3
Bicycle Owner’s Manual
This manual meets EN Standards 14764, 14766 and 14781.
IMPORTANT:
This manual contains important safety, performance and service
information. Read it before you take the first ride on your new bicycle, and
keep it for reference.
Additional safety, performance and service information for specific
components such as suspension or pedals on your bicycle, or for
accessories such as helmets or lights that you purchase, may also be
available. Make sure that your dealer has given you all the manufacturers’
literature that was included with your bicycle or accessories. In case of a
conflict between the instructions in this manual and information provided by
a component manufacturer, always follow the component manufacturer’s
instructions.
If you have any questions or do not understand something, take
responsibility for your safety and consult with your dealer or the bicycle’s
manufacturer.
NOTE:
This manual is not intended as a comprehensive use, service, repair or
maintenance manual. Please see your dealer for all service, repairs or
maintenance. Your dealer may also be able to refer you to classes,
clinics or books on bicycle use, service, repair or maintenance.
PRODUCT REGISTRATION:
In order to improve warranty service you must completely fill out the online
Bicycle Registration at time of purchase.
This can be found at: http://www.quintanarootri.com/registration.asp.
To see Quintana Roo’s current limited warranty and related warranty claims
information please visit: http://www.quintanarootri.com/warranty.asp
Outside the USA and Canada the WARRANTY REGISTRATION CARD
included in the back of this Owners Manual must be filled out immediately
and returned to the Quintana Roo Bike distributor in your country or at their
website if that distributor offers web based warranty registration. The
contact information of the distributor in the country in which you bought the
bicycle is listed at: http://www.quintanarootri.com (hover over resourses
.
and click on dealer search)
Please do not assume that the Warranty policies shown for the USA and
Canada apply in your country. Warranty policies vary depending upon the
Quintana Roo Distributor in the country of your purchase. Please check
with your Quintana Roo Dealer or Quintana Roo Distributor in your country
for the warranty policy covering your purchase or check:
http://www.quintanarootri.com/_inner.asp?content=warranty
4
5
CONGRATULATIONS!
You’ve just bought one of the finest bicycles in the world; a Litespeed!
Since our beginning in 1986, we’ve been developing and refining the
quality of our bicycles. We have been an industry leader, working with
top name suppliers to identify the best new materials and latest
developments in technology.
We ride and refine the bicycles ourselves. We are bicycle enthusiasts,
and have been since our inception. We ride Litespeed bikes daily to
test and re-test our race-proven and time-tested frames. The result is
a collection of durable, lightweight, high-performance bicycles that we’re
sure you will be proud to own and ride.
We are extremely proud of the products we offer, and the service offered
by our staff and our distributors. We have been recognized year after year,
and in 40 countries around the world, for our superior frame designs and
unique performance characteristics. We are certain our hard work will be
evident every time you go fora ride. So here’s wishing you many years of
enjoyment!
Thanks for investing in a Litespeed,
Litespeed Bikes
Table of Contents
GENERAL WARNING..................................................................................6
A Special Note for Parents...........................................................................6
Chapter 1: First 7
A. Bike Fit......................................................................................................7
B. Safety First................................................................................................7
C. Mechanical Safety Check.........................................................................8
D. First Ride...................................................................................................9
Chapter 2: Safety 10
A. The Basics.............................................................................................10
B. Riding Safety..........................................................................................10
C. Off Road Safety......................................................................................12
D. Wet Weather Riding..............................................................................12
E. Night Riding...........................................................................................12
F.Extreme, Stunt or Competition Riding....................................................14
G. Changing Components or Adding Accessories.....................................15
Chapter 3: Fit 16
A. Standover Height....................................................................................16
B. Saddle Position.......................................................................................16
C. Handlebar Height and Angle...................................................................18
D. Control Position Adjustments..................................................................19
E. Brake Reach...........................................................................................19
Chapter 4: Tech 20
A. Wheels...................................................................................................20
1. Front Wheel Secondary Retention Devices........................................22
2. Wheels with Cam Action Systems.......................................................22
3. Removing and Installing Wheels........................................................23
B. Seat Post Cam Action Clamp................................................................25
C. Brakes...................................................................................................26
D. Shifting Gears........................................................................................28
E. Pedals...................................................................................................30
F.Bicycle Suspension...............................................................................31
G. Tires and Tubes.....................................................................................32
Chapter 5: Service 34
A. Service Intervals...................................................................................34
B. If Your Bicycle Sustains an Impact......................................................36
Appendix A: Intended Use.....................................................................37
Appendix B: Lifespan of Your Bike and its Components........................40
Appendix C: Fastener Torque Specifications..........................................46
6
7
Chapter 1: First
NOTE: We strongly urge you to read this Manual in its entirety before your
first ride. At the very least, read and make sure that you understand each
point in this section, and refer to the cited sections on any issue which
you don’t completely understand. Please note that not all bicycles have all
of the features described in this Manual. Ask your dealer to point out the
features of your bicycle.
A. Bike Fit
1. Is your bike the right size? To check, see Section 3.A. If your bicycle is
too large or too small for you, you may lose control and fall. If your new
bike is not the right size, ask your dealer to exchange it before you ride it.
2. Is the saddle at the right height? To check, see Section 3.B. If you adjust
your saddle height, follow the Minimum Insertion instructions in Section
3.B.
3. Are saddle and seat post securely clamped? A correctly tightened saddle
will allow no saddle movement in any direction. See Section 3.B.
4. Are the stem and handlebars at the right height for you?
If not, see Section 3.C.
5. Can you comfortably operate the brakes? If not, you may be able to
adjust their angle and reach. See Section 3.D and 3.E.
6. Do you fully understand how to operate your new bicycle?
If not, before your first ride, have your dealer explain any functions or
features which you do not understand.
B. Safety First
1. Always wear an approved helmet when riding your bike, and follow the
helmet manufacturer’s instructions for fit, use and care.
2. Do you have all the other required and recommended safety equipment?
See Section 2. It’s your responsibility to familiarize yourself with the laws of
the areas where you ride, and to comply with all applicable laws.
3. Do you know how to correctly secure your front and rear wheels? Check
Section 4.A.1 to make sure. Riding with an improperly secured wheel
can cause the wheel to wobble or disengage from the bicycle, and cause
serious injury or death.
4. If your bike has toeclips and straps or clipless (“step-in”) pedals, make
sure you know how they work (see Section 4.E). These pedals require
special techniques and skills. Follow the pedal manufacturer’s instructions
for use, adjustment and care.
5. Do you have “toe overlap”? On smaller framed bicycles your toe or
toeclip may be able to contact the front wheel when a pedal is all the way
forward and the wheel is turned. Read Section 4.E. to check whether you
have toeclip overlap.
6. Does your bike have suspension? If so, check Section 4.F. Suspension
can change the way a bicycle performs. Follow the suspension
manufacturer’s instructions for use, adjustment and care.
GENERAL WARNING:
Like any sport, bicycling involves risk of injury and damage. By choosing
to ride a bicycle, you assume the responsibility for that risk, so you need to
know — and to practice — the rules of safe and responsible riding and of
proper use and maintenance. Proper use and maintenance of your bicycle
reduces risk of injury.
This Manual contains many “Warnings” and “Cautions” concerning the
consequences of failure to maintain or inspect your bicycle and of failure to
follow safe cycling practices.
•The combination of the safety alert symbol and the word WARNING
indicates a potentially hazardous situation which, if not avoided, could
result in serious injury or death.
•The combination of the safety alert symbol and the word CAUTION
indicates a potentially hazardous situation which, if not avoided, may result
in minor or moderate injury, or is an alert against unsafe practices.
•The word CAUTION used without the safety alert symbol indicates a
situation which, if not avoided, could result in serious damage to the bicycle
or the voiding of your warranty.
Many of the Warnings and Cautions say “you may lose control and fall”.
Because any fall can result in serious injury or even death, we do not
always repeat the warning of possible injury or death.
Because it is impossible to anticipate every situation or condition which can
occur while riding, this Manual makes no representation about the safe use
of the bicycle under all conditions. There are risks associated with the use
of any bicycle which cannot be predicted or avoided, and which are the
sole responsibility of the rider.
A Special Note for Parents:
As a parent or guardian, you are responsible for the activities and safety of
your minor child, and that includes making sure that the bicycle is properly
fitted to the child; that it is in good repair and safe operating condition; that
you and your child have learned and understand the safe operation of the
bicycle; and that you and your child have learned, understand and obey not
only the applicable local motor vehicle, bicycle and traffic laws, but also the
common sense rules of safe and responsible bicycling. As a parent, you
should read this manual, as well as review its warnings and the bicycle’s
functions and operating procedures with your child, before letting your child
ride the bicycle.
WARNING: Make sure that your child always wears an approved
bicycle helmet when riding; but also make sure that your child
understands that a bicycle helmet is for bicycling only, and must be
removed when not riding. A helmet must not be worn while playing, in
play areas, on playground equipment, while climbing trees, or at any
time while not riding a bicycle. Failure to follow this warning could
result in serious injury or death.
6
7
Chapter 1: First
NOTE: We strongly urge you to read this Manual in its entirety before your
first ride. At the very least, read and make sure that you understand each
point in this section, and refer to the cited sections on any issue which
you don’t completely understand. Please note that not all bicycles have all
of the features described in this Manual. Ask your dealer to point out the
features of your bicycle.
A. Bike Fit
1. Is your bike the right size? To check, see Section 3.A. If your bicycle is
too large or too small for you, you may lose control and fall. If your new
bike is not the right size, ask your dealer to exchange it before you ride it.
2. Is the saddle at the right height? To check, see Section 3.B. If you adjust
your saddle height, follow the Minimum Insertion instructions in Section
3.B.
3. Are saddle and seat post securely clamped? A correctly tightened saddle
will allow no saddle movement in any direction. See Section 3.B.
4. Are the stem and handlebars at the right height for you?
If not, see Section 3.C.
5. Can you comfortably operate the brakes? If not, you may be able to
adjust their angle and reach. See Section 3.D and 3.E.
6. Do you fully understand how to operate your new bicycle?
If not, before your first ride, have your dealer explain any functions or
features which you do not understand.
B. Safety First
1. Always wear an approved helmet when riding your bike, and follow the
helmet manufacturer’s instructions for fit, use and care.
2. Do you have all the other required and recommended safety equipment?
See Section 2. It’s your responsibility to familiarize yourself with the laws of
the areas where you ride, and to comply with all applicable laws.
3. Do you know how to correctly secure your front and rear wheels? Check
Section 4.A.1 to make sure. Riding with an improperly secured wheel
can cause the wheel to wobble or disengage from the bicycle, and cause
serious injury or death.
4. If your bike has toeclips and straps or clipless (“step-in”) pedals, make
sure you know how they work (see Section 4.E). These pedals require
special techniques and skills. Follow the pedal manufacturer’s instructions
for use, adjustment and care.
5. Do you have “toe overlap”? On smaller framed bicycles your toe or
toeclip may be able to contact the front wheel when a pedal is all the way
forward and the wheel is turned. Read Section 4.E. to check whether you
have toeclip overlap.
6. Does your bike have suspension? If so, check Section 4.F. Suspension
can change the way a bicycle performs. Follow the suspension
manufacturer’s instructions for use, adjustment and care.
GENERAL WARNING:
Like any sport, bicycling involves risk of injury and damage. By choosing
to ride a bicycle, you assume the responsibility for that risk, so you need to
know — and to practice — the rules of safe and responsible riding and of
proper use and maintenance. Proper use and maintenance of your bicycle
reduces risk of injury.
This Manual contains many “Warnings” and “Cautions” concerning the
consequences of failure to maintain or inspect your bicycle and of failure to
follow safe cycling practices.
•The combination of the safety alert symbol and the word WARNING
indicates a potentially hazardous situation which, if not avoided, could
result in serious injury or death.
•The combination of the safety alert symbol and the word CAUTION
indicates a potentially hazardous situation which, if not avoided, may result
in minor or moderate injury, or is an alert against unsafe practices.
•The word CAUTION used without the safety alert symbol indicates a
situation which, if not avoided, could result in serious damage to the bicycle
or the voiding of your warranty.
Many of the Warnings and Cautions say “you may lose control and fall”.
Because any fall can result in serious injury or even death, we do not
always repeat the warning of possible injury or death.
Because it is impossible to anticipate every situation or condition which can
occur while riding, this Manual makes no representation about the safe use
of the bicycle under all conditions. There are risks associated with the use
of any bicycle which cannot be predicted or avoided, and which are the
sole responsibility of the rider.
A Special Note for Parents:
As a parent or guardian, you are responsible for the activities and safety of
your minor child, and that includes making sure that the bicycle is properly
fitted to the child; that it is in good repair and safe operating condition; that
you and your child have learned and understand the safe operation of the
bicycle; and that you and your child have learned, understand and obey not
only the applicable local motor vehicle, bicycle and traffic laws, but also the
common sense rules of safe and responsible bicycling. As a parent, you
should read this manual, as well as review its warnings and the bicycle’s
functions and operating procedures with your child, before letting your child
ride the bicycle.
WARNING: Make sure that your child always wears an approved
bicycle helmet when riding; but also make sure that your child
understands that a bicycle helmet is for bicycling only, and must be
removed when not riding. A helmet must not be worn while playing, in
play areas, on playground equipment, while climbing trees, or at any
time while not riding a bicycle. Failure to follow this warning could
result in serious injury or death.
8
9
D. First Ride
When you buckle on your helmet and go for your first familiarization ride on
your new bicycle, be sure to pick a controlled environment, away from cars,
other cyclists, obstacles or other hazards. Ride to become familiar with the
controls, features and performance of your new bike.
Familiarize yourself with the braking action of the bike (see Section
4.C). Test the brakes at slow speed, putting your weight toward the rear
and gently applying the brakes, rear brake first. Sudden or excessive
application of the front brake could pitch you over the handlebars. Applying
brakes too hard can lock up a wheel, which could cause you to lose control
and fall. Skidding is an example of what can happen when a wheel locks
up.
If your bicycle has toeclips or clipless pedals, practice getting in and out of
the pedals. See paragraph B.4 above and Section 4.E.4.
If your bike has suspension, familiarize yourself with how the suspension
responds to brake application and rider weight shifts. See paragraph B.6
above and Section 4.F.
Practice shifting the gears (see Section 4.D). Remember to never move
the shifter while pedaling backward, nor pedal backwards immediately
after having moved the shifter.This could jam the chain and cause serious
damage to the bicycle.
Check out the handling and response of the bike; and check the comfort.
If you have any questions, or if you feel anything about the bike is not as it
should be, consult your dealer before you ride again.
Squeeze the brake levers. Are the brake quick-releases closed? All control
cables seated and securely engaged? If you have rim brakes, do the brake
pads contact the wheel rim squarely and make full contact with the rim?
Do the brakes begin to engage within an inch of brake lever movement?
Can you apply full braking force at the levers without having them touch the
handlebar? If not, your brakes need adjustment. Do not ride the bike until
the brakes are properly adjusted by a professional bicycle mechanic.
Make sure the front and rear wheels are
correctly secured. See Section 4.A
If your seat post has an over-center cam action fastener for
easy height adjustment, check that it is properly adjusted and in the locked
position. See Section 4.B.
Make sure the saddle and
handlebar stem are parallel to the bike’s center line and clamped tight
enough so that you can’t twist them out of alignment. See Sections 3.B and
3.C.
Make sure the handlebar grips are secure and in
good condition. If not, have your dealer replace them. Make sure the
handlebar ends and extensions are plugged. If not, have your dealer plug
them before you ride. If the handlebars have bar end extensions, make
sure they are clamped tight enough so you can’t twist them.
WARNING: Loose or damaged handlebar grips or extensions
can cause you to lose control and fall. Unplugged handlebars
or extensions can cut you and cause serious injury in an
otherwise minor accident.
VERY IMPORTANT SAFETY NOTE:
Please also read and become thoroughly familiar with the important
information on the lifespan of your bicycle and its components in
Appendix B on Page 43.
4.G.1). Check by putting one hand on the saddle, one on the intersection
of the handlebars and stem, then bouncing your weight on the bike while
looking at tire deflection. Compare what you see with how it looks when
you know the tires are correctly inflated; and adjust if necessary.
Tires in good shape? Spin each wheel slowly and look for cuts in the
tread and sidewall. Replace damaged tires before riding the bike.
Wheels true? Spin each wheel and check for brake clearance and
side-to-side wobble. If a wheel wobbles side to side even slightly, or rubs
against or hits the brake pads, take the bike to a qualified bike shop to
have the wheel trued.
CAUTION: Wheels must be true for rim brakes to work
effectively. Wheel trueing is a skill which requires special tools
and experience. Do not attempt to true a wheel unless you have
the knowledge, experience and tools needed to do the job
correctly.
Make sure the rims are clean and
undamaged at the tire bead and, if you have rim brakes, along the braking
surface. Check to make sure that any rim wear indicator marking is not
visible at any point on the wheel rim.
WARNING: Bicycle wheel rims are subject to wear. Ask your
dealer about wheel rim wear. Some wheel rims have a rim wear
indicator which becomes visible as the rim’s braking surface
wears. A visible rim wear indicator on the side of the wheel rim
is an indication that the wheel rim has reached its maximum
usable life. Riding a wheel that is at the end of its usable life
can result in wheel failure, which can cause you to loose
control and fall.
Check the brakes for proper operation (see Sections 4.C).
C. Mechanical Safety Check
Routinely check the condition of your bicycle before every ride.
Because manufacturers use a
wide variety of fastener sizes and shapes made in a variety of materials,
often differing by model and component, the correct tightening force or
torque cannot be generalized. To make sure that the many fasteners
on your bicycle are correctly tightened, refer to the Fastener Torque
Specifications in Appendix D of this manual or to the torque specifications
in the instructions provided by the manufacturer of the component in
question. Correctly tightening a fastener requires a calibrated torque
wrench. A professional bicycle mechanic with a torque wrench should
torque the fasteners on you bicycle. If you choose to work on your own
bicycle, you must use a torque wrench and the correct tightening torque
specifications from the bicycle or component manufacturer or from your
dealer. If you need to make an adjustment at home or in the field, we urge
you to exercise care, and to have the fasteners you worked on checked by
your dealer as soon as possible.
WARNING: Correct tightening force on fasteners –nuts, bolts,
screws– on your bicycle is important. Too little force, and the
fastener may not hold securely. Too much force, and the
fastener can strip threads, stretch, deform or break. Either
way, incorrect tightening force can resultin component failure,
which can cause you to loose control and fall.
Make sure nothing is loose. Lift the front wheel off the ground by two
or three inches, then let it bounce on the ground. Anything sound, feel or
look loose? Do a visual and tactile inspection of the whole bike. Any loose
parts or accessories? If so, secure them. If you’re not sure, ask someone
with experience to check.
Tires & Wheels: Make sure tires are correctly inflated (see Section
10
11
10. Never carry anything which obstructs your vision or your complete
control of the bicycle, or which could become entangled in the moving
parts of the bicycle.
11. Never hitch a ride by holding on to another vehicle.
12. Don’t do stunts, wheelies or jumps. If you intend to do stunts,
wheelies, jumps or go racing with your bike despite our advice not to,
read Section 2.F, Downhill, Stunt or Competition Biking, now. Think
carefully about your skills before deciding to take the large risks that go
with this kind of riding.
13. Don’t weave through traffic or make any moves that may surprise
people with whom you are sharing the road.
14. Observe and yield the right of way.
15. Never ride your bicycle while under the influence of alcohol or drugs.
16. If possible, avoid riding in bad weather, when visibility is obscured,
at dawn, dusk or in the dark, or when extremely tired. Each of these
conditions increases the risk of accident.
4. Look ahead, and be ready to avoid:
• Vehicles slowing or turning, entering the road or your lane ahead of you,
or coming up behind you.
• Parked car doors opening.
• Pedestrians stepping out.
• Children or pets playing near the road.
• Pot holes, sewer grating, railroad tracks, expansion joints, road or
sidewalk construction, debris and other obstructions that could cause you
to swerve into traffic, catch your wheel or cause you to have an accident.
•The many other hazards and distractions which can occur on a bicycle
ride.
5. Ride in designated bike lanes, on designated bike paths or as close
to the edge of the road as possible, in the direction of traffic flow or as
directed by local governing laws.
6. Stop at stop signs and traffic lights; slow down and look both ways at
street intersections. Remember that a bicycle always loses in a collision
with a motor vehicle, so be prepared to yield even if you have the right of
way.
7. Use approved hand signals for turning and stopping.
8. Never ride with headphones. They mask traffic sounds and emergency
vehicle sirens, distract you from concentrating on what’s going on around
you, and their wires can tangle in the moving parts of the bicycle, causing
you to lose control.
9. Never carry a passenger, unless it is a small child wearing an approved
helmet and secured in a correctly mounted child carrier or a child-carrying
trailer.
Chapter 2: Safety
A. The Basics
WARNING: The area in which you ride may require specific safety
devices. It is your responsibility to familiarize yourself with the laws
of the area where you ride and to comply with all applicable laws,
including properly equipping yourself and your bike as the law
requires.
Observe all local bicycle laws and regulations. Observe regulations
about bicycle lighting, licensing of bicycles, riding on sidewalks,
laws regulating bike path and trail use, helmet laws, child carrier
laws, special bicycle traffic laws. It’s your responsibility to know and
obey the laws.
1. Always wear a cycling helmet which meets the latest
certification standards and is appropriate for the type of
riding you do. Always follow the helmet manufacturer’s
instructions for fit, use and care of your helmet. Most
serious bicycle injuries involve head injuries which
might have been avoided if the rider had worn an
appropriate helmet.
WARNING: Failure to wear a helmet when riding may result in
serious injury or death.
2. Always do the Mechanical Safety Check (Section 1.C) before you get
on a bike.
3. Be thoroughly familiar with the controls of your bicycle: brakes
(Section 4.C.); pedals (Section 4.E.); shifting (Section 4.D.)
4. Be careful to keep body parts and other objects away from the sharp
teeth of chainrings, the moving chain, the turning pedals and cranks, and
the spinning wheels of your bicycle.
5. Always wear:
• Shoes that will stay on your feet and will grip the pedals. Make sure that
shoe laces cannot get into moving parts, and never ride barefoot or in
sandals.
• Bright, visible clothing that is not so loose that it can be tangled in the
bicycle or snagged by objects at the side of the road or trail.
• Protective eyewear, to protect against airborne dirt, dust and bugs —
tinted when the sun is bright, clear when it’s not.
6. Don’t jump with your bike. Jumping a bike, particularly a BMX or
mountain bike, can be fun; but it can put huge and unpredictable stress on
the bicycle and its components. Riders who insist on jumping their bikes
risk serious damage, to their bicycles as well as to themselves. Before you
attempt to jump, do stunt riding or race with your bike, read and understand
Section 2.F.
7. Ride at a speed appropriate for conditions. Higher speed means higher
risk.
B. Riding Safety
1. Obey all Rules of the Road and all local traffic laws.
2. You are sharing the road or the path with others — motorists,
pedestrians and other cyclists. Respect their rights.
3. Ride defensively. Always assume that others do not see you.
12
13
If you choose to ride under conditions of poor visibility, check and be sure
you comply with all local laws about night riding, and take the following
strongly recommended additional precautions:
• Purchase and install battery or generator powered head and tail lights
which meet all regulatory requirements and provide adequate visibility.
• Wear light colored, reflective clothing and accessories, such as a
reflective vest, reflective arm and leg bands, reflective stripes on your
helmet, flashing lights attached to your body and/or your bicycle ... any
reflective device or light source that moves will help you get the attention of
approaching motorists, pedestrians and other traffic.
• Make sure your clothing or anything you may be carrying on the bicycle
does not obstruct a reflector or light.
• Make sure that your bicycle is equipped with correctly positioned and
securely mounted reflectors.
While riding at dawn, at dusk or at night:
• Ride slowly.
•Avoid dark areas and areas of heavy or fast-moving traffic.
•Avoid road hazards.
• If possible, ride on familiar routes.
If riding in traffic:
• Be predictable. Ride so that drivers can see you and predict your
movements.
• Be alert. Ride defensively and expect the unexpected.
• If you plan to ride in traffic often, ask your dealer about traffic safety
classes or a good book on bicycle traffic safety.
equipment which helps reduce that risk. Consult your dealer about night
riding safety equipment.
WARNING: Reflectors are not a substitute for required lights.
Riding at dawn, at dusk, at night or at other times of poor
visibility without an adequate bicycle lighting system and
without reflectors is dangerous and may result in serious injury
or death.
Bicycle reflectors are designed to pick up and reflect car lights and street
lights in a way that may help you to be seen and recognized as a moving
bicyclist.
CAUTION: Check reflectors and their mounting brackets
regularly to make sure that they are clean, straight, unbroken
and securely mounted. Have your dealer replace damaged
reflectors and straighten or tighten any that are bent or loose.
The mounting brackets of front and rear reflectors are often designed as
brake straddle cable safety catches which prevent the straddle cable from
catching on the tire tread if the cable jumps out of its yoke or breaks.
WARNING: Do not remove the front or rear reflectors or
reflector brackets from your bicycle. They are an integral part
of the bicycle’s safety system. Removing the reflectors reduces
your visibility to others using the roadway. Being struck by
other vehicles may result in serious injury or death.
The reflector brackets may protect you from a brake straddle
cable catching on the tire in the event of brake cable failure. If
a brake straddle cable catches on the tire, it can cause the
wheel to stop suddenly, causing you to loose control and fall.
Off Road respect
Obey the local laws regulating where and how you can ride off-road, and
respect private property. You may be sharing the trail with others — hikers,
equestrians, other cyclists. Respect their rights. Stay on the designated
trail. Don’t contribute to erosion by riding in mud or with unnecessary
sliding. Don’t disturb the ecosystem by cutting your own trail or shortcut
through vegetation or streams. It is your responsibility to minimize your
impact on the environment. Leave things as you found them; and always
take out everything you brought in.
D. Wet Weather Riding
WARNING: Wet weather impairs traction, braking and visibility,
both for the bicyclist and for other vehicles sharing the road.
The risk of an accident is dramatically increased in wet
conditions.
Under wet conditions, the stopping power of your brakes (as well as the
brakes of other vehicles sharing the road) is dramatically reduced and
your tires don’t grip nearly as well. This makes it harder to control speed
and easier to lose control. To make sure that you can slow down and stop
safely in wet conditions, ride more slowly and apply your brakes earlier and
more gradually than you would under normal, dry conditions. See also
Section 4.C.
E. Night Riding
Riding a bicycle at night is much more dangerous than riding during
the day. A bicyclist is very difficult for motorists and pedestrians to see.
Therefore, children should never ride at dawn, at dusk or at night. Adults
who chose to accept the greatly increased risk of riding at dawn, at dusk
or at night need to take extra care both riding and choosing specialized
C. Off Road Safety
We recommend that children not ride on rough terrain unless they are
accompanied by an adult.
1. The variable conditions and hazards of off-road riding require close
attention and specific skills. Start slowly on easier terrain and build up your
skills. If your bike has suspension, the increased speed you may develop also
increases your risk of losing control and falling. Get to know how to handle
your bike safely before trying increased speed or more difficult terrain.
2. Wear safety gear appropriate to the kind of riding you plan to do.
3. Don’t ride alone in remote areas. Even when riding with others, make sure
that someone knows where you’re going and when you expect to be back.
4. Always take along some kind of identification, so that people know who you
are in case of an accident; and take along some cash for food, a cool drink or
an emergency phone call.
5. Yield right of way to pedestrians and animals. Ride in a way that does
not frighten or endanger them, and give them enough room so that their
unexpected moves don’t endanger you.
6. Be prepared. If something goes wrong while you’re riding off-road, help
may not be close.
7. Before you attempt to jump, do stunt riding or race with your bike, read and
understand Section 2.F.
14
15
G. Changing Components or Adding Accessories
There are many components and accessories available to enhance the
comfort, performance and appearance of your bicycle. However, if you
change components or add accessories, you do so at your own risk. The
bicycle’s manufacturer may not have tested that component or accessory
for compatibility, reliability or safety on your bicycle. Before installing any
component or accessory, including a different size tire, make sure that it is
compatible with your bicycle by checking with your dealer. Be sure to read,
understand and follow the instructions that accompany the products you
purchase for your bicycle. See also Appendix A, p. 35 and B, p. 41.
WARNING: Failure to confirm compatibility, properly install,
operate and maintain any component or accessory can result
in serious injury or death.
WARNING: Changing the components on your bike with other
than genuine replacement parts may compromise the safety of
your bicycle and may void the warranty. Check with your dealer
before changing the components on your bike.
WARNING: Bicycles and bicycle parts have limitations with
regard to strength and integrity, and this type of riding can
exceed those limitations.
We recommend against this type of riding because of the increased risks;
but if you choose to take the risk, at least:
•Take lessons from a competent instructor first
• Start with easy learning exercises and slowly develop your skills before
trying more difficult or dangerous riding
• Use only designated areas for stunts, jumping, racing or fast downhill
riding
• Wear a full face helmet, safety pads and other safety gear
• Understand and recognize that the stresses imposed on your bike by
this kind of activity may break or damage parts of the bicycle and void the
warranty
•Take your bicycle to your dealer if anything breaks or bends. Do not ride
your bicycle when any part is damaged.
If you ride downhill at speed, do stunt riding or ride in competition, know
the limits of your skill and experience. Ultimately, avoiding injury is your
responsibility.
F. Extreme, Stunt or Competition Riding
Whether you call it Aggro, Hucking, Freeride, North Shore, Downhill,
Jumping, Stunt Riding, Racing or something else: if you engage in this sort
of extreme, aggressive riding you will get hurt, and you voluntarily assume a
greatly increased risk of injury or death.
Not all bicycles are designed for these types of riding, and those that are
may not be suitable for all types of aggressive riding. Check with your dealer
or the bicycle’s manufacturer about the suitability of your bicycle before
engaging in extreme riding.
When riding fast down hill, you can reach speeds achieved by motorcycles,
and therefore face similar hazards and risks. Have your bicycle and
equipment carefully inspected by a qualified mechanic and be sure it is in
perfect condition. Consult with expert riders, area site personnel and race
officials on conditions and equipment advisable at the site where you plan to
ride. Wear appropriate safety gear, including an approved full face helmet,
full finger gloves, and body armor. Ultimately, it is your responsibility to have
proper equipment and to be familiar with course conditions.
WARNING: Although many catalogs, advertisements and
articles about bicycling depict riders engaged in extreme riding,
this activity is extremely dangerous, increases your risk
of injury or death, and increases the severity of any injury.
Remember that the action depicted is being performed by
professionals with many years of training and experience.
Know your limits and always wear a helmet and other
appropriate safety gear. Even with state-of-the-art protective
safety gear, you could be seriously injured or killed when
jumping, stunt riding, riding downhill at speed or in
competition.
14
15
G. Changing Components or Adding Accessories
There are many components and accessories available to enhance the
comfort, performance and appearance of your bicycle. However, if you
change components or add accessories, you do so at your own risk. The
bicycle’s manufacturer may not have tested that component or accessory
for compatibility, reliability or safety on your bicycle. Before installing any
component or accessory, including a different size tire, make sure that it is
compatible with your bicycle by checking with your dealer. Be sure to read,
understand and follow the instructions that accompany the products you
purchase for your bicycle. See also Appendix A, p. 35 and B, p. 41.
WARNING: Failure to confirm compatibility, properly install,
operate and maintain any component or accessory can result
in serious injury or death.
WARNING: Changing the components on your bike with other
than genuine replacement parts may compromise the safety of
your bicycle and may void the warranty. Check with your dealer
before changing the components on your bike.
WARNING: Bicycles and bicycle parts have limitations with
regard to strength and integrity, and this type of riding can
exceed those limitations.
We recommend against this type of riding because of the increased risks;
but if you choose to take the risk, at least:
•Take lessons from a competent instructor first
• Start with easy learning exercises and slowly develop your skills before
trying more difficult or dangerous riding
• Use only designated areas for stunts, jumping, racing or fast downhill
riding
• Wear a full face helmet, safety pads and other safety gear
• Understand and recognize that the stresses imposed on your bike by
this kind of activity may break or damage parts of the bicycle and void the
warranty
•Take your bicycle to your dealer if anything breaks or bends. Do not ride
your bicycle when any part is damaged.
If you ride downhill at speed, do stunt riding or ride in competition, know
the limits of your skill and experience. Ultimately, avoiding injury is your
responsibility.
F. Extreme, Stunt or Competition Riding
Whether you call it Aggro, Hucking, Freeride, North Shore, Downhill,
Jumping, Stunt Riding, Racing or something else: if you engage in this sort
of extreme, aggressive riding you will get hurt, and you voluntarily assume a
greatly increased risk of injury or death.
Not all bicycles are designed for these types of riding, and those that are
may not be suitable for all types of aggressive riding. Check with your dealer
or the bicycle’s manufacturer about the suitability of your bicycle before
engaging in extreme riding.
When riding fast down hill, you can reach speeds achieved by motorcycles,
and therefore face similar hazards and risks. Have your bicycle and
equipment carefully inspected by a qualified mechanic and be sure it is in
perfect condition. Consult with expert riders, area site personnel and race
officials on conditions and equipment advisable at the site where you plan to
ride. Wear appropriate safety gear, including an approved full face helmet,
full finger gloves, and body armor. Ultimately, it is your responsibility to have
proper equipment and to be familiar with course conditions.
WARNING: Although many catalogs, advertisements and
articles about bicycling depict riders engaged in extreme riding,
this activity is extremely dangerous, increases your risk
of injury or death, and increases the severity of any injury.
Remember that the action depicted is being performed by
professionals with many years of training and experience.
Know your limits and always wear a helmet and other
appropriate safety gear. Even with state-of-the-art protective
safety gear, you could be seriously injured or killed when
jumping, stunt riding, riding downhill at speed or in
competition.
16
17
tube with the tip of your finger without inserting your finger beyond its first
knuckle. Also see NOTE above and fig.5).
WARNING: If your seat post is
not inserted in the seat tube as
described in B.1 above, the
seat post may break, which
could cause you to lose control
and fall.
2. Front and back adjustment
The saddle can be adjusted forward
or back to help you get the optimal
position on the bike. Ask your dealer to
set the saddle for your optimal riding
position and to show you how to make
this adjustment. If you choose to make
your own front and back adjustment,
make sure that the clamp mechanism is clamping on the straight part of the
saddle rails and is not touching the curved part of the rails, and that you
are using the recommended torque on the clamping fastener(s) (Appendix
D or the manufacturer’s instructions).
3. Saddle angle adjustment
Most people prefer a horizontal saddle; but some riders like the saddle
nose angled up or down just a little. Your dealer can adjust saddle angle
or teach you how to do it. If you choose to make your own saddle angle
adjustment and you have a single bolt saddle clamp on your seat post, it is
critical that you loosen the clamp bolt sufficiently to allow any serrations on
the mechanism to disengage before changing the saddle’s angle, and then
that the serrations fully re-engage before you tighten the clamp bolt to the
recommended torque (Appendix D or the manufacturer’s instructions).
hips must rock for the heel to reach the pedal, the saddle is too high. If your
leg is bent at the knee with your heel on the pedal, the saddle is too low.
Ask your dealer to set the saddle for your optimal riding position and to
show you how to make this adjustment. If you choose to make your own
saddle height adjustment:
loosen the seat post clamp
raise or lower the seat post in the seat tube
make sure the saddle is straight fore and aft
re-tighten the seat post clamp to the
recommended torque (Appendix D or the
manufacturer’s instructions).
Once the saddle is at the correct height,
make sure that the seat post does
not project from the frame beyond
its “Minimum Insertion” or “Maximum
Extension” mark (fig. 4).
NOTE: Some bicycles have a sight hole
in the seat tube, the purpose of which
is to make it easy to see whether the
seat post is inserted in the seat tube far
enough to be safe. If your bicycle has
such a sight hole, use it instead of the “Minimum Insertion” or “Maximum
Extension” mark to make sure the seat post is inserted in the seat tube far
enough to be visible through the sight hole.

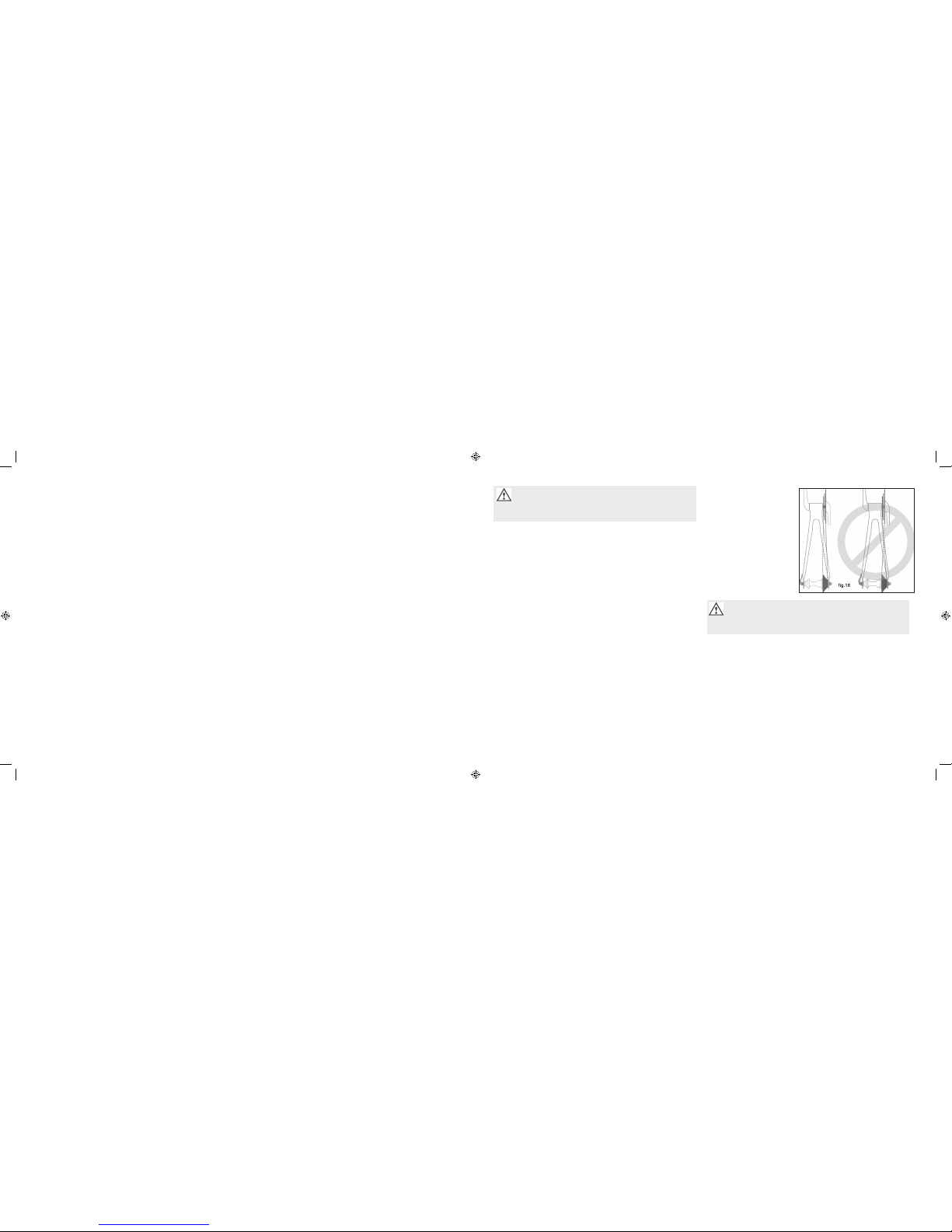

If your bike has an interrupted seat tube, as is the case on some suspension
bikes, you must also make sure that the seat post is far enough into the
frame so that you can touch it through the bottom of the interrupted seat
Chapter 3: Fit
NOTE: Correct fit is an essential element of bicycling safety, performance
and comfort. Making the adjustments to your bicycle which result in correct
fit for your body and riding conditions requires experience, skill and special
tools. Always have your dealer make the adjustments on your bicycle; or, if
you have the experience, skill and tools, have your dealer check your work
before riding.
WARNING: If your bicycle does not fit properly, you may lose
control and fall. If your new bike doesn’t fit, ask your dealer to
exchange it before you ride it.
A. Standover Height
1. Diamond frame bicycles
Standover height is the basic element of bike fit (see fig. 2). It is the
distance from the ground to the top of the bicycle’s frame at that point
where your crotch is when straddling the bike. To check for correct
standover height, straddle the
bike while wearing the kind
of shoes in which you’ll be
riding, and bounce vigorously
on your heels. If your crotch
touches the frame, the bike
is too big for you. Don’t even
ride the bike around the block.
A bike which you ride only on
paved surfaces and never
take off-road should give you
a minimum standover height
clearance of two inches (5 cm).
A bike that you’ll ride on unpaved surfaces should give you a minimum of
three inches (7.5 cm) of standover height clearance. And a bike that you’ll
use off road should give you four inches (10 cm) or more of clearance.
2. Step-through frame bicycles
Standover height does not apply to bicycles with step-through frames.
Instead, the limiting dimension is determined by saddle height range.
You must be able to adjust your saddle position as described in B without
exceeding the limits set by the height of the top of the seat tube and the
”Minimum Insertion” or “Maximum Extension” mark on the seat post.
B. Saddle Position
Correct saddle adjustment is an important factor in getting the most
performance and comfort from your bicycle. If the saddle position is not
comfortable for you, see your dealer.
The saddle can be adjusted in three directions:
1. Up and down adjustment. To
check for correct saddle height
(fig. 3):
• sit on the saddle;
• place one heel on a pedal;
• rotate the crank until the pedal
with your heel on it is in the
down position and the crank
arm is parallel to the seat tube.
If your leg is not completely
straight, your saddle height
needs to be adjusted. If your
18
19
WARNING: An insufficiently tightened stem clamp bolt,
handlebar clamp bolt or bar end extension clamping bolt may
compromise steering action, which could cause you to lose
control and fall. Place the front wheel of the bicycle between
your legs and attempt to twist the handlebar/stem assembly. If
you can twist the stem in relation to the front wheel, turn the
handlebars in relation to the stem, or turn the bar end
extensions in relation to the handlebar, the bolts are
insufficiently tightened.
D. Control Position Adjustments
The angle of the brake and shift control levers and their position on the
handlebars can be changed. Ask your dealer to make the adjustments
for you. If you choose to make your own control lever angle adjustment,
be sure to re-tighten the clamp fasteners to the recommended torque
(Appendix D or the manufacturer’s instructions).
E. Brake Reach
Many bikes have brake levers which can be adjusted for reach. If you have
small hands or find it difficult to squeeze the brake levers, your dealer can
either adjust the reach or fit shorter reach brake levers.
WARNING: The shorter the brake lever reach, the more critical it
is to have correctly adjusted brakes, so that full braking power
can be applied within available brake lever travel. Brake lever
travel insufficient to apply full braking power can result in loss
of control, which may result in serious injury or death.
WARNING: A quill stem’s Minimum Insertion Mark must not be
visible above the top of the headset. If the stem is extended
beyond the Minimum Insertion Mark the stem may break or
damage the fork’s steerer tube, which could cause you to lose
control and fall.
WARNING: On some bicycles, changing the stem or stem
height can affect the tension of the front brake cable, locking
the front brake or creating excess cable slack which can make
the front brake inoperable. If the front brake pads move in
towards the wheel rim or out away from the wheel rim when the
stem or stem height is changed, the brakes must be correctly
adjusted before you ride the bicycle.
Some bicycles are equipped with an adjustable angle stem. If your bicycle
has an adjustable angle stem, ask your dealer to show you how to adjust
if. Do not attempt to make the adjustment yourself, as changing stem angle
may also require adjustments to the bicycle’s controls.
WARNING: Always tighten fasteners to the correct torque. Bolts
that are too tight can stretch and deform. Bolts that are too
loose can move and fatigue. Either mistake can lead to a
sudden failure of the bolt, causing you to lose control and fall.
Your dealer can also change the angle of the handlebar or bar end
extensions.
WARNING: Some people have claimed that extended riding
with a saddle which is incorrectly adjusted or which does not
support your pelvic area correctly can cause short-term or
long-term injury to nerves and blood vessels, or even
impotence. If your saddle causes you pain, numbness or other
discomfort, listen to your body and stop riding until you see
your dealer about saddle adjustment or a different saddle.
C. Handlebar Height and Angle
Your bike is equipped either with a “threadless” stem, which clamps on to
the outside of the steerer tube, or with a “quill” stem, which clamps inside
the steerer tube by way of an expanding binder bolt. If you aren’t absolutely
sure which type of stem your bike has, ask your dealer.

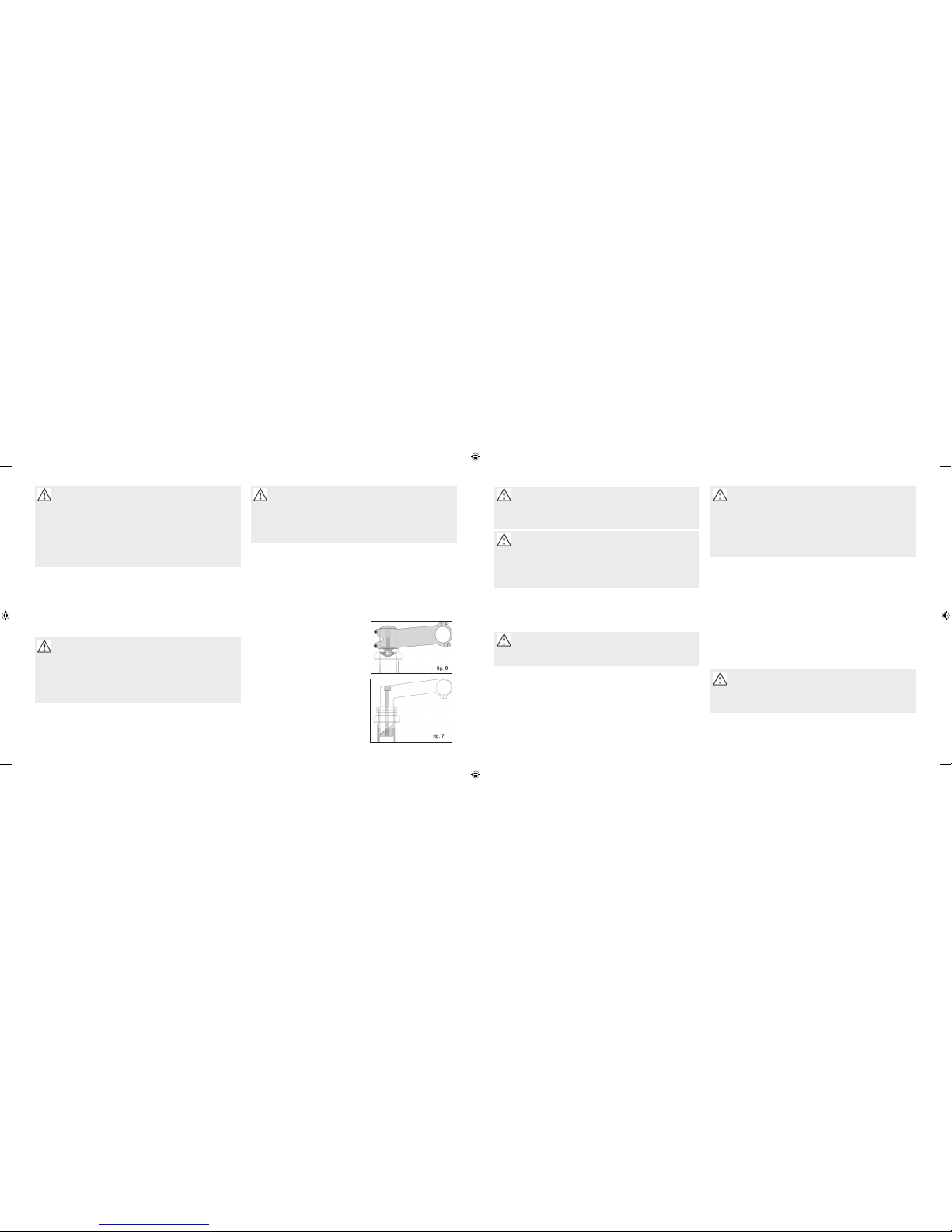

If your bike has a “threadless” stem
(fig. 6) your dealer may be able to change handlebar height by moving
height adjustment spacers from below the stem to above the stem, or vice
versa. Otherwise, you’ll have to get a
stem of different length or rise. Consult
your dealer. Do not attempt to do this
yourself, as it requires special knowledge.
If your bike has a “quill” stem (fig. 7)
you can ask your dealer to adjust the
handlebar height a bit by adjusting stem
height.
A quill stem has an etched or stamped
mark on its shaft which designates the
stem’s “Minimum Insertion” or “Maximum
Extension”. This mark must not be visible
above the headset.
WARNING: When making saddle angle adjustments with a
single bolt saddle clamp, always check to make sure that the
serrations on the mating surfaces of the clamp are not worn.
Worn serrations on the clamp can allow the saddle to move,
causing you to lose control and fall.
Always tighten fasteners to the correct torque. Bolts that are
too tight can stretch and deform. Bolts that are too loose can
move and fatigue. Either mistake can lead to asudden failure of
the bolt, causing you to lose control and fall.
Note: If your bicycle is equipped with a suspension seat post, the
suspension mechanism may require periodic service or maintenance. Ask
your dealer for recommended service intervals for your suspension seat
post.
Small changes in saddle position can have a substantial effect on
performance and comfort. To find your best saddle position, make only one
adjustment at a time.
WARNING: After any saddle adjustment, be sure that the saddle
adjusting mechanism is properly seated and tightened before
riding. A loose saddle clamp or seat post clamp can cause
damage to the seat post, or can cause you to lose control and
fall. A correctly tightened saddle adjusting mechanism will
allow no saddle movement in any direction. Periodically check
to make sure that the saddle adjusting mechanism is properly
tightened.
If, in spite of carefully adjusting the saddle height, tilt and fore-and-aft
position, your saddle is still uncomfortable, you may need a different saddle
design. Saddles, like people, come in many different shapes, sizes and
resilience. Your dealer can help you select a saddle which, when correctly
adjusted for your body and riding style, will be comfortable.
20
21
Chapter 4: Tech
It’s important to your safety, performance and enjoyment to understand
how things work on your bicycle. We urge you to ask your dealer how to do
the things described in this section before you attempt them yourself, and
that you have your dealer check your work before you ride the bike. If you
have even the slightest doubt as to whether you understand something in
this section of the Manual, talk to your dealer. See also Appendix A, B, C
and D.
A. Wheels
Bicycle wheels are designed to be removable for easier transportation and
for repair of a tire puncture. In most cases, the wheel axles are inserted
into slots, called “dropouts” in the fork and frame, but some suspension
mountain bikes use what is called a “through axle” wheel mounting system.
If you have a mountain bike equipped with through axle front or rear
wheels, make sure that your dealer has given you the manufacturer’s
instructions, and follow those when installing or removing a through axle
wheel. If you don’t know what a through axle is, ask your dealer.
Wheels are secured in one of three ways:
•A hollow axle with a shaft (“skewer”) running through it which has an
adjustable tension nut on one end and an over-center cam on the other
(cam action system, fig.8 a & b)
•A hollow axle with a shaft (“skewer”) running through it which has a nut on
one end and a fitting for a hex key, lock lever or other tightening device on
the other (through bolt, fig. 9)
• Hex nuts or hex key bolts which are threaded on to or into the hub axle
(bolt-on wheel, fig. 10)
Your bicycle may be equipped with a different securing method for the front
wheel than for the rear wheel. Discuss the wheel securing method for your
bicycle with your dealer.
It is very important that you understand the type of wheel securing method
on your bicycle, that you know how to secure the wheels correctly, and
that you know how to apply the correct clamping force that safely secures
the wheel. Ask your dealer to instruct you in correct wheel removal
and installation, and ask him to give you any available manufacturer’s
instructions.
WARNING: Riding with an improperly secured wheel can allow
the wheel to wobble or fall off the bicycle, which can cause
serious injury or death. Therefore, it is essential that you:
1. Ask your dealer to help you make sure you know how to
install and remove your wheels safely.
2. Understand and apply the correct technique for clamping
your wheel in place.
3. Each time, before you ride the bike, check that the wheel is
securely clamped.
The clamping action of a correctly secured wheel must emboss
the surfaces of the dropouts.
22
23
2. Wheels with Cam Action Systems
There are currently two types of over-center cam wheel retention
mechanisms: the traditional over-center cam (fig. 8a) and the cam-and-cup
system (fig. 8b). Both use an over-center cam action to clamp the bike’s
wheel in place. Your bicycle may have a cam-and-cup front wheel retention
system and a traditional rear wheel cam action system.
a. Adjusting the traditional cam action mechanism (fig. 8a)
The wheel hub is clamped in place by the force of the over-center cam
pushing against one dropout and pulling the tension adjusting nut, by way
of the skewer, against the other dropout. The amount of clamping force is
controlled by the tension adjusting nut. Turning the tension adjusting nut
clockwise while keeping the cam lever from rotating increases clamping
force; turning it counterclockwise while keeping the cam lever from rotating
reduces clamping force. Less than half a turn of the tension adjusting nut
can make the difference between safe clamping force and unsafe clamping
force.
WARNING: The full force of the cam action is needed to clamp
the wheel securely. Holding the nut with one hand and turning
the lever like a wing nut with the other hand until everything is
as tight as you can get it will not clamp a cam action wheel
safely in the dropouts. See also the first WARNING in this
Section, p. 18.
b. Adjusting the cam-and-cup mechanism (fig. 8b)
The cam-and-cup system on your front wheel will have been correctly
adjusted for your bicycle by your dealer.Ask your dealer to check the
adjustment every six months. Do not use a cam-and-cup front wheel on
any bicycle other than the one for which your dealer adjusted it.
1. Front Wheel Secondary Retention Devices
Most bicycles have front forks which utilize a secondary wheel retention
device to reduce the risk of the wheel disengaging from the fork if the
wheel is incorrectly secured. Secondary retention devices are not a
substitute for correctly securing your front wheel.
Secondary retention devices fall into two basic categories:
a.The clip-on type is a part which the manufacturer adds to the front wheel
hub or front fork.
b. The integral type is molded, cast or machined into the outer faces of the
front fork dropouts.
Ask your dealer to explain the particular secondary retention device on
your bike.
WARNING: Do not remove or disable the secondary retention
device. As its name implies, it serves as a back-up for a critical
adjustment. If the wheel is not secured correctly, the secondary
retention device can reduce the risk of the wheel disengaging
from the fork. Removing or disabling the secondary retention
device may also void the warranty.
Secondary retention devices are not a substitute for correctly
securing your wheel. Failure to properly secure the wheel can
cause the wheel to wobble or disengage, which could cause
you to loose control and fall, resulting in serious injury or
death.
You may need to tap the top of the wheel with the palm of your hand to
release the wheel from the front fork.
b.Installing a disk brake or rim brake Front Wheel
CAUTION: If your bike is equipped with a front disk brake, be
careful not to damage the disk, caliper or brake pads when re-
inserting the disk into the caliper. Never activate a disk brake’s
control lever unless the disk is correctly inserted in the caliper.
See also Section 4.C.
(1) If your bike has cam action front wheel retention, move the cam lever
so that it curves away from the wheel (fig. 8b). This is the OPEN position.
If your bike has through bolt or bolt-on front wheel retention, go to the next
step.
(2) With the steering fork facing forward, insert the wheel between the fork
blades so that the axle seats firmly at the top of the fork dropouts. The cam
lever, if there is one, should be on rider’s left side of the bicycle (fig. 8a &
b). If your bike has a clip-on type secondary retention device, engage it.
(3) If you have a traditional cam action mechanism: holding the cam lever
in the ADJUST position with your right hand, tighten the tension adjusting
nut with your left hand until it is finger tight against the fork dropout (fig.
8a). If you have a cam-and-cup system: the nut and cup (fig. 8b) will have
snapped into the recessed area of the fork dropouts and no adjustment
should be required.
(4) While pushing the wheel firmly to the top of the slots in the fork
dropouts, and at the same time centering the wheel rim in the fork:
(a) With a cam action system, move the cam lever upwards and swing it
into the CLOSED position (fig. 8a & b). The lever should now be parallel
to the fork blade and curved toward the wheel. To apply enough clamping
3. Removing and Installing Wheels
WARNING: If your bike is equipped with a hub brake such as a
rear coaster brake, front or rear drum, band or roller brake; or if
it has an internal gear rear hub, do not attempt to remove the
wheel. The removal and re-installation of most hub brakes and
internal gear hubs requires special knowledge. Incorrect
removal or assembly can result in brake or gear failure, which
can cause you to lose control and fall.
CAUTION: If your bike has a disc brake, exercise care in touching
the rotor or caliper. Disc rotors have sharp edges, and both rotor and
caliper can get very hot during use.
a. Removing a disk brake or rim brake Front Wheel
(1) If your bike has rim brakes, disengage the brake’s quick-release
mechanism to increase the clearance between the tire and the brake pads
(See Section 4.C fig. 11 through 15).
(2) If your bike has cam action front wheel retention, move the cam lever
from the locked or CLOSED position to the OPEN position (figs. 8a & b).
If your bike has through bolt or bolt-on front wheel retention, loosen the
fastener(s) a few turns counter-clockwise using an appropriate wrench,
lock key or the integral lever.
(3) If your front fork has a clip-on type secondary retention device,
disengage it. If your front fork has an integral secondary retention device,
and a traditional cam action system (fig. 8a) loosen the tension adjusting
nut enough to allow removing the wheel from the dropouts. If your
front wheel uses a cam-and-cup system, (fig. 8b) squeeze the cup and
cam lever together while removing the wheel. No rotation of any part is
necessary with the cam-and-cup system.
24
25
c. Removing a disk brake or rim brake Rear Wheel
(1) If you have a multi-speed bike with a derailleur gear system: shift the
rear derailleur to high gear (the smallest, outermost rear sprocket).
If you have an internal gear rear hub, consult your dealer or the hub
manufacturer’s instructions before attempting to remove the rear wheel.
If you have a single-speed bike with rim or disk brake, go to step (4) below.
(2) If your bike has rim brakes, disengage the brake’s quick-release
mechanism to increase the clearance between the wheel rim and the brake
pads (see Section 4.C, figs. 11 through 15).
(3) On a derailleur gear system, pull the derailleur body back with your right
hand.
(4) With a cam action mechanism, move the quick-release lever to the
OPEN position (fig. 8b). With a through bolt or bolt on mechanism, loosen
the fastener(s) with an appropriate wrench, lock lever or integral lever; then
push the wheel forward far enough to be able to remove the chain from the
rear sprocket.
(5) Lift the rear wheel off the ground a few inches and remove it from the
rear dropouts.
d. Installing a disk brake or rim brake Rear Wheel
CAUTION: If your bike is equipped with a rear disk brake, be
careful not to damage the disk, caliper or brake pads when re-
inserting the disk into the caliper. Never activate a disk brake’s
control lever unless the disk is correctly inserted in the caliper.
force, you should have to wrap your fingers around the fork blade for
leverage, and the lever should leave a clear imprint in the palm of your
hand.
(b) With a through-bolt or bolt-on system, tighten the fasteners to the
torque specifications in Appendix D or the hub manufacturer’s instructions.
NOTE: If, on a traditional cam action system, the lever cannot be pushed
all the way to a position parallel to the fork blade, return the lever to the
OPEN position. Then turn the tension adjusting nut counterclockwise one-
quarter turn and try tightening the lever again.
(5) With a through-bolt or bolt-on system, tighten the fasteners to the
torque specifications in Appendix D or the hub manufacturer’s instructions.
WARNING: Securely clamping the wheel with a cam action
retention device takes considerable force. If you can fully close
the cam lever without wrapping your fingers around the fork
blade for leverage, the lever does not leave a clear imprint in
the palm of your hand, and the serrations on the wheel fastener
do not emboss the surfaces of the dropouts, the tension is
insufficient. Open the lever; turn the tension adjusting nut
clockwise a quarter turn; then try again. See also the first
WARNING in this Section, p. 18.
(6) If you disengaged the brake quick-release mechanism in 3. a. (1)
above, re-engage it to restore correct brake pad-to-rim clearance.
(7) Spin the wheel to make sure that it is centered in the frame and clears
the brake pads; then squeeze the brake lever and make sure that the
brakes are operating correctly.
WARNING: Securely clamping the wheel with a cam action
retention device takes considerable force. If you can fully close
the cam lever without wrapping your fingers around the seat
stay or chain stay for leverage, the lever does not leave a clear
imprint in the palm of your hand, and the serrations on the
wheel fastener do not emboss the surfaces of the dropouts, the
tension is insufficient. Open the lever; turn the tension
adjusting nut clockwise a quarter turn; then try again. See also
the first WARNING in this Section, p. 18.
(8) If you disengaged the brake quick-release mechanism in 3. c. (2)
above, re-engage it to restore correct brake pad-to-rim clearance.
(9) Spin the wheel to make sure that it is centered in the frame and clears
the brake pads; then squeeze the brake lever and make sure that the
brakes are operating correctly.
B. Seat Post Cam Action Clamp
Some bikes are equipped with a cam action seat post binder. The seat
post cam action binder works exactly like the traditional wheel cam action
fastener (Section 4.A.2) While a cam action binder looks like a long bolt
with a lever on one end and a nut on the other, the binder uses an over-
center cam action to firmly clamp the seat post (see fig. 8a).
WARNING: Riding with an improperly tightened seat post can
allow the saddle to turn or move and cause you to lose control
and fall. Therefore:
1. Ask your dealer to help you make sure you know how to
correctly clamp your seat post.
2. Understand and apply the correct technique for clamping
your seat post.
(1) With a cam action system, move the cam lever to the OPEN position
(see fig. 8 a & b). The lever should be on the side of the wheel opposite the
derailleur and freewheel sprockets.
(2) On a derailleur bike, make sure that the rear derailleur is still in its
outermost, high gear, position; then pull the derailleur body back with your
right hand. Put the chain on top of the smallest freewheel sprocket.
(3) On single-speed, remove the chain from the front sprocket, so that you
have plenty of slack in the chain. Put the chain on the rear wheel sprocket.
(4) Then, insert the wheel into the frame dropouts and pull it all the way in
to the dropouts.
(5) On a single speed or an internal gear hub, replace the chain on the
chainring; pull the wheel back in the dropouts so that it is straight in the
frame and the chain has about 1/4 inches of up-and-down play.
(6) With a cam action system, move the cam lever upwards and swing it
into the CLOSED position (fig. 8 a & b). The lever should now be parallel
to the seat stay or chain stay and curved toward the wheel. To apply
enough clamping force, you should have to wrap your fingers around the
fork blade for leverage, and the lever should leave a clear imprint in the
palm of your hand.
(7) With a through-bolt or bolt-on system, tighten the fasteners to the
torque specifications in Appendix D or the hub manufacturer’s instructions.
NOTE: If, on a traditional cam action system, the lever cannot be pushed
all the way to a position parallel to the seat stay or chain stay, return
the lever to the OPEN position. Then turn the tension adjusting nut
counterclockwise one-quarter turn and try tightening the lever again.
26
27
operated by pedaling backwards. This is called a Coaster Brake and is
described in Appendix C.
WARNING:
1. Riding with improperly adjusted brakes, worn brake pads, or
wheels on which the rim wear mark is visible is dangerous
and can result in serious injury or death.
2. Applying brakes too hard or too suddenly can lock up a
wheel, which could cause you to lose control and fall. Sudden
or excessive application of the front brake may pitch the rider
over the handlebars, which may result in serious injury or
death.
3. Some bicycle brakes, such as disc brakes (fig. 11) and
linear-pull brakes (fig. 12), are extremely powerful. Take extra
care in becoming familiar with these brakes and exercise
particular care when using them.
4. Some bicycle brakes are equipped with a brake force
modulator, a small, cylindrical device through which the brake
control cable runs and which is designed to provide a more
progressive application of braking force. A modulator
makes the initial brake lever force more gentle, progressively
increasing force until full force is achieved. If your bike is
3. Before you ride the bike, first check that the seat post is securely
clamped.
Adjusting the seat post cam action mechanism
The action of the cam squeezes the seat collar around the seat post to
hold the seat post securely in place. The amount of clamping force is
controlled by the tension adjusting nut. Turning the tension adjusting nut
clockwise while keeping the cam lever from rotating increases clamping
force; turning it counterclockwise while keeping the cam lever from rotating
reduces clamping force. Less than half a turn of the tension adjusting nut
can make the difference between safe and unsafe clamping force.
WARNING: The full force of the cam action is needed to clamp
the seat post securely. Holding the nut with one hand and
turning the lever like a wing nut with the other hand until
everything is as tight as you can get it will not clamp the seat
post safely.
WARNING: If you can fully close the cam lever without wrapping
your fingers around the seat post or a frame tube for leverage,
and the lever does not leave a clear imprint in the palm of your
hand, the tension is insufficient. Open the lever; turn the
tension adjusting nut clockwise a quarter turn; then try again.
C. Brakes
There are three general types of bicycle brakes: rim brakes, which operate
by squeezing the wheel rim between two brake pads; disc brakes, which
operate by squeezing a hub-mounted disc between two brake pads; and
internal hub brakes. All three can be operated by way of a handlebar
mounted lever. On some models of bicycle, the internal hub brake is
2. How brakes work
The braking action of a bicycle is a function
of the friction between the braking surfaces.
To make sure that you have maximum friction
available, keep your wheel rims and brake
pads or the disk rotor and caliper clean and
free of dirt, lubricants, waxes or polishes.
Brakes are designed to control your speed, not
just to stop the bike. Maximum braking force
for each wheel occurs at the point just before
the wheel “locks up” (stops rotating) and starts
to skid. Once the tire skids, you actually lose
most of your stopping force and all directional
control. You need to practice slowing and
stopping smoothly without locking up a wheel.
The technique is called progressive brake
modulation. Instead of jerking the brake lever
to the position where you think you’ll generate
appropriate braking force, squeeze the lever,
progressively increasing the braking force. If
you feel the wheel begin to lock up, release
pressure just a little to keep the wheel rotating
just short of lockup. It’s important to develop
a feel for the amount of brake lever pressure
required for each wheel at different speeds and
on different surfaces. To better understand this,
experiment a little by walking your bike and applying different amounts of
pressure to each brake lever, until the wheel locks.
When you apply one or both brakes, the bike begins to slow, but your
body wants to continue at the speed at which it was going. This causes a
transfer of weight to the front wheel (or, under heavy braking, around the
front wheel hub, which could send you flying over the handlebars).
equipped with a brake force modulator, take extra care in
becoming familiar with its performance characteristics.
5. Disc brakes can get extremely hot with extended use. Be careful
not to touch a disc brake until it has had plenty of time to cool.
6. See the brake manufacturer’s instructions for operation and care
of your brakes, and for when brake pads must be replaced. If you do
not have the manufacturer’s instructions, see your dealer or contact
the brake manufacturer.
7. If replacing worn or damaged parts, use only manufacturer-
approved genuine replacement parts.
1. Brake controls and features
It’s very important to your safety that you learn and remember which brake
lever controls which brake on your bike. Traditionally, the right brake lever
controls the rear brake and the left brake lever controls the front brake; but,
to make sure your bike’s brakes are set up this way, squeeze one brake
lever and look to see which brake, front or rear, engages. Now do the same
with the other brake lever.
Make sure that your hands can reach and squeeze the brake levers
comfortably. If your hands are too small to operate the levers comfortably,
consult your dealer before riding the bike. The lever reach may be
adjustable; or you may need a different brake lever design.

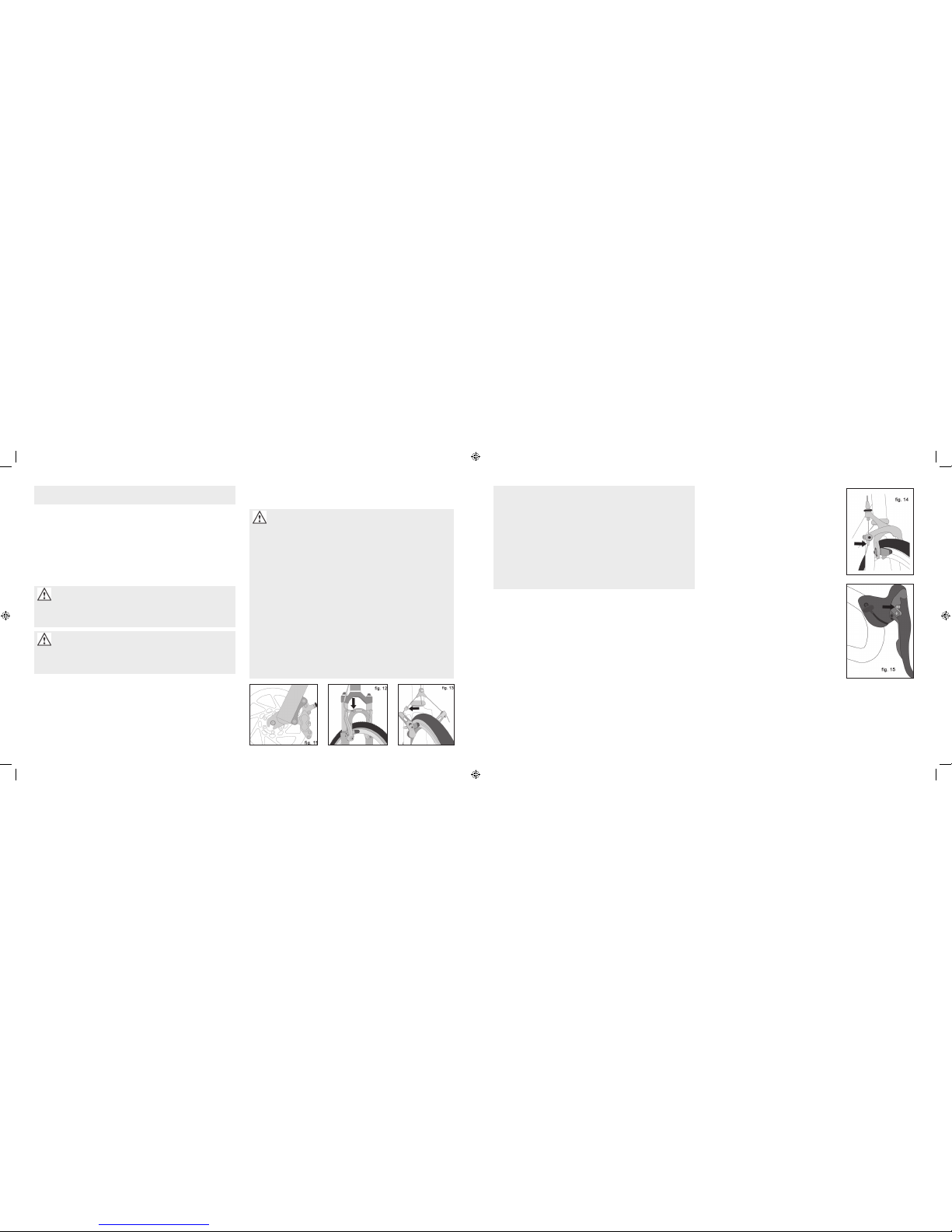

Most rim brakes have some form of quick-release mechanism to allow the
brake pads to clear the tire when a wheel is removed or reinstalled. When
the brake quick release is in the open position, the brakes are inoperative.
Ask your dealer to make sure that you understand the way the brake quick
release works on your bike (see figs. 12, 13. 14 & 15) and check each time
to make sure both brakes work correctly before you get on the bike.
28
29
• usually a front derailleur
• one or two shifters
• one, two or three front sprockets called chainrings
• a drive chain
a. Shifting Gears
There are several different types and styles of shifting controls: levers, twist
grips, triggers, combination shift/brake controls and push-buttons. Ask your
dealer to explain the type of shifting controls that are on your bike, and to
show you how they work.
The vocabulary of shifting can be pretty confusing. A downshift is a shift
to a “lower” or “slower” gear, one which is easier to pedal. An upshift is a
shift to a “higher” or “faster”, harder to pedal gear. What’s confusing is that
what’s happening at the front derailleur is the opposite of what’s happening
at the rear derailleur (for details, read the instructions on Shifting the Rear
Derailleur and Shifting the Front Derailleur below). For example, you can
select a gear which will make pedaling easier on a hill (make a downshift)
in one of two ways: shift the chain down the gear “steps” to a smaller gear
at the front, or up the gear “steps” to a larger gear at the rear. So, at the
rear gear cluster, what is called a downshift looks like an upshift. The way
to keep things straight is to remember that shifting the chain in towards
the centerline of the bike is for accelerating and climbing and is called a
downshift. Moving the chain out or away from the centerline of the bike is
for speed and is called an upshift.
Whether upshifting or downshifting, the bicycle derailleur system design
requires that the drive chain be moving forward and be under at least some
tension. A derailleur will shift only if you are pedaling forward.
A wheel with more weight on it will accept greater brake pressure before
lockup; a wheel with less weight will lock up with less brake pressure. So,
as you apply brakes and your weight is transferred forward, you need to
shift your body toward the rear of the bike, to transfer weight back on to the
rear wheel; and at the same time, you need to both decrease rear braking
and increase front braking force. This is even more important on descents,
because descents shift weight forward.
Two keys to effective speed control and safe stopping are controlling wheel
lockup and weight transfer. This weight transfer is even more pronounced
if your bike has a front suspension fork. Front suspension “dips” under
braking, increasing the weight transfer (see also Section 4.F). Practice
braking and weight transfer techniques where there is no traffic or other
hazards and distractions.
Everything changes when you ride on loose surfaces or in wet weather. It
will take longer to stop on loose surfaces or in wet weather. Tire adhesion
is reduced, so the wheels have less cornering and braking traction and can
lock up with less brake force. Moisture or dirt on the brake pads reduces
their ability to grip. The way to maintain control on loose or wet surfaces is
to go more slowly.
D. Shifting Gears
Your multi-speed bicycle will have a derailleur drivetrain (see 1. below),
an internal gear hub drivetrain (see 2. below) or, in some special cases, a
combination of the two.
1. How a derailleur drivetrain works
If your bicycle has a derailleur drivetrain, the gear-changing mechanism will
have:
• a rear cassette or freewheel sprocket cluster
• a rear derailleur
to get a feel for the different
gear combinations. At first,
practice shifting where there
are no obstacles, hazards or
other traffic, until you’ve built
up your confidence. Learn to
anticipate the need to shift, and
shift to a lower gear before the
hill gets too steep. If you have
difficulties with shifting, the
problem could be mechanical
adjustment. See your dealer
for help.
WARNING: Never shift a derailleur onto the largest or the
smallest sprocket if the derailleur is not shifting smoothly. The
derailleur may be out of adjustment and the chain could jam,
causing you to lose control and fall.
e. What if it won’t shift gears?
If moving the shift control one click repeatedly fails to result in a smooth shift
to the next gear chances are that the mechanism is out of adjustment. Take
the bike to your dealer to have it adjusted.
2. How an internal gear hub drivetrain works
If your bicycle has an internal gear hub drivetrain, the gear changing
mechanism will consist of:
• a 3, 5, 7, 8, 12 speed or possibly an infinitely variable internal gear hub
• one, or sometimes two shifters
• one or two control cables
• one front sprocket called a chainring
• a drive chain
CAUTION: Never move the shifter while pedaling backward,
nor pedal backwards immediately after having moved the
shifter. This could jam the chain and cause serious damage to
the bicycle.
b. Shifting the Rear Derailleur
The rear derailleur is controlled by the right shifter.
The function of the rear derailleur is to move the drive chain from one gear
sprocket to another. The smaller sprockets on the gear cluster produce
higher gear ratios. Pedaling in the higher gears requires greater pedaling
effort, but takes you a greater distance with each revolution of the pedal
cranks. The larger sprockets produce lower gear ratios. Using them
requires less pedaling effort, but takes you a shorter distance with each
pedal crank revolution. Moving the chain from a smaller sprocket of the
gear cluster to a larger sprocket results in a downshift. Moving the chain
from a larger sprocket to a smaller sprocket results in an upshift. In order
for the derailleur to move the chain from one sprocket to another, the rider
must be pedaling forward.
c. Shifting the Front Derailleur:
The front derailleur, which is controlled by the left shifter, shifts the chain
between the larger and smaller chainrings. Shifting the chain onto a
smaller chainring makes pedaling easier (a downshift). Shifting to a larger
chainring makes pedaling harder (an upshift).
d. Which gear should I be in?
The combination of largest rear and smallest front gears (fig. 16) is for the
steepest hills. The smallest rear and largest front combination is for the
greatest speed. It is not necessary to shift gears in sequence. Instead, find
the “starting gear” which is right for your level of ability — a gear which is
hard enough for quick acceleration but easy enough to let you start from a
stop without wobbling — and experiment with upshifting and downshifting
32
33
WARNING: Never inflate a tire beyond the maximum pressure
marked on the tire’s sidewall. Exceeding the recommended
maximum pressure may blow the tire off the rim, which could
cause damage to the bike and injury to the rider and
bystanders.
The best and safest way to inflate a bicycle tire to the correct pressure is with
a bicycle pump which has a built-in pressure gauge.
WARNING: There is a safety risk in using gas station air hoses or
other air compressors. They are not made for bicycle tires. They
move a large volume of air very rapidly, and will raise the
pressure in your tire very rapidly, which could cause the tube to
explode.
Tire pressure is given either as maximum pressure or as a pressure range.
How a tire performs under different terrain or weather conditions depends
largely on tire pressure. Inflating the tire to near its maximum recommended
pressure gives the lowest rolling resistance; but also produces the harshest
ride. High pressures work best on smooth, dry pavement.
Very low pressures, at the bottom of the recommended pressure range, give
the best performance on smooth, slick terrain such as hard-packed clay, and
on deep, loose surfaces such as deep, dry sand.
Tire pressure that is too low for your weight and the riding conditions can
cause a puncture of the tube by allowing the tire to deform sufficiently to pinch
the inner tube between the rim and the riding surface.
CAUTION: Pencil type automotive tire gauges can be inaccurate
and should not be relied upon for consistent, accurate pressure
readings. Instead, use a high quality dial
gauge.
Suspension can increase control and comfort by allowing the wheels to
better follow the terrain. This enhanced capability may allow you to ride
faster; but you must not confuse the enhanced capabilities of the bicycle
with your own capabilities as a rider. Increasing your skill will take time
and practice. Proceed carefully until you have learned to handle the full
capabilities of your bike.
WARNING: Not all bicycles can be safely retrofitted with some
types of suspension systems. Before retrofitting a bicycle with
any suspension, check with the bicycle’s manufacturer to make
sure that what you want to do is compatible with the bicycle’s
design. Failing to do so can result in catastrophic frame failure.

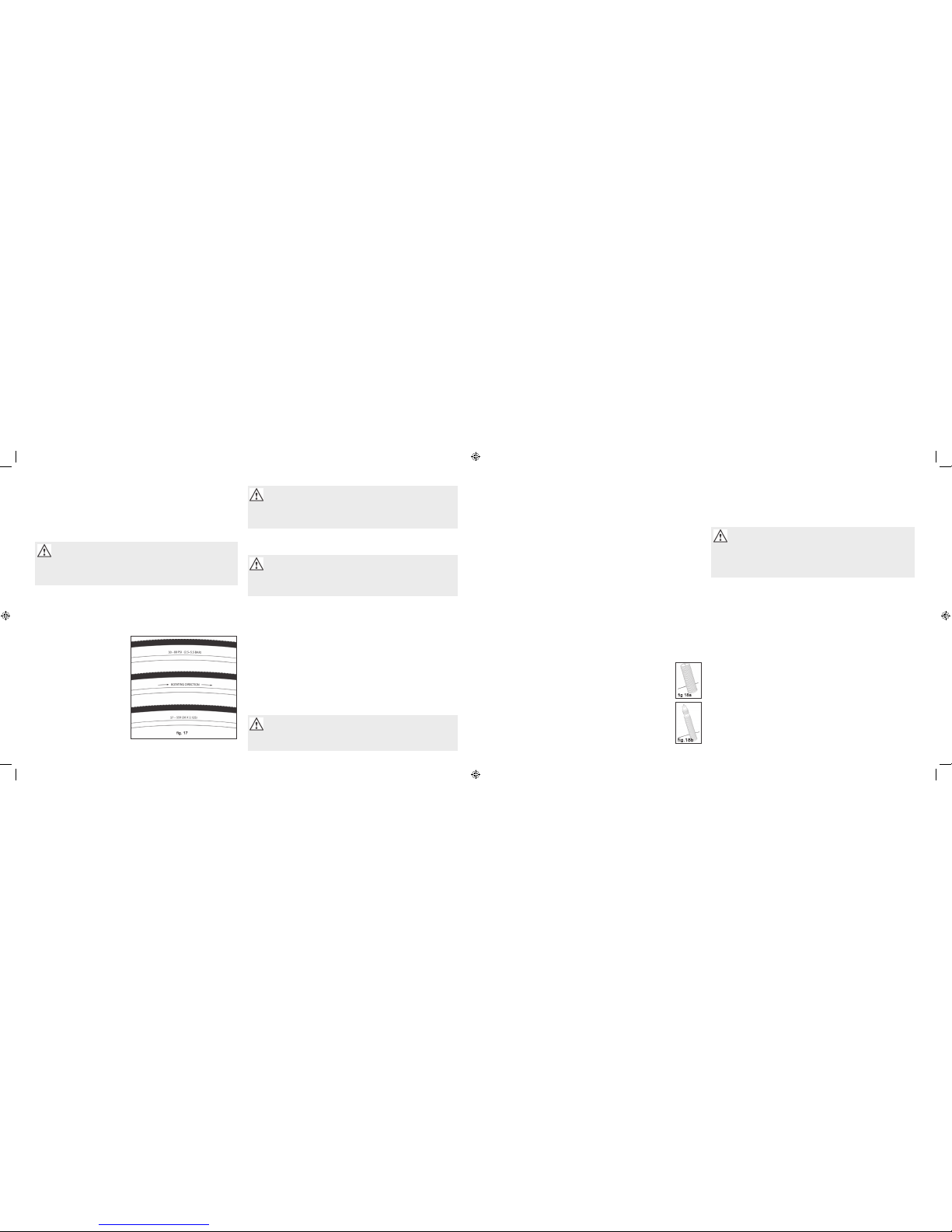

G. Tires and Tubes
1. Tires
Bicycle tires are available in many designs and specifications, ranging
from general-purpose designs to tires designed to perform best under very
specific weather or terrain conditions. If, once you’ve gained experience
with your new bike, you feel that a
different tire might better suit your
riding needs, your dealer can help
you select the most appropriate
design.
The size, pressure rating, and
on some high-performance tires
the specific recommended use,
are marked on the sidewall of
the tire (see fig. 17). The part of
this information which is most
important to you is Tire Pressure.
shop) which screws on to the valve stem once you’ve freed up the valve.
The adapter fits into the Schraeder pump fitting. Close the valve after
inflation. To let air out of a Presta valve, open up the valve stem lock nut
and depress the valve stem.
WARNING: We highly recommend that you carry a spare inner
tube when you ride your bike. Patching a tube is an emergency
repair. If you do not apply the patch correctly or apply several
patches, the tube can fail, resulting in possible tube failure,
which could cause you to loose control and fall. Replace a
patched tube as soon as possible.
Ask your dealer to recommend the best tire pressure for the kind of
riding you will most often do, and have the dealer inflate your tires to that
pressure. Then, check inflation as described in Section 1.C so you’ll know
how correctly inflated tires should look and feel when you don’t have access
to a gauge. Some tires may need to be brought up to pressure every week
or two, so it is important to check your tire pressures before every ride.
Some special high-performance tires have unidirectional treads: their tread
pattern is designed to work better in one direction than in the other. The
sidewall marking of a unidirectional tire will have an arrow showing the
correct rotation direction. If your bike has unidirectional tires, be sure that
they are mounted to rotate in the correct direction.
2. Tire Valves
There are primarily two kinds of bicycle tube valves: The Schraeder Valve
and the Presta Valve. The bicycle pump you use must have the fitting
appropriate to the valve stems on your bicycle.
The Schraeder valve (fig. 18a) is like the valve on a car tire. To inflate a
Schraeder valve tube, remove the valve cap and clamp the pump fitting
onto the end of the valve stem. To let air out of a Schraeder valve, depress
the pin in the end of the valve stem with the end of a key or other
appropriate object.
The Presta valve (fig. 18b) has a narrower diameter and is only
found on bicycle tires. To inflate a Presta valve tube using a
Presta headed bicycle pump, remove the valve cap; unscrew
(counterclockwise) the valve stem lock nut; and push down on
the valve stem to free it up. Then push the pump head on to the
valve head, and inflate. To inflate a Presta valve with a Schraeder
pump fitting, you’ll need a Presta adapter (available at your bike
32
33
WARNING: Never inflate a tire beyond the maximum pressure
marked on the tire’s sidewall. Exceeding the recommended
maximum pressure may blow the tire off the rim, which could
cause damage to the bike and injury to the rider and
bystanders.
The best and safest way to inflate a bicycle tire to the correct pressure is with
a bicycle pump which has a built-in pressure gauge.
WARNING: There is a safety risk in using gas station air hoses or
other air compressors. They are not made for bicycle tires. They
move a large volume of air very rapidly, and will raise the
pressure in your tire very rapidly, which could cause the tube to
explode.
Tire pressure is given either as maximum pressure or as a pressure range.
How a tire performs under different terrain or weather conditions depends
largely on tire pressure. Inflating the tire to near its maximum recommended
pressure gives the lowest rolling resistance; but also produces the harshest
ride. High pressures work best on smooth, dry pavement.
Very low pressures, at the bottom of the recommended pressure range, give
the best performance on smooth, slick terrain such as hard-packed clay, and
on deep, loose surfaces such as deep, dry sand.
Tire pressure that is too low for your weight and the riding conditions can
cause a puncture of the tube by allowing the tire to deform sufficiently to pinch
the inner tube between the rim and the riding surface.
CAUTION: Pencil type automotive tire gauges can be inaccurate
and should not be relied upon for consistent, accurate pressure
readings. Instead, use a high quality dial
gauge.
Suspension can increase control and comfort by allowing the wheels to
better follow the terrain. This enhanced capability may allow you to ride
faster; but you must not confuse the enhanced capabilities of the bicycle
with your own capabilities as a rider. Increasing your skill will take time
and practice. Proceed carefully until you have learned to handle the full
capabilities of your bike.
WARNING: Not all bicycles can be safely retrofitted with some
types of suspension systems. Before retrofitting a bicycle with
any suspension, check with the bicycle’s manufacturer to make
sure that what you want to do is compatible with the bicycle’s
design. Failing to do so can result in catastrophic frame failure.
G. Tires and Tubes
1. Tires
Bicycle tires are available in many designs and specifications, ranging
from general-purpose designs to tires designed to perform best under very
specific weather or terrain conditions. If, once you’ve gained experience
with your new bike, you feel that a
different tire might better suit your
riding needs, your dealer can help
you select the most appropriate
design.
The size, pressure rating, and
on some high-performance tires
the specific recommended use,
are marked on the sidewall of
the tire (see fig. 17). The part of
this information which is most
important to you is Tire Pressure.
shop) which screws on to the valve stem once you’ve freed up the valve.
The adapter fits into the Schraeder pump fitting. Close the valve after
inflation. To let air out of a Presta valve, open up the valve stem lock nut
and depress the valve stem.
WARNING: We highly recommend that you carry a spare inner
tube when you ride your bike. Patching a tube is an emergency
repair. If you do not apply the patch correctly or apply several
patches, the tube can fail, resulting in possible tube failure,
which could cause you to loose control and fall. Replace a
patched tube as soon as possible.
Ask your dealer to recommend the best tire pressure for the kind of
riding you will most often do, and have the dealer inflate your tires to that
pressure. Then, check inflation as described in Section 1.C so you’ll know
how correctly inflated tires should look and feel when you don’t have access
to a gauge. Some tires may need to be brought up to pressure every week
or two, so it is important to check your tire pressures before every ride.
Some special high-performance tires have unidirectional treads: their tread
pattern is designed to work better in one direction than in the other. The
sidewall marking of a unidirectional tire will have an arrow showing the
correct rotation direction. If your bike has unidirectional tires, be sure that
they are mounted to rotate in the correct direction.
2. Tire Valves
There are primarily two kinds of bicycle tube valves: The Schraeder Valve
and the Presta Valve. The bicycle pump you use must have the fitting
appropriate to the valve stems on your bicycle.
The Schraeder valve (fig. 18a) is like the valve on a car tire. To inflate a
Schraeder valve tube, remove the valve cap and clamp the pump fitting
onto the end of the valve stem. To let air out of a Schraeder valve, depress
the pin in the end of the valve stem with the end of a key or other
appropriate object.
The Presta valve (fig. 18b) has a narrower diameter and is only
found on bicycle tires. To inflate a Presta valve tube using a
Presta headed bicycle pump, remove the valve cap; unscrew
(counterclockwise) the valve stem lock nut; and push down on
the valve stem to free it up. Then push the pump head on to the
valve head, and inflate. To inflate a Presta valve with a Schraeder
pump fitting, you’ll need a Presta adapter (available at your bike
34
35
Chapter 5: Service
WARNING: Technological advances have made bicycles and
bicycle components more complex, and the pace of innovation
is increasing. It is impossible for this manual to provide all the
information required to properly repair and/or maintain your
bicycle. In order to help minimize the chances of an accident
and possible injury, it is critical that you have any repair or
maintenance which is not specifically described in this manual
performed by your dealer. Equally important is that your
individual maintenance requirements will be determined by
everything from your riding style to geographic location.
Consult your dealer for help in determining your maintenance
requirements.
WARNING: Many bicycle service and repair tasks require
special knowledge and tools. Do not begin any adjustments or
service on your bicycle until you have learned from your dealer
how to properly complete them. Improper adjustment or
service may result in damage to the bicycle or in an accident
which can cause serious injury or death.
If you want to learn to do major service and repair work on your bike:
1. Ask your dealer for copies of the manufacturer’s installation and service
instructions for the components on your bike, or contact the component
manufacturer.
2. Ask your dealer to recommend a book on bicycle repair.
3. Ask your dealer about the availability of bicycle repair courses in your
area.
We recommend that you ask your dealer to check the quality of your work
the first time you work on something and before you ride the bike, just to
make sure that you did everything correctly. Since that will require the time
of a mechanic, there may be a modest charge for this service.
We also recommend that you ask your dealer for guidance on what spare
parts, such as inner tubes, light bulbs, etc. it would be appropriate for
you to have once you have learned how to replace such parts when they
require replacement.
A. Service Intervals
Some service and maintenance can and should be performed by the
owner, and require no special tools or knowledge beyond what is
presented in this manual.
The following are examples of the type of service you should perform
yourself. All other service, maintenance and repair should be performed
in a properly equipped facility by a qualified bicycle mechanic using the
correct tools and procedures specified by the manufacturer.
1. Break-in Period: Your bike will last longer and work better if you break
it in before riding it hard. Control cables and wheel spokes may stretch or
“seat” when a new bike is first used and may require readjustment by your
dealer. Your Mechanical Safety Check (Section 1.C) will help you identify
some things that need readjustment. But even if everything seems fine to
you, it’s best to take your bike back to the dealer for a checkup. Dealers
typically suggest you bring the bike in for a 30 day checkup. Another way to
judge when it’s time for the first checkup is to bring the bike in after three to
five hours of hard off-road use, or about 10 to 15 hours of on-road or more
casual off-road use. But if you think something is wrong with the bike, take
it to your dealer before riding it again.
2. Before every ride: Mechanical Safety Check (Section 1.C)
WARNING: Like any mechanical device, a bicycle and its
components are subject to wear and stress. Different materials
and mechanisms wear or fatigue from stress at different rates
and have different life cycles. If a component’s life cycle is
exceeded, the component can suddenly and catastrophically
fail, causing serious injury or death to the rider. Scratches,
cracks, fraying and discoloration are signs of stress-caused
fatigue and indicate that a part is at the end of its useful life and
needs to be replaced. While the materials and workmanship of
your bicycle or of individual components may be covered by a
warranty for a specified period of time by the manufacturer, this
is no guarantee that the product will last the term of the
warranty. Product life is often related to the kind of riding you
do and to the treatment to which you submit the bicycle. The
bicycle’s warranty is not meant to suggest that the bicycle
cannot be broken or will last forever. It only means that the
bicycle is covered subject to the terms of the warranty. Please
be sure to read Appendix A, Intended Use of your bicycle and
Appendix B, The lifespan of your bike and its components,
starting on page 43.
5. As required: If either brake lever fails the Mechanical Safety Check
(Section 1.C), don’t ride the bike. Have your dealer check the brakes.
If the chain won’t shift smoothly and quietly from gear to gear, the derailleur
is out of adjustment. See your dealer.
6. Every 25 (hard off-road) to 50 (on-road) hours of riding: Take your bike
to your dealer for a complete checkup.
3. After every long or hard ride; if the bike has been exposed to water or
grit; or at least every 100 miles: Clean the bike and lightly lubricate the
chain’s rollers with a good quality bicycle chain lubricant. Wipe off excess
lubricant with a lint-free cloth. Lubrication is a function of climate. Talk to
your dealer about the best lubricants and the recommended lubrication
frequency for your area.
4. After every long or hard ride or after every 10 to 20 hours of riding:
• Squeeze the front brake and rock the bike forward and back. Everything
feel solid? If you feel a clunk with each forward or backward movement of
the bike, you probably have a loose headset. Have your dealer check it.
• Lift the front wheel off the ground and swing it from side to side. Feel
smooth? If you feel any binding or roughness in the steering, you may have
a tight headset. Have your dealer check it.
• Grab one pedal and rock it toward and away from the centerline of the
bike; then do the same with the other pedal. Anything feel loose? If so,
have your dealer check it.
•Take a look at the brake pads. Starting to look worn or not hitting the
wheel rim squarely? Time to have the dealer adjust or replace them.
• Carefully check the control cables and cable housings. Any rust? Kinks?
Fraying? If so, have your dealer replace them.
• Squeeze each adjoining pair of spokes on either side of each wheel
between your thumb and index finger. Do they all feel about the same? If
any feel loose, have your dealer check the wheel for tension and trueness.
• Check the tires for excess wear, cuts or bruises. Have your dealer
replace them if necessary.
• check the wheel rims for excess wear, dings, dents and scratches.
Consult your dealer if you see any rim damage.
• Check to make sure that all parts and accessories are still secure, and
tighten any which are not.
• Check the frame, particularly in the area around all tube joints; the
handlebars; the stem; and the seatpost for any deep scratches, cracks or
discoloration. These are signs of stress-caused fatigue and indicate that
a part is at the end of its useful life and needs to be replaced. See also
Appendix B.
