Airwheel R3 User manual

- 01 -
R3
USER MANUAL
EN

- 02 -
Bike body 1 pcs Tool 1 unit
Charger 1 pcs Saddle components 1 unit
Battery holder 1 pcs Pedal 1 unit
Instruction 1 unit
Check Packing Contents
Saddle
components
Tool Pedal
Instruction
Charger
Battery holder
Packing list
Bike body

- 03 -

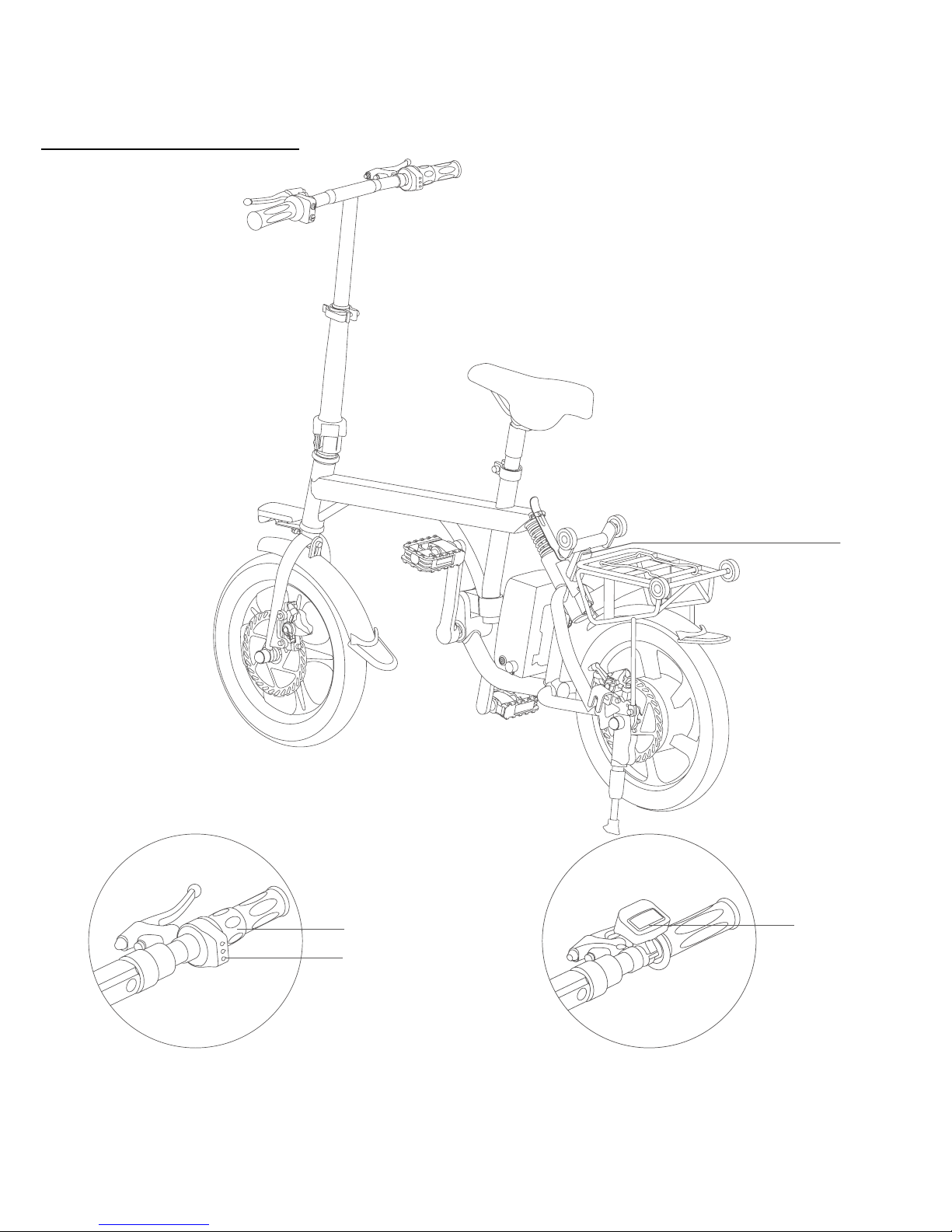

R3 Diagram
Rear brake
Front wheel
Saddle
Power indicator
Battery holder
Rear fender
(Optional)
Headlight,Horn
Front fender
(Optional)
USB charging
interface
Lifting rod lock catch
Motor
Disc-brake
Reflector
Foldable sheet steel
Handle
Front brake
Pedal Storage rack
(Optional)
Foldable pushing
rack(Optional)
Charging mouth
Power switch
Kickstand
Accelerator
Headlight
power switch
Horn switch

- 04 -

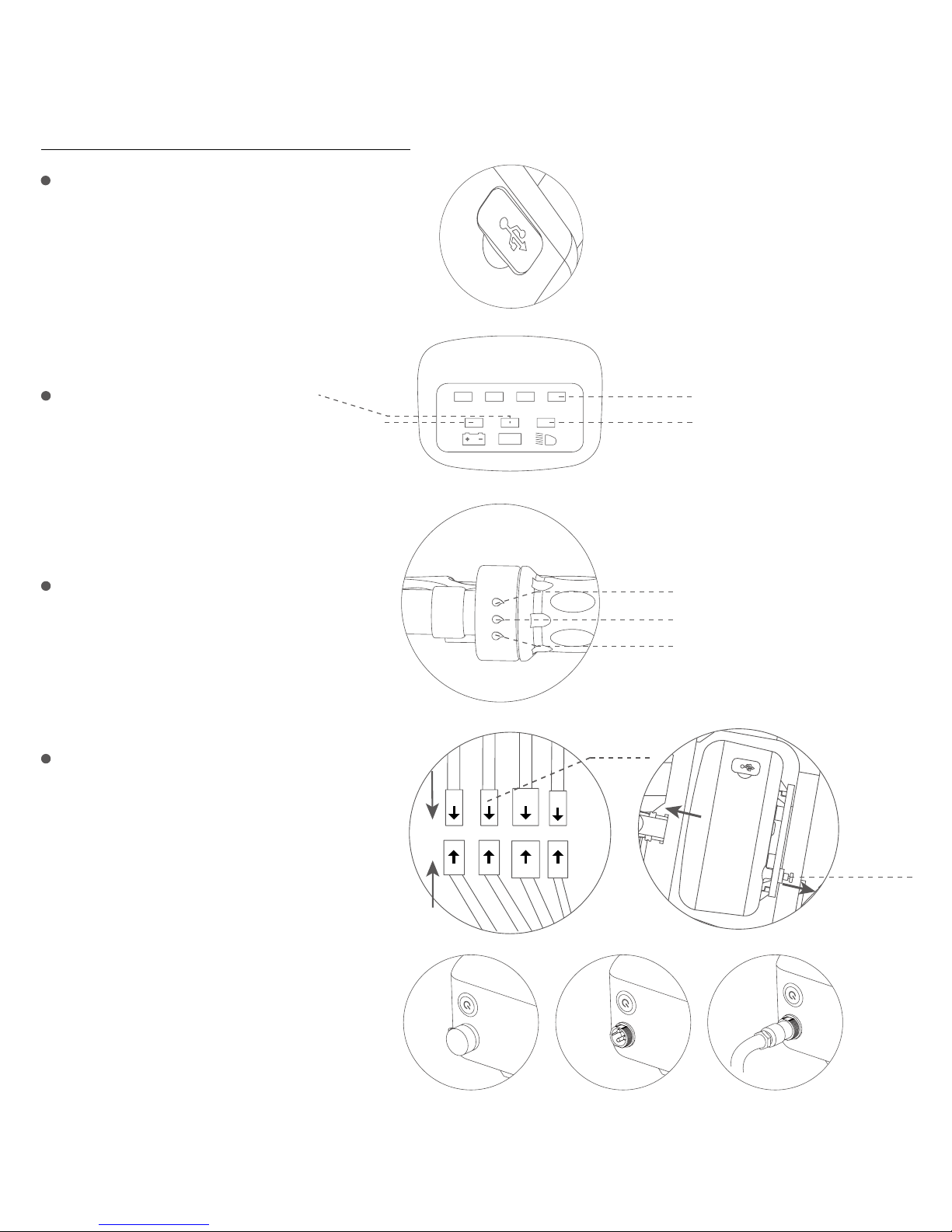

R3+/R3S Diagram
Taillight
R3+ R3S
(Power-assisted mode)
E-bike status
Indicator
Power indicator
Accelerator

- 05 -
Motor type Brushless motor Nominal voltage 36V
Continuous power output 230W Rated output torque 5.7N.M
Rated speed 380r/min
Specications
Main Technical Parameters
Main Technical Parameters Of Storage Battery
Main Technical Parameters Of Motor
Main Technical Parameters Of Controller And Charger
Warning
Please do not throw away the waste battery, so as not to pollute the environment. The waste lithium
battery of the product is to be recycled by the enterprise or dealer, and the government designated
outlets.
Size 1290mm×550mm×1100mm Item weight ~17kg
Folding size 840mm×470mm×650mm Max. load 100kg
Tire size 14 inch Max. speed ≤ 20km/h
Charging voltage AC220V 50-60Hz Max. Permissible Gradient ~15°
Charging time About 180/360min Applicable temperature -10℃~40℃
USB output voltage 5V Range ≥ 25km
Battery capacity 214.6Wh/429.2Wh
Storage battery type Lithium battery Nominal voltage 36V
Undervoltage protection value ≥ 30.5V Over-current protection value ≤ 18A

- 06 -
Use the Bicycle
①
③
⑦
②
⑧
⑨
⑤
⑥
R
L

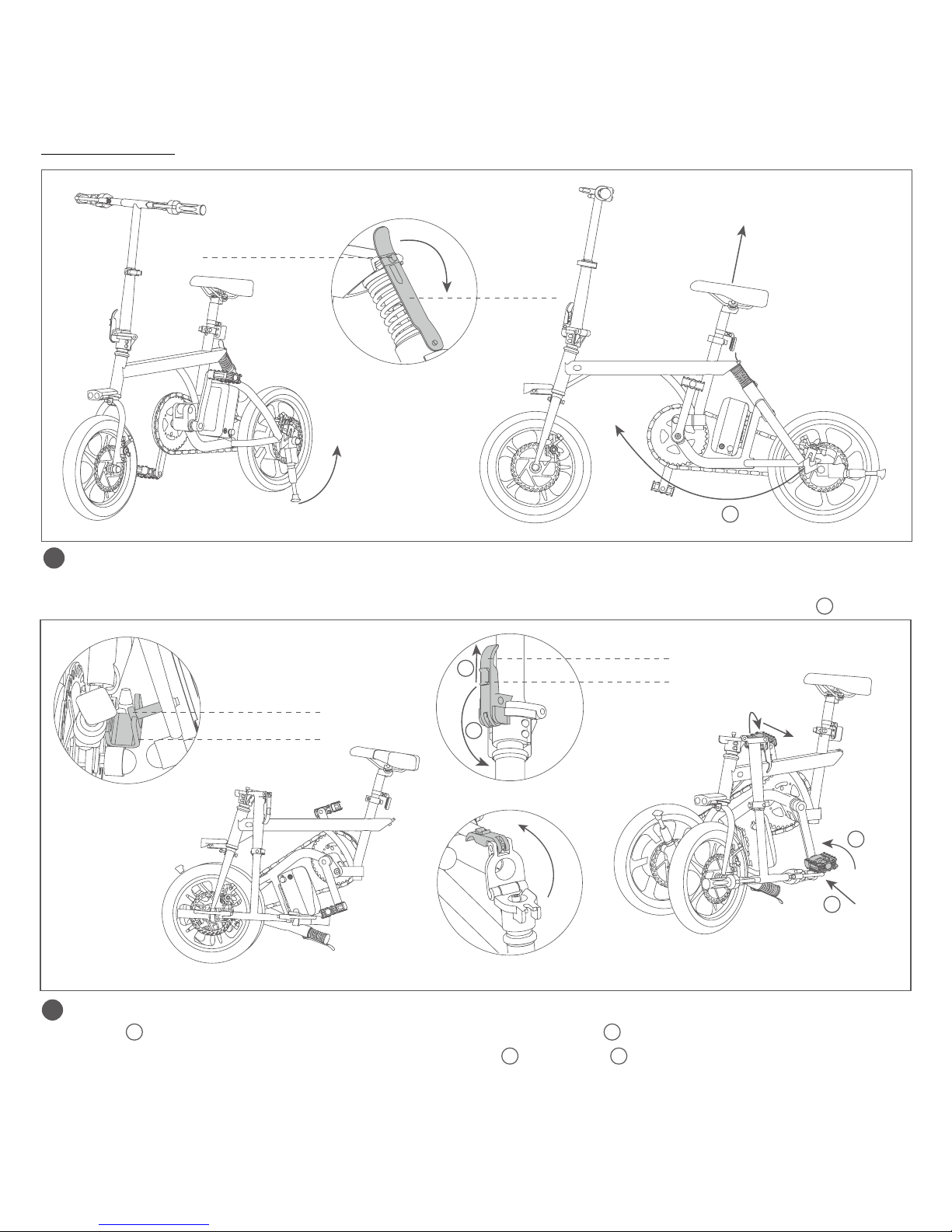

Take R3 out of the package bag, unfold pedals and kickstand. Push the head in vertical direction (see
Figure 1 - ①arrow), the folding handle along with the bike head is to be down-and-backward to the
slot and then button up (see Figure 2- ②arrow) to fasten the head. Rotate the brake to horizontal (see
gure 5- ③arrow), tighten the screws on the brake to x brake (Figure 6- ④arrow). Pull the safety pin
gently on the xed seat of the battery box (see gure 3- ⑤arrow), insert the battery box (see gure
3- ⑥arrow), release safety pin and connect the wire as showed in Figure 4 .
Install the pedals correctly (L-left, R-right) as showed in Figure 7. Please note the installation of
screw tooth is the opposite. Install the left pedal anticlockwise and right pedal clockwise. 35~40N.m
is the recommended torque. Adjust the saddle height and install it (see Figure8- ⑦arrow) and close
saddle's lifting rod lock (see Figure8-⑧arrow). Open the lifting rod lock and adjust the head height (see
Figure9- ⑨arrow) and close saddle's lifting rod lock.
1
2
Figure 8
Figure 7
Figure 9
Lifting rod
lock catch
④
Figure 1
Figure 5
Figure 3 Figure 4 Figure 6Figure 2
Foldable
armrest
Yellow Black
Motor
connecting line
Safety pin

- 07 -
Learning Skill
Get Started
R3/R3+provides riders with three different riding modes.
R3S does not support pure electric mode.
1.Electricity-assisted mode
Set right the head, fold kickstand and fasten frame. Adjust bike head and saddle position to ensure a
comfortable riding experience. Find the power switch in the one side of the battery, start it and hold the
handle. First sit on the saddle and step on the pedals one foot by one foot. When riders are ready to
ride it, they can push the accelerator in the right handle to accelerate.
3. Power-assisted mode
Turn on the power switch. Power sensor can sense the rotation, and then give signal to the controller
when the riding ring exceeds three rings, so that power-assisted mode is activated. According to
different riders’ force, the level of power assistance changes. When braking, it is out of power-assisted
mode. If pedals reverse, it will realize a faster exit of power-assisted mode. The power-assisted mode
is to make riding easier.
2. Man-powered mode
Set right the head, fold kickstand and fasten frame. Adjust bike head and saddle position to ensure a
comfortable riding experience. Find the power switch in the one side of the battery, start it and hold the
handle. First sit on the saddle and step on the pedals one foot by one foot. Rides can pedal it to go forward.
Power switch Accelerator
Rear
brake Front
brake
Open the power switch .
Starting is completed.
Pull down the accelerator with
the right hand to speed up and
ride.
Long press the brake button,
release it when slow down or stop.
Right down to move accelerator to
accelerate.
Go forwardGet on
Fold the kickstand, open the power
switch and step on the pedal one foot
by one foot.
Hold the brake.
Brake

- 08 -
Safety
Operating steps for beginners (electricity-assisted mode)
Fold the kickstand and turn on the power switch. Hold the handle and sit on the saddle.
One foot steps on the pedal and look straight ahead. Rotate accelerator with right hand to speed up.
When riders need to slow down or stop R3, riders put their ngers on the brake handle, and press
the brake handle hard until the scooter slows down or stops.
When the brake is started, the accelerator will automatically cut off power.
Avoid using this product in bad weather conditions (e.g., rain, snow, or ice).
Please conrm whether the brake can be used normally when riders want to use it.
Please read User Manual carefully and follow riding requirements during the R3 ride. Please do
not use it until riders have read User Manual carefully and learned the performance well. Do not lend it
to those who cannot manipulate e bikes.
Important Note:
No urgent acceleration, rapid deceleration and sharp turns. Do not excessively lean forward and
backward. Do not over speed. When the electric quantity displays less power in the App or power
switch lights flash, it is recommended that the rider stop riding. If riding, please keep a low constant
speed. If there is a risk of falling, please protect personal safety rst, do not consider R3. R3 may
produce wear and tear which may influence on the performance in the process of riding and parking.
So before riders ride the R3, it is necessary to do the following inspections:
Rider needs to check whether the R3 is installed rmly, and is damaged or not.
To install pedals, 35~40N.m is the recommended torque. Please make sure the pedals have been
fastened before use. If not, the rear screw tooth will be damaged and the pedals will fall off from
the bike which is not included in the Warranty.
Rider needs to check the brake function and tyres, and to check whether the handle and folding lock is
fastened. If not, please tighten the screws.
Rider needs to check whether folding mechanism has been locked.
The chain should be tightened meaning that the distance between chain prolapse and tension is 10~15mm.
Brake should be reliable and flexible to reset and it should increase the braking distance in rainy, snowy
and downhill riding.
Adjust the handlebar, saddle height, and it must not be higher than the safety points on the vertical pipe
and the saddle tube. After adjustment of the horizontal pipe, the vertical pipe, saddle and saddle tube,
they should be fastened, ≥ 18N.m is the recommended torque.
Rider needs to nd an open space to practice, at least 4m*20m area, indoor and outdoor.
Rider needs to have a full understanding of the surrounding environment to avoid the interference from
the vehicle, pedestrians, pets, bicycles and other obstacles.
Rider needs a skilled assistant in the side. The assistant is procient in riding R3 and familiar with the
guidelines for the use of scooters in all matters needing attention and riding method.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
1.
2.
3.
4.
You need lots of practice to grasp the skill before you ride R3 safely. If you are not skilled, or fail to
follow the user guide of this product, it may cause rider or others injury or property loss. Our company
only takes the responsibility for product defects or damage, and we are NOT responsible for physical
injury or property loss related with using products.

- 09 -
Newly purchased vehicles should be adjusted in good condition, if there is any question, please refer to
the aftersales staff.
The adjustment method of the brake is the same as the ordinary bicycle. The key is not only to be
able to brake effectively, but also to release the brake without block (otherwise it will consume a large
amount of electric energy) and make sure the brake-power off function is effective.
To replace tires, it is the same as ordinary bicycle. Due to the rear wheel hub and circuit, riders need
to pay attention to the lines and press the two screws in the rear axle. The torque of the rear wheel is
recommended ≥ 30N.m, the front wheel ≥ 18N.m.
Have a maintenance and a comprehensive examination every 800 km. check whether the front and
rear wheel screw is locking, check whether the pattern of cover tyre is worn; check whether the tire
pressure is appropriate, the drive system is smooth, and each part of the joint is normal: check whether
the brake line zip-fastener is used in lubrication. And inject suitable amount of lubricant to the central
axis, the front axle, rear axle, flywheel, fork, rotating parts and brake wiring. 40# oil and butter as a
lubricant are recommended.
In the use and maintenance, if you nd that you cannot solve the problem, please contact the aftersales staff.
Unauthorized demolition of Airwheel caused the failure and damage, is not in the company's free warranty.
When the vehicle is used for a period of time, it should be requested professional or designated service
station for a comprehensive inspection and adjustment to ensure the comfort, safety and normal service life.
Adjustment and maintenance:

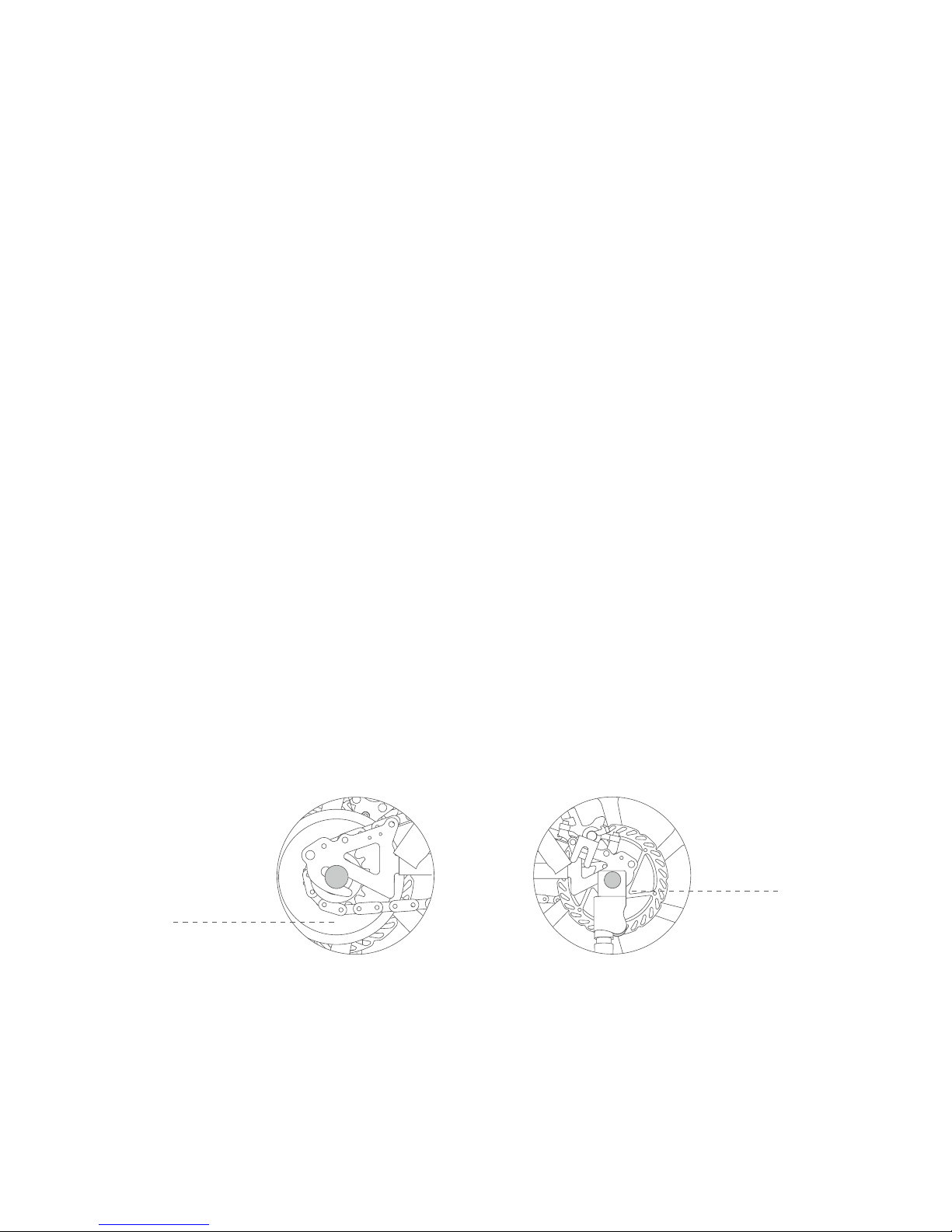

Chain adjustment:
1.
2.
3.
4.
5.
6.
Rotate to loosen the nuts. Adjust the nut forwards or backwards to nd the suitable looseness. When
adjusting the chain, it must also be aligned with the rear nut and adjusting nut and keep the front and rear
wheels in a straight line. After adjustment, refasten the nut in the rear wheel, lock the adjusting nut to have
a nal check. The chain sag between the two chain wheels should be 10~15. Clip mouth is back to the
installation.
Adjusting nut
The right side of the bike
Rear nut
The left side of the bike
Parking note:
When you get off, the power switch should be turned off in case of pushing the accelerator by accident
making it out of control.
The power should be turned off when parking.
For your riding safety and for the R3's superb condition, please maintain and clean it regularly.
1.
2.
3.

- 10 -
Battery usage:
Charger usage:
Auxiliary charge: such as short delivery time, users can directly use the battery.If the delivery time
is longer (2 months or longer), the battery will lose power during storage and transport. It is better
to charge the battery before use. To charge it requires plugging the exclusive charge to the battery
charging hole and connecting AC220V power source for 2~4 hours until the charger is full.
The normal charge of the battery: the operation of R3 is also the discharge process of the battery. The
battery should be charged immediately after the use of the power-assisted vehicle.
Please turn off the power if not riding.
The connectors of the battery box should be xed tightly according to the requirements (the battery
box connecting line has been reliably connected before ex-factory). Loosened or wrong connection will
cause the related parts abnormal and lead to serious damage.
Lithium batteries can not be close to open re or high temperature heat source, can not be thrown into
water and can not be exposed in the sun in high temperature season.
Do not disassemble and decompose, as the internal part of them lithium battery has been packaged intactly.
The waste lithium battery of the product is to be recycled by the enterprise or dealer, and the
government designated outlets. Please do not throw away the waste battery, so as not to pollute the
environment.
Carefully check whether the charger's rated input voltage (AC220V) and the grid voltage is consistent.
When the vehicle needs charging,rst connect the battery to the charger, and then connect the charger to
AC power source .The charging indicator is red meaning it is charging. When it turns green, it will take 15
minutes to be fully charged. The charging time is about 2-4 hours (depending on the quantity of remaining
battery).
1.
2.
3.
4.
5.
6.
7.
1.
2.
When charging, please put it in the safe place where children can not touch.
It is not advised to use it when it is not fully charged.
Do not use other brands of chargers, and other brands of batteries are not suitable for the use of the charger.
Do not disassemble, as the charger contains high voltage circuit.
Prevent liquid and metal particles from penetrating into the inside and be aware of falling and impact,
so as not to cause damage during use and storage.
When charging, do not afx any items.
Matters needing attention in charging:
1.
2.
3.
4.
5.
6.

- 11 -
Do wear helmet, gloves, elbow/knee pads or other necessary protection gears.
Do conrm the reliability of brake, saddle, frame, handle and wheels in case of accidents.
Riders should pedal it when climb bridge, ride against the wind and overload.
Do not ride on the bumpy and wet roads, such as earth road, cobbled road or snowing and watery roads, in
case of accidents and danger.
Do not put items in the handles as it may be out of control.
R3 is only suitable for one person to ride. Do not carry person in the storage rack.
Do not ride Airwheel in extremely cold winter.
Do not ride Airwheel in the rain.
Don't ride overspeed in the downhill. If brake, do not use the front brake in high-speed riding, in case of
danger.
Do not inject oil in the brake in case of braking failure.
Do not allow pregnant woman, children under 15 or the aged above 60 to ride Airwheel.
Drunk or drug riding Airwheel is prohibited. People with constrained action and reaction capacity are not
allowed to ride Airwheel.
Do not ride Airwheel in other unadvised situations causing by either personal or objective reasons.
R3 is not suitable for long-distance travel.
Develop good habits to charge in time. Before ride, please ensure R3 has enough electricity. It is very
important to form the habit of charging in time every day so that the battery can serve you a longer period of
time.
Almost all kinds of batteries will be affected by the environment. In general, the electric discharge
performance is better when the air temperature is high. When the temperature drops to 0 degrees
centigrade, battery power may fall more than 1/3. So, in winter or in cold area, mileage reduction is normal.
When the temperature rises to 20 degrees above, the range will recover.
Do not insert metal objects (such as wires, keys etc.) into the battery charging hole or put in the +/- contact,
so as to avoid the short circuit of the battery, ignition and safety loopholes.
Do not use other brands chargers and accessories or there may occur accidents and Airwheel is not
responsible for the accidents.
Lithium batteries cannot be close to open re, and flammable and explosive corrosive gases.
Do not disassemble and decompose the battery, so as not to damage the internal parts.
It is strictly prohibited to use wire or conductor to connect the battery, so as to avoid danger and damage to the
battery.
The lithium battery should be handled with care, to avoid accidents.
To charge, rst connect the battery charge interface, then the power source.
It needs power off to store. It needs to charge no more than 3 months and then store it.
The company shall not be liable for any loss or damage resulting from self-ret and self-repair, which may cause
you to lose your free warranty scope. If something goes wrong, please contact aftersales personnel.
This product might be limited to use on private road (check the regulations in force in the territory of use).
We recommend using suitable protective equipment.
Attention:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
Airwheel reserves the right of nal interpretation of all the terms and conditions of this User Manual.

- 12 -
Foldable
13
14
15
11
12
⑩
1
2
Adjust the heights of the bike head and saddle to the lowest and fold the kick-stand (see gure 10).
Open the folding steel sheet to separate the folding steel sheet and fastening screw (see Figure 11). Pull
the saddle up (see gure 12- ⑩arrow) and rotate forward the rear wheel to fold (see gure 12- 11 arrow).
Put the fastening screw in the fastening buckle (see Figure 13). Push up the button on the handle (see
gure 14- 12 arrow) and fold down the folding handle(see gure 14- 13 arrow). Fold the head as shown in
Figure 15. Push the pedal up and inward (see gure 16- 14 arrow and 15 arrow) to fold the pedals.
Figure 11
Figure12
Figure 10
Foldable
sheet steel
Figure 16
Figure 13 Figure 14
Figure 15
Button
Fastening buckle
Folding handle
Fastening screw
Fastening screw
Airwheel reserves the right of nal interpretation of all the terms and conditions of this User Manual.

- 13 -

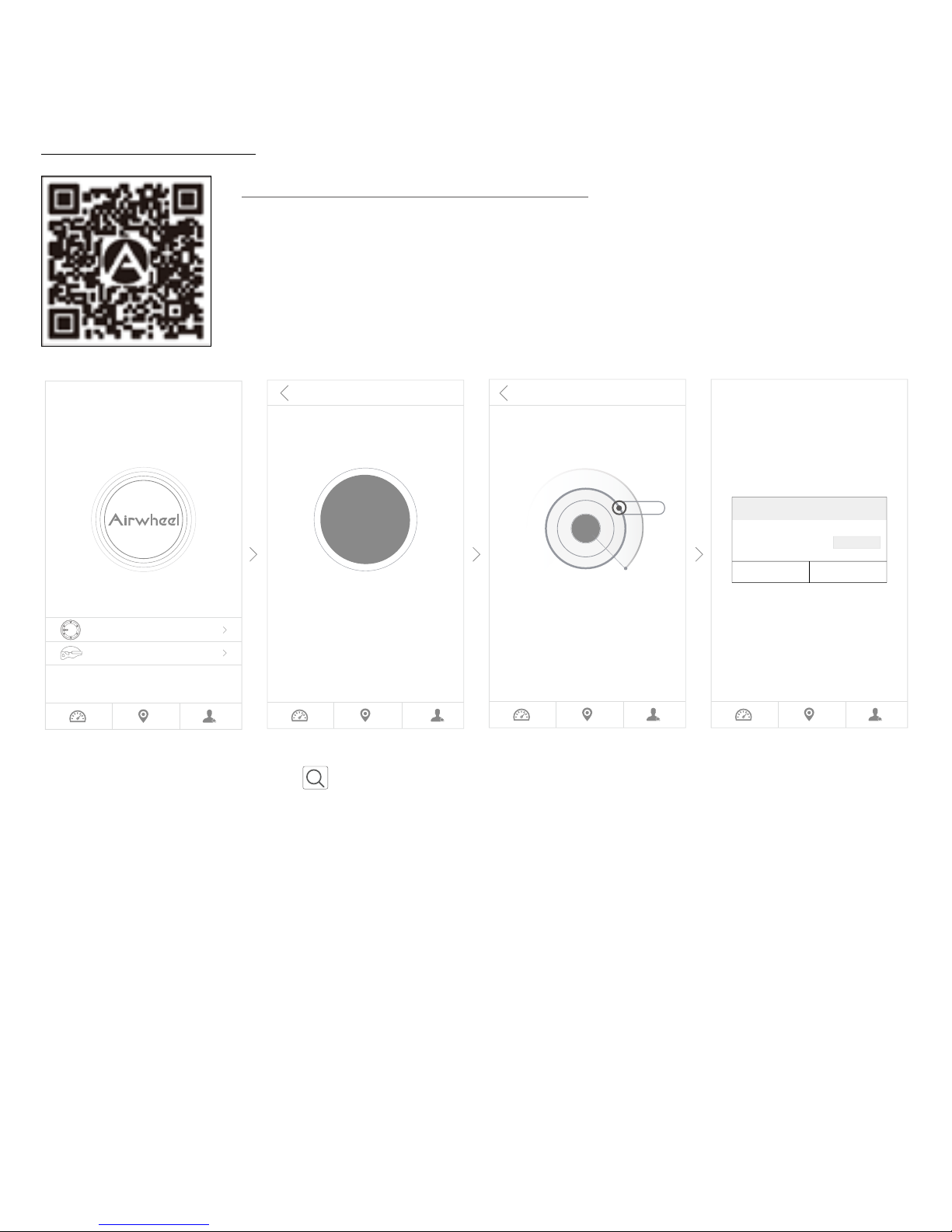

Download APP
Click the Intelligent scooter
in the App interface. Click the search button or . Search Airwheel nearby,click the searched Airwheel model
to connect.
Input the verify password:
11111111 to connect.
Scan QR code to download
*Support Android 4.3 or higher, iOS 7.0 or higher.
APP Instructions
1. Turn on R3 power button, and start App as well as Bluetooth.
2. Click the search button and do as the follows to connect
(verify password is 11111111).
3. Refer to ofcial website or give calls for details.
Bluetooth password authentication
cance lcomfirm
Input verify password 1111111 1
�`�r�n���p�u�$�Q�r� �v�p�r�€ A
Airwheel
Intelligent helmet
Intelligent scooter
Search Devices

- 14 -
Other Functional Instructions
Power indicator
When the power indicator is red, it
is suggested not to ride.
USB charging interface
Chargeable
(compatible with mobile phones
and digital equipment).
Battery box can be disassembled.
Separate the battery box wire
and frame line before removing
the battery box ( to install battery,
insert the battery box rst and then
connect).
Pull the safety pins as the figure
shows, move the battery box in
parallel and take out of the battery
box to charge.
Uncover the dust cap in the battery
box and connect the charger to
charge.
Safety pin
Green light-high power
Yellow light-middle power
Red light-low power
Yellow Black
Motor
connecting
line
E-bike status
Indicator
Power indicator
Low battery indicator
power light
Headlight opening
indicator
25% 50% 75% 100%

- 15 -
Foldable pushing rack (optional,
if any)
Please pay attention to
the direction. The correct
installation of the pushing rack
should be vertical upward. Align
the round holes in the folding
pushing rack to the round holes
in the circular tube of damping
spring. Tighten the two nuts
with open spanner.
Storage rack (optional, if any)
Align the round holes in the
storage rack to the round holes
in rear wheel (left and right).
Align the round holes in the
below middle storage rack to
the round holes in the circular
tube of damping spring. Tighten
the three nuts with open
spanner.
Foldable pushing rack
Storage rack
Front fender
Fender (optional, if any)
Align the front fender and
rear fender to the circular rod
holes in front and rear wheels.
Tighten the front fender with a
screw and nut and rear fender
with wrench.
Front wheel
Rear wheel
Front fender Rear fender
Rear fender
