AIS DTR15T100-A1-PCT User manual

American Industrial Systems - DTR15T100-A1-PCT User Guide Page 1
User Guide
PCT Multi Touch Monitor Display
DTR15T100-A1-PCT

American Industrial Systems - DTR15T100-A1-PCT User Guide Page 2
The information contained in this document is subject to change without notice. This
document contains proprietary information that is protected by copyright © 2013 American
Industrial Systems. All rights are reserved. No part of this document may be reproduced,
translated to another language or stored in a retrieval system, or transmitted by any means,
electronic, mechanical, photocopying, recording, or otherwise, without prior written
permission. Windows is a registered trademark of Microsoft, Inc. Other brand or product
names are trademarks of their respective holders.
American Industrial Systems, Inc.
http://www.aispro.com
The test results show that this device meets the FCC rules. Those limits are set to protect
residential areas from the devices with harmful emission. This device will produce, use and
radiate radio frequency energy. In addition, failure to follow the user’s manual to install or use
this device might produce harmful interference with radio communication. Notwithstanding
the foregoing, it does not guarantee that this type of harmful interference does not occur in
some special installations. The interference caused by this device to the reception of radio or
television signals may be verified by turning it on and off. Any changes or modifications to this
TFT LCD would void the user’s authority to operate this device.
Important Recycle Instruction:
Lamp(s) inside this product contains mercury. This product may contain other
electronic waste that can be hazardous if not disposed of properly. Recycle or dispose in
accordance with local, state, or federal Laws. For more information, contact the Electronic
Industries Alliance at WWW.EIAE.ORG. For lamp specific disposal information check
WWW.LAMPRECYCLE.ORG

American Industrial Systems - DTR15T100-A1-PCT User Guide Page 3
Table of Contents
Introduction .................................................................................................................................................. 5
About DTR15T100-A1-PCT ........................................................................................................................5
Touch Screen for DTR15T100-A1-PCT.............................................................................................................6
Package Overview .....................................................................................................................................7
Installation .................................................................................................................................................... 8
Product Overview .....................................................................................................................................8
Front View............................................................................................................................................. 8
Bottom View .........................................................................................................................................8
Kensington Security Slot ...........................................................................................................................9
VESA Mount for Your Monitor................................................................................................................10
Start Your Installation .............................................................................................................................11

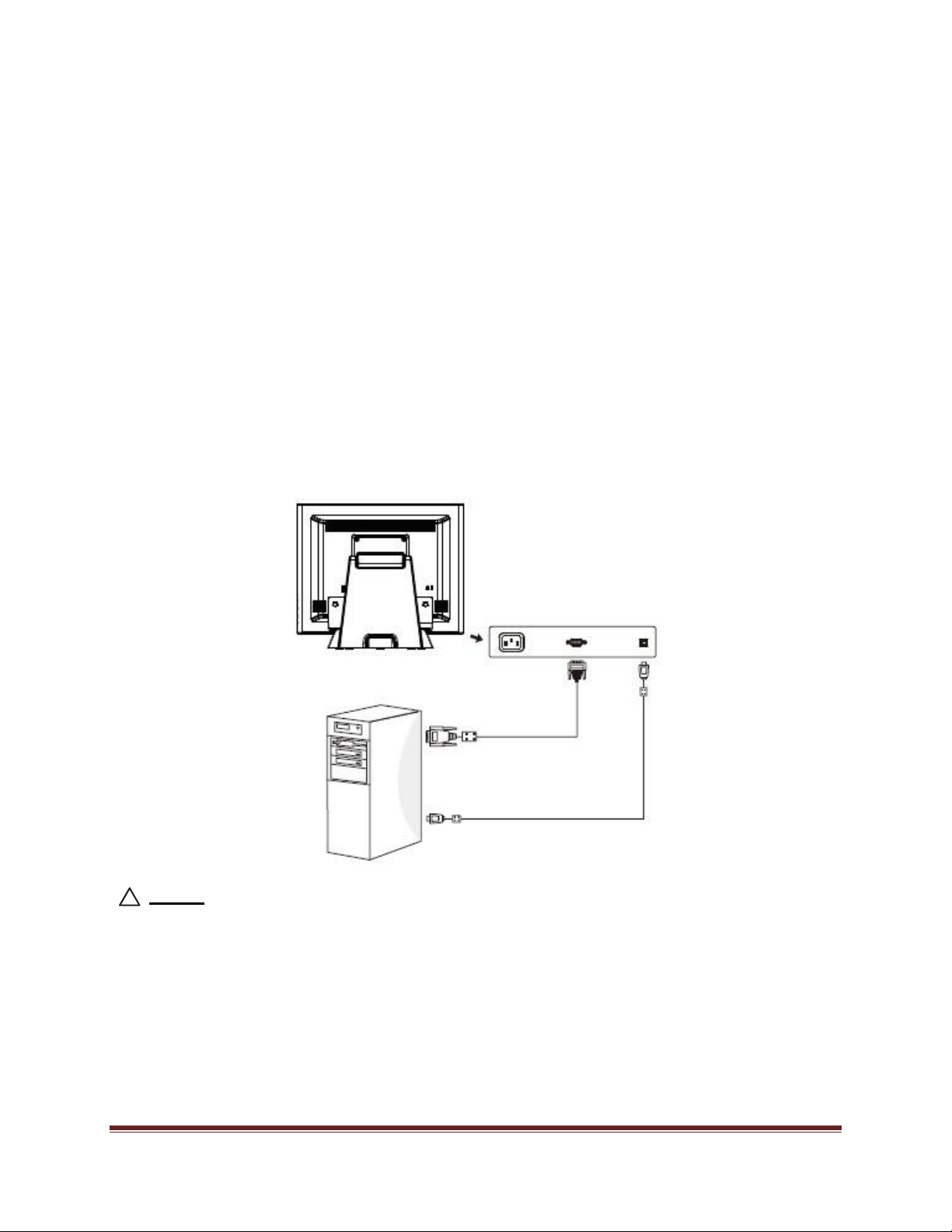

Connecting the Display ...........................................................................................................................12

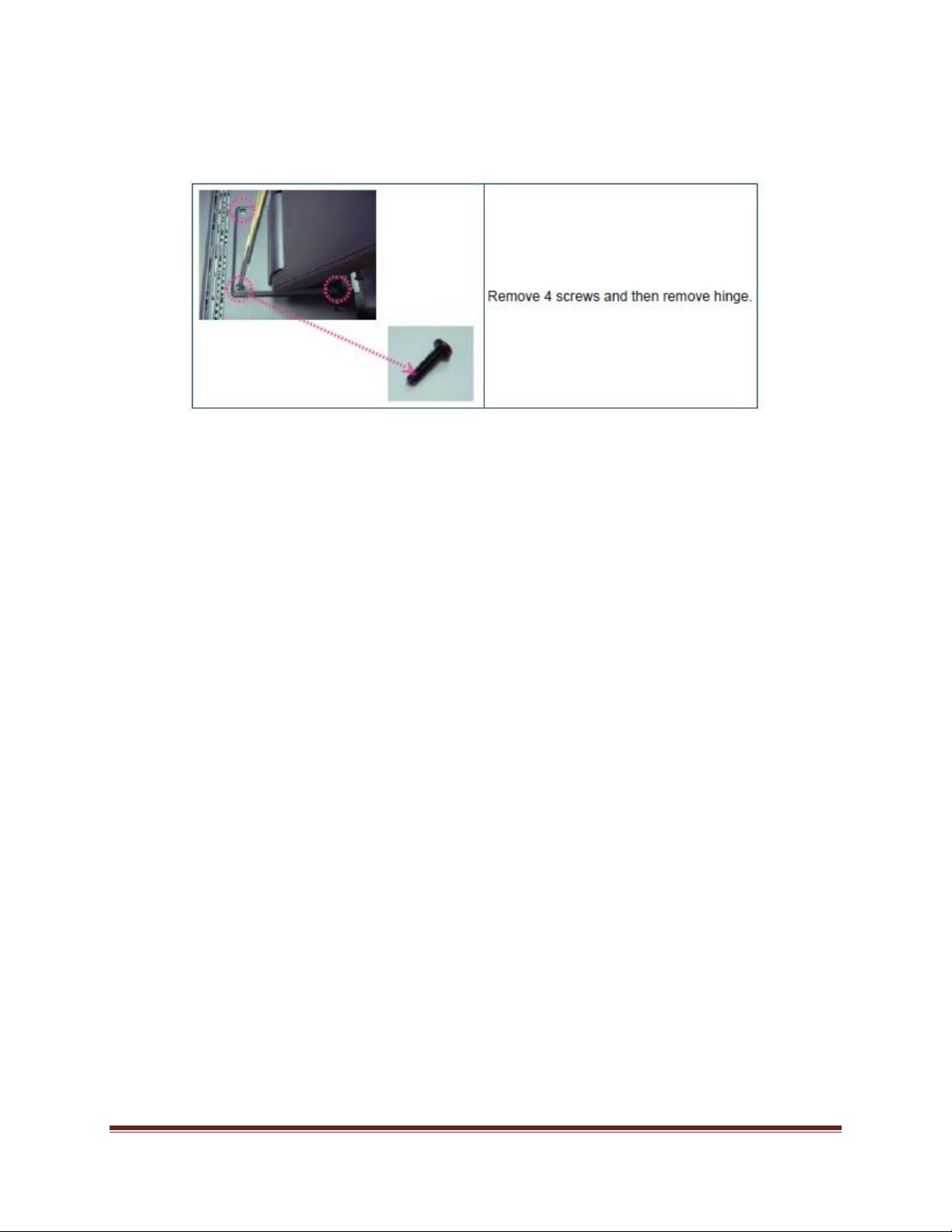

Remove the Deskstand ...........................................................................................................................13
User Controls ..............................................................................................................................................14

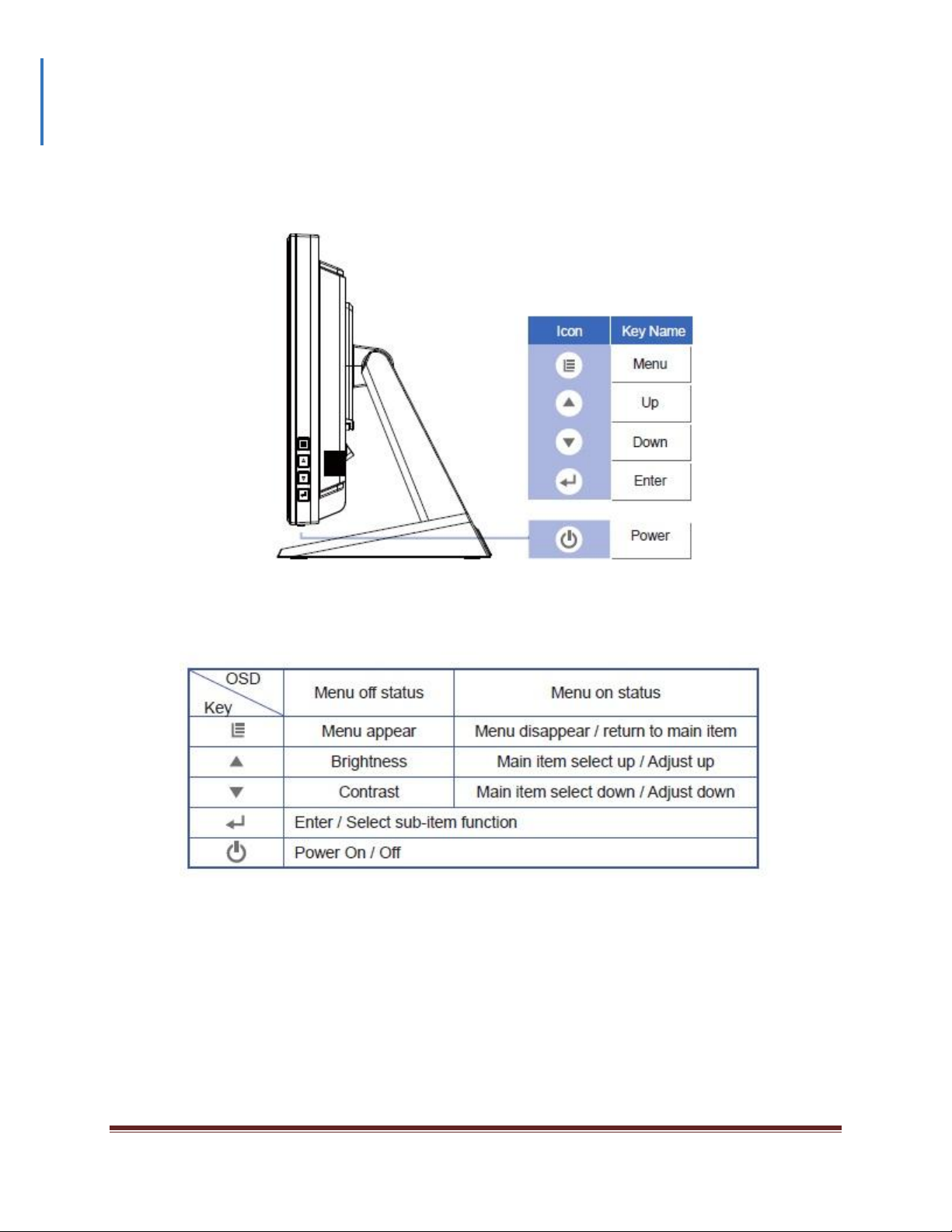

Side Panel Controls .................................................................................................................................14
How to Use the OSD Menus ...................................................................................................................15

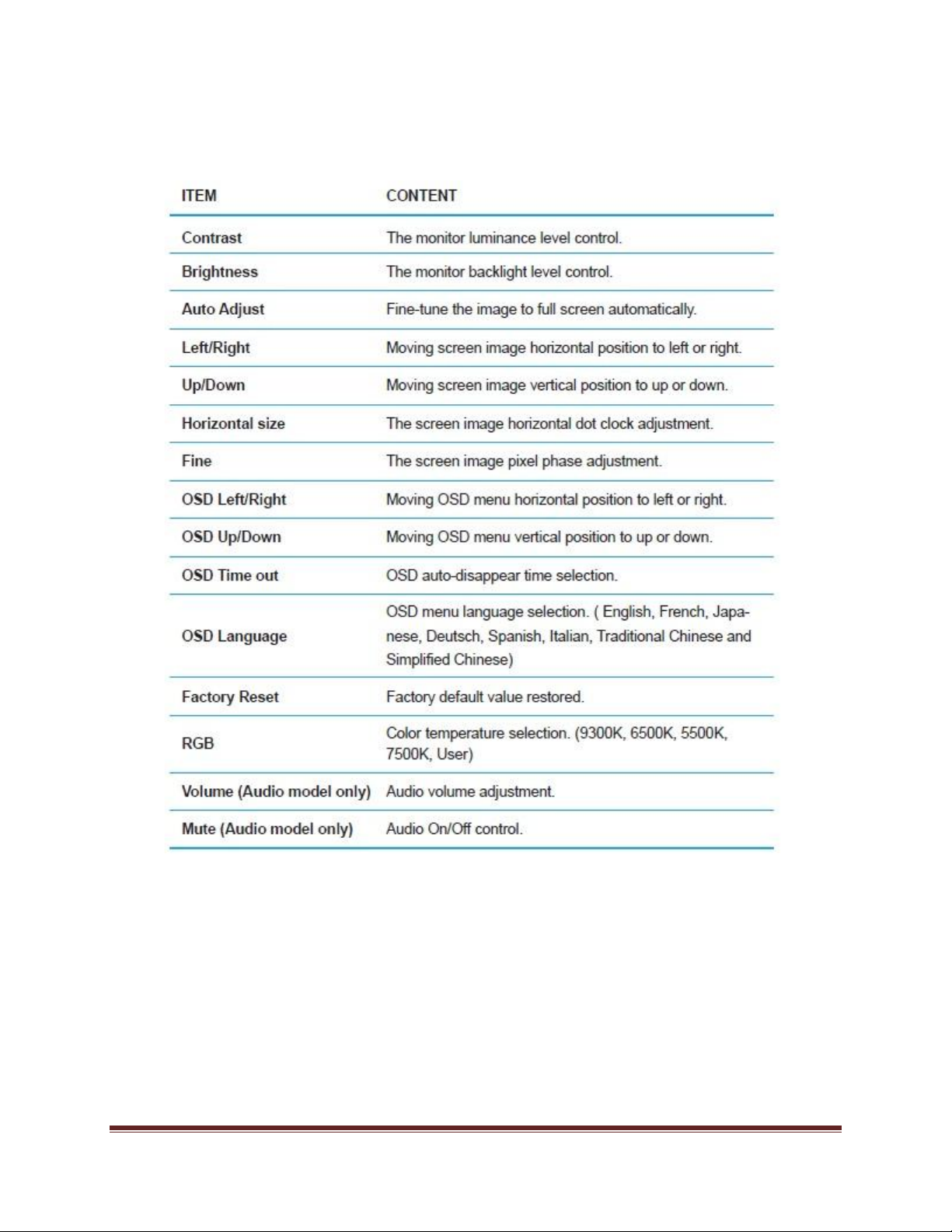

On-Screen Display Menus .......................................................................................................................16
Appendix .....................................................................................................................................................17
Troubleshooting ......................................................................................................................................17
Warning Signal ........................................................................................................................................18
Product Dimension .................................................................................................................................19
Compatibility Modes...............................................................................................................................20
Touch Screen Driver Installation.............................................................................................................21

American Industrial Systems - DTR15T100-A1-PCT User Guide Page 4
Usage Notice
!
Warning!
To prevent the risk of fire or shock hazards, do not expose this product to rain or moisture.
Do not open or disassemble the product as this may cause electrical shock.
Precautions
Follow all warnings, precautions and maintenance as recommended in this user’s manual to
maximize the life of your unit.
Do:
• Turn off the product before cleaning.
• Touch screen surface may be cleaned using a soft clean cloth moistened with mild
window glass commercial cleaners or 50/50 mixture of water and isopropyl alcohol.
• Use a soft cloth moistened with mild detergent to clean the display housing.
• Disconnect the power plug from AC outlet if the product is not going to be used for an
extended period of time.
Don’t:
• Do not touch the LCD Display screen surface with sharp or hard objects.
• Do not use abrasive cleaners, waxes or solvents for your cleaning.
• Do not operate the product under the following conditions:
- Extremely hot, cold or humid environment.
- Areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic field.
- In direct sunlight.

American Industrial Systems - DTR15T100-A1-PCT User Guide Page 5
Introduction
About DTR15T100-A1-PCT
DT = Desk Top
R = Regular width ratio of 4:3
15 = Diagonal viewing area in inches
PCT = Projected Capacitive Touch
The monitor has a flat panel screen with an active matrix, thin-film transistor (TFT) liquid crystal display
(LCD).
Features include:
• Direct Analog signal input
• Active matrix TFT LCD technology
• 1024 x 768 XGA resolution
• 15" viewabledisplay area
• 31.47 ~ 60.02 KHz horizontal scan
• 56 ~ 75 Hz high refresh rate
• 0.297mm x 0.297mm pixel pitch
• Auto adjustment function
• Multilingual OSD user control
• Kensington security slot
• 100 mm VESA mount
• Removable base for flexible mounting solutions.
• Projected Capacitive touch screen with USB controller.

American Industrial Systems - DTR15T100-A1-PCT User Guide Page 6
Touch Screen for DTR15T100-A1-PCT
• Projected capacitive touch screen for finger input only
• Surface: Glare treatment
• Interface: USB controller
• Transmittance: 90±5%
• HID: Windows® 7
• Driver: VISTA, XP, 2000, CE, XP Embedded, Linux, Apple® Mac OS

American Industrial Systems - DTR15T100-A1-PCT User Guide Page 7
Package Overview

American Industrial Systems - DTR15T100-A1-PCT User Guide Page 8
Installation
Product Overview
Front View
Bottom View

American Industrial Systems - DTR15T100-A1-PCT User Guide Page 9
Kensington Security Slot
The monitor can be secured to your desk or any other fixed object with Kensington lock security
products. The Kensington lock is not included.

American Industrial Systems - DTR15T100-A1-PCT User Guide Page 10
VESA Mount for Your Monitor
This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface standard
which defines a physical mounting interface for flat panel monitors, and corresponding with the
standards of flat panel monitor mounting devices, such as wall and table arms. The VESA
mounting interface is located on the back of your monitor.
To mount the monitor on an UL-listed certified swing arm or other mounting fixture, follow the
instructions included with the mounting fixture to be used.
