AIS MILVM15L100-M5-HB-5RT User manual

American Industrial Systems – Military Rugged Display Monitor User Guide Page 1
Table of Contents
1. Introduction------------------------------------------------------------------------------------------- 3
2. Important Instructions------------------------------------------------------------------------------4
2.1 Note on the warranty------------------------------------------------------------------------ 4
2.2 Exclusion of Accident Liability Obligation---------------------------------------------- 4
2.3 Liability Limitation / Exemption from the Warranty Obligation----------------------4
3. Safety Instructions----------------------------------------------------------------------------------- 5
3.1 Electrostatic Discharge (ESD)------------------------------------------------------------- 6
3.2 Grounding Methods--------------------------------------------------------------------------6
User Guide
Military Rugged Display Monitor
15” MILVM15L100-M5-HB-5RT

American Industrial Systems – Military Rugged Display Monitor User Guide Page 2
The information contained in this document is subject to change without notice. This
document contains proprietary information that is protected by copyright © 2013
American Industrial Systems. All rights are reserved. No part of this document may be
reproduced, translated to another language, stored in a retrieval system, or transmitted by
any means, electronic, mechanical, photocopying, recording, or otherwise, without prior
written permission. Windows is a registered trademark of Microsoft, Inc. Other brand or
product names are trademarks of their respective holders.
American Industrial Systems, Inc.
http://www.aispro.com
The test results show that this device meets FCC rules. Those limits are set to protect residential areas
from harmful emissions from the devices. This device will produce, use and radiate radio frequency
energy. In addition, failure to follow the user manual in order to install or use this device might produce
harmful interference with radio communication. Foregoing this information does not guarantee that this
type of harmful interference will not occur in some special instances. The interference caused by this
device to radio or television signals may be verified by turning the device on and off. Any changes or
modifications to this TFT LCD would void the user’s authority to operate this device.
Important Recycle Instruction:
Lamp(s) inside this product contains mercury. This product may contain other electronic waste that can be
hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal Laws.
For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp specific
disposal information check WWW.LAMPRECYCLE.ORG

American Industrial Systems – Military Rugged Display Monitor User Guide Page 3
Table of Contents
1. Introduction ..................................................................................................................................... 5
2. Important Safety Instructions .......................................................................................................... 6
2.1 Electrostatic Discharge (ESD) ..............................................................................................................7
2.2 Grounding Methods............................................................................................................................ 7
2.3 FCC Statement..................................................................................................................................... 7
2.4 Electromagnetic Capability ................................................................................................................. 7
2.5 Important LCD Information.................................................................................................................8
3. Packaging List................................................................................................................................... 9
4. Product Description .......................................................................................................................10
4.1 General Information .........................................................................................................................10
4.2 Introduction ......................................................................................................................................10
4.3 Features ............................................................................................................................................10

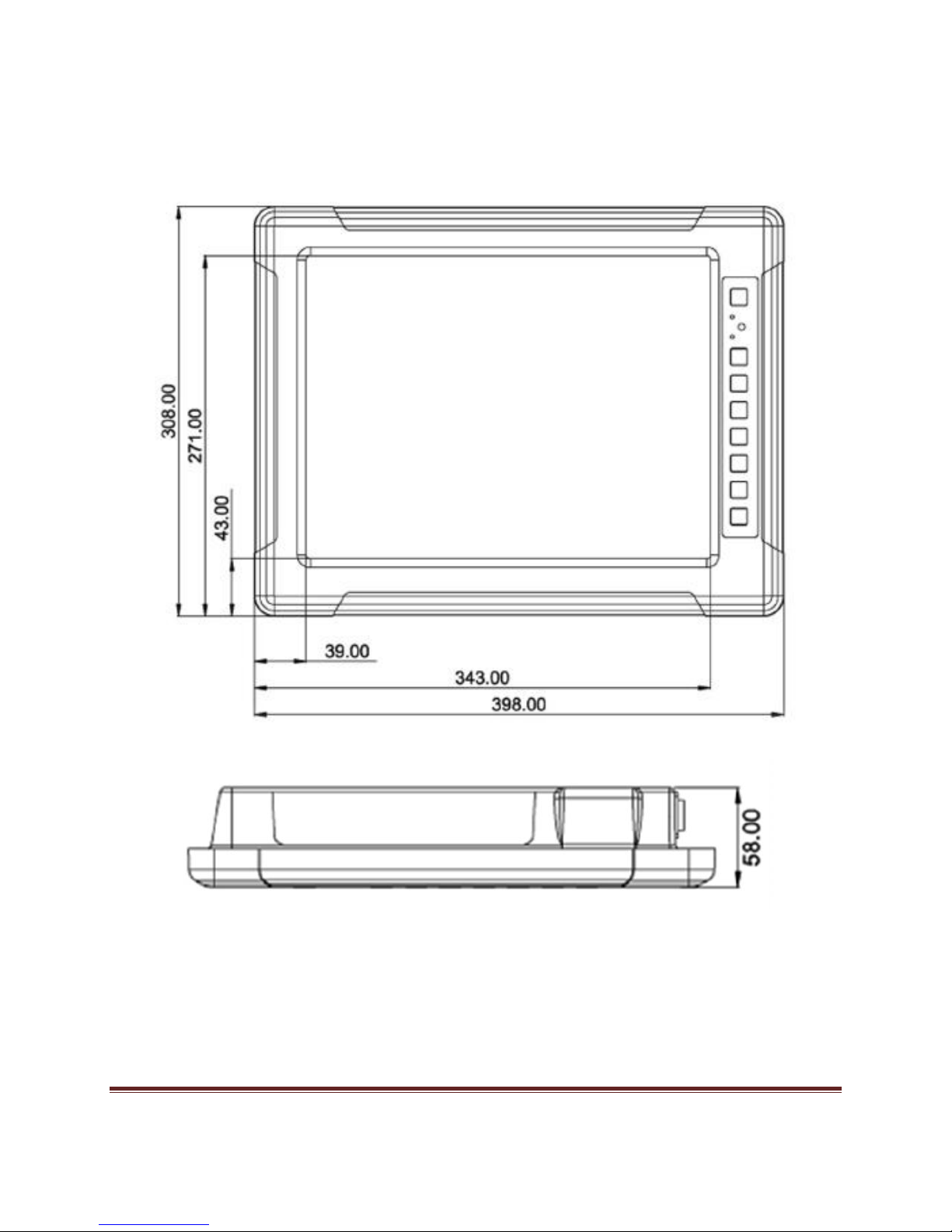

5. Mechanical Drawings.....................................................................................................................11
5.1 MILVM15L100-M5-HB-5RT ...............................................................................................................11

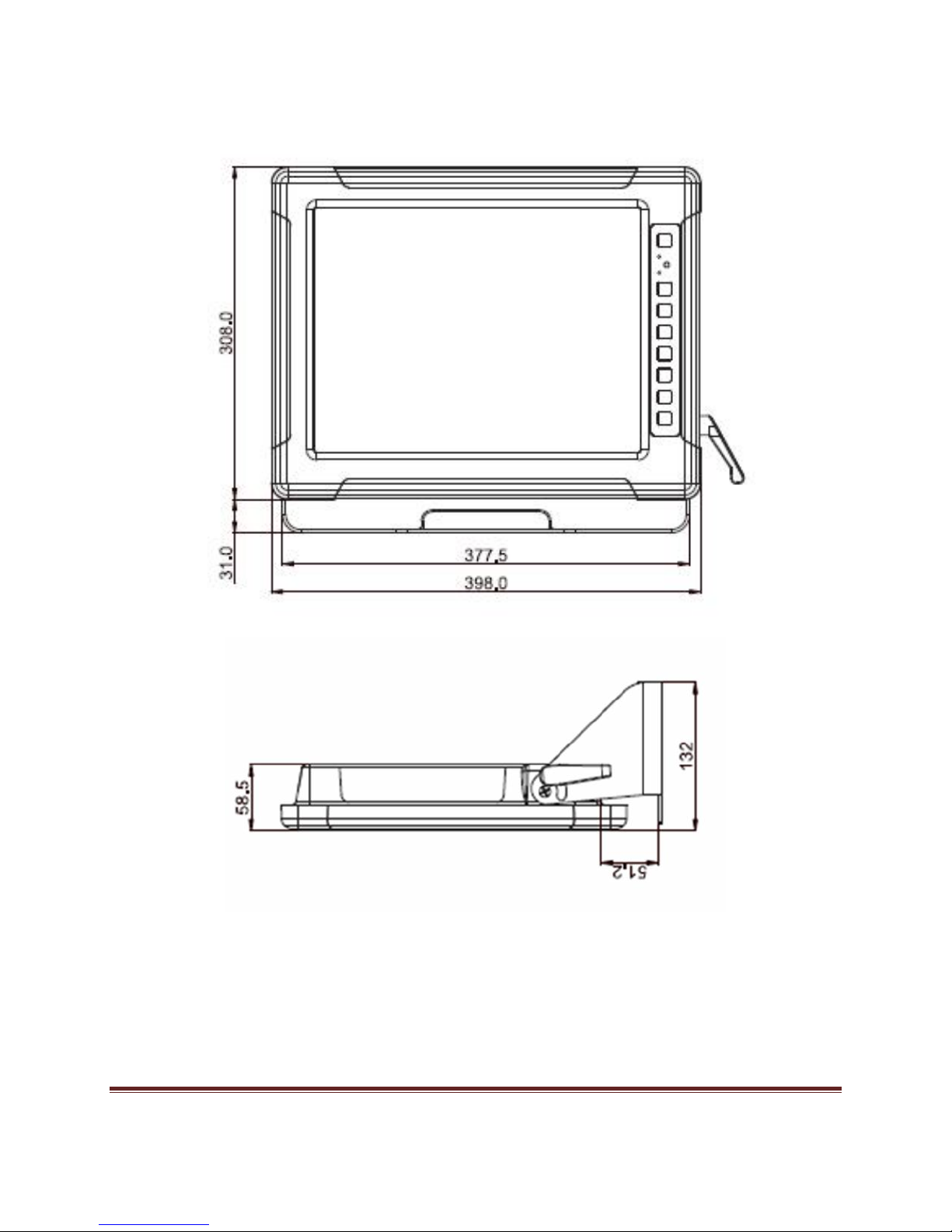

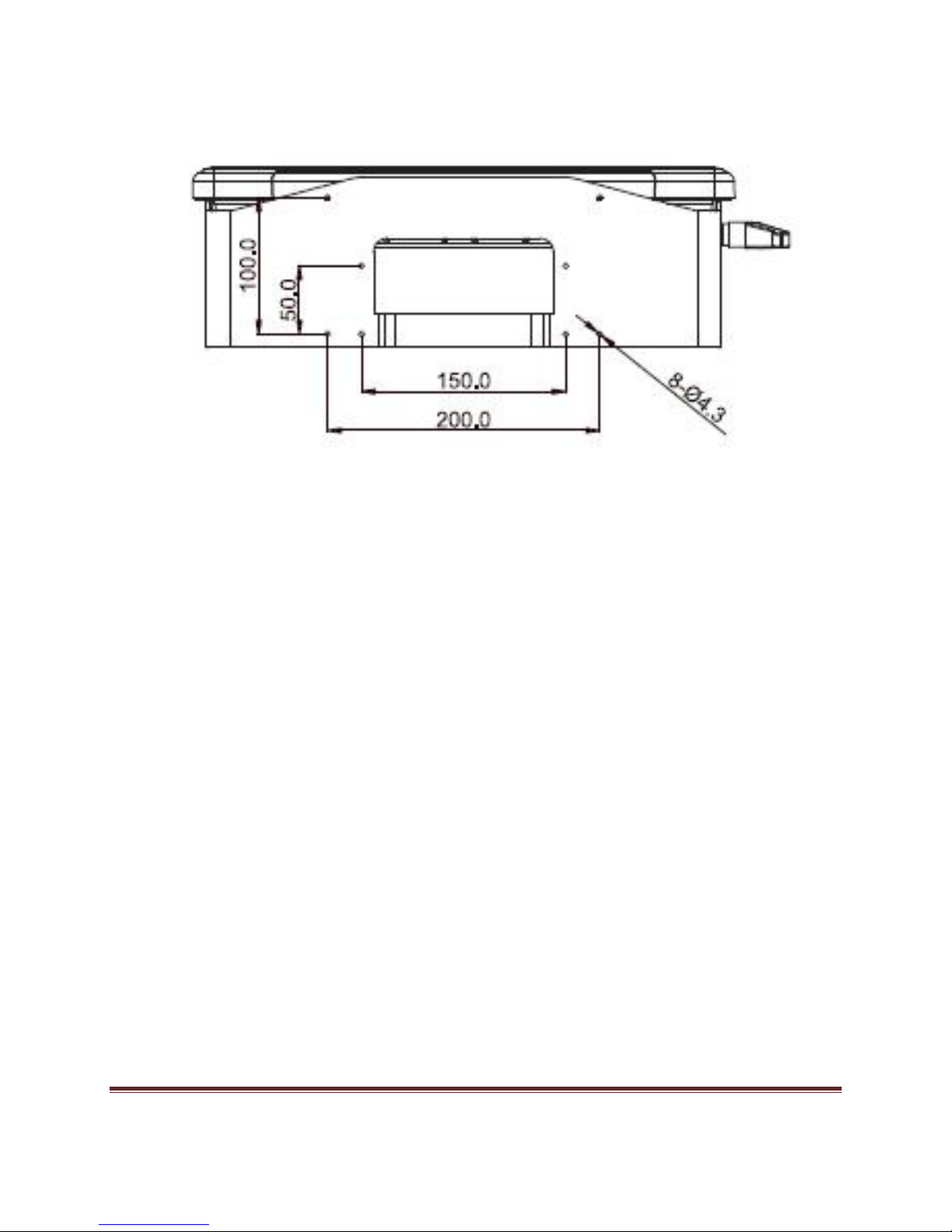

5.2 MILRM20L100-A2 Mechanical Drawings (With Mounting Bracket): ................................................13
6. Touch Screen Solution ...................................................................................................................15
6.1 Introduction to Five-Wire Resistive Touch Screen............................................................................15
7. Installing the Military Grade Display..............................................................................................16
7.1 Military Grade 12VDC (JY27466T09F98PN) ........................................................................................16

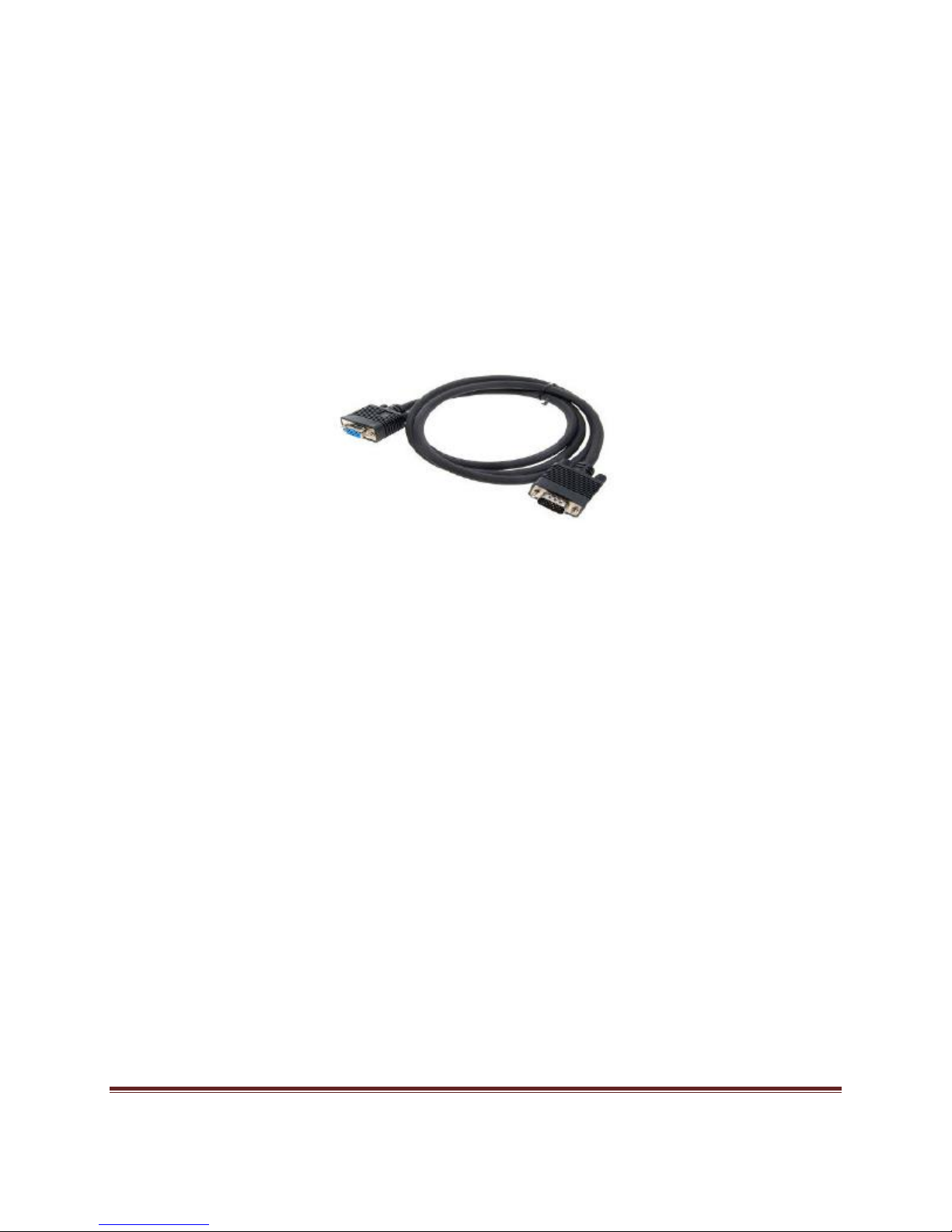

7.2 Signal Cable ....................................................................................................................................... 16
7.2.1 VGA Signal Shielding Cable Connection .....................................................................................16
8. LCD Display Operation ...................................................................................................................17

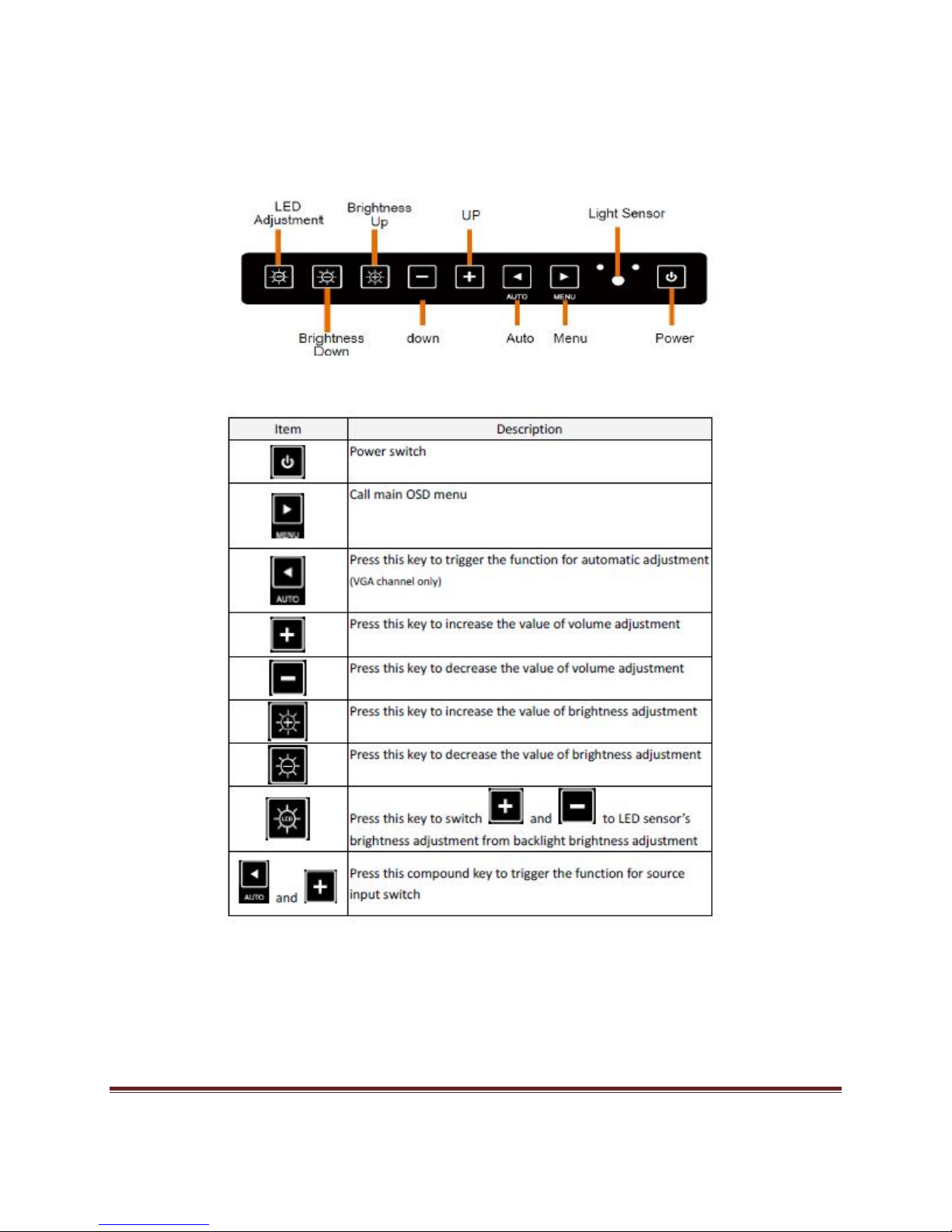

8.1 OSD User Controls.............................................................................................................................17
8.2 Navigating the OSD Menu.................................................................................................................18
8.3 OSD Menu on VGA Mode..................................................................................................................19
8.4 OSD Menu on DVI Mode...................................................................................................................22
8.5 OSD Menu Summary.........................................................................................................................24
8.6 Simple Troubleshooting Guide..........................................................................................................25
8.6.1 Brief FAQ ....................................................................................................................................25

American Industrial Systems – Military Rugged Display Monitor User Guide Page 4
8.6.2 Additional Troubleshooting Chart: ............................................................................................ 26
9. Appendix ........................................................................................................................................27
9.1 Cleaning the Monitor ........................................................................................................................27
9.2 Touch Screen Driver Installation .......................................................................................................28
9.3 RMA (Return Material Authorization) Service ..................................................................................29

American Industrial Systems – Military Rugged Display Monitor User Guide Page 5
1.0 Introduction
This user manual is designed for American Industrial Systems, Inc. Military Rugged Display Monitor.
Included is a comprehensive overview of the Military Rugged Display Monitor systems designed by
American Industrial Systems.
All rights are reserved. None of this document shall be duplicated, stored in a retrieval system, or
transmitted by all means, electronic, mechanical, photocopying, recording, or otherwise, without the
prior written permission of American Industrial Systems, Inc. No copyright or patent liability is assumed
with respect to the use of the information included herein. Although every precaution has been taken in
the preparation of this documentation, neither responsibility is assumed for errors or omissions by the
publisher and the author, nor is any liability assumed for damages caused by the use of the information
included herein.
The information in this documentation is subject to change without prior notice and does not stand for a
commitment on the part of American Industrial Systems, Inc.
The information included in this manual may be subject to technical changes especially due to constant
product upgrades.
The attached documentation does not involve any guarantee on the part of American Industrial Systems,
Inc. regarding technical processes described in the manual or any product characteristics specified in the
manual. American Industrial Systems, Inc. does not accept any liability for any printing errors or other
inaccuracies in the manual unless it can be proven that American Industrial Systems, Inc. is aware of such
errors or inaccuracies or that American Industrial Systems, Inc. overlooks these as a result of gross
negligence and American Industrial Systems, Inc. has failed to get rid of these errors or inaccuracies for
this reason.
American Industrial Systems, Inc. clearly informs the users that this manual only encloses a general
description of technical processes and instructions which may not be applicable in every single case. In
cases of doubt, please contact American Industrial Systems.
This manual is protected by copyright. All rights are reserved by American Industrial Systems, Inc. Copies
of all or part of this manual or translations into different languages may only be made with the prior
written consent. American Industrial Systems, Inc. points out that the information included in this manual is
constantly being updated in line with the technical changes and improvements made by American
Industrial Systems, Inc. to the products and thus this manual only reflects the technical status of the
products at the time of printing.
© 2013 by American Industrial Systems, Inc.

American Industrial Systems – Military Rugged Display Monitor User Guide Page 6
2.0 Important Safety Instructions
This chapter also includes information on approval and interference inhibition of your unit. Please abide
by the warnings and instructions on the unit and in the manual. Please read these instructions carefully
before using the product and save it for later reference.
Follow all warnings and instructions marked on the product.
Unplug this product from the wall outlet before cleaning. Clean the product with a damp soft
cloth. Do not use liquid or aerosol cleaners as it may cause permanent damage to the screen.
Do not use this product near water.
Do not place this product on an unstable cart, stand, or table. The product may fall, causing
serious damage to the product.
This product should be operated from the type of power indicated on the marking label. If you are
not sure of the type of power available, consult your dealer or local power company.
This product is equipped with a 3-wire grounding type plug, a plug having a third (grounding) pin.
This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet.
(For AC version only) Do not defeat the purpose of the grounding-type plug.
Do not allow anything to rest on the power cord.
Do not locate this product where persons will walk on the cord.
Never push objects of any kind into this product through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in a risk of fire or electric shock.
Never spill liquid of any kind on the product.
Do not attempt to service this product yourself, as opening or removing covers may expose you to
dangerous voltage points or other risks and will void the warranty. Refer all servicing to qualified
service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service personnel under
the following conditions:
When the power cord or plug is damaged or frayed. If liquid has been spilled into the
product.
If the product has been exposed to rain or water.
If the product does not operate normally when the operating instructions are followed.
Adjust only those controls that are covered by the operating instructions since improper
adjustment of other controls may result in damage and will often require extensive work
by a qualified technician to restore the product to normal operation.
If the product has been dropped or the cabinet has been damaged.
If the product exhibits a distinct change in performance, indicating a need for service.
The Military Rugged Display Monitor, Display system was built and tested by American Industrial
Systems, Inc. in accordance to prescribed safety conditions, and in a safe condition.
In order to retain this condition and maintain safe operation, the users must abide by the instructions and
warnings
The electrical installations in the room must not violate the requirements of the local (country-specific)
regulations.
The unit must be used in accordance with these instructions.
Pay close attention that there are no cables, especially power cables, in areas where ambulatory traffic
may interfere.
Only use the power cord supplied with the package. Don't use injured or damaged power cords.

American Industrial Systems – Military Rugged Display Monitor User Guide Page 7
2.1 Electrostatic Discharge (ESD)
A sudden discharge of electrostatic electricity can damage electrostatic-sensitive devices or circuit.
Adequate packaging and grounding techniques are essential fundamentals to avoid damage. The
following precautions should be always taken:
1. Deliver printed circuit boards in electrostatic-safe containers such as cartons, boxes or anti-static
bags.
2. Keep electrostatic-sensitive parts in their containers until they reach an electrostatic-free station.
3. Follow adequate grounding when sensitive PCB’s, components, or assemblies are in close vicinity
of the unit.
4. Store electrostatic-sensitive PCB's in a protective packaging such as insulating foam.
2.2 Grounding Methods
Protect against electrostatic damage of the unit by taking the following preventative measures:
1. Cover workstations with approved anti-electrostatic material.
2. In order to guarantee that the operator is grounded, provide a wrist strap connected to the working
bench.
3. Properly ground tools and equipment.
4. For extra protection use anti-electrostatic mats, heel straps, or air ionizers.
5. Handle electrostatic-sensitive components, PCB's, and assemblies with care nearby the case or the
edge of the board.
6. Prevent contact with pins, leads, or circuitry.
7. Switch off power and input signals before plugging and removing connectors or testing equipment.
8. Keep the work area free from non-conductive materials such as ordinary plastic assembly aids and
Styrofoam.
9. Use field service tools with conductivity, such as screwdrivers, pliers, and vacuum cleaners.
10. Always put drives, PCB’s, and the like with the component-side down on the working bench.
2.3 FCC Statement
This equipment has been tested and found to comply with the requisites for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection from
harmful interference when the equipment is operated in commercial environments. This equipment
generates, uses, and radiates radio frequency energy, and if it is not installed and used in accordance with
the instruction manual it may cause harmful interference to radiofrequency communications. Operation of
this equipment in residential areas may cause harmful interference in which case the operator will be
required to correct the interference at his or her own expense.
2.4 Electromagnetic Capability
The Military Rugged Display Monitor has been designed for industrial use. The most recent version of the
EMC guidelines (EMC Directive 2004/108/EC) are applied. If the users modify and/or add to the
equipment (e.g. installation of add-on cards), then the prerequisites for the CE conformity declaration
(safety requirements) may no longer be applicable.

American Industrial Systems – Military Rugged Display Monitor User Guide Page 8
2.5 Important LCD Information

American Industrial Systems – Military Rugged Display Monitor User Guide Page 9
3.0 Packaging List
Item
Description
Note
1 User Manual
1 CD for Touchscreen Drivers & Tools
1 Standard VGA Cable.
D-SUB 15pin Male to 15pin Male: 1.8m
1 Power Cord

American Industrial Systems – Military Rugged Display Monitor User Guide Page 10
4.0 Product Description
4.1 General Information
AIS offers a wide range of extremely rugged display monitors, including multi-function display (MFD)
and military rugged displays with ruggedized touchscreen LCD interface, compliant with military (MIL-
STD, MIL-SPEC, or MilSpecs) standards, specifically designed for the COTS military marketplace, and
are used in rugged, wheeled and tracked military vehicles, as well as ground control stations. AIS military
rugged displays have the following certification ratings: MIL-STD-810 standard for drops, shocks,
vibration, humidity, altitude, rain, dust and sand-resistance, temperature extremes; and MIL-STD-461
standard for EMI and EMC, for size, weight, and power (SWaP); and ideal for constrained military,
ground army, homeland defense, air traffic management (ATM) and air traffic control (ATC) applications.
AIS custom rugged displays also offer excellent performance in terms of brightness, crispness, contrast
and viewing angle. The bezel and mounting design can be customized to address virtually any type of
mounting requirement in various applications. AIS ruggedized displays have been designed and qualified
for deployment in the most hostile environments for specific ground army applications. AIS is certified
ISO 9001:2008, maintains an International Traffic in Arms Regulations (ITAR) compliance program, and
is registered with the US State Department Office of Defense Trade Controls Compliance (DTCC). AIS
full-range selection of COTS military rugged LCD display monitors are offered in screen sizes 8.4", 10.4",
15", 17" 19" and 20.1".
4.2 Introduction
AIS 15" standard multi-function display (MFD), a COTS cost-effective military rugged touch screen
display monitor, is fit for a full range of command and control applications used in ground vehicles. It
features a fully-integrated 15 inch color TFT, 1024 x 768 XGA, 800 nits brightness, 700:1 contrast ratio,
160° (H) and 140° (V) viewing angle, 1 x VGA JY27466T11F35PN MIL Spec connector, 1 x 12V DC
JY27466T09F98PN MIL Spec connector, 1 x resistive touch screen interface JY27466T11F35PN MIL
Spec connector (RS-232); aluminum enclosure and anti-corrosion treatments, IP65 on console level ,
compliant with MIL-STD 461 for EMI and EMC, compliant with MIL-STD-810 and IEC60068-2-27 for
anti-vibration and anti-shock, -25°C to 60°C (-13°F to 140°F) operating temperature. Optional feature is:
vehicle mounting kit. AIS offers multi-function display customization design service to meet customer-
specific platform requirements and MIL-SPEC: MIL-STD-810G, MIL-STD-461F, MIL-STD-1275D,
MIL-DTL-38999L, and MIL-STD-3009.
4.3 Features
Tested to MIL-STD-810 standard methodology for a range of extreme conditions including drops,
shocks, vibration, humidity, altitude, rain, dust and sand-resistance, temperature extremes and thermal
shock.
Multi-function display customization design service to meet customer-specific platform requirements
and MIL-SPEC: MIL-STD-810G, MIL-STD-461F, MIL-STD-1275D, MIL-DTL-38999L, and MIL-
STD-3009.
Touchscreen/Anti-reflection Protection Glass
IP65 OSD (On Screen Display) Front Panel Design
Anti-shock and Vibration

American Industrial Systems – Military Rugged Display Monitor User Guide Page 11
5.0 Mechanical Drawings
5.1 MILVM15L100-M5-HB-5RT

American Industrial Systems – Military Rugged Display Monitor User Guide Page 12
5.1 MILVM15L100-M5-HB-5RT Mechanical Drawings Continued:

American Industrial Systems – Military Rugged Display Monitor User Guide Page 13
5.2 MILRM20L100-A2 Mechanical Drawings (With Mounting Bracket):

American Industrial Systems – Military Rugged Display Monitor User Guide Page 14
5.2 MILRM20L100-A2 Mechanical Drawings (With Mounting Bracket) Continued:

American Industrial Systems – Military Rugged Display Monitor User Guide Page 15
6.0 Touch Screen Solution
6.1 Introduction to Five-Wire Resistive Touch Screen
The five-wire resistive touchscreens use a glass panel with a uniform resistive coating. A thick polyester
coversheet is tightly suspended over the top of the glass, separated by small, transparent insulating dots.
The coversheet has a hard, durable coating on the outer side and a conductive coating on the inner side.
When the screen is touched, the conductive coating makes electrical contact with the coating on the glass.
The voltages produced are the analog representation of the position touched. The controller digitizes these
voltages and transmits them to the computer for processing. The five-wire technology utilizes the bottom
substrate for both X and Y-axis measurements. The flexible coversheet acts only as a voltage-measuring
probe. This means the touchscreen will continue working properly even with non-uniformity in the cover
sheet's conductive coating. The result is an accurate, durable and reliable touchscreen that offers drift free
operation. The touchscreens are sealed against contamination and moisture. The coversheet is sealed to
the glass substrate with an industrial grade caulk. This prevents wicking of fluid between the coversheet
and glass. Also, the touchscreens are not air vented, thereby preventing fluid ingress through an air vent.
Brief Specifications:

American Industrial Systems – Military Rugged Display Monitor User Guide Page 16
7.0 Installing the Military Grade Display
7.1 Military Grade 12VDC (JY27466T09F98PN)
1. Switch off the power on both your monitor and your computer. The power switch is located in
the front side of the monitor
2. Connect one end of the military grade power connector to the monitor, and the other end to the
power source.
7.2 Signal Cable
7.2.1 VGA Signal Shielding Cable Connection
1. Plug one end of the 15-pin signal cable to the video signal
connector at the rear end of the PC system and the other end of
the cable to your military display.
2. Secure the connectors with the screws on the cable connector at
both ends.

American Industrial Systems – Military Rugged Display Monitor User Guide Page 17
8.0 LCD Display Operation
8.1 OSD User Controls

American Industrial Systems – Military Rugged Display Monitor User Guide Page 18
8.2 Navigating the OSD Menu
1. To display the main menu
a. Press the MENU button
2. To select the category that you want to adjust
a. Press the +/- button to shift up or down until the selected item is desired. Then
press the MENU button again to enter the menu for that selected item.
3. To adjust the setting for a particular item
a. Press the +/- button to adjust the value of that setting. Once you adjust the value
to the desired setting, it will be stored automatically.
b. To exit the OSD menu
i. Select the EXIT OSD menu item, or press the EXIT key. If there is no
response, or an exit command, wait for 30 second and the OSD menu is
programmed to exit automatically.

American Industrial Systems – Military Rugged Display Monitor User Guide Page 19
8.3 OSD Menu on VGA Mode

American Industrial Systems – Military Rugged Display Monitor User Guide Page 20
