Aiwa ACD18-KBTU User manual

EN
ACD18KBTU
ACD24KBTU
Wi-Fi Function User Manual
THIS DESCRIPTION IS APPLIED TO AIR CONDITIONERS WITH
WIFI FUNCTION. PLEASE READ THE MANUAL CAREFULLY BEFORE
USING THE PRODUCT AND KEEP IT FOR FUTURE REFERENCE.

STATEMENTS

EN
INDEX
WIFI MODULE SPECIFICATION AND OPERATION GUIDELINE............................................................................................................................................................................4
INSTALL THE WIFI MODULEOPTIONAL.......................................................................................................................................................................................................................................................5
DOWNLOAD AND INSTALL THE APP....................................................................................................................................................................................................................................................................... 9
ACTIVATE APP..................................................................................................................................................................................................................................................................................................................................................14
REGISTRATION................................................................................................................................................................................................................................................................................................................................................. 18
LOGIN................................................................................................................................................................................................................................................................................................................................................................................ 22
ADD DEVICE.........................................................................................................................................................................................................................................................................................................................................................26
AIR CONDITIONER CONTROL.............................................................................................................................................................................................................................................................................................29
ACCOUNT MANAGEMENT...........................................................................................................................................................................................................................................................................................................31
TROUBLE SHOOTING.......................................................................................................................................................................................................................................................................................................................... 35

4A18-/ A24-
WIFI MODULE SPECIFICATION AND OPERATION GUIDELINE
1. Minimum specifications on a Smart phone:
Android 5.0 version or higher
IOS 9.0 version or higher
2. Basic parameters for Wi-Fi module
Parameters Details
Network frequency 2.400 - 2.4835GHz
Standards of WLAN IEEE 802.11 b/g/n
(channels 1-14,channels 1-13 for EU/AU,channels 1-11 for US/CA)
Protocol stack support IPv4/TCP/UDP/HTTPS/TLS/DNS
Security support WEP/WPA/WPA2/AES128
Network type support STA/AP/STA+AP
Max. RF Power 18.5 dbm
Blue tooth frequency 2.402 - 2.480GHz
Blue tooth RF Power 9 dbm
3. Operation guideline. Please take below simple
guideline instruction as reference
Operation
Steps Operation Items New Account Re-install APP (registered before)
Step 1 Download and
Install APP
YES YES
Step 2 Activate APP YES YES
Step 3 Registration
Account
YES NO
Step 4 Login YES YES
Step 5 Add Device to control YES Registered Device will
remain
Note
If you registered the account and added device before,
when you re-install the APP again and login, the added
device will remain.

A18-/ A24- 5
EN
INSTALL THE WIFI MODULE OPTIONAL
1. Open the panel of indoor unit.
2. Take off the cover of USB Wi-Fi, follow the arrow and
insert the USB Wi-Fi module into the reserved USB
slot on the frame.

6A18-/ A24-
DOWNLOAD AND INSTALL THE APP
ACTIVATE APP
For Android Smartphone
Method 1: Please scan the QR code with a browser
scanner, download and install the APP.
Method 2: Open the Google "Play Store" on your smart
phone and search "SmartLife-SmartHome", download
and install the APP.
Note:
Please enable the permissions of Storage/Location/
Camera for this APP when installing.
Otherwise it will have some problems when
operating.
SmartLife-SmartHome
For IOS Smartphone
Method 1: Please scan the QR code and follow the tips
to get into "AppStore", download and install the APP.
Method 2: Open the Apple "AppStore" on your smart
phone and search "SmartLife-SmartHome", download
and install the APP.
The first time the app is used, it will need activating.
1. Launch the APP "Smart Life" on your smart phone.
SmartLife-SmartHome

A18-/ A24- 7
EN
REGISTRATION
2. Method 1: Tap button "Scan" and scan the right
Activate QR code
Scan
Scan the activation QR code
from instructions or device
or Enter Activation Code
or Enter Activation Code
CANCEL CONFIRM
******
Method 2: Tap "or Enter Activation Code" in bottom
of the screen, then enter the activate code and tap
"CONFIRM".
Activate QR code and activation code
Note:
Without the QR code or activation code, you can't
active the APP and using it, please keep them safe.
1. If you don't have any account please tap button
"Register". 2. Read the Privacy Policy and tap "Agree".
Log in with Existing Account
Register
We understan dthe importance of
privacy. Inorder to more fully present
policy and user agreemen tin detail in
accordance with the latest laws an d
have fully read ,understood and accepted
all of the update dPrivacy Policy and User
become familiar with our privacy policy,
free to contac tus.
Privacy Policyand User Agreemen t
Disagree Agree
EN

8A18-/ A24-
3. Tap">" and choose the country.
4. Enter your e-mail address.
5. Tap the button "Obtain verification code".
1. Tap "Log in with existing account".
2. Enter your registered account and password.
3. Tap "Log in" button.
6. Enter the verification code you received from
e-mail.
7. Set the Password with 6-20 characters including
characters and numbers.
8. Tap "Done".
LOGIN
Enter verification
code
*****@****,Resend(55s)
* * * * * *
<
Set Password
6-20 characters for password, including character, numbers
******
<
Done
Enter your
account
here
Enter your
password
Login
******* >
***********
<
Login means that you agree with User Agreement and
Privacy Policy
Log in
******
Forgot password
Log in with Existing Account
Register
g

A18-/ A24- 9
EN
The first time the APP is used, Create family is
needed:
1. Tap "Create family".
2. Make name for the family.
3. Set thelocation.
4. Choose default rooms or add new rooms.
5. Tap "Done" and "Completed".
Living Room Master Bedroom
Second Bedroom Dining Room
Kitchen Study Room Porch
Balcony Kids Room Closet
Room Name
<Add Room Done
Recommended
*******
Family created successfully
View family Completed
Turn on your smart life
Create family
Log out
#
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
Family Name
<Add family Done
Family Location Set location >
Smart devices in rooms:
Living Room
Master Bedroom
Second Bedroom
Dining Room
Kitchen
Study Room
Add Room
You can change the room settings anytime
My home
Allow Smart Life to access this device's
ALLOW ONLY WHILE IN USE
ALLOW ALL THE TIME
DENY
CANCEL CONFIRM
#
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
Choose the recommended room
or make a new room, then tap
Done.
Note:
The app can open the map on
your phone and you can set
the location where you are.

10 A18-/ A24-

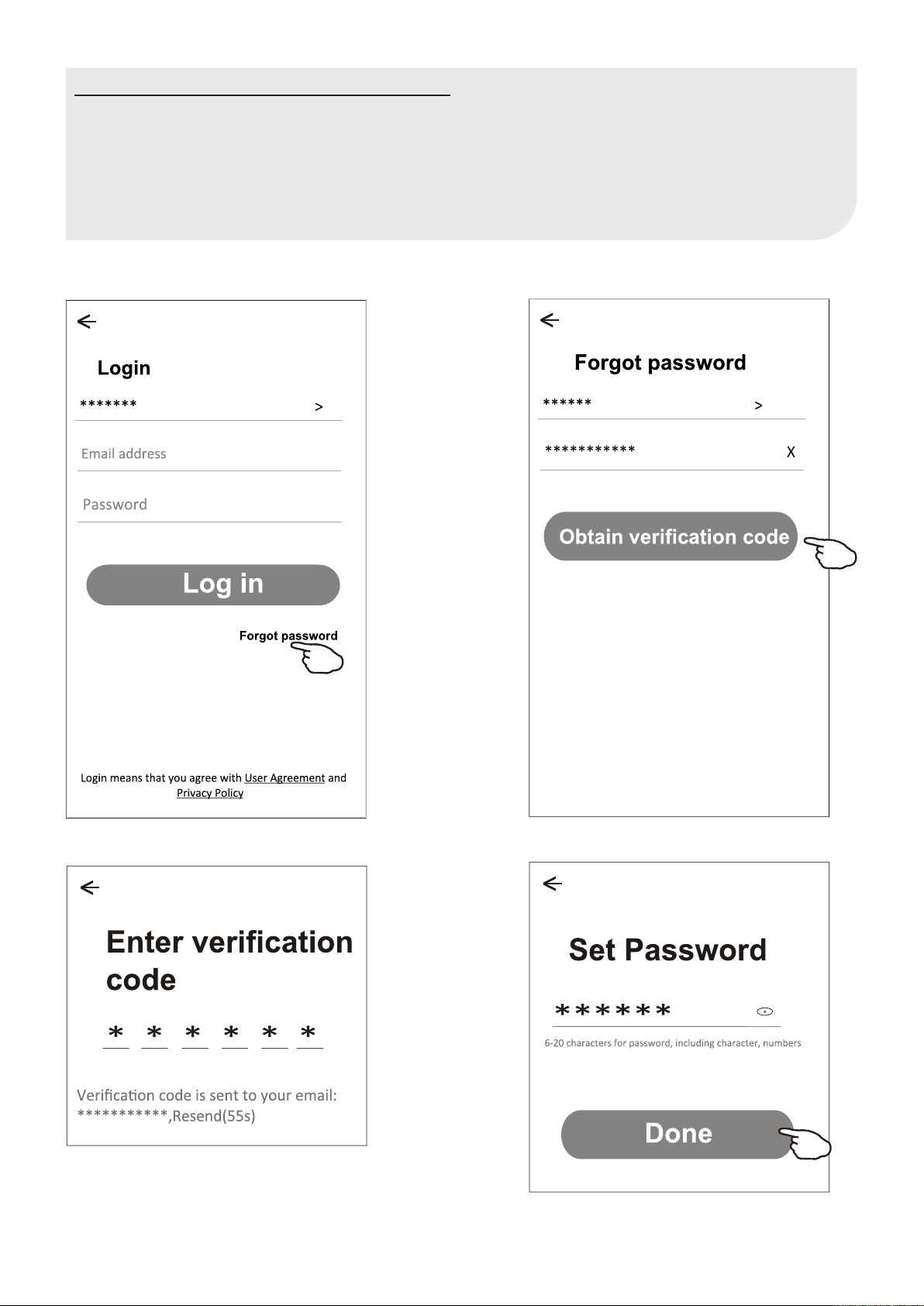

Forgot the password
If you forgot the password or you want to reset the
password, operate as below:
1. Tap "Forgot password".
2. Enter your account(e-mail address) and tap button
3. "Obtain verification code".
4. Enter the verification code received by your e-mail.
5. Set the new password and tap button "Done".

A18-/ A24- 11
EN
ADD DEVICE
There are 3 methods to add the device.
1CF MODE
1. Power on the indoor unit, no need to launch the
air conditioner.
2. Click "+" in the upper right corner of the "Home"
screen or tap "Add device" on the room which has
no device.
3. Tap the "Air conditioner(BT+Wi-Fi)" logo.
4. Follow the comments on the next screen to reset
the Wi-Fi module then check "Confirm the device
is reset" and tap"Next".
5. Input the password of the Wi-Fi which the same
as your smartphone connected, then tap "Next".
6. You can see the percent rate of connecting
process, at the same time
"PP", "SA", "AP" shining in turn on the indoor
display.
"PP" means "Searching the router"
"SA" means "connected to the router"
"AP" means "connected to the server"
Enter
password
Rename the
device
Select the
location
room

12 A18-/ A24-
There are 3 methods to add the device.
2AP MODE
1. Power on the indoor unit, no need to launch
the air conditioner.
2. Click "+" in the upper right corner of the
"Home" screen or tap "Add device" on the
room which has no device.
3. Tap the "Air conditioner(BT+Wi-Fi)" logo.
4. Tap in the upper right corner and choose
"AP Mode" then follow the comments on the
screen to reset the Wi-Fi module then check
"Confirm the device is reset" and tap"Next".
5. Input the password of the Wi-Fi which the
same as your smart phone connected, then
tap "Next".
6. Read the instruction carefully and tap
"Connect now".
7. In the network setting screen, select
"SmartLife-****", and tap" ".
8. You can see the percent rate of connecting
process, at the same time
"PP","SA","AP" shining in turn on the indoor
display.
"PP" means "Searching the router"
"SA" means "connected to the router"
"AP" means "connected to the server"
Rename the
device
Select the
location
room

A18-/ A24- 13
EN
There are 3 methods to add the device.
3BLUE TOOTH MODE
1. Power on the indoor unit, no need to launch
the air conditioner.
2. Click "+" in the upper right corner of the
"Home" screen or tap "Add device" on the
room which has no device.
3. Tap the "Air conditioner(BT+Wi-Fi)" logo.
4. Make sure Blue tooth of your smart phone is
available.
5. Tap in the upper right corner and choose
"Bluetooth" then follow the comments on
the screen to reset the Wi-Fi module then
check "Confirm the blue tooth is reset" and
tap"Next".
6. Select one of the found device and tap " +"
7. Input the password of the Wi-Fi which the
same as your smart phone connected, then
tap "Next".
8. You can see the percent rate of connecting
process, at the same time
"PP","SA","AP" shining in turn on the indoor
display.
"PP" means "Searching the router"
"SA" means "connected to the router"
"AP" means "connected to the server"
Rename the
device
Select the
location
room

14 A18-/ A24-
AIR CONDITIONER CONTROL
The device control screen will pop up automatically
after adding the device.
The device control screen will pop up manually by
tapping the device name on the home screen.
Note:
There are two different control forms base on different
software or Wi-Fi module firmware.
Please read the manual carefully base on the real
control interface.
CONTROL FORM 1 CONTROL FORM 2

A18-/ A24- 15
EN
AIR CONDITIONER CONTROL: FORM 1
The main control interface
Back to the
Home screen
Indicator of
setting temperature
Decrease the
setting temperature
Device details
and management
Turn ON/OFF the
air conditioner
Selected Mode/Fan speed/
Functions indicator
Increase the
setting temperature
CONTROL FORM 1: Mode setting
1. Tap Mode to pop up the Mode screen.
2. Select one of the mode Feel/Cool/Heat/Dry/Fan.
3. Tap anywhere around the setting temperature to
cancel the Mode setting.
CONTROL FORM 1: Select fan speed
1. Tap Fan to pop up the Fan screen.
2.Select one of the fan speed High/med/Low/Auto.
3.ap anywhere around the setting temperature to
cancel the selection.

16 A18-/ A24-
CONTROL FORM 1: Function setting
1. Tap Function to pop up the Function screen.
2. Select one of the functions Sleep/Turbo/ECO.
3. Select UP-DOWN/LEFT-RIGHT for auto swing with
direction of UP-DOWN/LEFT-RIGHT.
4. Tap anywhere around the setting temperature to
cancel the Function setting.
CONTROL FORM 1: Timer adding
1. Tap Timer to pop up the Add Timer screen.
2. Tap Add Timer.
3. Select the time, select the repeat days and Timer
on/off.
4. Select the Mode/Fan speed/Function and select the
setting temperature for Timer on.
5. Tap Save to add the timer.
Timer cancel Timer submit
Minute
setting
Weekly
setting
Timer ON/OFF
setting
Hour setting
Mode setting
Fan Speed
setting
Temperature
setting

A18-/ A24- 17
EN
CONTROL FORM 1: Timer Management
1. Tap the bar of timer to edit the Timer like the Timer
adding process.
2. Click the switch to enable or disable the Timer.
3. Holdind the bar of Timer about 3seconds and pop
up the Remove Timer screen, tap CONFIRM and
remove the Timer.
The main control interface
Back to the
Home screen
Decrease the
setting temperature
Selected Functions
indicator
Power on/off
Tips
Name of the device
Current mode
Increase the
setting temperature
Different background for
different mode:
Cool/Heat/Dry/Fan/Auto
Function Buttons
Note: it may appear slightly
different, depending on the air
conditioner model.
Example as below:
AIR CONDITIONER CONTROL: FORM 2

18 A18-/ A24-
CONTROL FORM 2: Mode setting
1. Tap the Mode button.
2. There are 5 modes on the Mode screen, tap one
button to set the Air conditioner working mode.
3. Tap the X button to back the main control screen.
4. The mode and background will change on the
screen.
Note: please read the details of each mode in the user
manual to control more comfortable.
CONTROL FORM 2: Fan speed selection
1. Tap the Fan speed button.
2. Choose your desired fan speed and tap it.
3. Tap the X button to back the main control screen.
4. The selected fan speed indicator will appear on the
screen.
Note: Fan Speed can't be adjusted on Dry mode.
CONTROL FORM 2: Air Flow control
1. Tap the Precision Air Flow button or Swing Flow
button.
2. Choose your desired air flow and tap it.
3. Tap the X button to back to the main control screen.
4. The selected air flow indicator will appear on the
screen.
Note: For some models without auto Left-Right wind, If
you active it, you will hear a beep,but no any actions.
Note: The Main control screen and Air Flow screen
may appear slightly different, depending on the air
conditioner model. Example as on the right:
Mode Fan Speed
Cool All speed
Fan All speed
Dry
Heat All speed
Auto All speed
Note: Fan Speed screen may appear slightly different,
depending on the air conditioner model.
Example as below:

A18-/ A24- 19
EN
CONTROL FORM 2: ECO function
1. For Eco function, just tap the button to activate
the function, the button will be lighting and the
indicator will appear on the screen.
2. Tap again to disable the function.
3. Temperature controlled for some air conditioner
model:
In Cooling mode, the new setting temperature will
<
_
26ºC.
In heating mode, the new setting temperature will <
_
25ºC.
Mode ECO enabled
Cool Yes
Fan
Dry
Heat Yes
Auto
ECO is disabled on Fan/ Dry/Auto mode.
Note: The Main control screen and ECO control method
may appear slightly different, depending on the air
conditioner model. Example as on the right:
CONTROL FORM 2: Sleep function
1. Tap the Sleep button.
2. Choose your desired sleep mode and tap it.
3. Tap the X button to back to the main control screen.
4. The selected sleep mode indicator will appear on
the screen.
Mode Sleep enabled
Cool Yes
Fan
Dry
Heat Yes
Auto
Note: The Main control screen may appear slightly
different ,depending on the air conditioner model.
Example as on the right:
Note:
ECO is disabled on Turbo/
Sleep mode too for some
air conditioner model.
Note:
Sleep is disabled
on Turbo/Sleep
mode too
for some air
conditioner
model.

20 A18-/ A24-
CONTROL FORM 2: Timer(on) setting
1. Tap the Timer button.
2. Tap + in the upper right corner of the Timer main
screen.
3. Choose the Time/Repeat/Switch OFF then tap Save.
4. The timer(off) will appear on the Timer main screen.
Slide up or
down to
select time
Tap repeat > then tap your desired
repeat days or Once, then tap Confirm
your selection.
Tap Switch > then slide the screen to
choose ON and Confirm.
CONTROL FORM 2: Timer(off) setting
1. Tap the Timer button.
2. Tap + in the upper right corner of the Timer main
screen.
3. Set the Time/Repeat Date/Switch(ON)/
Temperature/Mode/ Fan speed/Air Flow as your
desired and then tap Save.
4. The timer will appear on the Timer main screen.
