Samsung AS09HM3N User manual

ENGLISH
USER’S MANUAL
MANUAL DE USUARIO
MANUEL DE L’UTILISATEUR
Split - type Air Conditioner (Cooling and Heating)
Acondicionador de aire de tipo partido (Enfriamiento y Calefacción)
Climatiseur de type Split (Réfrigération & Chauffage)
ESPAÑOL
FRANÇAIS
AS09HM3N
AS09HM4N
AS12HM3N
AS12HM4N
AS18HM3N
AS18HM4N
AS24HM3N
AS24HM4N
Indoor unit
AS09HM3X
AS09HM4X
AS12HM3X
AS12HM4X
AS18HM3X
AS18HM4X
AS24HM3X
AS24HM4X
Outdoor unit
E S F A DB98-24637A(1)
AS09HM3N IB_E_24637 11/11/05 11:24 AM Page 29

E-2
Safety Precautions
You should take the following safety precautions when using your air conditioner.
◆Do not repair the air conditioner at your discretion.
It is recommended to contact a service center directly.
◆Never spill any kind of liquid on the air conditioner.
If this happens, turn off the air conditioner and contact an authorized
service center.
◆Do not insert anything between the airflow blades to prevent damage of
the inner fan and consequent injury. Keep children away from the air
conditioner.
◆Do not place any obstacles in front of the air conditioner.
◆Do not spray any kind of liquid into the indoor unit. If this happens,
turn off the air conditioner and contact a service center.
◆Make sure that the air conditioner is well ventilated at all times:
Do not place a cloth or other materials over it.
◆Remove the batteries if you don’t use the remote control for a long
time. (If applicable)
◆Use the remote control within 7 meters from the indoor unit. (If applicable)
WARNING
DURING OPERATION
◆Never store or load the air conditioner upside down or sideways to
prevent the damage to the compressor.
◆Young children or infirm persons should be always supervised when
they use the air conditioner.
◆Max current is measured according to IEC standard for safety.
◆Current is measured according to ISO standard for energy efficiency.
OTHERS
◆Before throwing out the air conditioner, remove the batteries from the
remote control.
◆When you dispose of the air conditioner, consult your dealer. If pipes
are removed incorrectly, refrigerant may blow out and cause air
pollution. When it contacts with your skin, it can cause skin injury.
◆The package of the air conditioner should be recycled or disposed of
properly for environmental reasons.
D ISPOSING OF THE UNIT
• If you don’t follow the safety precautions, you may get the risk of an electric
shock, injury or death.
•The manufacturer or qualified service personnel must install this air conditioner.
• Turn off the electric power before repairing, installing or cleaning.
Register your product at www.samsung.com/global/register
AS09HM3N IB_E_24637 11/11/05 11:23 AM Page 2

E-3
ENGLISH
Contents
◆ P REPARATION
■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
■ Name of Each Part . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
■ Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . . . . 6
■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . . . 7
■ Getting Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
◆ O PERATION
■ Selecting the Auto Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
■ Selecting the Cool Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
■ Selecting the Heat Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
■ Selecting the Dry Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
■ Selecting the Fan Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
■ Selecting the Turbo Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
■ Selecting the Energy Saving Function . . . . . . . . . . . . . . . . . . . . . 15
■ Selecting the Auto Cleaning Function . . . . . . . . . . . . . . . . . . . . . . 16
■ Selecting the Sound On / Off Function . . . . . . . . . . . . . . . . . . . . . . 17
■ Selecting the Anions Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
■ Adjusting the Airflow Direction Vertically . . . . . . . . . . . . . . . . . . . . 19
■ Adjusting the Airflow Direction Horizontally . . . . . . . . . . . . . . . . . . 19
■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
■ Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
◆ R ECOMMENDATIONS FOR USE
■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . . . . 24
■ Operating Your Air Conditioner Without the Remote Control . . . . . 25
■ Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
■ Cleaning Anti-Allergy and Deodorizing Filter (Option) . . . . . . . . . . 27
◆ T ECHNICAL SPECIFICATIONS
AS09HM3N IB_E_24637 11/11/05 11:23 AM Page 3

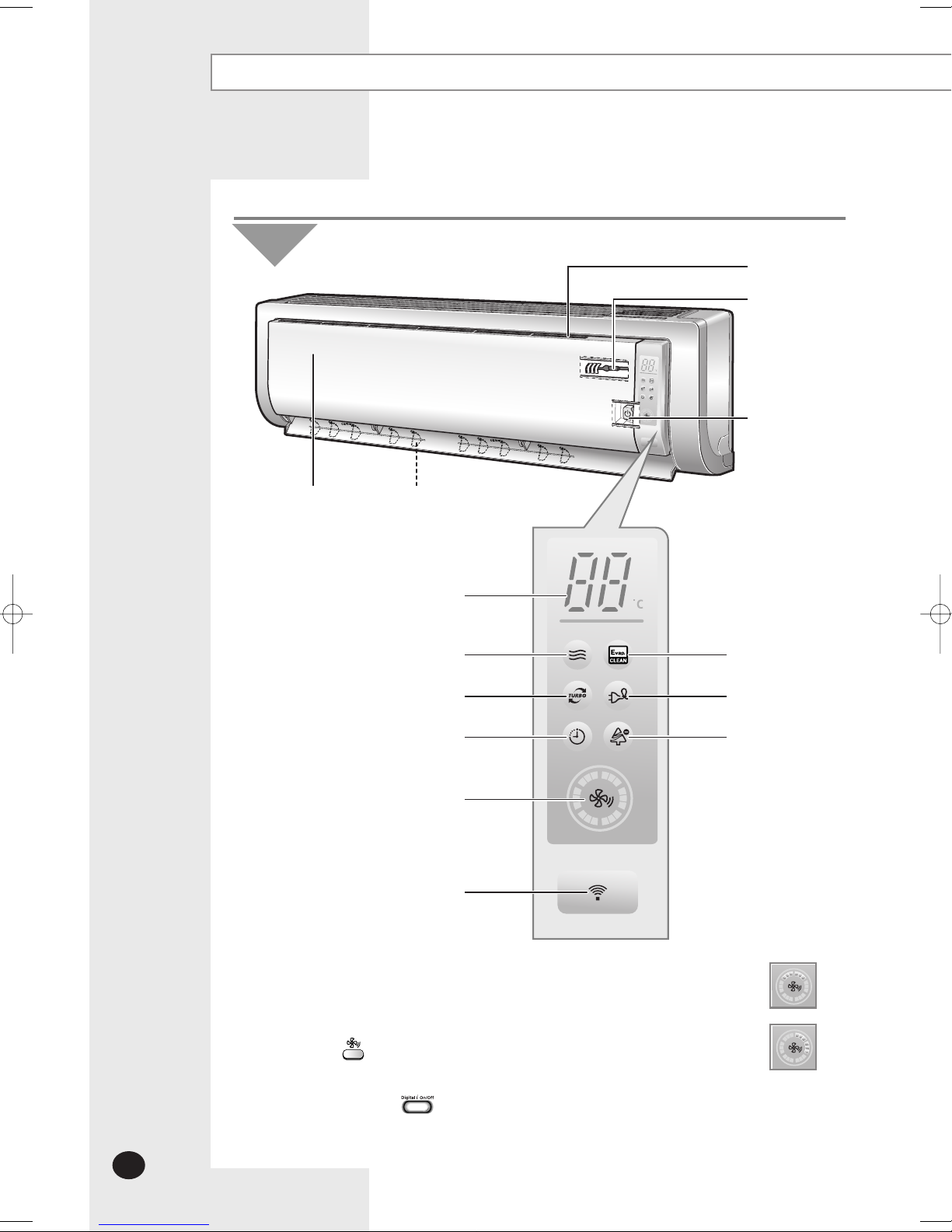

Name of Each Part
E-4
The design and shape can be changed according to the model.
Indoor Unit
Air filter
(under the grille) Airflow blades (outlet)
Power(On/Off) button
Set temperature &
room temperature
Operation indicator
(Auto-Cool, Cool, Dry, Fan : Green
Auto-Heat, Heat : Orange)
Auto cleaning indicator
(Green)
Energy saving indicator
(Green)
Anions indicator
(Green)
Turbo function indicator
(Green)
Timer indicator
(Orange)
Fan speed indicator
(Green)
Remote control sensor
Room Temperature sensor
Air Inlet
◆In the Auto mode, 2 fan indicators increase and decrease continuously
and turn round.
◆In the modes except the Auto mode, the fan speed indicator increases
and decreases continuously and turn round each time you press the
button. If you set the Turbo function, the fan speed indicator turns
round with the maximum setting and speed.
◆If you want to turn on/off the Display during operation,
press the button on the remote control.
◆The room temperature sensor senses air temperature around the
sensor, and shows the temperature on the display.
NN
NNoo oott ttee ee
AS09HM3N IB_E_24637 11/11/05 11:23 AM Page 4

E-5
ENGLISH
Air Inlet(Rear)
Air Outlet
Connection Valve
Outdoor Unit
AS09HM3X AS09HM4X AS12HM3X AS12HM4X
Air Inlet(Rear)
Air Outlet
Connection Valve
Outdoor Unit
AS18HM3X AS18HM4X
Air Inlet(Rear)
Air Outlet
Connection Valve
Outdoor Unit
AS24HM3X AS24HM4X
AS09HM3N IB_E_24637 11/11/05 11:23 AM Page 5

Remote Control - Buttons and Display
Remote control
transmission indicator
Timer Set/Cancel button
Sleep button
Digital On/Off button
Swing button
Anions button
Mode selection button
(AUTO, COOL, DRY, FAN, HEAT)
Fan speed adjustment button
Sound On /Off indicator
Battery life indicator
Fan speed indicator
Anions indicator
Sleep mode indicator
Off Timer button
On Timer button
Power (On/Off) button
On Timer indicator
Turbo function indicator
Temperature setting
Air flow direction
Off Timer indicator
Energy saving indicator
Temperature adjustment
buttons
Sound On/Off button
Auto Cleaning button
Turbo button
Energy saving button
E-6
Operating mode
( AUTO, COOL, DRY,
FAN, HEAT)
AS09HM3N IB_E_24637 11/11/05 11:23 AM Page 6

E-7
ENGLISH

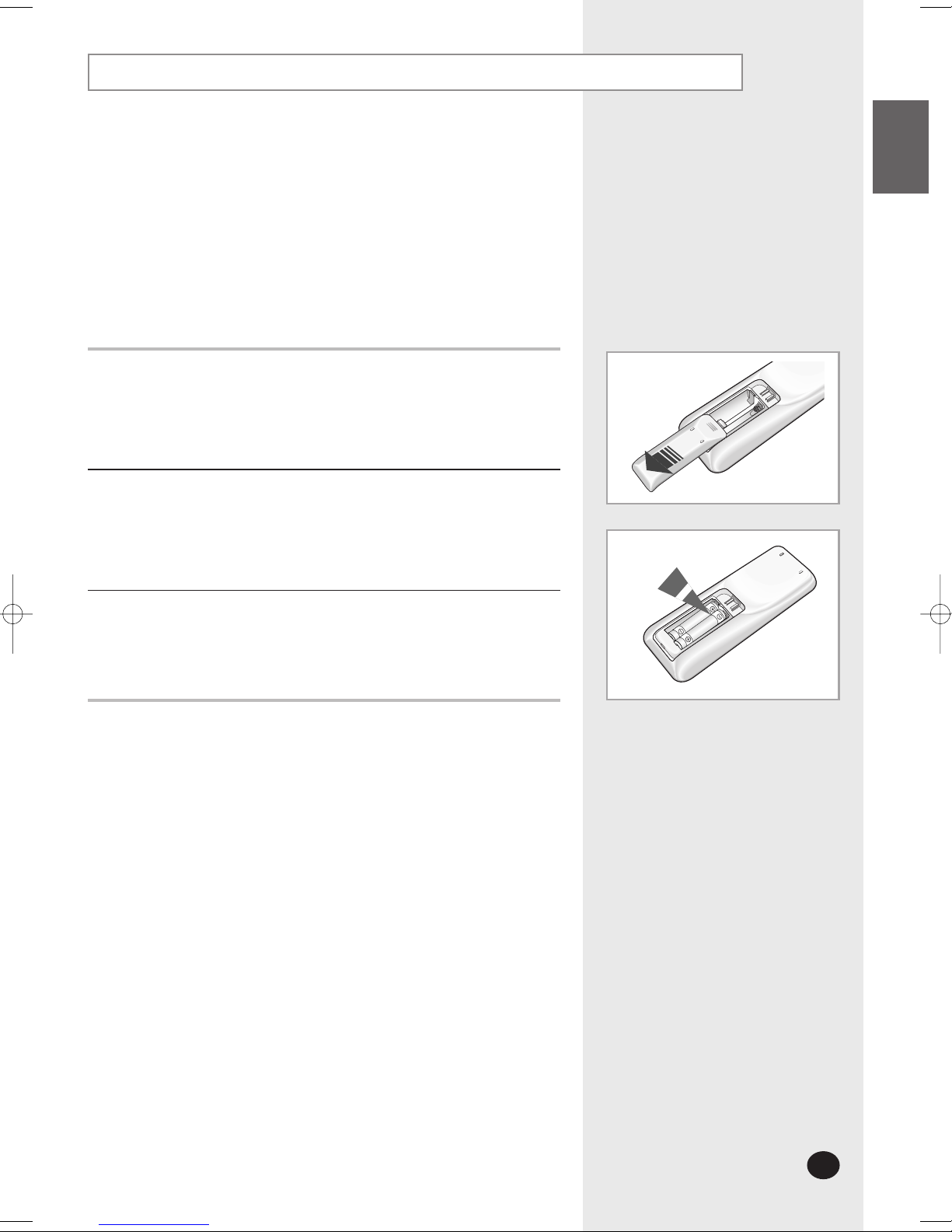

Inserting the Remote Control Batteries
Remove the battery cover in the rear of the remote control by pushing
it with your thumb.
Insert two batteries, respecting the polarities as indicated by
the + and - symbols.
1
2
Close the cover by sliding it back in its place.
3
◆Use two AAA, LR03 1.5V batteries.
◆Do not use old batteries or different kinds of batteries together.
◆Batteries may be completely discharged after 12 months, even
◆if they have not actually been used.
You must insert or replace the remote control batteries when:
◆You purchase the air conditioner
◆The remote control does not work correctly
NN
NNoo oott ttee ee
E-7
AS09HM3N IB_E_24637 11/11/05 11:23 AM Page 7

Getting Start
The User’s Manual provides you with valuable information about your air conditioner.
Please read this manual carefully before using the air conditioner.
It will help you take full advantage of the unit's features.
You have already seen the basic description of the unit on pages from 4 to 6.
Starting with the next page, you will find a series of step-by - step procedures
for each function available.
The illustrations in the step-by-step procedures use three different symbols:
PRESS PUSH HOLD DOWN
E-8
AS09HM3N IB_E_24637 11/11/05 11:23 AM Page 8

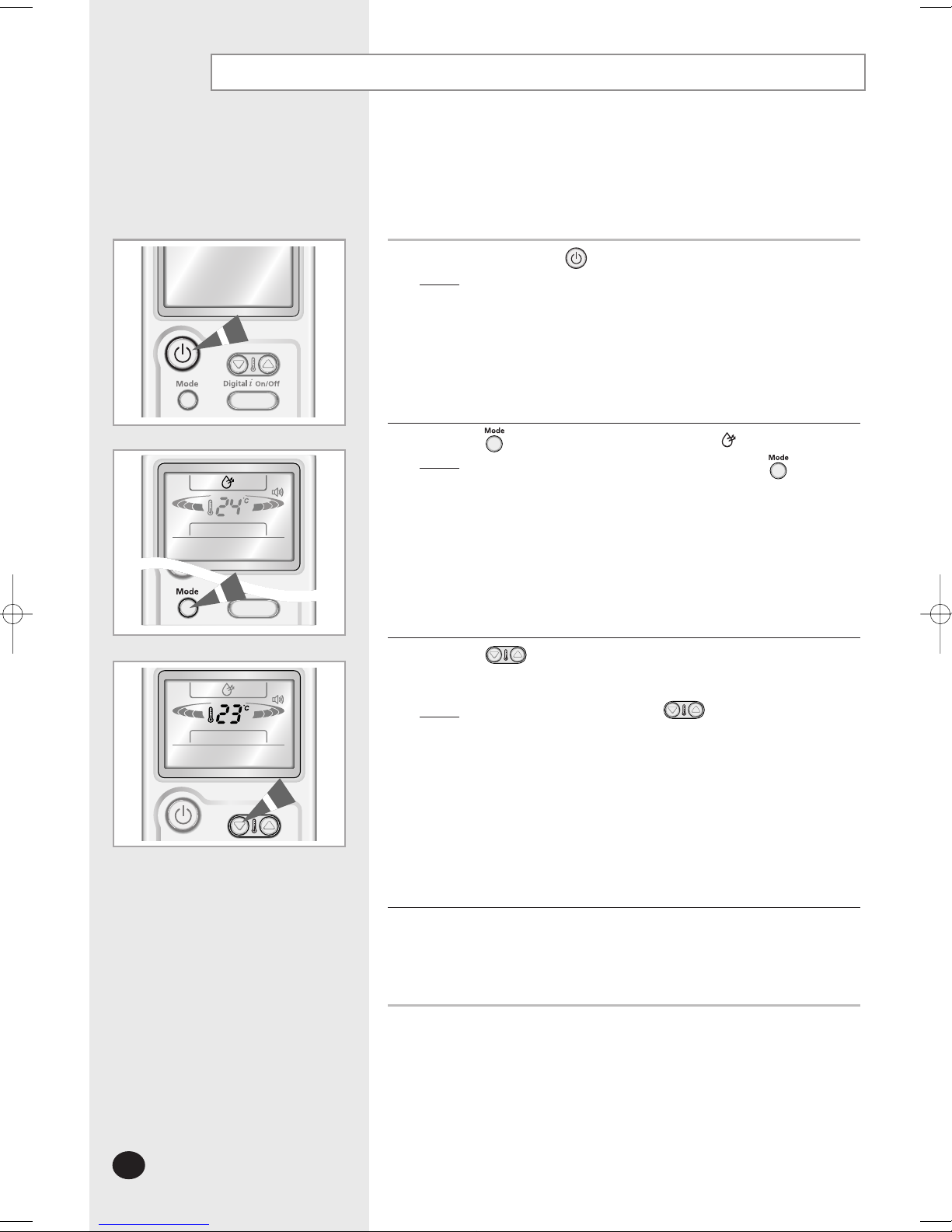

Selecting the Auto Mode
ENGLISH
You can select the Auto mode if you want to cool or heat your room
automatically. You can adjust the temperature in this mode.
1
Press the button on the remote control until is displayed.
Result:◆The indoor unit beeps each time you press the button.
◆The air conditioner runs in the Auto mode.
◆The Auto mode cools or heats the room depending on
the set temperature.
◆The air conditioner changes the Cool or Heat mode automatically
depending on the current temperature during operation.
2
You can change modes at any time.
If necessary, press the (On/Off) button.
Result:◆ The operation indicator on the indoor unit lights up.
◆
The air conditioner starts up in the mode you selected last.
◆The indoor unit beeps.
NN
NNoo oott ttee ee
Press the button to adjust the temperature until the required
temperature is displayed.
You can set the temperature between 16°C and 30°C.
Result:◆ Each time you press the button:
- The temperature is adjusted by 1°C
- The indoor unit beeps
◆ The fan speed is adjusted automatically.
◆ 2 fan speed indicators increase and decrease continuously and
turn round.
3
E-9
Control Panel
AS09HM3N IB_E_24637 11/11/05 11:23 AM Page 9

Selecting the Cool Mode
You can select the Cool mode if you want to cool your room.
You can adjust the temperature and the fan speed when cooling.
E-10
To control the airflow direction, refer to page 19.
5
Press the button on the remote control until is displayed.
Result: ◆ The indoor unit beeps each time you press the button.
◆ The air conditioner runs in the Cool mode.
2
You can change modes at any time.
NN
NNoo oott ttee ee
The fan speed indicator of the indoor unit varies according to
the temperature in the Automatic fan speed.
NN
NNoo oott ttee ee
Press the button to adjust the temperature until the required
temperature is displayed.
You can set the temperature between 16°C and 30°C.
Result:◆ Each time you press the button:
- The temperature is adjusted by 1°C
- The indoor unit beeps
◆If the room temperature is higher than the selected
temperature, the air conditioner starts cooling.
◆If the room temperature reaches the set temperature, the air
conditioner stops cooling, but the fan operates consistently.
3
Press the button to select the fan speed until the required setting
is displayed.
Result:◆ Each time you press the button, the indoor unit beeps.
◆ The fan speed indicator increases and decreases
continuously and turns round each time you press
the button.
4
1If necessary, press the (On/Off) button.
Result:◆ The operation indicator on the indoor unit lights up.
◆
The air conditioner starts up in the mode you selected last.
◆The indoor unit beeps.
Automatic (rotated : )
Low
Medium
High
Control Panel
AS09HM3N IB_E_24637 11/11/05 11:23 AM Page 10

Automatic (rotated : )
Low
Medium
High
ENGLISH

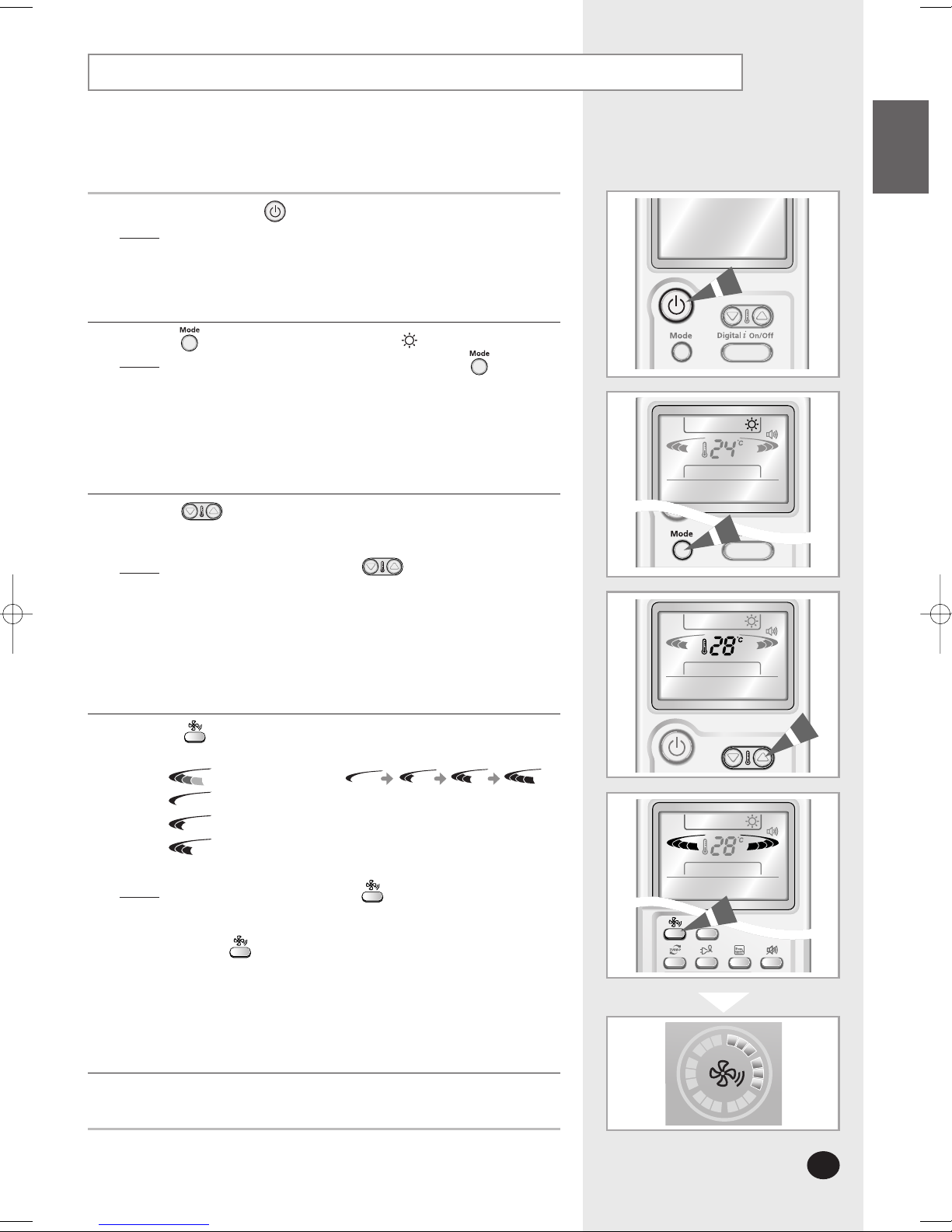

Selecting the Heat Mode
You can select the Heat mode if you want to heat your room.
You can adjust the temperature and the fan speed when heating.
The fan speed indicator of the indoor unit varies according to
the temperature in the Automatic fan speed.
NN
NNoo oott ttee ee
E-11
To control the airflow direction, refer to page 19.
5
Press the button to adjust the temperature until the required tem
perature is displayed.
You can set the temperature between 16°C and 30°C.
Result:◆Each time you press the button:
- The temperature is adjusted by 1°C
- The indoor unit beeps
◆If the room temperature reaches 5°C higher than the set
temperature, the air conditioner stops heating, but the fan
operates consistently.
◆If the room temperature reaches 3°C lower than the set
temperature, the air conditioner starts heating again.
3
Press the button on the remote control until is displayed.
Result:◆ The indoor unit beeps each time you press the button.
◆ The air conditioner runs in the Heat mode.
2
You can change modes at any time.
NN
NNoo oott ttee ee
1If necessary, press the (On/Off) button.
Result:◆
The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode you selected last.
◆The indoor unit beeps.
Result:◆ Each time you press the button, the indoor unit beeps.
◆ The fan speed indicator increases and decreases
continuously and turns round each time you press
the button.
◆For the first 3~5 minutes, the fan may not operate to
prevent cool air from flowing out of the indoor unit.
It helps to warm the air in your room sufficiently.
Press the button to select the fan speed until the required setting
is displayed.
4
Control Panel
AS09HM3N IB_E_24637 11/11/05 11:23 AM Page 11

Selecting the Dry Mode
E-12
To control the airflow direction, refer to page 19.
4
1If necessary, press the (On/Off) button.
Result:◆The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode you selected last.
◆The indoor unit beeps.
Press the button to adjust the temperature until the required
temperature is displayed.
You can set the temperature between 18°C and 30°C.
Result:◆Each time you press the button:
- The temperature is adjusted by 1°C
- The indoor unit beeps
◆The air conditioner starts dehumidifying and the fan
speed is adjusted automatically.
3
You can select the Dry mode if you want to dehumidify your room.
You can adjust the temperature in this mode.
Press the button on the remote control until is displayed.
Result:◆
The indoor unit beeps each time you press the button.
◆ The air conditioner runs in the Dry mode.
2
You can change modes at any time.
NN
NNoo oott ttee ee
AS09HM3N IB_E_24637 11/11/05 11:23 AM Page 12

E-13
ENGLISH
Selecting the Fan Mode
You can select the Fan mode if you want to ventilate your room. It helps to
refresh the air in your room. You can adjust the fan speed in this mode.
1If necessary, press the (On/Off) button.
Result:◆The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode you selected last.
◆The indoor unit beeps.
Press the button to select the fan speed until the required setting
is displayed.
Low
Medium
High
3
To control the airflow direction, refer to page 19.
4
You can change modes at any time.
NN
NNoo oott ttee ee
Press the button on the remote control until is displayed.
Result:◆
The indoor unit beeps each time you press the button.
◆ The air conditioner runs in the Fan mode.
◆ The temperature is set automatically.
2
Result:◆ Each time you press the button, the indoor unit beeps.
◆ The fan speed indicator increases and decreases
continuously and turns round each time you press
the button.
Control Panel
AS09HM3N IB_E_24637 11/11/05 11:23 AM Page 13

E-14
Selecting the Turbo Function
You can select the Turbo Function if you want to cool or heat your
room in the fastest way. After the 30 - minute operation with the
maximum setting, it returns to the previous setting.
Press the button.
Result:◆The temperature and fan settings are adjusted automatically.
◆The fan speed indicator turns round with the maximum setting
and speed.
◆The air conditioner cools or heats the room as quickly as possible.
◆After 30 minutes, the air conditioner is reset automatically to the
previous setting.
◆You can select the Turbo function in the Auto, Cool and Heat mode.
If you select this function in the Dry or Fan mode, the mode
changes to the Auto mode.
2
Press the button again to stop the Turbo Function before the end of the
30-minute period.
Result: The air conditioner is reset automatically to the previous setting.
3
To control the airflow direction, refer to page 19.
4
1If necessary, press the (On/Off) button.
Result:◆The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode you selected last.
◆The indoor unit beeps.
Control Panel
AS09HM3N IB_E_24637 11/11/05 11:23 AM Page 14

ENGLISH
Selecting the Energy Saving Function
E-15
You can select the Energy Saving Function to save energy when
cooling. The temperature range decreases in order to perform this
function.
To control the airflow direction, refer to page 19.
Press the button to select the fan speed until the required
setting is displayed.
Press the button.
Result:◆
The indoor unit beeps.
◆ The air conditioner runs in the Energy saving function.
◆ The outer airflow blade moves up and down.
◆ To stop the Energy saving function, press the again.
2
Press the button to adjust the temperature until the required
temperature is displayed. You can set the temperature between 26°C
and 30°C.
3
4
5
1If necessary, press the (On/Off) button.
Result:◆The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode you selected last.
◆The indoor unit beeps.
You can select the Energy saving function only in the Cool
mode.
NN
NNoo oott ttee ee
If you want to adjust temperature under 26°C, cancel the
Energy saving function before adjusting the temperature.
NN
NNoo oott ttee ee
The fan speed indicator increases and decreases
continuously and turns round each time you press
the button.
NN
NNoo oott ttee ee
AS09HM3N IB_E_24637 11/11/05 11:23 AM Page 15

E-16

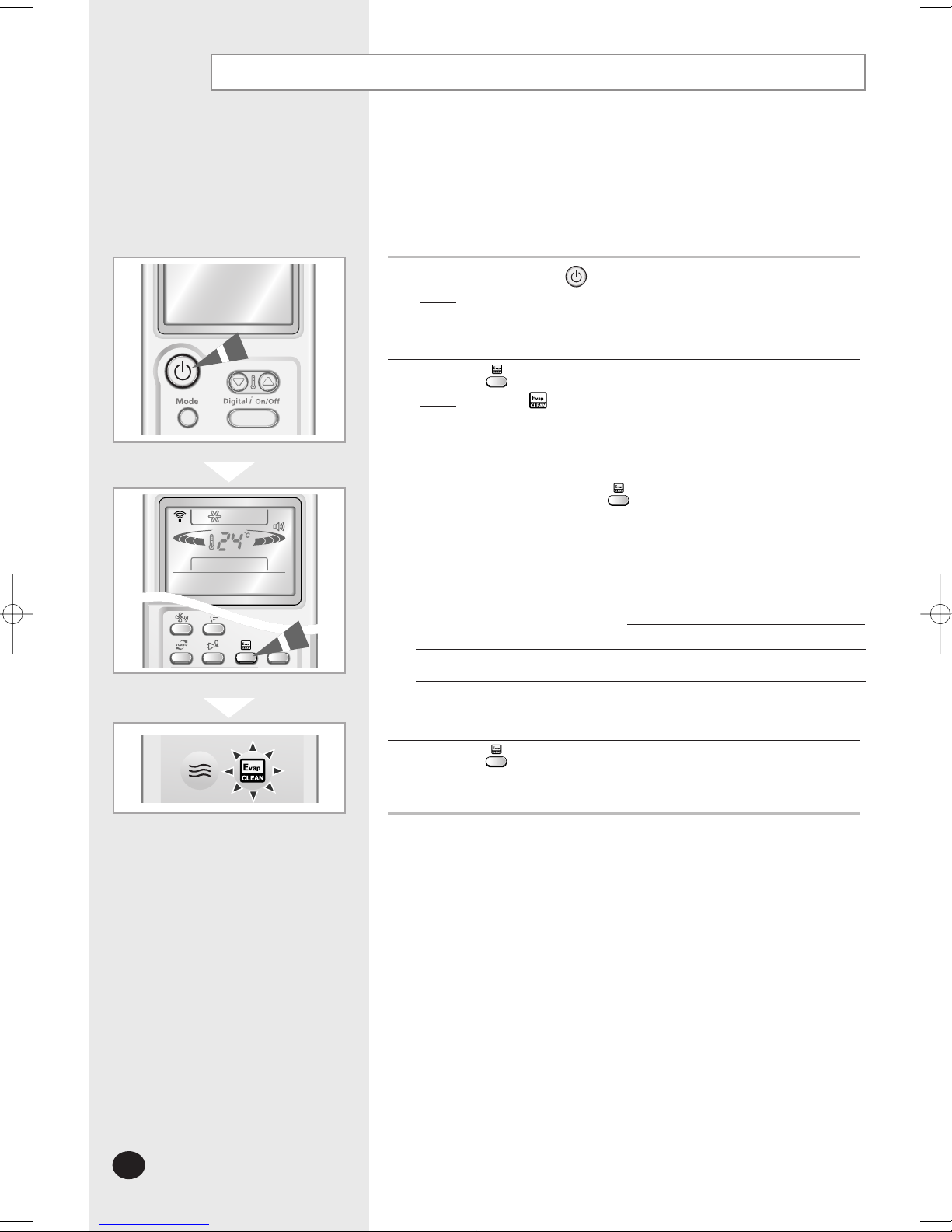

Selecting the Auto Cleaning Function
You can select the Auto Cleaning Function if you want to sterilize
the air conditioner or remove mold. Even when the air conditioner is
turned off, you can set this function.
2Press the button.
Result:◆ The indicator on the indoor unit lights up and the
Auto Cleaning function is set.
◆When you turn the air conditioner off, it operates the
Auto Cleaning function for 30 minutes.
After 30 minutes, the air conditioner turns off.
◆If you press the button when the air conditioner is
turned off, the air conditioner operates the Auto Cleaning
Function for 30 minutes.
3Press the button again to stop the Auto cleaning function before
the end of the 30-minute period.
1If necessary, press the (On/Off) button.
Result:◆The operation indicator on the indoor unit lights up.
◆The air conditioner starts up in the mode you selected last.
◆The indoor unit beeps.
Mode Operating time
When the air conditioner
i turned
On Auto, Cool, Dry
Heat, Fan
30 minutes
15 minutes
Off 30 minutes
The Auto Cleaning indicator is displayed only on the indoor unit.
NN
NNoo oott ttee ee
Remote Control
Control Panel
AS09HM3N IB_E_24637 11/11/05 11:23 AM Page 16

E-17
ENGLISH
Selecting the Sound On/Off Function
You can turn on or off the sound of the air conditioner with the remote control.
1Press the button to turn off the sound.
Each time you press the button, Sound On/Off function is
selected repeatedly.
On
Off
NN
NNoo oott ttee ee
AS09HM3N IB_E_24637 11/11/05 11:23 AM Page 17

E-18

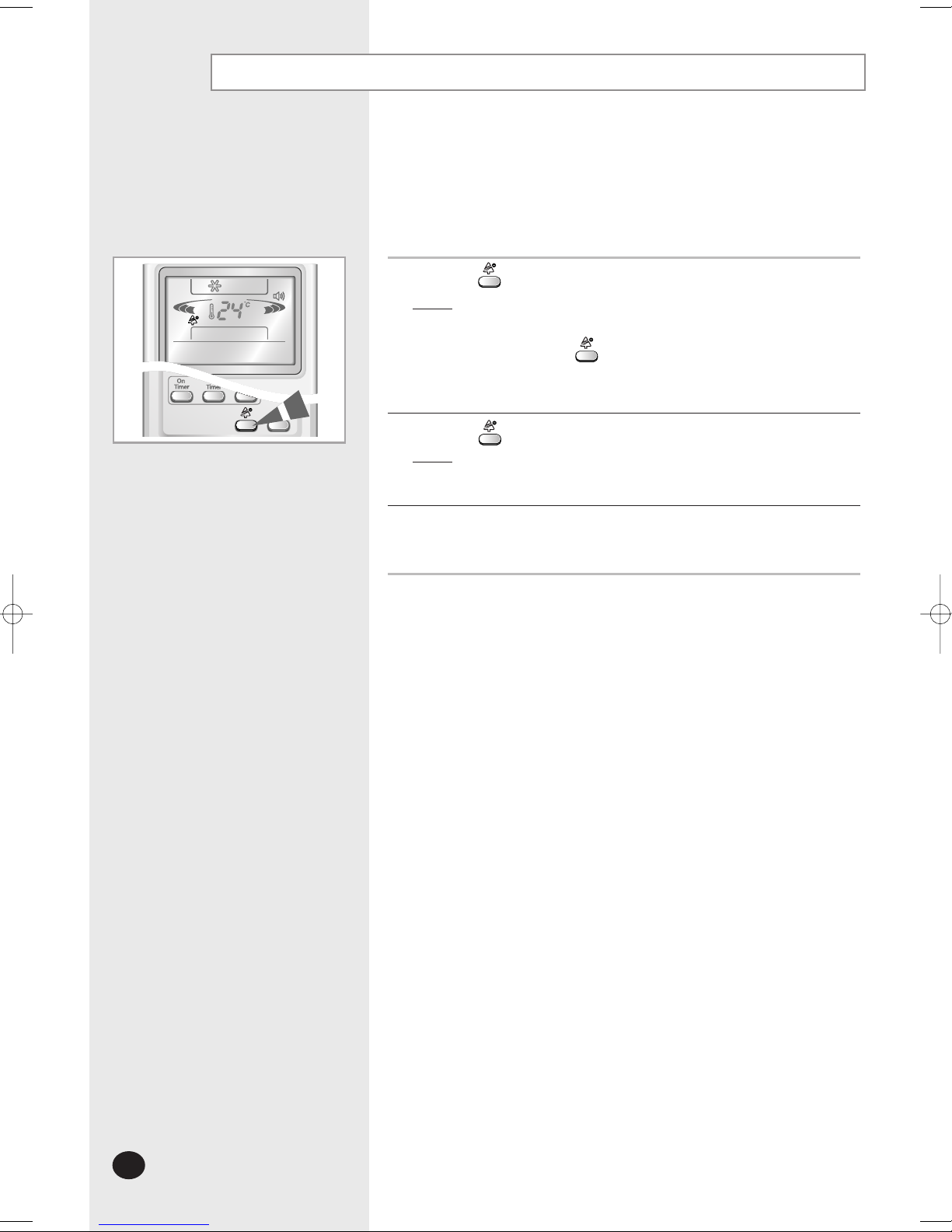

Selecting the Anions Function
The air conditioner can generate anions with an ionizer in the indoor
unit. Since it is an additional function, you can select it in any mode,
even when the air conditioner is turned off.
1Press the button.
Result:◆
The air conditioner generates anions.
◆ The indoor unit beeps.
2Press the button again to stop the Anions function.
Result: The air conditioner is reset automatically to the previous mode,
temperature and fan settings.
3To control the airflow direction, refer to page 19.
NN
NNoo oott ttee eeIf you press the button when the air conditioner is off,
the air conditioner turns on automatically and generates
anions in the Fan mode with Low fan speed.
AS09HM3N IB_E_24637 11/11/05 11:24 AM Page 18

E-19
ENGLISH
Adjusting the Airflow Direction Vertically
Adjusting the Airflow Direction Horizontally
Press the button until the required direction is set.
Result: The outer blade is adjusted vertically.
You can adjust the airflow direction vertically. The outer airflow
blade moves up and down to increase the efficiency of the cooling
or heating operation.
NN
NNoo oott ttee eeIf you turn the air conditioner... Then the blade...
Off is closed completely.
On set to the default position.
1
Press the button again to move the blade up and down
automatically during operation.
2
Press the button again to stop the blade moving up and down.
3
You can adjust the airflow direction horizontally manually.
The inner blades with small fins moves the air in the required
direction.
Adjust the inner blades by moving them to left or right.
1
AS09HM3N IB_E_24637 11/11/05 11:24 AM Page 19

E-20

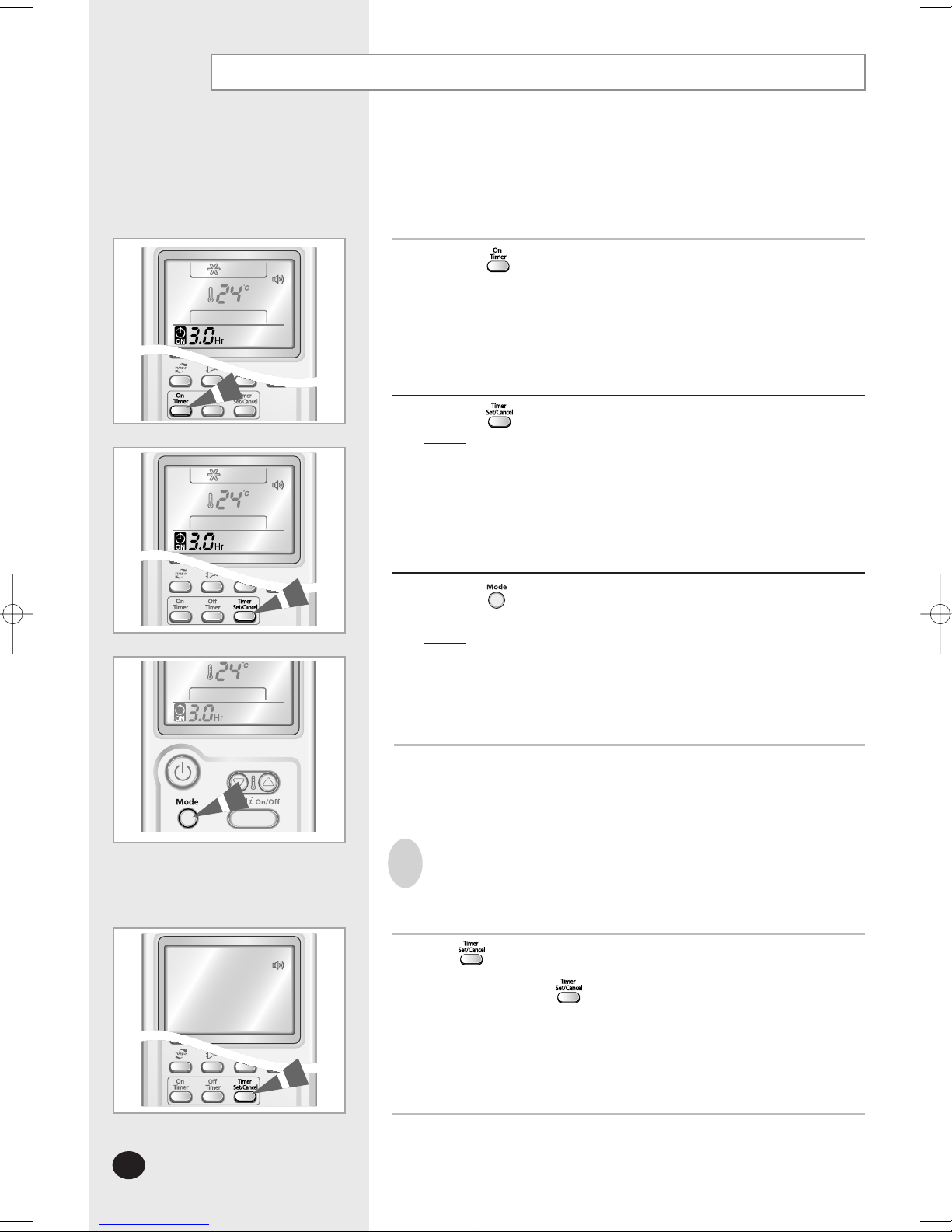

Setting the On Timer
If you press the button, both the On Timer and the Off
Timer are canceled.
NN
NNoo oott ttee ee
You can set the On Timer to turn on the air conditioner automatically
at the appointed time. You can set the time from 30 minutes to 24 hours.
Press the button until the required time is displayed to set the
On Timer. You can set the time between 0.5 hour and 24 hours.
1
Press the button to complete the setting.
Result: ◆The remaining time is displayed.
◆The timer indicator stops blinking.
◆The selected mode and the temperature on the display
disappear after 10 seconds.
◆The air conditioner turns on automatically at the appointed
time and the On Timer setting disappears.
2
Press the button to cancel the On Timer.
Press the button until the desired mode is displayed at the top of the
remote control to select the mode in advance.
Result: The air conditioner operates in the selected mode when it is
turned on.
3
To Cancel the On Timer
AS09HM3N IB_E_24637 11/11/05 11:24 AM Page 20
