SERVICE MANUAL
DATA
COMPACT DISC PLAYER
XP-R120
YU,YL,AEZ,
AK,AHA
S/M Code No. 09-016-445-9R1
REVISION
• This Service Manual is the “Revision Publishing” and replaces “Simple Manual”
XP-R120 (YU,YL,AEZ,AK,AHA), (S/M Code No. 09-014-445-9T1).
• This Service Manual does not include “ Test Mode “.
These item will be issued in the next supplement.
BASIC CD MECHANISM : DA23LN
SIMPLE-2
Apartofcontentsisadequate.
Re-issuing is under request.
– 2 –
SPECIFICATIONS
Tracking system 3-beam laser
Laser pickup Semiconductor laser
D/A conversion 4-times oversampling digital
filter + 1-bit DAC
Frequency response 20 – 20,000 Hz
Output PHONES/LINE OUT jack
(stereo mini-jack)
Frequency range AM: 531/530 kHz – 1,602/1,710 kHz
(9 kHz/10 kHz steps)
FM: 87.5 – 108 MHz
Maximum output YU,YL,AHA: 12 mW + 12 mW
AK,AEZ: 10 mW + 10 mW
(16 ohms at 1 kHz)
500 mV (47 kohms at 1 kHz)
Power supply DC 3 V using two LR6 (size AA)
alkaline batteries
DC 2.4 V using two commercially
available rechargeable batteries
(Ni-Cd 1.2 V 700 mAh)
AK,AEZ,AHA: AC house current using
the supplied AC adaptor
YU,YL: AC house current using an AC
adaptor whose rated output is DC 5 – 6 V,
250 – 300 mA
Maximum outside dimensions
130 (W) x 30.5 (H) x 130 (D) mm
(excluding projecting parts and controls)
(51/8x 11/4x 51/8in.)
Weight Approx. 238 g (8.3 oz.)
(excluding batteries)
AC Adaptor AC-D603HA <AHA>
AC Adaptor AC-D603 <AK,AEZ>
Rated input AC 230 V, 50 Hz
• Design and specifications are subject to change without
notice.
ACCESSORIES / PACKAGE LIST
KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
1 8B-HCB-914-010 IB,HA(3L)S<AHA>
1 8B-HCB-910-010 IB,HA(S)S<AHA>
1 8B-HCB-911-010 IB,HA(P)S<AHA>
1 8B-HCB-904-010 IB,YL(3L)S<YL>
1 8B-HCB-918-010 IB,YL(S)S<YL>
1 8B-HCB-919-010 IB,YL(P)S<YL>
1 8B-HCB-901-010 IB,U(3L)S<YU>
1 8B-HCB-908-010 IB,YU(S)S<YU>
1 8B-HCB-909-010 IB,YU(F)S<YU>
1 8B-HCB-905-010 IB,EZ(EGF)S<AK,AEZ>
1 8B-HCB-906-010 IB,EZ(SID)S<AEZ>
1 8B-HCB-907-010 IB,EZ(PHNCZ)S<AEZ>
2 87-B30-326-210 HEADPHONE,HP-M048<EXCEPT YU>
2 87-B30-224-010 HEADPHONE,HP-M033<YU>
3 87-B30-284-010 AC ADAPTOR,AC-D603KNC<AK>
3 87-B30-283-110 AC ADAPTOR,AC-D603ENC<AEZ>
3 87-B30-287-110 AC ADAPTOR,AC-D603HANC<AHA>
!
!
!
– 3 –
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-
ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-
tävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i
denna bruksanvising, kan användaren utsättas för osynling
laserstrålning, som överskrider gränsen för laserklass 1.
Caution: Invisible laser radiation when
open and interlocks defeated avoid expo-
sure to beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que
ceux spécifiés peut entraîner une dangereuse exposition aux
radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude
af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
Precaution to replace Optical block
(SF-P200L)
1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
PICK UP ASSY
SF-P200
:SOLDER
116 10 9
– 4 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTION
REF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
87-A21-448-040 C-IC,BH6554FV
8B-HC1-652-030 C-IC,MN101C439-AK
87-A21-874-010 C-IC,MN35530
87-A21-733-040 C-IC,MSM51V4400D/E-70TKFS
87-A21-873-040 C-IC,AN8399SA
87-A21-449-040 C-IC,AN8746SA
87-A21-085-040 C-IC,TA2120FN
87-A20-851-040 C-IC,TA2111F
87-A21-896-040 C-IC,LC72122V
87-A20-904-080 C-IC,TK11823MTL
8B-HC1-602-010 C-IC,HD6433863A71W
TRANSISTOR
87-A30-376-040 C-TR,RN1405
87-A30-075-080 C-TR,2SA1235F
89-211-323-080 C-TR,2SB1132R
89-416-643-080 C-TR,2SD1664R
87-A30-076-080 C-TR,2SC3052F
89-113-695-680 C-TR,2SA1369G/H
87-A30-278-040 C-FET,2SK2980
87-A30-480-040 C-TR,DTC114WUA
87-A30-408-040 C-TR,DTC123JUA
87-A30-405-040 C-TR,DTC114TUA
87-A30-332-040 C-TR,CPH3106
87-026-695-040 C-TR,DTA123JUA
87-026-264-080 C-TR,RN1411
87-026-429-080 C-TR,RN2311
87-A30-377-040 C-TR,2SB815B7
87-A30-328-040 C-TR,IMX9
89-503-602-080 C-FET,2SK360E
89-327-143-080 C-TR,2SC2714O
87-A30-385-040 C-TR,DTA114YUA
89-113-625-080 C-TR,2SA1362GR
87-A30-404-040 C-TR,DTC114YUA
87-A30-143-040 C-TR,2SA1576A
DIODE
87-017-520-080 C-DIODE,SFPB52
87-A40-270-080 C-DIODE,MC2838
87-A40-880-040 C-ZENER,UDZS 10B
87-A40-590-040 C-DIODE,HRW0202A
87-020-027-080 C-DIODE,1SS184
87-020-465-080 DIODE,1SS133
MAIN C.B
C101 87-012-286-080 CAP, U 0.01-25
C102 87-A11-031-080 C-CAP,E 100-16 M WX
C103 87-012-286-080 CAP, U 0.01-25
C104 87-016-367-080 C-CAP,E 47-6.3
C202 87-016-367-080 C-CAP,E 47-6.3
C203 87-012-286-080 CAP, U 0.01-25
C204 87-016-429-080 C-CAP,E 100-4 5.5N
C205 87-A10-047-080 C-CAP,U 1-10 Z F
C206 87-A12-159-080 C-CAP, 10-6.3 K B GRM42-6
C207 87-A10-505-040 CAP,E 220-6.3 105 SF
C208 87-016-426-080 C-CAP,E 47-4 5.5N
C209 87-010-831-080 C-CAP,U,0.1-16F
C210 87-A10-047-080 C-CAP,U 1-10 Z F
C211 87-010-787-080 CAP, U 0.022-25
C212 87-012-267-080 C-CAP,U 270P-50 B
C213 87-A10-047-080 C-CAP,U 1-10 Z F
C220 87-012-286-080 CAP, U 0.01-25
C221 87-010-805-080 CAP, S 1-16
C222 87-A10-047-080 C-CAP,U 1-10 Z F
C301 87-016-350-040 CAP,E 470-4 MA GAS
C302 87-012-286-080 CAP, U 0.01-25
C303 87-012-286-080 CAP, U 0.01-25
C304 87-010-831-080 C-CAP,U,0.1-16F
C305 87-012-286-080 CAP, U 0.01-25
C306 87-012-286-080 CAP, U 0.01-25
C307 87-012-286-080 CAP, U 0.01-25
C308 87-012-286-080 CAP, U 0.01-25
C309 87-016-430-080 C-CAP,E 100-6.3 5.5N
C310 87-012-286-080 CAP, U 0.01-25
C313 87-012-274-080 CHIP CAP,U 1000P-50B
C314 87-012-274-080 C-CAP,U 1000P-50 K B
C401 87-016-429-080 C-CAP,E 100-4 5.5N
C402 87-010-831-080 C-CAP,U,0.1-16F
C403 87-016-431-080 C-CAP,E 220-4 5.5N
C404 87-010-831-080 C-CAP,U,0.1-16F
C405 87-010-831-080 C-CAP,U,0.1-16F
C406 87-012-271-080 CAP, U 560P-50
C407 87-010-787-080 CAP, U 0.022-25
C408 87-A11-057-080 C-CAP,U 0.1-16 K B
C409 87-A10-827-080 C-CAP,U 0.47-6.3 K B
C410 87-012-286-080 CAP, U 0.01-25
C411 87-010-831-080 C-CAP,U,0.1-16F
C412 87-016-429-080 C-CAP,E 100-4 5.5N
C413 87-010-831-080 C-CAP,U,0.1-16F
C415 87-010-831-080 C-CAP,U,0.1-16F
C416 87-A10-950-080 C-CAP,S 4.7-10 Z F
C417 87-012-188-080 C-CAP,U 47P-50 CH
C418 87-012-184-080 C-CAP,U 33P-50 CH
C419 87-012-184-080 C-CAP,U 33P-50 CH
C420 87-010-831-080 C-CAP,U,0.1-16F
C421 87-010-831-080 C-CAP,U,0.1-16F
C422 87-010-831-080 C-CAP,U,0.1-16F
C423 87-010-831-080 C-CAP,U,0.1-16F
C424 87-010-831-080 C-CAP,U,0.1-16F
C426 87-012-195-080 C-CAP,U 100P-50CH
C451 87-010-831-080 C-CAP,U,0.1-16F
C501 87-016-429-080 C-CAP,E 100-4 5.5N
C502 87-010-831-080 C-CAP,U,0.1-16F
C503 87-010-787-080 CAP, U 0.022-25
C504 87-010-787-080 CAP, U 0.022-25
C505 87-012-276-080 C-CAP,U 1500P-50 B
C506 87-012-198-080 CAP 180P
C507 87-012-273-080 C-CAP,U 820P-50 B
C508 87-016-429-080 C-CAP,E 100-4 5.5N
C509 87-012-281-080 C-CAP,U 3900P-50 B
C510 87-012-283-080 C-CAP,U 5600P-50 B
C511 87-016-034-080 CHIP CAP U 0.027-25F
C512 87-016-426-080 C-CAP,E 47-4 5.5N
C513 87-016-034-080 CHIP CAP U 0.027-25F
C514 87-A10-828-080 C-CAP,U 0.33-6.3 K B
C515 87-010-831-080 C-CAP,U,0.1-16F
C516 87-012-180-080 C-CAP,U 22P-50 CH
C517 87-012-180-080 C-CAP,U 22P-50 CH
C520 87-016-426-080 C-CAP,E 47-4 5.5N
C521 87-012-274-080 CHIP CAP,U 1000P-50B
C522 87-A10-047-080 C-CAP,U 1-10 Z F
C523 87-A10-047-080 C-CAP,U 1-10 Z F
C601 87-016-430-080 C-CAP,E 100-6.3 5.5N
C602 87-012-286-080 CAP, U 0.01-25
C603 87-012-286-080 CAP, U 0.01-25
C701 87-016-430-080 C-CAP,E 100-6.3 5.5N
C702 87-012-274-080 CHIP CAP,U 1000P-50B
C703 87-012-274-080 CHIP CAP,U 1000P-50B
C706 87-010-831-080 C-CAP,U,0.1-16F
C707 87-A10-047-080 C-CAP,U 1-10 Z F
C708 87-A10-047-080 C-CAP,U 1-10 Z F
C709 87-A10-047-080 C-CAP,U 1-10 Z F
C710 87-016-421-080 C-CAP,E 10-16 5.5N
C711 87-016-429-080 C-CAP,E 100-4 5.5N
C712 87-A10-353-080 C-CAP,U0.22-10KB
– 5 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C713 87-010-831-080 C-CAP,U,0.1-16F
C714 87-A11-062-080 C-CAP,S 2.2-16 Z F
C715 87-016-421-080 C-CAP,E 10-16 5.5N
C716 87-010-831-080 C-CAP,U,0.1-16F
C717 87-010-831-080 C-CAP,U,0.1-16F
C718 87-016-431-080 C-CAP,E 220-4 5.5N
C719 87-016-431-080 C-CAP,E 220-4 5.5N
C720 87-012-274-080 CHIP CAP,U 1000P-50B
C721 87-012-274-080 CHIP CAP,U 1000P-50B
C722 87-010-831-080 C-CAP,U,0.1-16F
CN301 87-A60-756-080 C-CONN,24P V 24FLT-SM1TB
CN501 87-009-214-080 CONN,16P 52207-1690
CN601 87-099-522-080 CONN,6P ZH-SM3 V W
FB701 83-XM1-617-080 C-COIL,BK2125HM601
FB702 83-XM1-617-080 C-COIL,BK2125HM601
FB703 83-XM1-617-080 C-COIL,BK2125HM601
FB704 83-XM1-617-080 C-COIL,BK2125HM601
J101 87-A61-340-010 JACK,DC
J701 87-A61-339-010 JACK,3.5 GRN ST W/O SW
L201 87-A50-355-080 C-COIL,330UH LQH3C
L202 87-A50-330-080 C-COIL,100UH-D75C
L203 87-A50-355-080 C-COIL,330UH LQH3C
L301 87-A50-367-080 C-COIL, 10UH LQG21F
L302 87-A50-367-080 C-COIL, 10UH LQG21F
L401 87-A50-117-080 C-COIL,10UHLQH3C
L402 87-A50-012-080 C-COIL,100UH LQH3C
L501 87-A50-501-080 C-COIL,10UH-FSLB2520
L502 87-A50-367-080 C-COIL, 10UH LQG21F
S101 87-A92-085-010 SW,MICRO ESE11SV1
S302 87-A91-457-280 C-SW,SL 1-1-3 SS-350-A13B-C-T
S303 87-036-379-280 C-SW,SL 1-1-2 SS-350-A12B-C-T
VR701 87-A92-144-010 VR,RTRY 30KX2 H
X401 87-A70-315-080 C-VIB,CER 16.93MHZ CSACWMX03-T

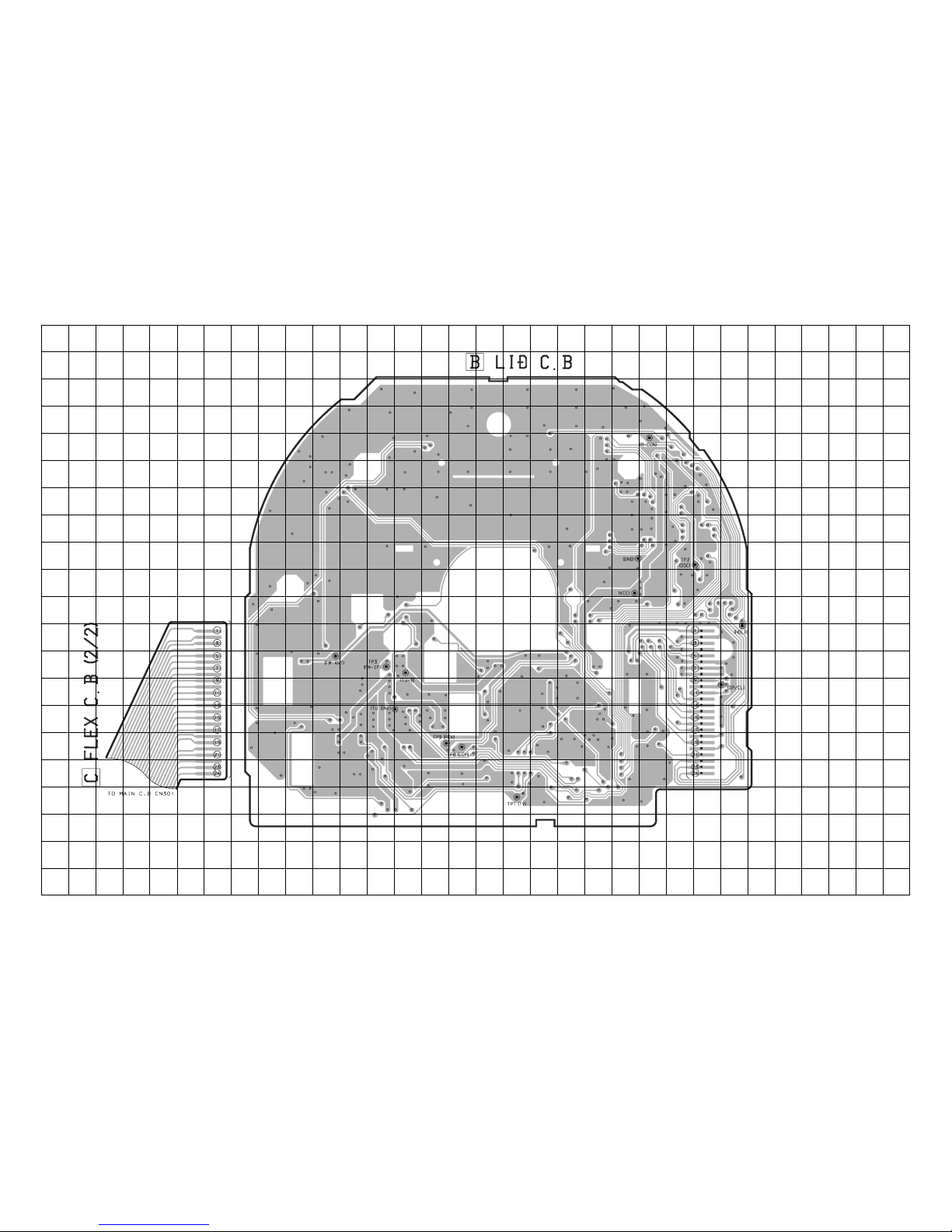

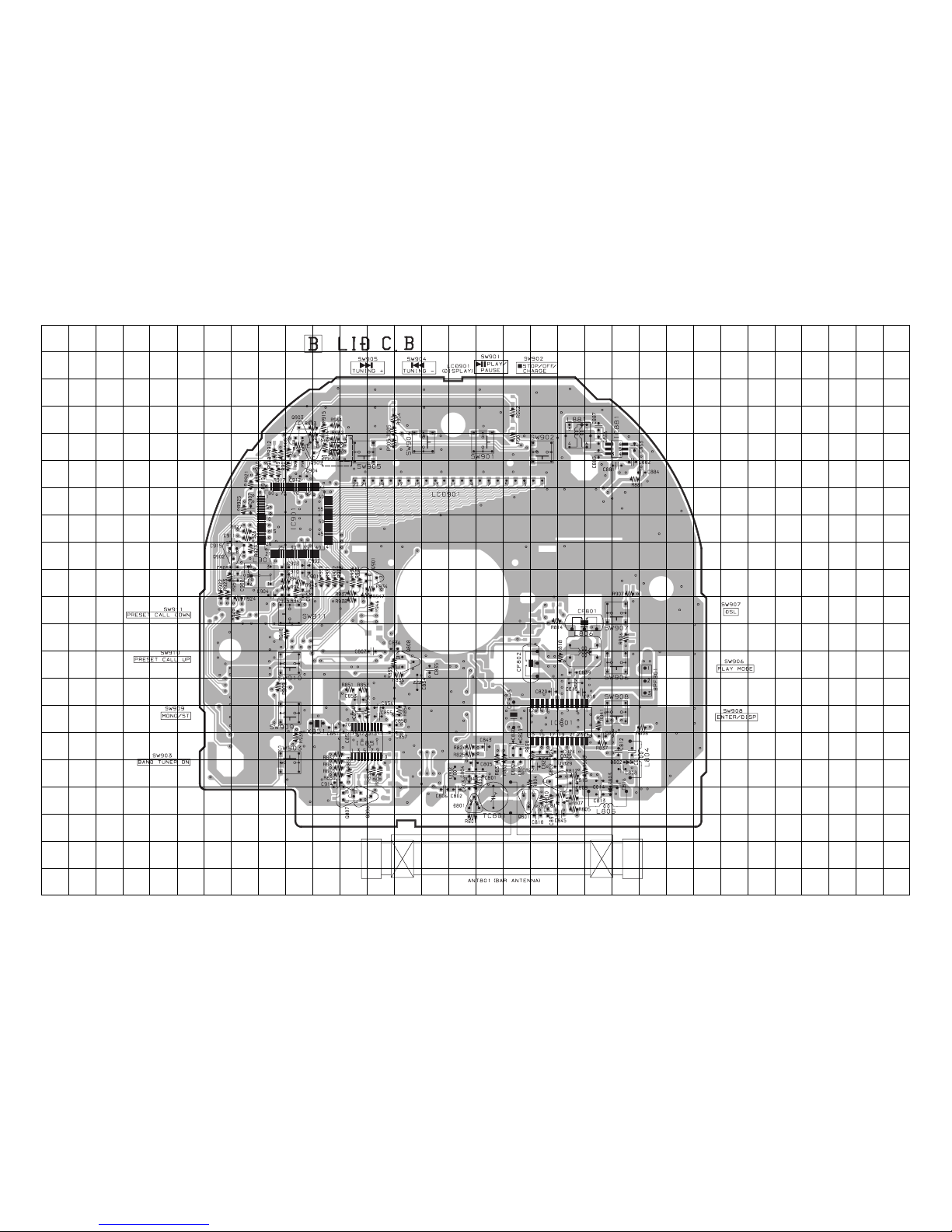

LID C.B
87-A91-728-110 FLTR,KIT KMFC5184-A
ANT801 8B-HC1-603-010 ANT,BAR-ANTENNA BHC-1
BPF801 87-A91-681-010 FLTR,GFMB7-C1
C801 87-010-831-080 C-CAP,U,0.1-16F
C802 87-012-291-080 C-CAP,U 220P-50 UJ
C803 87-012-292-080 C-CAP,U 270P-50 J UJ
C804 87-012-245-080 C-CAP,U 15P-50 UJ
C805 87-010-831-080 C-CAP,U,0.1-16F
C806 87-012-172-080 CAPACITOR CHIP U 10P CH
C807 87-012-195-080 C-CAP,U 100P-50CH
C808 87-012-286-080 CAP, U 0.01-25
C809 87-012-286-080 CAP, U 0.01-25
C810 87-012-286-080 CAP, U 0.01-25
C811 87-A10-915-080 C-CAP,U 1000P-25 J CH
C812 87-012-170-080 C-CAP,U 8P-50 CH
C813 87-A10-039-080 C-CAP,U 470P-50 J CH
C814 87-012-174-080 CAP CHIP CERA SS 12P CHJ
C815 87-012-162-080 C-CAP,U 1P-50 CK
C816 87-012-286-080 CAP, U 0.01-25
C817 87-012-286-080 CAP, U 0.01-25
C818 87-A10-260-080 C-CAP,U 0.1-16 K B
C819 87-A10-420-080 C-CAP,TN 4.7-4 A TCF
C820 87-012-286-080 CAP, U 0.01-25
C824 87-A12-173-080 C-CAP,U 330P-50 CH
C825 87-A10-260-080 C-CAP,U 0.1-16 K B
C826 87-A10-260-080 C-CAP,U 0.1-16 K B
C827 87-A11-049-080 C-CAP,U 1-6.3 K B
C828 87-A10-260-080 C-CAP,U 0.1-16 K B
C829 87-010-785-080 C-CAP,U0.015-25BK<YU,YL>
C829 87-012-286-080 CAP, U 0.01-25<AK,AEZ,AHA>
C830 87-010-785-080 C-CAP,U0.015-25BK<YU,YL>
C830 87-012-286-080 CAP, U 0.01-25<AK,AEZ,AHA>
C831 87-A10-025-080 C-CAP,U 0.22-16Z F
C832 87-A10-025-080 C-CAP,U 0.22-16Z F
C834 87-016-558-080 C-CAP,TN47-6.3F93B
C835 87-012-286-080 CAP, U 0.01-25
C836 87-010-831-080 C-CAP,U,0.1-16F
C837 87-012-286-080 CAP, U 0.01-25
C839 87-012-273-080 C-CAP,U 820P-50 B
C843 87-012-286-080 CAP, U 0.01-25
C845 87-012-286-080 CAP, U 0.01-25
C848 87-012-286-080 CAP, U 0.01-25
C851 87-012-176-080 CAP 15P
C852 87-012-174-080 CAP CHIP CERA SS 12P CHJ
C853 87-A11-062-080 C-CAP,S 2.2-16 Z F
C854 87-012-286-080 CAP, U 0.01-25
C855 87-012-286-080 CAP, U 0.01-25
C856 87-A11-063-080 C-CAP,S 4.7-10 Z F
C857 87-012-195-080 C-CAP,U 100P-50CH
C858 87-012-195-080 C-CAP,U 100P-50CH
C881 87-010-805-080 CAP, S 1-16
C882 87-012-286-080 CAP, U 0.01-25
C883 87-012-286-080 CAP, U 0.01-25
C884 87-010-831-080 C-CAP,U,0.1-16F
C885 87-012-170-080 C-CAP,U 8P-50 CH
C886 87-012-167-080 C-CAP,U 5P-50 CH
C887 87-012-337-080 C-CAP,U 56P-50 CH
C891 87-012-274-080 C-CAP,U 1000P-50 KB
C901 87-A10-047-080 C-CAP,U 1-10 Z F
C902 87-012-286-080 CAP, U 0.01-25
C903 87-A10-025-080 C-CAP,U 0.22-16Z F
C904 87-A10-025-080 C-CAP,U 0.22-16Z F
C905 87-A10-025-080 C-CAP,U 0.22-16Z F
C906 87-A10-025-080 C-CAP,U 0.22-16Z F
C907 87-A10-047-080 C-CAP,U 1-10 Z F
C908 87-012-198-080 CAP 180P
C909 87-012-198-080 CAP 180P
C910 87-A10-504-080 C-CAP,U 0.047-16 K B
C911 87-010-831-080 C-CAP,U,0.1-16F
C912 87-010-831-080 C-CAP,U,0.1-16F
C914 87-010-831-080 C-CAP,U,0.1-16F
C915 87-010-831-080 C-CAP,U,0.1-16F
CF801 87-A91-162-010 FLTR,PFS450A7
D801 87-A40-462-040 C-VARI-CAP,SVC347(S)
D802 87-A40-916-040 C-VARI-CAP,HVC202A
D803 87-A40-916-040 C-VARI-CAP,HVC202A
L802 87-003-247-080 C-COIL,100UH
L804 8B-HC1-604-010 COIL,FM RF-EX BHC-1
L805 8B-HC1-605-010 COIL,FM OSC-EX BHC-1
L806 87-005-788-080 C-IFT,AM (450K)
L881 87-A50-037-080 C-COIL,D-D 5CDLU796kHz
L901 8B-HC1-607-080 C-COIL,OSC 1.00MHZ
LCD901 8B-HC1-610-010 LCD, BHC-1
SW901 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW902 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW903 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW904 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW905 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW906 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW907 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW908 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW909 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW910 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
SW911 87-A91-668-080 C-SW,TACT EVQ-PQH-B55
TC801 87-011-249-080 C-TRIMER,CER 30P 4.5-3.2 ECRK
X851 87-A70-082-010 VIB,XTAL 75KHZ
FLEX C.B
8B-HC1-606-010 PWB,FLEX-24P
– 6 –
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
TRANSISTOR ILLUSTRATION
2SA1235F
2SA1362GR
2SA1576A
2SB815B7
2SC2714O
2SC3052F
CPH3106
DTA114YUA
2SA1369G/H
2SB1132R
2SD1664R
2SK360E
2SK2980
S
G
D
IMX9 DTA123JUA
DTC114TUA
DTC114WUA
DTC114YUA
DTC123JUA
RN1405
RN1411
RN2311
B
C
E
CBE
G
D
SC1
E2
C2 B1
E1
B2
C
ALKALINE BATTERIES
WIRING 1 (MAIN) <1 / 2>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
7
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
VIA FLEX C.B (2/2)
ON (2X)
...
WIRING 1 (MAIN / FLEX : 1 / 2) <2 / 2>
1 2 3 4 5 6 7 8 9 1011121314151617181920212223242526272829303132
8
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
– 9 –
SCHEMATIC DIAGRAM–1 (MAIN)
43
2
1
WIRING 2 (LID) <1 / 2> (AHA)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
10
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
VIA FLEX C.B (1/2)
WIRING 2 (LID / FLEX : 2 / 2) <2 / 2> (AHA)
1 2 3 4 5 6 7 8 9 1011121314151617181920212223242526272829303132
11
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
<YU,YL ONLY>
<AK,AEZ ONLY>
WIRING 3 (LID) <1 / 2> (YU,YL,AK,AEZ)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
12
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
VIA FLEX C.B (1/2)
WIRING 3 (LID / FLEX : 2 / 2) <2 / 2> (YU,YL,AK,AEZ)
1 2 3 4 5 6 7 8 9 1011121314151617181920212223242526272829303132
13
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
– 14 –
SCHEMATIC DIAGRAM–2 (LID)
15
IC BLOCK DIAGRAM
16
– 17 –
LCD DIAGRAM
– 18 –
Pin No. Pin Name I/O Description
1 DVDD3 I DRAM interface power (terminal No. 2 to 19).
2 ~ 3 D0 ~ D1 I/O DRAM data input/output signal 0 ~ 1.
4 NWE O DRAM write enable signal.
5 NRAS O DRAM RAS control signal.
6 ~ 7 D2 ~ D3 I/O DRAM data input/output signal 2 ~ 3.
8 NCAS0 O DRAM CAS control signal 0.
9 A10 O DRAM address signal 10.
10 ~ 14 A8 ~ A4 O DRAM address signal 8 ~ 4.
15 A9 O DRAM address signal 9.
16 ~ 19 A0 ~ A3 O DRAM address signal 0 ~ 3.
20 DVSS2 I Digital circuit GND.
21 DVDD2 I Digital circuit power.
22 SPOUT O Spindle motor driver signal output.
23 TRVM O Traverse drive output (+ polar output).
24 TRVP O Traverse drive output (- polar output).
25 TRM O Tracking drive output (+ polar output).
26 TRP O Tracking drive output (- polar output).
27 FOM O Focus drive output (+ polar output).
28 FOP O Focus drive output (- polar output).
29 FBAL O Focus balance adjustment output.
30 TBAL O Tracking balance adjustment output.
Specified crystal oscillation frequency signal input. (Connected to GND)
31 CSEL I “H” : Crystal oscillation fregnency = 33.8688MHz.
“L” : Crystal oscillation fregnency = 16.9344MHz.
32 FE I Focus error signal input (analogue input).
33 TE I Tracking error signal input (analogue input).
34 RFENV I RF envelope signal input (analogue input).
35 OFT I Off track signal input. “H” = Off track.
36 NRFDET I RF detection signal input. “L” = Detected.
37 BDO I Drop out signal input. “H” = Drop out.
38 LDON O Laser ON signal output. “H” = ON. (Not used)
39 ARF I RF signal input.
40 IREF I Reference current input terminal.
41 ADPVCC I AD reference voltage input (analogue input).
42 DSLF O DSL loop filter terminal.
43 DRF O Bias terminal for DSL.
44 PLLF O PLL loop filter terminal.
45 VCOF O Jitter free VCO loop filter terminal.
46 AVDD2 I Analogue circuit power (for DSL, PLL, VCOF, AD, DA).
47 AVSS2 I Analogue circuit GND (for DSL, PLL, VCOF, AD, DA).
48 OUTL O Lch audio output.
IC, MN35530
IC DESCRIPTION
– 19 –
Pin No. Pin Name I/O Description
49 AVSS1 I Analogue circuit GND.
50 OUTR O Rch audio output.
51 AVDD1 I Analogue circuit power.
52 FSEL I Noise filter ON/OFF switch input. “L” = ON, “H” = OFF. (Connected to VDD)
53 TMOD1 I Terminal mode switch input terminal 1. Normally set to “L”. (Connected to GND)
54 TMOD2 I Terminal mode switch input terminal 2. Normally set to “L”. (Connected to GND)
55 FLAG O Flag signal output. (Not used)
Command switch: Spindle servo phase synchronizing signal output.
56 CLVS/IPFLAG O “H” = CLV, “L” = Rough servo.
Interpolation flag signal output. “H” = Interpolation. (Not used)
57 EXT0/ISRDATA I/O Command switch: Extension input/output port 0, SRDATA input. (Not used)
58 EXT1/ILRCK I/O
Command switch: Extension input/output port 1, LRCK input.
“H” = Lch audio data, “L” = Rch audio data. (Not used)
59 EXT2/IBCLK I/O Command switch: Extension input/output port 2, BCLK input. (Not used)
60 TX O Digital audio interface output signal. (Not used)
61 MCLK I Microcomputer command clock signal input. (Data is latched at loading edge)
62 MDATA I Microcomputer command data signal input.
63 MLD I Microcomputer command load signal input. “L” = Load.
64 BLKCK O Sub-code block clock signal fBLKCK = 75 Hz. (In normal PLAY mode)
65 SQCK/BCLK I/O Command switch: Sub-code Q resistor external clock input, SRDATA bit clock output. (Not used)
66 SUBQ/LRCK O
Command switch: Sub-code Q data output, L, R discrimination signal output.
“H” = Lch audio data, “L” = Rch audio data. (Not used)
67 DMUTE/SRDATA I/O Command switch: Muting input, “H” = MUTE. Serial data output. (Connected to GND)
Status signal (CRC, RESY, CLVS, NTTSTOP, SQOK, FLAG6, SENSE,NFLOCK
68 STAT O NTLOCK, BSSEL, SUBQ DATA, CDTEXT DATA, SHOCK RESISTANCE READ
DATA).
69 NRST I Reset input. “L” = Reset.
70 SPPOL O Spindle motor drive signal output. (Polar output)
71 PMCK O 88.2 kHz clock signal output. (Not uesed)
72 SMCK O 4.2336 MHz clock signal output.
73 SUBC/SSYNC O Command switch: Sub-code serial output, Sector SYNC output. (Not uesed)
74 SBCK/64FS I Command switch: Clock input for sub-code serial output, 64FS output. (Not used)
75 NCLDCK O Sub-code frame clock signal output. (fCLDCK = 7.35 kHz) (Not used)
76 NTEST I Test terminal, normally set to “H”. (Connected to VDD)
77 X1 I Quartz oscillator circuit input terminal f = 16.93 MHz.
78 X2 O Quartz oscillator circuit output terminal f = 16.93 MHz.
79 DVDD1 I Digital circuit power.
80 DVSS1 I Digital circuit GND.
– 20 –
IC, MN101C439-AK
Pin No. Pin Name I/O Description
1 ~ 7 NC - Not connected.
8 VDD - Micro-computer power voltage (2.8 V).
9 OSC2 - Not used.
10 OSC1 I Main clock oscillator (8.4 MHz).
11 VSS - Micro-computer GND.
12 XI I Sub clock input. (Connected to GND)
13 XO O Sub clock output. (Not used)
14 MMOD I Memory mode switch input. (Connected to GND)
15 VREF- - A/D converter GND.
16,17 NC - Connected to GND.
18 ACIN I AC adaptor detection terminal.
19 VDIN I Battery voltage measuring terminal.
20 NC - Connected to GND.
21 SWHO I HOLD/RESUME SW input. “L”=HOLD/RESUME ON.
22 SWEASS I EASS mode SW input terminal.
23 SWRE I RESUME SW input. “L”=RESUME ON.
24 VREF+ - AD converter supply. (Connected to VDD)
25 MDATA O DSP MDATA output.
26 STAT I DSP STAT input.
27 MCLK O DSP MCLK output.
28 TU-TXD O Tuner Micon data output.
29 TU-RXD I Tuner Micon data input.
30 TU-CLK I Tuner CLK input.
31 BEEP O Buzzer output for headphone.
32 RST I Micro-computer reset input.
33 NRST O DSP RESET output.
34 SW-IL I Pickup inner circumference limit SW.
35 PC O CD servo driver power OFF output. “L” power OFF.
36 CD-RW O Switch CD / CD RW and LD ON.
37 MLD O DSP MLD output.
38 BLKCK I DSP BLKCK input.
39 NC - Connected to GND.
40 NC - Connected to GND.
41 TU CS I Tuner CS input.
42 PU-ON O RF AMP power down output.
43 EASSON O Gain up in EASS selection output. EASS ON = “L”, OFF = “H”.
44 NC - Not connected.
45 CD-DATA-REQ O CD tuner data request output.
46 NC - Not connected.
47 NC - Not connected.
Table of contents
Other Aiwa CD Player manuals
