Aiwa XP-MP3 User manual

SERVICE MANUAL
DATA
BASIC CD MECHANISM : DA23LN
COMPACT DISC PLAYER
XP-MP3
S/M Code No. 09-00A-350-5N2
AU, AEZ

-2-
SPECIFICATION <AU>
SPECIFICATION <AEZ>
Tracking system 3-beam laser
Laser pickup Semiconductor laser
D/A conversion Multi-bit DAC
Frequency response
Output /LINE OUT jack (stereo
mini-jack)
Maximum output 5 mW + 5 mW
(16 ohms at 1 kHz)
500 mV (47 k ohms at 1 kHz)
Power supply DC 3 V using two LR6 (size
AA) alkaline batteries
DC 2.4 V using two
commercially available (Ni-MH
1.2 V 1600mAh) rechargeable
batteries
AC house current using the
supplied AC adaptor
Maximum outside dimensions
131 (W) x35 (H) x144 (D)
mm (excluding projecting
parts and controls)
Weight Approx. 285 g excluding
batteries
«AC Adaptor AC-A56E»
Rated input AC 230 V, 50 Hz
Supplied headphones HP-M043
Type: In-ear type
Impedance: 16 ohms
Sensitivity: 107 dB/mW
Recommended commercially available
headphones Type: In-ear type/
Vertical type/Headband type
Impedance: 16 –32 ohms
Sensitivity: 100 –109 dB/mW
20 –20,000 Hz (47 k ohms)
• Design and specifications are subject to change without notice.
• Design and specifications are subject to change without notice.

-3-
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa mainit-
ulla tavalla saattaa altistaa käyt-täjän turvallisuusluokan 1 ylit-
tävälle näkymättömälle lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som specificeras i
denna bruksanvising, kan användaren utsättas för osynling
laserstrålning, som överskrider gränsen för laserklass 1.
Caution: Invisible laser radiation when
open and interlocks defeated avoid expo-
sure to beam.
Advarsel:Usynling laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
ATTENTION
L'utilisation de commandes, réglages ou procédures autres que
ceux spécifiés peut entraîner une dangereuse exposition aux
radiations.
ADVARSEL!
Usynlig laserståling ved åbning, når sikkerhedsafbrydereer ude
af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1 LASER
product.
The CLASS 1 LASER PRODUCT label is located on the rear
exterior.
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!
WHEN SERVICING, DO NOT APPROACH THE LASER EXIT
WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO
CONFIRM LASER BEAM EMISSION. BE SURE TO OBSERVE
FROM A DISTANCE OF MORE THAN 30cm FROM THE
SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL
PICK-UP BLOCK.
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
PICK UP ASSY
SF-P200
SOLDER
116 10 9
Precaution to replace optical block (SF-P200)

-4-
REF. NO PART NO. KANRI DESCRIPTION
NO.
ACCESSORIES LIST
1 8A-HP1-905-010 IB,EZ(6L)S<AEZ>
1 8A-HP1-901-010 IB,U(3L)S<AU>
2 87-B30-124-110 HEADPHONE,HP-M028<AU>
2 87-B30-265-010 HEADPHONE,HP-M043<AEZ>
!!
!!
!3 87-042-207-010 AC ADAPTOR,AC-A56 U<AU>
!!
!!
!3 87-042-210-210 AC ADAPTOR,AC-A56E<AEZ>
4 86-YK1-001-310 ADAPTOR,CAP-6<AU>
5 86-YK1-002-110 ADAPTOR,DC-602<AU>

-5-
ELECTRICAL MAIN PARTS LIST - 1/3
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
IC
8A-HP1-607-010 C-IC,UPD784216AYGC-105-8EU
87-A21-941-030 C-IC,UT62L1024LC-70LL
87-A20-674-040 C-IC,S-80825ANNP-EDN
87-A21-323-010 C-IC,CXD2585Q
87-A21-703-040 C-IC,SN74LV244APW
87-017-945-040 C-IC,NJM2112
87-A20-963-040 C-IC,CXA1791N
87-A21-484-010 C-IC,SM5904BF
87-A21-083-040 C-IC,BH6508FS
87-A21-082-040 C-IC,BA6655AFV
87-A21-332-040 C-IC,MB3800PFV
87-A21-143-080 C-IC,S8324A33MC-EON-T2
87-A21-833-040 C-IC,S-81330HG-KB-T1
87-017-853-040 C-IC,NJM2100V
87-A21-621-010 C-IC,MAS3507D-G10
87-A21-624-040 C-IC,SN74AHC1G08 DCK
87-A21-599-010 C-IC,LC89513K
87-A21-942-030 C-IC,T15L256A-70P
87-A21-714-030 C-IC,DAC3550A-C2
87-A21-357-040 C-IC,AK4352VT
87-A21-085-040 C-IC,TA2120FN
TRANSISTOR
89-115-865-080 C-TR,2SA1586G
87-026-409-080 C-TR,RN1302
89-111-625-080 C-TR,2SA1162GR
87-026-418-080 C-TR,RN1311
87-026-429-040 C-TR,RN2311
87-A30-336-040 C-TR,UMH4N
87-A30-332-040 C-TR,CPH3106
89-214-123-080 C-TR,2SB1412 R
87-A30-333-040 C-TR,CPH3206
87-026-415-040 C-TR,RN1308
89-341-165-080 C-TR,2SC4116GR
DIODE
87-001-166-080 C-DIODE,1SS301
87-A40-674-040 C-DIODE,HRC0202A
87-A40-614-040 C-DIODE,SFPB-72
87-A40-592-040 C-ZENER,HZM11NB2
87-A40-180-040 C-DIODE,SB07-015C
87-A40-674-080 C-DIODE,HRC0202A
MAIN C.B
C0101 87-A11-241-080 C-CAP,TN 22-6.3 M F93 A
C0102 87-010-831-080 C-CAP,U 0.1-16 Z F
C0103 87-010-831-080 C-CAP,U 0.1-16 Z F
C0104 87-A10-463-080 C-CAP,U 0.47-10 Z F
C0105 87-012-274-080 C-CAP,U 1000P-50 K B
C0106 87-012-274-080 C-CAP,U 1000P-50 K B
C0108 87-012-274-080 C-CAP,U 1000P-50 K B
C0109 87-012-274-080 C-CAP,U 1000P-50 K B
C0110 87-012-274-080 C-CAP,U 1000P-50 K B
C0111 87-012-274-080 C-CAP,U 1000P-50 K B
C0112 87-012-274-080 C-CAP,U 1000P-50 K B
C0113 87-012-274-080 C-CAP,U 1000P-50 K B
C0121 87-010-831-080 C-CAP,U 0.1-16 Z F
C0201 87-016-558-080 C-CAP,TN 47-6.3 F93B
C0202 87-010-831-080 C-CAP,U 0.1-16 Z F
C0203 87-A11-241-080 C-CAP,TN 22-6.3 M F93 A
C0204 87-010-831-080 C-CAP,U 0.1-16 Z F
C0205 87-A10-827-080 C-CAP,U 0.47-6.3 K B
C0206 87-012-280-080 C-CAP,U 3300P-50 K B
C0207 87-012-280-080 C-CAP,U 3300P-50 K B
C0208 87-A10-504-080 C-CAP,U 0.047-16 K B
C0209 87-012-199-080 C-CAP,U 220P-50 J CH
C0210 87-A10-827-080 C-CAP,U 0.47-6.3 K B
C0211 87-010-831-080 C-CAP,U 0.1-16 Z F
C0212 87-012-174-080 C-CAP,U 12P-50 J CH
C0213 87-012-174-080 C-CAP,U 12P-50 J CH
C0214 87-010-831-080 C-CAP,U 0.1-16 Z F
C0215 87-012-172-080 C-CAP,U 10P-50 D CH
C0216 87-012-172-080 C-CAP,U 10P-50 D CH
C0221 87-012-270-080 C-CAP,U 470P-50 K B
C0222 87-012-270-080 C-CAP,U 470P-50 K B
C0223 87-012-270-080 C-CAP,U 470P-50 K B
C0224 87-012-270-080 C-CAP,U 470P-50 K B
C0225 87-012-270-080 C-CAP,U 470P-50 K B
C0226 87-012-270-080 C-CAP,U 470P-50 K B
C0241 87-010-831-080 C-CAP,U 0.1-16 Z F
C0242 87-010-831-080 C-CAP,U 0.1-16 Z F
C0251 87-016-558-080 C-CAP,TN 47-6.3 F93B
C0252 87-010-831-080 C-CAP,U 0.1-16 Z F
C0253 87-A11-241-080 C-CAP,TN 22-6.3 M F93 A
C0254 87-A11-241-080 C-CAP,TN 22-6.3 M F93 A
C0255 87-016-558-080 C-CAP,TN 47-6.3 F93B
C0256 87-A11-241-080 C-CAP,TN 22-6.3 M F93 A
C0257 87-012-274-080 C-CAP,U 1000P-50 K B
C0258 87-012-199-080 C-CAP,U 220P-50 J CH
C0259 87-010-831-080 C-CAP,U 0.1-16 Z F
C0260 87-012-199-080 C-CAP,U 220P-50 J CH
C0261 87-012-186-080 C-CAP,U 39P-50 J CH
C0262 87-012-180-080 C-CAP,U 22P-50 J CH
C0271 87-010-831-080 C-CAP,U 0.1-16 Z F
C0272 87-010-831-080 C-CAP,U 0.1-16 Z F
C0301 87-A11-241-080 C-CAP,TN 22-6.3 M F93 A
C0302 87-010-831-080 C-CAP,U 0.1-16 Z F
C0303 87-010-831-080 C-CAP,U 0.1-16 Z F
C0401 87-010-831-080 C-CAP,U 0.1-16 Z F
C0402 87-016-558-080 C-CAP,TN 47-6.3 F93B
C0403 87-012-273-080 C-CAP,U 820P-50 K B
C0404 87-010-785-080 C-CAP,U 0.015-25 K B GRM
C0405 87-010-785-080 C-CAP,U 0.015-25 K B GRM
C0406 87-010-785-080 C-CAP,U 0.015-25 K B GRM
C0407 87-010-785-080 C-CAP,U 0.015-25 K B GRM
C0408 87-012-286-080 C-CAP,U 0.01-25 K B
C0409 87-A10-827-080 C-CAP,U 0.47-6.3 K B
C0410 87-010-831-080 C-CAP,U 0.1-16 Z F
C0501 87-A11-031-080 C-CAP,E 100-16 M WX
C0502 87-010-831-080 C-CAP,U 0.1-16 Z F
C0503 87-A11-031-080 C-CAP,E 100-16 M WX
C0504 87-010-831-080 C-CAP,U 0.1-16 Z F
C0505 87-016-558-080 C-CAP,TN 47-6.3 F93B
C0506 83-HC3-635-080 C-CAP,E 220-6.3WF
C0507 87-010-831-080 C-CAP,U 0.1-16 Z F
C0508 87-A11-241-080 C-CAP,TN 22-6.3 M F93 A
C0509 87-016-558-080 C-CAP,TN 47-6.3 F93B
C0511 87-010-831-080 C-CAP,U 0.1-16 Z F
C0512 87-012-195-080 C-CAP,U 100P-50 J CH
C0513 87-012-286-080 C-CAP,U 0.01-25 K B
C0514 87-012-274-080 C-CAP,U 1000P-50 K B
C0515 87-010-831-080 C-CAP,U 0.1-16 Z F
C0516 87-010-831-080 C-CAP,U 0.1-16 Z F
C0517 87-010-831-080 C-CAP,U 0.1-16 Z F
C0518 87-010-831-080 C-CAP,U 0.1-16 Z F
C0519 87-010-831-080 C-CAP,U 0.1-16 Z F
C0531 87-016-558-080 C-CAP,TN 47-6.3 F93B
C0532 87-012-188-080 C-CAP,U 47P-50 J CH
C0533 87-A10-262-080 C-CAP,U 1-10 Z F
C0534 83-HC3-635-080 C-CAP,E 220-6.3WF
C0535 87-010-831-080 C-CAP,U 0.1-16 Z F
C0536 87-A11-241-080 C-CAP,TN 22-6.3 M F93 A
C0537 87-010-831-080 C-CAP,U 0.1-16 Z F
C0538 87-A10-463-080 C-CAP,U 0.47-10 Z F

-6-
C0539 87-010-831-080 C-CAP,U 0.1-16 Z F
C0540 87-010-831-080 C-CAP,U 0.1-16 Z F
C0541 87-012-274-080 C-CAP,U 1000P-50 K B
C0551 87-A11-793-080 C-CAP,TN 33-10 M F93 B
C0552 87-010-831-080 C-CAP,U 0.1-16 Z F
C0553 87-A10-262-080 C-CAP,U 1-10 Z F
C0554 87-A10-262-080 C-CAP,U 1-10 Z F
C0571 87-A10-262-080 C-CAP,U 1-10 Z F
C0572 87-A11-793-080 C-CAP,TN 33-10 M F93 B
C0573 87-012-286-080 C-CAP,U 0.01-25 K B
C0581 87-012-274-080 C-CAP,U 1000P-50 K B
C0582 87-010-831-080 C-CAP,U 0.1-16 Z F
C0583 87-012-286-080 C-CAP,U 0.01-25 K B
C0584 87-010-831-080 C-CAP,U 0.1-16 Z F
C0601 87-016-558-080 C-CAP,TN 47-6.3 F93B
C0602 87-010-831-080 C-CAP,U 0.1-16 Z F
C0603 87-010-831-080 C-CAP,U 0.1-16 Z F
C0604 87-010-831-080 C-CAP,U 0.1-16 Z F
C0621 87-010-831-080 C-CAP,U 0.1-16 Z F
C0651 87-016-558-080 C-CAP,TN 47-6.3 F93B
C0652 87-010-831-080 C-CAP,U 0.1-16 Z F
C0653 87-010-831-080 C-CAP,U 0.1-16 Z F
C0654 87-010-831-080 C-CAP,U 0.1-16 Z F
C0655 87-010-831-080 C-CAP,U 0.1-16 Z F
C0661 87-010-831-080 C-CAP,U 0.1-16 Z F
C0701 87-016-558-080 C-CAP,TN 47-6.3 F93B
C0702 87-010-831-080 C-CAP,U 0.1-16 Z F
C0703 87-016-287-080 C-CAP,TN 3.3-6.3 M
C0704 87-012-286-080 C-CAP,U 0.01-25 K B
C0705 87-010-831-080 C-CAP,U 0.1-16 Z F
C0706 87-A11-241-080 C-CAP,TN 22-6.3 M F93 A
C0707 87-012-178-080 C-CAP,U 18P-50 J CH
C0708 87-012-178-080 C-CAP,U 18P-50 J CH
C0709 87-010-831-080 C-CAP,U 0.1-16 Z F
C0710 87-010-831-080 C-CAP,U 0.1-16 Z F
C0711 87-010-831-080 C-CAP,U 0.1-16 Z F
C0721 87-012-271-080 C-CAP,U 560P-50 K B
C0722 87-012-271-080 C-CAP,U 560P-50 K B
C0723 87-012-335-080 C-CAP,U 270P-50 J SL
C0724 87-012-335-080 C-CAP,U 270P-50 J SL
C0725 87-012-193-080 C-CAP,U 82P-50 J CH
C0726 87-012-193-080 C-CAP,U 82P-50 J CH
C0751 87-A11-241-080 C-CAP,TN 22-6.3 M F93 A
C0752 87-010-831-080 C-CAP,U 0.1-16 Z F
C0753 87-010-831-080 C-CAP,U 0.1-16 Z F
C0754 87-016-289-080 C-CAP,TN 10-6.3 M F93
C0755 87-016-289-080 C-CAP,TN 10-6.3 M F93
C0761 87-A10-262-080 C-CAP,U 1-10 Z F
C0762 87-A10-262-080 C-CAP,U 1-10 Z F
C0801 87-016-558-080 C-CAP,TN 47-6.3 F93B
C0802 87-010-831-080 C-CAP,U 0.1-16 Z F
C0803 87-010-831-080 C-CAP,U 0.1-16 Z F
C0804 87-016-289-080 C-CAP,TN 10-6.3 M F93
C0805 87-A10-262-080 C-CAP,U 1-10 Z F
C0806 87-016-558-080 C-CAP,TN 47-6.3 F93B
C0807 87-016-289-080 C-CAP,TN 10-6.3 M F93
C0809 87-A10-025-080 C-CAP,U 0.22-16 Z F
C0810 87-016-286-080 C-CAP,TN 2.2-6.3 M
C0821 87-A10-262-080 C-CAP,U 1-10 Z F
C0822 87-A10-262-080 C-CAP,U 1-10 Z F
C0831 87-010-831-080 C-CAP,U 0.1-16 Z F
C0832 87-010-831-080 C-CAP,U 0.1-16 Z F
C0833 87-016-431-080 C-CAP,E 220-4 M WX
C0834 87-016-431-080 C-CAP,E 220-4 M WX
C0835 87-012-274-080 C-CAP,U 1000P-50 K B
C0836 87-012-274-080 C-CAP,U 1000P-50 K B
CN0101 87-A60-892-080 C-CONN,20P V FLT-SM1-TB
CN0401 87-A61-305-080 C-CONN,16P H TOC-E
CN0402 87-099-522-080 C-CONN,6P V ZH-SM3
FFC0001 8A-HP1-606-010 FF-CABLE,20P 0.5 78MM
J0501 87-A61-447-010 JACK,DC DJ26B BLK 6
J0801 87-A61-446-010 JACK,3.5 GRN ST W/REM
L0101 87-A50-367-080 C-COIL, 10UH LQG21F
L0201 87-A50-439-080 C-COIL, 47UH K LQH3C34
L0251 87-A50-367-080 C-COIL, 10UH LQG21F
L0252 87-A50-367-080 C-COIL, 10UH LQG21F
L0301 87-A50-367-080 C-COIL, 10UH LQG21F
L0501 87-A50-587-080 C-COIL,68UH-CDRH5D28
L0531 88-HC4-615-040 C-COIL,39UH 7006-2M
L0551 87-A50-587-080 C-COIL,68UH-CDRH5D28
L0571 87-A50-440-080 C-COIL, 100UH K LQH3C34
L0601 87-A50-536-080 C-COIL,10UH K LQH3C24
L0651 87-A50-536-080 C-COIL,10UH K LQH3C24
L0701 87-A50-536-080 C-COIL,10UH K LQH3C24
L0751 87-A50-367-080 C-COIL, 10UH LQG21F
R0271 87-022-241-080 C-RES,U 12K-1/16W F
R0272 87-022-241-080 C-RES,U 12K-1/16W F
R0273 87-022-241-080 C-RES,U 12K-1/16W F
R0274 87-022-241-080 C-RES,U 12K-1/16W F
R0275 87-022-233-080 C-RES,U 5.6K-1/16W F
R0276 87-022-233-080 C-RES,U 5.6K-1/16W F
R0277 87-022-436-080 C-RES,U 390-1/16W F
R0278 87-022-436-080 C-RES,U 390-1/16W F
R0279 87-022-221-080 C-RES,U 1.8K-1/16W F
R0280 87-022-221-080 C-RES,U 1.8K-1/16W F
R0281 87-022-229-080 C-RES,U 3.9K-1/16W F
R0282 87-022-229-080 C-RES,U 3.9K-1/16W F
R0283 87-022-253-080 C-RES,U 39K-1/16W F
R0284 87-022-253-080 C-RES,U 39K-1/16W F
R0508 87-022-239-080 C-RES,U 10K-1/16W F
R0509 87-022-247-080 C-RES,U 22K-1/16W F
R0534 87-022-284-080 C-RES,U 68K-1/16W F
R0535 87-022-239-080 C-RES,U 10K-1/16W F
S0101 87-036-264-080 C-SW,MICRO SPPB53
S0102 87-A90-703-080 C-SW,SL 1-1-3 SSSS813-B-2B
S0103 87-A90-330-080 C-SW,SL 1-1-2 SSSS81 T1.4
VR0801 87-A91-145-080 C-VR,RTRY 30KCX2 H RK14J12R
X0101 87-A70-266-080 C-VIB,CER 6.25MHZ CSTRC-MG05
X0201 87-A70-221-080 C-VIB,XTAL 16.9344MHZ CX-53F
X0701 87-A70-267-080 C-VIB,XTAL 14.725MHZ CX-53F
LID C.B
C0901 87-016-289-080 C-CAP,TN 10-6.3 M F93
C0903 87-010-178-080 C-CAP,S 1000P-50 K B C2012
C0904 87-010-805-080 C-CAP,S 1-16 Z F
C0905 87-010-805-080 C-CAP,S 1-16 Z F
CN0901 87-A61-479-080 C-CONN,20P H 20FLZ-RSM1TB
LCD0901 8A-HP1-609-010 LCD,AHP-1
R0901 83-XM1-617-080 C-COIL,BK2125HM601
S0901 87-A90-232-080 C-SW,TACT SKQRAA
S0902 87-A90-232-080 C-SW,TACT SKQRAA
S0910 87-A90-232-080 C-SW,TACT SKQRAA
S0911 87-A90-232-080 C-SW,TACT SKQRAA
S0912 87-A90-232-080 C-SW,TACT SKQRAA
S0913 87-A90-232-080 C-SW,TACT SKQRAA
S0914 87-A90-232-080 C-SW,TACT SKQRAA
S0915 87-A90-232-080 C-SW,TACT SKQRAA
S0920 87-A90-232-080 C-SW,TACT SKQRAA
S0921 87-A90-232-080 C-SW,TACT SKQRAA
S0922 87-A90-232-080 C-SW,TACT SKQRAA
REF. NO PART NO. KANRI DESCRIPTION
NO.
REF. NO PART NO. KANRI DESCRIPTION
NO.
ELECTRICAL MAIN PARTS LIST - 2/3

-7-
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
• Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.
ELECTRICAL MAIN PARTS LIST - 3/3

-8-
TRANSISTOR ILLUSTRATION
BE
C
2SA1162
2SA1586
2SC4116
CPH3106
CPH3206
RN1302
RN1308
RN1311
RN2311
E1 B1C2
C1 B2 E2
UMH4N
E
C
C
B
2SB1412

-9-
SCHEMATIC DIAGRAM - 1 (MAIN-1/2 SECTION)
DC/DC CONVERTER
3V REGULATOR
MP3 POWER SW
SW
(SLCON)
DC/DC CONVERTER
Q505
DC/DC CONVERTER(SW)
Q531,532
DC/DC CONVERTER(SW)
SW

LR6(AA)
3.1V
3.1V
VC1.5V
VC1.5V
VC1.5V
VC1.5V
3.1V
3.1V
3.1V
3.4V
3.0V
3.1V

-10-
SCHEMATIC DIAGRAM - 2 (MAIN-2/2 SECTION)
PR SIG MAKE CIRCUIT
105-8EU
AVSS1 AVSS0 AVDD0 AVDD1
OP/CL
T15L256A-70P
UT62L1024LC-70LL
<AU>: 3.3
<AEZ>: 12
<AU>: 3.3
<AEZ>: 12
3.4V
GND
GND
3.0V
3.4V
3.1V
3.1V
3.1V
3.0V
3.4V3.4V
3.0V
3.1V
3.4V
3.0V
3.4V
3.0V
1.25V
1.25V
3.0V
3.0V
START MODE
TO LCD C.B CN901 VIA FFC1

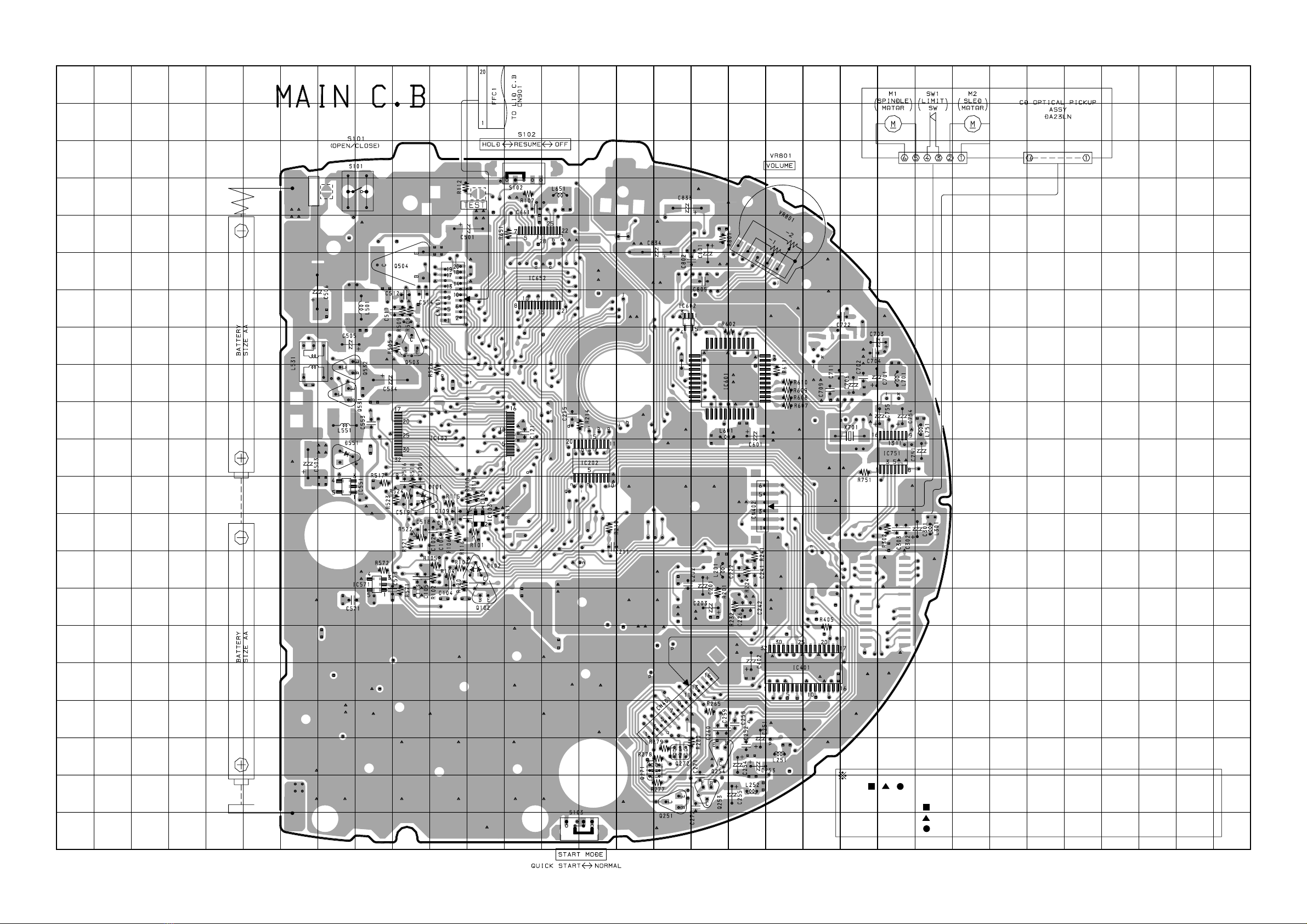

WIRING - 1 (MAIN C.B 1/2)
-11-
11 1
5
12
22
15
20
23 33
30
25
44
40
34
OP/CL
LR6,LR6,
This wiring diagram show a 4-layer boards.
The , , a ~ g marks show the connections between the usual
double-face patterns and the patterns on the internal layers that cannot be seen.
The patterns with marks are connected to +B patterns.
The patterns with marks are connected to GND patterns.
The patterns with a ~g marks are connected to each alphabetical jumper patterns.
181920212223242526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
17 16151413121110987654321

WIRING - 1 (MAIN C.B 2/2)
-12-
This wiring diagram show a 4-layer boards.
The , , a ~ g marks show the connections between the usual
double-face patterns and the patterns on the internal layers that cannot be seen.
The patterns with marks are connected to +B patterns.
The patterns with marks are connected to GND patterns.
The patterns with a ~g marks are connected to each alphabetical jumper patterns.
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

-13-

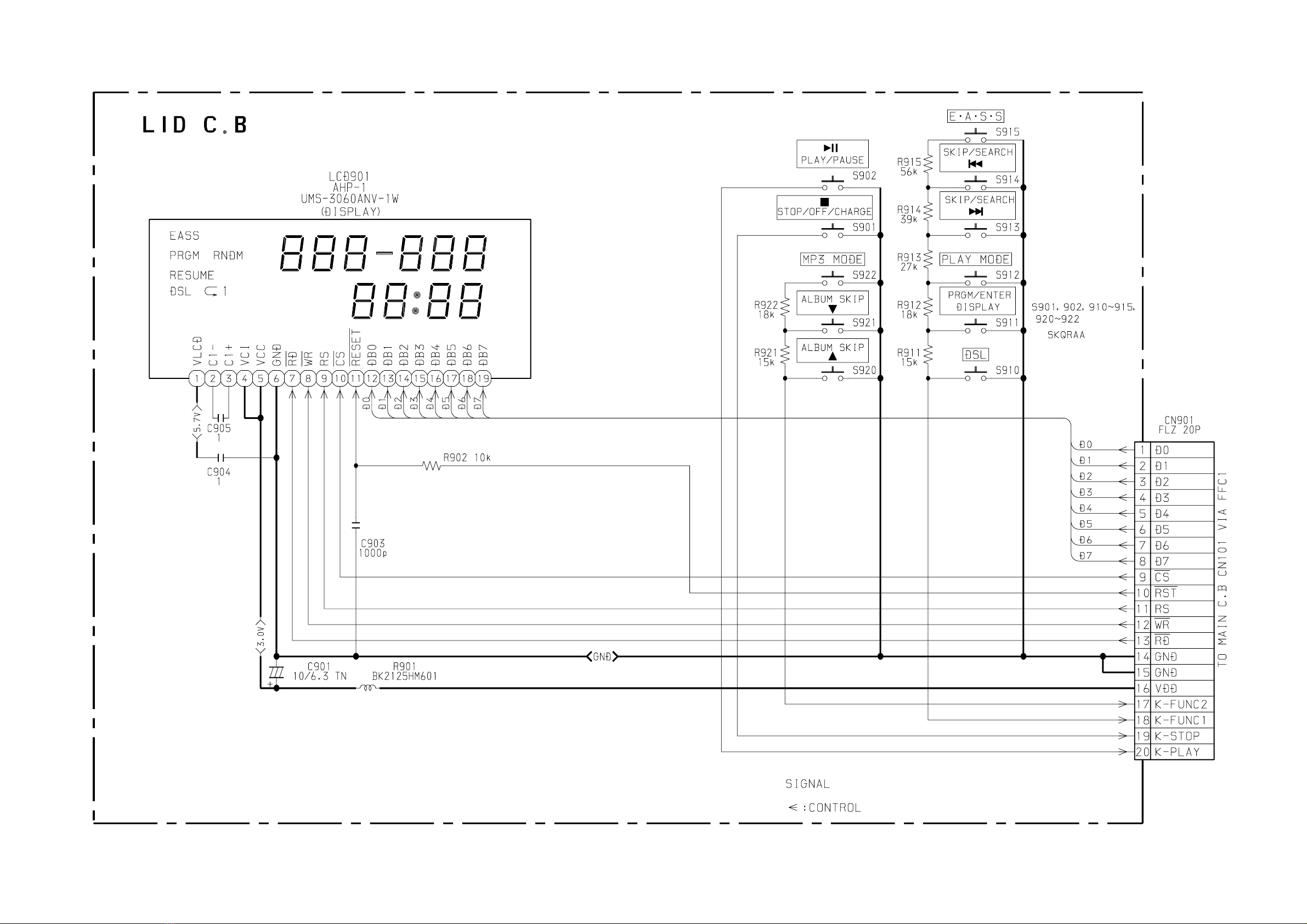

SCHEMATIC DIAGRAM - 3 (LID SECTION)

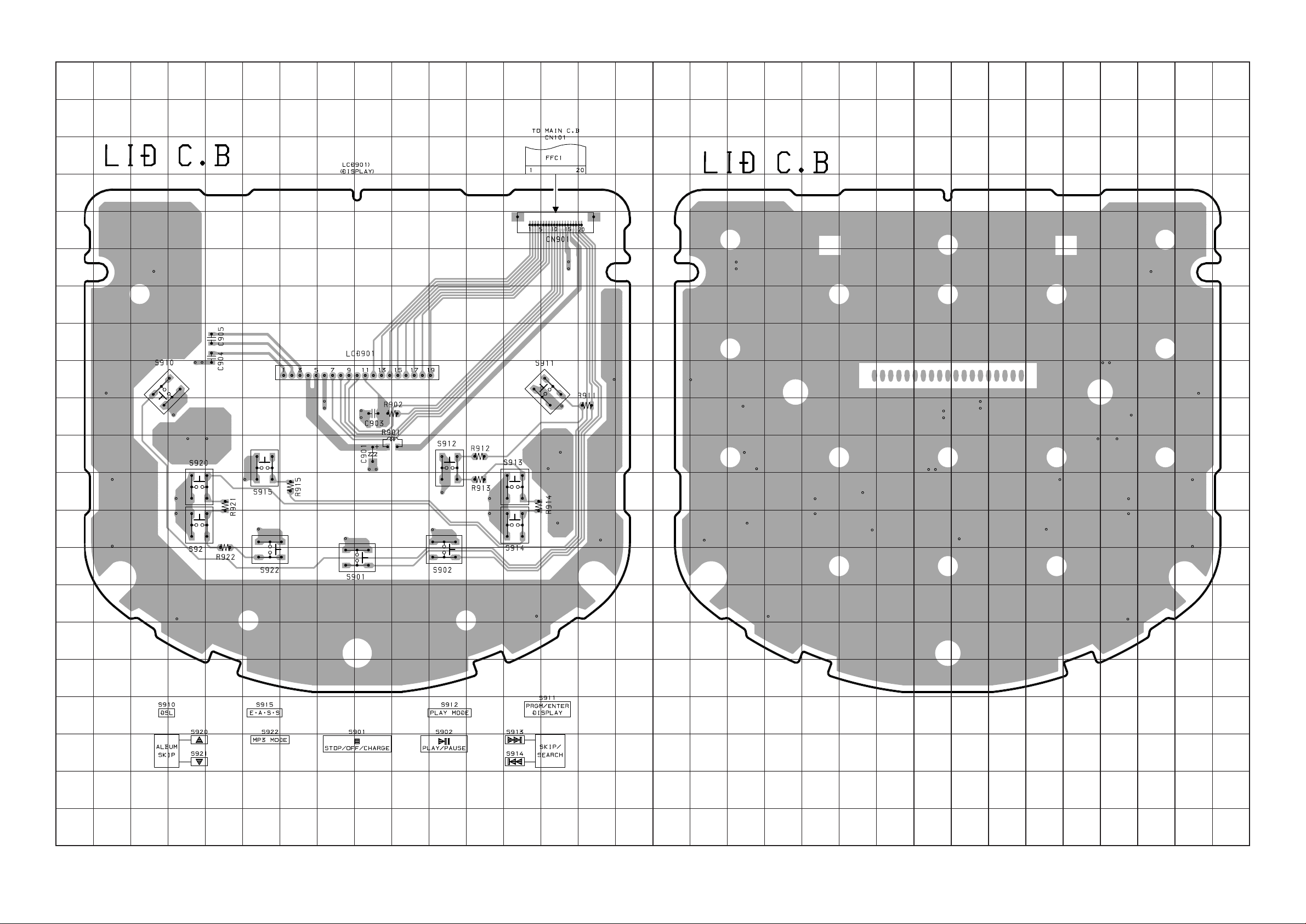

WIRING - 2 (LID C.B)
-14-
876543211345678
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
2
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
9 10 11 12 13 14 15 16910111213141516

-15-

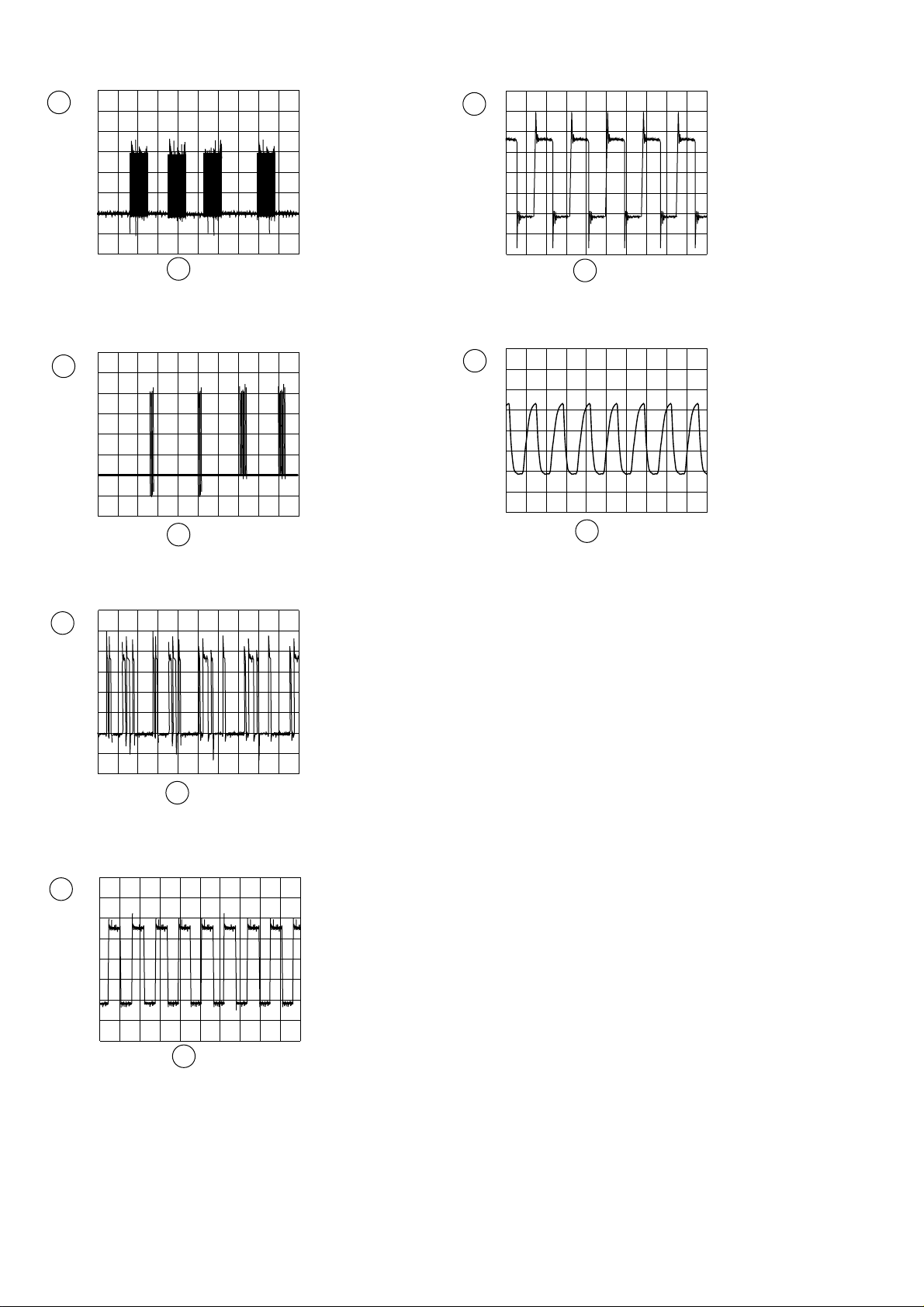

WAVEFORMS - 1/2
IC251 Pin 17 (RF O)
500mV/200ns DIV
1
IC251 Pin 16 (FE O)
50mV/1ms DIV
IC201 Pin 71 (XTAI)
1V/50ns DIV
IC251 Pin 14 (TA O)
50mV/1ms DIV
IC201 Pin 67 (BCK)
1V/200ns DIV
IC201 Pin 65 (LRCK)
1V/10µs DIV
IC201 Pin 25 (MDP)
1V/100µs DIV
IC201 Pin 66 (PCMD)
1V/1µs DIV
VC 0V
0V
0V
VC
VC
VC
0V
2
3
48
6
7
5

-16-

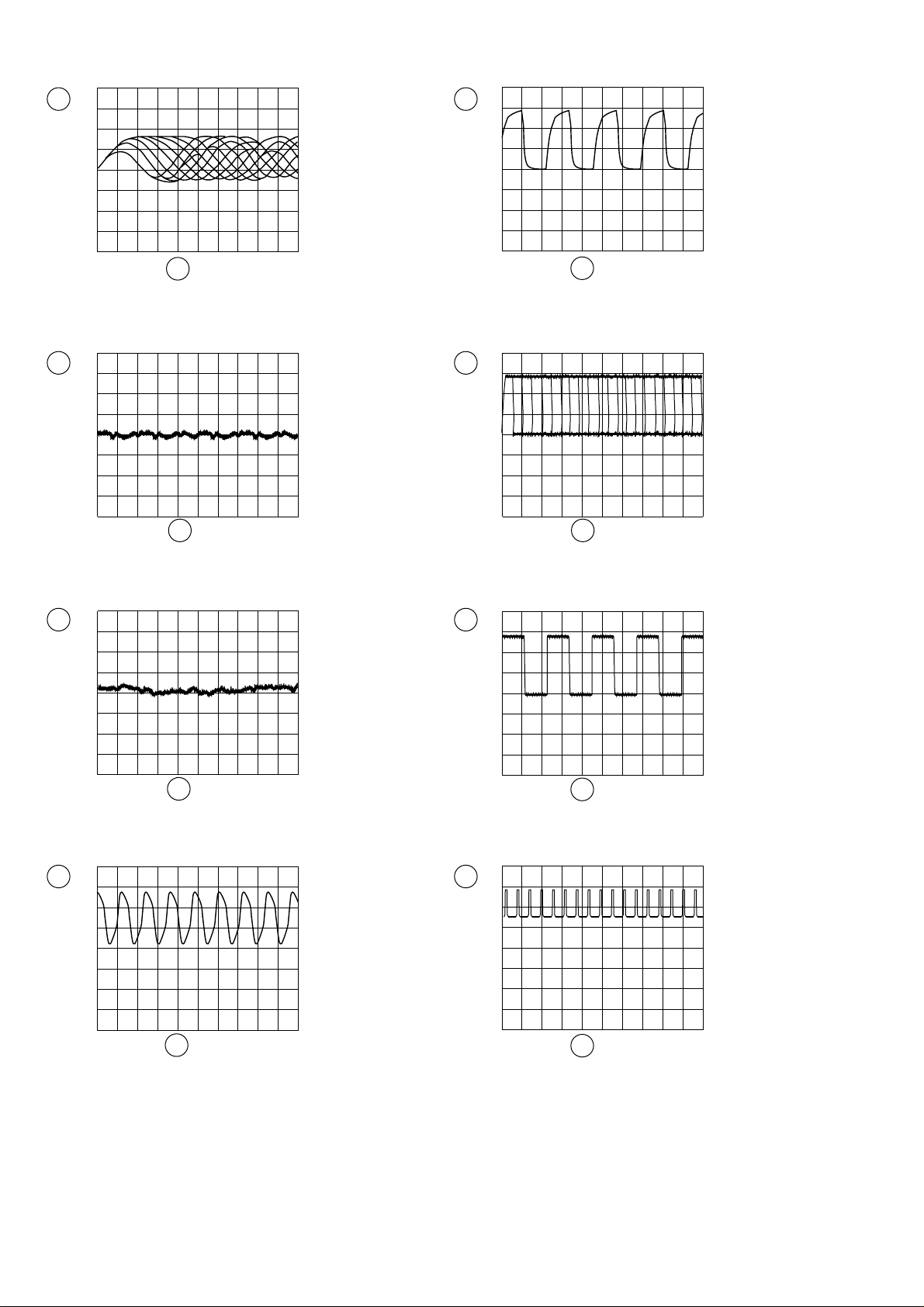

IC651 Pin 27 (SDATA)
1V/200ms DIV
IC601 Pin 24 (SOD)
1V/:5µs DIV
IC601 Pin 14 (PR)
1V/:50µs DIV
IC601 Pin 25 (SOI)
1V/20µs DIV
IC701 Pin 14 (CLKO) (14.725MHz)
1V/50ns DIV
IC601 Pin 26 (SOC)
1V/200ns DIV
0V
0V
0V
0V
0V
0V
9
12
13
10
11
14
WAVEFORMS - 2/2

-17-
TEST MODE - 1/2
The servo circuit in this model does not need adjustment: It is entirely controlled inside an IC.
Therefore, each time TOC is read, adjustment and disc detection will automatically be performed.
Do not use MP3 recorded discs in the test mode.
1. Starting Test Mode
Short-circuit the OP/CL land using solder.
Insert the DC plug while shorting the TEST land using tweezers, etc.
If all LCD segments light, release the tweezers, etc.
All LCD segments light
2. Releasing Test Mode
Disconnect the DC plug.
Remove the solder form the OP/CL land.
Insert the DC plug again, and make sure that the OPEN indicator lights in the LCD when the CD lid is open.
3. Focus Search (S-Curve) Check
Press the STOP button when all LCD segments are lit: Focus search will be repeated.
If disc is on the turntable, S-curve can be checked.
Press the STOP button to stop focus search.
4. Sled Operation Check
Press the FS button when all LCD segments are lit to move the pickup to outer circumferences: Press the BS button to move it to
inner circumferences.
5. Servo Operation Check
Press the EASS button to turn EASS off. (If it remains ON, the disc may rotate at high speed.)
(1) Tracking servo ON/OFF
Press the PLAY button: Then, during playback of disc, press the MODE key once to turn tracking servo OFF: Press the MODE
key again to turn tracking servo ON.

-18-
(2) Tracking balance/gain check
Press the PRGM button during playback of disc: The display in the LCD will switch from F-BIAS to T-BAL, T-GAIN, and to
playback time.
Playback time display Tracking gain
Focus bias Tracking bias
(adjustment value is not displayed)
* Caution: Since the adjustment values are determined inside the IC, they will vary depending on the disc:
Only the displayed values will be checked for adjustment.
6. RF Level Check
• Test point: Between RF and VC
• Test disc: TCD-782
• Turn EASS off for measurement.
Play the second track on CD to make sure that the RF waveform is clear and not clipped.
VOLT/DIV: 200mV
TIME/DIV: 0.5µs
1.2V ±0.2V
TEST MODE - 2/2

-19-
IC BLOCK DIAGRAM - 1/3
IC, SN74LV244APW IC, S-80825ANNP-EDN
INPUTS OUTPUT
Y
OE A
HL LL X H
L
ZH
H : Hight Level
L : Low Level
X : Unless specified
Z : Hight Impedance
1
2
4
6
20
10
8
18
16
14
12
19
11
13
15
17
9
7
5
3
GND
VCC
1Y1
1Y2
1Y3
1Y4
2Y1
2Y2
2Y3
2Y4
1A1
1A2
1A3
1A4
2A1
2A2
2A3
2A4
1OE
2OE
IC, CXA1791N
20 19 18 17 16 15 14 13 12 11
1 2 3 4 5 6 7 8 9 10
GND
VCC LDON RFI RFO FE FE BIAS TE EI EO NC
LD PD PD1 PD2 GND F E VR VC NC
VCC
8k
8k 8k
VC
VC VC
VC
VC
VCVCVC VC
VC
VC
4k
1k
10k
10k
2k
2k
174k
164k
96k
96k
2k
2k
15k
24p
2k
32k
32k
32k
130k
100k
26k
30k
260k
260k
12p
15k
47
VCC
GND
50k
6p 6p
V2
1.25V
RF TV AMP1
RF IV AMP2
APC LD AMP
RF SUMPLING
AMP
TRACKING
ERROR AMP
FOCUS
ERROR AMP
F IV AMP
E IV AMP
APC PD AMP
24p
87k
30k
12p
26k 13k 20k 20k
GND
GND
GND
2
1
4
VDD
VSS
Vref
OUT
3NC

-20-
IC, BH6508FS
IC, BA6655AFV
IC, MB3800PFV
H BRIDGE1
H BRIDGE4
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
PRE
DRIVER1
PRE
DRIVER4
H BRIDGE3
PRE
DRIVER3
H BRIDGE2
PRE
DRIVER2
LOGIC4 LOGIC4
LOGIC1 LOGIC2
NF
AMP
NF
AMP NF AMP
NF
AMP
F
FF
R
RR
RF
SWA
OSC
MUTE4
VREF
20k
20k
20k
20k
20k
20k
1k
1k
1k
20k
20k 3.75k Thermal
shut down
VCC
CLK IN-SP CN-SPO-SPF O-SPR O-SLR O-SLF CN-SL IN-SL VG VCC
POW
GND POW VCC POW GND POW VCC POW GND
POW
GND
SP
CON CT IN-FO CN-FO O-FOF O-FOR O-TOR O-TOF CN-TO IN-TO VREFPOW GND POW VCC POW GND POW VCC
Power
Switch1 Power Switch2
Power Off
20 19 18 17 16 15 14 13 12 11
1 2 3 4 5 6 7 8 9 10
Vref2
Vref2
Vref1
Vref1
Vref1
Starta
Starta
Normal
EO
VSYS VSEN1 SW GND PVCC OSC ROUT PSW1 PSW2 BATT
NF RESET WP2 WP1 OFF VSEN2 VREG PDR DCIN
Vref2
REG.
Vref1
Switching Triangular
OSC
3 7
5
1
8
6 2 4
DTC 0.6V
1.25v
PWM
Comp.
500
36k
0.6V
0.1V
0.1V
0.5V 0.3V
30k
Error Amp.
Soft Start
S.C.P
Output Drive
Controller
Ref.Volage Saw Tooth
OSC
VCC OSC
GND SCP BR/CT
IN
FB
OUT
IC BLOCK DIAGRAM - 2/3
