Aiwa XP-V724 User manual
SERVICE MANUAL
DATA
XP-V724
XP-V7230
XP-V7250C
AHC,AHK,YH
AU
YU
COMPACT DISC PLAYER
S/M Code No. 09-014-440-8S1
SUPPLEMENT
BASIC CD MECHANISM : DA23LH
• This Service Manual is the “Supplement” and replace “Simple Manual”
XP-V724/V7230/V7250C<AHC,AHK,AU,YH,YU>, (S/M Code No. 09-013-440-8T2).
• This Service Manual contains informations about the difference between
XP-V724/V7230/V7250C<AHC,AHK,AU,YH,YU> and XP-V7210<AU>.
If requiring the other information, see Service Manual of XP-V7210/V7260C<AU>,
(S/M Code No. 09-012-440-8R1).
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 2 –
SPECIFICATIONS
Tracking system: 3-beam laser
Laser pickup: Semiconductor laser
D/A conversion: 4-times oversampling digital filter + 1-bit DAC
Frequency response: 20 – 20,000 Hz
Output: PHONES/LINE OUT jack (stereo mini-jack)
DIGITAL OUT jack (optical)<V724>
Maximun output: 12 mW + 12 mW (16 ohms at 1 kHz)
500 mV (47 k ohms at 1 kHz)
Power supply: DC 3 V using two size AA (LR6) alkaline batteries
DC 2.4 V using commercially available<EXCEPT V724>
DC 2.4 V using supplied rechargeable batteries<V724>
(Ni-Cd 1.2 V 700mAh) rechargeable batteries<EXCEPT V724>
AC house current using the supplied AC adaptor<EXCEPT V724YH>
AC house current using the optional AC adaptor<V724YH>
Maximum outside dimensions:
128 (W) x 25.8 (H) x 129.5 (D) mm (51/8x 11/16 x 51/8in.)
excluding projecting parts and controls
Weight: Approx. 208 g (7.2 oz)<V7230, V724>, 206 g (7.2 oz)<V7250C>
excluding batteries
AC adaptor AC-D603: Rated voltage: AC 120 V, 60 Hz<V7230>, AC 220 V, 60 Hz<V724AHC>
AC 230V, 50 Hz<V724AHK>
• Design and specifications are subject to change without notice.
ACCESSORIES / PACKAGE LIST
KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
1 8B-HC4-902-010 IB,H(ECC)S<V724AHC,V724AHK>
1 8B-HC4-903-010 IB,YHS(EC)S 724<V724YH>
1 8B-HC4-911-010 IB,U(3L)S 7230<V7230>
1 8B-HC4-913-010 IB,YHS(K)S<V724YH>
1 8B-HC4-921-010 IB,YU(3L)S 7250C<V7250C>
2 86-YK1-001-410 ADAP OR,CAP-6<V7250C>
3 86-YK1-002-210 ADAP OR,DC-602<V7250C>
4 87-B30-282-010 AC ADAP OR,AC-D603UNC<V7230>
4 87-B30-284-010 AC ADAP OR,AC-D603KNC<V724AHK>
4 87-B30-286-010 AC ADAP OR,AC-D603HCNC<V724AHC>
5 87-B30-328-010 HEADPHONE,HP-M050<V724>
5 87-B30-422-010 HEADPHONE,HP-M061<V7250C>
5 87-B30-421-010 HEADPHONE,HP-MR060<V7230>
6 87-B30-362-010 BA ,NB-305 NC(2PSC)<V724>
7 8A-HC4-101-110 RC UNI , RC-V716C<V7250C>
7 8B-HC4-110-010 RC UNI , RC-V724<V724>
!
!
!
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
KANRI
NO.
REF. NO. DESCRIPTIONPART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
ELECTRICAL MAIN PARTS LIST
– 3 –
IC
87-A21-448-040 C-IC,BH6554FV
8B-HC4-610-010 C-IC,MN101C439-AJ
87-A21-453-040 C-IC,RS-351-38KHZ<V7250C>
87-A21-874-010 C-IC,MN35530
87-A21-140-010 C-IC,MSM51V17400D
87-A21-873-040 C-IC,AN8399SA
87-A21-449-040 C-IC,AN8746SA
87-A21-085-040 C-IC, A2120FN
87-A21-523-040 C-IC,SM8142BD<V724>
87-A20-582-010 IC,GP1F31 J<V724>
RANSIS OR
87-A30-429-040 C- R,D C123JKA
87-A30-075-080 C- R,2SA1235F
89-211-323-080 C- R,2SB1132R
89-416-643-080 C- R,2SD1664R
87-A30-076-080 C- R,2SC3052F
89-113-695-680 C- R,2SA1369(G/H)
87-A30-278-040 C-FE ,2SK2980
87-A30-287-040 C- R,D C114 KA
87-A30-282-040 C- R,D A114 KA
87-A30-377-040 C- R,2SB815B7
DIODE
87-A40-270-080 C-DIODE,MC2838
87-017-520-080 C-DIODE,SFPB52
87-A40-880-040 C-ZENER,UDZS 10B
87-A40-590-040 C-DIODE,HRW0202A
87-017-366-040 C-DIODE,DAN202U<V7250C>
87-A41-067-040 C-DIODE,HSM83<V724>

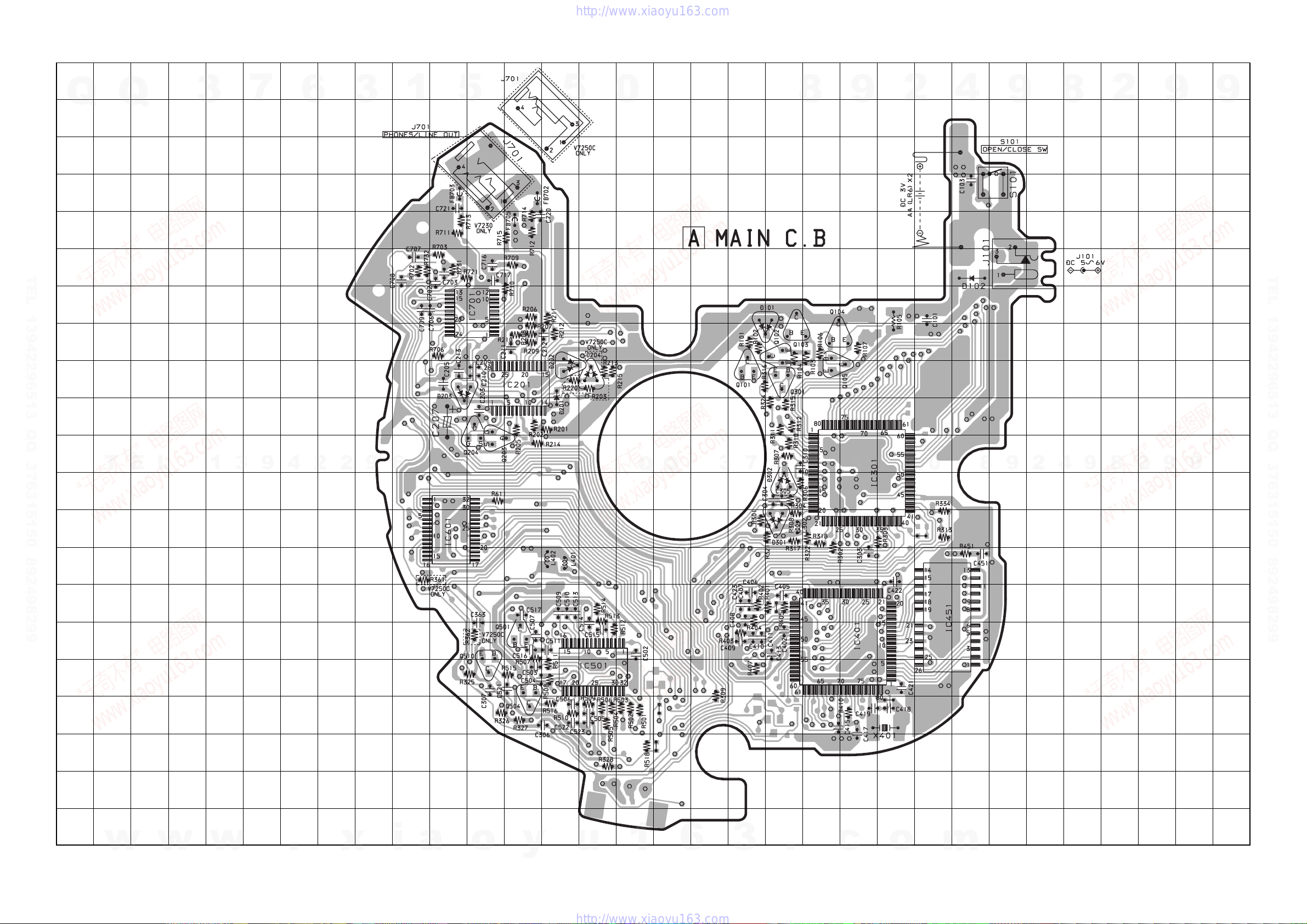

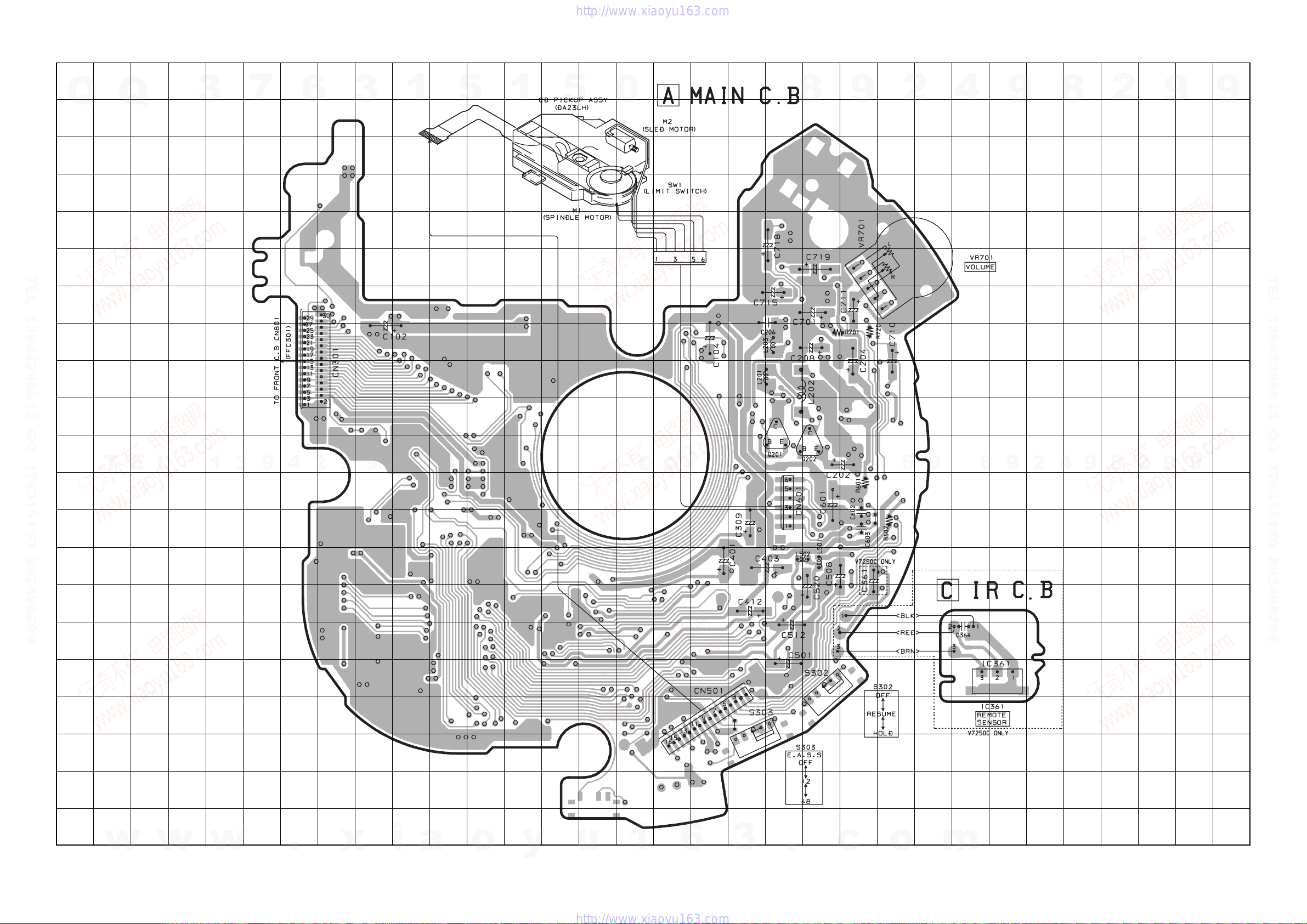

MAIN C.B
C101 87-012-286-080 CAP, U 0.01-25
C102 87-A11-031-080 C-CAP,E 100-16 M WX
C103 87-012-286-080 CAP, U 0.01-25
C104 87-016-430-080 C-CAP,E 100-6.3 5.5N
C202 87-016-422-080 C-CAP,E 22-6.3
C203 87-012-286-080 CAP, U 0.01-25
C204 87-016-429-080 C-CAP,E 100-4 5.5N
C205 87-010-805-080 CAP, S 1-16
C206 87-A12-159-080 C-CAP, 10-6.3 K B GRM42-6
C207 87-A10-505-040 CAP,E 220-6.3 105 SF
C208 87-016-426-080 C-CAP,E 47-4 5.5N
C209 87-010-831-080 C-CAP,U,0.1-16F
C210 87-A10-047-080 C-CAP,U 1-10 Z F
C211 87-010-787-080 CAP, U 0.022-25
C212 87-012-266-080 C-CAP,U 220P-50 B
C213 87-010-805-080 CAP, S 1-16
C303 87-010-831-080 C-CAP,U,0.1-16F
C304 87-010-831-080 C-CAP,U,0.1-16F
C305 87-012-286-080 CAP, U 0.01-25
C306 87-012-286-080 CAP, U 0.01-25
C307 87-012-286-080 CAP, U 0.01-25
C309 87-016-429-080 C-CAP,E 100-4 5.5N
C310 87-010-831-080 C-CAP,U,0.1-16F
C361 87-016-426-080 C-CAP,E 47-4 M WX<V7250C>
C363 87-012-195-080 C-CAP,U 100P-50 J CH<V7250C>
C383 87-A10-260-080 C-CAP,U 0.1-16 K B<V724>
C401 87-016-429-080 C-CAP,E 100-4 5.5N
C402 87-010-831-080 C-CAP,U,0.1-16F
C403 87-016-431-080 C-CAP,E 220-4 5.5N
C405 87-A10-260-080 C-CAP,U 0.1-16 K B
C406 87-012-271-080 CAP, U 560P-50
C407 87-010-787-080 CAP, U 0.022-25
C408 87-A10-260-080 C-CAP,U 0.1-16 K B
C409 87-A10-827-080 C-CAP,U 0.47-6.3 K B
C410 87-012-286-080 CAP, U 0.01-25
C411 87-010-831-080 C-CAP,U,0.1-16F
C412 87-016-429-080 C-CAP,E 100-4 5.5N
C413 87-010-831-080 C-CAP,U,0.1-16F
C414 87-012-188-080 C-CAP,U 47P-50 J CH<V724>
C415 87-010-831-080 C-CAP,U,0.1-16F
C417 87-012-188-080 C-CAP,U 47P-50 CH
C418 87-012-184-080 C-CAP,U 33P-50 CH
C419 87-012-184-080 C-CAP,U 33P-50 CH
C421 87-010-831-080 C-CAP,U,0.1-16F
C422 87-010-831-080 C-CAP,U,0.1-16F
C423 87-010-831-080 C-CAP,U,0.1-16F
C451 87-010-831-080 C-CAP,U,0.1-16F
C501 87-016-429-080 C-CAP,E 100-4 5.5N
C502 87-010-831-080 C-CAP,U,0.1-16F
C503 87-010-787-080 CAP, U 0.022-25
C504 87-010-787-080 CAP, U 0.022-25
C505 87-012-276-080 C-CAP,U 1500P-50 K B
C506 87-012-198-080 CAP 180P
C507 87-012-273-080 C-CAP,U 820P-50 B
C508 87-016-426-080 C-CAP,E 47-4 5.5N
C509 87-012-281-080 C-CAP,U 3900P-50 B
C510 87-012-283-080 C-CAP,U 5600P-50 B
C511 87-A11-228-080 C-CAP,U 0.027-25 K B
C512 87-016-429-080 C-CAP,E 100-4 5.5N
C513 87-A11-228-080 C-CAP,U 0.027-25 K B
C514 87-A10-828-080 C-CAP,U 0.33-6.3 K B
C515 87-A10-260-080 C-CAP,U 0.1-16 K B
C516 87-012-180-080 C-CAP,U 22P-50 CH
C517 87-012-180-080 C-CAP,U 22P-50 CH
C520 87-016-426-080 C-CAP,E 47-4 5.5N
C521 87-012-274-080 CHIP CAP,U 1000P-50B
C522 87-A10-047-080 C-CAP,U 1-10 Z F
C523 87-A10-047-080 C-CAP,U 1-10 Z F
C601 87-016-430-080 C-CAP,E 100-6.3 5.5N
C602 87-012-286-080 CAP, U 0.01-25
C603 87-012-286-080 CAP, U 0.01-25
C701 87-016-429-080 C-CAP,E 100-4 5.5N
C702 87-012-335-080 C-CAP,U 270P-50 SL
C703 87-012-335-080 C-CAP,U 270P-50 SL
C706 87-010-831-080 C-CAP,U,0.1-16F
C707 87-A10-047-080 C-CAP,U 1-10 Z F
C708 87-A10-047-080 C-CAP,U 1-10 Z F
C709 87-A10-047-080 C-CAP,U 1-10 Z F
C710 87-016-421-080 C-CAP,E 10-16 5.5N
C711 87-016-422-080 C-CAP,E 22-6.3
C715 87-016-421-080 C-CAP,E 10-16 5.5N
C716 87-010-831-080 C-CAP,U,0.1-16F
C717 87-010-831-080 C-CAP,U,0.1-16F
C718 87-016-431-080 C-CAP,E 220-4 5.5N
C719 87-016-431-080 C-CAP,E 220-4 5.5N
C720 87-012-274-080 CHIP CAP,U 1000P-50B
C721 87-012-274-080 CHIP CAP,U 1000P-50B
CN301 87-A60-792-080 C-CONN,30P V 30FL -SM1 B
CN501 87-009-214-080 CONN,16P 52207-1690
CN601 87-099-522-080 CONN,6P ZH-SM3 V W
FB701 83-XM1-617-080 C-COIL,BK2125HM601<V724>
FB702 83-XM1-617-080 C-COIL,BK2125HM601
FB703 83-XM1-617-080 C-COIL,BK2125HM601
FB704 83-XM1-617-080 C-COIL,BK2125HM601<V724>
FB705 83-XM1-617-080 C-COIL,BK2125HM601
FFC301 8B-HC4-605-010 FF-CABLE,30P 0.5 45MM
J101 87-A61-447-010 JACK,DC DJ26B BLK 6<V7230>
J101 87-A61-340-010 JACK,DC<EXCEP V7230>
J701 87-A61-446-010 JACK,3.5 GRN S W/REM<V7230>
J701 87-A61-339-010 JACK,3.5 GRN S W/O SW<V7250C>
J701 87-A60-682-010 JACK,3.5 S 7P<V724>
L201 87-A50-355-080 C-COIL,330UH LQH3C
L202 87-A50-330-080 C-COIL,100UH-D75C
L203 87-A50-355-080 C-COIL,330UH LQH3C
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
KANRI
NO.
REF. NO. DESCRIPTIONPART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 4 –
L302 87-A50-367-080 C-COIL, 10UH LQG21F
L401 87-A50-367-080 C-COIL, 10UH LQG21F
L402 87-A50-012-080 C-COIL,100UH LQH3C
L501 87-A50-367-080 C-COIL, 10UH LQG21F
L502 87-A50-367-080 C-COIL, 10UH LQG21F
S101 87-A92-085-010 SW,MICRO ESE11SV1
S301 87-A90-493-080 C-SW,SL 1-1-2 SSSS81<V724>
S302 87-A90-494-080 C-SW,SL 1-1-3 SSSS81<V7230>
S302 87-A91-457-280 SW,SL 1-1-3 SS-350-A13B<V724,V7250C>
S303 87-A90-494-080 C-SW,SL 1-1-3 SSSS81<V7230>
S303 87-A91-457-280 SW,SL 1-1-3 SS-350-A13B<V724,V7250C>
VR701 87-A91-145-080 C-VR,R RY 30KCX2 H RK14J12R
X401 87-A70-202-080 C-VIB,CER 16.93MHZ CSACV-MXJ04
FRON C.B
C801 87-A12-159-080 C-CAP,10-6.3 K B GRM42-6<V724>
C802 87-012-274-080 C-CAP,U 1000P-50B
C803 87-010-831-080 C-CAP,U,0.1-16F
C804 87-A10-811-080 C-CAP,0.1-100 VC30E<V724>
C805 87-012-267-080 C-CAP,U 270P-50 K B GRM<V724>
CN801 87-A60-791-080 C-CONN,30P H FLZ-RSM1 B
D801 87-A91-327-040 C-LED,SEC1703C GRN<V724>
D802 87-A91-329-040 C-LED,SECS1803C ORN<V724>
D803 87-A91-326-040 C-LED,SEC1603C RED<V724>
EL801 8A-HC4-622-110 EL,AHC-4<V724>
L801 87-005-843-080 C-COIL,470UH K LQH3C<V724>
LCD801 8A-HC5-621-010 LCD,AHC-5 REFLEX<V7230,V7250C>
LCD801 8A-HC4-621-010 LCD,AHC-4 RANSPAREN<V724>
S801 87-A91-668-080 C-SW, AC EVQ-PQH-B55
S802 87-A91-668-080 C-SW, AC EVQ-PQH-B55
S803 87-A91-668-080 C-SW, AC EVQ-PQH-B55
S804 87-A91-668-080 C-SW, AC EVQ-PQH-B55
S805 87-A91-668-080 C-SW, AC EVQ-PQH-B55
S806 87-A91-668-080 C-SW, AC EVQ-PQH-B55
S807 87-A91-668-080 C-SW, AC EVQ-PQH-B55
IR C.B
C364 87-A12-159-080 C-CAP,10-6.3 K B GRM42-6<V7250C>
88
A

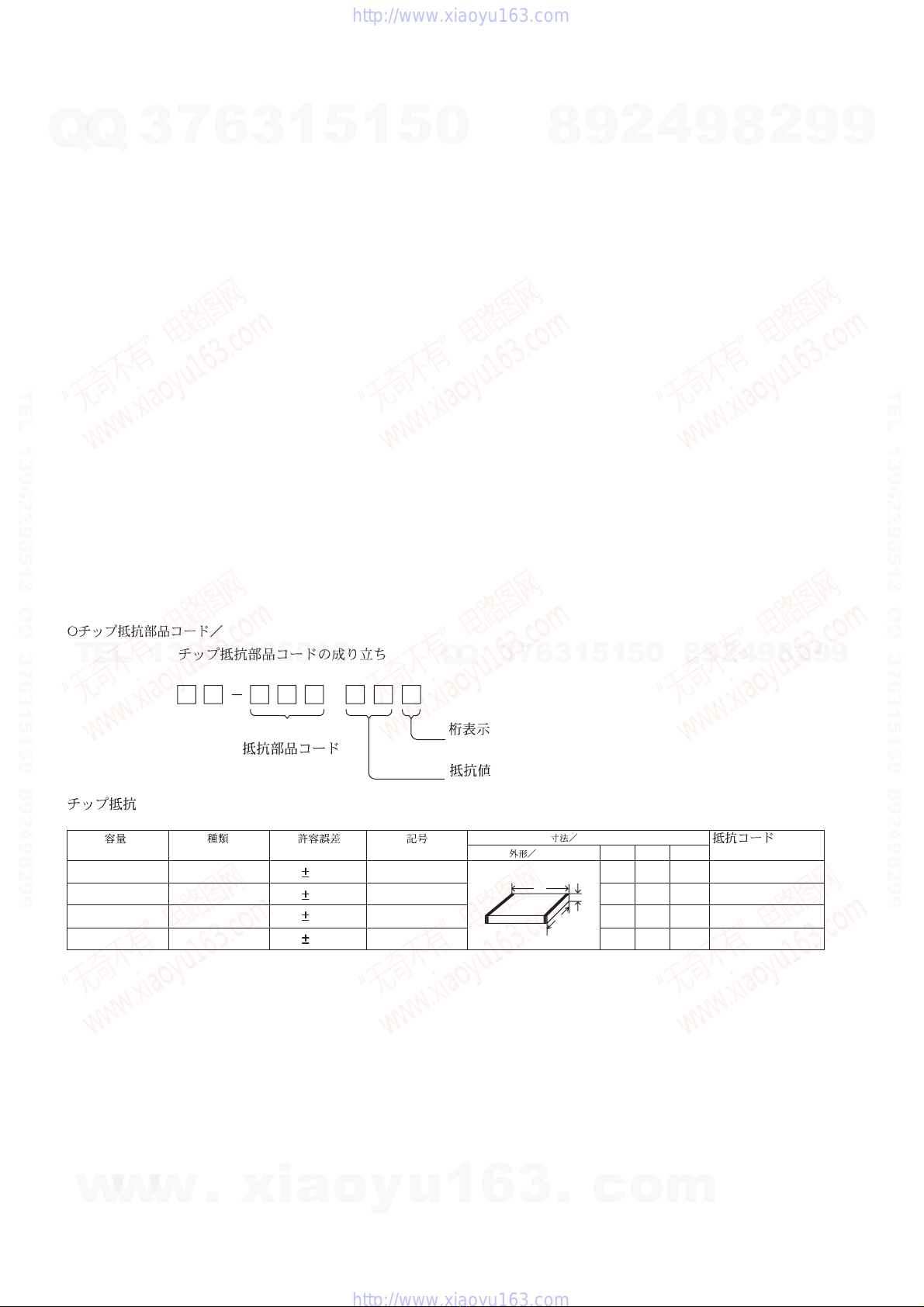

Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING 1 (MAIN 1 / 2) <V7230, V7250C>
1 2 3 4 5 6 7 8 9 1011121314151617181920212223242526272829303132
5
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING 1 (MAIN 2 / 2) <V7230, V7250C>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
6
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING 2 (MAIN 1 / 2) <V724>
1 2 3 4 5 6 7 8 9 1011121314151617181920212223242526272829303132
8
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING 2 (MAIN 2 / 2) <V724>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
9
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 18 –

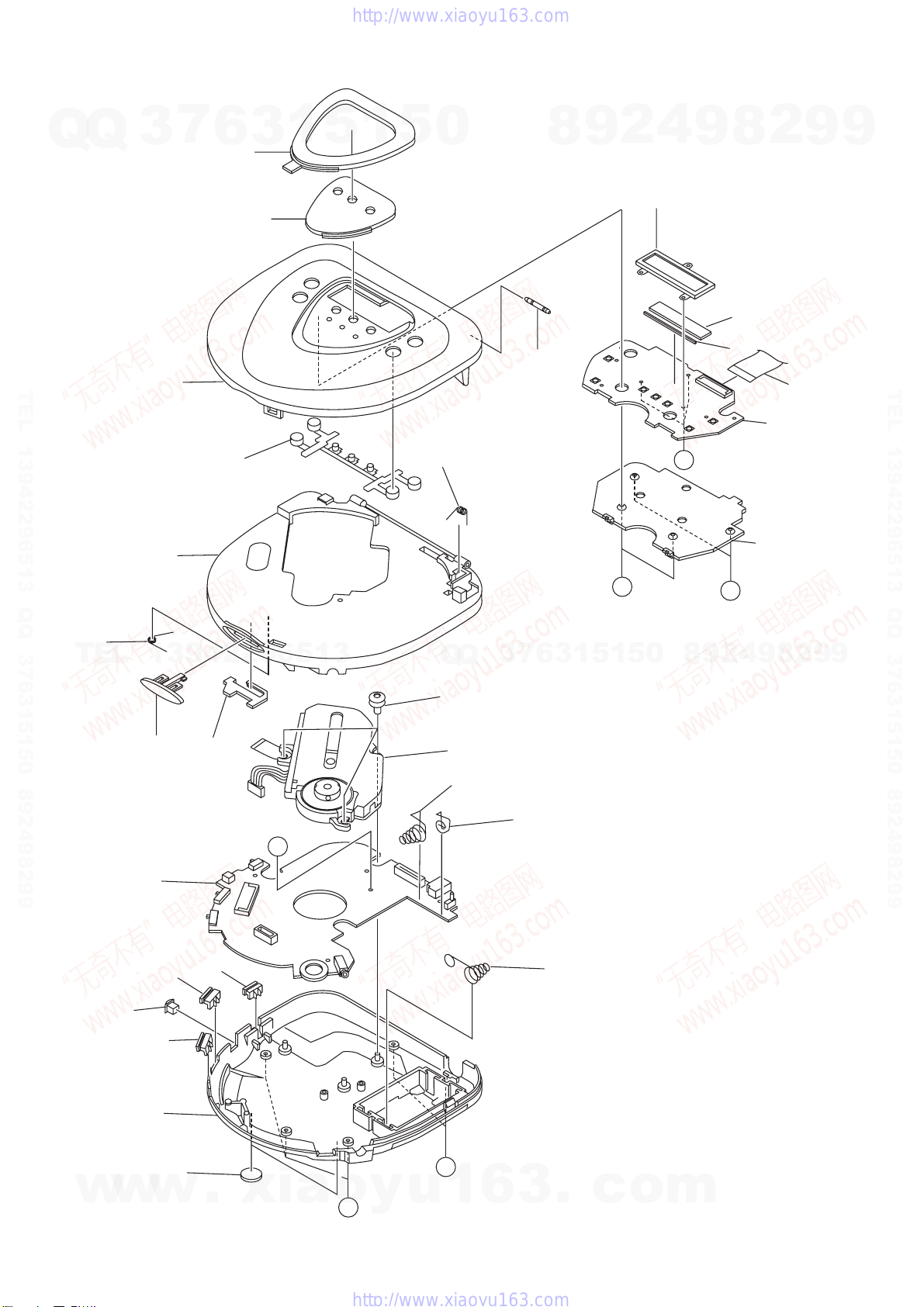

MECHANICAL EXPLODED VIEW 1 / 1 <V7230, V724>
1
2
3
4
7
23
LCD
5
PWB
PWB
A
B
6
98
10
15
14
11 12
13
C
16
17
18
19
21
20
22
24
D
D
E
DA23LH
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
KANRI
NO.
REF. NO. DESCRIPTIONPART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
MECHANICAL PARTS LIST 1 / 1 <V7230, V724>
– 19 –
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Sil er ST Titan Sil er
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
LA Aqua Blue GL Light Green HT Transparent Gray
1 8B-HC4-007-110 PANEL,DISPLAY
2 8B-HC4-060-010 WINDOW,DISPLAY 7230 (V)<V7230>
2 8B-HC4-055-010 WINDOW,DISPLAY 724 (V)<EXCEP V7230>
3 8B-HC4-063-110 LID,CD (V)<V7230>
3 8B-HC4-001-110 LID,CD<EXCEP V7230,V724AHC1PF>
3 8B-HC4-071-010 LID,CD (P)<V724AHC1PF>
4 8B-HC4-009-110 KEY,PLAY
5 8B-HC4-203-010 SPR- ,OPEN
6 8B-HC4-206-010 PLA E,LCD
7 8A-HC4-211-010 JOIN ,LCD AHC-4
8 8B-HC4-008-010 HLDR,LID CD
9 8B-HC4-044-010 CABI,CEN ER 7210 (V)<V7230>
9 8B-HC4-023-010 CABI,CEN ER (V724)-B<EXCEP V7230,V724AHC1PF>
9 8B-HC4-072-010 CABI,CEN ER 724 B (P)<V724AHC1PF>
10 8B-HC4-204-010 SPR- ,KNOB
11 8B-HC4-011-010 KNOB,SL OPEN
12 8B-HC4-205-010 LEVER,OPEN
13 8Z-HC1-225-010 DMPR,MECHA(SP)
14 8B-HC4-202-010 BA -CON AC ,(-)
15 8B-HC4-201-010 BA -CON AC ,(+)
16 8B-HC4-013-010 KNOB,SL EASS
17 8B-HC4-012-010 KNOB,SL HOLD<EXCEP V724AHC1PF>
17 8B-HC4-081-010 KNOB,SL HOLD (P)<V724AHC1PF>
18 8B-HC4-040-010 CABI ASSY,BO OM 7210 (V)<V7230>
18 8B-HC4-070-010 CABI ASSY,BO OM 724 B<EXCEP V7230,V724AHC1PF>
18 8B-HC4-073-010 CABI ASSY,BO OM 724 B (P)<V724AHC1PF>
19 8Z-HC4-027-010 FOO ,DIA10
20 8Z-HC7-216-010 BA -CON AC ,(+)(-) (SP)
21 8B-HC4-605-010 FF-CABLE,30P 0.5 45MM
22 8B-HC4-208-010 SHAF ,LID (15.8)
23 8B-HC4-015-010 KNOB,SL OP <EXCEP V724AHC1PF>
23 8B-HC4-082-010 KNOB,SL OP (P)<V724AHC1PF>
24 87-HC4-014-010 COVER, OP <EXCEP V7230>
A 87-067-736-010 SCREW,1.4-2 BLK NLOCK
B 87-067-732-010 APPING SCREW, V 1.4-3
C 87-067-868-010 V+1.7-4 HL BLK
D 87-067-869-010 V+1.7-8 HL BLK
E 87-067-527-010 SCREW,V +1.4-2.5(B)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 20 –

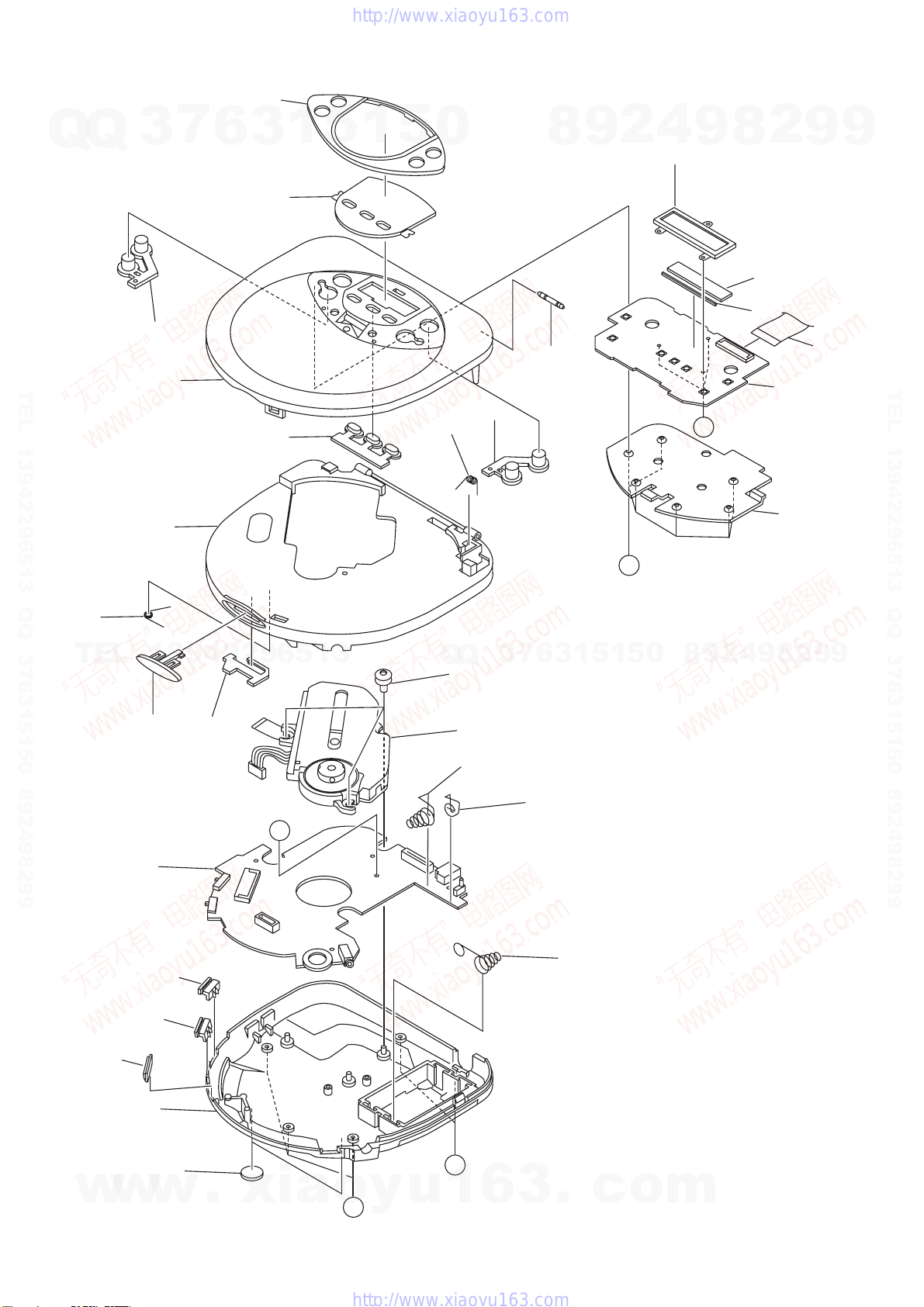

MECHANICAL EXPLODED VIEW 1 / 1 <V7250C>
1
2
3
4
7
23
LCD
PLATE LCD
5
PWB
PWB
A
B
6
9
8
10
15
14
11 12
13
C
16
17
18
19
21
20
22
24
D
D
DA23LH
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
This manual suits for next models
2
Table of contents
Other Aiwa CD Player manuals
