Aiwa FR-TC5000 User manual

SERVICE MANUAL
DATA
FR-TC5000
S/M Code No. 09-02A-454-9R2
K(S)
CD CLOCK RADIO BASIC CD MECHANISM: BZG-4 AB2NC1
This Service Manual is the “Revision Publishing” and replaces “Simple Manual”
(S/M Code No. 9- 2A-454-9T2).
REVISION
All manuals and user guides at all-guides.com
all-guides.com

-2-
Maximum outside dimensions (W ×H ×D)
216 ×193 ×261 mm
(excluding projecting parts and
controls)
Weight Approx. 2.85 kg
(excluding the backup battery)
The specifications and external appearance are subject to
change without notice.
Specifications, trade mark, model name and double square
symbol are marked on the bottom of the unit.
<Tuner section>
Frequency range FM: 87.5 – 108 MHz
(50 kHz steps)
MW: 531 – 1,602 kHz
(9 kHz steps)
LW: 144 – 288 kHz
(9 kHz steps)
Antenna FM: Wire antenna
LW, MW: Ferrite bar antenna
<CD player section>
Tracking system 3-beam laser
Laser pickup Semiconductor laser
D/A conversion 8-times oversampling digital
filter + 1-bit DAC
Frequency response 20 – 20,000 Hz
<Common section>
Power source AC 230 V, 50 Hz
Output 1,000 mW + 1,000 mW (JEITA)
Power consumption 15 W
Speaker 66 mm, 8 ohms (2)
SPECIFICATIONS -1/1
• Design and specifications are subject to change without notice.
All manuals and user guides at all-guides.com

-3-
This set employs laser. Therefore, be sure to follow carefully the
instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARYTOCONFIRMLASERBEAMEMISSION.BE
SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJECTIVE
LENS ON THE OPTICAL PICK-UP BLOCK.
Caution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
Advarsel: Usynlig laserståling vedåbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsÊttelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING -1/1
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L'utillisationdecommandes,réglagesouprocéduresautres
que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASERAPPARAT
Precaution to replace Optical block
(BZL-5 A1NF)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care
the clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
Solder
CD PICK-UP Assy
All manuals and user guides at all-guides.com

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-4-

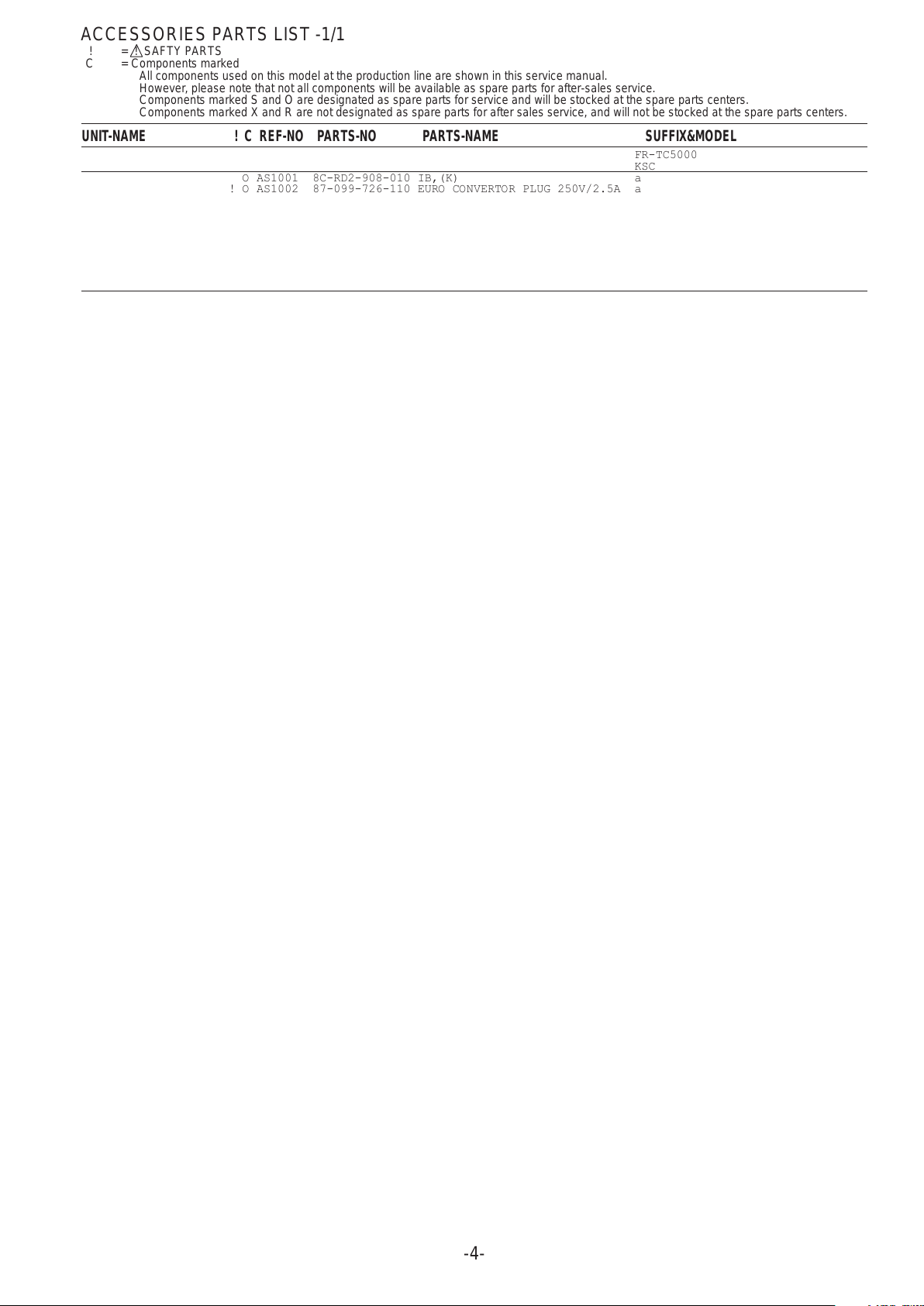

ACCESSORIES PARTS LIST -1/1
FR-TC5000
KSC
O AS1001 8C-RD2-908-010 IB,(K) a
! O AS1002 87-099-726-110 EURO CONVERTOR PLUG 250V/2.5A a
All manuals and user guides at all-guides.com

-5-
SERVICE PRECAUTIONS -1/2
1. Disassembly Procedure
1. Remove 4 screws of a main part bottom.
2. Remove 2 screws of a inside CD lid (No-1 portion of Photo-1).
3. The speaker net left and right is removed, left and right each 2 screws
are removed. (No-2 portion of Photo-1)
Reference Photo-1
2. Service Position
1. When Checking CD main circuit board.
Remove 6 screws (Photo-2, No-1) , remove the CD Mechanism and you
verify when it is stabilized.
2. When CD Mechanism Assy is taken out.
Remove 6 screws (Photo-2, No-2) and remove 1 screw of a substance
bottom central and the Mechanism is removed.
Reference Photo-2
3. Test Mode
1. CD test mode starting method
While pushing the FUNCTION button of the substance,insert theAC
plug in the power source electrical outlet.
Test mode starts and the DYISPLAY lights up all.
Reference Photo-3
2. CD test mode cancellation method
Push the Power button and turn off a power supply.
Push the FUNCTION button again.
Test mode is canceled by one of methods.
Photo-1
Photo-2
Photo-3
All manuals and user guides at all-guides.com

-6-
SERVICE PRECAUTIONS -2/2
Notes 1: Do not continue operating Search Mode 10 minutes or more continuously for driver IC protection.
Notes 2: When canceling Traverse Mode, the PLAY button is pushed once again.
Notes 3: Operation after Disc Change is equivalent to Play Mode.
MODE
DISC Change
CD3
CD1
CD2
Tracking Servo OFF
All-points light
All-points light
All-points light
All-points light
All-points light
Operation
3. CD test mode functional explanation
Sled Mode
STOP
Traverse Mode
Start Mode
Search Mode
Play Mode
FUNCTION
APC circuit check
Leather current measurement
Focus error waveform check
(Notes 1) PU lens repeats full
swing operation.
Focus Servo check
Tracking Servo check
CLV Servo check
Sled Servo check
ALL SERVO OFF
LASER ON/OFF
All SERVO OFF
LASER ON
VCC ON
Sled Servo /
Mechanism operation check
Mechanism operation check
It changes to specified DISC
(Notes 3).
Normality playback
When TOC READ is improper,
it is the same operation as search
mode.
Playback pause state (Note 2)
Stand by
Track No, and
performance time
are displayed.
Track No, Disc No,
and performance
time are displayed.
The pickup moves to outer circle.
The pickup moves to the inside
perimeter.
Test mode starting
Contents
Display
Operation
Key
All manuals and user guides at all-guides.com
all-guides.com

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-7-

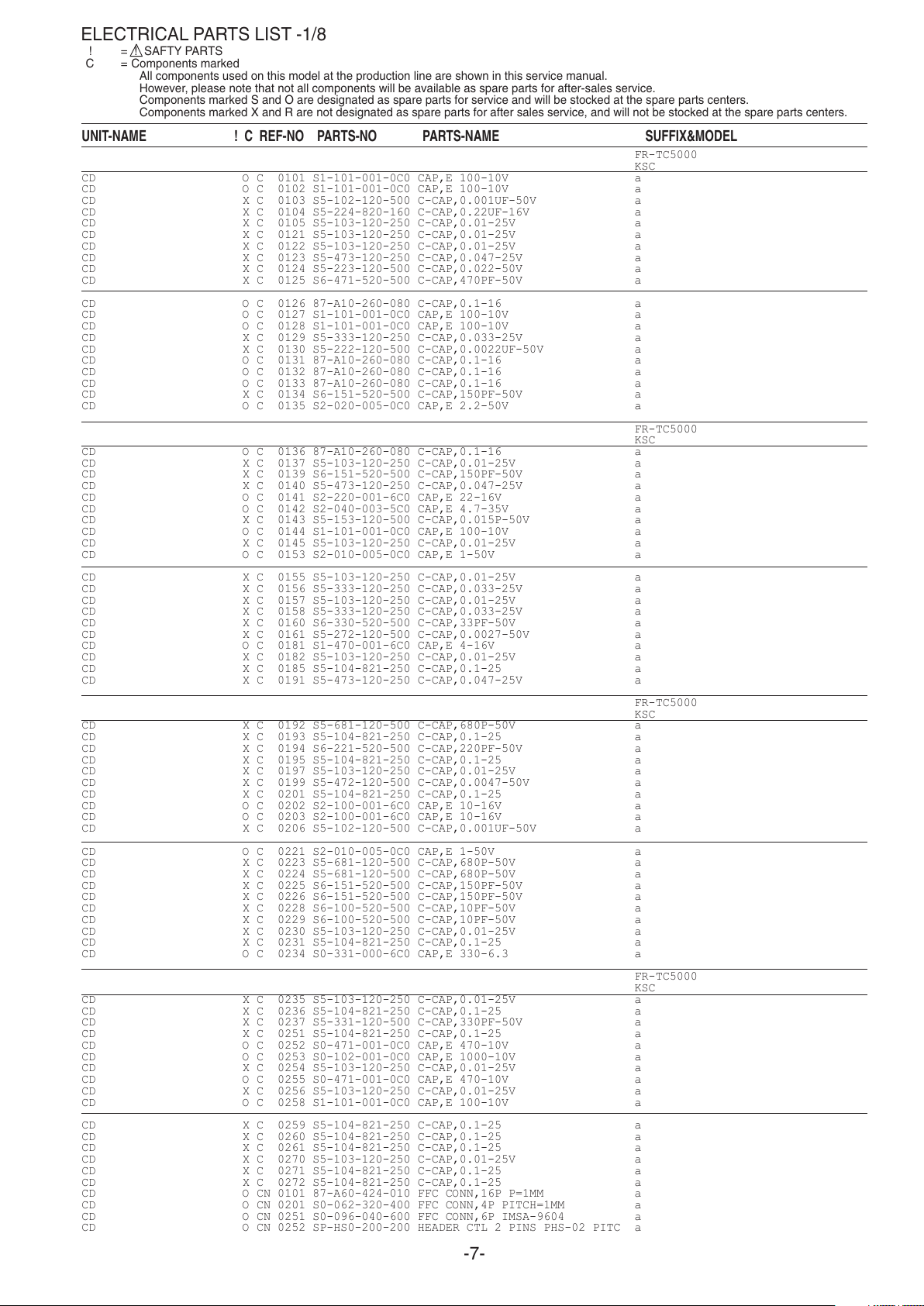

ELECTRICAL PARTS LIST -1/8
FR-TC5000
KSC
CD O C 0101 S1-101-001-0C0 CAP,E 100-10V a
CD O C 0102 S1-101-001-0C0 CAP,E 100-10V a
CD X C 0103 S5-102-120-500 C-CAP,0.001UF-50V a
CD X C 0104 S5-224-820-160 C-CAP,0.22UF-16V a
CD X C 0105 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0121 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0122 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0123 S5-473-120-250 C-CAP,0.047-25V a
CD X C 0124 S5-223-120-500 C-CAP,0.022-50V a
CD X C 0125 S6-471-520-500 C-CAP,470PF-50V a
CD O C 0126 87-A10-260-080 C-CAP,0.1-16 a
CD O C 0127 S1-101-001-0C0 CAP,E 100-10V a
CD O C 0128 S1-101-001-0C0 CAP,E 100-10V a
CD X C 0129 S5-333-120-250 C-CAP,0.033-25V a
CD X C 0130 S5-222-120-500 C-CAP,0.0022UF-50V a
CD O C 0131 87-A10-260-080 C-CAP,0.1-16 a
CD O C 0132 87-A10-260-080 C-CAP,0.1-16 a
CD O C 0133 87-A10-260-080 C-CAP,0.1-16 a
CD X C 0134 S6-151-520-500 C-CAP,150PF-50V a
CD O C 0135 S2-020-005-0C0 CAP,E 2.2-50V a
FR-TC5000
KSC
CD O C 0136 87-A10-260-080 C-CAP,0.1-16 a
CD X C 0137 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0139 S6-151-520-500 C-CAP,150PF-50V a
CD X C 0140 S5-473-120-250 C-CAP,0.047-25V a
CD O C 0141 S2-220-001-6C0 CAP,E 22-16V a
CD O C 0142 S2-040-003-5C0 CAP,E 4.7-35V a
CD X C 0143 S5-153-120-500 C-CAP,0.015P-50V a
CD O C 0144 S1-101-001-0C0 CAP,E 100-10V a
CD X C 0145 S5-103-120-250 C-CAP,0.01-25V a
CD O C 0153 S2-010-005-0C0 CAP,E 1-50V a
CD X C 0155 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0156 S5-333-120-250 C-CAP,0.033-25V a
CD X C 0157 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0158 S5-333-120-250 C-CAP,0.033-25V a
CD X C 0160 S6-330-520-500 C-CAP,33PF-50V a
CD X C 0161 S5-272-120-500 C-CAP,0.0027-50V a
CD O C 0181 S1-470-001-6C0 CAP,E 4-16V a
CD X C 0182 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0185 S5-104-821-250 C-CAP,0.1-25 a
CD X C 0191 S5-473-120-250 C-CAP,0.047-25V a
FR-TC5000
KSC
CD X C 0192 S5-681-120-500 C-CAP,680P-50V a
CD X C 0193 S5-104-821-250 C-CAP,0.1-25 a
CD X C 0194 S6-221-520-500 C-CAP,220PF-50V a
CD X C 0195 S5-104-821-250 C-CAP,0.1-25 a
CD X C 0197 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0199 S5-472-120-500 C-CAP,0.0047-50V a
CD X C 0201 S5-104-821-250 C-CAP,0.1-25 a
CD O C 0202 S2-100-001-6C0 CAP,E 10-16V a
CD O C 0203 S2-100-001-6C0 CAP,E 10-16V a
CD X C 0206 S5-102-120-500 C-CAP,0.001UF-50V a
CD O C 0221 S2-010-005-0C0 CAP,E 1-50V a
CD X C 0223 S5-681-120-500 C-CAP,680P-50V a
CD X C 0224 S5-681-120-500 C-CAP,680P-50V a
CD X C 0225 S6-151-520-500 C-CAP,150PF-50V a
CD X C 0226 S6-151-520-500 C-CAP,150PF-50V a
CD X C 0228 S6-100-520-500 C-CAP,10PF-50V a
CD X C 0229 S6-100-520-500 C-CAP,10PF-50V a
CD X C 0230 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0231 S5-104-821-250 C-CAP,0.1-25 a
CD O C 0234 S0-331-000-6C0 CAP,E 330-6.3 a
FR-TC5000
KSC
CD X C 0235 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0236 S5-104-821-250 C-CAP,0.1-25 a
CD X C 0237 S5-331-120-500 C-CAP,330PF-50V a
CD X C 0251 S5-104-821-250 C-CAP,0.1-25 a
CD O C 0252 S0-471-001-0C0 CAP,E 470-10V a
CD O C 0253 S0-102-001-0C0 CAP,E 1000-10V a
CD X C 0254 S5-103-120-250 C-CAP,0.01-25V a
CD O C 0255 S0-471-001-0C0 CAP,E 470-10V a
CD X C 0256 S5-103-120-250 C-CAP,0.01-25V a
CD O C 0258 S1-101-001-0C0 CAP,E 100-10V a
CD X C 0259 S5-104-821-250 C-CAP,0.1-25 a
CD X C 0260 S5-104-821-250 C-CAP,0.1-25 a
CD X C 0261 S5-104-821-250 C-CAP,0.1-25 a
CD X C 0270 S5-103-120-250 C-CAP,0.01-25V a
CD X C 0271 S5-104-821-250 C-CAP,0.1-25 a
CD X C 0272 S5-104-821-250 C-CAP,0.1-25 a
CD O CN 0101 87-A60-424-010 FFC CONN,16P P=1MM a
CD O CN 0201 S0-062-320-400 FFC CONN,4P PITCH=1MM a
CD O CN 0251 S0-096-040-600 FFC CONN,6P IMSA-9604 a
CD O CN 0252 SP-HS0-200-200 HEADER CTL 2 PINS PHS-02 PITC a
All manuals and user guides at all-guides.com

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-8-
ELECTRICAL PARTS LIST -2/8
FR-TC5000
KSC
CD O D 0101 87-020-027-080 C-DIODE,1SS184 a
CD O D 0221 87-020-027-080 C-DIODE,1SS184 a
CD O D 0254 87-020-027-080 C-DIODE,1SS184 a
CD S IC 0101 87-A20-547-010 IC,CXA1992AR a
CD S IC 0161 87-A20-546-010 IC,CXD2589Q a
CD O IC 0251 S4-059-360-000 IC,BA5936S a
CD X JR 0100 S3-000-520-160 C-RES,0 -1/16W a
CD X JR 0101 S3-000-520-160 C-RES,0 -1/16W a
CD X JR 0122 S3-000-520-160 C-RES,0 -1/16W a
CD X JR 0138 S3-000-520-160 C-RES,0 -1/16W a
CD X JR 0139 S3-000-520-160 C-RES,0 -1/16W a
CD X JR 0181 S3-000-520-160 C-RES,0 -1/16W a
CD X JR 0182 S3-000-520-160 C-RES,0 -1/16W a
CD X JR 0191 S3-000-520-160 C-RES,0 -1/16W a
CD X JR 0229 S3-000-520-160 C-RES,0 -1/16W a
CD X JR 0231 S3-000-510-180 C-RES,0-1/8W a
CD X JR 0251 S3-000-510-180 C-RES,0-1/8W a
CD X JR 0252 S3-000-520-160 C-RES,0 -1/16W a
CD X JR 0261 S3-000-510-180 C-RES,0-1/8W a
CD X JR 0262 S3-000-510-180 C-RES,0-1/8W a
FR-TC5000
KSC
CD X JR 0263 S3-000-510-180 C-RES,0-1/8W a
CD O L 0102 S0-100-160-000 INDUCTOR,10UH a
CD O L 0201 S0-103-372-010 COIL,3.3UH a
CD O L 0231 S0-100-160-000 INDUCTOR,10UH a
CD O L 0252 S0-100-160-000 INDUCTOR,10UH a
CD O Q 0101 89-113-625-080 C-TR,2SA1362GR a
CD O Q 0102 SA-001-148-000 C-TR,DTC114TK/TKA a
CD O Q 0103 SA-001-148-000 C-TR,DTC114TK/TKA a
CD O Q 0104 SA-001-148-000 C-TR,DTC114TK/TKA a
CD S Q 0105 89-333-266-080 C-TR,2SC3326B a
CD S Q 0106 89-333-266-080 C-TR,2SC3326B a
CD S Q 0251 89-112-134-080 TR,2SA1213Y a
CD O Q 0252 SA-001-246-000 TR,DTC124XKA a
CD O Q 0253 SA-001-246-000 TR,DTC124XKA a
CD S Q 0254 87-A30-075-080 TR,2SA1235 a
CD S Q 0255 87-A30-075-080 TR,2SA1235 a
CD O Q 0256 SA-001-148-000 C-TR,DTC114TK/TKA a
CD X R 0101 S3-100-520-160 C-RES,10-1/16W a
CD X R 0102 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0103 S3-682-520-160 C-RES,6.8K-1/16W a
FR-TC5000
KSC
CD X R 0104 S3-153-520-160 C-RES,15K-1/16W a
CD X R 0105 S3-153-520-160 C-RES,15K-1/16W a
CD X R 0106 S3-153-520-160 C-RES,15K-1/16W a
CD X R 0107 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0108 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0109 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0110 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0111 S3-153-520-160 C-RES,15K-1/16W a
CD X R 0112 S3-820-520-160 C-RES,82-1/16W a
CD X R 0113 S0-222-510-160 RES,2.2K-1/16W a
CD X R 0114 S0-222-510-160 RES,2.2K-1/16W a
CD X R 0115 S3-821-520-160 C-RES,820-1/16W a
CD X R 0116 S3-821-520-160 C-RES,820-1/16W a
CD X R 0117 S3-472-520-160 C-RES,4.7K-1/16W a
CD X R 0118 S3-154-520-160 C-RES,150K-1/16W a
CD X R 0119 S3-103-520-160 C-RES,10K-1/1 a
CD X R 0120 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0121 S3-104-520-160 C-RES,100K-1/ a
CD X R 0122 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0123 S3-334-520-160 C-RES,330K-1/16W a
FR-TC5000
KSC
CD X R 0124 S3-473-520-160 C-RES,47K-1/16W a
CD X R 0125 S3-183-520-160 C-RES,18K-1/16W a
CD X R 0126 S3-183-520-160 C-RES,18K-1/16W a
CD X R 0127 S3-472-520-160 C-RES,4.7K-1/16W a
CD X R 0131 S3-684-520-160 C-RES,680K-1/16W a
CD X R 0132 S3-683-520-160 C-RES,68K-1/16W a
CD X R 0133 S3-393-520-160 C-RES,39K-1/16W a
CD X R 0134 S3-474-520-160 C-RES,470K-1/16W a
CD X R 0136 S3-823-520-160 C-RES,82K-1/16W a
CD X R 0137 S3-683-520-160 C-RES,68K-1/16W a
CD X R 0141 S3-823-520-160 C-RES,82K-1/16W a
CD X R 0142 S3-153-520-160 C-RES,15K-1/16W a
CD X R 0143 S3-183-520-160 C-RES,18K-1/16W a
CD X R 0144 S3-473-520-160 C-RES,47K-1/16W a
CD X R 0145 S3-104-520-160 C-RES,100K-1/ a
CD X R 0146 S3-563-520-160 C-RES,56K-1/16W a
CD X R 0147 S3-102-520-160 C-RES,1K-1/16 a
CD X R 0148 S3-102-520-160 C-RES,1K-1/16 a
CD X R 0149 S3-102-520-160 C-RES,1K-1/16 a
CD X R 0151 S3-105-520-160 C-RES,1M-1/16W a
All manuals and user guides at all-guides.com

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-9-
ELECTRICAL PARTS LIST -3/8
FR-TC5000
KSC
CD X R 0152 S3-153-520-160 C-RES,15K-1/16W a
CD X R 0153 S3-102-520-160 C-RES,1K-1/16 a
CD X R 0154 S3-123-520-160 C-RES,12K-1/16W a
CD X R 0156 S3-225-520-160 C-RES,2.2M-1/16W a
CD X R 0157 S3-225-520-160 C-RES,2.2M-1/16W a
CD X R 0158 S3-155-520-160 CHIP RESISTOR 1.5 Mohm +-5% 1 a
CD X R 0181 S3-104-520-160 C-RES,100K-1/ a
CD X R 0192 S3-332-520-160 C-RES,3.3K-1/16W a
CD X R 0193 S3-122-520-160 C-RES,1.2K-1/16W a
CD X R 0194 S3-103-520-160 C-RES,10K-1/1 a
CD X R 0195 S3-105-520-160 C-RES,1M-1/16W a
CD X R 0196 S3-224-520-160 C-RES,220K-1/16W a
CD X R 0197 S3-104-520-160 C-RES,100K-1/ a
CD X R 0201 S3-272-520-160 C-RES,2.7K-1/16W a
CD X R 0202 S3-272-520-160 C-RES,2.7K-1/16W a
CD X R 0203 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0204 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0211 S0-103-510-160 RES,10K-1/16W (1 a
CD X R 0212 S0-103-510-160 RES,10K-1/16W (1 a
CD X R 0213 S0-103-510-160 RES,10K-1/16W (1 a
FR-TC5000
KSC
CD X R 0214 S0-103-510-160 RES,10K-1/16W (1 a
CD X R 0215 S0-103-510-160 RES,10K-1/16W (1 a
CD X R 0216 S0-103-510-160 RES,10K-1/16W (1 a
CD X R 0217 S0-103-510-160 RES,10K-1/16W (1 a
CD X R 0218 S0-103-510-160 RES,10K-1/16W (1 a
CD X R 0219 S0-103-510-160 RES,10K-1/16W (1 a
CD X R 0220 S3-222-520-160 C-RES,2.2K-1/16W a
CD X R 0221 S3-224-520-160 C-RES,220K-1/16W a
CD X R 0222 S3-123-520-160 C-RES,12K-1/16W a
CD X R 0223 S3-123-520-160 C-RES,12K-1/16W a
CD X R 0224 S3-123-520-160 C-RES,12K-1/16W a
CD X R 0225 S3-104-520-160 C-RES,100K-1/ a
CD X R 0226 S3-123-520-160 C-RES,12K-1/16W a
CD X R 0227 S3-123-520-160 C-RES,12K-1/16W a
CD X R 0228 S3-123-520-160 C-RES,12K-1/16W a
CD X R 0230 S3-330-520-160 C-RES,33-1/16W a
CD X R 0253 S3-478-520-160 C-RES,4.7-1/16W a
CD X R 0254 S3-228-530-120 C-RES,2.2-1/2W a
CD X R 0255 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0256 S3-682-520-160 C-RES,6.8K-1/16W a
FR-TC5000
KSC
CD X R 0257 S3-273-520-160 C-RES,27K-1/16W a
CD X R 0258 S3-273-520-160 C-RES,27K-1/16W a
CD X R 0259 S0-103-510-160 RES,10K-1/16W (1 a
CD X R 0260 S3-103-520-160 C-RES,10K-1/1 a
CD X R 0262 S3-100-510-180 C-RES,10-1/8W a
CD X R 0263 S3-100-510-180 C-RES,10-1/8W a
CD X R 0265 S3-472-520-160 C-RES,4.7K-1/16W a
CD X R 0266 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0267 S3-471-520-160 C-RES,470-1/16W a
CD X R 0268 S3-682-520-160 C-RES,6.8K-1/16W a
CD X R 0269 S3-103-520-160 C-RES,10K-1/1 a
CD X R 0270 S3-822-520-160 C-RES,8.2K-1/16W a
CD X R 0271 S3-100-520-160 C-RES,10-1/16W a
CD X R 0272 S3-100-520-160 C-RES,10-1/16W a
CD X R 0273 S0-478-510-160 RES,4.7-1/16W a
CD X R 0274 S0-478-510-160 RES,4.7-1/16W a
CD X R 0276 S0-103-510-160 RES,10K-1/16W (1 a
CD O SFR0301 S1-040-851-020 SFR,100K a
CD O W 0181 8C-RD2-612-010 CONN,PHR-15 a
CD O W 0191 SF-006-250-000 CONN,PHR-06 a
FR-TC5000
KSC
CD O X 0221 S0-016-930-050 CER,RESO 16.93 MHz ZT a
DOOR SW O Q 0303 89-327-125-080 C-TR,2SC2712GR a
DOOR SW X R 0319 S3-474-520-160 C-RES,470K-1/16W a
DOOR SW O SW 0321 S0-246-110-000 DETECTOR SWITCH 1P1T ESE24SV6 a
FRONT O C 0301 S2-220-001-6C0 CAP,E 22-16V a
FRONT X C 0302 S5-105-820-100 C-CAP,1UF-10V a
FRONT X C 0303 S5-105-820-100 C-CAP,1UF-10V a
FRONT X C 0306 87-018-147-080 CAP,CER 10PF-50V a
FRONT X C 0307 87-018-147-080 CAP,CER 10PF-50V a
FRONT X C 0308 87-A11-889-080 CAP,CER 330PF-50V a
FRONT X C 0310 S2-682-200-160 CAP,CER 0.0068UF-16V a
FRONT X C 0311 S2-104-100-250 CAP,CER 0.1UF-25V a
FRONT X C 0312 87-018-150-080 CAP,CER 18P-50 a
FRONT X C 0313 S2-104-100-250 CAP,CER 0.1UF-25V a
FRONT O CN 0302 SB-14B-PH1-410 CONN,14P B14B-PH-SM3 a
FRONT O CN 0303 SB-15B-PH1-510 CONN,15P B15B-PH-SM3 a
FRONT O CN 0351 S0-702-401-300 CONN,7P (3+234+3) a
FRONT O CN 0352 S0-702-401-300 CONN,7P (3+234+3) a
FRONT O CN 0702 SB-05B-PH0-510 CONN,5P B5B-PH-SM3-T a
FRONT O D 0302 S0-093-440-030 LED,L-934SECK a
All manuals and user guides at all-guides.com

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-10-
ELECTRICAL PARTS LIST -4/8
FR-TC5000
KSC
FRONT O D 0303 S0-093-440-030 LED,L-934SECK a
FRONT O D 0304 S0-093-440-030 LED,L-934SECK a
FRONT S D 0305 011-010033-123 C-ZENER,3.3V 1/2W a
FRONT S IC 0301 87-A22-301-030 IC,LC877348A5Z52 a
FRONT O LCD0301 8C-RD2-609-010 LCD,N-04D-32 a
FRONT O Q 0301 S3-181-500-010 TR,2SC1815GR a
FRONT X R 0275 S3-104-520-160 C-RES,100K-1/ a
FRONT X R 0303 S0-223-510-160 RES,22K-1/16W (1 a
FRONT X R 0304 S0-332-510-160 RES,3.3K-1/16W a
FRONT X R 0305 S0-153-510-160 RES,15K-1/16W (1 a
FRONT X R 0306 S0-223-510-160 RES,22K-1/16W (1 a
FRONT X R 0307 S0-153-510-160 RES,15K-1/16W (1 a
FRONT X R 0308 S0-472-510-160 RES,4.7K-1/16W a
FRONT X R 0310 S0-102-510-160 RES,1K-1/16W (1/ a
FRONT X R 0312 S3-822-520-160 C-RES,8.2K-1/16W a
FRONT X R 0313 S3-822-520-160 C-RES,8.2K-1/16W a
FRONT X R 0314 S3-822-520-160 C-RES,8.2K-1/16W a
FRONT X R 0315 S3-153-520-160 C-RES,15K-1/16W a
FRONT X R 0316 S3-102-520-160 C-RES,1K-1/16 a
FRONT X R 0330 S0-151-510-160 RES,150-1/6W a
FR-TC5000
KSC
FRONT X R 0721 S0-102-510-160 RES,1K-1/16W (1/ a
FRONT X R 0722 S0-102-510-160 RES,1K-1/16W (1/ a
FRONT X R 0723 S0-104-510-160 RES,100K-1/16W ( a
FRONT X R 0724 S0-104-510-160 RES,100K-1/16W ( a
FRONT O S 0302 S1-102-000-010 SW,TACT 4P 4.3MM a
FRONT O S 0303 S1-102-000-010 SW,TACT 4P 4.3MM a
FRONT O S 0304 S1-102-000-010 SW,TACT 4P 4.3MM a
FRONT O S 0305 S1-102-000-010 SW,TACT 4P 4.3MM a
FRONT O S 0306 S1-102-000-010 SW,TACT 4P 4.3MM a
FRONT O S 0307 S1-102-000-010 SW,TACT 4P 4.3MM a
FRONT O S 0308 S1-102-000-010 SW,TACT 4P 4.3MM a
FRONT O T 0301 S0-010-030-750 IFT,(OSC COIL) KY1003NC a
FRONT O VR 0701 87-A92-380-01 VR,E12M&GV020KAWSH&DXV0122GPV a
FRONT O X 0301 87-030-194-010 X’TAL,32.768 KHZ a
JACK O CN 0705 8C-RD2-615-010 CONN,3P 2001-WR-3 a
JACK O J 0701 8A-CKA-628-010 HP,JACK HTJ-035-08 a
JACK O L 0701 S0-100-160-000 INDUCTOR,10UH a
JACK X R 0735 S0-101-510-160 RES,100-1/16W (1 a
JACK X R 0736 S0-101-510-160 RES,100-1/16W (1 a
JACK X R 0737 S0-330-510-160 RES,33-1/16W a
FR-TC5000
KSC
JACK X R 0738 S0-330-510-160 RES,33-1/16W a
KEY X R 0317 S0-472-510-160 RES,4.7K-1/16W a
KEY X R 0318 S0-472-510-160 RES,4.7K-1/16W a
KEY O S 0309 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0310 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0311 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0312 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0313 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0314 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0315 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0316 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0317 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0318 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0319 S1-102-000-010 SW,TACT 4P 4.3MM a
KEY O S 0320 S1-102-000-010 SW,TACT 4P 4.3MM a
MAIN O BPF0001 87-A91-680-010 BPS,FILTER GFMB5-C3 a
MAIN X C 0001 S2-102-500-500 CAP,CER 0.001UF-50V a
MAIN X C 0002 S2-181-100-500 CAP,CER 180P-50 a
MAIN X C 0003 S0-478-400-500 CAP,CER 4.7PF-50V a
MAIN X C 0004 S2-103-100-160 CAP,CER 0.01UF-16V a
FR-TC5000
KSC
MAIN X C 0005 S2-101-500-500 CAP,CER 100PF-50V a
MAIN X C 0007 87-A11-840-080 CAP,CER 6.8PF-50V a
MAIN X C 0008 S2-103-100-160 CAP,CER 0.01UF-16V a
MAIN X C 0009 S2-103-100-160 CAP,CER 0.01UF-16V a
MAIN X C 0013 S2-228-100-500 CAP,CER 2.2PF-50V a
MAIN X C 0014 S2-103-100-160 CAP,CER 0.01UF-16V a
MAIN X C 0015 S2-101-500-500 CAP,CER 100PF-50V a
MAIN X C 0017 S4-470-500-500 CAP,CER 47PF-50V a
MAIN X C 0021 S2-104-100-250 CAP,CER 0.1UF-25V a
MAIN X C 0022 S2-223-100-500 CAP,CER 0.022UF-50V a
MAIN X C 0023 S2-104-100-250 CAP,CER 0.1UF-25V a
MAIN X C 0024 S2-680-500-500 CAP,CER 68PF-50V a
MAIN X C 0025 S4-221-500-500 CERAMIC CAP 220pF/50V +-5% (N a
MAIN X C 0026 S4-221-500-500 CERAMIC CAP 220pF/50V +-5% (N a
MAIN O C 0027 S4-270-500-500 CAP,CER 27PF-50V a
MAIN X C 0028 87-A10-130-010 CAP,CER 4PF-50V a
MAIN X C 0029 S4-181-500-500 CAP,CER 180PF-50V a
MAIN X C 0030 S4-180-500-500 CAP,CER 18P-50 a
MAIN X C 0032 87-018-147-080 CAP,CER 10PF-50V a
MAIN X C 0033 S2-102-500-500 CAP,CER 0.001UF-50V a
All manuals and user guides at all-guides.com

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-11-
ELECTRICAL PARTS LIST -5/8
FR-TC5000
KSC
MAIN O C 0034 S0-010-005-0C0 CAP,E 1-50V a
MAIN O C 0035 S0-001-005-0C0 CAP,E 0.1-50V a
MAIN O C 0036 S0-010-005-0C0 CAP,E 1-50V a
MAIN O C 0037 S0-001-005-0C0 CAP,E 0.1-50V a
MAIN O C 0038 S0-001-005-0C0 CAP,E 0.1-50V a
MAIN O C 0039 87-016-643-080 CAP,E 4.7-50V a
MAIN X C 0040 S2-153-100-500 CAP,CER 0.015-50 a
MAIN X C 0041 S2-153-100-500 CAP,CER 0.015-50 a
MAIN X C 0042 S2-103-100-160 CAP,CER 0.01UF-16V a
MAIN X C 0043 S2-104-100-250 CAP,CER 0.1UF-25V a
MAIN O C 0044 87-A10-458-080 CAP,E 100-10V a
MAIN X C 0045 S2-102-500-500 CAP,CER 0.001UF-50V a
MAIN X C 0046 87-018-147-080 CAP,CER 10PF-50V a
MAIN X C 0047 87-018-147-080 CAP,CER 10PF-50V a
MAIN X C 0048 S2-103-100-160 CAP,CER 0.01UF-16V a
MAIN O C 0049 S0-010-005-0C0 CAP,E 1-50V a
MAIN O C 0050 S0-470-001-6C0 CAP,E 47-16V a
MAIN O C 0051 S0-470-001-6C0 CAP,E 47-16V a
MAIN X C 0052 S2-103-100-160 CAP,CER 0.01UF-16V a
MAIN X C 0053 S2-103-100-160 CAP,CER 0.01UF-16V a
FR-TC5000
KSC
MAIN X C 0055 S2-102-500-500 CAP,CER 0.001UF-50V a
MAIN X C 0056 S2-102-500-500 CAP,CER 0.001UF-50V a
MAIN X C 0058 S2-680-500-500 CAP,CER 68PF-50V a
MAIN X C 0059 S2-680-500-500 CAP,CER 68PF-50V a
MAIN O C 0320 87-A10-119-080 CAP,E 10-50V a
MAIN X C 0701 S2-473-800-500 CAP,CER 0.047-50 a
MAIN X C 0702 S2-473-800-500 CAP,CER 0.047-50 a
MAIN O C 0703 S0-010-005-0C0 CAP,E 1-50V a
MAIN O C 0704 S0-010-005-0C0 CAP,E 1-50V a
MAIN O C 0705 S0-010-005-0C0 CAP,E 1-50V a
MAIN O C 0706 S0-010-005-0C0 CAP,E 1-50V a
MAIN X C 0707 87-A11-889-080 CAP,CER 330PF-50V a
MAIN X C 0708 87-A11-889-080 CAP,CER 330PF-50V a
MAIN O C 0709 S0-001-005-0C0 CAP,E 0.1-50V a
MAIN O C 0710 S0-001-005-0C0 CAP,E 0.1-50V a
MAIN O C 0711 87-A10-119-080 CAP,E 10-50V a
MAIN O C 0712 87-A10-119-080 CAP,E 10-50V a
MAIN O C 0713 87-A10-458-080 CAP,E 100-10V a
MAIN O C 0714 87-A10-458-080 CAP,E 100-10V a
MAIN O C 0715 S0-004-005-0C0 CAP,E 0.47-50V a
FR-TC5000
KSC
MAIN O C 0716 S0-004-005-0C0 CAP,E 0.47-50V a
MAIN O C 0717 S0-102-001-0C0 CAP,E 1000-10V a
MAIN O C 0718 S0-102-001-0C0 CAP,E 1000-10V a
MAIN O C 0720 S0-221-001-0C0 CAP,E 220-10V a
MAIN X C 0721 S2-104-810-500 CAP,CER 0.1UF-50V a
MAIN X C 0723 S2-473-800-500 CAP,CER 0.047-50 a
MAIN X C 0724 S2-473-800-500 CAP,CER 0.047-50 a
MAIN X C 0725 87-A11-129-080 CAP,CER 0.0056UF-16V a
MAIN X C 0726 87-A11-129-080 CAP,CER 0.0056UF-16V a
MAIN X C 0727 S2-104-810-500 CAP,CER 0.1UF-50V a
MAIN X C 0728 S2-104-810-500 CAP,CER 0.1UF-50V a
MAIN O C 0730 S0-101-001-6C0 CAP,E 100-16V a
MAIN O C 0801 S0-332-002-5C0 CAP,E 3300-25V a
MAIN O C 0802 S0-472-001-6C0 CAP,E 4700-16V a
MAIN X C 0803 87-A11-917-080 CAP,CER 0.0022UF-16V a
MAIN O C 0804 87-A10-119-080 CAP,E 10-50V a
MAIN O C 0805 87-A10-458-080 CAP,E 100-10V a
MAIN X C 0806 S2-104-810-500 CAP,CER 0.1UF-50V a
MAIN O C 0807 87-A10-119-080 CAP,E 10-50V a
MAIN O C 0808 S0-470-001-6C0 CAP,E 47-16V a
FR-TC5000
KSC
MAIN X C 0809 S2-470-500-500 CAP,CER 47P-50V a
MAIN X C 0813 S2-223-100-500 CAP,CER 0.022UF-50V a
MAIN X C 0814 S2-223-100-500 CAP,CER 0.022UF-50V a
MAIN X C 0815 S2-223-100-500 CAP,CER 0.022UF-50V a
MAIN X C 0816 S2-223-100-500 CAP,CER 0.022UF-50V a
MAIN X C 0817 S2-223-100-500 CAP,CER 0.022UF-50V a
MAIN X C 0818 S2-223-100-500 CAP,CER 0.022UF-50V a
MAIN X C 0819 S2-223-100-500 CAP,CER 0.022UF-50V a
MAIN X C 0821 S2-104-810-500 CAP,CER 0.1UF-50V a
MAIN O CD 0001 S6-010-700-020 CER,RESO #CDA10.7MG6 a
MAIN O CF 0001 8A-RH2-611-010 CER,FIL SFU450B a
MAIN O CF 0002 87-PC4-617-010 CER,FIL SFE10.7MS2-A/LT a
MAIN O CN 0301 8C-RD2-613-010 CONN,PHR-14 a
MAIN O CN 0701 8C-RD2-614-010 CONN,5P PHR-05 a
MAIN O CN 0703 SP-HS0-600-600 HEADER CTL 6P a
MAIN O CN 0704 SF-003-200-010 CONN,PHR-03 a
MAIN O D 0001 S0-613-600-000 VARACTOR DIODE,KV1360NT a
MAIN O D 0002 S0-613-600-000 VARACTOR DIODE,KV1360NT a
MAIN O D 0006 S0-015-900-010 VARI-CAP,KV1590NT a
MAIN O D 0009 S0-041-480-000 DIODE,1N4148 a
All manuals and user guides at all-guides.com
all-guides.com

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-12-
ELECTRICAL PARTS LIST -6/8
FR-TC5000
KSC
MAIN O D 0012 S0-041-480-000 DIODE,1N4148 a
MAIN O D 0013 S0-041-480-000 DIODE,1N4148 a
MAIN O D 0310 011-004148-000 DIODE,1N4148 a
MAIN O D 0801 8A-RU2-621-010 DIODE,1.5A 50V a
MAIN O D 0802 8A-RU2-621-010 DIODE,1.5A 50V a
MAIN O D 0803 8A-RU2-621-010 DIODE,1.5A 50V a
MAIN O D 0804 8A-RU2-621-010 DIODE,1.5A 50V a
MAIN O D 0805 8A-RU2-620-010 ZENER,BZX55C6V8 a
MAIN O D 0806 S0-100-560-010 ZENER,5.6V a
MAIN O D 0807 S0-100-560-010 ZENER,5.6V a
MAIN S D 0808 S0-100-471-240 ZENER,MTZJ4.7B a
MAIN O D 0810 S0-041-480-000 DIODE,1N4148 a
MAIN ! S F 0801 S0-200-200-010 FUSE #218002 2A/250V 5x20mm T a
MAIN X FM 0001 S6-79A-200-090 JP WIRE AWG26#1007 3x0mm 1200 a
MAIN S IC 0001 S8-321-040-010 IC,TA2104AN a
MAIN O IC 0002 S7-172-130-2A0 IC,LC72131D/-N a
MAIN O IC 0701 S8-382-270-000 IC,TA8227P a
MAIN O IFT0001 8Z-CS1-609-010 IFT,4A-224R,10mm a
MAIN O L 0000 S1-900-071-200 LW COIL a
MAIN O L 0000 S0-580-051-000 MW ANT COIL 58T:0 USTC a
FR-TC5000
KSC
MAIN O L 0001 S0-500-450-080 FM,COIL 5T 4.5MM DIA 0.8MM a
MAIN O L 0003 8Z-CM2-632-010 FM,COIL 4T 4.5MM a
MAIN O L 0011 87-003-152-080 COIL,100UH a
MAIN O L 0012 87-003-152-080 COIL,100UH a
MAIN O L 0015 S0-304-742-000 CHOKE COIL,4.7MH a
MAIN O L 0301 S0-102-260-000 COIL,22UH a
MAIN O Q 0001 S3-192-300-000 TR,2SC1923(O) a
MAIN O Q 0002 S1-101-500-250 TR,2SA1015Y a
MAIN O Q 0003 S1-101-500-250 TR,2SA1015Y a
MAIN O Q 0004 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0005 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0006 S1-101-500-250 TR,2SA1015Y a
MAIN O Q 0007 S1-101-500-250 TR,2SA1015Y a
MAIN O Q 0008 S1-101-500-250 TR,2SA1015Y a
MAIN O Q 0009 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0010 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0302 S1-101-500-250 TR,2SA1015Y a
MAIN O Q 0701 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0702 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0703 S3-181-500-010 TR,2SC1815GR a
FR-TC5000
KSC
MAIN O Q 0704 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0801 S2-015-660-000 TR,2SB1566E/F a
MAIN O Q 0802 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0803 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0804 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0805 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0806 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0807 S1-101-500-250 TR,2SA1015Y a
MAIN O Q 0808 S3-181-500-010 TR,2SC1815GR a
MAIN O Q 0809 S3-181-500-010 TR,2SC1815GR a
MAIN X R 0001 S0-104-510-160 RES,100K-1/16W ( a
MAIN X R 0002 S0-104-510-160 RES,100K-1/16W ( a
MAIN X R 0003 S0-270-510-160 RES,27-1/16W a
MAIN X R 0004 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0005 S0-104-510-160 RES,100K-1/16W ( a
MAIN X R 0006 S0-104-510-160 RES,100K-1/16W ( a
MAIN X R 0007 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0008 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0009 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0010 S0-222-510-160 RES,2.2K-1/16W a
FR-TC5000
KSC
MAIN X R 0011 S0-151-510-160 RES,150-1/6W a
MAIN X R 0013 S0-474-510-160 RES,470K-1/16W a
MAIN X R 0017 S0-102-510-160 RES,1K-1/16W (1/ a
MAIN X R 0018 S0-102-510-160 RES,1K-1/16W (1/ a
MAIN X R 0019 S0-104-510-160 RES,100K-1/16W ( a
MAIN X R 0020 S0-471-510-160 RES,470-1/16W a
MAIN X R 0021 S0-332-510-160 RES,3.3K-1/16W a
MAIN X R 0022 S0-332-510-160 RES,3.3K-1/16W a
MAIN X R 0023 S0-222-510-160 RES,2.2K-1/16W a
MAIN X R 0024 S0-332-510-160 RES,3.3K-1/16W a
MAIN X R 0025 S0-222-510-160 RES,2.2K-1/16W a
MAIN X R 0026 S0-331-510-160 RES,330-1/16W (1 a
MAIN X R 0027 S0-472-510-160 RES,4.7K-1/16W a
MAIN X R 0028 S0-104-510-160 RES,100K-1/16W ( a
MAIN X R 0030 S0-223-510-160 RES,22K-1/16W (1 a
MAIN X R 0031 S0-332-510-160 RES,3.3K-1/16W a
MAIN X R 0032 S0-104-510-160 RES,100K-1/16W ( a
MAIN X R 0033 S0-472-510-160 RES,4.7K-1/16W a
MAIN X R 0034 S0-222-510-160 RES,2.2K-1/16W a
MAIN X R 0035 S0-472-510-160 RES,4.7K-1/16W a
All manuals and user guides at all-guides.com

! = ! SAFTY PARTS
C = Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
UNIT-NAME ! C REF-NO PARTS-NO PARTS-NAME SUFFIX&MODEL
-13-
ELECTRICAL PARTS LIST -7/8
FR-TC5000
KSC
MAIN X R 0036 S0-331-510-160 RES,330-1/16W (1 a
MAIN X R 0037 S0-100-510-160 RES,10-1/16W (1/ a
MAIN X R 0038 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0039 S0-472-510-160 RES,4.7K-1/16W a
MAIN X R 0041 S0-472-510-160 RES,4.7K-1/16W a
MAIN X R 0043 S0-472-510-160 RES,4.7K-1/16W a
MAIN X R 0045 S0-472-510-160 RES,4.7K-1/16W a
MAIN X R 0046 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0047 S0-472-510-160 RES,4.7K-1/16W a
MAIN X R 0048 S0-472-510-160 RES,4.7K-1/16W a
MAIN X R 0049 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0050 S0-331-510-160 RES,330-1/16W (1 a
MAIN X R 0051 S0-152-510-160 RES,1.5K-1/16W a
MAIN X R 0052 S0-220-510-160 RES,22-1/16W (1/ a
MAIN X R 0053 S0-823-510-160 RES,82K-1/16W a
MAIN X R 0054 S0-105-510-160 RES,1M-1/16W a
MAIN X R 0055 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0056 S0-332-510-160 RES,3.3K-1/16W a
MAIN X R 0057 S0-220-510-160 RES,22-1/16W (1/ a
MAIN X R 0059 S0-104-510-160 RES,100K-1/16W ( a
FR-TC5000
KSC
MAIN X R 0060 S0-222-510-160 RES,2.2K-1/16W a
MAIN X R 0320 S0-102-510-160 RES,1K-1/16W (1/ a
MAIN X R 0321 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0322 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0323 S0-104-510-160 RES,100K-1/16W ( a
MAIN X R 0324 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0325 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0326 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0701 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0702 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0703 S0-223-510-160 RES,22K-1/16W (1 a
MAIN X R 0704 S0-223-510-160 RES,22K-1/16W (1 a
MAIN X R 0705 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0706 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0707 S0-222-510-160 RES,2.2K-1/16W a
MAIN X R 0708 S0-222-510-160 RES,2.2K-1/16W a
MAIN X R 0709 S0-123-510-160 RES,12K-1/16W (1 a
MAIN X R 0710 S0-123-510-160 RES,12K-1/16W (1 a
MAIN X R 0711 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0712 S0-103-510-160 RES,10K-1/16W (1 a
FR-TC5000
KSC
MAIN X R 0713 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0714 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0717 S0-682-510-160 RES,6.8K-1/16W a
MAIN X R 0718 S0-682-510-160 RES,6.8K-1/16W a
MAIN X R 0719 S0-478-510-160 RES,4.7-1/16W a
MAIN X R 0720 S0-478-510-160 RES,4.7-1/16W a
MAIN X R 0721 S0-123-510-160 RES,12K-1/16W (1 a
MAIN X R 0722 S0-123-510-160 RES,12K-1/16W (1 a
MAIN X R 0723 S0-682-510-160 RES,6.8K-1/16W a
MAIN X R 0724 S0-682-510-160 RES,6.8K-1/16W a
MAIN X R 0731 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0732 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0733 S0-221-510-160 RES,220-1/16W a
MAIN X R 0734 S0-221-510-160 RES,220-1/16W a
MAIN X R 0740 S0-471-510-160 RES,470-1/16W a
MAIN X R 0801 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0802 S0-331-500-120 RES,330-1/2W a
MAIN X R 0803 S0-222-510-160 RES,2.2K-1/16W a
MAIN X R 0804 S0-103-510-160 RES,10K-1/16W (1 a
MAIN X R 0805 S0-102-510-160 RES,1K-1/16W (1/ a
FR-TC5000
KSC
MAIN X R 0806 S0-102-510-160 RES,1K-1/16W (1/ a
MAIN X R 0807 S0-332-510-160 RES,3.3K-1/16W a
MAIN X R 0808 S0-221-510-160 RES,220-1/16W a
MAIN X R 0809 S0-102-510-160 RES,1K-1/16W (1/ a
MAIN X R 0810 S0-333-510-160 RES,33K-1/16W (1 a
MAIN X R 0811 S0-473-510-160 RES,47K-1/16W (1 a
MAIN X R 0812 S0-104-510-160 RES,100K-1/16W ( a
MAIN X R 0813 S0-332-510-160 RES,3.3K-1/16W a
MAIN X R 0814 S0-104-510-160 RES,100K-1/16W ( a
MAIN X R 0815 S0-151-510-160 RES,150-1/6W a
MAIN O S 0301 87-A92-381-01 TACT SW SKHMPFA010 a
MAIN O TC 0001 S2-006-300-000 TRIMMER CAP CVN630 6.5-30pF G a
MAIN O TC 0002 S2-006-100-000 TRIMMER CAP CVN610 3-10pF WHI a
MAIN O X 0001 87-A70-306-01 X’TAL,4.5 MHz(CSA309) a
All manuals and user guides at all-guides.com

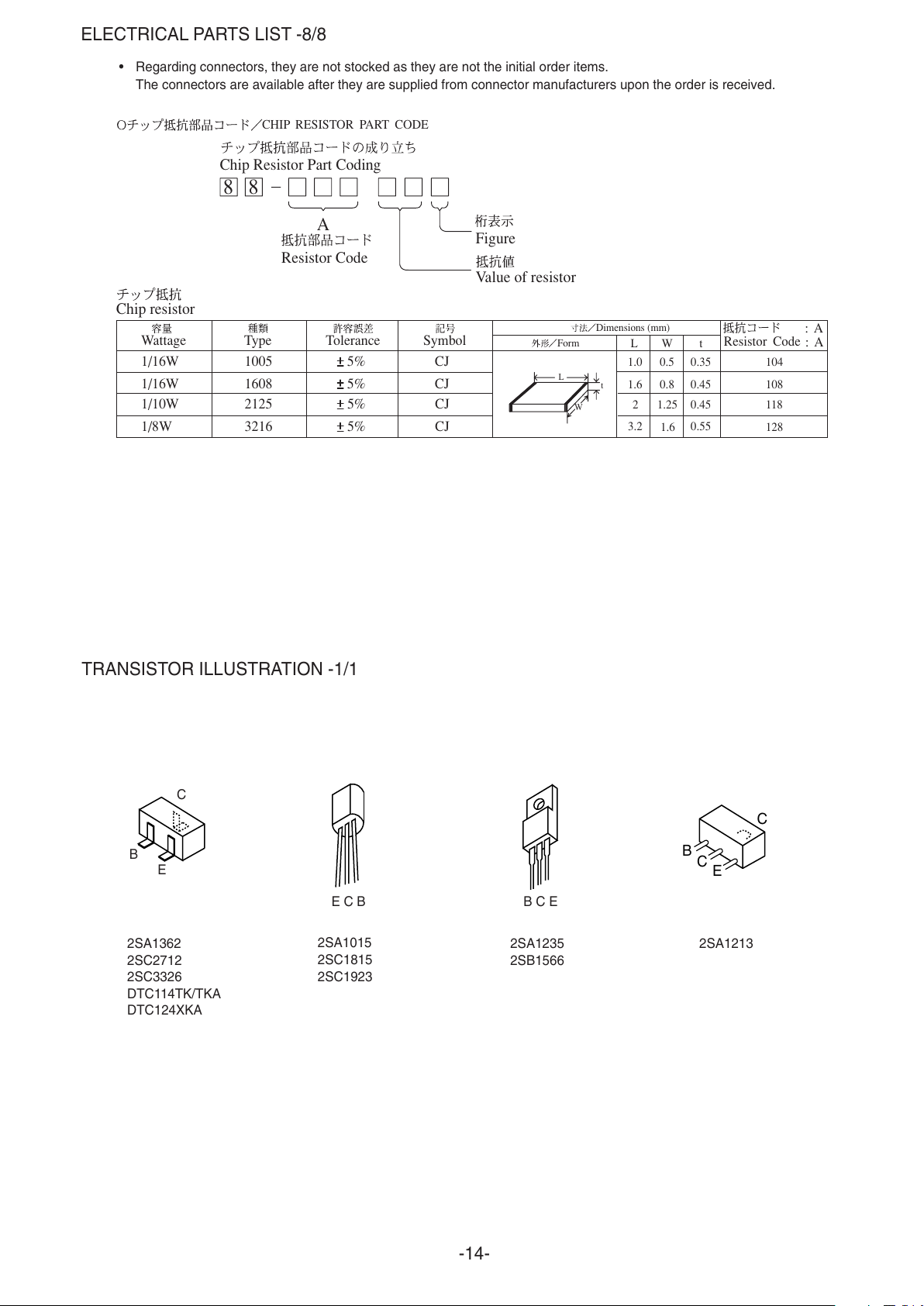

ELECTRICAL PARTS LIST -8/8
-14-
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
• Regarding connectors, they are not stocked as they are not the initial order items.
The connectors are available after they are supplied from connector manufacturers upon the order is received.
TRANSISTOR ILLUSTRATION -1/1
BCE
C
2SA1362
2SC2712
2SC3326
DTC114TK/TKA
DTC124XKA
2SA1015
2SC1815
2SC1923
2SA1235
2SB1566
2SA1213
E C B
E
C
B C E
B
All manuals and user guides at all-guides.com

-15-

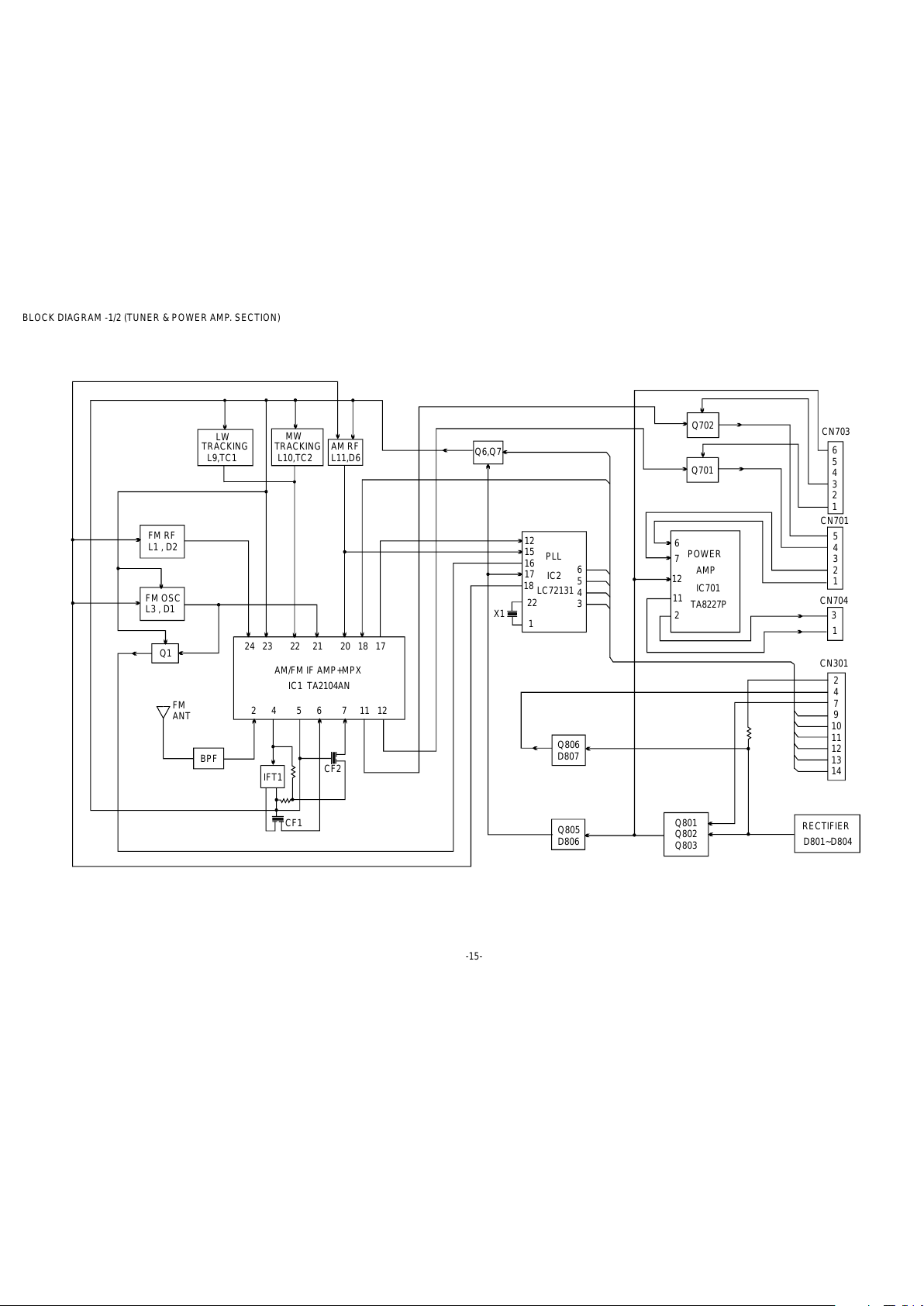

BLOCK DIAGRAM -1/2 (TUNER & POWER AMP. SECTION)
FM RF
L1 , D2
MW
L10,TC2 AM RF
L11,D6
FM OSC
L3 , D1
Q6,Q7
Q1
AM/FM IF AMP+MPX
IC1 TA2104AN
24 23 22 21 20 18 17
24 56 71112
BPF
FM
ANT
IFT1
LW
TRACKING TRACKING
L9,TC1
CF1
CF2
PLL
IC2
LC72131
12
15
16
17
22
1
6
5
4
3
X1
Q702
Q701
6
5
4
3
2
1
5
4
3
2
1
1
POWER
AMP
IC701
TA8227P
6
7
12
11
2
2
4
7
9
10
11
12
13
14
Q806
D807
Q805
D806
Q801
Q802
Q803
RECTIFIER
D801~D804
18
CN703
CN701
3
CN704
CN301
All manuals and user guides at all-guides.com

-16-
BLOCK DIAGRAM -2/2 (CD & CPU SECTION)
ASP DSP
IC101 IC161
CXA1992AR CXD2589Q
41
42
51
39 38 37 36
16 13 6
4
5
6
7
8
9
61 16 21
74 67
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
6
5
4
3
2
1
18
Q101
Q102
Q103
Q104
15
14
13
12
11
10
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
9
8
7
6
5
4
3
2
1
4
3
2
1
Q251
DRIVER
IC251
BA5936S
10 8 654321
17 18 19 20 21 22 27 28 29 30 31
6
5
4
3
2
1
Q252
Q253
Q256
D254
Q254
Q255
11
22 MLD
MOTOR
LCD DRIVER
IC301
LC877348A5Z52
11
22
23
26
94
95
96
97
98
99
10 24 17
LCD
DISPLAY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
5
4
3
2
1
LED
D302~304
VR701
KEY MATRIX
CN101
CN251
W181 CN303
CN201
W191
CN302
CN702
CD SECTION CPU SECTION
All manuals and user guides at all-guides.com
all-guides.com

-17-

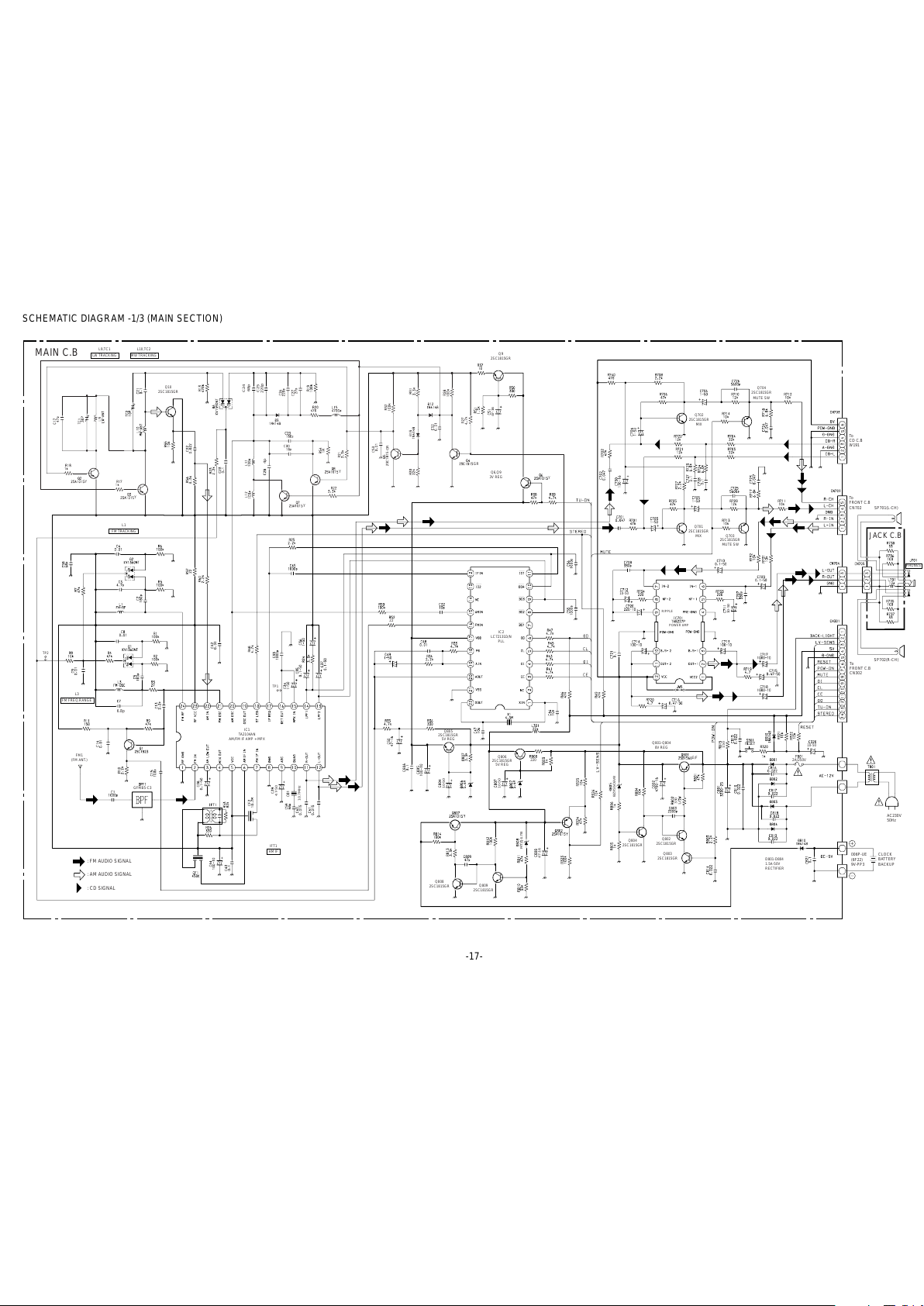

SCHEMATIC DIAGRAM -1/3 (MAIN SECTION)
Q10
2SC1815GR
Q9
2SC1815GR
Q701
2SC1815GR
Q702
2SC1815GR
Q803
2SC1815GR
Q802
2SC1815GR
Q804
2SC1815GR
Q809
2SC1815GR
Q806
2SC1815GR
5V REG
Q805
2SC1815GR
5V REG
Q808
2SC1815GR
Q704
2SC1815GR
Q703
2SC1815GR
L10,TC2
MW TRACKING
47-16
Q6,Q9
3V REG Y
MIX
MUTE SW
MUTE SW
MIX
10-50
10-50
RIPPLE
POWER AMP
To
CD C.B
W191
To
FRONT C.B
CN702
To
FRONT C.B
CN302
AC230V
50Hz
CLOCK
BATTERY
BACKUP
006P-UE
(6F22)
9V-PP3
D801-D804
1.5A-50V
RECTIFIER
150
10-50
330
E/F
BZX55C6V8
Q801-Q804
8V REG
10-50 10-50
47-16
MTZJ4.7B
IC2
LC72131D/N
PLL
22
10.7MHz
4.7-50
IC1
TA2104AN
AM/FM IF AMP + MPX
IFT1
AM IF
GFMB5-C3
FM1
(FM ANT.)
6.8p
C24
68p
C25
220p
SP701(L-CH)
SP702(R-CH)
PHONES
MAIN C.B
JACK C.B
: AM AUDIO SIGNAL
: FM AUDIO SIGNAL
: CD SIGNAL
220
TP1
TP2
L9,TC1
LW TRACKING
L3
FM FREQ.RANGE
L1
FM TRACKING
4p
GR
GR
Y
Y
Y
Y
2A/250V
All manuals and user guides at all-guides.com

101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
MAIN C.B
CD1
R9
14 1 14 1
14
1
1
3
1
3
CN703
S301
(RESET)
C821
D805
C813
C814
C803
Q804
TC2
TC1
E
C
B
E
C
BE
C
B
E
C
B
B
C
E
B
CE
B
CE
E
CB
E
C
B
E
C
B
B
C
E
E
C
B
E
C
B
B
C
E
B
C
E
E
CB
B
CE
B
CE
B
CE
E
CB
B
CE
B
CE
E
CB
E
CB
1
6
15 1
1
5
5
RED
BLK
BLK
WHT
CLOCK BATTERY BACKUP
006P-UE(6F22)9V-PP3
WHT
GRY
GRY
GRY
GRY GRY
GRY
GRY
GRY
GRY
GRY
WHT WHT WHT WHT WHT WHT WHT WHT WHT WHT WHT
RED
WHT
WHT
BLK
BLK
BLK
BLK
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
RED
CN301
To
FRONT C.B
CN302
To
CD C.B
W191
To
JACK C.B
CN705
WHT
WHT
RED WHT
WHT
RED
AC230V
50Hz
T801
To
FRONT C.B
CN702
FM1
(FM ANT.)
F801
L10
(MW-ANT.)
L9
(LW-ANT.)
TP2
TP1
1234567892526272829303132
WIRING -1/5 (MAIN C.B)
-18-
All manuals and user guides at all-guides.com

-19-
SCHEMATIC DIAGRAM -2/3 (CD SECTION)
CD C.B
6.8k
6.8k
820
820
TK/TKA
TK/TKATK/TKA
ASP
22/16
15k
DSP
10k
10k
10k
10k
10k
10k
10k
10/16 10/16
6.8k
6.8k
XKA
XKA
Y
DRIVER
TK/TKA
M3
LOADING
MOTOR
To
MAIN C.B
CN703
To
FRONT C.B
CN303
: CD SIGNAL
FFC101
FFC251
FFC201
PICK UP
UNIT
SW C.B
MOTOR C.B
M1
M2
SW4
JR100
0JR101
0
C181
47/16
All manuals and user guides at all-guides.com

101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
15
1
15
1
15
1
FFC251
To
MOTOR C.B
FFC101
To
PICK UP
UNIT
CD C.B
Q251
JW107
JW109
JR100
JR101
E
B
C
EB
C
EB
C
EB
C
E
B
C
E
B
C
E
BC
E
BC
E
B
C
EB
C
EB
C
E
B
C
1
1
1
4
1
2
3
4
2
6
1
6
RED
WHT
WHT
WHT
WHT
WHT
RED
WHT
WHT
WHT
WHT
WHT
BLK
RED
To
MAIN C.B
CN703
M3
LOADING
MOTOR
To
SW C.B
WHT
WHT
WHT
WHT
WHT
RED
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
RED
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
WHT
To
FRONT C.B
CN303
6
1
1
16
1
5
6
6
16
15
1
2
FFC201
1234567892526272829303132
WIRING -2/5 (CD C.B)
-20-
All manuals and user guides at all-guides.com
