SERVICE MANUAL
DATA
POWERED SUBWOOFER
XP-V410
XP-411
XP-V412
S/M Code No. 09-003-342-6T1
Y1S YJ1LT
SIMPLE
• Replace this Service Manual with ”Revision Publishing” when it is issued.
BASIC CD MECHANISM : DA23L
AEZ1BG AK1S
AEZ1S AEZ1L
AHRJ1S AHRJ1L
AEZ1S AEZ1BS
2
ELECTRICAL MAIN PARTS LIST - 1
NOTE: The characters in the suffix column indicate the part usage.
412AK1S ................XX..................................A...................
410Y1S .................XX...................................B..................
412AEZ1BG ..............XX....................................C.................
411AEZ1L ...............XX.....................................D................
411AHRJ1S ..............XX......................................E...............
411AEZ1S ...............XX.......................................F..............
411AHRJLT ..............XX........................................G.............
410YJ1LT ...............XX.........................................H............
412AEZ1S ...............XX..........................................I...........
412AEZ1BS ..............XX...........................................J..........
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 304 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 303 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 309 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 306 87-010-197-080 0E CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 305 87-010-197-080 0E CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 302 87-010-197-080 0E CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 307 87-010-197-080 0E CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 308 87-010-309-080 0E C-CAP,1000P-50 CH ABCDEFGHIJ..........
C 301 87-A10-488-040 0E CAP,E 47-4 7L SR ABCDEFGHIJ..........
D 301 87-020-331-080 0E CHIP-DIODE,DAN202K ABCDEFGHIJ..........
D 302 87-020-331-080 0E CHIP-DIODE,DAN202K ABCDEFGHIJ..........
D 301 87-A40-469-080 0E C-DIODE,HSM2838CTR ....................
D 302 87-A40-469-080 0E C-DIODE,HSM2838CTR ....................
IC 301 8A-HCH-602-010 1H C-IC,MN101C439-XXX ABCDEFGHIJ..........
L 301 87-A50-367-080 0E C-COIL, 10UH LQG21F ABCDEFGHIJ..........
LCD 101 8A-HC7-602-010 1C LCD,AHC-7 ABCDEFGHIJ..........
Q 301 87-A30-075-080 0E C-TR,2SA1235F ....................
Q 301 89-111-625-080 0E TR,2SA1162 (0.15W) ABCDEFGHIJ..........
S 308 87-A90-095-080 0E SW,TACT EVQ11G04M ABCDEFGHIJ..........
S 309 87-A90-095-080 0E SW,TACT EVQ11G04M ABCDEFGHIJ..........
S 305 87-A90-095-080 0E SW,TACT EVQ11G04M ABCDEFGHIJ..........
S 307 87-A90-095-080 0E SW,TACT EVQ11G04M ABCDEFGHIJ..........
S 306 87-A90-095-080 0E SW,TACT EVQ11G04M ABCDEFGHIJ..........
S 304 87-A90-095-080 0E SW,TACT EVQ11G04M ABCDEFGHIJ..........
S 301 87-A90-163-010 1B SW,SL1-1-2 HSW1060 ABCDEFGHIJ..........
S 303 87-A91-622-010 0E SW,MICRO PV1102 ABCDEFGHIJ..........
S 302 87-A91-742-010 SW,SL 4-1-3 HSW2061-010010 ABCDEFGHIJ..........
D 151 87-A40-469-040 0E C-DIODE,HSM2838CTR ..CDE.GH.J..........
D 151 87-A40-469-080 0E C-DIODE,HSM2838CTR AB...F..I...........
Q 151 87-026-608-080 0E C-TR,DTC 123 JK ABCDEFGHIJ..........
Q 152 87-A30-075-080 0E C-TR,2SA1235F ....................
Q 155 87-A30-076-080 0E C-TR,2SC3052F ....................
Q 152 89-111-625-080 0E TR,2SA1162 (0.15W) ABCDEFGHIJ..........
Q 153 89-211-323-080 1A C-TR,2SB1132R ABCDEFGHIJ..........
Q 155 89-327-125-080 0E CHIP TR,2SC2712GR ABCDEFGHIJ..........
Q 154 89-416-643-080 0E C-TR,2SD1664R ABCDEFGHIJ..........
C 101 87-010-060-040 0E CAP,E 100-16 ABCDEFGHIJ..........
C 108 87-010-178-080 0E CHIP CAP 1000P ABCDEFGHIJ..........
C 107 87-010-194-080 0E CAP, CHIP 0.047 ABCDEFGHIJ..........
C 102 87-010-197-080 0E CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 103 87-010-197-080 0E CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 106 87-010-483-040 1A CAP,E 220-4 7L SRA ABCDEFGHIJ..........
C 105 87-012-156-080 0E C-CAP,S 220P-50 CH ABCDEFGHIJ..........
C 109 87-A12-158-040 CAP,E 100-4 M 7L SRA ABCDEFGHIJ..........
C 113 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 112 87-010-805-080 0E CAP, S 1-16 ABCDEFGHIJ..........
C 110 87-012-141-080 0E CHIP-CAPACITOR,0.22-16F ABCDEFGHIJ..........
3
ELECTRICAL MAIN PARTS LIST - 2
C 111 87-A10-505-080 0E CAP,E 220-6.3 SF ABCDEFGHIJ..........
D 102 87-020-591-080 0E C-ZENER,02CZ 11Y ABCDEFGHIJ..........
D 103 87-A40-554-040 0E C-DIODE,RB491D ABCDEFGHIJ..........
D 101 87-A40-614-040 1A C-DIODE,SFPB-72 ABCDEFGHIJ..........
IC 101 87-A21-082-040 1D C-IC,BA6655AFV ABCDEFGHIJ..........
J 101 87-A60-421-010 1A JACK,DC HEC3600 BLK 6 ABCDEFGHIJ..........
L 101 87-005-770-080 1A COIL,47UH 7607 ABCDEFGHIJ..........
Q 103 87-A30-332-040 1A C-TR,CPH3106 ABCDEFGHIJ..........
Q 102 87-A30-332-040 1A C-TR,CPH3106 ABCDEFGHIJ..........
Q 104 87-A30-333-040 1A C-TR,CPH3206 ABCDEFGHIJ..........
Q 101 89-211-323-080 1A C-TR,2SB1132R ABCDEFGHIJ..........
R 116 87-022-355-080 0E C-RES,S10K-1/10W F ABCDEFGHIJ..........
R 115 87-022-525-080 0E C-RES,S 20K-1/10W F ABCDEFGHIJ..........
C 606 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 605 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 602 87-010-197-080 0E CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 607 87-010-197-080 0E CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 604 87-010-197-080 0E CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 603 87-010-805-080 0E CAP, S 1-16 ABCDEFGHIJ..........
C 601 87-A12-158-040 CAP,E 100-4 M 7L SRA ABCDEFGHIJ..........
C 610 87-010-805-080 0E CAP, S 1-16 ABCDEFGHIJ..........
D 601 87-002-882-080 0E C-DIODE,RB425D ABCDEFGHIJ..........
D 601 87-A40-590-040 0E C-DIODE,HRW0202A ....................
IC 601 87-A21-521-040 1E C-IC,BH6517FS ABCDEFGHIJ..........
L 601 87-A50-580-080 0E COIL,470UH LHL06NB ABCDEFGHIJ..........
Q 602 87-026-235-080 0E CHIP-TR,DTC114EK ABCDEFGHIJ..........
Q 601 89-324-121-080 0E C-TR,2SC2412K ABCDEFGHIJ..........
C 407 87-010-198-080 0E CAP, CHIP 0.022 ABCDEFGHIJ..........
C 403 87-015-677-040 0E CAP,E 100-6.3 7L ABCDEFGHIJ..........
C 408 87-016-460-080 0E C-CAP,S 0.22-16 B ABCDEFGHIJ..........
C 409 87-016-526-080 0E C-CAP,S 0.47-16 BK ABCDEFGHIJ..........
C 401 87-016-557-040 0E CAP,E 100-6.3 SF ABCDEFGHIJ..........
C 406 87-A11-550-080 0E C-CAP,S 820P-50 K B ABCDEFGHIJ..........
C 419 87-010-146-080 0E CHIP CAP 2PF ABCDEFGHIJ..........
C 418 87-010-146-080 0E CHIP CAP 2PF ABCDEFGHIJ..........
C 410 87-010-197-080 0E CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 417 87-010-318-080 0E C-CAP,S 47P-50 CH ABCDEFGHIJ..........
C 414 87-010-318-080 0E C-CAP,S 47P-50 CH ABCDEFGHIJ..........
C 412 87-A12-158-040 CAP,E 100-4 M 7L SRA ABCDEFGHIJ..........
C 507 87-010-321-080 0E CHIP CAPACITOR,82P(J) ABCDEFGHIJ..........
C 508 87-010-321-080 0E CHIP CAPACITOR,82P(J) ABCDEFGHIJ..........
C 506 87-012-156-080 0E C-CAP,S 220P-50 CH ABCDEFGHIJ..........
C 505 87-012-365-080 0E C-CAP,S 0.027-25VBK ABCDEFGHIJ..........
C 509 87-A11-550-080 0E C-CAP,S 820P-50 K B ABCDEFGHIJ..........
C 501 87-A12-158-040 CAP,E 100-4 M 7L SRA ABCDEFGHIJ..........
C 516 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 513 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 511 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
C 518 87-010-312-080 0E C-CAP,S 15P-50 CH ABCDEFGHIJ..........
C 515 87-012-365-080 0E C-CAP,S 0.027-25VBK ABCDEFGHIJ..........
C 514 87-012-365-080 0E C-CAP,S 0.027-25VBK ABCDEFGHIJ..........
C 512 87-A10-488-040 0E CAP,E 47-4 7L SR ABCDEFGHIJ..........
C 510 87-A12-158-040 CAP,E 100-4 M 7L SRA ABCDEFGHIJ..........
C 524 87-010-154-080 0E CAP CHIP 10P ABCDEFGHIJ..........
C 523 87-010-805-080 0E CAP, S 1-16 ABCDEFGHIJ..........
C 522 87-010-805-080 0E CAP, S 1-16 ABCDEFGHIJ..........
C 521 87-012-349-080 0E C-CAP,S 1000P-50 CH ABCDEFGHIJ..........
C 520 87-A10-488-040 0E CAP,E 47-4 7L SR ABCDEFGHIJ..........
CN 501 87-A61-104-010 1B CONN,16P H WHITE 52089-1610 ABCDEFGHIJ..........
CN 601 87-009-411-010 0E CONN,6P ZH V ABCDEFGHIJ..........
4
ELECTRICAL MAIN PARTS LIST - 3
IC 401 87-A21-446-010 2P C-IC,MN662782RPT1 ABCDEFGHIJ..........
IC 502 87-A21-543-040 1A C-IC,NJU7012 ABCDEFGHIJ..........
IC 501 87-A21-578-040 2A C-IC,AN8838NSB ABCDEFGHIJ..........
L 402 87-A50-440-080 0E C-COIL, 100UH K LQH3C34 ABCDEFGHIJ..........
L 401 87-A50-556-080 0E C-COIL, 47UH K LQH3C ABCDEFGHIJ..........
L 502 87-A50-367-080 0E C-COIL, 10UH LQG21F ABCDEFGHIJ..........
L 501 87-A50-367-080 0E C-COIL, 10UH LQG21F ABCDEFGHIJ..........
Q 509 87-026-239-080 0E TR,DTC114TK (0.2W) ABCDEFGHIJ..........
Q 504 87-026-268-080 0E C-TR,RN2411 ABCDEFGHIJ..........
Q 503 87-026-680-080 0E C-TR,IMH4A ABCDEFGHIJ..........
Q 502 87-026-680-080 0E C-TR,IMH4A ABCDEFGHIJ..........
Q 501 87-026-680-080 0E C-TR,IMH4A ABCDEFGHIJ..........
Q 510 87-A30-075-080 0E C-TR,2SA1235F ....................
Q 510 89-111-625-080 0E TR,2SA1162 (0.15W) ABCDEFGHIJ..........
X 401 87-A70-202-080 1A C-VIB,CER 16.93MHZ CSACV-MXJ04 ABCDEFGHIJ..........
C 703 87-010-854-080 0E C-CAP,S 560PCH ABCDEFGHIJ..........
C 702 87-010-854-080 0E C-CAP,S 560PCH ABCDEFGHIJ..........
C 706 87-012-368-080 0E C-CAP,S 0.1-50 F ABCDEFGHIJ..........
C 709 87-A10-826-080 0E C-CAP,S 1-10 K B ABCDEFGHIJ..........
C 707 87-A10-826-080 0E C-CAP,S 1-10 K B ABCDEFGHIJ..........
C 708 87-A10-826-080 0E C-CAP,S 1-10 K B ABCDEFGHIJ..........
C 701 87-A12-158-040 CAP,E 100-4 M 7L SRA ABCDEFGHIJ..........
C 719 87-010-483-040 1A CAP,E 220-4 7L SRA ABCDEFGHIJ..........
C 718 87-010-483-040 1A CAP,E 220-4 7L SRA ABCDEFGHIJ..........
C 712 87-012-141-080 0E CHIP-CAPACITOR,0.22-16F ABCDEFGHIJ..........
C 716 87-012-368-080 0E C-CAP,S 0.1-50 F ABCDEFGHIJ..........
C 717 87-012-368-080 0E C-CAP,S 0.1-50 F ABCDEFGHIJ..........
C 713 87-012-368-080 0E C-CAP,S 0.1-50 F ABCDEFGHIJ..........
C 715 87-015-681-040 0E E/CAP 10-16 ABCDEFGHIJ..........
C 710 87-015-681-040 0E E/CAP 10-16 ABCDEFGHIJ..........
C 714 87-015-696-040 0E CAP,E 2.2-50 SRA ABCDEFGHIJ..........
C 711 87-A10-488-040 0E CAP,E 47-4 7L SR ABCDEFGHIJ..........
C 721 87-010-178-080 0E CHIP CAP 1000P ABCDEFGHIJ..........
C 720 87-010-178-080 0E CHIP CAP 1000P ABCDEFGHIJ..........
C 723 87-010-197-080 0E CAP, CHIP 0.01 DM ABCDEFGHIJ..........
C 722 87-012-368-080 0E C-CAP,S 0.1-50 F ABCDEFGHIJ..........
FB 704 83-XM1-617-080 0E C-COIL,BK2125HM601 ABCDEFGHIJ..........
FB 701 83-XM1-617-080 0E C-COIL,BK2125HM601 ABCDEFGHIJ..........
FB 702 83-XM1-617-080 0E C-COIL,BK2125HM601 ABCDEFGHIJ..........
FB 703 83-XM1-617-080 0E C-COIL,BK2125HM601 ABCDEFGHIJ..........
IC 701 87-A21-085-040 1C C-IC,TA2120FN ABCDEFGHIJ..........
J 701 85-HC5-616-010 1B JACK,3.5 ST W/R GRN ABCDEFGHIJ..........
Q 701 87-026-239-080 0E TR,DTC114TK (0.2W) ABCDEFGHIJ..........
VR 701 87-A90-462-010 1B VR,RTRY 30KCX2 H RK14J12A0 ABCDEFGHIJ..........
C 451 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABCDEFGHIJ..........
IC 451 87-A21-568-040 2A C-IC,GLT441M04 ABCDEFGHIJ..........
5
MECHANICAL PARTS LIST - 1
NOTE: The characters in the suffix column indicate the part usage.
412AK1S ................XX..................................A...................
410Y1S .................XX...................................B..................
412AEZ1BG ..............XX....................................C.................
411AEZ1L ...............XX.....................................D................
411AHRJ1S ..............XX......................................E...............
411AEZ1S ...............XX.......................................F..............
411AHRJLT ..............XX........................................G.............
410YJ1LT ...............XX.........................................H............
412AEZ1S ...............XX..........................................I...........
412AEZ1BS ..............XX...........................................J..........
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
88-HC6-021-010 1A FOOT, DIA10 ABCDEFGHIJ..........
8A-HC7-007-010 WINDOW,CD ....E....J..........
8A-HC7-018-010 0E LEVER,OPEN ABCDEFGHIJ..........
8A-HC7-079-010 WINDOW,CD (L) ..CD..GH............
8A-HCH-004-010 WINDOW,CD 17 AB...F..I...........
8A-HCH-013-010 CABI ASSY,CENTER 17 AB..EF..IJ..........
8A-HCH-014-010 CABI ASSY,BOTTOM 17 AB..EF..IJ..........
8A-HCH-015-010 LID ASSY,CD 410 .B..................
8A-HCH-016-010 LID ASSY,CD 411 ....EF..............
8A-HCH-017-010 LID ASSY,CD 412 A.......IJ..........
8A-HCH-018-010 LID ASSY,CD 416C ....................
8A-HCH-030-010 CABI ASSY,CENTER 17 LL ....................
8A-HCH-032-010 CABI ASSY,BOTTOM 17 LL ..CD..G.............
8A-HCH-034-010 LID ASSY,CD 411 (LL) ....................
8A-HCH-044-010 LID ASSY,CD 17 (LT) .......H............
8A-HCH-045-010 LID ASSY,CD 17 (L) ...D..G.............
8A-HCH-046-010 LID ASSY,CD 412 (L) ....................
8A-HCH-047-010 LID ASSY,CD 17 (G) ..C.................
8A-HCH-053-010 CABI ASSY,CENTER 17 (LT) .......H............
8A-HCH-054-010 CABI ASSY,CENTER 17 (L) ...D..G.............
8A-HCH-055-010 CABI ASSY,CENTER 17 (G) ..C.................
8A-HCH-056-010 CABI ASSY,BOTTOM 17 (LT) .......H............
8A-HC7-012-010 KNOB,SL HOLD ABCDEFGHIJ..........
8A-HC7-005-010 WINDOW,DISPLAY ABCDEFGHIJ..........
85-HC6-205-110 0E SHAFT,LID(300) HK ABCDEFGHIJ..........
87-HC8-205-010 0E BAT-CONTACT,(+)(-) ABCDEFGHIJ..........
8A-HC7-201-010 GUIDE,LCD ABCDEFGHIJ..........
8A-HC7-202-010 BAT-CONTACT,(+) ABCDEFGHIJ..........
8A-HC7-204-010 SPR-T,OPEN ABCDEFGHIJ..........
8Z-HC1-225-010 0E DMPR,MECHA(SP) ABCDEFGHIJ..........
8Z-HC7-205-010 0E BAT-CONTACT,(-) ABCDEFGHIJ..........
87-067-384-010 0E SCREWVT1.4-3.5HL AB...F..I...........
87-067-732-010 0E TAPPING SCREW, VT1.4-3 ....................
87-067-868-010 0E V+1.7-4 HL BLK ABCDEFGHIJ..........
87-067-869-010 0E V+1.7-8 HL BLK ABCDEFGHIJ..........
6
ACCESSORIES LIST
NOTE: The characters in the suffix column indicate the part usage.
412AK1S ..................XX..................................A...................
410Y1S ...................XX...................................B..................
412AEZ1BG ................XX....................................C.................
411AEZ1L .................XX.....................................D................
411AHRJ1S ................XX......................................E...............
411AEZ1S .................XX.......................................F..............
411AHRJLT ................XX........................................G.............
410YJ1LT .................XX.........................................H............
412AEZ1S .................XX..........................................I...........
412AEZ1BS ................XX...........................................J..........
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8A-HCH-903-010 IB,HC(ECK)C ....................
8A-HCH-904-010 IB,LH(3L)C ....................
8A-HCH-912-010 IB,HR(ECA)C F ....E.G.............
8A-HCH-913-010 IB,HC(ECK)C F ....................
8A-HCH-914-010 IB,LH(3L)C F ....................
8A-HCH-915-010 IB,EZ(EGF)C 411 F ...D.F..............
8A-HCH-916-010 IB,EZ(SID)C 411 F ...D.F..............
8A-HCH-917-010 IB,EZ(PHNCZ)C 411 F ...D.F..............
8A-HCH-922-010 IB,YJ(ECA)C 410 F .......H............
8A-HCH-925-010 IB,EZ(EGF)C 412 F A.C.....IJ..........
8A-HCH-926-010 IB,EZ(SID)C 412 F ..C.....IJ..........
8A-HCH-927-010 IB,EZ(PHNCZ)C 412 F ..C.....IJ..........
8A-HCH-935-010 IB,Y(EGF)C 410 F .B..................
8A-HCH-936-010 IB,Y(SID)C 410 F .B..................
8A-HCH-937-010 IB,Y(PHNCZ)C 410 F .B..................
86-YK1-001-110 2P ADAPTOR,CAP-6 ....................
86-YK1-002-010 2P ADAPTOR,DC-602 ....................
87-A90-312-010 PLUG,CONVERSION WTN-1157R1 ....E.G.............
87-B30-141-010 1E BAT,NB-301 NC(2PCS) A.C.....IJ..........
87-B30-259-010 1H HEADPHONE,HP-M032(T) L .......H............
87-B30-283-010 1H AC ADAPTOR,AC-D603ENC ..CD.F..IJ..........
87-B30-284-010 2A AC ADAPTOR,AC-D603KNC A...................
87-B30-285-010 2A AC ADAPTOR,AC-D603HRNC ....E.G.............
87-B30-286-010 1H AC ADAPTOR,AC-D603HCNC ....................
87-B30-287-010 1H AC ADAPTOR,AC-D603HANC ....................
87-B30-326-010 1F HEADPHONE,HP-M048 ABCDEFG.IJ..........
1

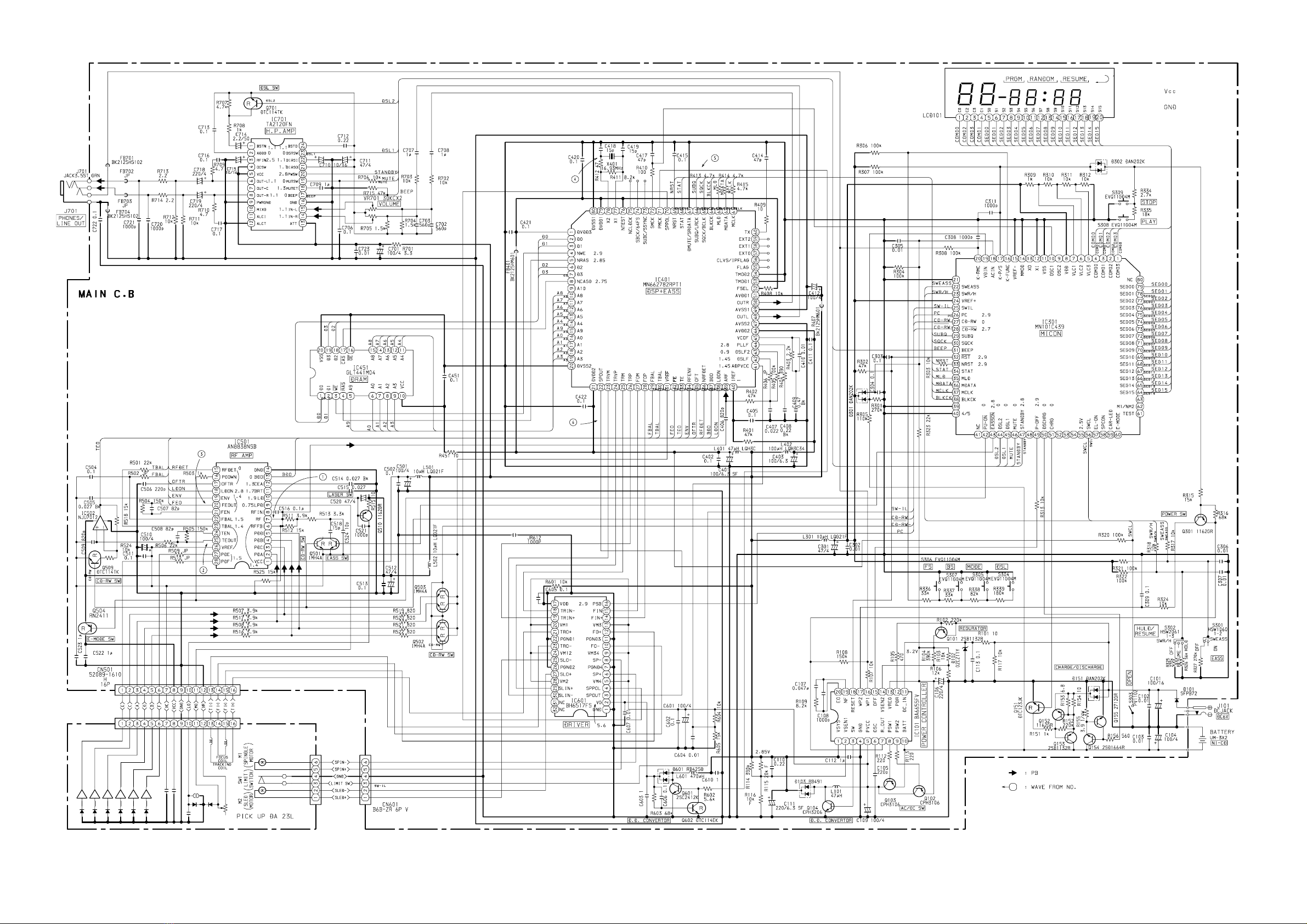

SCHEMATIC DIAGRAM-1(MAIN)
2-11, IKENOHATA 1-CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:03 (3827) 3111
737004 Printed in Singapore
Other manuals for XP-V410
2
This manual suits for next models
2
Table of contents
Other Aiwa Subwoofer manuals
