SERVICE MANUAL
DATA
COLOR TELEVISION
TV-A1410 KE,KER
S/M Code No. 09-003-419-6S2
SUPPLEMENT
•This Service Manual contains information about the difference between
TV-A1410(KERJ74M,KERJL4M,KEJL6CM) and TV-A1410(KER). If requiring
the other information, see Service Manual of TV-A1410(KER).
(S/M Code No. 09-99C-419-6R1).
All manuals and user guides at all-guides.com
all-guides.com

– 2 –

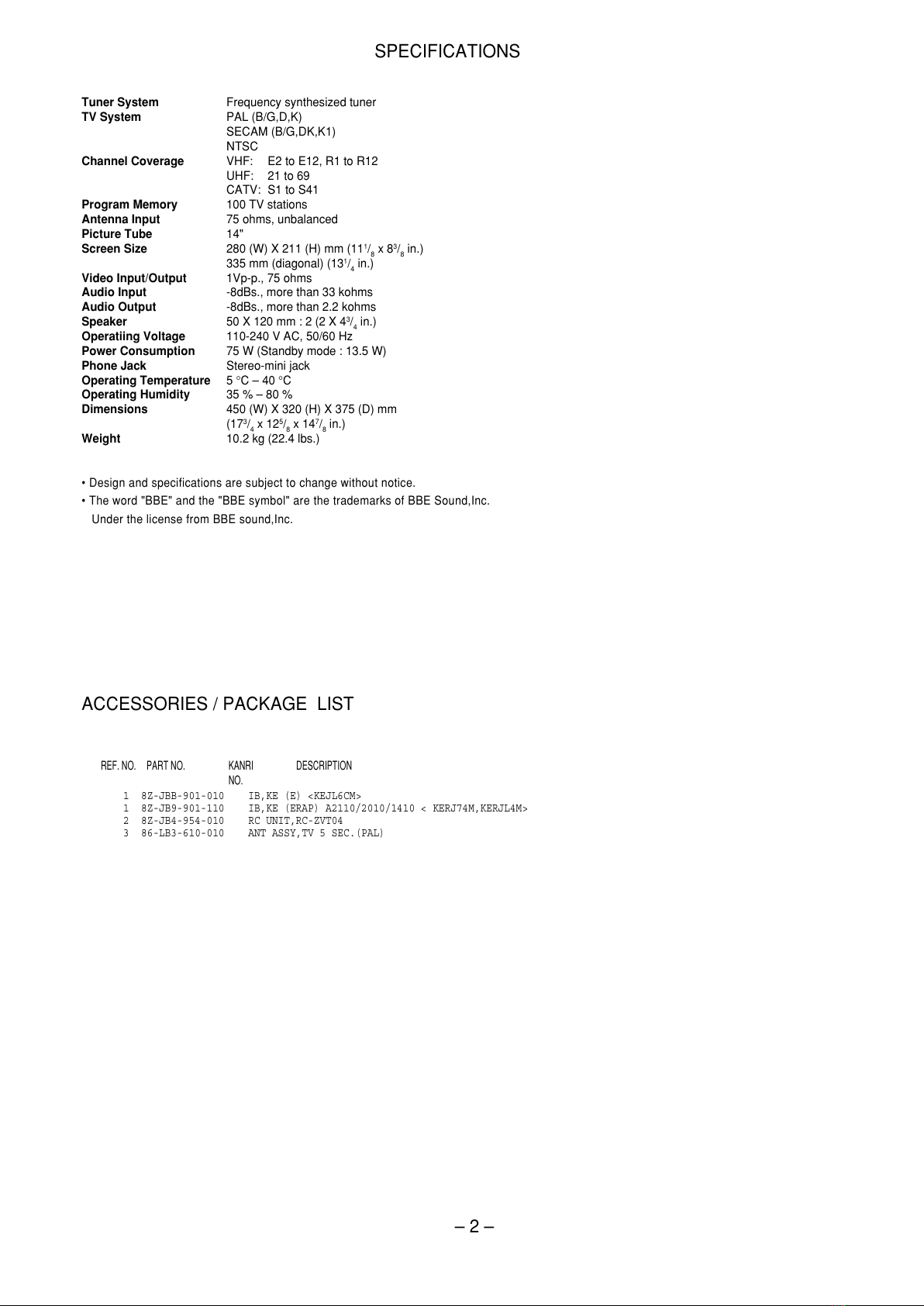

SPECIFICATIONS
• Design and specifications are subject to change without notice.
• The word "BBE" and the "BBE symbol" are the trademarks of BBE Sound,Inc.
Under the license from BBE sound,Inc.
Tuner System Frequency synthesized tuner
TV System PAL (B/G,D,K)
SECAM (B/G,DK,K1)
NTSC
Channel Coverage VHF: E2 to E12, R1 to R12
UHF: 21 to 69
CATV: S1 to S41
Program Memory 100 TV stations
Antenna Input 75 ohms, unbalanced
Picture Tube 14"
Screen Size 280 (W) X 211 (H) mm (111/8x 83/8in.)
335 mm (diagonal) (131/4in.)
Video Input/Output 1Vp-p., 75 ohms
Audio Input -8dBs., more than 33 kohms
Audio Output -8dBs., more than 2.2 kohms
Speaker 50 X 120 mm : 2 (2 X 43/4in.)
Operatiing Voltage 110-240 V AC, 50/60 Hz
Power Consumption 75 W (Standby mode : 13.5 W)
Phone Jack Stereo-mini jack
Operating Temperature 5 °C – 40 °C
Operating Humidity 35 % – 80 %
Dimensions 450 (W) X 320 (H) X 375 (D) mm
(173/4x 125/8x 147/8in.)
Weight 10.2 kg (22.4 lbs.)
ACCESSORIES / PACKAGE LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 8Z-JBB-901-010 IB,KE (E) <KEJL6CM>
1 8Z-JB9-901-110 IB,KE (ERAP) A2110/2010/1410 < KERJ74M,KERJL4M>
2 8Z-JB4-954-010 RC UNIT,RC-ZVT04
3 86-LB3-610-010 ANT ASSY,TV 5 SEC.(PAL)
All manuals and user guides at all-guides.com

– 3 –

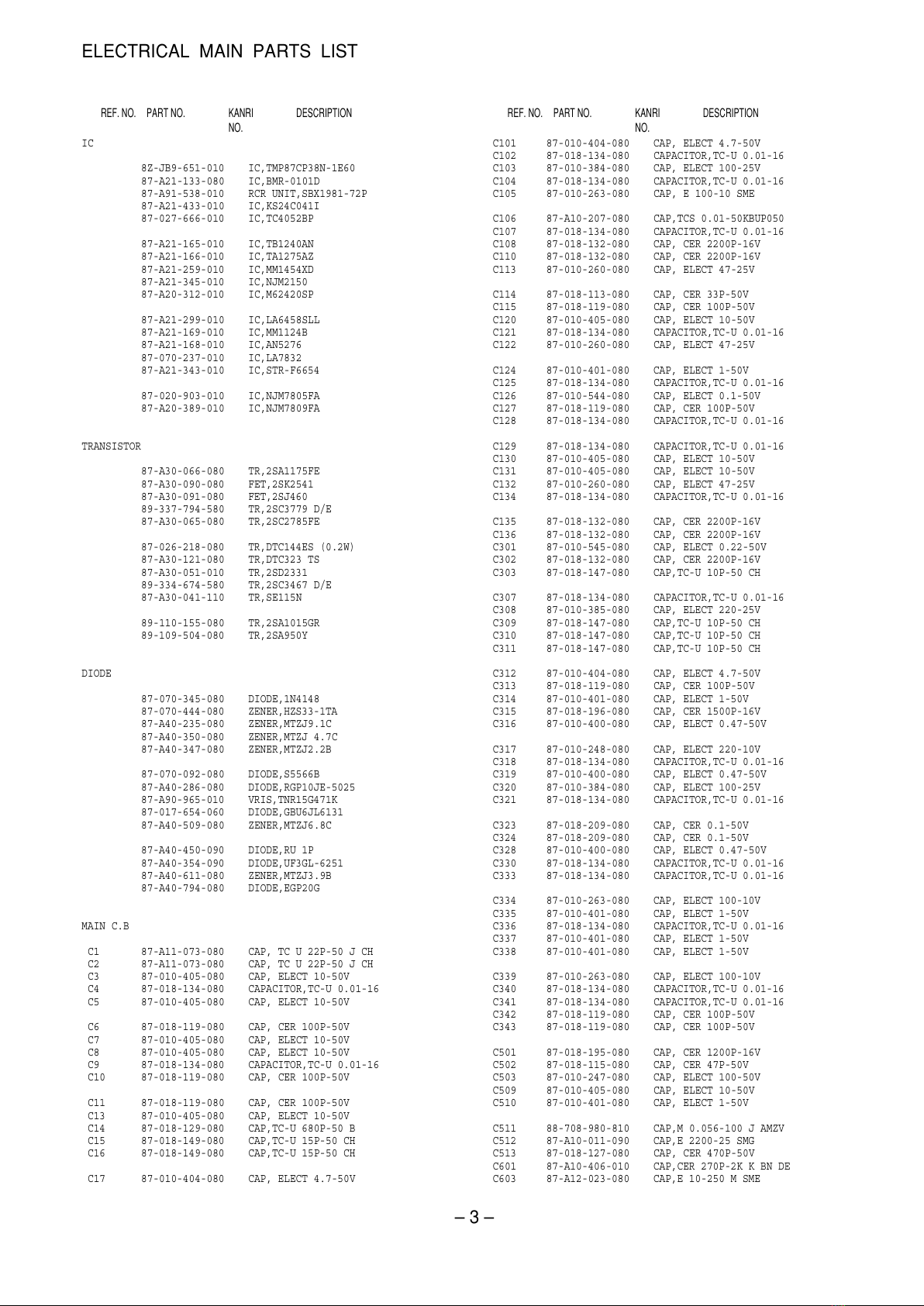

ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
8Z-JB9-651-010 IC,TMP87CP38N-1E60
87-A21-133-080 IC,BMR-0101D
87-A91-538-010 RCR UNIT,SBX1981-72P
87-A21-433-010 IC,KS24C041I
87-027-666-010 IC,TC4052BP
87-A21-165-010 IC,TB1240AN
87-A21-166-010 IC,TA1275AZ
87-A21-259-010 IC,MM1454XD
87-A21-345-010 IC,NJM2150
87-A20-312-010 IC,M62420SP
87-A21-299-010 IC,LA6458SLL
87-A21-169-010 IC,MM1124B
87-A21-168-010 IC,AN5276
87-070-237-010 IC,LA7832
87-A21-343-010 IC,STR-F6654
87-020-903-010 IC,NJM7805FA
87-A20-389-010 IC,NJM7809FA
TRANSISTOR
87-A30-066-080 TR,2SA1175FE
87-A30-090-080 FET,2SK2541
87-A30-091-080 FET,2SJ460
89-337-794-580 TR,2SC3779 D/E
87-A30-065-080 TR,2SC2785FE
87-026-218-080 TR,DTC144ES (0.2W)
87-A30-121-080 TR,DTC323 TS
87-A30-051-010 TR,2SD2331
89-334-674-580 TR,2SC3467 D/E
87-A30-041-110 TR,SE115N
89-110-155-080 TR,2SA1015GR
89-109-504-080 TR,2SA950Y
DIODE
87-070-345-080 DIODE,1N4148
87-070-444-080 ZENER,HZS33-1TA
87-A40-235-080 ZENER,MTZJ9.1C
87-A40-350-080 ZENER,MTZJ 4.7C
87-A40-347-080 ZENER,MTZJ2.2B
87-070-092-080 DIODE,S5566B
87-A40-286-080 DIODE,RGP10JE-5025
87-A90-965-010 VRIS,TNR15G471K
87-017-654-060 DIODE,GBU6JL6131
87-A40-509-080 ZENER,MTZJ6.8C
87-A40-450-090 DIODE,RU 1P
87-A40-354-090 DIODE,UF3GL-6251
87-A40-611-080 ZENER,MTZJ3.9B
87-A40-794-080 DIODE,EGP20G
MAIN C.B
C1 87-A11-073-080 CAP, TC U 22P-50 J CH
C2 87-A11-073-080 CAP, TC U 22P-50 J CH
C3 87-010-405-080 CAP, ELECT 10-50V
C4 87-018-134-080 CAPACITOR,TC-U 0.01-16
C5 87-010-405-080 CAP, ELECT 10-50V
C6 87-018-119-080 CAP, CER 100P-50V
C7 87-010-405-080 CAP, ELECT 10-50V
C8 87-010-405-080 CAP, ELECT 10-50V
C9 87-018-134-080 CAPACITOR,TC-U 0.01-16
C10 87-018-119-080 CAP, CER 100P-50V
C11 87-018-119-080 CAP, CER 100P-50V
C13 87-010-405-080 CAP, ELECT 10-50V
C14 87-018-129-080 CAP,TC-U 680P-50 B
C15 87-018-149-080 CAP,TC-U 15P-50 CH
C16 87-018-149-080 CAP,TC-U 15P-50 CH
C17 87-010-404-080 CAP, ELECT 4.7-50V
C101 87-010-404-080 CAP, ELECT 4.7-50V
C102 87-018-134-080 CAPACITOR,TC-U 0.01-16
C103 87-010-384-080 CAP, ELECT 100-25V
C104 87-018-134-080 CAPACITOR,TC-U 0.01-16
C105 87-010-263-080 CAP, E 100-10 SME
C106 87-A10-207-080 CAP,TCS 0.01-50KBUP050
C107 87-018-134-080 CAPACITOR,TC-U 0.01-16
C108 87-018-132-080 CAP, CER 2200P-16V
C110 87-018-132-080 CAP, CER 2200P-16V
C113 87-010-260-080 CAP, ELECT 47-25V
C114 87-018-113-080 CAP, CER 33P-50V
C115 87-018-119-080 CAP, CER 100P-50V
C120 87-010-405-080 CAP, ELECT 10-50V
C121 87-018-134-080 CAPACITOR,TC-U 0.01-16
C122 87-010-260-080 CAP, ELECT 47-25V
C124 87-010-401-080 CAP, ELECT 1-50V
C125 87-018-134-080 CAPACITOR,TC-U 0.01-16
C126 87-010-544-080 CAP, ELECT 0.1-50V
C127 87-018-119-080 CAP, CER 100P-50V
C128 87-018-134-080 CAPACITOR,TC-U 0.01-16
C129 87-018-134-080 CAPACITOR,TC-U 0.01-16
C130 87-010-405-080 CAP, ELECT 10-50V
C131 87-010-405-080 CAP, ELECT 10-50V
C132 87-010-260-080 CAP, ELECT 47-25V
C134 87-018-134-080 CAPACITOR,TC-U 0.01-16
C135 87-018-132-080 CAP, CER 2200P-16V
C136 87-018-132-080 CAP, CER 2200P-16V
C301 87-010-545-080 CAP, ELECT 0.22-50V
C302 87-018-132-080 CAP, CER 2200P-16V
C303 87-018-147-080 CAP,TC-U 10P-50 CH
C307 87-018-134-080 CAPACITOR,TC-U 0.01-16
C308 87-010-385-080 CAP, ELECT 220-25V
C309 87-018-147-080 CAP,TC-U 10P-50 CH
C310 87-018-147-080 CAP,TC-U 10P-50 CH
C311 87-018-147-080 CAP,TC-U 10P-50 CH
C312 87-010-404-080 CAP, ELECT 4.7-50V
C313 87-018-119-080 CAP, CER 100P-50V
C314 87-010-401-080 CAP, ELECT 1-50V
C315 87-018-196-080 CAP, CER 1500P-16V
C316 87-010-400-080 CAP, ELECT 0.47-50V
C317 87-010-248-080 CAP, ELECT 220-10V
C318 87-018-134-080 CAPACITOR,TC-U 0.01-16
C319 87-010-400-080 CAP, ELECT 0.47-50V
C320 87-010-384-080 CAP, ELECT 100-25V
C321 87-018-134-080 CAPACITOR,TC-U 0.01-16
C323 87-018-209-080 CAP, CER 0.1-50V
C324 87-018-209-080 CAP, CER 0.1-50V
C328 87-010-400-080 CAP, ELECT 0.47-50V
C330 87-018-134-080 CAPACITOR,TC-U 0.01-16
C333 87-018-134-080 CAPACITOR,TC-U 0.01-16
C334 87-010-263-080 CAP, ELECT 100-10V
C335 87-010-401-080 CAP, ELECT 1-50V
C336 87-018-134-080 CAPACITOR,TC-U 0.01-16
C337 87-010-401-080 CAP, ELECT 1-50V
C338 87-010-401-080 CAP, ELECT 1-50V
C339 87-010-263-080 CAP, ELECT 100-10V
C340 87-018-134-080 CAPACITOR,TC-U 0.01-16
C341 87-018-134-080 CAPACITOR,TC-U 0.01-16
C342 87-018-119-080 CAP, CER 100P-50V
C343 87-018-119-080 CAP, CER 100P-50V
C501 87-018-195-080 CAP, CER 1200P-16V
C502 87-018-115-080 CAP, CER 47P-50V
C503 87-010-247-080 CAP, ELECT 100-50V
C509 87-010-405-080 CAP, ELECT 10-50V
C510 87-010-401-080 CAP, ELECT 1-50V
C511 88-708-980-810 CAP,M 0.056-100 J AMZV
C512 87-A10-011-090 CAP,E 2200-25 SMG
C513 87-018-127-080 CAP, CER 470P-50V
C601 87-A10-406-010 CAP,CER 270P-2K K BN DE
C603 87-A12-023-080 CAP,E 10-250 M SME
All manuals and user guides at all-guides.com

– 4 –

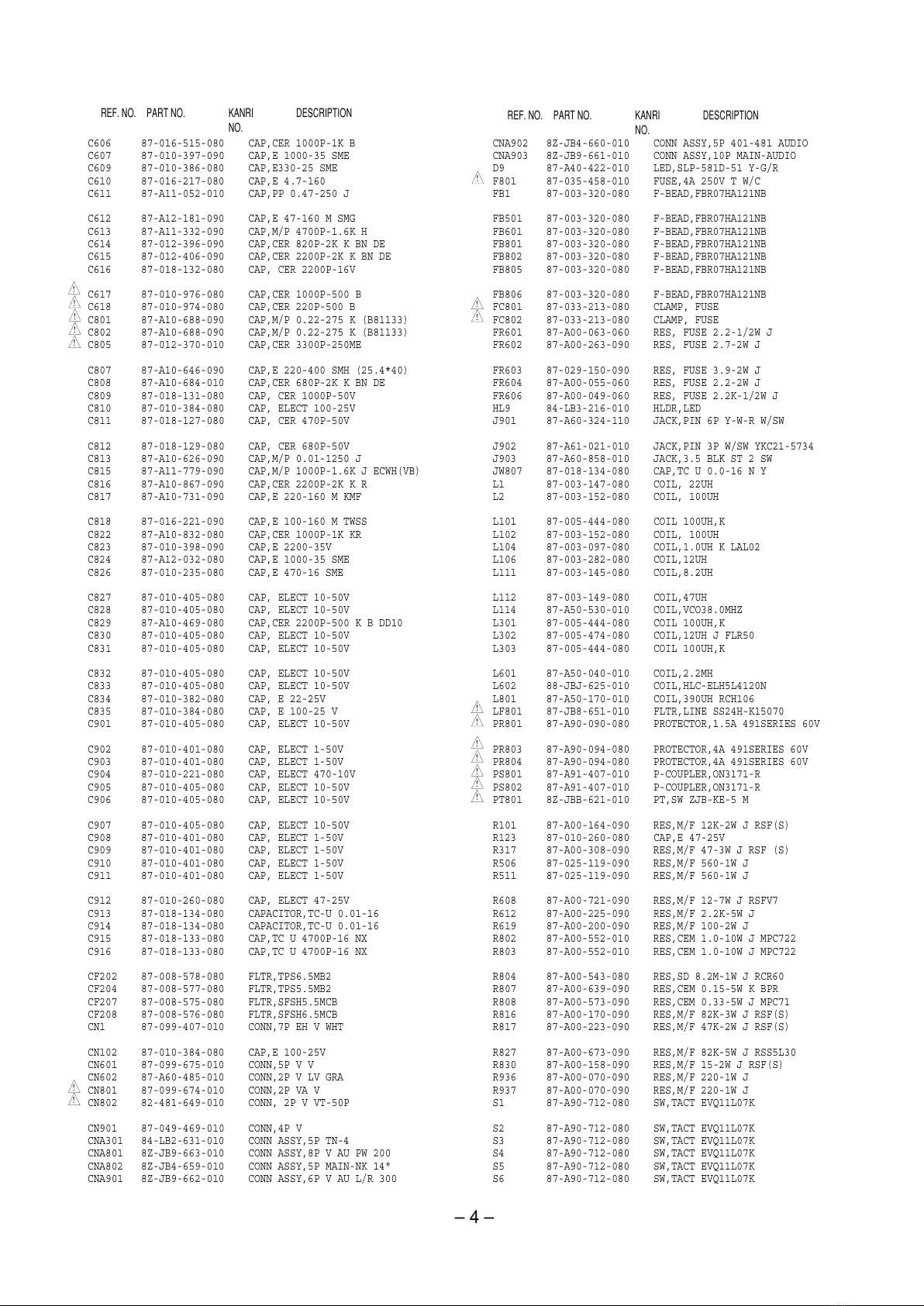

DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C606 87-016-515-080 CAP,CER 1000P-1K B
C607 87-010-397-090 CAP,E 1000-35 SME
C609 87-010-386-080 CAP,E330-25 SME
C610 87-016-217-080 CAP,E 4.7-160
C611 87-A11-052-010 CAP,PP 0.47-250 J
C612 87-A12-181-090 CAP,E 47-160 M SMG
C613 87-A11-332-090 CAP,M/P 4700P-1.6K H
C614 87-012-396-090 CAP,CER 820P-2K K BN DE
C615 87-012-406-090 CAP,CER 2200P-2K K BN DE
C616 87-018-132-080 CAP, CER 2200P-16V
C617 87-010-976-080 CAP,CER 1000P-500 B
C618 87-010-974-080 CAP,CER 220P-500 B
C801 87-A10-688-090 CAP,M/P 0.22-275 K (B81133)
C802 87-A10-688-090 CAP,M/P 0.22-275 K (B81133)
C805 87-012-370-010 CAP,CER 3300P-250ME
C807 87-A10-646-090 CAP,E 220-400 SMH (25.4*40)
C808 87-A10-684-010 CAP,CER 680P-2K K BN DE
C809 87-018-131-080 CAP, CER 1000P-50V
C810 87-010-384-080 CAP, ELECT 100-25V
C811 87-018-127-080 CAP, CER 470P-50V
C812 87-018-129-080 CAP, CER 680P-50V
C813 87-A10-626-090 CAP,M/P 0.01-1250 J
C815 87-A11-779-090 CAP,M/P 1000P-1.6K J ECWH(VB)
C816 87-A10-867-090 CAP,CER 2200P-2K K R
C817 87-A10-731-090 CAP,E 220-160 M KMF
C818 87-016-221-090 CAP,E 100-160 M TWSS
C822 87-A10-832-080 CAP,CER 1000P-1K KR
C823 87-010-398-090 CAP,E 2200-35V
C824 87-A12-032-080 CAP,E 1000-35 SME
C826 87-010-235-080 CAP,E 470-16 SME
C827 87-010-405-080 CAP, ELECT 10-50V
C828 87-010-405-080 CAP, ELECT 10-50V
C829 87-A10-469-080 CAP,CER 2200P-500 K B DD10
C830 87-010-405-080 CAP, ELECT 10-50V
C831 87-010-405-080 CAP, ELECT 10-50V
C832 87-010-405-080 CAP, ELECT 10-50V
C833 87-010-405-080 CAP, ELECT 10-50V
C834 87-010-382-080 CAP, E 22-25V
C835 87-010-384-080 CAP, E 100-25 V
C901 87-010-405-080 CAP, ELECT 10-50V
C902 87-010-401-080 CAP, ELECT 1-50V
C903 87-010-401-080 CAP, ELECT 1-50V
C904 87-010-221-080 CAP, ELECT 470-10V
C905 87-010-405-080 CAP, ELECT 10-50V
C906 87-010-405-080 CAP, ELECT 10-50V
C907 87-010-405-080 CAP, ELECT 10-50V
C908 87-010-401-080 CAP, ELECT 1-50V
C909 87-010-401-080 CAP, ELECT 1-50V
C910 87-010-401-080 CAP, ELECT 1-50V
C911 87-010-401-080 CAP, ELECT 1-50V
C912 87-010-260-080 CAP, ELECT 47-25V
C913 87-018-134-080 CAPACITOR,TC-U 0.01-16
C914 87-018-134-080 CAPACITOR,TC-U 0.01-16
C915 87-018-133-080 CAP,TC U 4700P-16 NX
C916 87-018-133-080 CAP,TC U 4700P-16 NX
CF202 87-008-578-080 FLTR,TPS6.5MB2
CF204 87-008-577-080 FLTR,TPS5.5MB2
CF207 87-008-575-080 FLTR,SFSH5.5MCB
CF208 87-008-576-080 FLTR,SFSH6.5MCB
CN1 87-099-407-010 CONN,7P EH V WHT
CN102 87-010-384-080 CAP,E 100-25V
CN601 87-099-675-010 CONN,5P V V
CN602 87-A60-485-010 CONN,2P V LV GRA
CN801 87-099-674-010 CONN,2P VA V
CN802 82-481-649-010 CONN, 2P V VT-50P
CN901 87-049-469-010 CONN,4P V
CNA301 84-LB2-631-010 CONN ASSY,5P TN-4
CNA801 8Z-JB9-663-010 CONN ASSY,8P V AU PW 200
CNA802 8Z-JB4-659-010 CONN ASSY,5P MAIN-NK 14"
CNA901 8Z-JB9-662-010 CONN ASSY,6P V AU L/R 300
CNA902 8Z-JB4-660-010 CONN ASSY,5P 401-481 AUDIO
CNA903 8Z-JB9-661-010 CONN ASSY,10P MAIN-AUDIO
D9 87-A40-422-010 LED,SLP-581D-51 Y-G/R
F801 87-035-458-010 FUSE,4A 250V T W/C
FB1 87-003-320-080 F-BEAD,FBR07HA121NB
FB501 87-003-320-080 F-BEAD,FBR07HA121NB
FB601 87-003-320-080 F-BEAD,FBR07HA121NB
FB801 87-003-320-080 F-BEAD,FBR07HA121NB
FB802 87-003-320-080 F-BEAD,FBR07HA121NB
FB805 87-003-320-080 F-BEAD,FBR07HA121NB
FB806 87-003-320-080 F-BEAD,FBR07HA121NB
FC801 87-033-213-080 CLAMP, FUSE
FC802 87-033-213-080 CLAMP, FUSE
FR601 87-A00-063-060 RES, FUSE 2.2-1/2W J
FR602 87-A00-263-090 RES, FUSE 2.7-2W J
FR603 87-029-150-090 RES, FUSE 3.9-2W J
FR604 87-A00-055-060 RES, FUSE 2.2-2W J
FR606 87-A00-049-060 RES, FUSE 2.2K-1/2W J
HL9 84-LB3-216-010 HLDR,LED
J901 87-A60-324-110 JACK,PIN 6P Y-W-R W/SW
J902 87-A61-021-010 JACK,PIN 3P W/SW YKC21-5734
J903 87-A60-858-010 JACK,3.5 BLK ST 2 SW
JW807 87-018-134-080 CAP,TC U 0.0-16 N Y
L1 87-003-147-080 COIL, 22UH
L2 87-003-152-080 COIL, 100UH
L101 87-005-444-080 COIL 100UH,K
L102 87-003-152-080 COIL, 100UH
L104 87-003-097-080 COIL,1.0UH K LAL02
L106 87-003-282-080 COIL,12UH
L111 87-003-145-080 COIL,8.2UH
L112 87-003-149-080 COIL,47UH
L114 87-A50-530-010 COIL,VCO38.0MHZ
L301 87-005-444-080 COIL 100UH,K
L302 87-005-474-080 COIL,12UH J FLR50
L303 87-005-444-080 COIL 100UH,K
L601 87-A50-040-010 COIL,2.2MH
L602 88-JBJ-625-010 COIL,HLC-ELH5L4120N
L801 87-A50-170-010 COIL,390UH RCH106
LF801 87-JB8-651-010 FLTR,LINE SS24H-K15070
PR801 87-A90-090-080 PROTECTOR,1.5A 491SERIES 60V
PR803 87-A90-094-080 PROTECTOR,4A 491SERIES 60V
PR804 87-A90-094-080 PROTECTOR,4A 491SERIES 60V
PS801 87-A91-407-010 P-COUPLER,ON3171-R
PS802 87-A91-407-010 P-COUPLER,ON3171-R
PT801 8Z-JBB-621-010 PT,SW ZJB-KE-5 M
R101 87-A00-164-090 RES,M/F 12K-2W J RSF(S)
R123 87-010-260-080 CAP,E 47-25V
R317 87-A00-308-090 RES,M/F 47-3W J RSF (S)
R506 87-025-119-090 RES,M/F 560-1W J
R511 87-025-119-090 RES,M/F 560-1W J
R608 87-A00-721-090 RES,M/F 12-7W J RSFV7
R612 87-A00-225-090 RES,M/F 2.2K-5W J
R619 87-A00-200-090 RES,M/F 100-2W J
R802 87-A00-552-010 RES,CEM 1.0-10W J MPC722
R803 87-A00-552-010 RES,CEM 1.0-10W J MPC722
R804 87-A00-543-080 RES,SD 8.2M-1W J RCR60
R807 87-A00-639-090 RES,CEM 0.15-5W K BPR
R808 87-A00-573-090 RES,CEM 0.33-5W J MPC71
R816 87-A00-170-090 RES,M/F 82K-3W J RSF(S)
R817 87-A00-223-090 RES,M/F 47K-2W J RSF(S)
R827 87-A00-673-090 RES,M/F 82K-5W J RSS5L30
R830 87-A00-158-090 RES,M/F 15-2W J RSF(S)
R936 87-A00-070-090 RES,M/F 220-1W J
R937 87-A00-070-090 RES,M/F 220-1W J
S1 87-A90-712-080 SW,TACT EVQ11L07K
S2 87-A90-712-080 SW,TACT EVQ11L07K
S3 87-A90-712-080 SW,TACT EVQ11L07K
S4 87-A90-712-080 SW,TACT EVQ11L07K
S5 87-A90-712-080 SW,TACT EVQ11L07K
S6 87-A90-712-080 SW,TACT EVQ11L07K
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
All manuals and user guides at all-guides.com

– 5 –

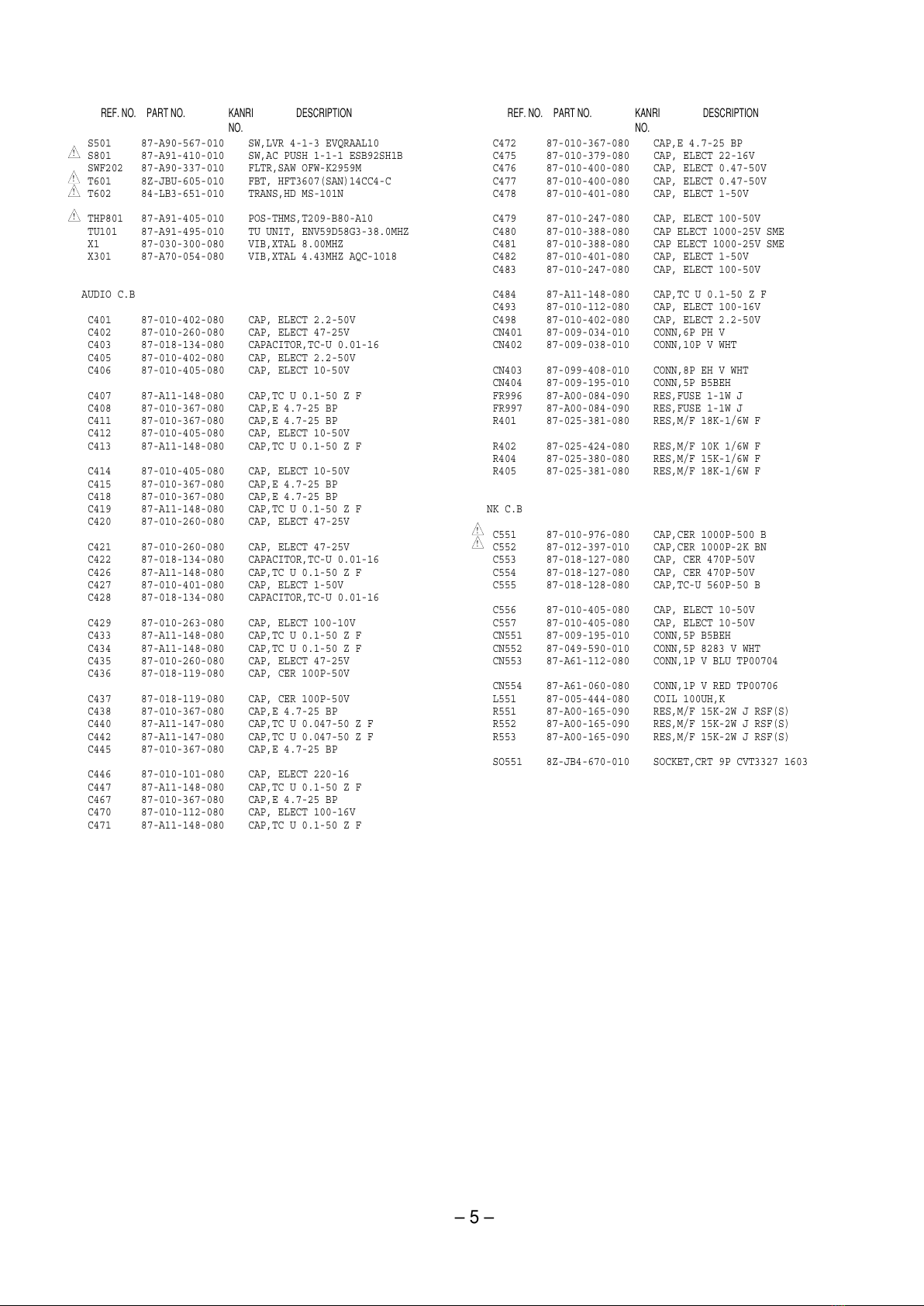

S501 87-A90-567-010 SW,LVR 4-1-3 EVQRAAL10
S801 87-A91-410-010 SW,AC PUSH 1-1-1 ESB92SH1B
SWF202 87-A90-337-010 FLTR,SAW OFW-K2959M
T601 8Z-JBU-605-010 FBT, HFT3607(SAN)14CC4-C
T602 84-LB3-651-010 TRANS,HD MS-101N
THP801 87-A91-405-010 POS-THMS,T209-B80-A10
TU101 87-A91-495-010 TU UNIT, ENV59D58G3-38.0MHZ
X1 87-030-300-080 VIB,XTAL 8.00MHZ
X301 87-A70-054-080 VIB,XTAL 4.43MHZ AQC-1018
AUDIO C.B
C401 87-010-402-080 CAP, ELECT 2.2-50V
C402 87-010-260-080 CAP, ELECT 47-25V
C403 87-018-134-080 CAPACITOR,TC-U 0.01-16
C405 87-010-402-080 CAP, ELECT 2.2-50V
C406 87-010-405-080 CAP, ELECT 10-50V
C407 87-A11-148-080 CAP,TC U 0.1-50 Z F
C408 87-010-367-080 CAP,E 4.7-25 BP
C411 87-010-367-080 CAP,E 4.7-25 BP
C412 87-010-405-080 CAP, ELECT 10-50V
C413 87-A11-148-080 CAP,TC U 0.1-50 Z F
C414 87-010-405-080 CAP, ELECT 10-50V
C415 87-010-367-080 CAP,E 4.7-25 BP
C418 87-010-367-080 CAP,E 4.7-25 BP
C419 87-A11-148-080 CAP,TC U 0.1-50 Z F
C420 87-010-260-080 CAP, ELECT 47-25V
C421 87-010-260-080 CAP, ELECT 47-25V
C422 87-018-134-080 CAPACITOR,TC-U 0.01-16
C426 87-A11-148-080 CAP,TC U 0.1-50 Z F
C427 87-010-401-080 CAP, ELECT 1-50V
C428 87-018-134-080 CAPACITOR,TC-U 0.01-16
C429 87-010-263-080 CAP, ELECT 100-10V
C433 87-A11-148-080 CAP,TC U 0.1-50 Z F
C434 87-A11-148-080 CAP,TC U 0.1-50 Z F
C435 87-010-260-080 CAP, ELECT 47-25V
C436 87-018-119-080 CAP, CER 100P-50V
C437 87-018-119-080 CAP, CER 100P-50V
C438 87-010-367-080 CAP,E 4.7-25 BP
C440 87-A11-147-080 CAP,TC U 0.047-50 Z F
C442 87-A11-147-080 CAP,TC U 0.047-50 Z F
C445 87-010-367-080 CAP,E 4.7-25 BP
C446 87-010-101-080 CAP, ELECT 220-16
C447 87-A11-148-080 CAP,TC U 0.1-50 Z F
C467 87-010-367-080 CAP,E 4.7-25 BP
C470 87-010-112-080 CAP, ELECT 100-16V
C471 87-A11-148-080 CAP,TC U 0.1-50 Z F
C472 87-010-367-080 CAP,E 4.7-25 BP
C475 87-010-379-080 CAP, ELECT 22-16V
C476 87-010-400-080 CAP, ELECT 0.47-50V
C477 87-010-400-080 CAP, ELECT 0.47-50V
C478 87-010-401-080 CAP, ELECT 1-50V
C479 87-010-247-080 CAP, ELECT 100-50V
C480 87-010-388-080 CAP ELECT 1000-25V SME
C481 87-010-388-080 CAP ELECT 1000-25V SME
C482 87-010-401-080 CAP, ELECT 1-50V
C483 87-010-247-080 CAP, ELECT 100-50V
C484 87-A11-148-080 CAP,TC U 0.1-50 Z F
C493 87-010-112-080 CAP, ELECT 100-16V
C498 87-010-402-080 CAP, ELECT 2.2-50V
CN401 87-009-034-010 CONN,6P PH V
CN402 87-009-038-010 CONN,10P V WHT
CN403 87-099-408-010 CONN,8P EH V WHT
CN404 87-009-195-010 CONN,5P B5BEH
FR996 87-A00-084-090 RES,FUSE 1-1W J
FR997 87-A00-084-090 RES,FUSE 1-1W J
R401 87-025-381-080 RES,M/F 18K-1/6W F
R402 87-025-424-080 RES,M/F 10K 1/6W F
R404 87-025-380-080 RES,M/F 15K-1/6W F
R405 87-025-381-080 RES,M/F 18K-1/6W F
NK C.B
C551 87-010-976-080 CAP,CER 1000P-500 B
C552 87-012-397-010 CAP,CER 1000P-2K BN
C553 87-018-127-080 CAP, CER 470P-50V
C554 87-018-127-080 CAP, CER 470P-50V
C555 87-018-128-080 CAP,TC-U 560P-50 B
C556 87-010-405-080 CAP, ELECT 10-50V
C557 87-010-405-080 CAP, ELECT 10-50V
CN551 87-009-195-010 CONN,5P B5BEH
CN552 87-049-590-010 CONN,5P 8283 V WHT
CN553 87-A61-112-080 CONN,1P V BLU TP00704
CN554 87-A61-060-080 CONN,1P V RED TP00706
L551 87-005-444-080 COIL 100UH,K
R551 87-A00-165-090 RES,M/F 15K-2W J RSF(S)
R552 87-A00-165-090 RES,M/F 15K-2W J RSF(S)
R553 87-A00-165-090 RES,M/F 15K-2W J RSF(S)
SO551 8Z-JB4-670-010 SOCKET,CRT 9P CVT3327 1603
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
!
!
!
!
!
!
All manuals and user guides at all-guides.com

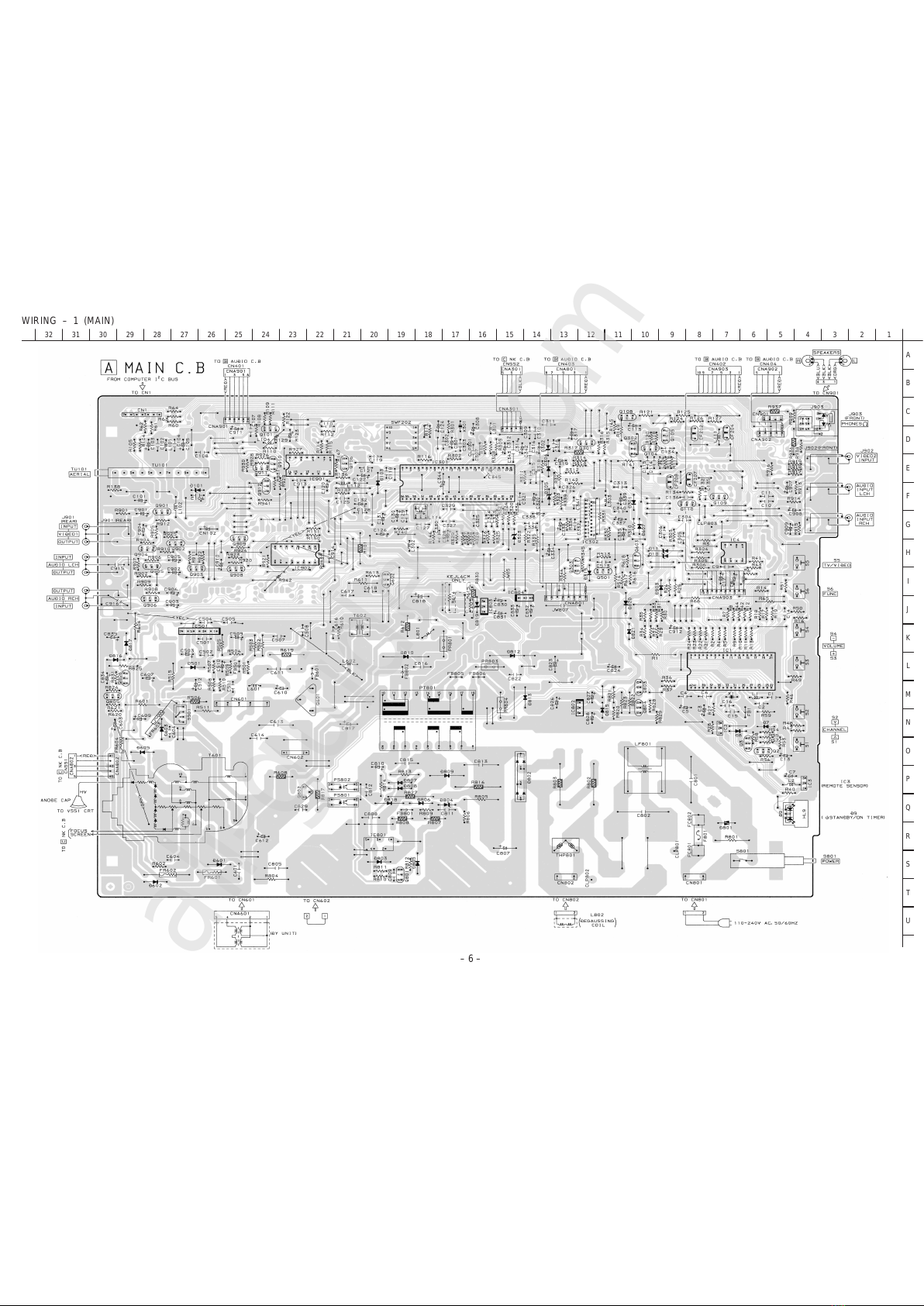

WIRING – 1 (MAIN)
– 6 –
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
All manuals and user guides at all-guides.com
all-guides.com

– 7 –
SCHEMATIC DIAGRAM–1 (MAIN)
All manuals and user guides at all-guides.com

– 8 –

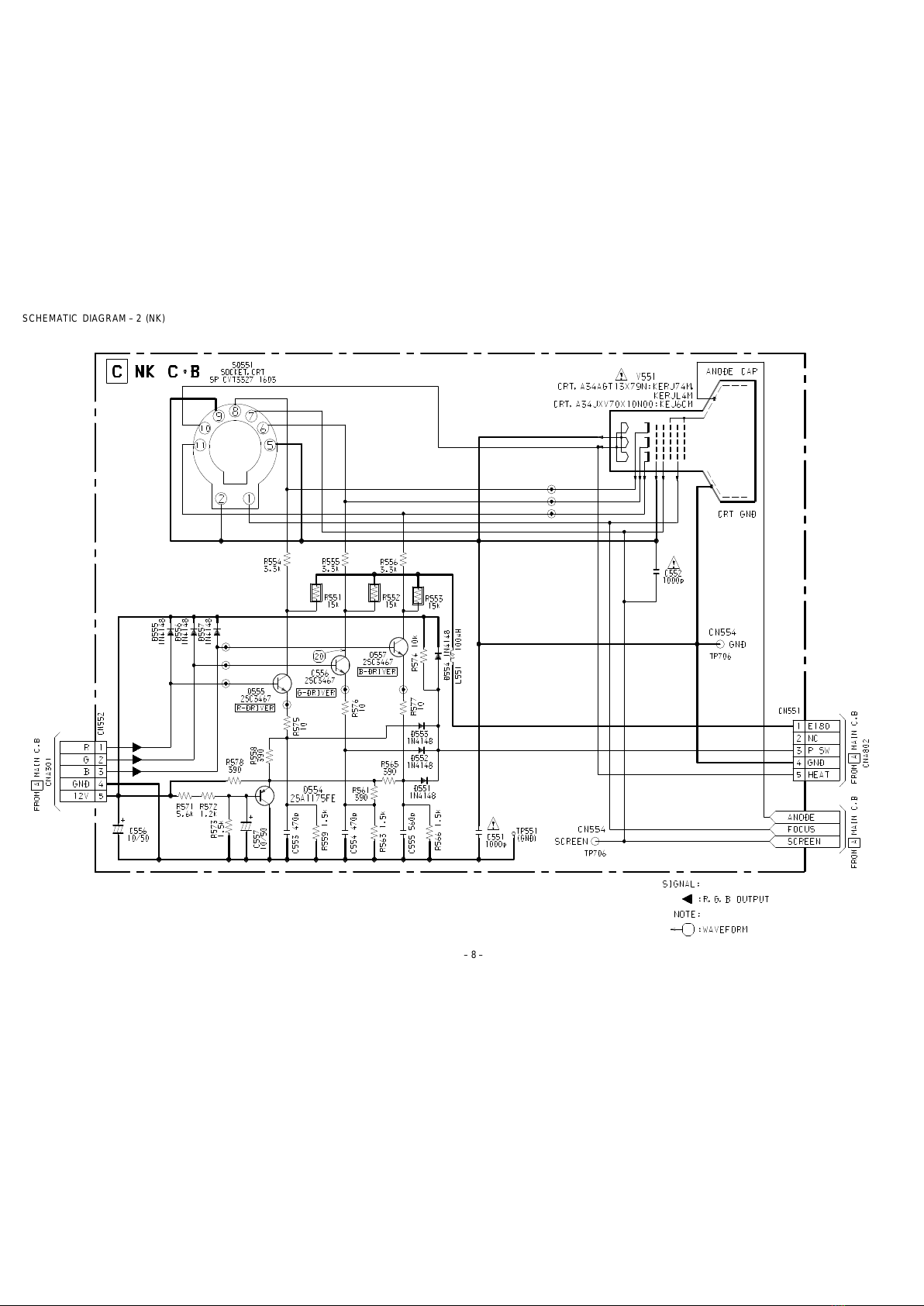

SCHEMATIC DIAGRAM – 2 (NK)
All manuals and user guides at all-guides.com

– 9 –

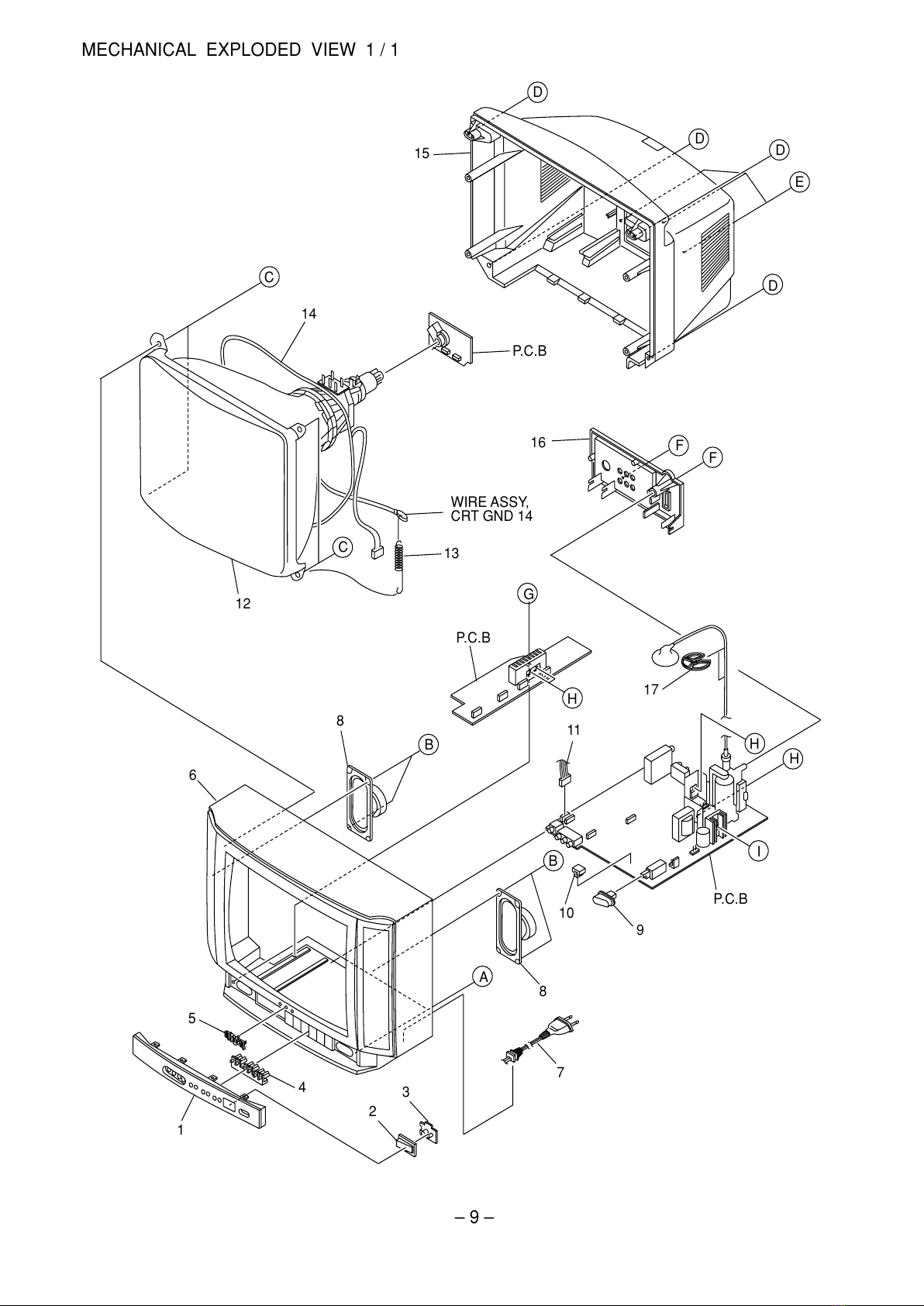

MECHANICAL EXPLODED VIEW 1 / 1
6
4
5
2
3
7
A8
B
B
8
10 9
P.C.B
P.C.B
I
H
H
17
11
H
13
WIRE ASSY,
CRT GND 14
16
P.C.B
14
C
15 D
D
D
E
D
FF
12
C
G
1
All manuals and user guides at all-guides.com

– 10 –
DESCRIPTIONREF. NO. KANRI
NO.

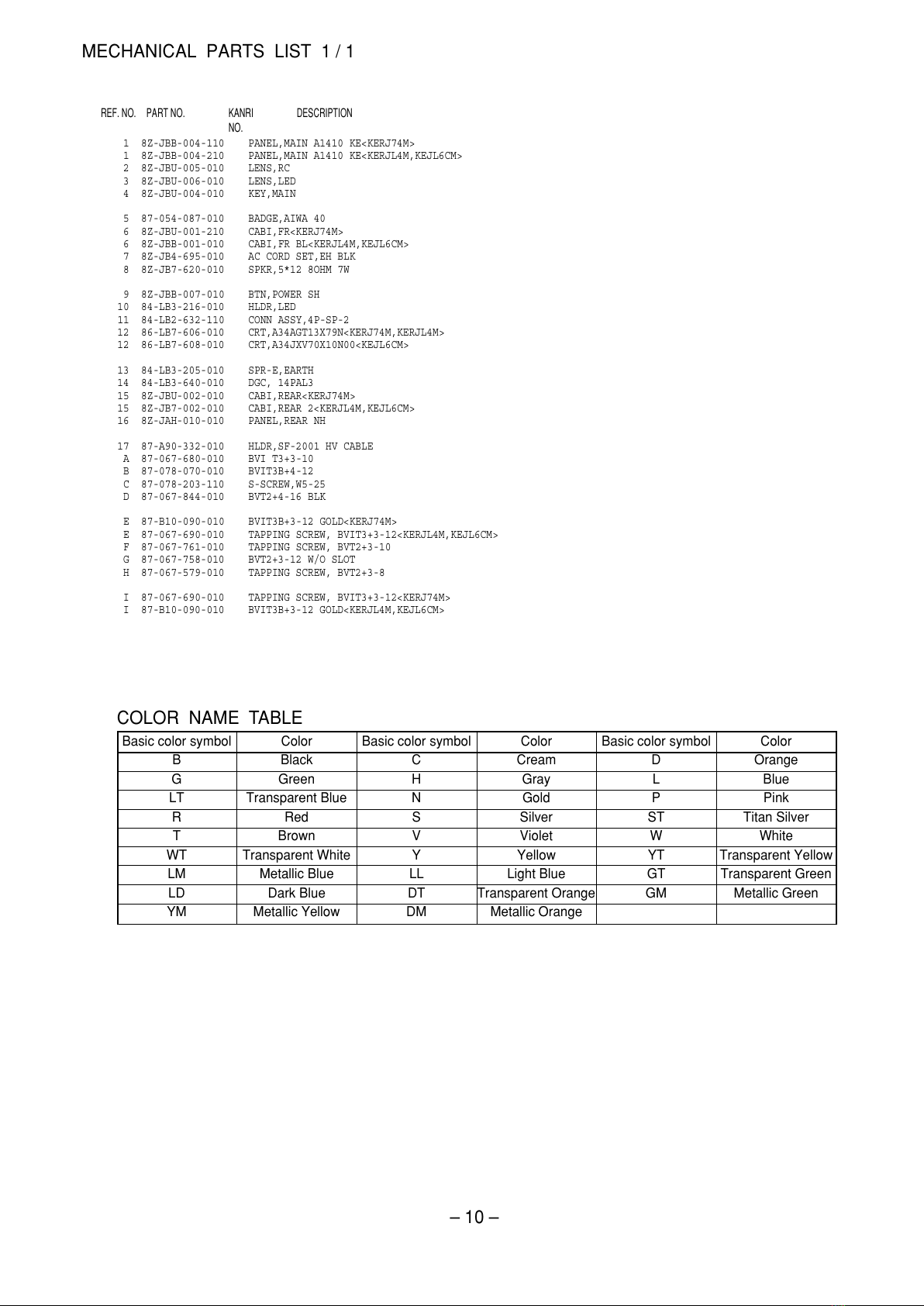

MECHANICAL PARTS LIST 1 / 1
PART NO.
1 8Z-JBB-004-110 PANEL,MAIN A1410 KE<KERJ74M>
1 8Z-JBB-004-210 PANEL,MAIN A1410 KE<KERJL4M,KEJL6CM>
2 8Z-JBU-005-010 LENS,RC
3 8Z-JBU-006-010 LENS,LED
4 8Z-JBU-004-010 KEY,MAIN
5 87-054-087-010 BADGE,AIWA 40
6 8Z-JBU-001-210 CABI,FR<KERJ74M>
6 8Z-JBB-001-010 CABI,FR BL<KERJL4M,KEJL6CM>
7 8Z-JB4-695-010 AC CORD SET,EH BLK
8 8Z-JB7-620-010 SPKR,5*12 8OHM 7W
9 8Z-JBB-007-010 BTN,POWER SH
10 84-LB3-216-010 HLDR,LED
11 84-LB2-632-110 CONN ASSY,4P-SP-2
12 86-LB7-606-010 CRT,A34AGT13X79N<KERJ74M,KERJL4M>
12 86-LB7-608-010 CRT,A34JXV70X10N00<KEJL6CM>
13 84-LB3-205-010 SPR-E,EARTH
14 84-LB3-640-010 DGC, 14PAL3
15 8Z-JBU-002-010 CABI,REAR<KERJ74M>
15 8Z-JB7-002-010 CABI,REAR 2<KERJL4M,KEJL6CM>
16 8Z-JAH-010-010 PANEL,REAR NH
17 87-A90-332-010 HLDR,SF-2001 HV CABLE
A 87-067-680-010 BVI T3+3-10
B 87-078-070-010 BVIT3B+4-12
C 87-078-203-110 S-SCREW,W5-25
D 87-067-844-010 BVT2+4-16 BLK
E 87-B10-090-010 BVIT3B+3-12 GOLD<KERJ74M>
E 87-067-690-010 TAPPING SCREW, BVIT3+3-12<KERJL4M,KEJL6CM>
F 87-067-761-010 TAPPING SCREW, BVT2+3-10
G 87-067-758-010 BVT2+3-12 W/O SLOT
H 87-067-579-010 TAPPING SCREW, BVT2+3-8
I 87-067-690-010 TAPPING SCREW, BVIT3+3-12<KERJ74M>
I 87-B10-090-010 BVIT3B+3-12 GOLD<KERJL4M,KEJL6CM>
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange
COLOR NAME TABLE
All manuals and user guides at all-guides.com

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]
Printed in Singapore9620450 0251431
All manuals and user guides at all-guides.com
all-guides.com
