SERVICE MANUAL
DATA
COLOR TELEVISION
TV-A20S2 KE
S/M Code No. 09-011-423-8S2
SUPPLEMENT
• This Service Manual contains information about the difference between
TV-A20S2 (KEJG6CM) and TV-A205 (KER). If requiring the other information,
see Service Manual of TV-A145/A205 (KER), (S/M Code No. 09-974-180-8FP).

– 2 –
When servicing and checking on the TV, note the followings.
NOTICES BEFORE REPAIRING
To make the best use of this equipment, make sure to
obey the following items when repairing (or mending).
1. Do not damage or melt the tunicate of the leading wire on
the AC1 side, including the power supply cord.
2. Do not soil or stain the letters on the spec. inscription plates,
notice labels, fuse labels, etc.
3. When repairing the part extracted from the conducted side
of the board pattern, fix it firmly with applying bond to the
pattern and the part.
4. Restore the following items after repairing.
1) Conditions of soldering of the wires (especially, the
distance on the AC1 side).
2) Conditions of wiring, bundling of wires, etc.
3) Types of the wries.
4) Attachment conditions of all types of the insulation.
5. After repairing, always measure the insulation resistance
and perform the voltage-withstand test (See Fig-1).
1) The insulation resistance must be 7.0 to 9.5 MΩwhen
applying 500V per second.
2) In the voltage withstand test, apply 3 kV for 1or more
minutes and check that the GO lamp lights.
* Breaking current set to 6 mA.
* Connect the safety checker as shown in Fig-1, then
measure the resistance and perform the test.
* Do not touch the equipment during testing.
* For details of the safety checker, refer to the supplied
Operation manual.
and high voltage parts. Therefore, put these parts in the
original positions.
5. Take care of the cathode-ray tube.
By setting an explosion-proof cathode-ray tube in this
equipment, safety is secured against implosion.
However, when removing it or servicing from the back, it
gives out shock that is dangerous. Take enough care to deal
with it.
6. Avoid an X-ray.
Safety is secured against an X-ray by giving considerations
to the cathode-ray tube and the high voltage peripheral
circuit, etc. Therefore, when repairing the high voltage
peripheral circuit, use the designated parts and do not
change the circuit. Repairing, except indicates, causes
rising of high voltage, and the cathode-ray tube emits an
X-ray.
7. Perform a safety check after servicing.
Confirm that the screws, parts and wiring which were
removed in order to service are put in the original positions,
or whether there are deteriorated portions around the places
serviced.
Fig-1
Insulation resistance: 7.0 to 9.5 MΩ(500 V/s)
Voltage-withstand: 3 kV for 1or more minutes
1. Keep the notices.
As for the places which need special attentions, they are
indicated with labels or seals on the cabinet, chassis and
parts. Make sure to keep the indications and notices in the
operation manual.
2. Avoid an electric shock.
There is a high voltage part inside. Avoid an electric shock
while the electric current is flowing.
3. Use the designated parts.
The parts in this equipment have the specific characteristics
of incombustibility and withstand voltage for safety.
Therefore, use a part which has the same character as the
replaced part. Especially as to the important parts for safety
which is indicated in the circuit diagram or the table of parts
with a mark, the designated parts must be used.
4. Put parts and wires in the original position after assembling
or wiring.
There are parts which use the insulation material such as a
tube or tape for safety, or which are assembled so that these
parts do not make contact with the printed board. The inside
wiring is designed not to get close to the pyrogenic parts
!
Safety checker (Model 7110, etc.)
Earth cable
AC cable Connect the earth cable
to the outside metal part
terminal.

– 3 –
SPECIFICATIONS
Category
Color television
Broadcasting color system
PAL (B/G, D/K), SECAM (B/G, D/K, K1)
Television color system (Video input)
PAL, SECAM, NTSC3.58, NTSC4.43, PAL60
Receivable channel
BAND CHANNEL
E2- E12 (WEST EUROPE)
R1-R12 (EAST EUROPE)
VHF 1-9 (IVORY COAST)
S1-S20 (OSCAR CABLE CH)
S21-S23 (HYPER CABLE CH)
UHF E21-E69 (EUROPE)
S24-S41 (HYPER CABLE CH)
Aerial Input
75 ohms, unbalanced
Picture Tube
20"
Screen size
404(W) x 480(D) x 303(H)mm
(16 x 19 x 12 in.)
Video Input/Output
1 Vp-p, 75 ohms
Audio Input
0.5 Vrms., 33 kohms more
Audio Output
0.5 Vrms., 2.2 kohms less
Speaker
103 x 45 mm (41/8x 13/16 in.) oval
Operating Voltage
100 – 240 V AC, 50/60 Hz
Power Consumption
85W
Headphone jack
Stereo-mini jack
Operating temperature
5°C – 40°C
Operating humidity
35% – 80%
Dimensions
580(W) x 491(D) x 425(H)mm
(227/8x 193/8x 163/4 in.)
Weight
19 kg (41.8 lbs.)
• Design and specifications are subject to change without notice.
– 3 –

– 4 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
DESCRIPTIONPART NO.
IC
86-LB4-621-010 IC,M37220M3-160SP
87-A21-133-080 IC,BMR-0101D
87-A21-377-010 IC,S-24C02BDP-1A
87-A91-538-010 RCR UNIT,SBX1981-72P
87-A20-371-080 IC,KA33V
87-A20-436-010 IC,LA7565N
87-070-080-010 IC,TA8759BN
87-017-356-010 IC,UPC1406HA
87-001-485-010 IC,TA8207K
87-017-804-010 IC,BU4052BC
87-002-779-010 IC,LA7956
87-027-656-010 IC,TC4066BP
87-070-237-010 IC,LA7832
87-A20-517-010 IC,STR-S6707
87-A21-785-010 IC,KIA7809API
87-A20-389-010 IC,NJM7809FA
87-020-881-080 IC,NJM78L05A
TRANSISTOR
87-A30-090-080 FET,2SK2541
87-A30-065-080 TR,2SC2785FE
87-A30-066-080 TR,2SA1175FE
89-334-674-580 TR,2SC3467(D/E)
87-A30-050-010 TR,2SD2499
89-320-610-080 TR,2SC2061
87-A30-041-110 TR,SE115N
89-342-174-510 TR,2SC4217 D/E
DIODE
87-A40-291-080 DIODE,1N4148M(CPT)
87-A40-349-080 ZENER,MTZJ7.5C
87-A40-001-080 ZENER,MTZJ12C
87-A40-235-080 ZENER,MTZJ9.1C
87-A40-004-080 DIODE,MTZJ16A
87-070-092-080 DIODE,S5566B
87-017-963-080 DIODE,TVR5G
87-017-654-060 DIODE,GBU6JL6131
87-070-111-060 DIODE,RU30A
87-A40-465-090 DIODE,FR202
87-017-354-080 DIODE,RU3
MAIN C.B
84-LB3-216-010 HLDR,LED
BPF201 87-A90-337-010 FLTR,SAW OFW-K2959M
BPF305 84-LB3-622-010 FLTR,BELL 2 S-10E
C1 87-018-109-080 CAP,TC U 22P-50 J SL UP050
C2 87-018-109-080 CAP,TC U 22P-50 J SL UP050
C3 87-018-109-080 CAP,TC U 22P-50 J SL UP050
C4 87-018-109-080 CAP,TC U 22P-50 J SL UP050
C5 87-018-109-080 CAP,TC U 22P-50 J SL UP050
C6 87-018-109-080 CAP,TC U 22P-50 J SL UP050
C7 87-018-123-080 CAP,TC U 220P-50 K B UP050
C9 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C10 87-010-248-080 CAP,E 220-10 M 11L SME
C11 87-010-405-080 CAP,E 10-50 M 11L SME
C12 87-018-119-080 CAP,TC U 100P-50 K B UP050
C13 87-010-544-080 CAP,E 0.1-50 M 11L SME
C14 87-010-405-080 CAP,E 10-50 M 11L SME
C16 87-018-131-080 CAP,TC U 1000P-50 K B UP050
C17 87-018-119-080 CAP,TC U 100P-50 K B UP050
C18 87-018-119-080 CAP,TC U 100P-50 K B UP050
C19 87-018-119-080 CAP,TC U 100P-50 K B UP050
C23 87-010-401-080 CAP,E 1-50 M 11L SME
C25 87-010-404-080 CAP,E 4.7-50 M 11L SME
C26 87-010-404-080 CAP,E 4.7-50 M 11L SME
C27 87-010-401-080 CAP,E 1-50 M 11L SME
C28 87-010-404-080 CAP,E 4.7-50 M 11L SME
C29 87-010-404-080 CAP,E 4.7-50 M 11L SME
C30 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C40 87-018-131-080 CAP,TC U 1000P-50 K B UP050
C101 87-010-401-080 CAP,E 1-50 M 11L SME
C102 87-010-384-080 CAP,E 100-25 M 11L SME
C103 87-A10-207-080 CAP,TC U 0.01-50 K B UP050
C212 87-010-401-080 CAP,E 1-50 M 1LL SME
C213 87-010-384-080 CAP,E 100-25 M 11L SME
C214 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C218 87-018-133-080 CAP,TC U 4700P-16 N X UP050
C219 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C221 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C222 87-018-121-080 CAP,TC U 150P-50 K B UP050
C223 87-010-401-080 CAP,E 1-50 M 11L SME
C225 87-018-119-080 CAP,TC U 100P-50 J B UP050
C301 87-018-122-080 CAP,TC U 180P-50 K B UP050
C302 87-018-122-080 CAP,TC U 180P-50 K B UP050
C303 87-018-122-080 CAP,TC U 180P-50 K B UP050
C307 87-A11-148-080 CAP,TC U 0.1-50 Z F
C309 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C310 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C311 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C312 87-010-400-080 CAP,E 0.47-50 M 11L SME
C313 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C314 87-018-122-080 CAP,TC U 180P-50 K B UP050
C315 87-018-107-080 CAP,TC U 18P-50 J SL UP050
C316 87-018-131-080 CAP,TC U 1000P-50 K B UP050
C320 87-010-529-080 CAP,E 1-50 M BP
C327 87-010-101-080 CAP,E 220-16 M 11L SME
C328 87-018-195-080 CAP,TC U 1200P-16 M X UP050
C329 87-010-401-080 CAP,E 1-50 M 11L SME
C330 87-018-124-080 CAP,TC U 270P-50 K B UP050
C332 87-010-403-080 CAP,E 3.3-50 M 11L SME
C335 87-010-380-080 CAP,E 47-16 M 11L SME
C336 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C344 87-010-400-080 CAP,E 0.47-50 M 11L SME
C348 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C349 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C350 87-018-123-080 CAP,TC U 220P-50 J B UP050
C351 87-010-401-080 CAP,E 1-50 M 11L SME
C352 87-010-401-080 CAP,E 1-50 M 11L SME
C354 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C356 87-018-122-080 CAP,TC U 180P-50 K B UP050
C372 87-010-404-080 CAP,E 4.7-50M 11L SME
C373 87-018-115-080 CAP,TC U 47P-50 J SL UP050
C374 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C375 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C376 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C377 87-010-260-080 CAP,E 47-25 M 11L SME
C378 87-010-405-080 CAP,E 10-50 M 11L SME
C399 87-A11-148-080 CAP,TC U 0.1-50 Z F
C403 87-010-384-080 CAP,E 100-25 M 11L SME
C404 87-010-401-080 CAP,E 1-50 M 11L SME
C405 87-010-401-080 CAP,E 1-50 M 11L SME
C406 87-010-401-080 CAP,E 1-50 M 11L SME
C409 87-010-260-080 CAP,E 47-25M 11L SME
C410 87-010-384-080 CAP,E 100-25 M 11L SME
C411 87-010-384-080 CAP,E 100-25 M 11L SME
C413 87-010-260-080 CAP,E 47-25 M 11L SME
C414 87-010-260-080 CAP,E 47-25 M 11L SME
C415 87-010-529-080 CAP,E 1-50 M BP
C416 87-010-529-080 CAP,E 1-50 M BP
C417 87-010-260-080 CAP,E 47-25 M 11L SME
C419 87-010-384-080 CAP,E 100-25 M 11L SME
C420 87-015-997-090 CAP,E 2200-16 M 11L SME
C421 87-010-381-080 CAP,E 330-16 M 11L SME
C422 87-010-381-080 CAP,E 330-16 M 11L SME
C451 87-010-402-080 CAP,E 2.2-50 M 11L SME
!
!
REF. NO.

– 5 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
!
!
!
!
!
C452 87-010-384-080 CAP,E 100-25 M 11L SME
C453 87-010-401-080 CAP,E 1-50 M 11L SME
C454 87-010-405-080 CAP,E 10-50 M 11L SME
C456 87-010-405-080 CAP,E 10-50 M 11L SME
C457 87-010-401-080 CAP,E 1-50 M 11L SME
C458 87-010-405-080 CAP,E 10-50 M 11L SME
C459 87-010-405-080 CAP,E 10-50 M 11L SME
C460 87-010-221-080 CAP,E 470-10 M 11L SME
C461 87-010-405-080 CAP,E 10-50 M 11L SME
C462 87-010-405-080 CAP,E 10-50 M 11L SME
C465 87-010-384-080 CAP,E 100-25 M 11L SME
C501 87-018-127-080 CAP,TC U 470P-50 K B UP050
C502 87-018-134-080 CAP,TC U 0.01-16 N Y UP050
C503 87-010-405-080 CAP,E 10-50 M 11L SME
C507 87-018-118-080 CAP,TC U 82P-50 K B UP050
C508 87-018-131-080 CAP,TC U 1000P-50 K B UP050
C509 87-010-247-080 CAP,E 100-50 M SME
C510 87-010-394-080 CAP,E 220-35 M SME
C513 87-010-397-090 CAP,E 1000-35 M SME
C514 87-010-402-080 CAP,E 2.2-50 M 11L SME
C603 87-A12-492-080 CAP,CER 1000P-500 K B Y5P
C605 87-016-481-010 CAP,PP 0.47-200 J
C606 87-016-357-010 CAP,PP 0.01-1250
C607 87-012-399-010 CAP,CER 1500P-2K KBN DE
C610 88-238-450-810 CAP,CER 150P-500K YP
C801 87-A10-223-010 CAP,M/P 0.22-250 K
C802 87-016-519-010 CAP,M/P 0.1-250 K
C806 87-018-131-080 CAP,TC-U 1000P-50 K B UP050
C807 87-010-405-080 CAP,E 10-50 M 11L SME
C808 87-A10-732-090 CAP,E 47-160 M SK
C809 87-A12-492-080 CAP,CER 1000P-500 K B Y5P
C810 87-016-518-090 CAP,E 220-400 SMH
C811 87-010-381-080 CAP,E 330-16 M 11L SME
C812 87-A10-519-010 CAP,CER 4700P-4K M E KX
C813 87-A12-493-080 CAP,CER 2200P-500KB Y5P
C818 87-010-371-080 CAP,E 470-6.3 M 11L SME
C820 87-A12-492-080 CAP,CER 1000P-500 K B Y5P
C821 87-010-389-090 CAP,E 2200-25 M SME
C825 87-010-387-080 CAP,E 470-25 M 11L SME
C830 87-012-386-010 CAP,CER 470P-2K K BN DE
C831 87-016-373-080 CAP,E 10-250 M SME
C832 87-010-397-090 CAP,E 1000-35 M SME
C833 87-016-515-080 CAP,CER 1000P-1K K B DE
C835 87-010-385-080 CAP,E 220-25 M SME
C837 87-010-405-080 CAP,E 10-50 M 11L SME
C838 87-A10-832-010 CAP,CER 1000P-1K K R LONG
C839 87-010-405-080 CAP,E 10-50 M 1LL SME
C840 87-A10-733-090 CAP,E 220-160 SK
C841 87-A10-832-010 CAP,CER 1000P-1K K R LONG
C997 87-018-150-080 CAP,TC U 18P-50 J CH
CF203 87-A90-223-080 FLTR, SFSH6.0MCB
CF205 87-008-578-080 FLTR,TPS6.5MB2
CF206 87-008-577-080 FLTR,TPS5.5MB2
CN301 84-LB2-631-010 CONN ASSY,5P TN-4
CN801 84-LB3-690-110 CONN ASSY,4P TN-1
D5 87-070-110-010 LED,SLP-181B-51 RED
DL301 84-LB3-638-010 DL,ADL-CP144E
DL302 87-A90-370-010 DELAY LINE,ELB10Z334
F801 87-035-458-010 FUSE,4A 250V T 218
FB802 87-003-223-080 F-BEAD,BL02RN2
FC801 87-033-213-080 FUSE CLAMP,PFC5000
FC802 87-033-213-080 FUSE CLAMP,PFC5000
ICP801 87-001-132-080 PROTECTOR,IC ICP-N38
J401 87-A60-322-110 JACK,PIN 3P Y-W-R W/SW
J402 87-A60-324-110 JACK,PIN 6P Y-W-R W/SW
J403 87-A60-420-010 JACK,3.5 ST (MSC)
L1 87-003-152-080 COIL, 100UH J LAL02
L101 87-005-481-080 COIL,47UH J FLR50
L206 87-003-144-080 COIL,6.8UH K LAL02
L207 87-003-102-080 COIL,10UH J LAL02
L210 86-LB7-656-010 COIL,VCO 38.0MHZ LA7565N
L221 87-003-102-080 COIL,10UH J LAL02
L301 84-LB3-668-010 FLTR,SECAM DET
L302 84-LB3-668-010 FLTR,SECAM DET
L303 82-JT2-608-010 FLTR,DL PHASE
L304 87-003-145-080 COIL,8.2UH K LAL02
L305 82-JT2-611-010 FLTR, SECAM REF
L306 87-003-286-080 COIL,56UH J LAL02
L308 87-003-147-080 COIL,22UH J LAL02
L309 87-003-286-080 COIL,56UH J LAL02
L310 87-005-473-080 COIL,10UH J FLR50
L601 86-LB3-620-010 COIL,ELC16B181L H SIZE
L801 87-005-770-080 COIL, 47UH K #7607
L803 87-JBD-625-010 DGC,20 15 OHM
L804 82-226-689-080 COIL, 2.2MH J TL08
LF802 84-LB3-670-010 FLTR,LINE HL-24-822
PN401 87-049-469-010 CONN,4P V
PN601 87-099-675-010 CONN,5P V V
PN801 82-481-649-010 PLUG,2P MINI(*)
PN802 87-099-674-010 CONN,2P VA V
PS802 87-A30-096-010 P-TR,TLP721F
PT801 86-LB4-655-010 PT,KER S/W TRANS(‘20’)
R102 87-A00-164-090 RES,M/F 12K-2W J RSF(S)
R326 87-A00-067-090 RES,M/F 6.8K-3W J
R405 87-A00-143-090 RES,M/F 1.0-1W J RSF(S)
R412 87-025-597-090 RES,M/F 220-1W J
R413 87-025-597-090 RES,M/F 220-1W J
R608 87-025-598-010 RES,CEM 2.2K-5W J
R616 87-A00-275-090 RES,FUSE 2.2K-1W JR TYPE
R801 87-A00-226-010 RES,CEM 2.7-10W K T
R802 87-A00-170-090 RES,M/F 82K-3W J RSF(S)
R806 87-A00-208-090 RES,M/F 22-1/2W
R809 87-A00-050-060 RES,FUSE 2.2-1W J R-TYPE
R811 87-A00-216-090 RES,M/F 0.33-2W J RSF(S)
R812 87-A00-224-090 RES,SD 8.2M-1W J CE
R818 87-A00-053-060 RES,FUSE 4.7-1W JR TYPE
R819 87-A00-246-090 RES, M/F 220-2W J RSF(S)
R821 87-A00-050-060 RES,FUSE 2.2-1W J R-TYPE
SFR1 87-024-438-080 SFR,220K H RH063MC
SFR2 87-024-357-080 SFR,100K EVN DJAA03
SFR201 87-024-354-080 SFR,22K EVN DJAA03
SFR301 87-024-349-080 SFR,1K EVN DJAA03
SFR302 87-024-349-080 SFR,1K EVN DJAA03
SFR501 87-024-356-080 SFR,47K EVN DJAA03
SP401 87-A91-412-010 SPKR,4*10 8OHM 5W
SP402 86-LBT-621-010 SPKR,4*10 8OHM 5W
SW2 87-036-267-080 SW,TACT SKHVBK
SW3 87-036-267-080 SW,TACT SKHVBK
SW4 87-036-267-080 SW,TACT SKHVBK
SW5 87-036-267-080 SW,TACT SKHVBK
SW6 87-036-267-080 SW,TACT SKHVBK
SW7 87-036-267-080 SW,TACT SKHVBK
SW801 87-A90-364-010 SW,PUSH SDDLB1-C-D-2
T601 84-LB3-651-010 TRANS,HD MS-101N
T602 84-LB2-606-010 FBT,HFL1530G
TH801 87-A90-830-010 POS-THMS,PTH451C463BF9ROQ270
TU101 86-LB7-653-010 TU UNIT,BT-AH458
X1 87-030-212-080 VIB,CER 8.000MHZ CST
X201 87-A70-043-010 VIB,CER 503KHZ CSBE5
X301 87-A70-054-080 VIB,XTAL 4.43MHZ AQC-1018
X302 87-030-327-010 VIB,CER 503.500KHZ CSB F30
X303 87-A70-007-080 VIB,XTAL 3.58MHZ AQC-1001
NK C.B
C551 87-A12-492-080 CAP,CER 1000P-500 K B Y5P
C552 87-016-037-060 CAP,CER 1000P-2K K B DE
C553 87-018-125-080 CAP,TC U 330P-50 K B UP050
C554 87-018-125-080 CAP,TC U 330P-50 K B UP050
C555 87-018-129-080 CAP,TC U 680P-50 K B UP050
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

– 6 –
KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
C557 87-010-405-080 CAP,TC E 10-50 M 11L SME
CN551 87-049-469-010 CONN,4P EH V WHT
CN552 87-049-590-010 CONN,5P V WHT 8283
CN553 87-099-672-010 CONN,1P V LV GRA
CN554 8Z-JB4-670-010 SOCKET,CRT 9P CVT3327 1603
L551 87-005-614-080 COIL,100UH J LAV35
R551 87-A00-041-060 RES,M/F 12K 2WJ LF
R552 87-A00-041-060 RES,M/F 12K 2WJ LF
R553 87-A00-041-060 RES,M/F 12K 2WJ LF
SFR551 87-024-522-080 SFR,4.7K V RH063LC
SFR552 87-024-522-080 SFR,4.7K V RH063LC
SFR553 87-024-522-080 SFR,4.7K V RH063LC
SFR554 87-024-519-080 SFR,470 V RH063LC
SFR555 87-024-519-080 SFR,470 V RH063LC
V551 86-LB3-601-010 CRT,A48LGS10X63N00
!

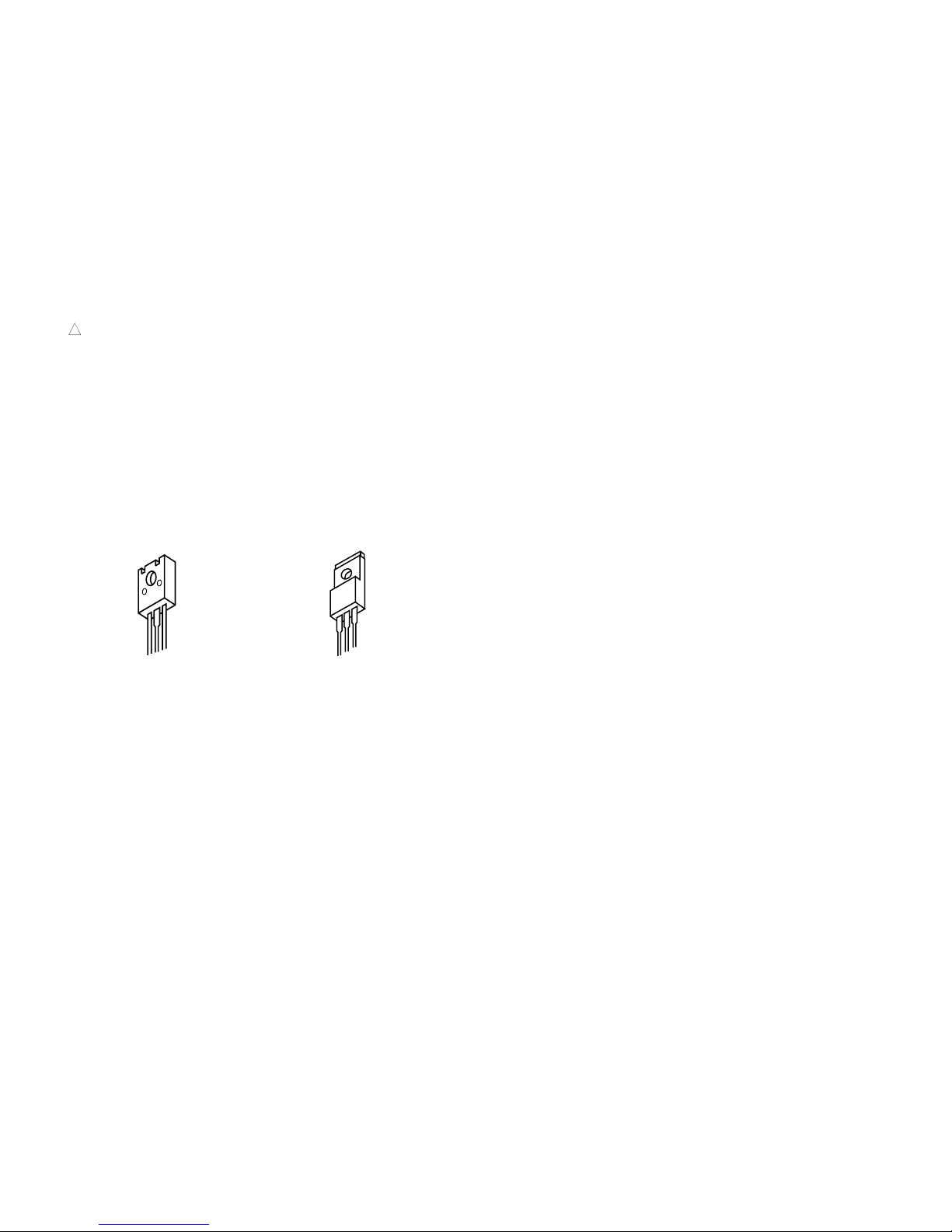

TRANSISTOR ILLUSTRATION
2SC4217
EC B B C E
2SD2499

WIRING (MAIN)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
 7 
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

 8 

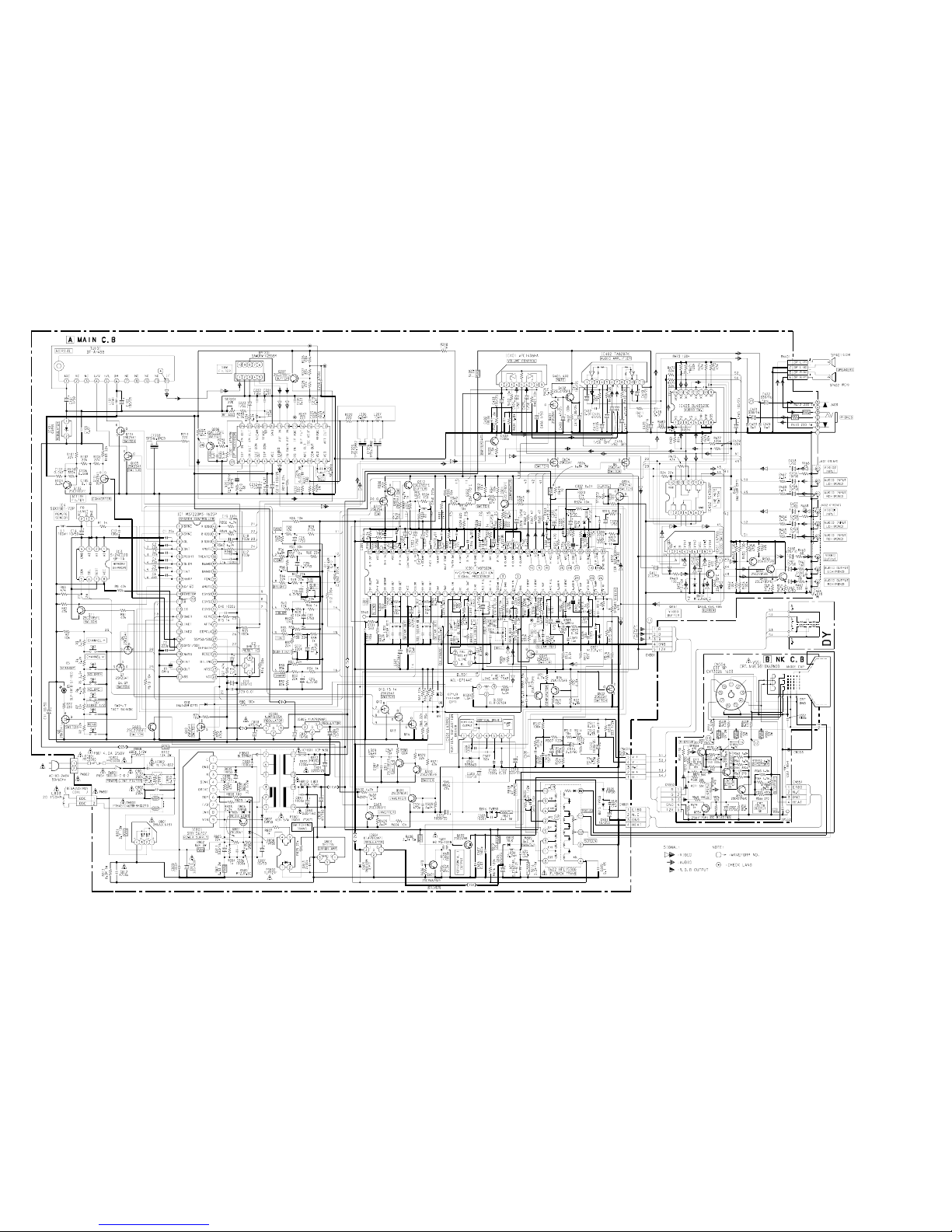

SCHEMATIC DIAGRAM (MAIN)

– 9–
MECHANICAL EXPLODED VIEW 1 / 1

– 10 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
MECHANICAL PART LIST 1 / 1
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
!
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
LA Aqua Blue GL Light Green
COLOR NAME TABLE
1 86-LB3-023-010 PANEL,FR A20S2
2 86-LBB-007-010 LENS,LED
3 86-LBB-008-010 LENS,RC
4 87-054-086-010 BADGE,AIWA 52.5
5 86-LB3-035-010 CABI,FR 2 GR
6 86-LB3-036-010 GRILLE,SPKR L GR
7 86-LB3-037-010 GRILLE,SPKR R GR
8 86-LBU-201-010 HLDR,AC CORD
9 87-A91-412-010 SPKR,F 4*10 8OHM 5W S0410J06
10 86-LB3-601-010 CRT,A48LGS10X63N00
11 87-JBD-625-010 DGC,20 15 OHM
12 84-LB3-205-010 SPR-E,EARTH
13 86-LB3-038-010 CABI,REAR TL
14 87-A90-848-010 HLDR,HV CABLE DIT
15 86-LBB-010-110 PANEL,REAR
16 86-LB7-694-010 AC CORD SET,KE2 BLK
17 88-JBJ-010-010 KEY,POWER ST
18 86-LBT-210-010 HLDR,FBT 2
19 84-LB2-025-010 PANEL,FOOT NH
A 87-067-758-010 BVT2+3-12 W/O SLOT
B 86-LBB-206-010 S-SCREW,ASSY TV5-40 W20
C 87-067-761-010 TAPPING SCREW, BVT2+3-10
D 87-067-844-010 BVT2+4-16 BLK
E 87-B10-071-010 BVT2+3-16 W/O SLOT B
F 87-067-680-010 BVI T3+3-10
!
!

– 11–
1 86-LB6-905-010 IB,KE (T) A20S2-T
2 86-LB2-953-010 RC UNIT,RC-6VT053 BLU
3 8Z-JB6-610-010 ANT ASSY,TV5 SEC.(PAL)
ACCESSORIES / PACKAGE LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]
Printed in Singapore9620450 0251431
