SERVICE MANUAL
DATA
COLOR TELEVISION
TV-C1300 UA
S/M Code No. 09-003-417-3C1
CORRECTION
• The Correction Service Manual is issued because of some errors
in Service Manual of MODEL NAME TV-C1300 (UA),
(S/M Code No. 09-99B-417-3R1).

– 2 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
8Z-JB1-621-010 IC,M37272M8-164SP
87-A90-297-010 RCR UNIT,SBX1981-52
87-A21-392-010 IC,S-93C66ADP-1A
87-A20-611-080 IC,M51943BSL-700A
87-A20-362-010 IC,LA7676D
87-A20-364-010 IC,KIA7809PI
87-A20-734-010 IC,TDA2007A
87-002-577-010 IC,LA7953
87-001-647-080 IC,NJM78L12A
87-002-524-010 IC,LA7837
87-017-956-010 IC,BA7611AN
87-A20-980-010 IC,STR-S6707N
87-020-881-080 IC,NJM78L05A
TRANSISTOR
87-A30-091-080 FET,2SJ460
89-111-755-080 TR,2SA1175F
89-327-854-080 TR,2SC2785F
89-337-794-580 TR,2SC3779D/E
87-A30-090-080 FET,2SK2541
87-A30-095-010 TR,2SD2333
89-334-674-580 TR,2SC3467D/E
87-A30-041-110 TR,SE115N
87-A30-005-010 TR,2SC2688M/L
DIODE
87-070-345-080 DIODE,IN4148
87-070-150-080 ZENER,MTZJ33D
87-070-274-080 DIODE,1N4003 SEM
87-A40-286-080 DIODE,RGP10JE-5025
87-A40-690-080 ZENER,MTZJ11B
87-A40-004-080 ZENER,MTZJ16A
87-A40-328-010 DIODE,GBU4JL
87-A40-286-050 DIODE,RGP10JE-5025
87-A40-450-090 DIODE,RU1P
87-A40-354-090 DIODE,UF3GL-6251
87-A40-440-080 ZENER,MTZJ7.5A

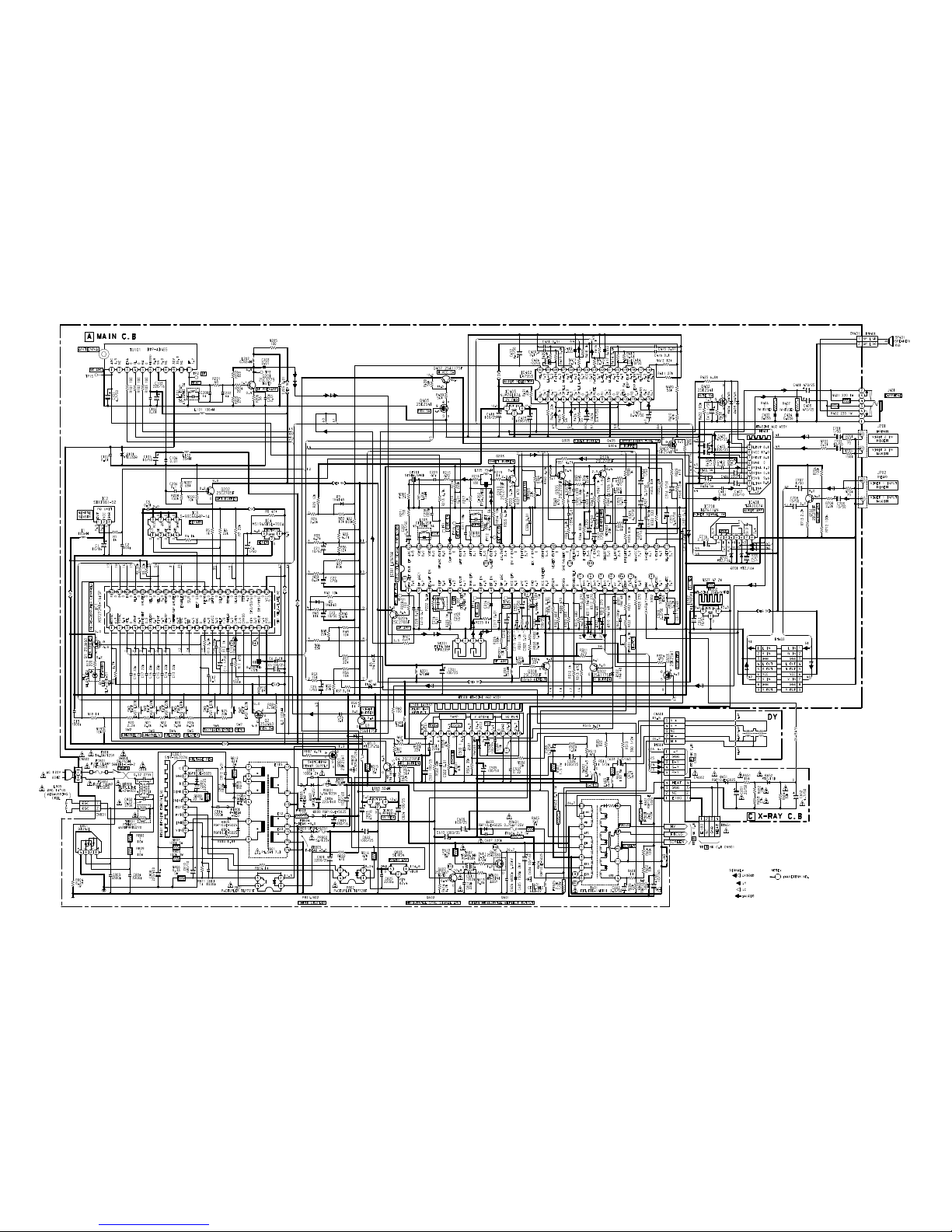

MAIN C.B
BT301 87-JBG-625-010 CONN ASSY,5P V WHT TV-NK
BT401 8Z-JBJ-606-010 CONN ASSY,2P V W SPMONO
BT403 87-JBC-624-010 CONN ASSY,9P V JK
C1 87-016-624-080 CAP,E 10-16 SSL
C2 87-018-119-080 CAP,CER 100P-50V
C3 87-018-134-080 CAPACITOR,TC-U 0.01-16
C4 87-016-633-080 CAP,E 1-50 SSL
C5 87-016-583-080 CAP,E 100-25 SSL
C6 87-018-134-080 CAPACITOR,TC-U 0.01-16
C9 87-018-128-080 CAP,CERA-SOL SS 560P
C10 87-018-131-080 CAP,CER 1000P-50V
C11 87-016-633-080 CAP,E 1-50 SSL
C12 87-018-209-080 CAP,CER 0.1-50V
C13 87-018-109-080 CAP,CER 22P-50V
C14 87-018-109-080 CAP,CER 22P-50V
C15 87-018-109-080 CAP,CER 22P-50V
C16 87-018-109-080 CAP,CER 22P-50V
C17 87-018-109-080 CAP,CER 22P-50V
C18 87-018-109-080 CAP,CER 22P-50V
C19 87-018-131-080 CAP,CER 1000P-50V
C21 87-016-637-080 CAP,E 10-50 SSL
C22 87-016-633-080 CAP,E 1-50 SSL
C23 87-016-637-080 CAP,E 10-50 SSL
C25 87-016-633-080 CAP,E 1-50 SSL
C26 87-018-209-080 CAP,CER 0.1-50V
C29 87-018-123-080 CAP,CER 220P-50V
C101 87-016-636-080 CAP,E 4.7-50 SSL
C102 87-018-134-080 CAPACITOR,TC-U 0.01-16
C103 87-016-575-080 CAP,E 220-16 SSL
C105 87-016-637-080 CAP,E 10-50 SSL
C106 87-018-134-080 CAPACITOR,TC-U 0.01-16
C107 87-A10-207-080 CAP,TCS 0.01-50 KB UP050
C203 87-018-134-080 CAPACITOR,TC-U 0.01-16
C204 87-018-134-080 CAPACITOR,TC-U 0.01-16
C205 87-018-134-080 CAPACITOR,TC-U 0.01-16
C207 87-016-632-080 CAP,E 0.47-50 SSL
C208 87-018-131-080 CAP,CER 1000P-50V
C210 87-018-134-080 CAPACITOR,TC-U 0.01-16
C211 87-A10-585-080 CAP,CER 18P-50 J CH
C214 87-018-134-080 CAPACITOR,TC-U 0.01-16
C215 87-016-637-080 CAP,E 10-50 SSL
C216 87-018-134-080 CAPACITOR,TC-U 0.01-16
C218 87-016-583-080 CAP,E 100-25 SSL
C219 87-018-134-080 CAPACITOR,TC-U 0.01-16
C301 87-016-583-080 CAP,E 100-25 SSL
C302 87-016-632-080 CAP,E 0.47-50 SSL
C303 87-018-134-080 CAPACITOR,TC-U 0.01-16
C305 87-016-583-080 CAP,E 100-25 SSL
C306 87-018-134-080 CAPACITOR,TC-U 0.01-16
C309 87-016-634-080 CAP,E 2.2-50 SSL
C312 87-016-637-080 CAP,E 10-50 SSL
C314 87-018-125-080 CAP,CER 330P-50V
C315 87-016-632-080 CAP,E 0.47-50 SSL
C316 87-016-633-080 CAP,E 1-50 SSL
C319 87-018-130-080 CAP,TC-U 820P-50 B
C320 87-016-627-080 CAP,E 47-16 SSL
C321 87-016-634-080 CAP,E 2.2-50 SSL
C322 87-016-633-080 CAP,E 1-50 SSL
C323 87-016-636-080 CAP,E 4.7-50 SSL
C325 87-018-134-080 CAPACITOR,TC-U 0.01-16
C326 87-018-113-080 CAP,CER 33P-50V
C327 87-016-633-080 CAP,E 1-50 SSL
C328 87-018-115-080 CAP,CER 47P-50V
C329 87-016-637-080 CAP,E 10-50 SSL
C330 87-018-194-080 CAP,TC-U 91P-50 B
C332 87-018-134-080 CAPACITOR,TC-U 0.01-16
C333 87-018-118-080 CAP,TC-U 82P-50 B
C334 87-018-134-080 CAPACITOR,TC-U 0.01-16
C336 87-018-134-080 CAPACITOR,TC-U 0.01-16
C337 87-018-134-080 CAPACITOR,TC-U 0.01-16
C401 87-016-586-080 CAP,E 470-25 SSL
C403 87-016-586-080 CAP,E 470-25 SSL
C405 87-A10-776-080 CAP,E 1000-25 M 105 KMG
C406 87-016-621-080 CAP,E 220-10 SSL
C407 87-016-621-080 CAP,E 220-10 SSL
C408 87-016-627-080 CAP,E 47-16 SSL
C412 87-016-633-080 CAP,E 1-50 SSL
C414 87-016-637-080 CAP,E 10-50 SSL
C418 87-016-583-080 CAP,E 100-25 SSL
C422 87-016-636-080 CAP,E 4.7-50 SSL
C423 87-A10-831-080 CAP,E 1000-25 M SMG
C424 87-016-632-080 CAP,E 0.47-50 SSL
C425 87-016-632-080 CAP,E 0.47-50 SSL
C426 87-016-637-080 CAP,E 10-50 SSL
C427 87-016-586-080 CAP,E 470-25 SSL
C501 87-016-583-080 CAP,E 100-25 SSL
C504 87-016-591-080 CAP,E 100-35 SSL
C505 87-016-149-080 CAP,E 100-50 M 105 KME
C506 87-A10-367-080 CAP,CER 10P-500 J SL
C507 87-A10-402-080 CAP,M 0.22-100 J TF TYPE1
C508 87-016-634-080 CAP,E 2.2-50 SSL
C509 87-016-135-010 CAP,E 1000-25 M 105 KME
C511 87-018-123-080 CAP,CER 220P-50V
C601 87-016-596-080 CAP,E 10-160 SSL
C602 87-016-635-080 CAP,E 3.3-50 SSL
C603 87-A10-457-080 CAP,E 2.2-160 M SSL
!
!
!

– 3 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C604 87-016-597-080 CAP,E 22-160 SSL
C605 87-012-399-080 CAP,CER 1500P-2KBN
C606 87-A11-048-090 CAP,M/P 6800P-1.25K H PHS
C607 87-010-974-080 CAP,CER 220P-500 B
C609 87-016-583-080 CAP,E 100-25 SSL
C610 87-016-594-090 CAP,E 1000-35 M SSL
C611 87-010-976-080 CAP,CER 1000P-500 B
C612 87-010-974-080 CAP,CER 220P-500 B
C616 87-A10-674-090 CAP,M/P 0.47-250 J
C701 87-016-633-080 CAP,E 1-50 SSL
C702 87-016-637-080 CAP,E 10-50 SSL
C705 87-016-637-080 CAP,E 10-50 SSL
C707 87-016-633-080 CAP,E 1-50 SSL
C708 87-016-637-080 CAP,E 10-50 SSL
C715 87-016-633-080 CAP,E 1-50 SSL
C716 87-016-634-080 CAP,E 2.2-50 SSL
C801 87-A10-688-090 CAP,M/P 0.22-275 K(B81133)
C802 87-A10-688-090 CAP,M/P 0.22-275 K(B81133)
C808 87-A11-941-090 CAP,E 220-400 KMH(25.4*40)
C809 87-016-584-080 CAP,E 220-25 SSL
C810 87-A10-728-080 CAP,E 680-10 M LXV
C811 87-018-131-080 CAP,CER 1000P-50V
C812 87-A10-645-010 CAP,M/P 0.01-1K J MMH
C813 87-012-372-010 CAP,CER 1000P-2K
C814 87-A11-324-090 CAP,M/P 1000P-1.6K H ECWH(VB)
C815 87-012-397-010 CAP,CER 1000P-2K BN
C816 87-A10-731-090 CAP,E 220-160 M KMF
C817 87-A10-756-090 CAP,E 100-160 M KMF
C819 87-016-576-080 CAP,E 330-16 SSL
C821 87-016-588-090 CAP,E 2200-25 SSL
C822 87-016-587-090 CAP,E 1000-25 M SSL
C823 87-016-627-080 CAP,E 47-16 SSL
C824 87-016-583-080 CAP,E 100-25 SSL
C825 87-A10-469-080 CAP,CER 2200P-500 K B DD10
CF201 84-LB3-627-010 FLTR,SFSH 4.5MDB SIF
CF202 84-LB3-626-010 FLTR,TPS4.5MB2
CN401 87-099-043-010 CONN,2P EH
CN601 87-099-675-010 CONN,5P V V
CN801 87-099-454-010 CONN,2P TV-50 EYLET
CN802 87-099-674-010 CONN,2P VA V
D1 87-070-110-010 LED,SLP-181B-51 RED
F801 87-035-489-010 FUSE,4A 125V T237
FB801 87-003-320-080 F-BEAD,-9.0 FBR07HA121NB-00
FB802 87-003-320-080 F-BEAD,-9.0 FBR07HA121NB-00
FB803 87-003-320-080 F-BEAD,-9.0 FBR07HA121NB-00
FB804 87-003-320-080 F-BEAD,-9.0 FBR07HA121NB-00
FB805 87-003-320-080 F-BEAD,-9.0 FBR07HA121NB-00
FC801 87-033-213-080 FUSE CLAMP,PFC5000
FC802 87-033-213-080 FUSE CLAMP,PFC5000
FR601 87-A00-063-060 RES,FUSE 2.2-1/2W J R-TYPE
FR602 87-A00-052-060 RES,FUSE 3.9-1W J R-TYPE
FR604 87-A00-051-060 RES,FUSE 2.7-1W J R-TYPE
FR605 87-A00-049-060 RES,FUSE 2.2K-1/2WJ R-TYPE
FR801 87-A00-081-090 RES,FUSE 1-1/2W
HL1 84-LB3-216-010 HLDR,LED
J401 87-A60-420-010 JACK,3.5 ST(MSC)
J701 87-A60-321-010 JACK,PIN 2P BLK-Y
J702 8Z-JBJ-604-010 JACK,PIN 2P Y YKC-7181
L1 87-005-614-080 COIL,100UH LAV35 J
L2 87-005-614-080 COIL,100UH LAV35 J
L101 87-005-614-080 COIL,100UH LAV35 J
L102 87-005-608-080 COIL,33UH J LAV35
L201 84-LB2-684-010 COIL,TRAP 47.25MHZ SA
L202 87-003-140-080 COIL,0.82UH K LAL02
L203 84-LB2-681-010 COIL,VCO 45.75MHZ SA
L204 87-005-604-080 COIL,15UH J LAV35
L205 87-003-146-080 COIL,15UH LAL02
L206 84-LB2-682-010 COIL,AFT 45.75MHZ SA
L207 84-LB2-683-010 COIL,SIF 4.5MHZ SA
L208 87-005-485-080 COIL,100UH J FLR50
L301 87-003-051-080 COIL,470UH
L303 87-003-149-080 COIL,47UH
L304 87-003-147-080 COIL,22UH
L305 87-003-295-080 COIL,10UH
L306 87-003-147-080 COIL,22UH
L501 87-005-608-080 COIL,33UH J LAV35
L601 86-LBN-623-010 COIL,HLC 6LB-22
L603 87-A50-040-010 COIL,2.2MH
L802 87-A50-170-010 COIL,390UH RCH106
L803 87-005-608-080 COIL,33UH J LAV35
LF801 84-LB3-670-010 FLTR,LINE HL-24-822
P801 87-A30-096-010 P-COUPLER,TLP721F
P802 87-A30-096-010 P-COUPLER,TLP721F
PR601 87-035-495-080 FUSE,0.75A 125V F 251
PR801 87-A90-409-080 FUSE,1.5A 125V A 251
PR802 87-026-690-080 FUSE,5A 125V 251
PR803 87-A91-526-080 FUSE,0.375A 125V F251
R327 87-A00-161-090 RES,M/F 47-2W J RSF(S)
R401 87-A00-150-090 RES,M/F 220-1W J RSF(S)
R402 87-A00-150-090 RES,M/F 220-1W J RSF(S)
R406 87-029-158-060 RES,FUSE 1-1W J
R407 87-029-158-060 RES,FUSE 1-1W J
R503 87-025-429-080 RES,M/F 47K-1/6W F
R507 87-A00-214-090 RES,M/F 1.5-1W J RSF(S)
R603 87-A00-247-090 RES,M/F 100-3W J RSF
R605 87-A00-300-090 RES,M/F 2.2-1W J RSF(F)
R610 87-A00-225-090 RES,M/F 2.2K-5W J RSV5
R611 87-A00-196-090 RES,M/F 0.47-1/2W J RSF(S)
R804 87-A00-224-090 RES,SD 8.2M-1W J CE
R805 87-A00-333-090 RES,M/F 100K-3W J RSS
R806 87-A00-287-090 RES,CEM 0.33-5W K RGC5
R807 87-A00-333-090 RES,M/F 100K-3W J RSS
R808 87-A00-243-090 RES,M/F 22-1W J RSF(S)
R809 87-A00-332-090 RES,CEM 1-10W J RGC
R810 87-A00-332-090 RES,CEM 1-10W J RGC
R812 87-A00-170-090 RES,M/F 82K-3W J RSF(S)
R815 87-A00-199-090 RES,M/F 12K-3W J RSF(S)
R816 87-A00-223-090 RES,M/F 47K-2W J RSF(S)
SF201 87-A90-694-010 FLTR,SAW TSF1239P
SFR201 87-024-433-080 SFR,10K H RH063MC
SFR301 87-024-432-080 SFR,4.7K H RH063MC
SFR302 87-024-434-080 SFR,22K H RH063MC
SFR303 87-024-434-080 SFR,22K H RH063MC
SFR501 87-024-587-080 SFR,47K DIA6 EVM
SW2 87-A90-712-080 SW,TACT EVQ11L07K
SW3 87-A90-712-080 SW,TACT EVQ11L07K
SW4 87-A90-712-080 SW,TACT EVQ11L07K
SW5 87-A90-712-080 SW,TACT EVQ11L07K
SW6 87-A90-712-080 SW,TACT EVQ11L07K
SW7 87-A90-712-080 SW,TACT EVQ11L07K
SW501 87-A90-567-010 SW,LVR 4-1-3 EVQRAAL10
SW801 87-A90-364-010 SW,PUSH SDDLB1-C-D-2
T601 84-LB3-607-010 FBT,FTK-14B011
T602 84-LB3-651-010 TRANS,HD MS-101N
T801 87-JBC-627-110 PT,SWT 7JB
TH801 87-A90-830-010 POS-THMS,PTH451C463BF9R0Q270
TU101 87-A90-660-010 TU UNIT,BTP-AB455
X1 87-030-212-080 VIB,CER 8.000MHZ CST
X301 87-A70-007-080 VIB,XTAL 3.58MHZ AQC-1001
X302 87-A70-017-010 VIB,CER 503KHZ F45

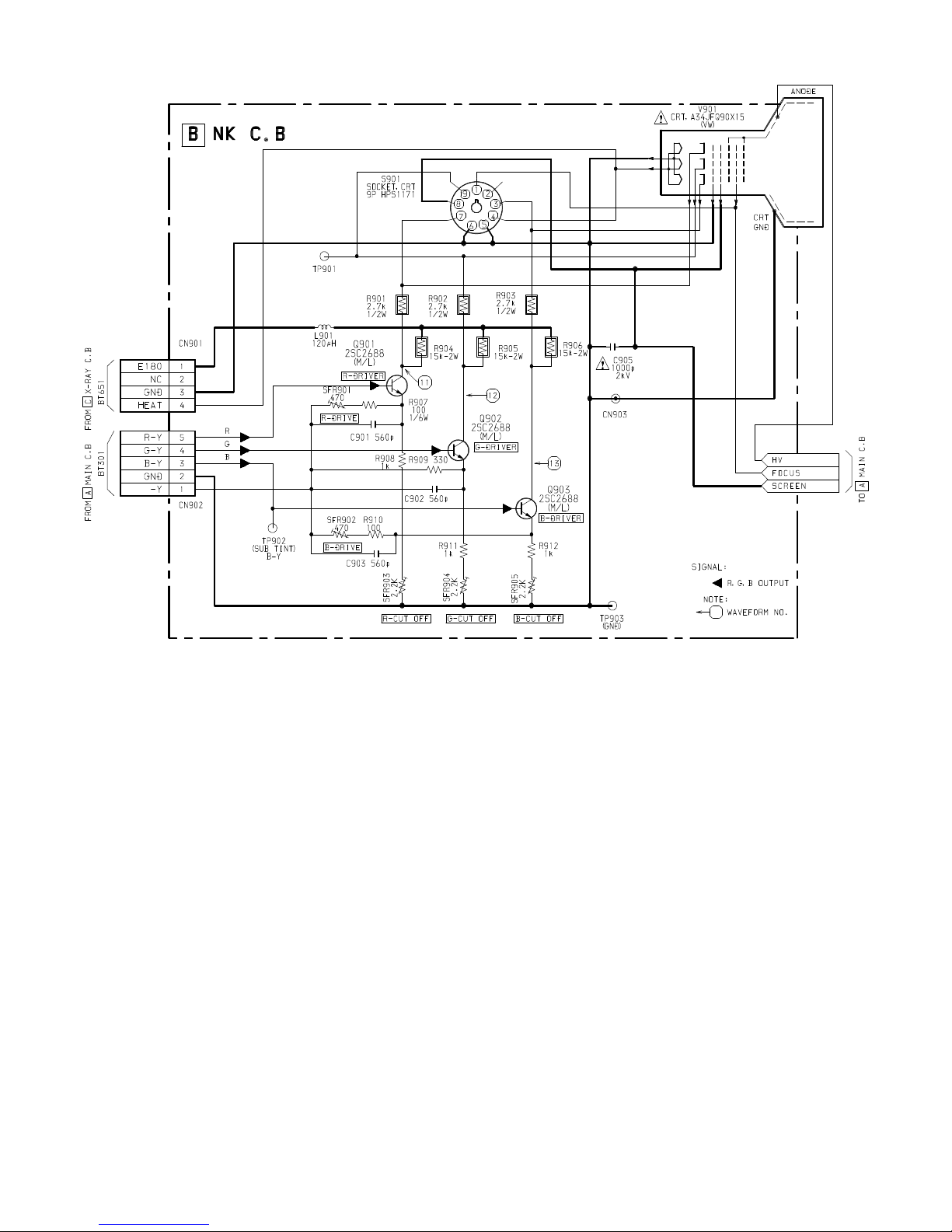

NK C.B
C901 87-018-128-080 CAP,CERA-SOL SS 560P
C902 87-018-128-080 CAP,CERA-SOL SS 560P
C903 87-018-128-080 CAP,CERA-SOL SS 560P
C905 87-012-397-010 CAP,CER 1000P-2K BN
CN901 87-049-469-010 CONN,4P V
CN902 87-009-033-010 CONN,5P
CN903 87-A60-485-010 CONN,2P V LV GRA
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

– 4 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
L901 87-005-615-080 COIL,120UH J LAV35
R904 87-A00-165-090 RES,M/F 15K-2W J RSF(S)
R905 87-A00-165-090 RES,M/F 15K-2W J RSF(S)
R906 87-A00-165-090 RES,M/F 15K-2W J RSF(S)
R907 87-025-355-080 RES,M/F 100-1/6W F
S901 84-LB3-610-010 SOCKET,CRT HPS1171
SFR901 87-024-519-080 SFR,470 DIA6 V NTP
SFR902 87-024-519-080 SFR,470 DIA6 V NTP
SFR903 87-024-521-080 SFR,2.2K DIA6 V NTP
SFR904 87-024-521-080 SFR,2.2K DIA6 V NTP
SFR905 87-024-521-080 SFR,2.2K DIA6 V NTP
X-RAY C.B
BT651 87-JBG-626-010 CONN ASSY,4P V WHT TV-NK
C651 87-016-638-080 CAP,E 22-50 SSL
C652 87-016-636-080 CAP,E 4.7-50 SSL
CN602 8Z-JB1-610-010 CONN,4P TXX B TO B
R651 87-025-380-080 RES,M/F 15K-1/6W F
R652 87-025-381-080 RES,M/F 18K-1/6W F
R653 88-121-273-080 RES,27K-1/8W J
R654 88-121-333-080 RES,33K-1/8WJ
!
!
!
!
!
!
!
!
Safety Components Symbol
This symbol is given to important parts which serve to maintain the safety of the product, and which
are made to confirm to special Safety Specifications.
Therefore, when replacing a component with this symbol make absolutely sure that you use a
designated part.
!

– 5 –
SCHEMATIC DIAGRAM – 1 (MAIN / X–RAY)

– 6 –
SCHEMATIC DIAGRAM – 2 (NK)

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]
Printed in Singapore9420025
