SERVICE MANUAL
COLOR TELEVISION
TV-CN140
NH
S/M Code No. 09-00B-418-7S2
SUPPLEMENT
•This Service Manual contains information about the difference between
TV-CN140(NH1AL) and TV-CN140(NH). If requiring other information,
see Service Manual of TV-CN140(NH), (S/M Code No. 09-99A-418-7R1).
DATA
– 2 –
SPECIFICATIONS
Tuner System Frequency synthesized tuner
TV System NTSC-M
Channel Coverage VHF: 2 to 13
UHF: 14 to 69
CATV: 5A, A-1 to A-5, A to W,
W+1 to W+84
Program Memory 181
Antenna Input 75 ohms, unbalanced
Picture Tube 13"
Screen Size 208 (W) X 211 (H) mm (111/8x 83/8in.)
335 mm (diagonal) (131/4in.)
Video Input 1 Vp-p 75 ohms
Audio Input 0.5 Vrms., 33 kohms more
Speaker 76 mm (3 in.) round
• Design and specifications are subject to change without notice.
Operatiing Voltage 120 V AC, 60 Hz
Power Consumption 65 W
Earphone Jack Monaural-mini jack
Operating Temperature 5 °C – 40 °C
Operating Humidity 35 % – 80 %
Dimensions 378 (W) X 320 (H) X 363.5 (D) mm
(15 x 125/8x 143/8in.)
Weight 9.5kg (20.9 lbs.)
ACCESSORIES / PACKAGE LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 8Z-JBJ-904-210 IB,NH (E/S)CN140 -D
2 8Z-JBJ-953-010 RC UNIT,RC-ZVT10
3 87-A90-702-010 ANT ASSY,TV 5 SEC (NTSC)
KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 3 –
ELECTRICAL MAIN PARTS LIST
IC
8Z-JBH-622-010 IC,M37272M8-183SP
87-A91-538-010 RCR UNIT,SBX1981-72P
87-A21-378-010 IC,S24C04BDP-1A
87-A21-133-080 IC,BMR-0101D
8Z-JBJ-605-010 IC,TA1268N
87-A21-788-010 IC,KIA7809API
87-002-421-010 IC,NJM2233BL
87-A21-090-010 IC,LA4600
87-027-666-010 IC,TC4052BP
87-070-237-010 IC,LA7832
87-A21-290-010 IC,STR30110
TRANSISTOR
87-026-269-080 TR,DTA114ES
89-327-854-080 TR,2SC2785F
89-111-755-080 TR,2SA1175F
89-110-154-080 TR,2SA1015Y
87-026-245-080 TR,DTC114ES
89-418-771-060 TR,2SD1877
87-A30-176-010 TR,2SC1573A P/Q/R
89-320-012-080 TR,2SC2001L
DIODE
87-017-931-080 ZENER,MTZJ5.6B
87-002-743-080 ZENER,MTZJ 33B
87-070-136-080 ZENER,MTZJ5.1B
87-A40-523-080 ZENER,MTZJ9.1B
87-A40-348-080 ZENER,MTZJ3.3A
87-A40-611-080 ZENER,MTZJ3.9B
87-020-465-080 DIODE,1SS133 (110MA)
87-A40-520-080 ZENER,MTZJ11B
87-A40-286-080 DIODE,RGP10JE-5025
87-070-274-080 DIODE,1N4003 SEM
87-A40-444-080 ZENER,MTZJ20B
87-A40-328-010 DIODE,GBU4JL
MAIN C.B
BT301 87-JBC-625-010 CONN ASSY,5P V WHT TV-NK
BT401 8Z-JBJ-606-010 CONN ASSY,2P V W SPMONO
BT601 87-JBG-626-010 CONN ASSY,4P V WHT TV-NK
C1 87-010-033-080 CAP,E 10-16 M BK
C2 87-018-134-080 CAPACITOR,TC-U 0.01-16
C3 87-018-134-080 CAPACITOR,TC-U 0.01-16
C4 87-018-196-080 CAP, CER 1500P-16V
C5 87-A12-087-080 CAP,E 1-50 SMG
C7 87-A12-063-080 CAP,E 220-10 SMG
C15 87-018-123-080 CAP, CER 220P-50V
C16 87-A12-087-080 CAP,E 1-50 SMG
C17 87-018-131-080 CAP, CER 1000P-50V
C18 87-018-128-080 CAP, CERA-SOL SS 560P
C19 87-A12-083-080 CAP,E 0.1-50 SMG
C23 87-018-123-080 CAP, CER 220P-50V
C24 87-018-131-080 CAP, CER 1000P-50V
C101 87-A12-090-080 CAP,E 4.7-50 SMG
C104 87-A12-063-080 CAP,E 220-10 SMG
C201 87-018-134-080 CAPACITOR,TC-U 0.01-16
C202 87-018-134-080 CAPACITOR,TC-U 0.01-16
C203 87-A12-086-080 CAP,E 0.47-50 SMG
C204 87-018-134-080 CAPACITOR,TC-U 0.01-16
C205 87-A12-068-080 CAP,E 470-16 SMG
C206 87-A10-287-080 CAP,M 2200P-50 J
C207 87-A12-086-080 CAP,E 0.47-50 SMG
C208 87-018-134-080 CAPACITOR,TC-U 0.01-16
C209 87-A12-066-080 CAP,E 47-16 SMG
C210 87-018-115-080 CAP, CER 47P-50V
C211 87-018-115-080 CAP, CER 47P-50V
C213 87-A10-326-080 CAP,M 3300P-50 K
C214 87-A12-086-080 CAP,E 0.47-50 SMG
C301 87-010-378-080 CAP,E 10-16 M SME
C302 87-010-378-080 CAP,E 10-16 M SME
C303 87-010-378-080 CAP,E 10-16 M SME
C304 87-A12-091-080 CAP,E 10-50 SMG
C305 87-018-134-080 CAPACITOR,TC-U 0.01-16
C306 87-A12-086-080 CAP,E 100-10 SMG
C307 87-A10-299-080 CAP,M 0.022-50 J
C308 87-A12-086-080 CAP,E 0.47-50 SMG
C309 87-018-147-080 CAP,TC-U 10P-50 CH
C310 87-018-119-080 CAP, CER 100P-50V
C311 87-A11-148-080 CAP, TCU 0.1-50 ZF
C312 87-A11-148-080 CAP, TCU 0.1-50 ZF
C313 87-A11-148-080 CAP, TCU 0.1-50 ZF
C314 87-018-134-080 CAPACITOR,TC-U 0.01-16
C315 87-018-131-080 CAP, CER 1000P-50V
C316 87-A10-378-080 CAP,E 2.2-50 K SH
C317 87-A12-088-080 CAP,E 2.2-50 SMG
C318 87-018-134-080 CAPACITOR,TC-U 0.01-16
C319 87-016-251-080 CAP,E 220-16 SMG
C320 87-018-196-080 CAP, CER 1500P-16V
C321 87-A12-090-080 CAP,E 4.7-50 SMG
C323 87-010-379-080 CAP,E 22-16 SME
C324 87-A12-086-080 CAP,E 0.47-50 SMG
C325 87-A12-086-080 CAP,E 0.47-50 SMG
C328 87-010-033-080 CAP,E 10-16 M BK
C330 87-A12-087-080 CAP,E 1-50 SMG
C332 87-018-134-080 CAPACITOR,TC-U 0.01-16
C334 87-018-134-080 CAPACITOR,TC-U 0.01-16
C335 87-A10-918-080 CAP,E 100-16 SMG
C336 87-A11-148-080 CAP,TCU 0.1-50 ZF
C338 87-A12-086-080 CAP,E 0.47-50 SMG
C342 87-A12-087-080 CAP,E 1-50 SMG
C343 87-018-131-080 CAP, CER 1000P-50V
C402 87-A12-068-080 CAP,E 470-16 SMG
C403 87-A12-068-080 CAP,E 470-16 SMG
C404 87-A10-918-080 CAP,E 100-16 SMG
C405 87-A12-090-080 CAP,E 4.7-50 SMG
C406 87-A12-084-080 CAP,E 0.22-50 SMG
C410 87-010-378-080 CAP,E 10-16 M SME
C411 87-010-378-080 CAP,E 10-16 M SME
C413 87-010-378-080 CAP,E 10-16 M SME
C501 87-A12-373-080 CAP,M 0.056-100 J CP
C502 87-A10-831-080 CAP,E 1000-25 M SMG
C503 87-A12-087-080 CAP,E 1-50 SMG
C504 87-A12-087-080 CAP,E 1-50 SMG
C508 87-A10-469-080 CAP,CER 2200P-500 K B DD10
C510 87-018-131-080 CAP, CER 1000P-50V
C511 87-A12-079-080 CAP,E 100-35 SMG
C512 87-018-127-080 CAP, CER 470P-50V
C601 87-016-373-080 CAP,E 10-250 M SME
C603 87-010-974-080 CAP,CER 220P-500 B
C604 87-010-396-080 CAP,E 470-35 SME
C605 87-A10-831-090 CAP,E 1000-25 SMG
C606 8Z-JBH-625-010 CAP,M/P 0.39-250 J A TYPE
C607 87-A11-320-090 CAP,E 47-160 M 105 YXA
C608 87-012-397-010 CAP,CER 1000P-2K K BN DE
C609 87-A11-169-010 CAP,M/P 5600P-1.6K J DKR
C610 87-010-974-080 CAP,CER 220P-500 B
C611 87-010-974-080 CAP,CER 220P-500 B
C612 87-010-378-080 CAP,E 10-16 M SME
C613 87-A12-088-080 CAP,E 2.2-50 SMG
C617 87-016-215-080 CAP,E 1-160 M TWSS
C801 87-A10-374-010 CAP,M/P 0.1-275 K RMR
C804 87-A10-374-010 CAP,M/P 0.1-275 K RMR
C807 87-A10-831-090 CAP,E 1000-25 SMG
C808 87-A12-071-080 CAP,E 47-25 SMG
C809 87-A11-148-080 CAP,TC U 0.1-50 ZF
!
!
!
!
!
!
KANRI
NO.
REF. NO. DESCRIPTIONPART NO.KANRI
NO.
REF. NO. DESCRIPTIONPART NO.
– 4 –
C810 87-010-405-080 CAP,E 10-25 SME
C811 87-A10-867-090 CAP,CER 2200P-2K K R
C812 87-A10-867-090 CAP,CER 2200P-2K K R
C813 87-016-094-010 CAP,E 470-200 SMH
C815 87-A11-319-080 CAP,E 22-160 M 105 YXA
C816 87-012-388-010 CAP,CER 2200P-125 UL
C817 87-A11-319-080 CAP,E 22-160 M 105 YXA
C818 87-A10-831-090 CAP,E 1000-25 SMG
CF201 84-LB3-626-010 FLTR,TPS4.5MB2
CF202 87-008-574-080 FLTR,SFSH4.5MCB
CN1 87-009-195-010 CONN,5P B5BEH
CN401 87-099-043-010 CONN 2P EH
CN601 87-A60-933-010 CONN,4P V B04(5-3)B-DVS-L
CN801 87-099-674-010 CONN,2P VA V
CN802 82-481-649-010 PLUG,2P MINI(*)
D5 87-070-110-010 LED,SLP-181B-51 RED
D820 8Z-JBH-606-010 VRIS,TNR15G271K
F801 87-035-489-010 FUSE,4A125V D UL
FB001 8Z-JBH-635-080 COIL,CORE BLOLRN1-A62
FB002 8Z-JBH-635-080 COIL,CORE BLOLRN1-A62
FB100 8Z-JBH-636-010 CF-BEAD,27-5.54F
FC801 87-A90-160-080 FUSE CLAMP,FC 51F
FC802 87-A90-160-080 FUSE CLAMP,FC 51F
FR401 87-A00-549-090 RES,FUSE 18-2W J
FR601 87-A00-063-060 RES,FUSE 2.2-1/2W J R-TYPE
FR602 87-A00-482-090 RES,FUSE 4.7-1W J
FR603 87-A00-056-060 RES,FUSE 1.5-2WJ R-TYPE
FR604 87-A00-050-060 RES,FUSE 2.2-1W J R-TYPE
FR605 87-029-175-060 RES FUSE,2.2K 1/2W J
J401 87-A60-321-010 JACK,PIN 2P BLK-Y
J402 8Z-JBJ-604-010 JACK,PIN 2P Y YKC-7181
J403 87-A60-420-010 JACK,3.5 ST (MSC)
L1 87-003-147-080 COIL 22UH LAV35 J
L2 87-005-614-080 COIL 100UH LAV35 J
L201 8Z-JBR-612-010 COIL,SIF 4.5MHZ 504BN
L203 87-003-148-080 COIL BIAS 33UH
L204 87-003-282-080 COIL,12UH
L205 8Z-JBH-610-010 COIL,PIF-SQ57EL349A 45.75MHZ
L206 87-005-612-080 COIL,68UH J LAV35
L602 87-A50-040-010 COIL,2.2MH
L604 8Z-JBH-619-010 COIL,CHOKE-ELC10D331E
L801 8Z-JBH-613-010 FLTR,LINE ELF18N016A
R107 87-A00-331-090 RES,M/F 27K-2W J RSF(S)
R110 87-A00-160-090 RES,M/F 33-2W J RSF(S)
R307 87-025-427-080 RES,M/F 27K-1/6W F
R309 87-025-425-080 RES,M/F 12K-1/6W F
R312 87-A00-356-090 RES,M/F 22-2W J RSS2X
R606 8Z-JBH-628-080 RES,M/F 0.47-1/2W K ERX 12SJ
R610 87-A00-561-090 RES,M/F 4.7K-2W J ERGS
R611 87-A00-123-090 RES,M/F 3.9K-2W J RSI-2S B
R624 87-A00-246-090 RES,M/F 220-2W J RSF(S)
R801 8Z-JBH-629-080 RES,SD 2.2M-1/2W K ERC 12UG
R809 87-A00-277-090 RES,CEM 2.2-10W J RGC
R811 87-A00-189-010 RES,CEM 220-15W J ZY
R816 87-025-425-080 RES,M/F 12K-1/6W F
RY801 87-A90-358-010 RELAY,12V LK1AF
SF201 8Z-JBH-633-010 FLTR,SAW M1969-US
SW1 87-A90-712-080 SW,TACT EVQ11L07K
SW2 87-A90-712-080 SW,TACT EVQ11L07K
SW3 87-A90-712-080 SW,TACT EVQ11L07K
SW4 87-A90-712-080 SW,TACT EVQ11L07K
SW5 87-A90-712-080 SW,TACT EVQ11L07K
SW6 87-A90-712-080 SW,TACT EVQ11L07K
SW7 87-A90-712-080 SW,TACT EVQ11L07K
T601 8Z-JBJ-601-010 FBT,US 14’MONO
T602 8Z-JBH-615-010 TRANS,US ETH09K10AZ
T603 8Z-JBH-612-010 FLTR,PULSE ELF15N005A
T801 8Z-JBH-614-010 PT,US TP8155T
TH801 87-A90-996-010 POS-THMS,S1481-B50-A10
TU101 8Z-JBE-610-010 TU UNIT,USA ENV56D74G3
X1 87-030-212-080 CERA LOCK CST8.0M
X301 87-A70-007-080 VIB,XTAL 3.58MHZ AQC-1001
X302 87-030-327-010 VIB,CER CSB503F30
NK C.B
BT903 84-LB3-693-210 CONN ASSY,1P CRT GND
C901 87-A10-833-090 CAP,CER 1000P-2K K R
C902 87-018-124-080 CAP, CER 270P-50V
C903 87-018-124-080 CAP, CER 270P-50V
C904 87-018-124-080 CAP, CER 270P-50V
C907 87-A12-068-080 CAP,E 470-16 SMG
C908 87-A12-068-080 CAP,E 470-16 SMG
CN901 87-049-469-010 CONN,4P V
CN902 87-009-033-010 CONNECTOR, 5P
CN903 87-A60-485-010 CONN,2P V LV GRA
L901 87-005-615-080 COIL,120UH J LAV35
R904 87-A00-165-090 RES,M/F 15K-2W J RSF(S)
R905 87-A00-165-090 RES,M/F 15K-2W J RSF(S)
R906 87-A00-165-090 RES,M/F 15K-2W J RSF(S)
S901 8Z-JB4-670-010 SOCKET,CRT 9P CVT3327 1603
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
WIRING 1 (MAIN)
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
5
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
– 6–

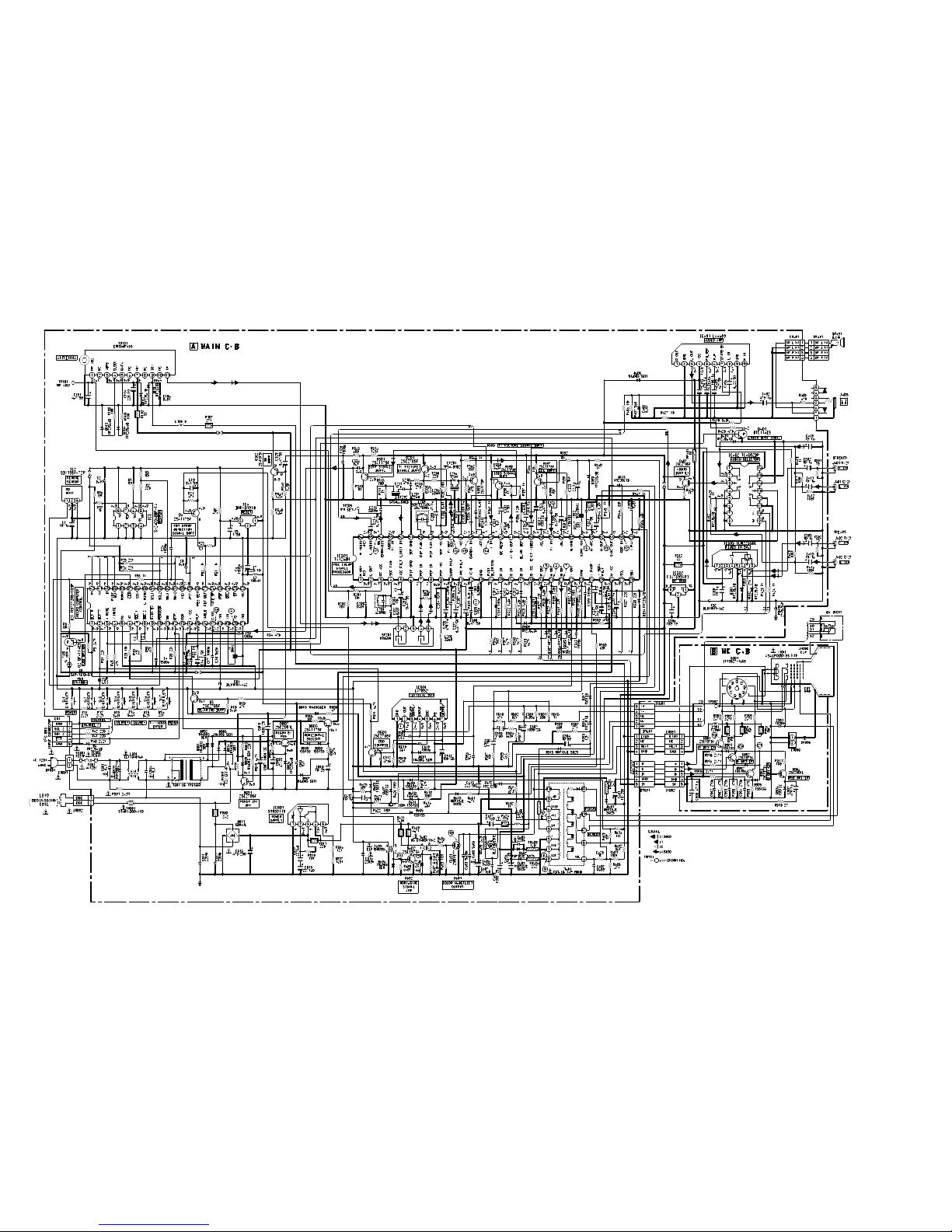

SCHEMATIC DIAGRAM (MAIN / NK)
WIRING – 2 (NK)
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
– 7 –
– 8–
MECHANICAL EXPLODED VIEW 1 / 1
a
a
6
B
F
A
F
8
A
9
10
12
PWB
PWB
14
15
D
16
D
C
C
11
3
13
17
A
7
18
12
4
5
E
F
– 9–
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
MECHANICAL PARTS LIST 1 / 1
1 8Z-JBJ-007-010 PANEL,CONTROL CN140
2 86-LBU-010-010 LENS,RC 2
3 8Z-JBJ-006-010 CABI,FR CN140
4 87-054-087-010 BADGE,AIWA 40
5 88-JBL-011-010 PLATE,FOOT ST
6 86-LBU-201-010 HLDR,AC CORD
7 87-JBC-628-010 AC CORD SET,NH BLK
8 84-LB3-216-010 HLDR,LED
9 84-LB3-046-010 LENS,LED
10 84-LB3-641-010 SP, F DIA 7.6
11 8Z-JBG-610-010 CRT,A34LRQ90X03(VW)
12 84-LB3-205-010 SPR-E,EARTH
13 84-LB3-693-010 CONN ASSY,IP CRT GND
14 8Z-JBH-609-010 DGC,14"US
15 86-LBU-002-510 CABI,REAR
16 8Z-JBJ-005-010 PLATE,JACK C131
17 87-A90-332-010 HLDR,SF-2001 HV CABLE
18 86-LB7-212-010 HLDR,FBT
A 87-067-680-010 BVI T3+3-10
B 87-067-758-010 BVT2+3-12 W/O SLOT
C 87-078-203-110 S-SCREW,W5-25
D 87-067-844-010 BVT2+4-16 BLK
E 87-067-761-010 TAPPING SCREW, BVT2+3-10
F 87-067-579-010 TAPPING SCREW, BVT2+3-8
!
!
!
!
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
LA Aqua Blue GL Light Green
2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111
Printed in Singapore9620450 0251431
Table of contents
Other Aiwa TV manuals
