Aiwa IC-M60 User manual

S E R V I C E M A N U A L
SIMPLE MANUAL
•Replace this Service Manual with ”Revision Publishing” when it is issued.
IC-M60
• TYPE: YU
S/M Code No. 09–993–401–0T1
IC RECORDER

ELECTRICAL MAIN PARTS LIST - 1/2
NOTE: The characters in the suffix column indicate the part usage.
YU .....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
88-HT2-604-010 PWB,FLEX 30P ....................
C 4 87-010-505-080 CA, CHIP TANTALUM 1-16 ....................
C 1 87-010-746-080 CAP, TANTAL 10-4 ....................
C 6 87-010-787-080 CAP, U 0.022-25 A...................
C 8 87-012-274-080 CHIP CAP,U 1000P-50B A...................
C 7 87-012-278-080 C-CAP,U 2200P-50 B A...................
C 5 87-012-280-080 CAP, U 3300P-50 A...................
C 9 87-016-090-080 C-CAP,TN4.7-6.3 ....................
C 3 87-016-090-080 C-CAP,TN4.7-6.3 ....................
C 2 87-A10-036-080 C-CAP,TN 47U-6.3 B2 ....................
C 10 87-010-747-080 CAP CHIP 22-4 ....................
C 16 87-010-770-080 C-CAP,TN100-4 ....................
C 18 87-012-286-080 CAP, U 0.01-25 A...................
C 15 87-016-461-080 C-CAP,S 0.47-16F A...................
C 14 87-016-461-080 C-CAP,S 0.47-16F A...................
C 17 87-A10-036-080 C-CAP,TN 47U-6.3 B2 ....................
C 11 87-A10-036-080 C-CAP,TN 47U-6.3 B2 ....................
C 19 87-A10-057-080 C-CAP,TN 100-4 F95 E ....................
C 13 87-A10-263-080 C-CAP,U 0.1-16ZF A...................
C 12 87-A10-263-080 C-CAP,U 0.1-16ZF A...................
C 24 87-012-286-080 CAP, U 0.01-25 A...................
C 21 87-012-286-080 CAP, U 0.01-25 A...................
C 23 87-A10-036-080 C-CAP,TN 47U-6.3 B2 ....................
C 20 87-A10-036-080 C-CAP,TN 47U-6.3 B2 ....................
C 22 87-A10-036-080 C-CAP,TN 47U-6.3 B2 ....................
C 26 87-A10-262-080 C-CAP,U 1-10 ZF A...................
C 25 87-A10-263-080 C-CAP,U 0.1-16ZF A...................
C 54 87-010-746-080 CAP, TANTAL 10-4 ....................
C 55 87-016-296-080 C-CAP,TN 22-4SV(A) ....................
CN 2 87-A60-559-080 C-CONN,30P H SFV2ST ....................
D 1 87-001-221-080 CHIP DIODEISS319 A...................
D 2 87-001-221-080 CHIP DIODEISS319 A...................
D 3 87-001-221-080 CHIP DIODEISS319 A...................
D 5 87-A40-460-040 C-DIODE,MA127 A...................
IC 1 87-A20-840-040 C-IC,NJM2076M ....................
IC 4 87-A20-847-040 C-IC,RH5RI333B ....................
IC 3 87-A20-848-040 C-IC,RH5RI303B ....................
IC 2 87-A20-848-040 C-IC,RH5RI303B ....................
IC 5 87-A20-956-010 C-IC,UPD7225GB-3B7 ....................
J 1 85-TM5-605-010 JACK,HSJ1456 ....................
L 2 87-003-184-080 C-COIL, 10UH K LQH3 A...................
L 8 87-003-184-080 C-COIL, 10UH K LQH3 A...................
L 5 87-003-184-080 C-COIL, 10UH K LQH3 A...................
L 6 87-003-188-080 COIL 22UH A...................
L 7 87-003-188-080 COIL 22UH A...................
L 4 87-A50-012-080 C-COIL,100UH LQH3C A...................
LCD 1 88-HT2-605-010 LCD, A...................
LED 1 87-A90-250-040 C-LED,SML-020MVT A...................
Q 4 89-112-134-080 TR,2SA1213Y (1W) A...................
Q 6 89-113-624-080 C-TR,2SA1362Y A...................
Q 5 89-113-624-080 C-TR,2SA1362Y A...................
Q 2 89-341-164-080 CHIP-TRANSISTOR,2SC4116 Y A...................
Q 3 89-341-164-080 CHIP-TRANSISTOR,2SC4116 Y A...................
Q 1 89-342-132-080 TR,2SC4213 ....................
Q 8 89-413-284-080 TR,2SD1328T A...................
Q 7 89-413-284-080 TR,2SD1328T A...................
Q 9 89-413-284-080 TR,2SD1328T A...................
Q 10 87-026-429-080 TR,RN2311 A...................
S 3 87-036-308-280 C-SW,TACT 112HST A...................
S 6 87-036-308-280 C-SW,TACT 112HST A...................
S 1 87-036-308-280 C-SW,TACT 112HST A...................
S 4 87-036-308-280 C-SW,TACT 112HST A...................
S 5 87-036-342-080 C-SW,TACT V ....................
S 2 87-036-342-080 C-SW,TACT V ....................
S 7 87-036-379-080 C-SW,SL 1-1-2 ....................
VR 1 87-024-680-010 VR,20KC N A...................
X 1 87-A70-110-010 VIB,XTAL 18432KHZ ....................
X 2 87-A70-111-010 VIB,XTAL 10.00MHZ ....................
87-A90-935-010 SPKR,36 8OHM 0.2W A...................
MIC 1 82-TP3-609-010 ECM ....................
C 28 87-A10-263-080 C-CAP,U 0.1-16ZF A...................
C 27 87-A10-263-080 C-CAP,U 0.1-16ZF A...................
C 29 87-A10-263-080 C-CAP,U 0.1-16ZF A...................
C 32 87-010-829-080 CAP, U 0.047-16 A...................
C 38 87-012-178-080 C-CAP,U 18P-50 CH A...................
C 37 87-012-178-080 C-CAP,U 18P-50 CH A...................
C 35 87-012-196-080 C-CAP,U 120P-50 CH A...................
C 34 87-012-270-080 CAP, U 470P-50 A...................
C 31 87-012-274-080 CHIP CAP,U 1000P-50B A...................
C 33 87-012-276-080 CAP, CHIP SS 1500 PBK A...................
C 36 87-012-280-080 CAP, U 3300P-50 A...................
C 30 87-A10-263-080 C-CAP,U 0.1-16ZF A...................
C 39 87-A10-263-080 C-CAP,U 0.1-16ZF A...................
C 44 87-012-172-080 CAPACITOR CHIP U 10P CH A...................
C 43 87-012-172-080 CAPACITOR CHIP U 10P CH A...................
C 47 87-012-286-080 CAP, U 0.01-25 A...................

ELECTRICAL MAIN PARTS LIST - 2/2
C 42 87-016-376-080 C-CAP,TN 47-6.3 F95E ....................
C 40 87-016-376-080 C-CAP,TN 47-6.3 F95E ....................
C 46 87-016-376-080 C-CAP,TN 47-6.3 F95E ....................
C 45 87-A10-263-080 C-CAP,U 0.1-16ZF A...................
C 49 87-A10-263-080 C-CAP,U 0.1-16ZF A...................
C 48 87-A10-263-080 C-CAP,U 0.1-16ZF A...................
C 41 87-A10-263-080 C-CAP,U 0.1-16ZF A...................
C 51 87-010-746-080 CAP, TANTAL 10-4 ....................
C 53 87-016-376-080 C-CAP,TN 47-6.3 F95E ....................
C 52 87-A10-263-080 C-CAP,U 0.1-16ZF A...................
C 50 87-A10-263-080 C-CAP,U 0.1-16ZF A...................
CN 1 87-A60-558-080 C-CONN,30P H SFV1ST ....................
D 4 87-001-142-080 DIODE,1SS294 (100MA) A...................
IC 9 87-001-794-080 IC,TC74HC157F * A...................
IC 8 87-A20-842-040 C-IC,TC7S14F A...................
IC 7 87-A20-868-040 C-IC,TC74HC245AF A...................
IC 6 87-A20-868-040 C-IC,TC74HC245AF A...................
IC 12 87-017-506-080 IC,PST600 JMT A...................
IC 10 87-A20-846-010 C-IC,KM62U256C ....................
IC 11 87-A20-849-110 C-IC,KM29V32000AT ....................
IC 14 87-A20-937-010 C-IC,LC85020E ....................
IC 13 87-A20-990-110 C-IC,HD6432243K07FA ....................
S 9 87-036-308-280 C-SW,TACT 112HST A...................
S 8 87-036-379-080 C-SW,SL 1-1-2 ....................
87-B30-133-010 BAT,LR6(K) 1P ....................
88-HT2-105-010 PANEL,FRONT ....................
88-HT2-124-010 PANEL,FRONT Y A...................
88-HT2-604-010 PWB,FLEX 30P A...................
C 4 87-010-505-080 CA, CHIP TANTALUM 1-16 A...................
C 1 87-010-746-080 CAP, TANTAL 10-4 A...................
C 3 87-016-090-080 C-CAP,TN4.7-6.3 A...................
C 9 87-016-090-080 C-CAP,TN4.7-6.3 A...................
C 2 87-A10-036-080 C-CAP,TN 47U-6.3 B2 A...................
C 10 87-010-747-080 CAP CHIP 22-4 A...................
C 16 87-010-770-080 C-CAP,TN100-4 A...................
C 17 87-A10-036-080 C-CAP,TN 47U-6.3 B2 A...................
C 11 87-A10-036-080 C-CAP,TN 47U-6.3 B2 A...................
C 19 87-A10-057-080 C-CAP,TN 100-4 F95 E A...................
C 22 87-A10-036-080 C-CAP,TN 47U-6.3 B2 A...................
C 20 87-A10-036-080 C-CAP,TN 47U-6.3 B2 A...................
C 23 87-A10-036-080 C-CAP,TN 47U-6.3 B2 A...................
C 46 87-016-376-080 C-CAP,TN 47-6.3 F95E A...................
C 42 87-016-376-080 C-CAP,TN 47-6.3 F95E A...................
C 40 87-016-376-080 C-CAP,TN 47-6.3 F95E A...................
C 54 87-010-746-080 CAP, TANTAL 10-4 A...................
C 51 87-010-746-080 CAP, TANTAL 10-4 A...................
C 55 87-016-296-080 C-CAP,TN 22-4SV(A) A...................
C 53 87-016-376-080 C-CAP,TN 47-6.3 F95E A...................
CN 1 87-A60-558-080 C-CONN,30P H SFV1ST A...................
CN 2 87-A60-559-080 C-CONN,30P H SFV2ST A...................
IC 1 87-A20-840-040 C-IC,NJM2076M A...................
IC 4 87-A20-847-040 C-IC,RH5RI333B A...................
IC 3 87-A20-848-040 C-IC,RH5RI303B A...................
IC 2 87-A20-848-040 C-IC,RH5RI303B A...................
IC 5 87-A20-956-010 C-IC,UPD7225GB-3B7 A...................
IC 10 87-A20-846-040 C-IC,KM62U256C A...................
IC 11 87-A20-849-110 C-IC,KM29V32000AT A...................
IC 14 87-A20-937-010 C-IC,LC85020E A...................
IC 13 87-A20-990-110 C-IC,HD6432243K07FA A...................
J 1 85-TM5-605-010 JACK,HSJ1456 A...................
MIC 1 82-TP3-609-010 ECM A...................
Q 1 89-342-132-080 TR,2SC4213 A...................
S 2 87-036-342-080 C-SW,TACT V A...................
S 5 87-036-342-080 C-SW,TACT V A...................
S 8 87-036-379-080 C-SW,SL 1-1-2 A...................
S 7 87-036-379-080 C-SW,SL 1-1-2 A...................
X 1 87-A70-110-010 VIB,XTAL 18432KHZ A...................
X 2 87-A70-111-010 VIB,XTAL 10.00MHZ A...................

MECHANICAL PARTS LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
YU .....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
88-HT2-101-110 CABI,FRONT ....................
88-HT2-102-110 CABI,REAR ....................
88-HT2-103-010 LID,BAT A...................
88-HT2-104-010 WINDOW,LCD ....................
88-HT2-105-010 PANEL,FRONT ....................
88-HT2-121-010 CABI,FRONT Y A...................
88-HT2-122-010 CABI,REAR Y A...................
88-HT2-123-010 WINDOW,LCD Y A...................
88-HT2-124-010 PANEL,FRONT Y ....................
88-HT2-106-010 BTN,PL/FF/REW A...................
88-HT2-107-010 BTN,REC A...................
88-HT2-108-110 BTN,STOP A...................
88-HT2-109-010 BTN,ERASE A...................
88-HT2-110-010 KNOB,SL HOLD A...................
88-HT2-111-110 KNOB,SL SPEED A...................
87-067-534-010 SCREW,VT-1.4-6 A...................
88-HT2-201-010 HLDR,PWB A...................
88-HT2-202-010 HLDR,LCD A...................
88-HT2-203-010 FRAME,LCD A...................
88-HT2-204-010 CONN, RUBBER LCD A...................
88-HT2-206-010 BAT-CONTACT,+ A...................
88-HT2-210-010 COVER, MIC A...................
88-HT2-220-010 BAT,CONT(-)K2 A...................
88-HT2-604-010 PWB,FLEX 30P ....................
87-A90-935-010 SPKR,36 8OHM 0.2W A...................
87-B30-133-010 BAT,LR6(K) 1P ....................
88-HT2-105-010 PANEL,FRONT ....................
88-HT2-124-010 PANEL,FRONT Y A...................
88-HT2-604-010 PWB,FLEX 30P A...................

ACCESSORIES / PACKAGE LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
YU .....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
88-HT2-901-110 IB,D ....................
88-HT2-903-110 IB,EX-EGF ....................
88-HT2-904-110 IB,EX-SID ....................
88-HT2-905-110 IB,EX-PHNCZ ....................
88-HT2-906-010 IB,D-C ....................
88-HT2-907-010 IB,EGF-C ....................
88-HT2-908-010 IB,SID-C ....................
88-HT2-909-010 IB,PHNCZ-C ....................
88-HT2-910-010 IB,U(3L)C A...................
88-HT2-911-010 IB,YJ(ESC)C ....................
87-B30-133-010 BAT,LR6(K) 1P ....................
87-PD3-050-010 STRAP,HAND A...................

SCHEMATIC DIAGRAM _1 (MAIN _A)

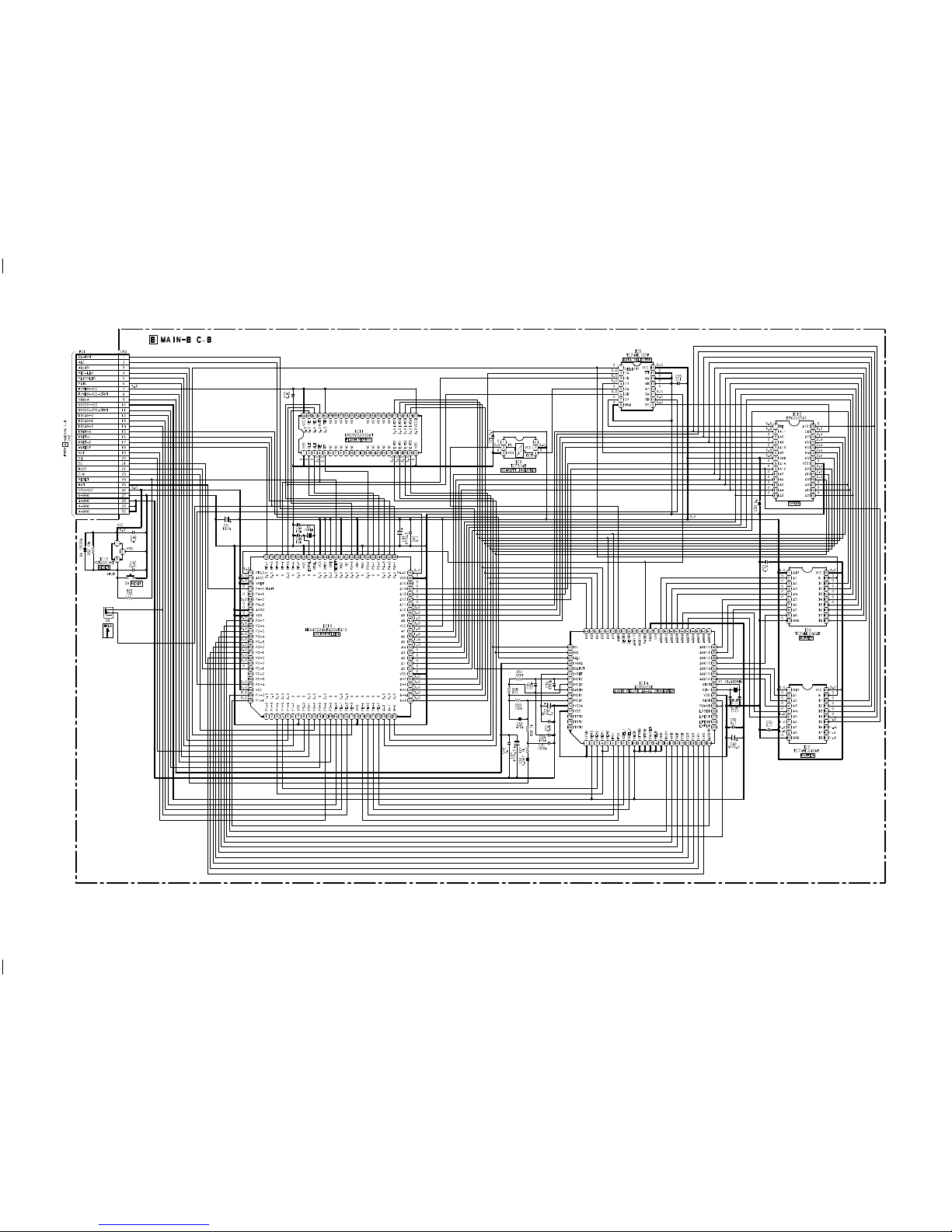

SCHEMATIC DIAGRAM _2 (MAIN _B)

PrintedinSingapore
Tokyo Japan
4
9420025
