S E R V I C E M A N U A L
SIMPLE MANUAL
•Replace this Service Manual with "Revision Publishing" when it is issued.
IC-M8
• TYPE: YH
S/M Code No. 09–98B–313–80A
IC RECORDER
ELECTRICAL MAIN PARTS LIST - 1/2
NOTE: The characters in the suffix column indicate the part usage.
YH .....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 4 87-012-286-080 0E CAP, U 0.01-25 A...................
C 7 87-012-286-080 0E CAP, U 0.01-25 A...................
C 3 87-012-287-080 0E C-CAP,U 0.015-25 F A...................
C 1 87-016-461-080 0E C-CAP,S 0.47-16F A...................
C 2 87-016-461-080 0E C-CAP,S 0.47-16F A...................
C 6 87-016-503-080 0E C-CAP,TN4.7-4 A2 A...................
C 8 87-A10-034-080 1A C-CAP,TN 33-10(B2) A...................
C 5 87-A10-792-080 1A C-CAP,TN 68-4 M ....................
C 14 87-012-178-080 0E C-CAP,U 18P-50 CH A...................
C 15 87-012-180-080 0E C-CAP,U 22P-50 CH A...................
C 16 87-012-184-080 0E C-CAP,U 33P-50 CH A...................
C 17 87-012-184-080 0E C-CAP,U 33P-50 CH A...................
C 18 87-012-286-080 0E CAP, U 0.01-25 A...................
C 10 87-012-286-080 0E CAP, U 0.01-25 A...................
C 12 87-012-286-080 0E CAP, U 0.01-25 A...................
C 21 87-012-287-080 0E C-CAP,U 0.015-25 F A...................
D 2 87-001-165-080 0E DIODE,1SS300 (100MA) A...................
D 9 87-001-165-080 0E DIODE,1SS300 (100MA) A...................
D 3 87-001-165-080 0E DIODE,1SS300 (100MA) A...................
D 1 87-001-221-080 1A CHIP DIODEISS319 A...................
IC 5 87-017-506-080 1A IC,PST600 JMT A...................
IC 4 87-A20-840-040 1B C-IC,NJM2076M ....................
IC 3 87-A20-847-040 1D C-IC,RH5RI333B ....................
IC 2 87-A20-883-080 1B C-IC,AK93C55AF ....................
IC 1 88-HT4-610-210 2Y C-IC,SC435627CFU ....................
J 1 85-TM5-605-010 1C JACK,HSJ1456 ....................
L 1 87-003-184-080 1A C-COIL, 10UH K LQH3 A...................
L 2 87-003-188-080 1A COIL 22UH A...................
LCD 1 88-HT2-605-010 1B LCD, ....................
LED 1 87-A90-250-040 1A C-LED,SML-020MVT A...................
Q 3 89-112-134-080 1A TR,2SA1213Y (1W) A...................
Q 1 89-113-624-080 0E C-TR,2SA1362Y A...................
Q 2 89-113-624-080 0E C-TR,2SA1362Y A...................
Q 4 89-341-164-080 0E CHIP-TRANSISTOR,2SC4116 Y A...................
Q 5 89-413-284-080 0E TR,2SD1328T A...................
S 4 87-036-308-280 1A C-SW,TACT 112HST A...................
S 6 87-036-308-280 1A C-SW,TACT 112HST A...................
S 3 87-036-308-280 1A C-SW,TACT 112HST A...................
S 1 87-036-308-280 1A C-SW,TACT 112HST A...................
S 5 87-036-342-080 1A C-SW,TACT V ....................
S 2 87-036-342-080 1A C-SW,TACT V ....................
S 7 87-036-379-080 0E C-SW,SL 1-1-2 ....................
VR 1 87-024-680-010 1B VR,20KC N A...................
X 2 87-030-273-010 1A VIB,XTAL 32.768K5PPM ....................
X 1 87-A70-164-080 1B C-VIB,CER 1.80MHZ CSAC ....................
87-A90-935-010 1F SPKR,36 8OHM 0.2W A...................
MIC 1 82-TP3-609-010 1C ECM ....................
C 55 87-010-505-080 0E CA, CHIP TANTALUM 1-16 ....................
C 57 87-012-286-080 0E CAP, U 0.01-25 A...................
C 51 87-012-286-080 0E CAP, U 0.01-25 A...................
C 52 87-012-286-080 0E CAP, U 0.01-25 A...................
C 54 87-A10-034-080 1A C-CAP,TN 33-10(B2) A...................
C 59 87-A10-263-080 0E C-CAP,U 0.1-16ZF A...................
C 56 87-A10-263-080 0E C-CAP,U 0.1-16ZF A...................
C 58 87-A10-263-080 0E C-CAP,U 0.1-16ZF A...................
C 65 87-010-505-080 0E CA, CHIP TANTALUM 1-16 ....................
C 61 87-012-286-080 0E CAP, U 0.01-25 A...................
C 67 87-012-286-080 0E CAP, U 0.01-25 A...................
C 64 87-A10-034-080 1A C-CAP,TN 33-10(B2) A...................
C 63 87-A10-034-080 1A C-CAP,TN 33-10(B2) A...................
C 68 87-A10-263-080 0E C-CAP,U 0.1-16ZF A...................
C 66 87-A10-263-080 0E C-CAP,U 0.1-16ZF A...................
C 69 87-A10-263-080 0E C-CAP,U 0.1-16ZF A...................
C 71 87-012-286-080 0E CAP, U 0.01-25 A...................
C 72 87-012-286-080 0E CAP, U 0.01-25 A...................
C 75 87-A10-792-080 1A C-CAP,TN 68-4 M ....................
C 82 87-A10-263-080 0E C-CAP,U 0.1-16ZF A...................
C 80 87-A10-792-080 1A C-CAP,TN 68-4 M ....................
D 6 87-001-221-080 1A CHIP DIODEISS319 A...................
IC 8 87-A20-847-040 1D C-IC,RH5RI333B ....................
IC 7 87-A20-936-110 2B C-IC,ISD33240ED ....................
IC 6 87-A20-936-110 2B C-IC,ISD33240ED ....................
IC 10 87-002-649-080 1B IC,NJM324M A...................
IC 11 87-017-917-080 1A IC,BU4066BCF A...................
IC 12 87-A20-979-040 1B C-IC,PST611X A...................
L 7 87-003-188-080 1A COIL 22UH A...................
L 10 87-003-184-080 1A C-COIL, 10UH K LQH3 A...................
L 11 87-003-188-080 1A COIL 22UH A...................
Q 9 89-115-864-080 0E CHIP TRANSISTOR 2SA1586Y A...................
Q 7 89-413-284-080 0E TR,2SD1328T A...................
Q 8 89-508-804-080 1A CHIP FET 2SK880Y ....................
S 9 87-036-308-280 1A C-SW,TACT 112HST A...................
S 8 87-036-379-080 0E C-SW,SL 1-1-2 ....................
88-HT2-105-010 2A PANEL,FRONT ....................
88-HT2-124-010 2A PANEL,FRONT Y A...................
C 5 87-A10-792-080 1A C-CAP,TN 68-4 M A...................
ELECTRICAL MAIN PARTS LIST - 2/2
C 55 87-010-505-080 0E CA, CHIP TANTALUM 1-16 A...................
C 65 87-010-505-080 0E CA, CHIP TANTALUM 1-16 A...................
C 75 87-A10-792-080 1A C-CAP,TN 68-4 M A...................
C 80 87-A10-792-080 1A C-CAP,TN 68-4 M A...................
IC 4 87-A20-840-040 1B C-IC,NJM2076M A...................
IC 8 87-A20-847-040 1D C-IC,RH5RI333B A...................
IC 3 87-A20-847-040 1D C-IC,RH5RI333B A...................
IC 2 87-A20-883-080 1B C-IC,AK93C55AF A...................
IC 6 87-A20-936-110 2B C-IC,ISD33240ED A...................
IC 7 87-A20-936-110 2B C-IC,ISD33240ED A...................
IC 1 88-HT4-610-210 2Y C-IC,SC435627CFU A...................
J 1 85-TM5-605-010 1C JACK,HSJ1456 A...................
LCD 1 88-HT2-605-010 1B LCD, A...................
MIC 1 82-TP3-609-010 1C ECM A...................
Q 8 89-508-804-080 1A CHIP FET 2SK880Y A...................
S 5 87-036-342-080 1A C-SW,TACT V A...................
S 2 87-036-342-080 1A C-SW,TACT V A...................
S 8 87-036-379-080 0E C-SW,SL 1-1-2 A...................
S 7 87-036-379-080 0E C-SW,SL 1-1-2 A...................
X 2 87-030-273-010 1A VIB,XTAL 32.768K5PPM A...................
X 1 87-A70-164-080 1B C-VIB,CER 1.80MHZ CSAC A...................
MECHANICAL PARTS LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
YH .....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
88-HT2-102-110 1E CABI,REAR ....................
88-HT2-103-010 1C LID,BAT A...................
88-HT2-105-010 2A PANEL,FRONT ....................
88-HT2-122-010 1C CABI,REAR Y A...................
88-HT2-124-010 2A PANEL,FRONT Y ....................
88-HT4-101-010 1F CABI,FRONT Y A...................
88-HT4-104-010 1C WINDOW,LCD Y A...................
88-HT4-115-010 1C WINDOW,LCD ....................
88-HT4-116-010 1F CABI,FRONT ....................
88-HT2-106-010 1A BTN,PL/FF/REW A...................
88-HT2-107-010 1A BTN,REC A...................
88-HT2-108-110 1A BTN,STOP A...................
88-HT2-109-010 1A BTN,ERASE A...................
88-HT2-110-010 0E KNOB,SL HOLD A...................
88-HT2-111-110 0E KNOB,SL SPEED A...................
88-HT4-109-010 0E BTN,ERASE ....................
87-067-534-010 0E SCREW,VT-1.4-6 A...................
88-HT2-202-010 0E HLDR,LCD A...................
88-HT2-203-010 0E FRAME,LCD A...................
88-HT2-204-010 0E CONN, RUBBER LCD A...................
88-HT2-206-010 0E BAT-CONTACT,+ A...................
88-HT2-210-010 0E COVER, MIC A...................
88-HT2-220-010 0E BAT,CONT(-)K2 A...................
87-A90-935-010 1F SPKR,36 8OHM 0.2W A...................
88-HT2-105-010 2A PANEL,FRONT ....................
88-HT2-124-010 2A PANEL,FRONT Y A...................
ACCESSORIES / PACKAGE LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
YH .....................XX..................................A...................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
88-HT4-901-110 1B IB,EX-ESF ....................
88-HT4-902-110 1B IB,EX-EGF ....................
88-HT4-903-110 1B IB,EX-SID ....................
88-HT4-904-110 1B IB,EX-PHNCZ ....................
88-HT4-905-010 1B IB,D ....................
88-HT4-907-010 IB,D-C ....................
88-HT4-908-010 1B IB,EX-ESC ....................
88-HT4-910-010 IB,ESF-C ....................
88-HT4-911-010 IB,EGF-C ....................
88-HT4-912-010 IB,SID-C ....................
88-HT4-913-010 IB,PHNCZ-C ....................
88-HT4-914-010 IB,ESC-C A...................
87-B30-133-010 1B BAT,LR6(K) 1P ....................
87-PD3-050-010 1B STRAP,HAND A...................

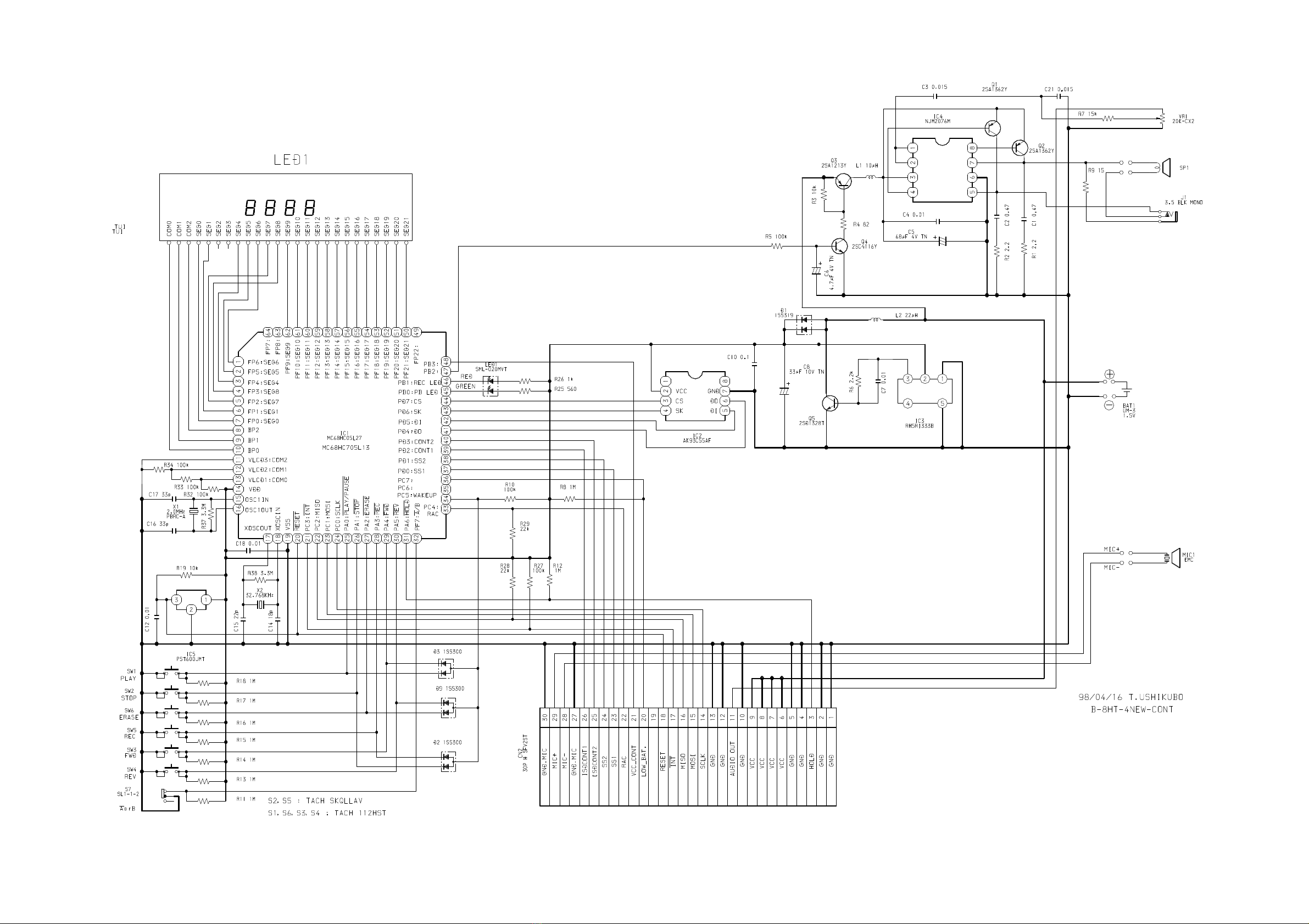

SCHEMATIC DIAGRAM _1 (MAIN _ A )
SCHEMATIC DIAGRAM _2 (MAIN _ B)
PrintedinSingapore
Tokyo Japan
4
9630469
