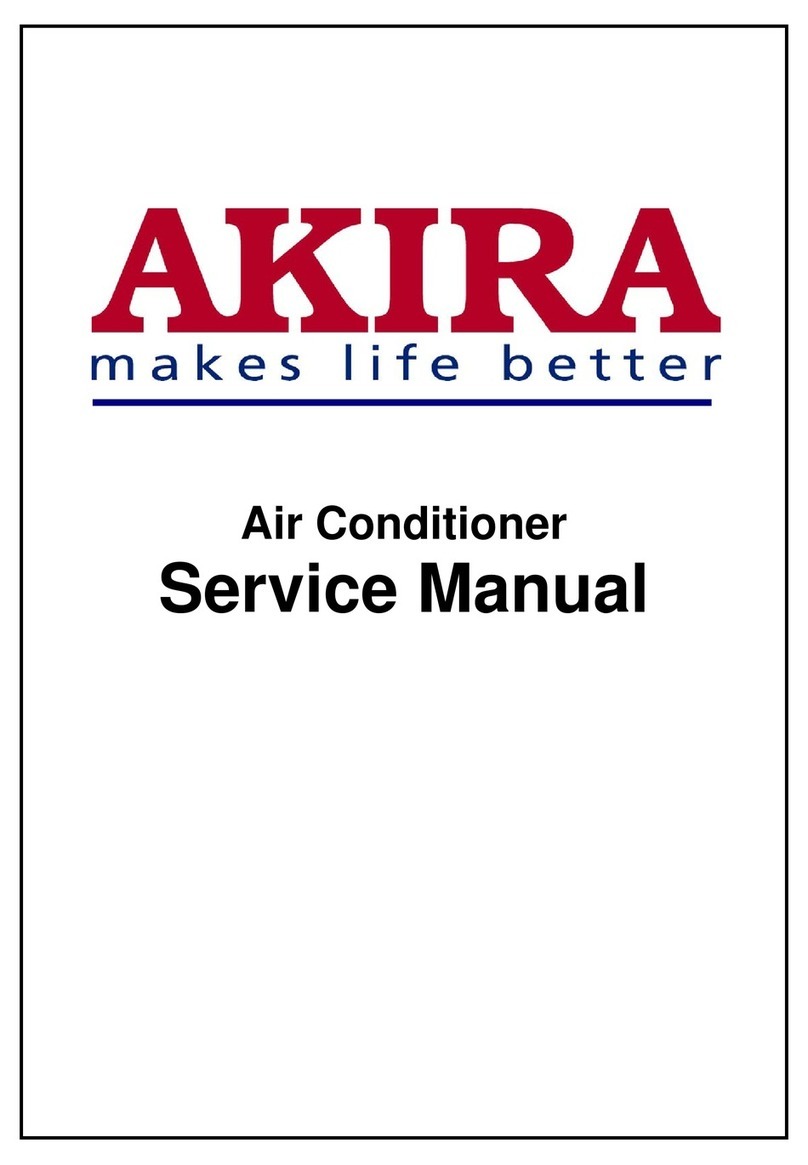

akira AC-S10CMA X 3 User manual

Air Conditioner
Service Manual
   
http://splitoff.ru/tehn-doc.html
, ,  , .

2
Model No.: AC-S10CMA x 3.doc
Version: 1.0
MODEL:AC-S10CMA x 3
    : http://splitoff.ru/tehn-doc.html

3
Model No.: AC-S10CMA x 3.doc
Version: 1.0
CONTENTS
TECHNICAL SPECIFICATION………………………………………………………………………..4
PARTS NAME…………………………………………………………………………………………..5
WIRING DAIGRAM…………………………………………………………………………………...6
DISASSEMBLY PROCEDURES……………………………………………………………………….8
EXPLODED VIEW AND PARTS LIST……………………………………………………………….17
GUIDE FOR INSTALLATION……………………………………………………………………….. 21
CARE AND MAINTENANCE…………………………………………………………………….…..28
MULFUNCTION ANALYSIS…………………………………………………………………………29
    : http://splitoff.ru/tehn-doc.html

4
Model No.:AC-S10CMA x 3.doc
Version: 1.0
TECHNICAL SPECIFICATION
Model AC-S10CMA x 3
Function Cooling
Power Supply 1Ph 220-230V / 50Hz
Capacity (W) 9000 x 2
Rated Input (W) 890 x 2
Rated Current (A) 3.9 x 2
Air Flow (m³/h) 550 x 2
Dehumidifying Volume (L/h) 1.0 x 2
EER ( W / W) 2.54
Model AC-S10CMA x 3
Motor Fan Speed (rpm) 1330
Fan Type / Piece Cross Flow Fan – 1
Diameter – Length Ф7, Inner Groove Tube
Evaporator Hydrophilic Aluminum
Row-Fin Distance (mm) 1.5
Swing Motor RPG13H
Input (W) 36
Working Capacitor (µ F) 1.2
Noise (db / (A)) < 41
Dimension (w x h x d)(mm) 750 x 250 x 188
Indoor Unit
Net Weight (kg) 8.5
Model AC-S10CMA x 3
Input Power / Compressor (W) 880
Current (A) 4.1
LRA (A) 18
Compressor Matsushita
Working Temp. 17 - 30
Condenser Hydrophilic Aluminum
Pipe-Diameter 9.52 Inner Groove Tube
Row-Fin Distance (mm) 1 – 1.6
Working Area (m2) (14-21) x 2
Fan Motor Power (W) Speed
(rpm) 750
Fan Type-Piece Axial Flow Fan – 1
Dimension (w x h x d) (mm) 895 x 655 x 345
Net Weight (kg) 63
Outdoor Unit
Refrigerant Charge R22 / 680+1000g = 1680g
Liquid (mm) Φ6.35
Outer Diameter
Gas pipe (mm) Φ9.53
Height (m) 5
Connecting Pipe
Max. Distance Length (m) 10
The technical data are subject to change without notice. Please refer to the nameplate of the unit.
    : http://splitoff.ru/tehn-doc.html

5
PARTS NAME
Model No.: AC-S10CMA x 3.doc
Version: 1.0
    : http://splitoff.ru/tehn-doc.html

6
WIRING DIAGRAM
INDOOR UNIT
Model No.:AC-S10CMA x 3.doc
Version: 1.0
    : http://splitoff.ru/tehn-doc.html

7
OUTDOOR UNIT
Model No.: AC-S10CMA x 3.doc
Version: 1.0
    : http://splitoff.ru/tehn-doc.html

8
DISASSEMBLY PROCEDURES
Model No.:AC-S10CMA x 3.doc
Version: 1.0
    : http://splitoff.ru/tehn-doc.html

9
Model No.: AC-S10CMA x 3.doc
Version: 1.0
    : http://splitoff.ru/tehn-doc.html

10
Model No.: AC-S10CMA x 3.doc
Version: 1.0
    : http://splitoff.ru/tehn-doc.html

11
Model No.: AC-S10CMA x 3.doc
Version: 1.0
    : http://splitoff.ru/tehn-doc.html

12
Model No.: AC-S10CMA x 3.doc
Version: 1.0
    : http://splitoff.ru/tehn-doc.html

13
Model No.: AC-S10CMA x 3.doc
Version: 1.0
    : http://splitoff.ru/tehn-doc.html

14
Model No.:AC-S10CMA x 3.doc
Version: 1.0
    : http://splitoff.ru/tehn-doc.html

15
Model No.: AC-S10CMA x 3.doc
Version: 1.0
    : http://splitoff.ru/tehn-doc.html

16
Model No.: AC-S10CMA x 3.doc
Version: 1.0
    : http://splitoff.ru/tehn-doc.html

17
Model No.: AC-S10CMA x 3.doc
Version: 1.0
EXPLODED VIEW – Indoor Unit
    : http://splitoff.ru/tehn-doc.html

18
Model No.: AC-S10CMA x 3.doc
Version: 1.0
PART LIST – Indoor Unit
No. Part Name Quantity Part Code
1 Front Panel 1 10718121010
2 Air Filter 2 10309121202
3Screw cap
3 10309121203
4 Panel frame 1 10721121001
5Air cleaner 110109121226
6Air cleaner holder 110109121225
7 Window for receiver 1 10309121207
8 Indicator for LED 1 10309121208
9 Horizontal louver 1 10309121209
10 Vertical louver 610309121210
11 Air out frame 1 10309121211
12 Louver holder 1 10309121212
13 Louver rocker 1 10309121213
14 Rocker gasket 110309121214
15 Louver motor 110121121218
16 Drain hose 110109121215
17 Left holder for evaporator 113008111007
18 Evaporator 1 13009111002
19 Bearing holder 1 10309121220
20 Cross flow fan, assy 1 10309121221
21 Chassis 110309121222
22 Back cover for chassis 110309121223
23 Installation Plate 1 10909121009
24 Connecting pipe clamp 110309121225
25 Fan motor 1 10309121226
26 Motor cover 110309121227
27 E-part box cover 1 10309121228
28 Indicator holder 1 10309121229
29 Display board，Ass'y 110307111205
30 Display board enclosure 1 10309121231
31 Main control board 1 10718111201
32 Transformer 1 10718121006
33 E-Parts Box 110718121007
34 Wire clamp 1 10827111002
35 Remote Controller 1 10718111202
36 Holder, Remote Controller 110109121208
37 Evaporator temp sensor 1 10109121242
38 Indoor temp sensor 1 10109121243
39 Wire joint, 5p 110109121244
40 Copper nut, TLM-A01 110909121012
41 Copper nut, TLM-B02 110909121013
    : http://splitoff.ru/tehn-doc.html

19
Model No.: AC-S10CMA x 3.doc
Version: 1.0
EXPLODED VIEW – Outdoor Unit
    : http://splitoff.ru/tehn-doc.html

20
PART LIST – Outdoor Unit
No. Part Name Quantity Part Code Remark
1 Clamp for front net 6 10112121801
2 Front net 1 10718111822
3Front clapboard 10718111823
4Small Handle 110109121802
Strenghten board for front
clapboard
5 1 10718111801
6Wind guide 110718111824
7 Propeller fan 1 10718111825
1
8Condenser 10718111802
9Cover 110718111803
10 Fan motor 1 10718111821
11 Holder for fan motor 110718111828
12 Liquid valve assy, unit A 110718111841
13 Liquid valve assy, unit B 110718111842
14 Separating board 1 10718111807
15 Rear net 110718111806
16 Rear right clapboard 110718111808
17 Big handle 1 10718121821
18 Installation plate for valves 1 10718111817
19 Compressor A 110718111819 2P17S225ANA
20 Compressor B 110718111819 2P17S225ANA
21 Chassis 110718111818
22 1
Low Pressure Valve Ass'y,A unit 10718111840
23 1
Low Pressure Valve Ass'y,B unit 10721111807
24 Compressor capacitor for unit A 111812113811
25 Compressor capacitor for unit B 111812113811
26 Capacitor clamp 210109121822
27 Relay control board 1 10718111805
28 #N/A
29 Installation board for E-parts 1 10718111804
30 Fan motor capacitor 1 10109121819
31 Wire joint, 3p 110109121819
32 Wire joint for multiplexer 1 10718121806
33 Washer for wire joint 110112121817
34 Clamp for wiring 110112121816
35 Wire joint, 6p 110718121805
36 Liquid pipe valve for unit A 1 10827111805
37 Gas pipe valve for unit A 1 10827111806
38 Liquid pipe valve for unit B 1 10827111805
39 Gas pipe valve for unit B 1 10827111806
40 Water collector 1
10718111816
Model No.:AC-S10CMA x 3.doc
Version: 1.0
