akira AC-S13CGA User manual

Air Conditioner
Service Manual
   
http://splitoff.ru/tehn-doc.html
, ,  , .

2
Model No.: AC-S13CGA
Version: 1.0
MODEL:
AC-S13CGA
    : http://splitoff.ru/tehn-doc.html

3
Model No.: AC-S13CGA
Version: 1.0
CONTENTS
TECHNICAL SPECIFICATION ............................................................................................................. 4
PERFORMANCE CURVE ...................................................................................................................... 5
OUTLINE & DIMENSIONS OF INDOOR UNIT .................................................................................. 8
OUTLINE & DIMENSIONS OF OUTDOOR UNIT .............................................................................. 9
EXPLODED VIEW & PARTLIST......................................................................................................... 10
CIRCUIT DIAGRAM ............................................................................................................................ 14
PCB FUNCTION MANUAL................................................................................................................. 15
    : http://splitoff.ru/tehn-doc.html

4
Model No.: AC-S13CGA
Version: 1.0
TECHNICAL SPECIFICATION
Content AC-S13CGA
Function Cooling
Power supply 1Ph 220~230V-50Hz
Capacity (BTU/h) 12000
Rated input (W) 1195
Rated current (A) 5.33
Air flow (m3/h) 480
Dehumidifying volume (L/h) 1.4
EER(W/W) 2.5
Motor fan speed(r/min) 1190/1090/990
Output power(w) 14
Fan type/piece Cross flow fan-1
Diameter-length(mm) 97mm x 583
Evaporator Aluminum fin-copper tube
Row-fin distance(mm) 2-1.4
Working area(m2) 0.14
Swing motor MP24GA
Input/Power(W) 2
Fuse(A) Controller 3.15A Transformer 0.2A
Working capacitor(uF) 1
Noise(dB(A)) < 40 / = 40
Dimension
(width-height-depth)(mm)
770 x 250 x 180
Indoor unit
Net weight(Kg) 8.5
Input power W 1179
Current A 5.33
L.R.A. A 29
Throttling method Capillary
Compressor RH207VHKC
Starting method Capacitor Starting
Working temp. <115oC / =115oC
Condenser Aluminum fan-copper tube
Pipe-diameter 9.52
Row-fin distance (mm) 1-1.6
Working area 0.4
Fan motor speed(rpm) 48/880
Type-piece Axial fan-1
Diameter(mm) 400
Defrosting method Auto defrost
Noise(dB(A)) 56
Dimension (width-height-depth)
(mm)
848 x 540 x 320
Net weight(Kg) 40
Outdoor unit
Refrigerant charge(kg) R22/0.8
Length (m) 4
Liquid pipe 6(1/4”)
Outer diameter Gas pipe 12(1/2”)
Height(m) 5
Connecting
pipe
Max distance Length(m) 10
    : http://splitoff.ru/tehn-doc.html

5
Model No.: AC-S13CGA
Version: 1.0
PERFORMANCE CURVE

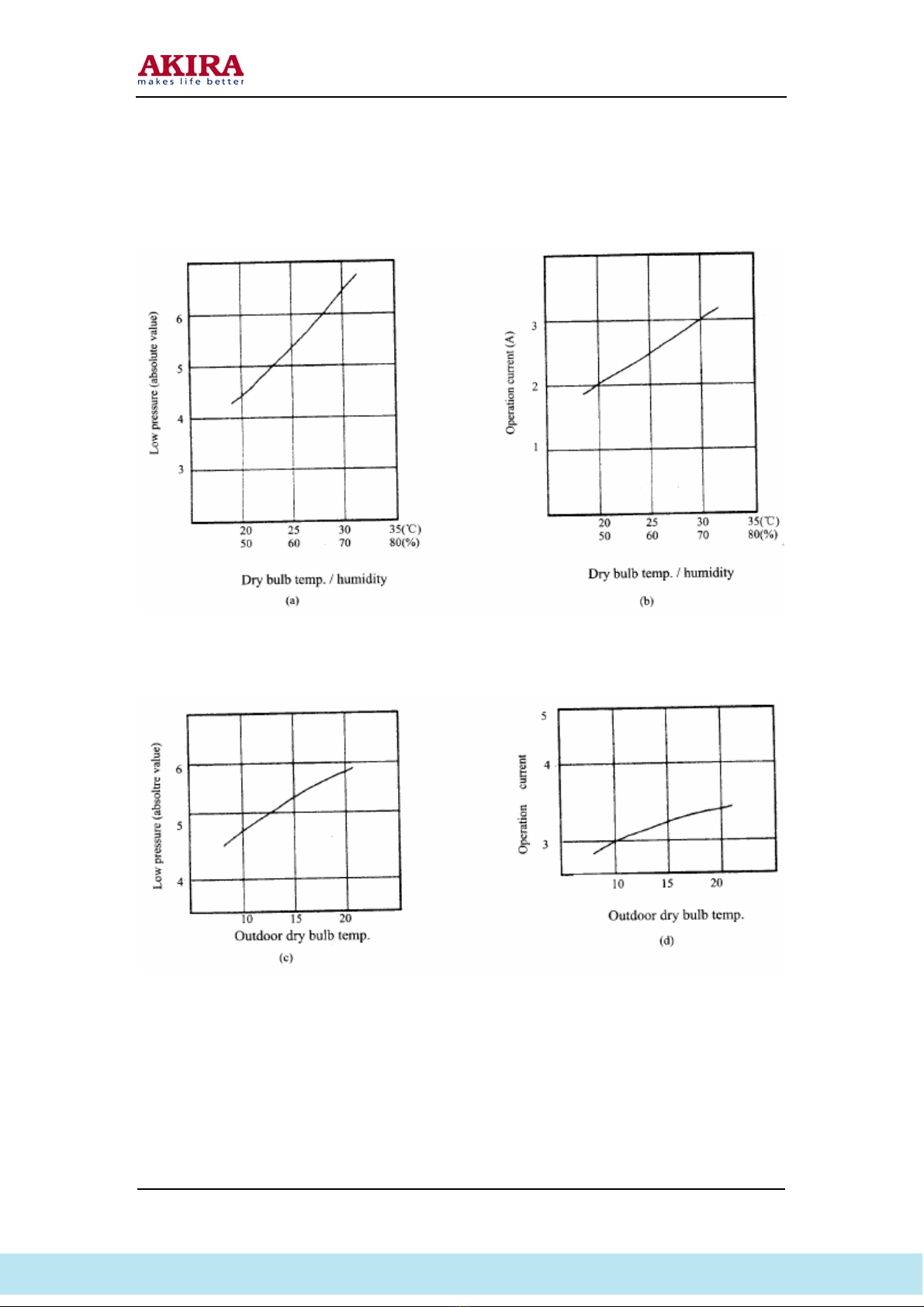

The change relation between low pressure, operation current and temp.
Cooling operation condition: In testing, indoor and outdoor have same work condition.
Heating operation
Indoor work condition: dry bulb temp.21, wet bulb temp. 15.5 oC.
    : http://splitoff.ru/tehn-doc.html

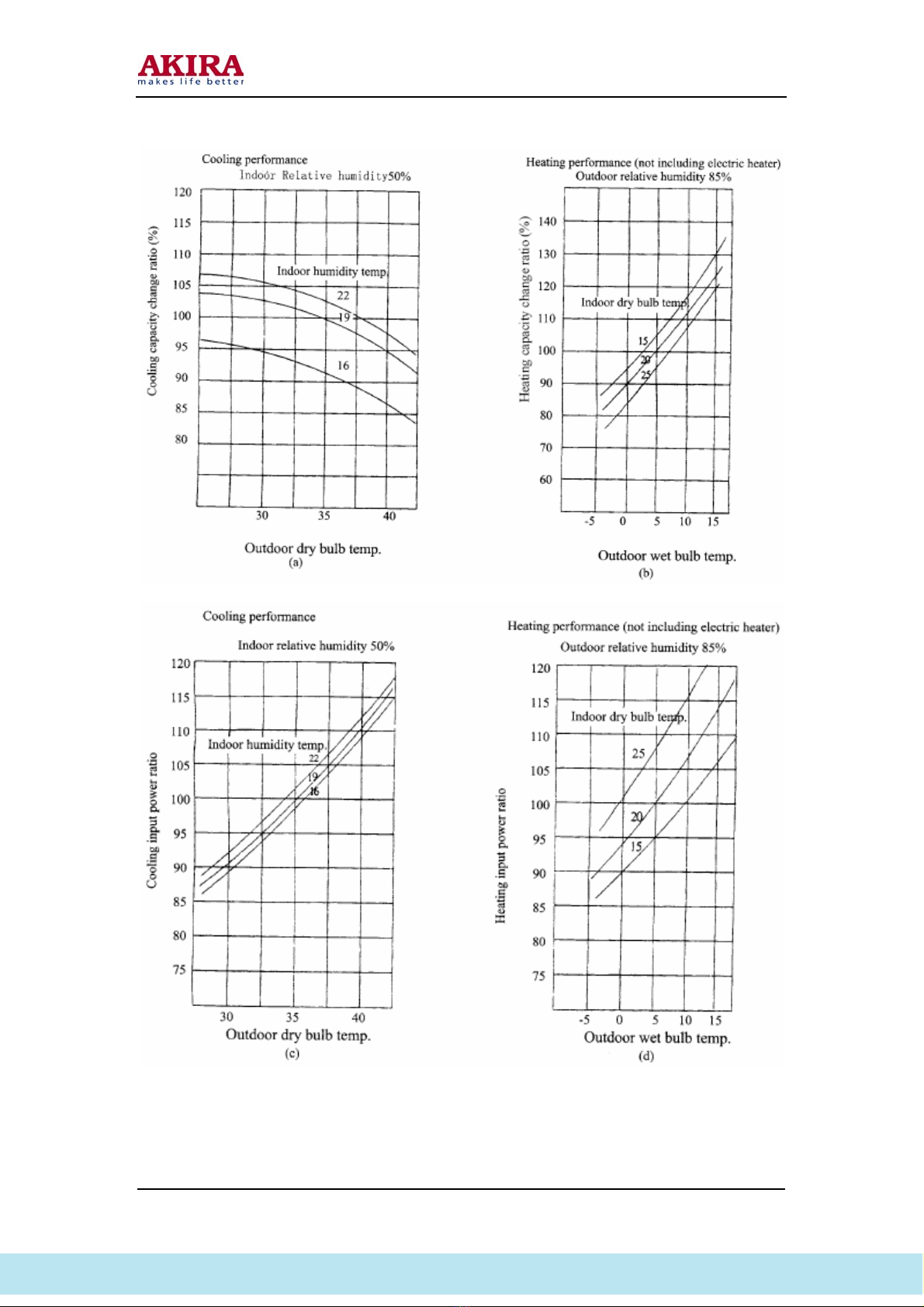

6
Model No.: AC-S13CGA
Version: 1.0
    : http://splitoff.ru/tehn-doc.html

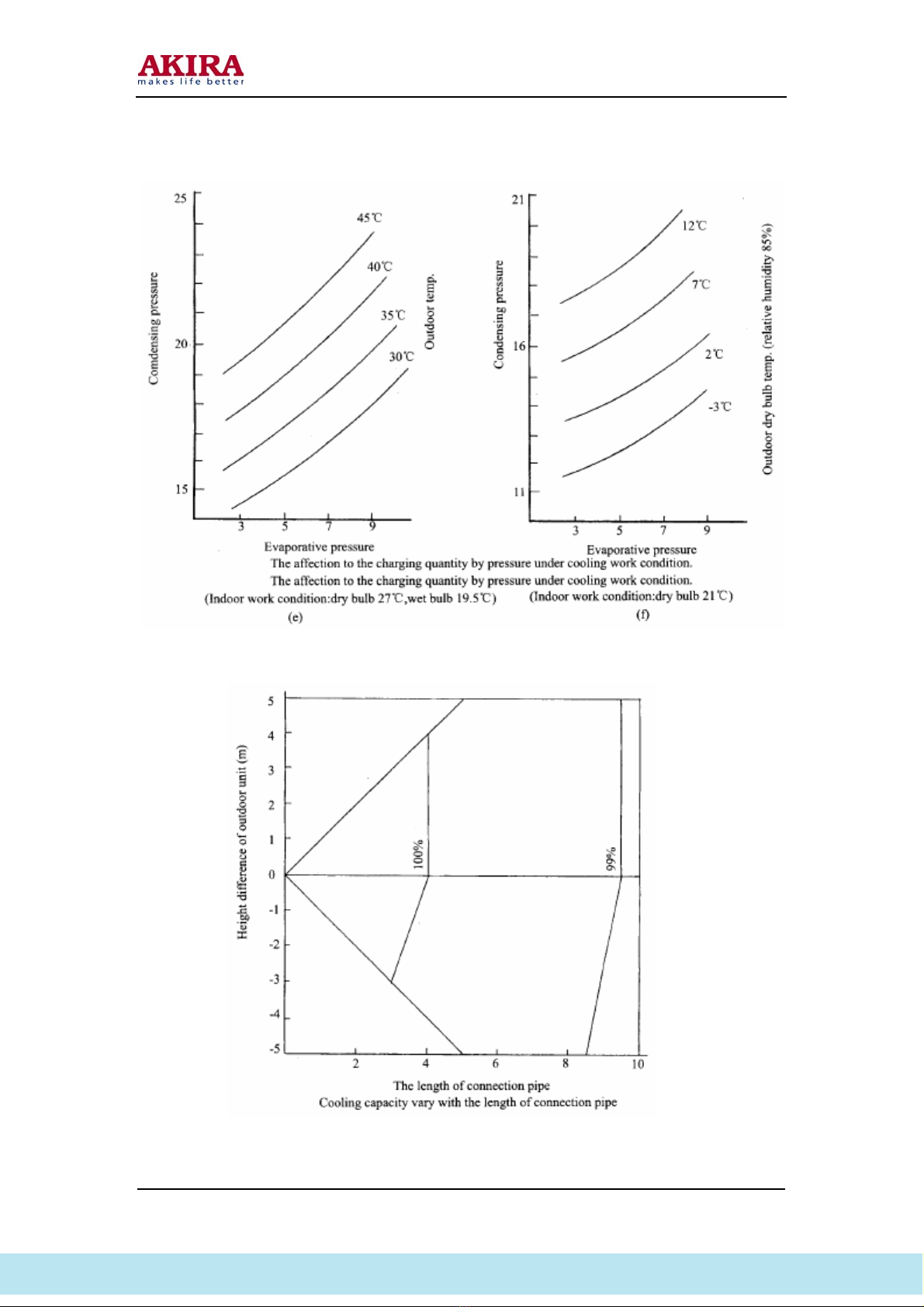

7
Model No.: AC-S13CGA
Version: 1.0
    : http://splitoff.ru/tehn-doc.html

8
Model No.: AC-S13CGA
Version: 1.0
OUTLINES AND DIMENSIONS OF INDOOR UNIT
    : http://splitoff.ru/tehn-doc.html

9
Model No.: AC-S13CGA
Version: 1.0
OUTLINES AND DIMENSIONS OF OUTDOOR UNIT
    : http://splitoff.ru/tehn-doc.html

10
Model No.: AC-S13CGA
Version: 1.0

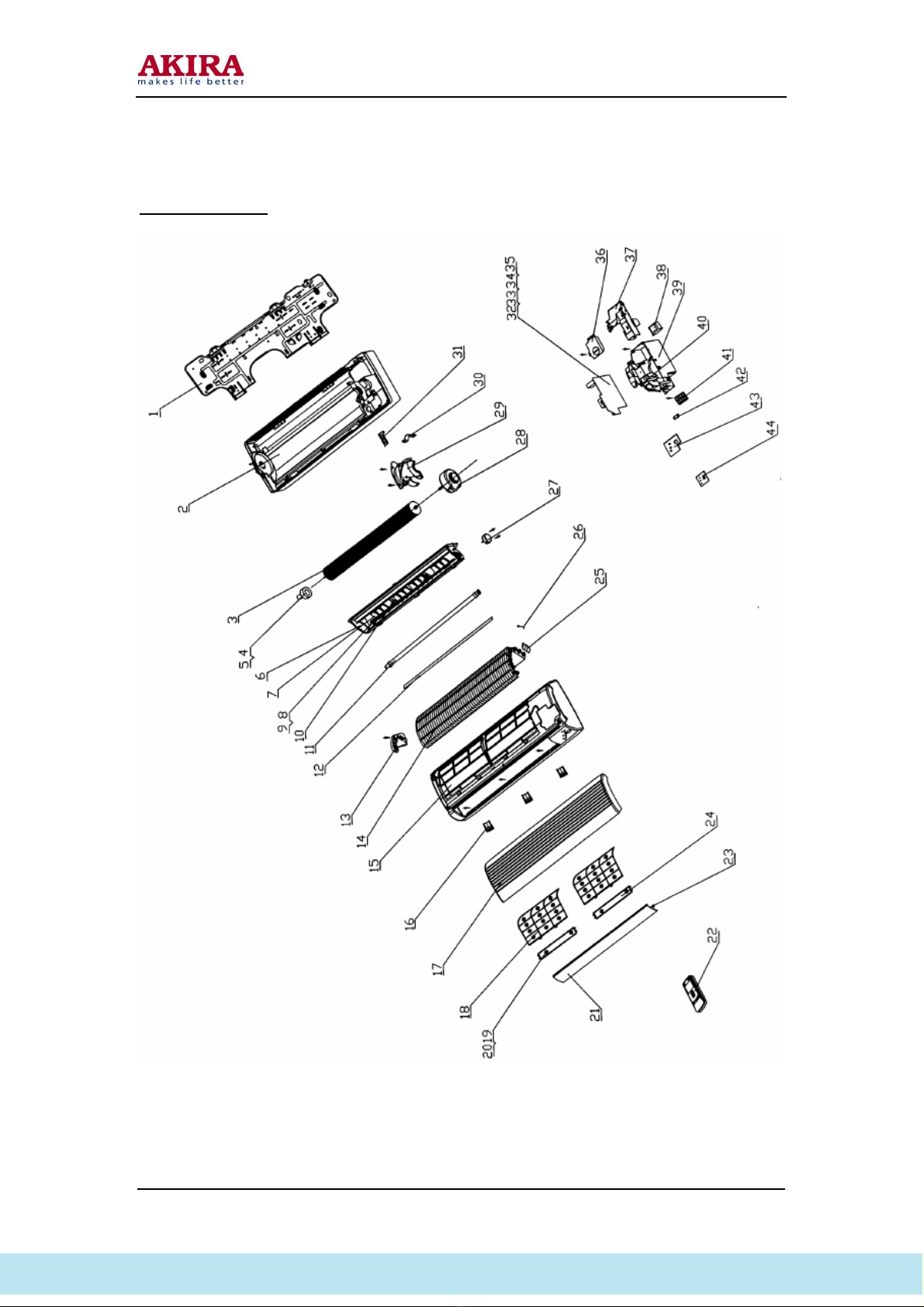

EXPLODED VIEW & PART LIST
INDOOR UNIT
    : http://splitoff.ru/tehn-doc.html

11
Model No.: AC-S13CGA
Version: 1.0
No Description Qty
1 Wall-Mounting Frame 1
2 Rear Case 1
3 Cross Flow Fan 1
4 Fan Bearing 1
5 Ring of Bearing 1
6 Water Tray Assy 1
7 Swing Louver 12
8 Connecting Lever 1 1
9 Connecting Lever 2 1
10 Manual Lever 2
11 Drainage Pipe 1
12 Evaporator Gate 1
13 Evaporator Supporter 1
14 Evaporator Assy 1
15 Front Case Assy 1
16 Screw Cover 3
17 Front Panel 1
18 Filter 2
19 Air Cleaner holder 2
20 Air Cleaner A 1
21 Guide Louver 1
22 Remote Controller 1
23 Guide Louver Bearing 3
24 Air Cleaner B 1
25 Evaporator Pipe Cover 1
26 Sensor Insert 1
27 Stepping Motor MP24GA 1
28 Motor FN14A 1
29 Motor Clamp 1
30 Wire Clamp 1
31 Pipe Clamp 1
32 PCB 5K512 1
33 Tube Sensor 1
34 Room Sensor 1
35 Fuse 3.15A 250VAC 1
36 Electric Box Cover 2 1
37 Electric Box Cover 1
38 Transformer 1
39 Electric Box 1
40 Cable Clamp 1
41 Terminal Board T4A3A7377 1
42 Wire Clip 1
43 LED Holder 1
44 LED Board 1
45 Connection Cable 1
46 Power Cord 1
    : http://splitoff.ru/tehn-doc.html

12
Model No.: AC-S13CGA
Version: 1.0

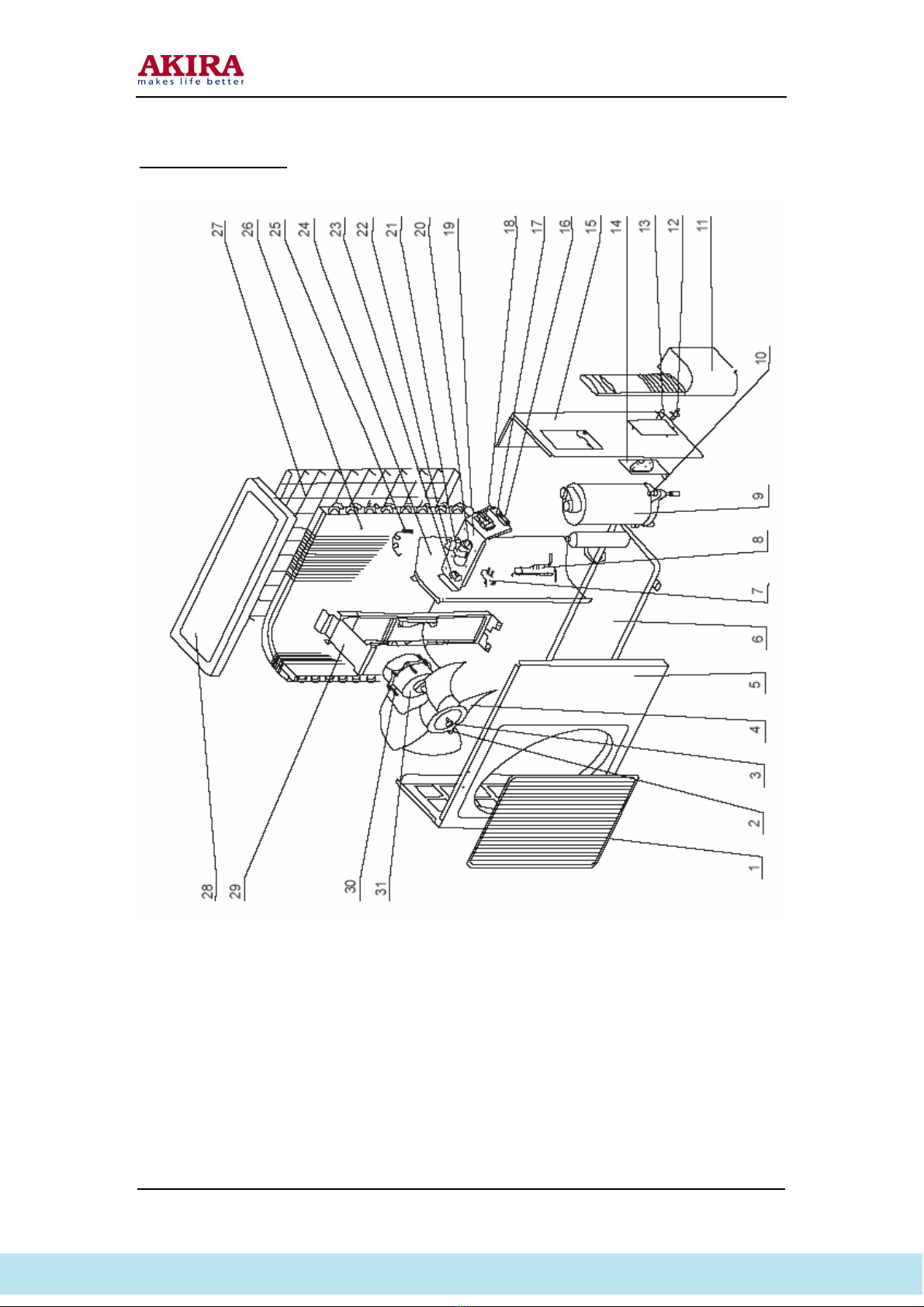

OUTDOOR UNIT
    : http://splitoff.ru/tehn-doc.html

13
Model No.: AC-S13CGA
Version: 1.0
No Description Qty
1 Front Grill 1
2 Nut M6 1
3 Washer 6 1
4 Axial Flow Fan 1
5 Front Plate 1
6 Metal Base 1
7 4-way Valve 1
8 Capillary Assy 1
9 Compressor RH207VHKC 1
10 Nut with Washer M8 3
11 Handle 1
12 Valve 1/2" 1
13 Valve 1/4" 1
14 Valve Support 1
15 Right Side Plate Assy 1
16 Wire Clamp 2
17 Insulation Gasket 1
18 Terminal Board T386A 1
19 Electric Plate 1
20 Comp Capacitor 30uF/450V 1
21 Capacitor clamp 1
22 Fan Capacitor 3uF/450V 1
23 Terminal Board 2-8 1
24 Isolation Sheet Assy 1
25 Tube Sensor 1
26 Condenser Assy 1
27 Rear grill Assy 1
28 Top cover Assy 1
29 Motor Support 1
30 Self-tapping Screw 4
31 Motor FW48A 1
    : http://splitoff.ru/tehn-doc.html

14
Model No.: AC-S13CGA
Version: 1.0
CIRCUIT DIAGRAM
These circuit diagrams are subject to change without notice. Please refer to the ones stuck on the
machines.
    : http://splitoff.ru/tehn-doc.html

15
Model No.: AC-S13CGA
Version: 1.0
PCB FUNCTION MANUAL
3 In 1 PCB Function manual
A. Running mode
1. Cooling
2. Dehumidifying
3. Heating
4. Auto
B. Input parameters
1. Indoor ambient temp. T in
2. Evaporator tube temp. T eva
3. Setting temp. T set
4. Condenser tube temp. T con
C. Targets
1. Indoor motor (motor)
2. Swing motor
3. Outdoor motor (single speed motor)
4. Compressor
5. Four-way reversing valve
6. Cooling, dehumidifying indicator; running indicator
7. Digital tube setting temp. indicator or timer indicator
D. Fundamental functions
Cooling mode
1The running conditions and control measures
a. If T in > or = T set + 1oC, the machine runs at the cooling mode. Compressor runs, outdoor
motor runs at low speed, indoor fan runs at the set fan speed.
b. If T in < or = T set –1oC, the machine stops. Compressor stops first, outdoor motor stops after 15
seconds, indoor motor runs at the set fan speed.
c. If T set –1oC < T in < T set +1oC, keep the previous state.
2In this mode, the reversing valve is inactive, the temp. setting range is from 16~30oC.
3Protect function
a. Anti-freezing function.
i. If compressor have run 6 minutes , and detect T eva < 0oC for continuous 3 minutes, then
the compressor, outdoor fan stopped , indoor fan run at the set fan speed. After 3 minutes
later, it will run at the original state if T eva > or = 10oC.
b. Compressor protection
i. Compressor’s starting interval should be more than 3 minutes no matter in whatever modes
and conditions. If it’s plugged in first time, the compressor does not have 3 minutes delay.
When compressor is started, it will not stop within 5 minutes unless it is plugged out.
c. Overload protection
i. If it detect the system current surpass the designed 13 A for continuous 3 minutes, the
machine go into fan mode, when 3 minutes passed and it detect the current no more than 13
A, it will back to original state. If it detects overloading states for 6 consecutive times, the
machine stops, and must be restarted by remote controller.
    : http://splitoff.ru/tehn-doc.html

16
Model No.: AC-S13CGA
Version: 1.0
Dehumidifying mode
1The working conditions and control measures
a. If T in > T set + 2oC, it is in cooling running, the indoor motor speed can be selected, and
outdoor motor run at low speed.
b. If T set – 2oC < or = T in < or = T set + 2oC, it goes into dehumidifying running, the indoor
motor run at the low speed, 6 minutes later the compressor stops, another 15 seconds later the
outdoor fan stops and another 30 seconds later, the indoor motor stops, 3 and a half minutes
later, compressor and outdoor fan run again, indoor motor runs at the low speed, then the
machine cycle the above procedures repeatedly. Outdoor motor runs at the low speed.
c. If T in > T set – 2oC, compressor, outdoor motor and indoor motor stop.
2In this mode, the reversing valve is inactive, the temp. setting range is 16~30oC.
3Anti-freezing protection.
a. If T indoor > T set + 2oC, it goes into cooling running, anti-freezing function is same with
cooling mode, but the compressor must stops for 4 minutes when it goes into dehumidifying
mode, compressor runs 6 minutes, if it detects T eva < 0oC, compressor and outdoor motor stop,
indoor motor runs at low speed, after 3 minutes delay, and T eva > or = 10oC, it will be back to
its original state.
Heating mode
1The working conditions and control measures
a. If T in < or = T set + 2oC, it goes into heating mode, reversing valve, compressor and outdoor
motor all work in the same time, indoor fan will run at the same procedures with anti cool air
function.
b. If T in > or = T set + 4oC, compressor stops first, 15 seconds late, outdoor motor stops, but
reversing valve keeps working, indoor motor run at the procedures of blowing surplus heat.
c. If T set + 2oC < T indoor < T set + 4oC, keep the previous running state.
2In this mode, the temperature setting range is 16~30oC.
3The working conditions of auxiliary electric heater.
a. In heating mode, when compressor is working, indoor motor runs at high speed and middle
speed. If it detect T eva < 50oC for continuous 8 seconds and T indoor < or = 25oC , electric
heater will work, if compressor stop or indoor motor runs at low speed or T eva 54oC or T
indoor 28oC or 10 seconds before defrosting, the electric heater will stop.
4Protections
a. Anti cool air
i. When the machine starts heating and T eva > or = 22oC , indoor motor runs at low speed,
and swing motor makes the louver at the horizontal position, if T eva > or = 40oC or
compressor have run 2 minutes ,indoor motor and swing motor will run at the set speed.
b. Anti high temp.
i. In heating mode, if it detect T eva 56oC (58 can be selected), outdoor motor will stop (in
this period it will not detect the defrosting temp.). If T eva 52oC, outdoor motor will be back
running (it will not detect defrosting temp. in the first 5 seconds).
c. Blowing surplus heat
i. In heating mode, when set temp is reached, comp. stops first, 15 seconds later outdoor fan
stops, Indoor motor blows 90 seconds (60 seconds can be selected) at low speed ,swing
motor makes the louver at the horizontal position.
d. Compressor’s protection is same with the one in cooling mode.
e. Overload protection
i. If it detects that the system current surpassed the designed 13 A for continuous 3 seconds,
compressor, electric heater and outdoor motor stop , indoor motor runs the same procedures
as the blowing surplus heat condition. After 3 minutes and current no more than 13 A, the
machine will be back to its original state, indoor motor runs as the anti cool air condition. If
it detects overloading state for 3 consecutive times within 30 minutes, the machine stops,
and it must be restarted by remote controller.
    : http://splitoff.ru/tehn-doc.html

17
Model No.: AC-S13CGA
Version: 1.0
f. Defrosting conditions and procedures
i. In heating mode, if compressor has run 44 minutes ( in its first 6 minutes it will not detect
defrosting temp.) , and it has detected T con < or = -4oC for continuous 1 minutes, it begins
to defrost, electric heater will stop for 10 seconds ( even if electric heater is not working),
then indoor motor stops, reversing valve becomes inactive in another 2 seconds, another 2
seconds later, outdoor motor stops, when T con > or = 10oC or defrosting lasts for 10
minutes, outdoor motor and reversing valve becomes active, indoor motor will run as the
anti cool air condition, then it cycles again, recalculates the compressor’s running time
again. (In this period, if any protection works, and after the machine is back to work, it will
re-start defrosting state. it will not detect outdoor tube temp when compressor’s in its first 6
minutes running)
g. Noise eliminated protection
i. When you use RUN/STOP button to switch off the machine, reversing valve will become
inactive in 2 minutes.
AUTO mode
1In AUTO mode, standard cooling T set = 25oC, standard heating T set = 20oC.
2Working procedures
a. If T indoor > or = T set + 1oC , select cooling mode, from this time, the set temp. is 25oC. If T
indoor < or = T set – 1oC, compressor and outdoor motor stop, indoor motor runs at the set
speed, if T set -1 < T indoor < T set + 1oC, keep the original state.
b. If T indoor < or = T set + 2oC, select heating mode, from this time, the set temp. is 20oC, if T
indoor > or = T set + 4oC, compressor stops first, outdoor motor stops 15 seconds later,
reversing valve is always active, indoor motor runs as the blowing surplus heat condition. If T
set +2oC < T indoor < T set +4oC, keeps the original state. Cooling only AUTO mode: there is
no heating function in this mode.
3Protections
a. It is same as the one in cooling or heating mode.
4Other controls

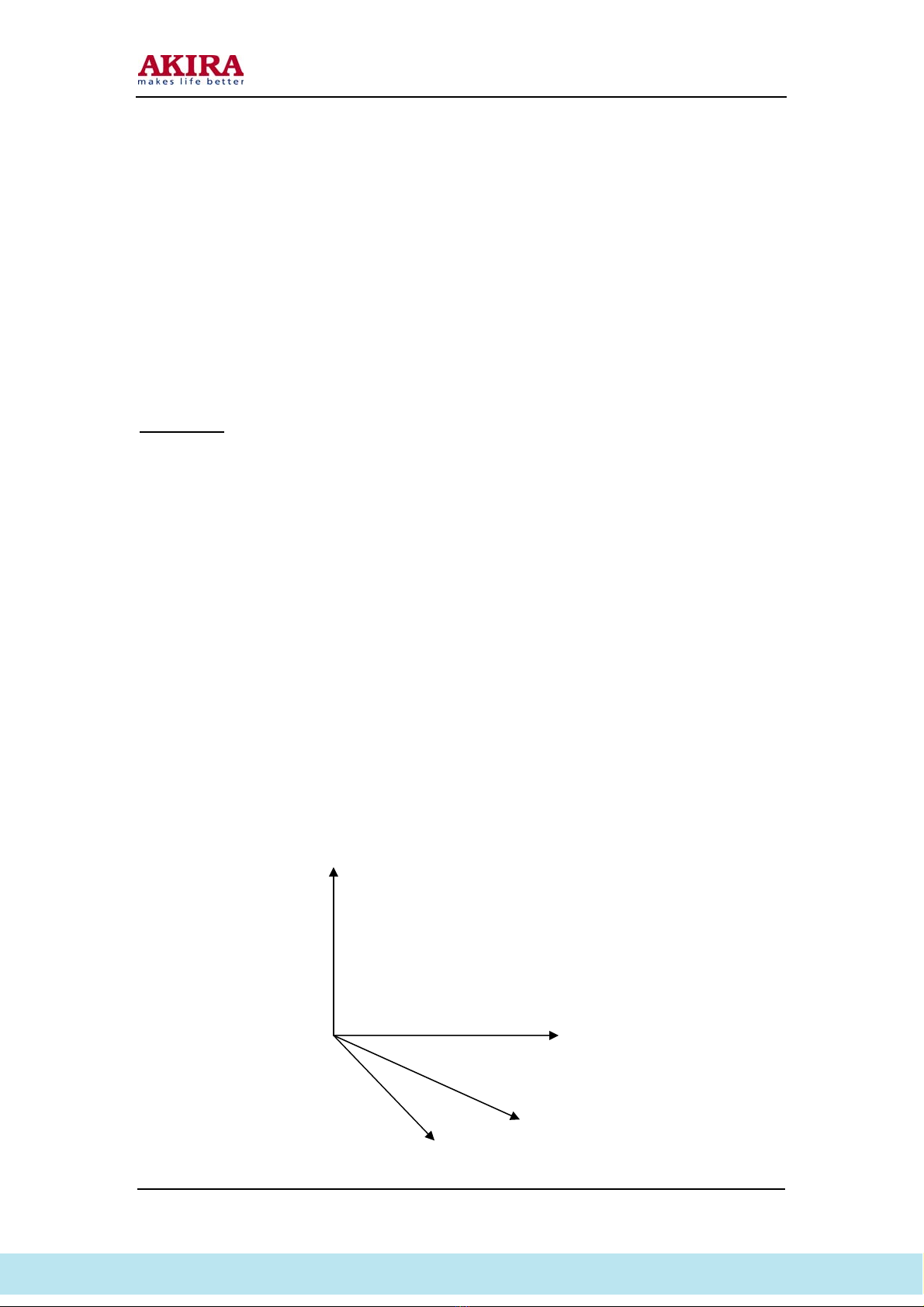

1SWING mode
a. When it is active, the louver returns to position O, close the air outlet.
b. When machine works, it turns to the max. Air output position D, then returns back to position L
to stand by (position L is the horizontal place mentioned before).
c. In swing state, the louver swings between position L and position D.
d. When the machine is switched off, it is back to position O.
e. When the machine is running and the swing is off, the louver stops at position E.
O
L
E
D
    : http://splitoff.ru/tehn-doc.html

18
Model No.: AC-S13CGA
Version: 1.0
2Beeper
a. When PCB becomes active or receives the signal from the remote controller, the beeper will
beep.
3Indication lamps
a. It flashes when defrosting begin.
4Press the AUTO button a time, the machine runs in AUTO mode, indoor motor runs in low speed,
fresh air function is not active, press again the machine stops.
5Fresh air function.
a. There are two fresh air modes.
Fresh air 2
i. Fresh air motor will work 1 hour, then rest 1 hour, then cycle again.
Fresh air 1
ii. Press the button AIR on the remote controller to select fresh air 1 function, the swing motor
keeps running till you give a signal to change it.
6Automatic fan speed.
a. In cooling mode, if T indoor > T set + 5oC high speed
T indoor > or = T set +3oC middle speed
T indoor > or = T set + 1oC low speed
b. In dehumidify mode, if T indoor > or = T set + 5oC high speed
T indoor > or = T set + 2oC low speed
SLEEP mode
1In cooling or dehumidifying mode, 1 hour after you set the sleep timer, T set will add 1oC
automatically, another 1 hour, another 1 will be added.
2In heating mode, 1 hour after you preset the sleep timer, T set will lower 1oC automatically, another
1 hour, another 1oC will be lowered.
    : http://splitoff.ru/tehn-doc.html

   
http://splitoff.ru/tehn-doc.html
, ,  , .
