akira AC-S10HKX2 User manual

Air Conditional
Service Manual
   
http://splitoff.ru/tehn-doc.html
, ,  , .

2
Model No: AC-S10HKX2
Version 1.0
2
Model:
AC-S10HKX2
    : http://splitoff.ru/tehn-doc.html

3
Model No: AC-S10HKX2
Version 1.0
CONTENTS
SPECIFICATIONS................................................................................................................................... 4
FEATURES .............................................................................................................................................. 5
OPERATING RANGE ............................................................................................................................. 7
PERFORMANCE CURVES .................................................................................................................... 8
REMOTE CONTROLLER .................................................................................................................... 11
OPERATION DETAILS......................................................................................................................... 14
INSTALLATION.................................................................................................................................... 25
2-WAY, 3-WAY VALVE......................................................................................................................... 37
EXPLODED VIEW & PART LIST........................................................................................................ 46
WIRING DIAGRAM ............................................................................................................................. 50
    : http://splitoff.ru/tehn-doc.html

4
Model No: AC-S10HKX2
Version 1.0
SPECIFICATION
MODEL AC-S10X2HK
Function Heat Pump
Control method Remote
Power supply 220-240V~/1P/50Hz
Unit A 9000Rated cooling
Capacity (Btu/h) Unit B 9000
Unit A 9000Rated heating
Capacity (Btu/h) Unit B 9000
Unit A 900/900
Rated cooling/heating input (W) Unit B 900/900
Unit A 10
EER for cooling (Btu/h.w) Unit B 10
Unit A 9.9
COP for heating (Btu/h.w) Unit B 9.9
Unit A R22/860
Refrigerant/Charge (g) Unit B R22/860
Moisture removal l/h 0.9x2
Unit A 4.2/4.2
Rated cooling/heating current ( A) Unit B 4.2/4.2
LRA of compressor (A) A/B 22/22
Air circulation (m3/h) A/B 420/420
High(A/B) 33/33
Indoor unit Low(A/B) 27/27
Noise level dB(A)
Outdoor unit 61
Unit A Rotary/PH160X1C
Compressor type Unit B Rotary/PH160X1C
Other
24 Hours timer Yes
Smart function Yes
Jet function Yes
Auto restart Yes
3 Speed control Yes
Horizon Yes
Auto swing louver Vertical No
Suitable area m214~20/14~20
Outdoor IP class IP×4
Gas 3/8 (A&B)
Connect diameter inch liquid 1/4(A&B)
Indoor(A/B) 800X270X168 / 800X270X168
Body dimension W×H×D mm Outdoor 890X793X414
Indoor(A/B) 9/9
Net weight kg outdoor 60
Indoor(A/B) 890X350X240 / 890X350X240
Packing dimension W×H×D mm outdoor 1050X910X500
Indoor(A/B) 11/11
Gross weight kg outdoor 74
Loading Capacity 40’/40’HC 88/92
Approvals CE
    : http://splitoff.ru/tehn-doc.html

5
Model No: AC-S10HKX2
Version 1.0
FEATURES
MODE DESCRIPTION
COOLING Cools, dehumidifies and filters the room air. Maintains desired room temperature.
HEATING Heats and filters the room air. Maintains desired room temperature.
SMART Operates the appliance at COOLING, HEATING or DRY mode, maintaining desired
temperature dependent upon the room temperature.
DRY Dehumidifies and softly cools the room air. This mode is advisable to be used when
the room temperature is rather cool but the humidity is rather high.
FAN ONLY Re-circulates and filters the room air. Maintains constant air movement in the room.
SLEEP
The SLEEP mode will be canceled after being set for 8 hours. The set temperature
will be increased 0.5℃per hour during the first two hours in COOLING or DRY and
decreased 1℃per hour in the first three hours in HEATING.
AUTO FAN
The appliance automatically selects the indoor fan speed in accordance to the room
temperature. At the start, the appliance operates at high fan speed. As the room
temperature gets closer to the set temperature, the fan switches to a lower speed for
quieter operation.
FAN SPEED
HIGH
MEDIUM
LOW
1. The appliance can set at different indoor fan motor speed by pressing the FAN
SPEED button on the remote controller.
2. When this symbol is being displayed on the LCD of the remote controller, the
signal is transmitting from the remote controller to the air conditioner.
TEMP. SET
UP
DOWN
Press DOWN button once, the set temperature is decreased by 1℃.
Press UP button once, the set temperature is increased by 1℃.
TIMER
Automatically switches the appliance ON at preset time intervals, ensuring a
comfortable environment before you return home, or switches OFF the appliance
automatically when you sleep without wasting electricity.
    : http://splitoff.ru/tehn-doc.html

6
Model No: AC-S10HKX2
Version 1.0
MODE DESCRIPTION
Auto -restart When the power supply restores after its failure, the machine will start to work
automatically with the previous setting parameters.
SUPER Strong cooling when you just come into your room and want to cool the room as soon
as possible.
    : http://splitoff.ru/tehn-doc.html

7
Model No: AC-S10HKX2
Version 1.0

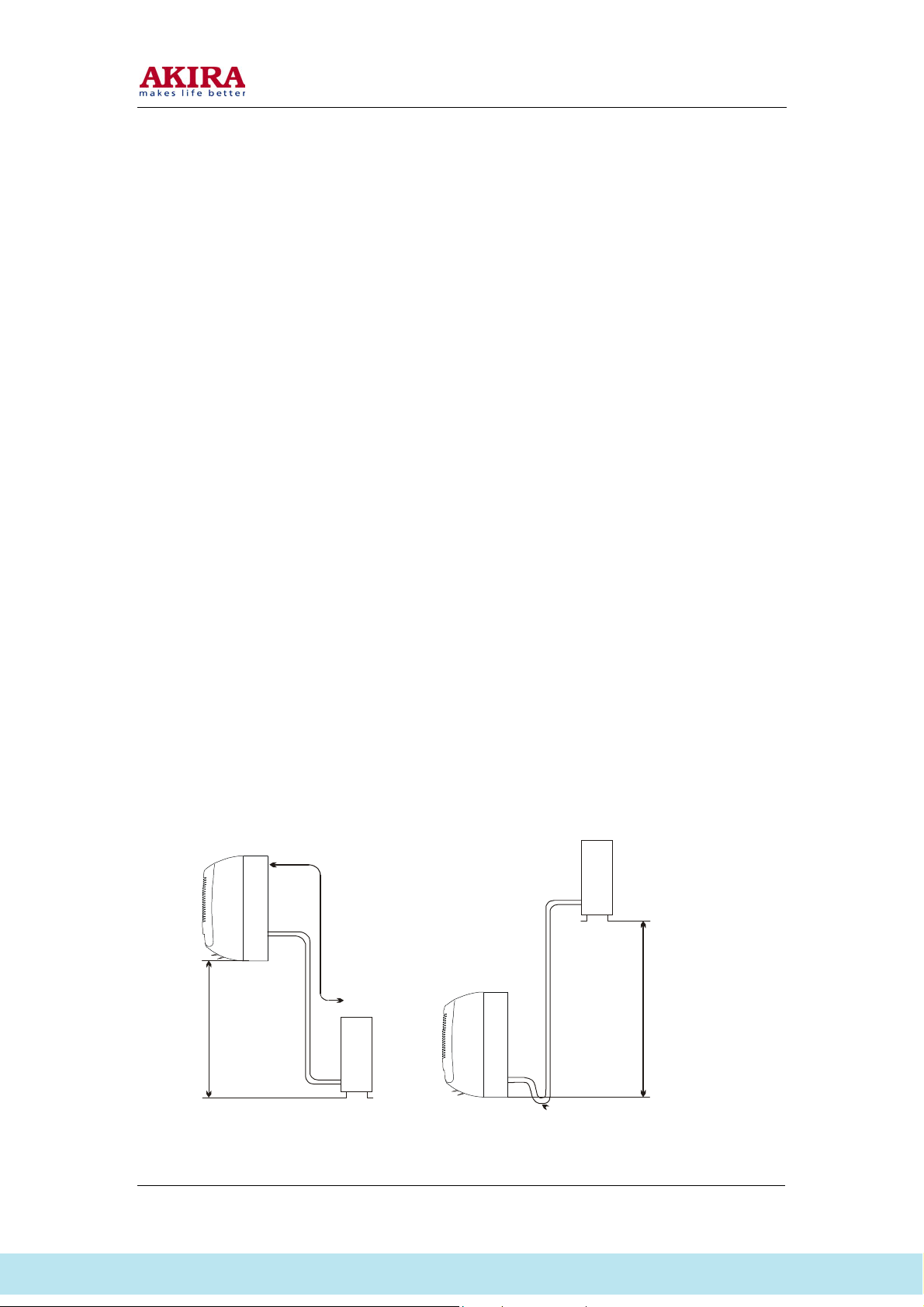

Indoor unit
Pipe length is
15 meters Max
Outdoor unit
elevation should be
less than 5m
Indoor unit
elevation should be
less than 5m
Curled tube for
returning water
Outdoor unit
OPERATING RANGE
1. TEMPERATURE RANGE FOR T1 CLIMATE AIR CONDITIONER
 The preset temperature of the appliance ranges from 18℃to 32℃.
 The ambient temperature of the cooling only air conditioner ranges from 18℃to 43℃.
 The ambient temperature of the heat pump ranges from –7℃to 43℃.
 The rated cooling operation test condition is as following.
Indoor DB/WB temperature: 27℃/19℃
Outdoor DB/WB temperature: 35℃/24℃
 The rated heating operation test condition is as following.
 Indoor DB/WB temperature: 20℃/Max.15℃
 Outdoor DB/WB temperature: 7℃/6℃
2. REFRIGERANT PIPING
 The maximum length of the connecting refrigerant piping between indoor unit and outdoor unit is
15m and the maximum elevation difference between indoor and outdoor units are 5m.
 If the refrigerant piping is longer than 7m,additional refrigerant charge 20g/m for below 1/2 inch
gas pipe.
    : http://splitoff.ru/tehn-doc.html

8
Model No: AC-S10HKX2
Version 1.0

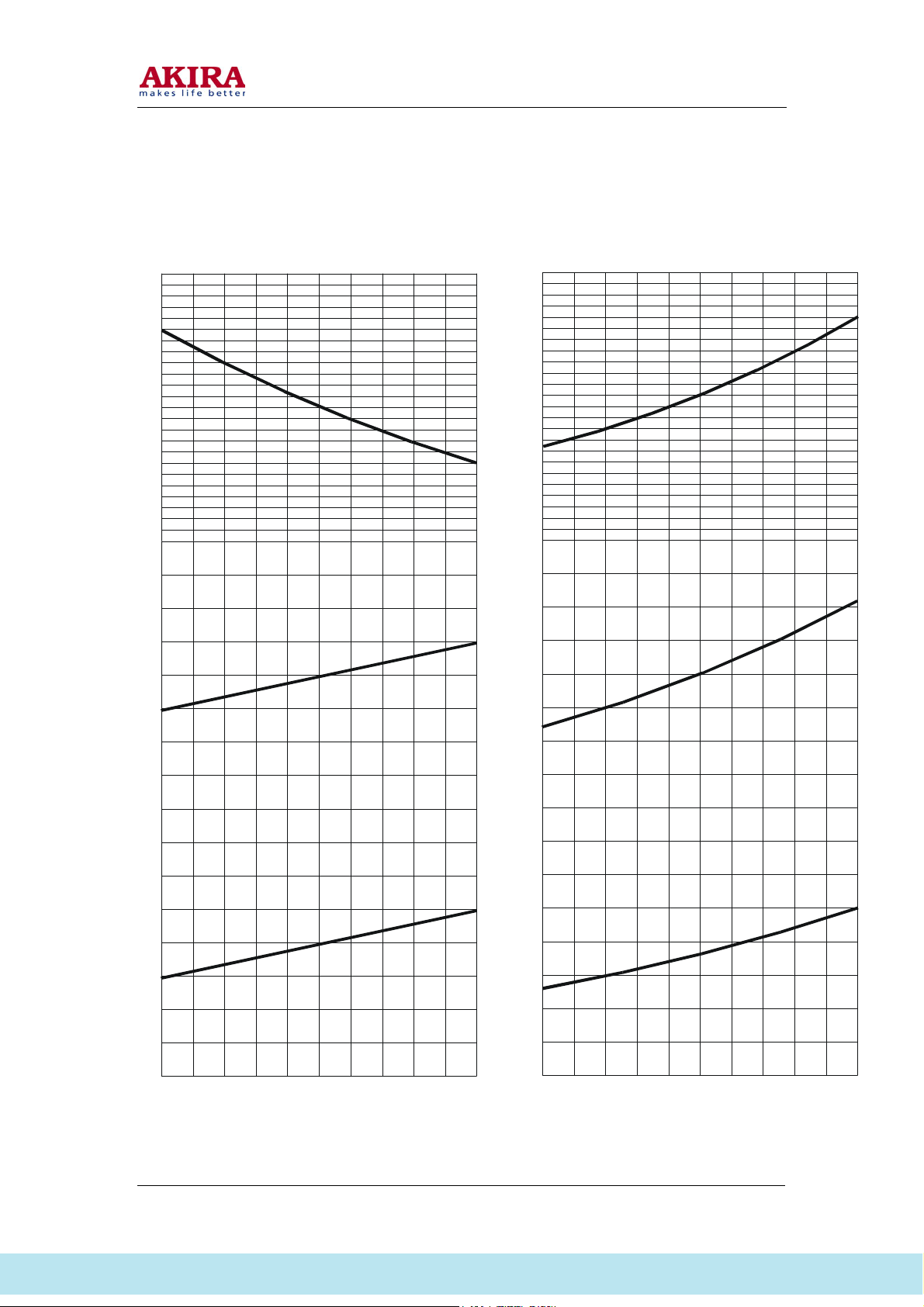

PERFORMANCE CURVES

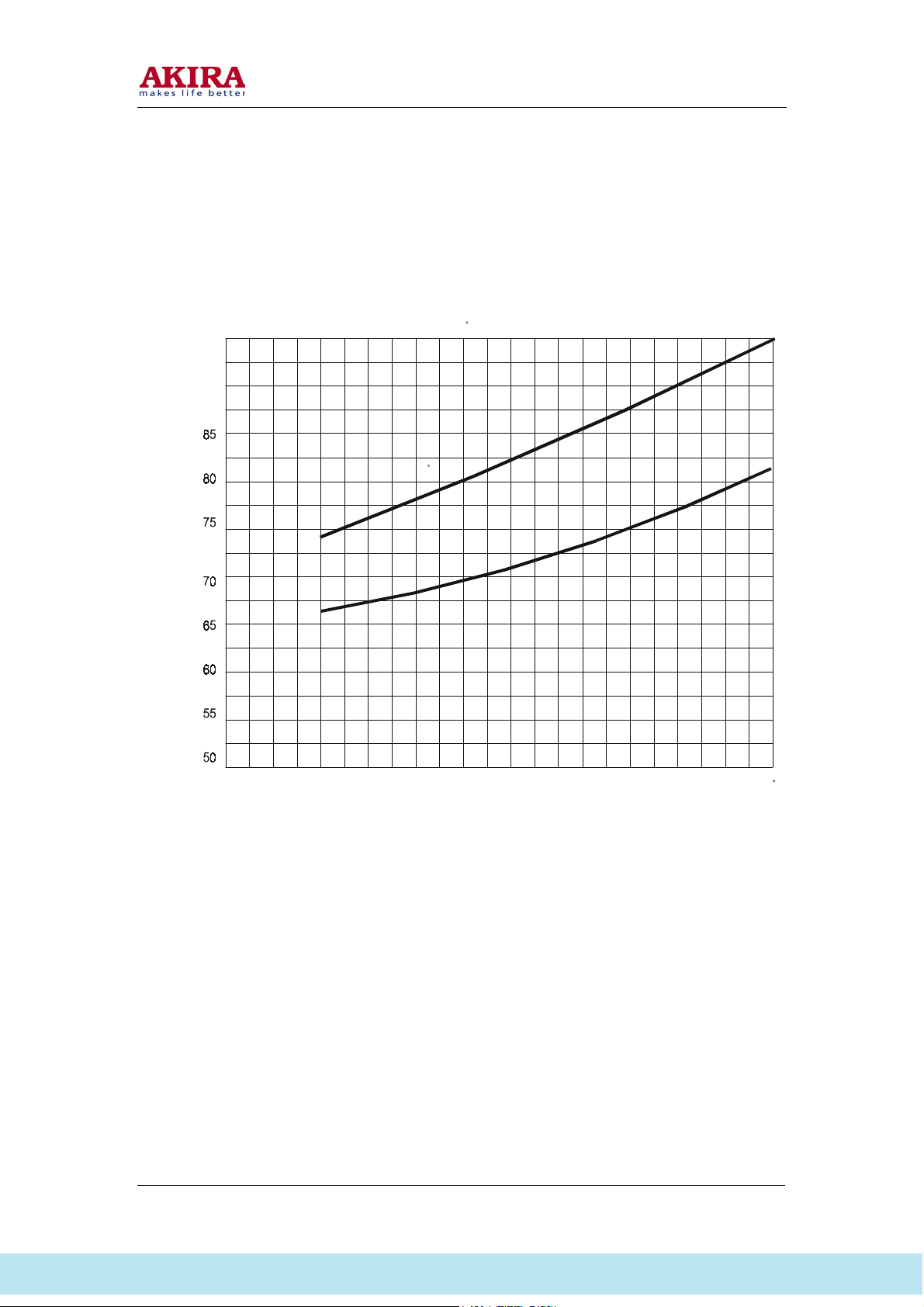

1. SUCTION PRESSURE VS TEMPERATURE CHART (COOLING OPERATION)
OUTDOOR INTAKE AIR TEMP.
75.2(24)
66.2(19)
INDOOR WB F(
PSI INDOOR DB=80.6
60 65 70 75 80 85 90 95 100 105 110 115 F DB
SUCTION PRESSURE
95
90
F( ¡æ )
¡æ )
    : http://splitoff.ru/tehn-doc.html

9
Model No: AC-S10HKX2
Version 1.0
 COOLING UNIT
    : http://splitoff.ru/tehn-doc.html

10
Model No: AC-S10HKX2
Version 1.0
 HEATING PUMP
-10 -8 -6 -4 -2 0 2 4 6 8 10
Outdoor air temp.(¡æ )
30
35
40
45
95
105
85
75
65
115
100
110
90
80
70
60
50
Heating capacity(%)
Power input(%)
Outlet air temp.of indoor unit(¡æ )
30 31 32 33 34 35 36 37 38 39 40
11
12
13
14
80
90
100
110
100
110
90
Outdoor air temp.(¡æ )

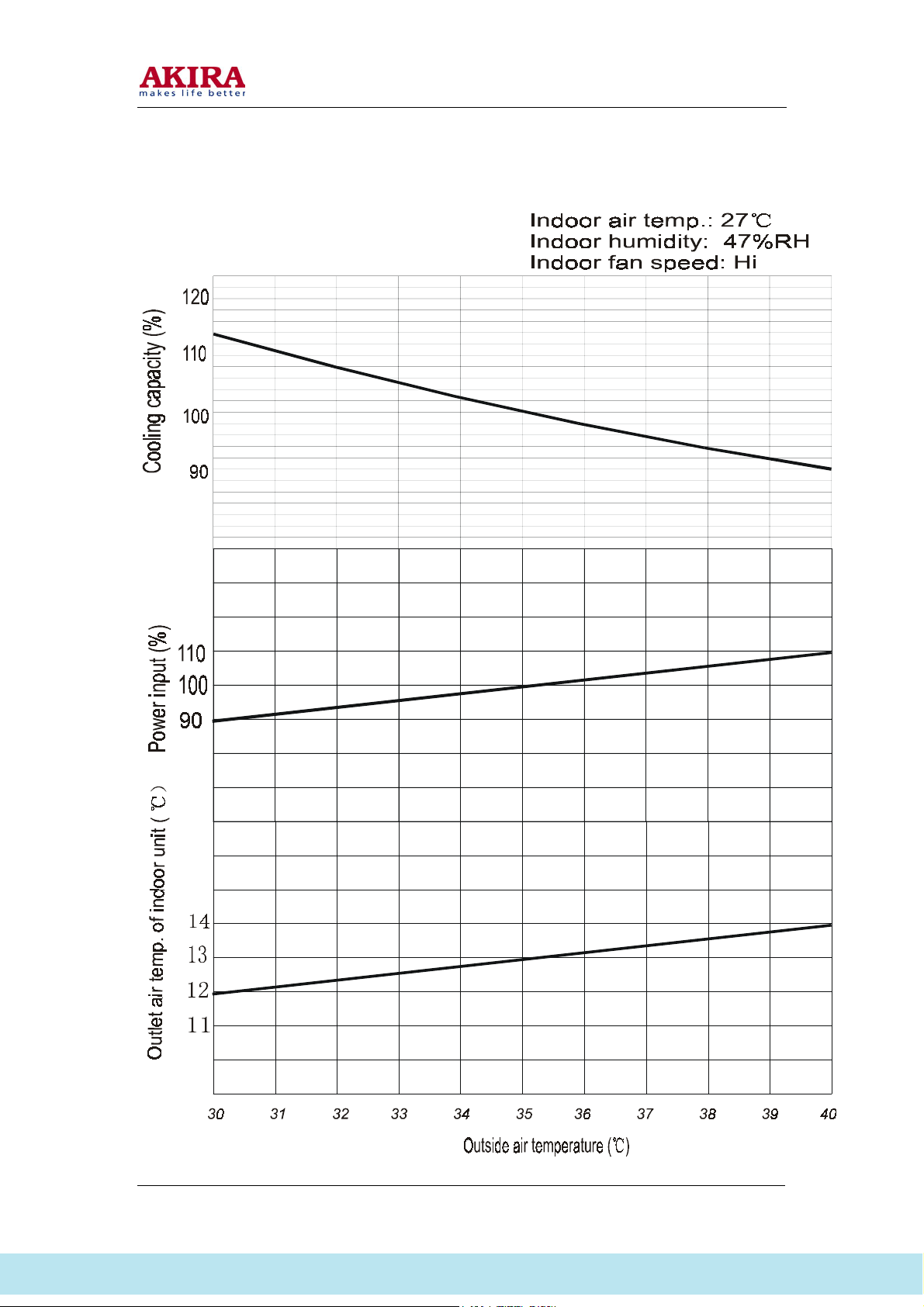

Cooling capacity(%)
Power input(%)
Outlet air temp. of indoor unit(¡æ )
Indoor air temp.: 27¡æ
Indoor humidity: 47%RH
Indoor fan speed: Hi
COOLING OPERATION
Indoor air temp.: 2£° ¡æ
Indoor fan speed: Hi
HEATING OPERATION
    : http://splitoff.ru/tehn-doc.html

11
Model No: AC-S10HKX2
Version 1.0

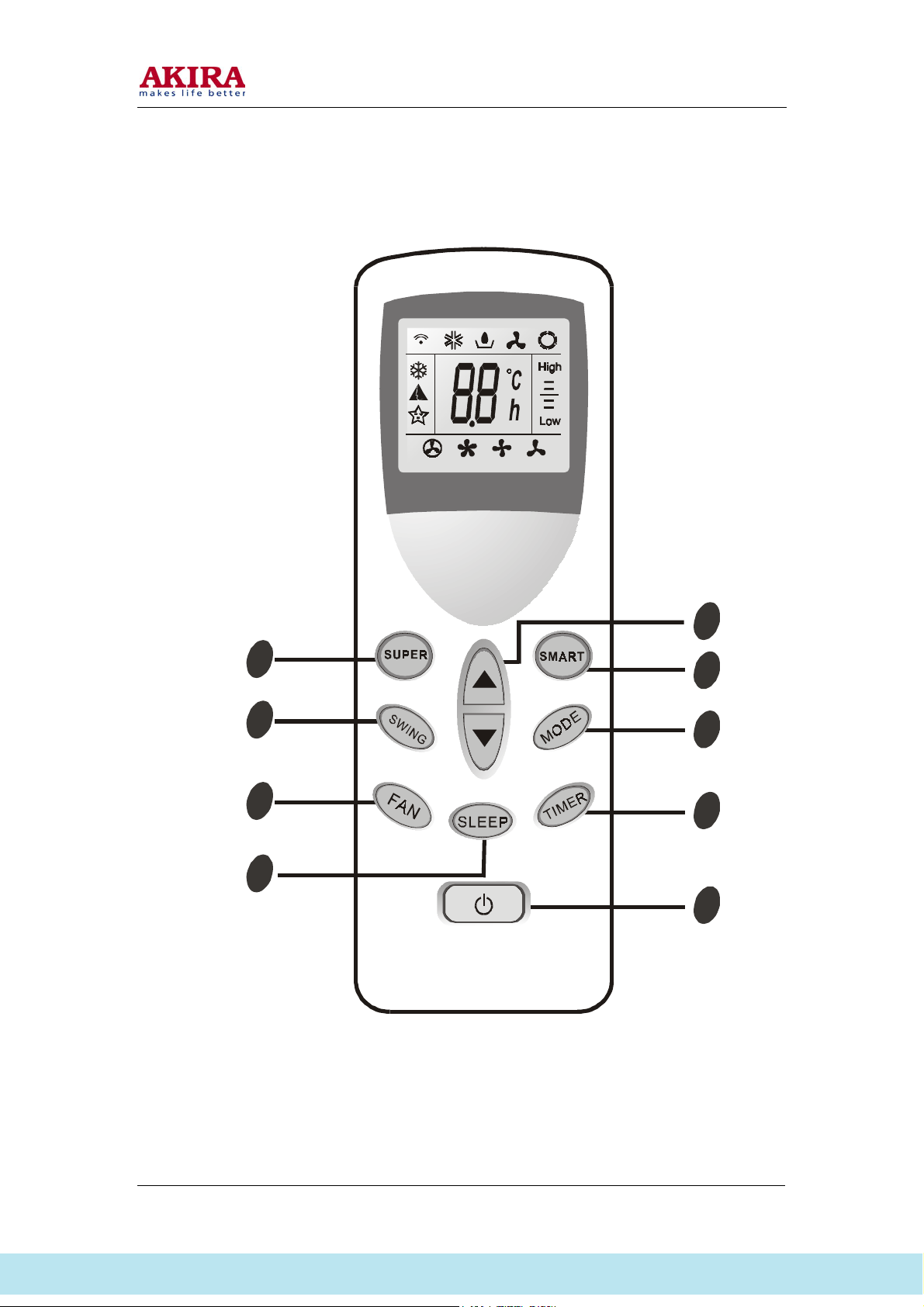

REMOTE CONTROLLER
The remote controller transmits signals to the system.
9
5
3
8
4
2
7
6
1
    : http://splitoff.ru/tehn-doc.html

12
Model No: AC-S10HKX2
Version 1.0
1. ON/OFF BUTTON
 The appliance will be started when it is energized or will be stopped when it is in operation, if
you press this button.
2. MODE BUTTON
 Used to select the type of operation mode.
COOLING mode
DRY mode
FAN ONLY mode
HEATING mode
3. FAN SPEED BUTTON
 Used to select the indoor fan motor speed.
Automatic fan speed
High fan speed
Medium fan speed
Low fan speed
4. TEMPERATURE SETTING BUTTON
 Used to adjust the preset room temperature.
 Used to adjust time in TIMER mode.
5. SWING BUTTON
 Press to adjust airflow direction.
6. SMART BUTTON
 Used to enter fuzzy logic operation directly, regardless of the unit is on or off.
    : http://splitoff.ru/tehn-doc.html

13
Model No: AC-S10HKX2
Version 1.0
7. TIMER SET/CANCEL BUTTON
 Used to set or cancel the timer operation.
8. SLEEP BUTTON
 Used to set or cancel SLEEP mode operation during COOLING, HEATING, DRY or SMART
mode operation.
9. SUPER BUTTON
 Used to start or stop the fast cooling.
(Fast cooling operates at high fan speed with 18℃setting temperature automatically)
Indication symbols on LCD:
Signal transmit.
Smart indicator Dr
y
indicator
Fan only indicator
Sleep indicator
Heating indicator
Coolin
g
indicator
Super indicator Hi
g
h fan speed
Medium fan speed
Low fan speed
Auto fan speed
    : http://splitoff.ru/tehn-doc.html

14
Model No: AC-S10HKX2
Version 1.0
OPERATION DETAILS
1. SAFETY CONTROL
 3 minutes delay for compressor
The compressor is ceased for 3 minutes to balance the pressure in the refrigeration cycle in order to
protect the compressor.
 59 seconds delay for reversing valve
The 4-way reversing valve delay for 59 seconds to prevent the refrigerant abnormal noise when the
HEATING operation is OFF or switched to other operation modes.
 Over-current control
The compressor will be switched OFF when it is over-current for 5seconds, and when the current is
normal and the compressor has been off for 3 minutes , the compressor will be turned ON.
 Freeze preventive control
When the indoor pipe temperature falls below –1℃during COOLING or DRY operation for 3
minutes, the compressor and outdoor fan motor turn OFF with buzzer 3 beeps . When the indoor pipe
temperature recovers to 5℃and the compressor has been off for 3 minutes, the compressor and
outdoor fan motor will be turned ON.
 Overheating protection system
When overloading occurs during the heating operation, this system controls the outdoor fan motor
and compressor according to the indoor pipe temperature to prevent the overloading of the
compressor and restrain the rise in high pressure. When the indoor pipe temperature exceeds 53℃,
the outdoor fan motor will be turned OFF, and when the indoor pipe temperature falls below 49℃,
the outdoor fan motor recovers to ON. When the indoor pipe temperature exceeds 63℃, the appliance
will be turned OFF with 4 beeps of buzzer and cannot recover automatically.
    : http://splitoff.ru/tehn-doc.html

15
Model No: AC-S10HKX2
Version 1.0
2. AIR FLOW DIRECTION CONTROL
 This function is to swing the louver up and down automatically and to set it at a desired position.
 The procedure is as following.
 Press the ON/OFF button to operate the appliance. The louver will swing automatically to
the default position.
 Press the SWING button to swing the louver up and down automatically.
 Repress the SWING button to stop the louver at a desired position.
 The louver is controlled by a step motor. The different default position of different modes is as
following:
 The louver can swing from 0°to 110°.
 The louver closes at 0°.
 The louver swings from 25°to 65°with an automatic setting point of 45°during
COOLING operation.
 The louver swings from 10°to 30°with an automatic setting point of 30°during DRY
operation.
 The louver swings from 45°to 98°with an automatic setting point of 85°during
HEATING operation.
 The louver swings from 45°to 98°with an automatic setting point of 85°during FAN only
operation.
3. COOLING MODE OPERATION
 When the COOLING mode operation is selected without setting temperature, the appliance will
set the preset temperature at 26℃automatically with the AUTO FAN speed.
 When selecting the COOLING mode operation, the appliance will operate according to the setting
by the remote controller and the operation diagram is as following:
    : http://splitoff.ru/tehn-doc.html

16
Model No: AC-S10HKX2
Version 1.0
4. DRY MODE OPERATION
 The appliance starts as COOLING operation. If 3minutes elapses after starting, the appliance
will sense the intake air temperature and minus 1.5℃as the setting temperature.
 During DRY operation, the compressor ON when temperature is the setting temperature plus 1
℃.The compressor OFF when temperature is the setting temperature minus 1℃. The setting
temperature can only be adjusted by 2℃up and down.
 When the appliance operates at DRY mode, the indoor motor speed is LOW.
ROOM TEMP.
SET TEMP.+1¡æ
(COMP.ON)
SET TEMP.-1¡æ
(COMP. OFF)
Indoor fan motor
speed
Compressor
Outdoor fan motor
set
speed low speed set
speed low speed set
speed
ON OFF ON OFF ON
ON OFF ON OFF ON
More than
3 mins More than
3 mins
set set
    : http://splitoff.ru/tehn-doc.html

17
Model No: AC-S10HKX2
Version 1.0

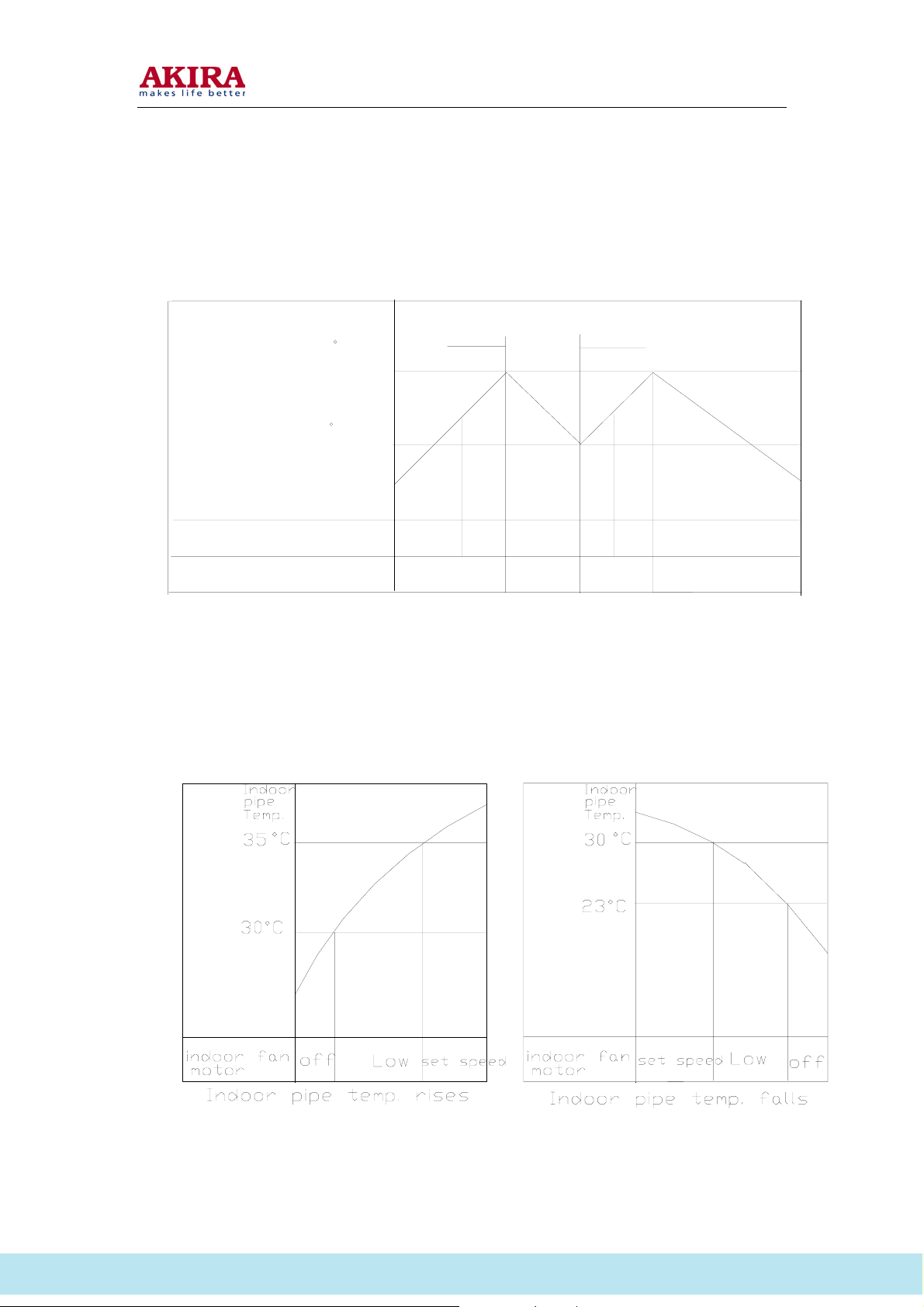

5. HEATING MODE OPERATION (ONLY AVAILABLE FOR HEAT PUMP)
 The appliance will operate at the setting by the remote controller and the operation diagram is
shown as following.
 The indoor fan motor is controlled by Cold Air Preventive
6. COLD AIR PREVENTIVE SYSTEM (ONLY AVAILABLE FOR HEAT PUMP)
 This system is intended to prevent cold air from being discharged during HEATING operation.
 The indoor fan motor speed will be controlled as following.
Set Temp. -1C
(COMP. ON)
The indoor fan motor is controlled by Cold Air Preventive System.
Set Temp. +1C
(COMP. OFF)
Room Temp.
Compressor
Indoor fan motor speed
*
**
ON OFF
set
speed
OFF
*
ON
set
speed *
More than
3 minutes.
    : http://splitoff.ru/tehn-doc.html

18
Model No: AC-S10HKX2
Version 1.0
7. SMART MODE OPERATION
 When SMART air conditioning is selected, the operation mode and preset temperature are set
automatically according to the room temperature at starting operation.
 The operation procedure of cooling only is as following.
Intake air temperature at
operation start
Over 26℃Below 26℃
Preset temperature 26℃Intake air temperature minus 1.5℃
Operation mode COOLING DRY
*The initial mode will be continued and independent upon the room temperature changing.
 The operation procedure of heat pump is as following.
Intake air temperature at
operation start
Over 26℃21℃~ 26℃Below 21℃
Preset temperature 26℃Intake air temperature at
operation start
22℃
Operation mode COOLING DRY HEATING
The initial mode will be continued and independent upon the room temperature changing.
 If initial mode is selected, that mode is continued, independent upon the temperature changing.
 The indoor fan motor speed is automatically determined by Auto Fan Speed. If you are not
satisfied with the auto fan speed, you can adjust the fan speed by pressing the FAN BUTTON.
8. AUTO FAN SPEED
 When the Auto Fan Speed is selected in COOLING or HEATING operation, the indoor fan
motor speed is automatically controlled by the intake air temperature and the preset temperature.
 The operation procedure of COOLING is as following.
    : http://splitoff.ru/tehn-doc.html

19
Model No: AC-S10HKX2
Version 1.0
 The operation procedure of HEATING is as following.
Set temp.+3¡æ
Intake air temp.
Indoor fan
motor speed
Low High
Indoor pipe temperature risesIndoor pipe temperature rises Indoor pipe temperature falls
Set temp.+1¡æ
Intake air temp.
Set temp.
Set temp.+2¡æ
High Medium
Indoor fan
motor speed
Set temp.+1¡æ
Medium Low
Indoor pipe temperature risesIndoor pipe temperature rises Indoor pipe temperature falls
Medium Low
Indoor fan
motor speed
Intake air temp.
Set temp.-2¡æ
Set temp.
Intake air temp.
Set temp.-1¡æ
Set temp.-3¡æ
Low
High
HighMedium
Indoor fan
motor speed
    : http://splitoff.ru/tehn-doc.html

20
Model No: AC-S10HKX2
Version 1.0
9. INDOOR FAN SPEED CONTROL
 Auto Fan Speed control
When set to Auto Fan Speed, the indoor fan motor speed is controlled by the difference between the
intake air temperature and the preset temperature. The more the difference, the higher the indoor fan
motor speed. Auto Fan Speed is only available for COOLING and HEATING modes.
 Manual fan speed control
Basic fan motor speed adjustment (3 setting, LOW, MEDIUM and HIGH) can be conducted by using
the Fan Speed Selection button on the remote controller.
 The indoor fan speed in different modes is shown as following.
Fan Speed High(H) Medium(M) Low(L) Stop
COOLING Manual OK OK OK N/A
Automatic OK OK OK N/A
HEATING Manual OK OK OK N/A
Automatic OK OK OK N/A
Cold Air Preventive OK OK OK OK
DRY N/A N/A OK N/A
FAN ONLY OK OK OK N/A
10. EMERGENT START
 If you lose the remote controller or the remote controller defected, you can also operate the
appliance by pressing the EMERGENT BUTTON on the indoor unit for an emergent start.
 The operation mode is SMART if an emergent start is presented when the appliance is
connected to the power at first time. If the appliance is in stand by, the operation mode will
restore the last time setting when you press the EMERGENT BUTTON.
11. AUTORESTART FUNCTION
When the unit is connected to power, pressing the EMERGENT BOTTON for over 5 seconds; if
the unit without auto restart function, it will be of the function of auto restart after the buzzer 2
beeps; if the unit with auto restart function, it will discharge the auto restart function after the
buzzer 3 beeps.
    : http://splitoff.ru/tehn-doc.html
