Aktakom AWG-4152 User manual

Dual-Channel Arbitrary
Waveform Generator
User Manual
AWG-4152
www.tmatlantic.com

General Warranty
LILLIPUT warrants that the product will be free from defects in materials and
workmanship for a period of 3 years (1 year for accessories) from the date of purchase of
the product by the original purchaser from the LILLIPUT Company. This warranty only
applies to the original purchaser and is not transferable to the third party. If the product
proves defective during the warranty period, LILLIPUT either will repair the defective
product without charge for parts and labor, or will provide a replacement in exchange for
the defective product. Parts, modules and replacement products used by LILLIPUT for
warranty work may be new or reconditioned like new performance. All replaced parts,
modules and products become the property of LILLIPUT.
In order to obtain service under this warranty, Customer must notify LILLIPUT of the
defect before the expiration of the warranty period. Customer shall be responsible for
packaging and shipping the defective product to the service center designated by
LILLIPUT, and with a copy of customer proof of purchase.
This warranty shall not apply to any defect, failure or damage caused by improper use or
improper or inadequate maintenance and care. LILLIPUT shall not be obligated to furnish
service under this warranty a) to repair damage resulting from attempts by personnel
other than LILLIPUT representatives to install, repair or service the product; b) to repair
damage resulting from improper use or connection to incompatible equipment; c) to
repair any damage or malfunction caused by the use of non-LILLIPUT supplies; or d) to
service a product that has been modified or integrated with other products when the
effect of such modification or integration increases the time or difficulty of servicing the
product.
Please contact the nearest LILLIPUT's Sales and Service Offices for services or a complete
copy of the warranty statement.
Excepting the after-sales services provided in this summary or the applicable warranty statements,
LILLIPUT will not offer any guarantee for maintenance definitely declared or hinted, including but
not limited to the implied guarantee for marketability and special-purpose acceptability. LILLIPUT
should not take any responsibilities for any indirect, special or consequent damages.

i
Table of Contents
1.General Safety Requirements.....................................................................................1
2.Safety Terms and Symbols.........................................................................................2
3.General Characteristics.............................................................................................3
4.Quick Start................................................................................................................4
Front/Rear Panel and User Interface ................................................................................... 5
Front Panel ............................................................................................................................................... 5
Rear Panel ................................................................................................................................................ 6
User Interface........................................................................................................................................... 7
General Inspection.............................................................................................................. 8
Foot Stool Adjustment ........................................................................................................ 8
Power-On Check ................................................................................................................. 9
AC Power Input Setting ............................................................................................................................ 9
Power On.................................................................................................................................................. 9
5.Front Panel Operation............................................................................................ 10
To set channels ..................................................................................................................11
To set signals .....................................................................................................................12
To Output Sine Signals............................................................................................................................ 12
To Set the Frequency/Period ...............................................................................................................................12
To Set the Amplitude ...........................................................................................................................................13
To Set the Offset ..................................................................................................................................................13
To Set the High Level............................................................................................................................................13
To Set the Low Level ............................................................................................................................................13
To Output Square Signals ....................................................................................................................... 13
To Set the Duty Cycle ...........................................................................................................................................14
To Output Ramp Signals ......................................................................................................................... 15
To Set the Symmetry............................................................................................................................................15
To Output Pulse Signals.......................................................................................................................... 16
To Set the Pulse Width / Duty Cycle ....................................................................................................................17
To Output Noise Signals ......................................................................................................................... 17
To Output Arbitrary Signals.................................................................................................................... 18
To Select the Built-in Waveform...........................................................................................................................19
The User-Definable Waveform .............................................................................................................................20
To Output DC.......................................................................................................................................... 22
To recall wave file................................................................................................................................... 22
Use SDS Series oscilloscope to cut wave: ............................................................................................................22
Use waveform generators to recall wave: ............................................................................................................23
To Generate the Modulated Waveform ..............................................................................24

ii
AM (Amplitude Modulation) .................................................................................................................. 25
FM (Frequency Modulation) .................................................................................................................. 26
PM (Phase Modulation).......................................................................................................................... 27
FSK (Frequency Shift Keying).................................................................................................................. 28
PWM (Pulse Width Modulation) ........................................................................................................... 29
To Generate Sweep............................................................................................................29
To Generate Burst..............................................................................................................31
Set the N-Cycle Burst.............................................................................................................................. 31
Set the Gated Burst ................................................................................................................................ 32
To Save and Recall .............................................................................................................33
To Use USB Storage ................................................................................................................................ 33
To Edit the File Name ............................................................................................................................. 33
To Set the Utility Function..................................................................................................34
To Set Display Parameter ....................................................................................................................... 34
To Set the Bright ..................................................................................................................................................34
To Set the Separator ............................................................................................................................................34
To Set the Screen Saver........................................................................................................................................34
To Set the Counter ................................................................................................................................. 35
To Set Output Parameter ....................................................................................................................... 35
To Set the Output Load ........................................................................................................................................35
To Set the Phase Deviation ..................................................................................................................................36
To Set the System................................................................................................................................... 36
Language Setting..................................................................................................................................................36
Power On Setting .................................................................................................................................................36
To Return to Default Setting.................................................................................................................................36
To Set the Beep ....................................................................................................................................................38
View System Information ....................................................................................................................................38
To Set the Clock Source........................................................................................................................................38
To Use the Power Amplifier (Optional) ...............................................................................38
To Use Built-in Help ...........................................................................................................39
6.Communication with PC ......................................................................................... 40
7.SCPI....................................................................................................................... 41
8.Troubleshooting...................................................................................................... 41
9.Technical Specifications.......................................................................................... 42
10.Appendix............................................................................................................... 48
Appendix A: Enclosure .......................................................................................................48
Appendix B: General Care and Cleaning ..............................................................................48

1.General Safety Requirements
1
1. General Safety Requirements
Before any operations, please read the following safety precautions to avoid any
possible bodily injury and prevent this product or any other products connected from
damage. In order to avoid any contingent danger, this product is only used within the
range specified.
Check AC power input setting according to the standards in your own country (see page 9,
AC Power Input Setting).
Only the qualified technicians can implement the maintenance.
To avoid Fire or Personal Injury:
 Use Proper Power Cord. Use only the power cord supplied with the product and
certified to use in your country.
 Product Grounded. This instrument is grounded through the power cord grounding
conductor. To avoid electric shock, the grounding conductor must be grounded. The
product must be grounded properly before any connection with its input or output
terminal.
 Check all Terminal Ratings. To avoid fire or shock hazard, check all ratings and
markers of this product. Refer to the user's manual for more information about
ratings before connecting to the instrument.
 Do not operate without covers. Do not operate the instrument with covers or panels
removed.
 Use Proper Fuse. Use only the specified type and rating fuse for this instrument.
 Avoid exposed circuit. Do not touch exposed junctions and components when the
instrument is powered.
 Do not operate if in any doubt. If you suspect damage occurs to the instrument,
have it inspected by qualified service personnel before further operations.
 Use your instrument in a well-ventilated area. Make sure the instrument installed
with proper ventilation, refer to the user manual for more details.
 Do not operate in wet conditions.
 Do not operate in an explosive atmosphere.
 Keep product surfaces clean and dry.

2.Safety Terms and Symbols
2
2. Safety Terms and Symbols
Safety Terms
Terms in this Manual. The following terms may appear in this manual:
Warning: Warning indicates the conditions or practices that could result in
injury or loss of life.
Caution: Caution indicates the conditions or practices that could result in
damage to this product or other property.
Terms on the Product. The following terms may appear on this product:
Danger: It indicates an injury or hazard may immediately happen.
Warning: It indicates an injury or hazard may be accessible potentially.
Caution: It indicates a potential damage to the instrument or other property might occur.
Safety Symbols
Symbols on the Product. The following symbol may appear on the product:
Hazardous Voltage Refer to Manual
Protective Earth Terminal Chassis Ground
Test Ground

3.General Characteristics
3
3. General Characteristics
The product is dual-channel multi-function generator which combines Arbitrary
Waveform Generation and Function Generation. The product introduces Direct Digital
Synthesizer (DDS) technology to provide stable, precise, pure and low distortion signal.
The user-friendly interface design and panel layout bring exceptional user experience.
Support USB storage device. Provide more alternative solutions for users.
Features and benefits:
 3.9 inch high resolution (480 × 320 pixels) TFT LCD display;
 Advanced DDS technology, max. 60 MHz frequency output;
 Max. Sample rate: 300 MSa/s, Frequency resolution: 1 μHz;
 Vertical resolution: 14 bits, max. 1 M waveform record length;
 Abundant waveform output: 5 basic waveforms and 45 built-in arbitrary waveforms
output;
 Exponential rise, Exponential fall, Sin(x)/x, Staircase, etc. 45 built-in waveforms and
user defined arbitrary waveform;
 Abundant modulation functions along with output liner/logarithm sweep and pulse
string waveform;
 Standard interface: USB port, USB (type B) connector.

4.Quick Start
4
4. Quick Start
This chapter will deal with the following topics mainly:
 Front/Rear Panel Overview
 User Interface Overview
 How to Implement General Inspection
 How to Adjust the Foot Stools
 How to Implement Power-On Check

4.Quick Start
5
Front/Rear Panel and User Interface
Front Panel
①②③④
⑥
⑱⑬
⑮⑭
⑯
⑲
⑩
⑪
⑦
⑧
⑨
⑫
⑤
⑰

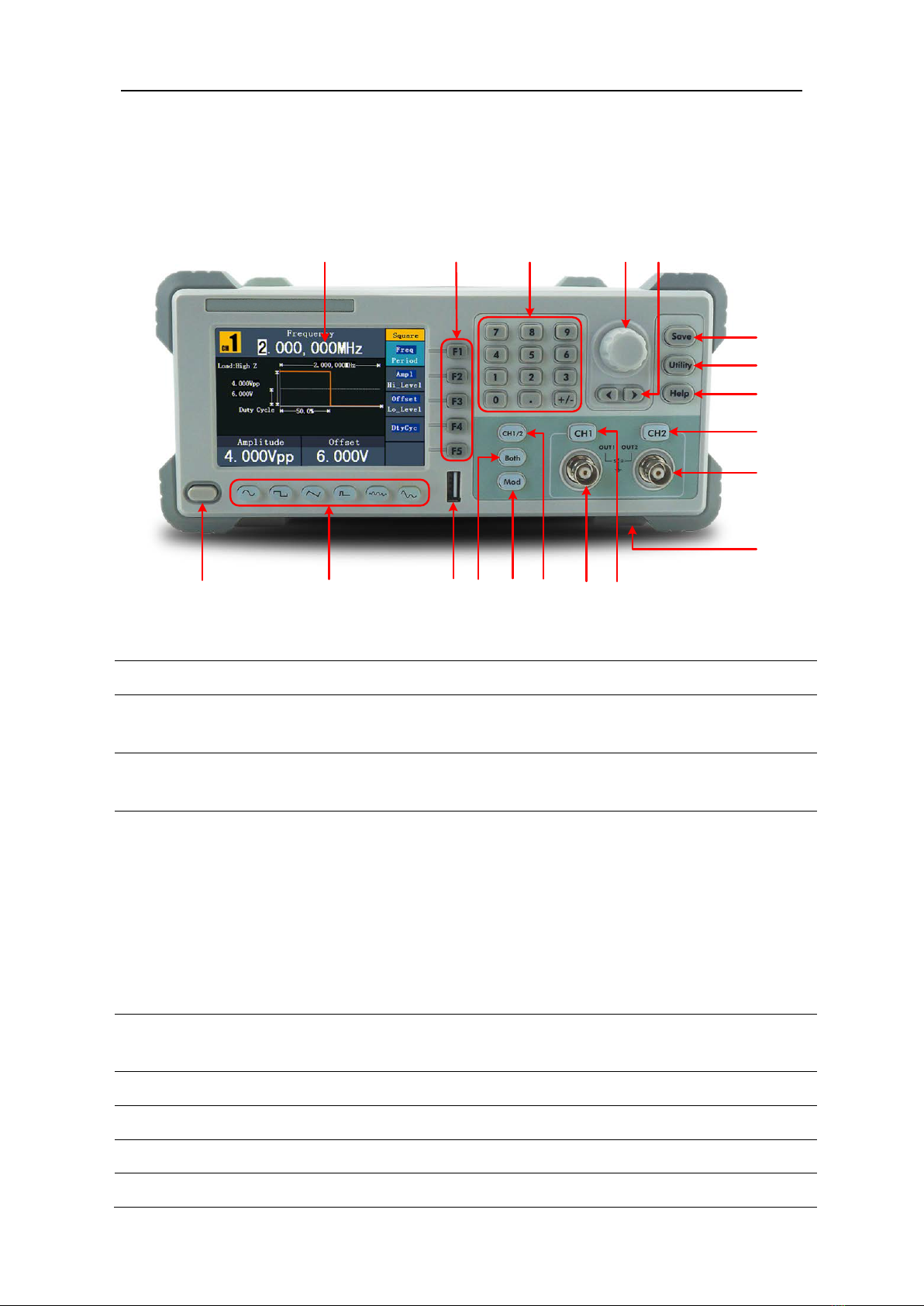

Figure 4-1 Front panel overview
①
LCD
Display the user interface
②
Menu selection
buttons
Include 5 buttons: F1 - F5, activate the corresponding menu
③
Number keys
Input parameters, include: number, point and plus/minus
sign
④
Knob
Change the current highlighted number, also can be used to
select file location or switch the character of the soft
keyboard when entering file name.
In Sweep and N-
Cycle Burst, if you choose Source as
"Manual", every time you press this knob, the generator will
be triggered once.
In signal output interface, press this knob to enter Channel
Copy menu.
⑤
Direction key
Move the cursor of the focused parameter or select the file
locations
⑥
Save button
Store/recall the user-defined arbitrary waveform data
⑦
Utility button
Set the auxiliary system function.
⑧
Help button
View the build-in help information
⑨
CH2 Output Control
Turn on/off the output of CH2. The backlight will be lighted

4.Quick Start
6
when CH2 is tuned on.
⑩
CH2 Output
Output signal of CH2
⑪
Foot stool
Make the instrument to be tilted for ease of operation
⑫
CH1 Output Control
Turn on/off the output of CH1. The backlight will be lighted
when CH1 is tuned on.
⑬
CH1 Output
Output signal of CH1
⑭
C H 1/2 button
Switch channel displayed on the screen between CH1 and
CH2.
⑮
Modulation (Mod)
Generate the Modulated waveforms, Sweep and Burst; these
functions are only used for CH1.
⑯
Both button
Display the editable parameters of both channels. When the
function is enabled, the backlight of the button turns on.
⑰
USB port
Connect with an external USB device, such as connect a USB
device to the instrument.
⑱
Waveform selection
buttons
Include: Sine , Square , Ramp , Pulse ,
Noise and Arbitrary waveform. When a
waveform is selected, the backlight of the button turns on.
⑲
Power button
Turn on/off the generator
Rear Panel
①
⑤④③
②
⑥⑦⑧
⑨ ⑩
Figure 4-2 Rear panel overview

4.Quick Start
7
①
Power socket
AC input connector
②
Fuse
The rating is 250 V
，
F2AL.
③
Power switch
Switch between 110 V and 220 V.
④
USB (type B)
connector
This can be used to connect a USB type B controller.
Connect with an external device, such as connected to a PC
and controlled via PC software.
⑤
Ext Mod In
Connector
External modulation input, use it as external signal source.
⑥
Ext Trig/Burst/Fsk
In connector
This signal can be used as external signal source in Sweep,
Burst and FSK mode.
⑦
Ref Clk/Counter In
connector
To accept an external clock signal, or to accept the input
signal of counter. (See page 38,
To Set the Counter
)
⑧
Ref Clk Out
connector
To synchronize generators. Output a clock signal generated
by the crystal inside the generator. (See page 38, To Set the
Clock Source)
⑨
P-Output
connector
Signal output for the Power Amplifier.
See page 38,
To Use the Power Amplifier (Optional)
⑩
P-Input connector
Signal input for the Power Amplifier.
See page 38, To Use the Power Amplifier (Optional)
User Interface
④
⑨
⑧
③
⑦
②
①
⑥⑤
⑩
⑪
Figure 4-3 User interface (take Sine for instance)
①
Current channel

4.Quick Start
8
②
Parameter 1, display parameter and edit the focused parameter
③
Current signal type or mode
④
The setting menu of current signal or mode
⑤
Parameter 3, display parameter and edit the focused parameter
⑥
Parameter 2, display parameter and edit the focused parameter
⑦
Display current waveform
⑧
Offset/low level, depends on the highlighted menu item on the right
⑨
Amplitude/high level, depends on the highlighted menu item on the right
⑩
Frequency/period, depends on the highlighted menu item on the right
⑪
Load, High Z represents high resistance
General Inspection
After you get a new Waveform Generator, it is recommended that you should make a
check on the instrument according to the following steps:
1. Check whether there is any damage caused by transportation.
If it is found that the packaging carton or the foamed plastic protection cushion has
suffered serious damage, do not throw it away first till the complete device and its
accessories succeed in the electrical and mechanical property tests.
2. Check the Accessories
The supplied accessories have been already described in the Appendix A: Enclosure
of this Manual. You can check whether there is any loss of accessories with reference
to this description. If it is found that there is any accessory lost or damaged, please
get in touch with the distributor of LILLIPUT responsible for this service or the
LILLIPUT's local offices.
3. Check the Complete Instrument
If it is found that there is damage to the appearance of the instrument, or the
instrument can not work normally, or fails in the performance test, please get in
touch with the LILLIPUT's distributor responsible for this business or the LILLIPUT's
local offices. If there is damage to the instrument caused by the transportation,
please keep the package. With the transportation department or the LILLIPUT's
distributor responsible for this business informed about it, a repairing or
replacement of the instrument will be arranged by the LILLIPUT.
Foot Stool Adjustment
Unfold the foot stools on the bottom of the generator, as ⑪in Figure 4-1.

4.Quick Start
9
Power-On Check
AC Power Input Setting
Adopt 100 - 120 VAC or 220 - 240 VAC power source. Users should regulate the voltage
scale of the Power Switch according to the standards in their own country (see Figure 4-2)
at the rear panel.
To change the voltage scale of the instrument, do the following steps:
(1) Turn off the power button at the front panel and remove the power cord.
(2) Regulate the Power Switch to the desired voltage scale.
Power On
(1) Connect the instrument to the AC supply using the supplied power cord.
Warning:
To avoid electric shock, the instrument must be grounded properly.
(2) Press down the power button at the front panel, the screen shows the boot screen.

5.Front Panel Operation
10
5. Front Panel Operation
This chapter will deal with the following topics mainly:
 How to Set Channels
 How to Output Sine Signals
 How to Output Square Signals
 How to Output Ramp Signals
 How to Output Pulse Signals
 How to Output Noise Signals
 How to Output Arbitrary Signals
 How to Output DC
 How to Generate the Modulated Waveform
 How to Generate Sweep
 How to Generate Burst
 How to Save and Recall
 How to Set the Utility Function
 How to Use Built-in Help

5.Front Panel Operation
11
To set channels
 To Switch Channels for Display
Press CH1/2 button to switch channel displayed on the screen between CH1 and CH2.
 To Display/Edit Both Channels
Press Both button to display the parameters of both channels.
To switch channel: Press CH1/2 to switch the editable channel.
To select waveform: Press Waveform selection buttons to select waveform of current
channel.
To select parameter: Press F2 - F5 to choose the Parameter 1to Parameter 4;
Press it again to switch the current parameter such as Frequency/Period.
To edit parameter: Turn the knob to change the value of cursor position. Press /
direction key to move the cursor. (The number keys can not be used to input.)
CH1 Waveform
Parameter 1
Parameter 4
CH2 Waveform
Parameter 1
Parameter 2
Parameter 3
Parameter 2
Parameter 3
Figure 5-1: The User Interface of Both button
 To Turn On/Off Output of Channels
Press CH1 or CH2 to turn on/off output of the corresponding channel. The indicator will
be lighted when the corresponding channel is tuned on.
 Channel Copy
(1) In signal output interface, press the knob on the front panel to enter Channel Copy
menu.
(2) Press F1 to select From CH2 To CH1, or press F2 to select From CH1 To CH2.

5.Front Panel Operation
12
To set signals
The following describes how to set and output Sine, Square, Ramp, Pulse, Noise, Arbitrary,
DC signals and copy channel.
To Output Sine Signals
Press button to call the user interface of Sine signal, the Sine waveform
parameters can be set by operating the Sine setting menu on the right.
The parameters of Sine waveform are: Frequency/Period, Amplitude/High Level,
Offset/Low Level. You can operate the menu by using the menu selection buttons on the
right.
Channel
Setting menu
of Sine signal
Amplitude
Load
Offset
Current signal
Frequency
Parameter 3
Parameter 2
Parameter 1
Sine
Figure 5-2: The User Interface of Sine Signal
To Set the Frequency/Period
Press F1 button, the chosen menu item is highlighted, the focused parameter is
displayed in Parameter 1. Press F1 button to switch between Frequency/Period.
Two methods to change the chosen parameter:
 Turn the knob to change the value of cursor position. Press / direction key to
move the cursor.
 Press a number key in the front panel, an input box will pop up; keep going to input
the value. Press direction key to delete the last number. Press F1 - F3 to
choose the unit, or press F4 to go to next page and choose other units. Press
F5 to cancel the input.

5.Front Panel Operation
13
Figure 5-3: Set the frequency using number keys
To Set the Amplitude
Press F2 , confirm whether the "Ampl" menu item is highlighted; if not, press F2 to
switch into "Ampl". In Parameter 2, a cursor appears under the value of amplitude. Use
the knob or the number keys to set the desired value.
To Set the Offset
Press F3 , confirm whether the "Offset" menu item is highlighted; if not, press F3
to switch into "Offset". In Parameter 3, a cursor appears under the value of offset. Use
the knob or the number keys to set the desired value.
To Set the High Level
Press F2 , confirm whether the "Hi_Level" menu item is highlighted; if not, press
F2 to switch into "Hi_Level". In Parameter 2, a cursor appears under the value of
amplitude. Use the knob or the number keys to set the desired value.
To Set the Low Level
Press F3 , confirm whether the "Lo_Level" menu item is highlighted; if not, press
F3 to switch into "Lo_Level". In Parameter 3, a cursor appears under the value of
offset. Use the knob or the number keys to set the desired value.
To Output Square Signals
Press button to call the user interface of Square signal, the Square waveform
parameters can be set by operating the Square setting menu on the right.
The parameters of Square waveform are: Frequency/Period, Amplitude/High Level,
Offset/Low Level, Duty, TTL Output. You can operate the menu by using the menu
selection buttons on the right.
To set the Frequency/Period, Amplitude/High Level, Offset/Low Level, please refer to To
Output Sine Signals on page 12.
Press F5 button to select TTL Output, TTL level will be outputted. When the load is
High Z, the output signal is set to 5Vpp amplitude and 2.5V offset. When the load is 50 Ω,

5.Front Panel Operation
14
the output signal is set to 2.5Vpp amplitude and 1.25V offset.
Channel
Setting menu of
Square signal
Amplitude
Load
Offset
Current signal
Frequency
Parameter 1
Duty cycle
Parameter 2 Parameter 3
Figure 5-4: The User Interface of Square Signal
Term Explanation
Duty Cycle:
The percentage that the High Level takes up the whole Period.
To Set the Duty Cycle
(1) Press F4 button, the "Duty" menu item is highlighted, the current value of the
Duty cycle is displayed in Parameter 1.
(2) Turn the knob to change the value directly;
or press the number keys to input the desired value, press F4 to choose "%".
Figure 5-5: Set the Duty cycle of Square signal

5.Front Panel Operation
15
To Output Ramp Signals
Press button to call the user interface of Ramp signal, the Ramp waveform
parameters can be set by operating the Ramp setting menu on the right.
The parameters of Ramp waveform are: Frequency/Period, Amplitude/High Level,
Offset/Low Level, Symmetry. You can operate the menu by using the menu selection
buttons on the right.
To set the Frequency/Period, Amplitude/High Level, Offset/Low Level, please refer to To
Output Sine Signals on page 12.
Channel
Setting menu
of Ramp signal
Amplitude
Load
Offset
Current signal
Frequency
Parameter 1
Symmetry
Parameter 2 Parameter 3
Figure 5-6: The User Interface of Ramp Signal
Term Explanation
Symmetry:
The percentage that the Rising Period takes up the whole Period.
To Set the Symmetry
(1) Press F4 button, the "Symmetry" menu item is highlighted, the current value of
the symmetry is displayed in Parameter 1.
(2) Turn the knob to change the value directly;
or press the number keys to input the desired value, press F4 to choose "%".
