Akura AV26720-HDID2 User manual

AV26720-HDID2
OPERATING INSTRUCTIONS
26" LCD TV COLOUR TELEVISION

-1-
Contents
Features ...............................................2
Safety Precautions .................................2
LCD TV ..................................................... 4
Remote Control Buttons .........................6
Before Switching On Your TV ................. 7
Power Connection................................7
Connections To TheAerial Input Socket ...7
How To Connect Other Devices ...........7
Inserting Batteries In The Remote
Control Handset ...................................7
Switching The TV ON/OFF ....................... 7
To switch the TV on:..............................7
To switch the TV off:..............................7
Initial Settings .........................................8
Basic Operations .................................... 9
Everyday Operation ................................ 9
Information Banner ..............................9
Electronic Programme Guide (EPG)..10
Displaying The Subtitles ....................11
Digital Teletext .................................... 11
Over Air Download .............................. 11
Widescreen ........................................12
IDTV Menu System................................ 12
Channel List .......................................12
Installation ..........................................14
Configuration......................................15
Timers ................................................17
Language ...........................................18
TVSetup .............................................18
Common Interface .............................18
Analogue TV Menu System ..................19
Picture menu ......................................19
Sound menu .......................................20
Feature menu .....................................21
Install menu .......................................22
Program menu ...................................23
Source menu......................................24
Other Features ......................................24
TVStatus.............................................24
Mute Indicator .....................................24
Freeze Picture.....................................24
Zoom Modes ......................................24
Teletext ..................................................25
To Operate Teletext.............................25
To Select APage Of Teletext ...............26
To Select Index Page..........................26
ToSelectTeletextWithATVProgramme.26
To Select Double Height Text .............26
To Reveal “Concealed” Information ...26
To Stop Automatic Page Change........26
To Select A Subcode Page .................26
To Exit Teletext ....................................26
To Display The Time ..........................26
Fastext................................................26
Connect Peripheral Equipment ............27
High Definition....................................27
Via The Scart ......................................27
ViaAerial Input ....................................27
Decoder..............................................27
TVAnd Video Recorder.......................27
Playback NTSC ..................................27
CopyFacility .......................................28
Search ForAnd Store The
Test Signal Of The Video Recorder....28
Camera And Camcorder ....................28
To Connect To S-Video Input..............28
Connect The Decoder To The Video
Recorder.............................................28
Connecting Headphones...................28
Aerial Connection .................................29
Care of the Screen .............................30
Specifications .......................................31
Important Instruction ............................32
ENG-26720W-1549UK-26 INCH 17MB15 OEM PEU IDTV-(WO VGA-WO PIP)(HD READY)-50101276.p6502.04.2007, 11:131

-2-
Features
• Remote controlledcolour television.
• 100 programmes from VHF, UHF bands or
cable channels can be preset.
• It can tune cable channels.
• Controlling the TV is very easy by its menu
driven system.
• It has 2 Scart sockets for external devices
(such as video, video games, audio set,
etc.)
• Stereo sound system (German+Nicam).
• Full function Teletext .
Fastext (1000Pages), TOP text.
• Headphone connection.
• Direct channel access.
•A.P.S. (Automatic Programming System).
• All programmes can be named.
• Forward or backward automatic tuning.
• Sleep timer.
• Child Lock.
• Automatic sound mute when no transmis-
sion.
• NTSC Playback.
•AV in and S-Video in are available
• It has an HDMI connector for Digital Video
and Audio. This connection is also de-
signed to accept High Definition signals.
• AVL (Automatic Volume Limiting)
• When no valid signal is detected, after 5
minutes the TV switches itself automatically
to stand-by mode.
• Stereo PCAudio Input
• PLL (Frequency Search)
•3D Comb Filter
Safety Precautions
Please read the following recommended
safety precautions carefully for your safety
1. Power Source
The set should be operated only from a 230-
240V 50Hz supply.
2. Power Cord
Do not place the set, a piece of furniture,etc.
on the power cord (mains lead) or pinch the
cord. Handle the power cord by the plug. Do
not pull out the plug by tugging the cord and
never touch the power cord when your
hands are wet as this could cause a short
circuit or electric shock.Never make a knot in
the cord or tie it with other cord. The power
cord should be placed in such a way that
they are not likely to be stepped on.
A damaged power cord can cause fire or
give you an electric shock. When it is dam-
aged and need to be changed, it should be
done by qualified personel.
3. Moisture and Water
Do not use this equipment in a humid and
damp place (avoid the bathroom, the sink in
the kitchen, and near the washing machine).
Do not expose this equipment to rain or wa-
ter, as this may be dangerous and do not
place objects filled with liquids,such as
flower vases on top of the set. Avoid from
dripping or splashing.
If any solid object or liquid falls into the cabinet,
unplug the set and have it checked byqualified
personnel before operating it any further
4. Cleaning
Before cleaning, unplug the set from the
wall outlet. Do not use liquid or aerosol
cleaners. Use soft and dry cloth.
5. Ventilation
The slots and openings on the back cover are
intended for ventilation and to ensure reliable
operation. To prevent overheating, these open-
ings must not be blocked or covered in anyway.
ENG-26720W-1549UK-26 INCH 17MB15 OEM PEU IDTV-(WO VGA-WO PIP)(HD READY)-50101276.p6502.04.2007, 11:132

-3-

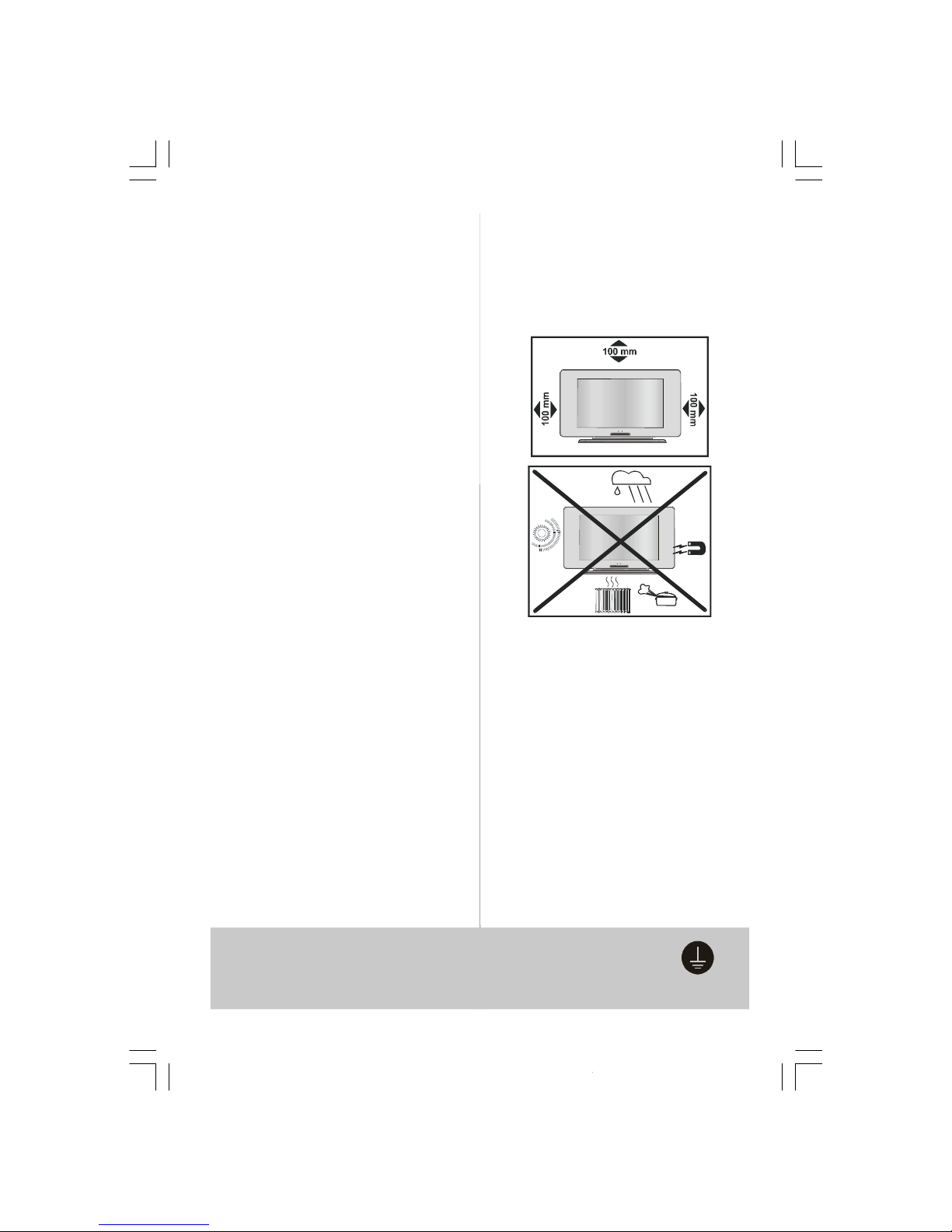

6.Heat and Flames
The set should not be placed near to naked
flames and sources of intense heat,such as
an electric heater. Ensure that no naked
flame sources, such as lighted candles, are
placed on top of the set
7. Lightning
InthecaseofaThunderstorm,orwhenleaving
the tv for long periods,disconnect the Aerial
lead (if outdoor) and the mains supply to pre-
vent power surges damaging the tv.
8. Replacement Part
When replacement parts are required, be sure
the service technician has used replacement
parts which are specified by the manufacturer
or have the same specifications as the origi-
nal one. Unauthorised substitutions may re-
sult in fire, electrical shock, or other hazards.
9 . Servicing
Please refer all servicing to qualified per-
sonnel. Do not remove the cover yourself as
this may result in an electric shock.
WARNING: When the device is not in use
for a long time, disconnect from power.
Instructions for waste disposal:
• Packaging and packaging aids are recy-
clable and should principally be recycled.
Packaging materials, such as foil bag, must
be kept away from children.
• Battery, including those which is heavy
metal-free, should not be disposed of with
household waste. Please dispose of used
battery in an environmentally sound man-
ner. Find out about the legal regulations
which apply in your area.
• Cold cathode fluoresant lamp in LCD PANEL
contains a small amount of mercury, please fol-
low local ordinates or regulations for disposal.
• The mains plug is used to disconnect the TV
from the mains and therefore it shall remain
readily operable.
Warning: To prevent injury, this device must
be securely attached to the floor/wall in ac-
cordance with the installation instrutions.
"The LCD panel is very high technology
product with about a million thin film tran-
sistors, giving you fine picture details. Oc-
casionally, a few non-active pixels may ap-
pear on the screen as a fixed point of blue,
green or red. Please note that this does not
affect the performance of your product."
“DO NOT LEAVE YOUR TV IN STANDBY OR
OPERATING WHEN YOU LEAVE YOUR
HOUSE”
Surely connect
the ground wire.
Be sure to ground the connection properly.
This TV is a “Class One” apparatus. Always ensure the earth terminal is
connected. If replacing the mains plug or lead ensure the Earth wire is
connected.If you are not sure please consult your local engineer.
ENG-26720W-1549UK-26 INCH 17MB15 OEM PEU IDTV-(WO VGA-WO PIP)(HD READY)-50101276.p6502.04.2007, 11:133

-4-

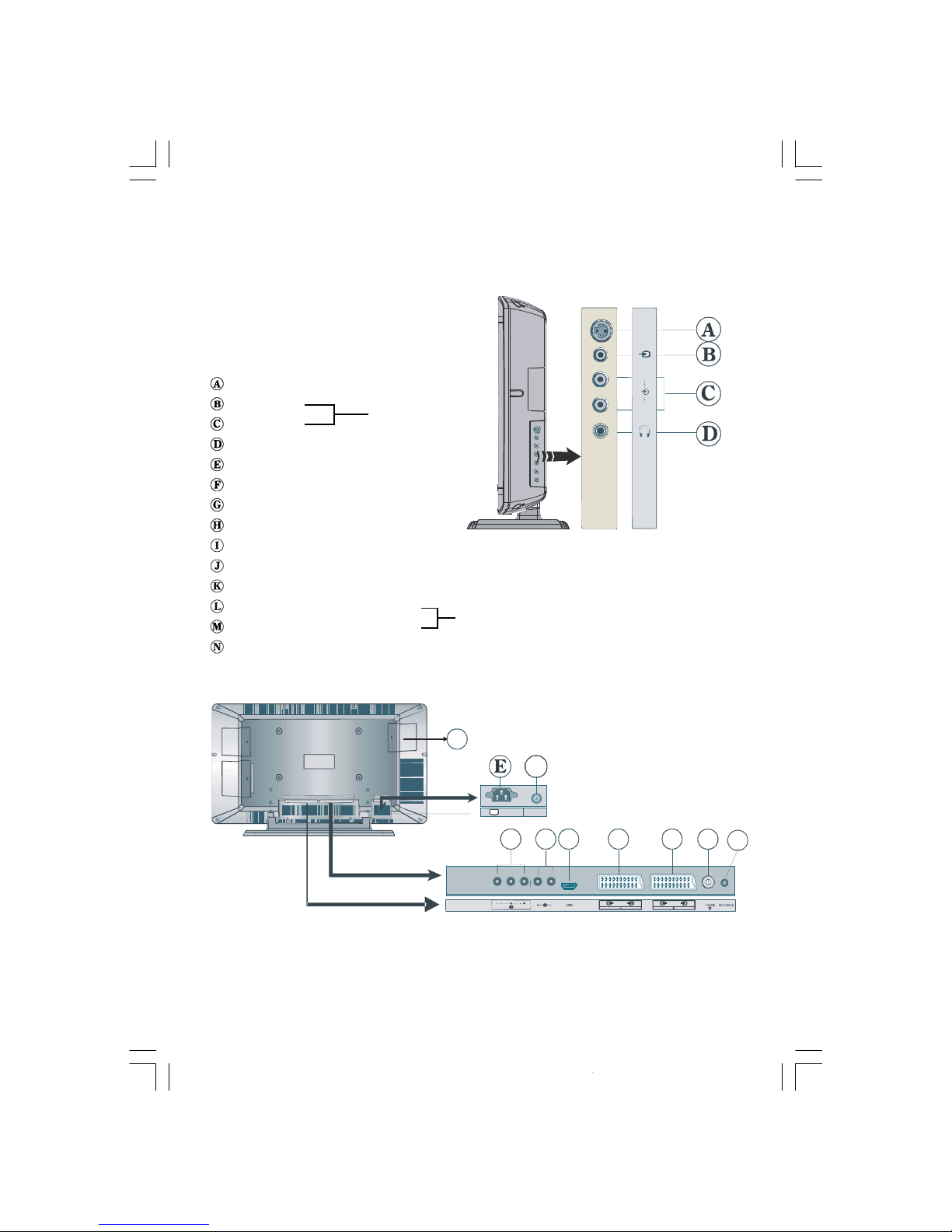

LCD TV
FRONTVIEW
REARVIEW
MENU
- P/CH +
TV/AV
ENG-26720W-1549UK-26 INCH 17MB15 OEM PEU IDTV-(WO VGA-WO PIP)(HD READY)-50101276.p6502.04.2007, 11:134

-5-
S-Video Input EXT-4S
Video Input
Audio Inputss
Headphone
Power cord input
Power On/Off switch
PCAudio Input
Aerial
Scart 2 (EXT-2)
Scart 1 (EXT-1)
HDMI Input (EXT-5)
Component Audio Inputss
Component Video (YPbPr) Inputs
CI (Common Interface) Slot
EXT-4
EXT-3
L
R
S-VHS
220V-240V
AC~50 Hz POWER
G
H
I
J
K
L
M
N
F
ENG-26720W-1549UK-26 INCH 17MB15 OEM PEU IDTV-(WO VGA-WO PIP)(HD READY)-50101276.p6502.04.2007, 11:135

-6-
Remote Control Buttons
=Stand By
=Cursor Up
=Cursor Right
OK / SELECT =Confirm/Freeze Image
INFO = Info
0 - 9 = Direct Programme
- /- - / EXIT = No function
P<P =Previous Programme
P/CH + = Programme Up
+= Volume Up
DTV / TV = TV / DTV
=Source Select
(EXT-1, EXT-2, EXT-3, EXT-4, EXT-4S or EXT-5)
Yellow (FEATURE)= Call Function Menu
Blue (INSTALL)= Call Programming Menu
=Stop Videotext
=Update Videotext, =No function
/GUIDE = Indexpage Videotext
=Show, PC = No function
=Enlarge Videotext,
WIDE = Picture format change
= No function / Mix
= Teletext
=Clock
Red (SOUND) /=Call Sound Menu
Green (PICTURE) / =Call Picture Menu
=Sound off (Switch to Mute)
I-II =Mono/Stereo - DualA-B
-= Volume Down
- P/CH = Programme Down
PP = Picture Mode Selection
M= Main menu
31
=Cursor down
32
=Cursor Left
M
OK
21 3
54 6
87 9
0
5
6
7
8
9
10
11
12
13
14
15
16
22
24
25
26
27
28
29
30
31
32
23
1
2
4
17
18
19
20
3
ENG-26720W-1549UK-26 INCH 17MB15 OEM PEU IDTV-(WO VGA-WO PIP)(HD READY)-50101276.p6502.04.2007, 11:136

-7-
Before Switching On Your TV
Power Connection
IMPORTANT: The TV set is designed to op-
erate on230-240V AC, 50 Hz.
•After unpacking, allowthe TV set to reach the
ambient room temperature before you con-
nect the set to the mains.

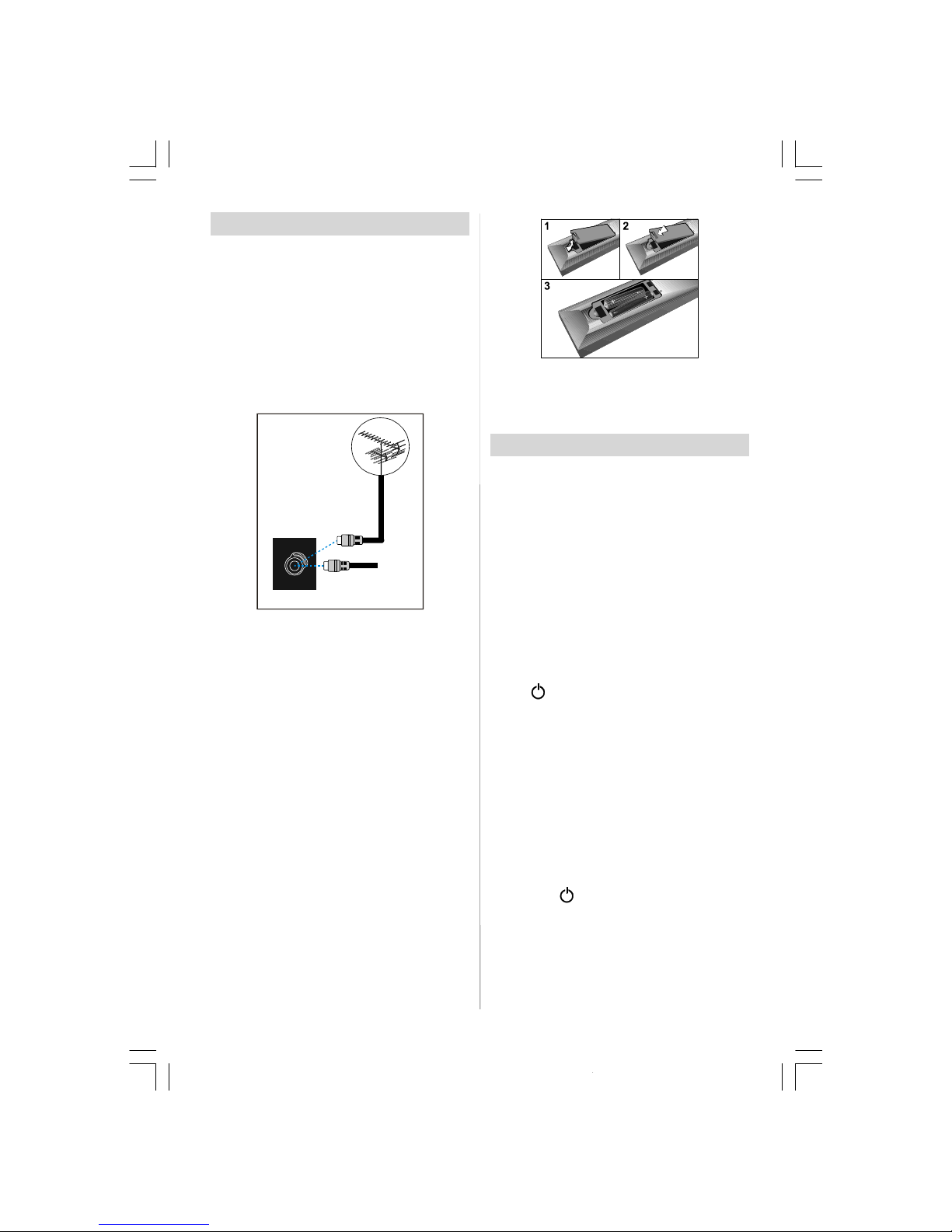

Connections To The Aerial Input
Socket
VHF/UHF
75

REAR OF THE TV
CABLE TV
•Connect the aerial to the aerial socket on the
Tv, you mayalso connect a VCRor otherbox
at the same time.
How To Connect Other Devices
IMPORTANT: Switch off the TV before con-
necting any external device.
Sockets for external connections are at the
rear side of the TV. For connection of other
devices via Scart refer to the manuals of the
related devices.
Inserting Batteries In The Remote
Control Handset
• Remove the battery cover located on the
back of the handset by gently pulling down-
wards from the indicated part.
• Insert two AAA/R03 or equivalent type batter-
ies inside. Place the batteries in the right di-
rections.
• Replace the battery cover.
NOTE: Remove the batteries from remote
control handset when it is not to be used for
a long period.Otherwise it can be damaged
due to any leakage of batteries.
Switching The TV ON/OFF
To switch the TV on:
Your TV will switch on in two steps:
1- Connect the power supply cord to the sys-
tem. Press On/Off switch at the rear of the
TV. Then the TV switches itself to stand-
by mode and the LED becomes BLUE lo-
cated on the front of the TV.
2- To switch on the TV from stand-by mode
either:
Press a digit button on the remote control so
that a programme number is selected,
or,
Press “ ”, "-P/CH" or "P/CH+" button on the
right side of the TV or press “-P/CH” or “P/
CH+” button on the remote control, so that
last switched off programme is selected.
By either ways the TV will switch on and the
LED will turn off.
To switch the TV off:
• Press the “stand-by” button on the remote
control, so the TV will switch to stand-by
mode and the LED will become BLUE,
or,
Press the “ ” button located on the right
side of the TV, so the TV will switch off and
the LED will become BLUE.
To power down the TV completely, press
On/Off switch,
or
unplug the power cord from the mains socket.
ENG-26720W-1549UK-26 INCH 17MB15 OEM PEU IDTV-(WO VGA-WO PIP)(HD READY)-50101276.p6502.04.2007, 11:137

-8-
AUTO PROGRAM
PLEASE CHECK ANTENNA CABLE
Language
English
AUTO. PROGRAMMING SYSTEM
Country
UK
OK
Cancel
By pressing or button, adjust the
“Country” item.
Press button to select “Continue” item and
/ or OK buttons to start APS operation.
APS is running...
UK - I 155,25 Mhz
Cancel
01 - C-01
After APS is finalized, a programme list will
appear on the screen. In the programme list
you will see the programme numbers and
names assigned to the programmes.
If you do not accept the locations and / or the
programme names of programmes, you
can change them in Program menu. For de-
tails see Program menu on page 23.
To display channel list in IDTV, switch to the
IDTV via pressing the “TV/DTV” button.
Then press the “M” button to enter main
menu, Channel List will be highlighted.
Press the “SELECT” button to enter the
menu. For detailed information see page
12.
Initial Settings
When the TV is turned on for the first time, it
is in the digital mode.
Because this is the first time the TV is used,
there are no channels stored in the memory and
the following message appears on the screen.
Please ensure aerial isplugged in. Do you
want to start first time installation?
Yes No
• To start installation process, select “Yes”,
to cancel select “No”.
• To select an option “Yes or No”, highlight
the item by using or buttons and press
the “OK”button.
The IDTV will automatically tune to the UHF
transmision channels 21 to 68 looking for
digital terrestrial TV broadcasts and display-
ing the names of channels found. This pro-
cess will take about five minutes. To cancel
searching, you can press the “M” button at
any time during the process.
MENU
BBC ONE
BBC TWO
BBC CHOICE
Searching UHFchannels30. Please wait. Thiswilltake a fewminutes
Cancel searching
AUTOMATIC SEARCH
Channels:
12 %
After Automatic Search process is com-
pleted, the following message asking for ana-
logue channel search appears on the screen.
TV switches to the analogue TV mode.
Yes
Do you want to search for
analogue channels?
No
To seach for analogue channels, select
“Yes”. The menu below is displayed to
search for analogue channels.
ENG-26720W-1549UK-26 INCH 17MB15 OEM PEU IDTV-(WO VGA-WO PIP)(HD READY)-50101276.p6502.04.2007, 11:138

-9-
Basic Operations
You can operate your TV using both the
remote control and onset buttons.
Operation with the buttons on the TV
Volume Setting
• Press “ -” button to decrease volume or
“+” button to increase volume, so a vol-
ume level scale (slider) will be displayed at
the middle of the bottom on the screen.
Programme Selection
• Press “P/CH +” button to select the next pro-
gramme or “P/CH -” button to select the pre-
vious programme.
Entering Main Menu
• Press the “MENU” button to enter Main
menu. In the Main menu select sub-menu
using “P/CH -” or “P/CH +” buttons and enter
the sub-menu using “ -” or “ +” but-
tons. To learn the usage of the menus, refer
to the Menu System sections.
AV Mode
Press the “TV/AV” button at the control panel
on the right side of the TV to switch your TV
to AV modes.
Operation with Remote Control
The remote control of your TV is designed to
control all the functions of the model you se-
lected. The functions will be described in ac-
cordance with the menu system of your TV.
Functions of the menu system are de-
scribed in the following sections.
Volume Setting
Press “ +” button to increase volume.
Press “ -” button to decrease volume. A
volume level scale (slider) will be displayed
in the middle at the bottom of the screen.
Programme Selection (Previous or next
programme)
• Press “P/CH -” button to select the previous
programme.
• Press “P/CH +” button to select the next pro-
gramme.
Programme Selection (direct access):
Press digit buttons on the remote control to
select programmes between 0 and 9. TV
will switch to the selected programme. To
select programmes between 10 - 999 (for
IDTV) or 10-99 (for analogue), press the digit
buttons consecutively which programme you
want to select (eg. for programme 27, first
press 2 and then 7). When it is late to press
second digit button only the first digit pro-
gramme will be displayed. The limit of the
delay time is 3 seconds.
Press directly the programme number to
reselect single digit programmes.
Everyday Operation
Pressing the “TV/DTV” button at any time
while watching television programmes will
switch the TV set between displaying the
digital terrestrial television broadcasting and
its normal analogue broadcasting.
Information Banner
Whenever you change channel, using the
“P/CH +” /“- P/CH” button or the digit but-
tons, TV displays the channel picture along
with an information banner at the bottom of
the screen. This will remain on the screen
for approximately three seconds. The infor-
mation banner can also be displayed at any
time while watching TV by pressing the
“INFO” button on the remote control.
Now: 50/50
Next:Ace Lighting
1. BBC ONE Signal Level: 13:15
09:25 - 11:00
11:00 - 11:25
The information banner gives a number of
facts on the channel selected and the
programmes on it. The name of the channel
is displayed, along with its channel list num-
ENG-26720W-1549UK-26 INCH 17MB15 OEM PEU IDTV-(WO VGA-WO PIP)(HD READY)-50101276.p6502.04.2007, 11:139

- 10 -
ber and an indication of the strength of the
signal received on this tuning channel.
Hint
N o t a l l c h a n n e l s b r o a d c a s t t h e
programme data. If the name and times of
the programme is not available then “No
Information Available” are displayed in the
information banner.
Icons are also displayed in the information
banner and if this channel is a favourite
channel:
Favourite channel icon .
If the selected channel is locked, you must
enter the correct four digit code to view the
channel.
Enter Lock Key
Electronic Programme Guide (EPG)
Some, but not all, channels send informa-
tion about the current and next events.
Please note that event information is up-
dated automatically. If there is no event infor-
mation data available in channels, only
channel names with “No Information Avail-
able” banner is displayed.
• Press “GUIDE” button to view the EPG
menu.
• In EPG Menu, you can easily see the ex-
tended help information by pressing “INFO”
button and by pressing this button again you
can close this window.
ITVNews 14:00-15.00
30. CBBC Channel Chuckle Vision Tracy Beaker
40. BBC NEWS24 BBC News BBC News
41. ITVNews ITVNews ITVNews
50. FourText No Information No Information
51. BBCi BBCi BBCi
Current Reminder 7 Day EPG More
51 BBCi
SELECT
ELECTRONIC PROGRAMMEGUIDE(Now&Next) Saturday 21/8 13:48
Channels Current Programme Next Programme
MENU
Navigate
Rolling national and international news
including breaking newsasit happens,
businessupdates, sportsresultsand
weathersummaries.
• In the EPG Menu all channels are dis-
played. Current channel is highlighted. Use
or buttons to change channels. Also
press or buttons to make page up/
down scroll for the channels.
• If you highlight an event, short event de-
scription, extended event description, start
and finish times of event are displayed on
the screen.
• When the current programme is high-
lighted, the box is switched to the highlighted
channel by pressing the “SELECT” button.
• If you press the “SELECT” button when a
next event is highlighted, a reminder is set for
the highlighted programme and a clock ap-
pears across the highlighted channel line.
Programme reminders can be set to signal
that a programme is about to start when you
are watching another channel. If you set re-
minder to a programme, then you will be
asked for switching to that channel when the
reminder time is reached.
• Press the “M” button to view the 7 day
EPG.
• Press or button to navigate in Chan-
nels or Programmes.
• Press or button to navigate through
the channel and programme list.
Chuckle Vision 13:00-14:00
30. CBBC Channel 13:00 Chuckle Vision (Now)
40. BBC NEWS24 14:00 Tracy Beaker
41. ITVNews 14:55 Newsround
50. Four Text
800. BLUE/LEFT1k...
801. CCIR17/1kHz...
ELECTRONIC PROGRAMMEGUIDE(7 Day) Saturday21/8 13:49
Channels Programmeson Saturday 21/8, 13:00 - 15:00
Triple bill. Inthe Ring/Romany Days/On the Radio: Paul and Barry
grapple with the world of wrestling; hunt fora mysteriousEmperor's
underpants; and record their first pop song.
I
More
Change
DayNavigate
Change Time
• With “RED/GREEN” buttons you can
change schedule time. By pressing “YEL-
LOW/BLUE” you can advance the schedule
backward / forward of a day.
• If you press “INFO” button you can see the
detailed help information easily. And by
pressing “INFO” button again you can exit
Help menu.
• The starting time for EPG is the current
time.You can see the event information for
ENG-26720W-1549UK-26 INCH 17MB15 OEM PEU IDTV-(WO VGA-WO PIP)(HD READY)-50101276.p6502.04.2007, 11:1310

- 11 -
the next two hours. By pressing or but-
ton, you can go to the next/previous hours
while Programmes list is highlighted.
• lf you press the “SELECT” button when a
next event is highlighted, a reminder is set
for the highlighted programme and a clock
appears on the screen. Programme remind-
ers can be set to signal that a programme is
about to start when you are watching an-
other channel. If you set reminder to a
programme, then you will be asked for
switching to that channel when the reminder
time is reached.
Newsround 16:55-17:00
30. CBBC Channel 15:00 Even Stevens
40. BBC NEWS24 15:50 Newsround Showbiz
41. ITVNews 16:00 Basil Brush
50. FourText 16:55 Newsround
51. BBCI
800. BLUE/LEFT1k...
801. CCIR17/1kHz...
ELECTRONIC PROGRAMMEGUIDE(7 Day) Saturday21/8 13:51
Channels Programmeson Saturday 21/8, 15:00 - 17:00
CBBC joinsthe Newsround team, keeping you up to date on the latest
storiesand eventshappening at home and abroad.
I
More
Change
DayNavigate
Change Time
Displaying The Subtitles
With Digital terrestrial broadcasting (DVB-T),
some programmes are broadcast with sub-
titles. Subtitles can be displayed when
watching these programmes.
Press the “M” button to display the Main
menu, highlight the Configuration line using
or button and press the “SELECT” but-
ton to display the Configuration menu.
Highlight the “Subtitle” item in Configura-
tion menu and use or button to set
Subtitle to off or a language.
If “Subtitle” is on via selecting one lan-
guage option, pressing the button
causes the following warning message dis-
play on the screen.
Interactive servicescannot be used
while subtitlesare on. Would you like
to turn subtitles off now?
Yes No
Digital Teletext
With Digital terrestrial broadcasting (DVB-T),
in addition to pictures and sound, you can
also watch digital teletext.
Digital teletext is sometimes broadcast at
the same time as normal broadcasting.
1. Press the button.
The digital teletext information appears.
2. Operate it with the coloured buttons, /
/ / buttons and OK button.
The operation method may differ depending
on the contents of the digital teletext.
Follow the instructions displayed on digital
teletext screen.
• When “Press SELECT” button or similar
message appears on the screen, press the
“SELECT” button.
• When the (Text) button is pressed, the
TV returns to television broadcasting.
• With Digital terrestrial broadcasting (DVB-
T), in addition to digital teletext broadcasting
at the same time as normal broadcasting,
there are also channels with just digital tele-
text broadcasting.
• The aspect ratio when watching a channel
with just digital teletext broadcasting is the
same as the aspect ratio of the picture
watched previously.
• When you press the (Text) button
again, the digital teletext screen is dis-
played.
Over Air Download
To ensure that your IDTV always has the
most up-to-date information, please ensure
that after use it is set to its standby mode. At
3AM each day, the IDTV automatically
searches for any new information which
may be broadcast and will download this to
your IDTV automatically. This operation will
normally take approximately 30 seconds.
If you want to do this, you need to set Auto-
matic Download to “Enabled” in Receiver
Upgrade setting. For details see page 16.
ENG-26720W-1549UK-26 INCH 17MB15 OEM PEU IDTV-(WO VGA-WO PIP)(HD READY)-50101276.p6502.04.2007, 11:1311

- 12 -
Widescreen
Depending on the type of broadcast being
transmitted, programmes can be viewed in a
number of formats. Press the “WIDE” button
repeatedly to select between Auto or 16:9.
When Auto is selected, the format being dis-
played is determined by the picture being
broadcast.
Please Note: Menu size changes depending
on the chosen image size.
IDTV Menu System
The IDTV menu can only be shown when
watching Digital terrestrial broadcasting.
Press the “TV/DTV” button to turn IDTV on
while TV is in analogue mode.
Press the “M” button. The menu below
appears on the screen:
Main Menu
Channel List
Installation
Configuration
Timers
Language
TV Setup
Common Interface
Channel List
Using the or button on the remote con-
trol in Main menu, make sure that the first
item, Channel List, is highlighted and press
the “SELECT” button to display the Channel
List.
The following operations can be performed
in this menu:
1. Navigating the whole list of channels
2. Deleting channels
3. Renaming channels
4. Adding locks to channels
5. Setting favourites
Channel List is the place where the chan-
nels are managed.
SELECT
i
SELECT
CHANNEL LIST 1 BBC ONE
1. BBC ONE
2. BBC TWO
3. ITV 8
4. Channel 4
5. BBC THREE
6. Teletext
7. BBC FOUR
8. Sky Travel
9. UKHistory
10. RTL
Select Delete Edit Name Lock Favourites
Function Select Channel Watch More
Navigating the whole channel list
Press or button for selecting the previ-
ous or next channel. You can press or
button to move page up or page down.
To watch a specific channel, highlight it us-
ing or button and then press “SELECT”
button, while the “Select” item on Channel
List menu is highlighted by using or
button.
Then the name and number of the selected
channel will be displayed in the top-left and
top-right of the channel display at the top-
right of the screen, respectively.
Deleting the channels in the channel list
Press or button to select the channel
that will be deleted.
Press or button to select the ‘’Delete’’
item on Channel List menu. As seen on
Channel List menu, SELECT is written next
to Delete item at the bottom of the screen to
indicate that press the “SELECT” button to
delete the highlighted channel in the chan-
nel list.
SELECT
i
SELECT
CHANNEL LIST 1 BBC ONE
1. BBC ONE
2. BBC TWO
3. ITV 8
4. Channel 4
5. BBC THREE
6. Teletext
7. BBC FOUR
8. Sky Travel
9. UKHistory
10. RTL
Select Delete Edit Name Lock Favourites
Function Select Channel Delete More
ENG-26720W-1549UK-26 INCH 17MB15 OEM PEU IDTV-(WO VGA-WO PIP)(HD READY)-50101276.p6502.04.2007, 11:1312

- 13 -
Press the “SELECT’’ button to delete the
highlighted channel in the channel list. Then
the message below appears on the screen.
The selected service willbe permanently
deleted. Are you sure?
Yes No
Press or button to highlight the desired
option. If “SELECT’’ button is pressed while
“Yes” is highlighted, the highlighted channel
is deleted. Selecting “No” cancels the delete
operation.
Renaming channels
To rename a specific channel, the channel
must be highlighted via pressing or
button and then highlight the Edit Name item
by pressing or button. Press the “SE-
LECT” to activate rename feature.
SELECT
i
SELECT
CHANNEL LIST 1 BBC ONE
1. BBC ONE
2. BBC TWO
3. ITV 8
4. Channel 4
5. BBC THREE
6. Teletext
7. BBC FOUR
8. Sky Travel
9. UKHistory
10. RTL
Select Delete Edit Name Lock Favourites
Function Select Channel Edit Name More
Now pressing or button moves to the
previous/next character. Pressing or
button toggles the current character, i.e., ‘b’
character becomes ‘a’ by and ‘c’ by .
Pressing the numeric buttons ‘0...9’ re-
places the highlighted character with the
characters printed above the button one by
one as the button is pressed.
Press the “M” button to cancel the editing or
“SELECT” button to save the new name.
Adding locks to channels
Channel Locking provides a password-pro-
tected access to channels selected by par-
ents. In order to lock a channel you should
know the Parental Lock password (default
value is set to 0000 in the factory and can
only be changed from the Configuration
Menu).
Select the channel to be locked by highlight-
ing it and select the “Lock” option by press-
ing or button. When the “SELECT” but-
ton is pressed, a password box is dis-
played.
SELECT
i
SELECT
CHANNEL LIST 1 BBC ONE
1. BBC ONE
2. BBC TWO
3. ITV 8
4. Channel 4
5. BBC THREE
6. Teletext
7. BBC FOUR
8. Sky Travel
9. UKHistory
10. RTL
Select Delete Edit Name Lock Favourites
Function Select Channel Lock/Unlock More
Enter Lock Key
Enter the password using the digit buttons
on the remote control. The Lock icon will
now be displayed next to the selected chan-
nel. Repeat the same operation to cancel
the Lock.
Setting Favourites
You can set various channels as favourites
so that only the favourite channels are navi-
gated. To set a favourite you should highlight
the “Favourites” item at bottom of the Chan-
nel List menu.
Use the or button to highlight the
“Favourites” item at the base of the screen
and then, in turn, highlight each channel you
want to add to the favourites list, using the
and buttons (or / buttons), and
press the “SELECT” button.
A channel selected as a favourite appears
in the main channel list with a favourites
icon ( ) against the channel name.
ENG-26720W-1549UK-26 INCH 17MB15 OEM PEU IDTV-(WO VGA-WO PIP)(HD READY)-50101276.p6502.04.2007, 11:1313

- 14 -
SELECT
i
SELECT
CHANNEL LIST 1 BBC ONE
1. BBC ONE
2. BBC TWO
3. ITV 8
4. Channel 4
5. BBC THREE
6. Teletext
7. BBC FOUR
8. Sky Travel
9. UKHistory
10. RTL
Select Delete Edit Name Lock Favourites
Function Select Channel Add/Remove... More
On Screen Help Pressing INFO Button
For all menus press the “INFO” button to
display the help information about the menu
functions. For Channel List menu the follow-
ing message is displayed on the screen.
Pressthe SELECTbutton on your remote controlto tune to the
highlighted channel.
PressMENUto exit thisscreen.
Installation
The Installation menu mainly intends to help
you for building a Channel Table in the most
efficient way.
Main Menu
Channel List
Installation
Configuration
Timers
Language
TV Setup
Common Interface
This menu includes the following items:
1. Add New Channels
2. First Time Installation.
ADD NEW CHANNELS:
This tuning menu consists of two parts:
Automatic Search
Manual Search
Installation
Add New Channels
First Time Installation Automatic Search Manual Search
Automatic Search:
Automatic search is started by pressing the
“OK” button in the auto-search pop up
menu. All the services are searched and a
channel table is created automatically.
All channels found are stored in a sorted
form with respect to their channel numbers.
Some services may not appear with the cor-
rect channel number. At the time of printing,
not all broadcasters are sending their chan-
nel number information.
Manual Search:
In manual search, the number of the multi-
plex is entered manually and only that multi-
plex is searched for the channels. For every
valid channel number, signal level, signal
quality and network name are shown at the
bottom of the screen.
In both manual and auto search any existing
channel in the database is not re-stored to
avoid redundant duplicates of that channel.
FIRST TIME INSTALLATION
The user can use this item to load default
settings, which had been loaded to the re-
ceiver at the factory.
To install factory settings, highlight “First
Time Installation” menu and press the “OK”
button, then you will be asked to confirm for
deleting all channels and settings.
Installation
Add New Channels
First Time Installation
Yes
Your previousdigital channel list willbe destroyed.
Are you sure you want to delete all digital channels
and settingsfor first time installation?
No
By selecting YES and pressing the “OK” but-
ton, the existing channel table will be de-
leted.
After factory settings is loaded, “First Time
Installation” menu will be displayed.
Please ensure aerial isplugged in. Do you
want to start first time installation?
Yes No
Press the “OK” button to start installation. Af-
ENG-26720W-1549UK-26 INCH 17MB15 OEM PEU IDTV-(WO VGA-WO PIP)(HD READY)-50101276.p6502.04.2007, 11:1314

- 15 -
ter search is completed for digital channels,
a message asking search for analogue
channels appears on the screen.
Yes
Do you want to search for
analogue channels?
No
Press the “OK” button to search for ana-
logue channels.The following menu ap-
pears on the screen for analogue channel
search.
AUTO PROGRAM
PLEASE CHECK ANTENNA CABLE
Language
English
AUTO. PROGRAMMING SYSTEM
Country
UK
OK
Cancel
First of all choose Language and Country by
using / and / buttons. This will af-
fect the sort process in APS. To start APS,
press the RED or “OK” button.
APS is running...
UK - I 055,25 Mhz
Cancel
After APS is finalized, the programme table
will appear on the screen. In the programme
table you will see the programme numbers
and names assigned to the programmes.
If you do not accept the locations and / or the
programme names, you can change them
in the Program menu.
Configuration
Press the “M” button to display the Main
Menu and the button twice to highlight
Configuration, then press the “SELECT” but-
ton to display the Configuration menu. Press
the “M” button to leave the menu.
Main Menu
Channel List
Installation
Configuration
Timers
Language
TV Setup
Common Interface
The various configuration functions are dis-
played in a list, along with a quarter-screen
image of the currently selected channel. You
can select a function by highlighting the corre-
sponding menu line using the or button.
i
CONFIGURATION
Audio Language
Subtitle
Favourite Mode
EPG Preference
Receiver Upgrade
Parental Settings
English
Off
Off
Now&Next
V.1.5
Change Default Audio Language
More
Audio Language
Digital terrestrial television channels can
broadcast simultaneous soundtracks in
more than one language. This function se-
lects which language soundtrack you will
hear when switching to a channel broad-
casting with the multiple soundtracks.
Highlight the Audio Language line in the
Configuration menu and use the or but-
ton to cycle through the language options.
Subtitle
Digital terrestrial television channels can
broadcast subtitles displayed on-screen for
the hard-of-hearing. This function selects
the desired subtitle language and enables
the automatic display of subtitles whenever
subtitle information is broadcast.
Highlight the Subtitle line in the Configura-
tion menu and use the or button to
cycle through “Off” and language options.
ENG-26720W-1549UK-26 INCH 17MB15 OEM PEU IDTV-(WO VGA-WO PIP)(HD READY)-50101276.p6502.04.2007, 11:1315

- 16 -

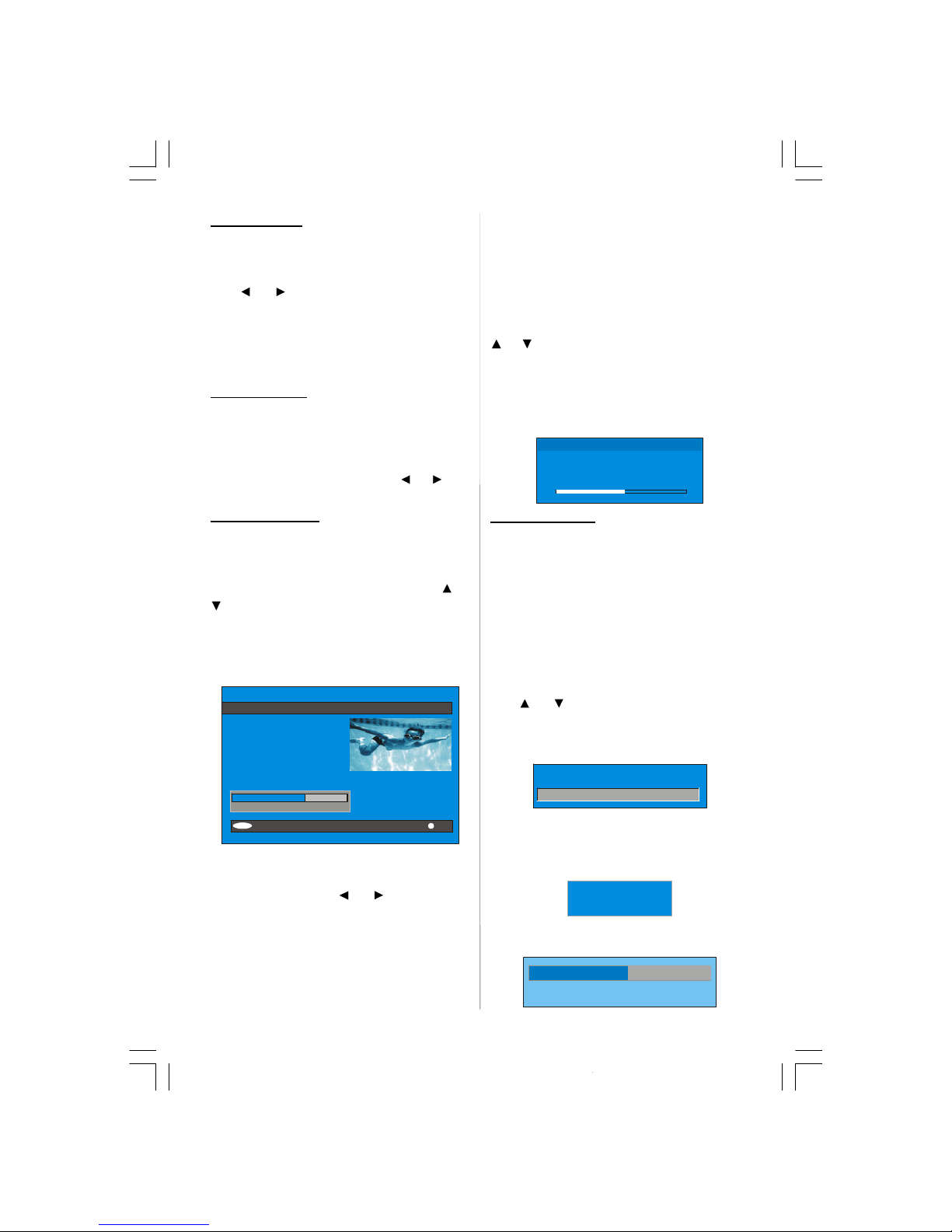

Favourite Mode
This function enables or disables the
favourite channel list mode. See Channel
List menu Favourites on page 13.
Use or button to turn on/off favourite
mode. If the “Favourite Mode” is on, in nor-
mal operating mode pressing “P/CH+” and “-
P/CH” buttons will only navigate through the
channels that were previously defined as
favourites in Channel List.
EPG Preference
Digital terrestrial television channels can
broadcast simultaneous Next&Now and 7-
Day electronic programme.
Highlight the EPG Preference line in the
Configuration menu and use the or but-
ton to selectNext&Now or 7-Day.
Receiver Upgrade
The IDTV can be upgraded via the configura-
tion menu, entered from the main menu.
In the Configuration menu, highlight the
“Receiver Upgrade” item by pressing or
button and press the “SELECT” button to
start upgrade process.
There are two possibilities for Receiver soft-
ware to be upgraded: automatic and
manual.
i
CONFIGURATION
Audio Language
Subtitle
Favourite Mode
EPG Preference
Receiver Upgrade
Parental Settings
English
Off
Off
Now&Next
V.1.5
Exit More
Automatic Download
Search for New Version Enabled
MENU
Automatic Download (Automatic upgrade)
Automatic Download can be enabled or
disabled by pressing or button. If it is
enabled, then there are two ways for auto-
matic upgrade. The first one is checking the
existence of a new software every time the
IDTV goes to standby. The second one is
waking up at 03:00 a.m. every night, pro-
vided that the IDTV is left in standby mode.
Both automatic upgrade methods result in
standby mode either upgraded or not.
If the automatic upgrade is set to “Disabled”
then this function will not work.
Search For New Version (Manual upgrade)
Manual upgrade starts if the “Search for
New Version” item is highlighted by using
or button and activated via pressing the
“SELECT” button.
After “Search for New Version” is activated,
the IDTV tunes to each frequency that have
been stored in its database and looks for
the new software.
Software Upgrade
Searching for upgrade. Please wait, or
pressMENUto cancel.
Search Progress:
Parental Settings
Some channels broadcast material which
you do not want younger members of the
family to watch. Any channel can be ‘locked’
so that it cannot be selected for viewing with-
out first a four-digit PIN code being entered.
In this way any channel not suitable for
younger viewers can be protected.
This function enables or disables the menu
protection system and allows the PIN code
to be changed.
Use or button to go to Parental Set-
tings option. Press the “SELECT” button to
enter Parental Settings Menu. A box asking
for the lock key is displayed.
Enter Lock Key
There is only one key which is set to “0000”
initially. Enter lock key. If wrong Lock key is
entered, the following message is displayed
on the screen and it is returned back.
Wrong LockKey
If it is correct, the Parental Settings Menu in-
cluding following items is displayed:
Menu Lock Installation
Set Lock Key
ENG-26720W-1549UK-26 INCH 17MB15 OEM PEU IDTV-(WO VGA-WO PIP)(HD READY)-50101276.p6502.04.2007, 11:1316

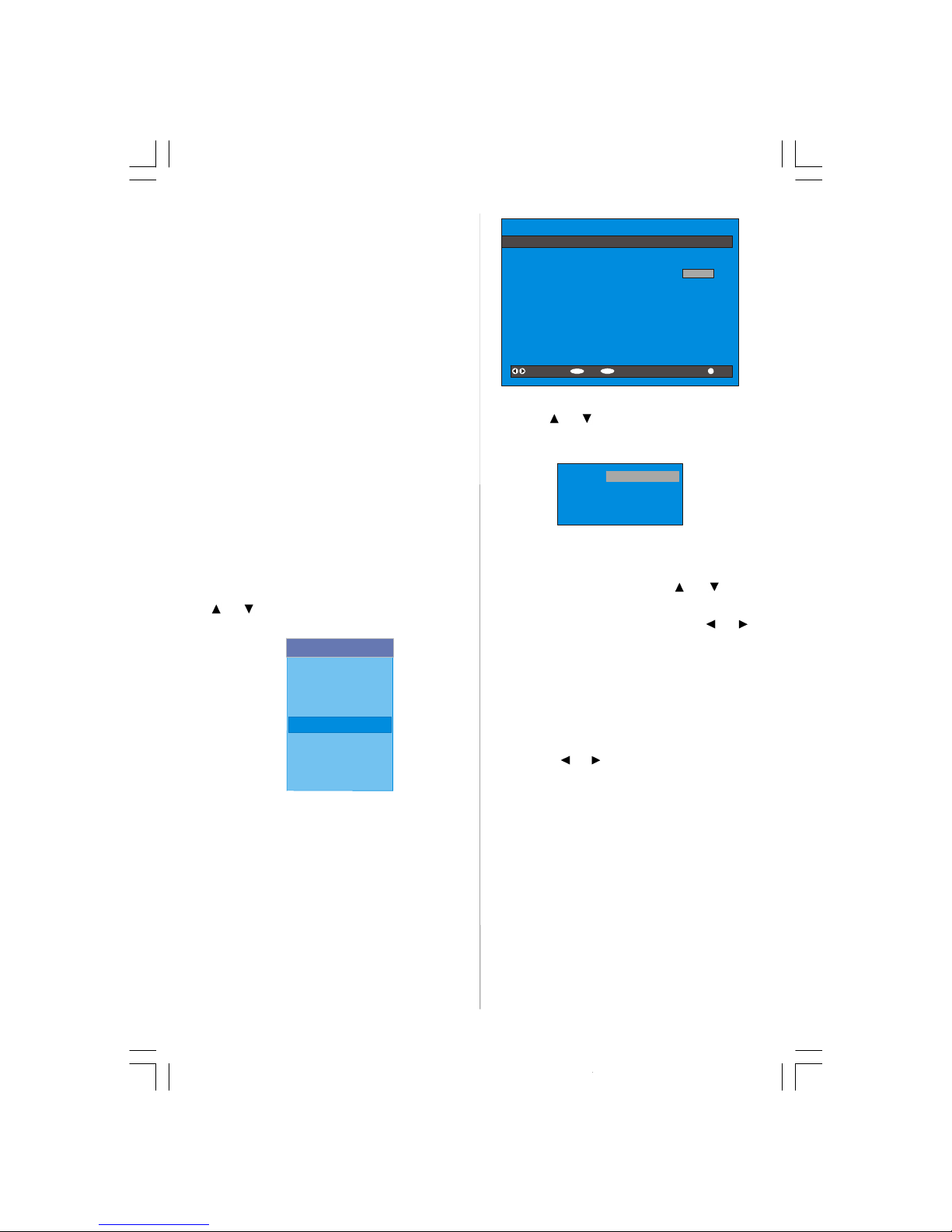

- 17 -
There you can set/reset locking for the Main
Menu, or the Installation Menu to restrict ac-
cess. If the menu lock is disabled, there will
be free access to the menu system. Also in
this menu you can change the lock key and
set/change parental lock mode.
Disabled: All menus are unlocked.
Main Menu: Main menu is accessible only
with the correct lock key. So the user cannot
add, delete, rename, move channels, cannot
set timers.
Installation: Installation menu is locked, so
the user cannot add channels.
Changes will be updated after exiting Con-
figuration Menu.
Timers
You can set a timer to switch the TV to any
channel without your intervention. This is
also for making video recordings of
programmes when you are out.
Display the Main Menu by pressing the “M”
button. Highlight the Timers line by pressing
or button and press the “SELECT” but-
ton to display the Timer menu.
Main Menu
Channel List
Installation
Configuration
Timers
Language
TV Setup
Common Interface
Up to five separate timer events can be set
and each is displayed in the Timer screen,
showing the event number, the channel to
be selected, the start time, end time, date
and the mode - whether that event is active
(and will be acted on) or not.
SELECT
i
MENU
TIMER MENU
No Channel Name Start End Date Mode
1. ITV 1 20:00 21:00 12/05/2005 Active
2. BBC ONE 00:00 00:00 01/01/2005 Inactive
3. BBC ONE 00:00 00:00 01/01/2005 Inactive
4. BBC ONE 00:00 00:00 01/01/2005 Inactive
5. BBC ONE 00:00 00:00 01/01/2005 Inactive
6. BBC ONE 00:00 00:00 01/01/2005 Inactive
Toggle Mode Exit Edit Timer More
• To set an event, highlight its mode button
using the or button and press the “SE-
LECT” button to display the timer entry win-
dow.
Name:
Start:
End:
Date:
Mode:
3. ITV 1
00:00
00:00
03/06/2005
Once
• Here the five settings of channel name,
start time, end time, date and frequency
mode can be set. You can move freely be-
tween each setting using the or but-
tons.
• The channel name is set using the or
button to display the channel which broad-
casts the programme.
• The start time, end time and date are each
set with the digit buttons on the remote con-
trol in 24-hour format.
• The frequency mode determines how of-
ten the receiver operates this event and is
set with the or button to be either Once,
Daily, or Weekly.
If an invalid number for the start or end times
or the date is entered, “Entered time is not
valid” message appears on the menu.
If timer action occurs while the TV is
watched, the TV switches to the selected
channel. When timer expires, the TV
switches to the channel which it is switched
from.
Selected digital channel will be output via
Scart-2. You should connect your VCR to
Scart-2 for recording digital broadcast.
ENG-26720W-1549UK-26 INCH 17MB15 OEM PEU IDTV-(WO VGA-WO PIP)(HD READY)-50101276.p6502.04.2007, 11:1317

- 18 -
Language
Some programmes are broadcast in two or
more languages simultaneously. The lan-
guage heard can be selected from the Lan-
guage Menu.
•Press the “M” button to display the Main Menu
and use or button to highlight the Lan-
guage line and press the“SELECT” button.
Main Menu
Channel List
Installation
Configuration
Timers
Language
TV Setup
Common Interface
• Use the or button to highlight the
soundtrack language required and press
the “SELECT” button. Normal viewing, with
the required language soundtrack, can be
resumed by pressing the “M” button.
Languages
English
TV Setup
To be able to go through TV functions, you
can use this item.
The digital TV Setup menu screen is ac-
cessed from the main menu. Press the “M”
button to display the main menu and use
or button to highlight “TV Setup”, press
the “SELECT” button to display TV Setup
menu screen.
Main Menu
Channel List
Installation
Configuration
Timers
Language
TV Setup
Common Interface
Detailed information about Sound, Picture
and Feature menus are in AnalogueTV
Menu System section on page 19.
Common Interface
• Press the “M” button to display the Main
Menu and use the or button to highlight
the “Common Interface” line and press the
“SELECT” button.
Main Menu
Channel List
Installation
Configuration
Timers
Language
TV Setup
Common Interface
It is required to subscribe to a pay channel
company to view the pay channels of the
Digital Terrestrial broadcasting.
Obtain the Conditional Access Module (CAM)
and the Viewing card by subscribing to a pay
channel company, then insert those to the
Television using the following procedure.
1. Switch off the TV and unplug from the
mains.
2. Insert the CAM, then Viewing Card to the
slot that is located in the terminal cover at
the left-hand side of the TV (from front view).
• The CAM should be correctly inserted, it is
impossible to insert fully if reversed. The
CAM or the TV terminal may be damaged if
the CAM is forcefully inserted.
3. Connect the TV to the mains supply,
switch on and then wait for few moments
until the card is activated.
• Some CAMs may require the following set
up. Please set the CAM by entering the IDTV
menu, Common Interface then pressing the
“SELECT” button. (CAM set up menu is not
displayed when it is not required.)
• To see the viewing contract information:
Enter IDTV; press the “M” button, then high-
light Common Interface and press the “SE-
LECT” button.
ENG-26720W-1549UK-26 INCH 17MB15 OEM PEU IDTV-(WO VGA-WO PIP)(HD READY)-50101276.p6502.04.2007, 11:1318

- 19 -
• When no module is inserted, “No Common
Interface module detected” message ap-
pears on the screen.
• Refer to the module instruction manual for
details of the settings.
Analogue TV Menu System
Your TV has been designed with a menu
system to provide easy manipulation of a
multifunction system.
Press the “M” button to enter the menu.
Press

/

button to select a menu title and
then

/

button to select a menu item and

/

or “OK” button to enter the menu item.
You can access the menus directly by press-
ing the coloured buttons on the remote control:
Red Button Sound Menu
Green Button Picture Menu
Yellow Button Feature Menu
Blue Button Install Menu
• Press the “M” or button to return to the
previous menu.
Picture menu
By pressing

/

button, select the first icon.
Picture menu appears on the screen.
OK
Mode Cinema
Contrast
PAL 50Hz
Brightness
Sharpness
Colour
Colour Temp Warm
Noise Reduction
Reset
10
24
62
32
Film Mode
Off
3D Comb
Off
Off
Mode
By pressing

/

button, select Mode.
Press

/

button to choose one of these
options: Natural,Cinema and Dynamic.
Contrast
By pressing

/

button, select Contrast.
Press

button to increase contrast. Press

button to decrease contrast. Contrast level
can be adjusted between 0 and 63.
Brightness
By pressing

/

button, select Brightness.
Press

button to increase brightness. Press

button to decrease brightness. Brightness
level can be adjusted between 0 and 63.
Sharpness
By pressing

/

button, select Sharp-
ness. Press

button to increase sharp-
ness. Press

button to decrease sharp-
ness. Sharpness level can be adjusted be-
tween 0 and 31.
Colour
By pressing

/

button, select Colour.
Press

button to increase colour. Press

button to decrease colour. Colour level can
be adjusted between 0 and 99.
Hue
This item is displayed in picture menu when
the TV receives an NTSC signal. By press-
ing

/

button, select Hue. Press

button
to increase hue level. Press

button to de-
crease hue level. Hue level can be adjusted
between -31 and 31.
Colour Temp
By pressing

/

button, select Colour
Temp. Press

/

button to choose one of
these options: Cool,Normal and Warm.
Noise Reduction
This item is used to reduce the image noise
and improve the picture quality at weak signals.
By pressing

/

button, select Noise Re-
duction. Press

/

button to set Noise re-
duction level to Off,Low,Medium or High.
ENG-26720W-1549UK-26 INCH 17MB15 OEM PEU IDTV-(WO VGA-WO PIP)(HD READY)-50101276.p6502.04.2007, 11:1319
