AKX AKX-CH5 User manual

REVISION DATE
20140807
DOCUMENT NUMBER
NOTICE The manufacturer will accept no responsability for any electrical
damage resulting from improper installation of this product, be that either
damage to the vehicle itself or to the installed device. This device must be in-
stalled by a certified technician. Please review the Installation Guide carefully
before beginning any work.
BEFORE INSTALLATION
1- Connect module to computer
2- Login to Weblink account
3- Flash firmware to module (module is not preloaded with firmware)
4- Use accessories accordingly (accessories are sold separately)
INSTALL GUIDE
AKXCHRSCH5AKXCH5EN
HARDWARE
AKXCH5/AKXCH51BAM/AKXCH52WSS
FIRMWARE
AKXCHRSCH5AKXCH5
www.autokinetix.comAutomotive Data Solutions Inc. © 2014
ACCESSORIES
ADSUSB REQUIRED
COMPATIBLE RFKIT OPTIONAL
DIRECTED SMARTSTART & ADSHRNRSSM01 OPTIONAL
15975

VEHICLE LIST - 1 OF 1
MAKE MODEL YEAR INSTALL TYPE
FEATURES
DATA IMMOBILIZER BYPASS 3X LOCK REMOTE START PRIORITY UNLOCK DOOR LOCK DOOR UNLOCK ARM OEM ALARM DISARM OEM ALARM TRUNK/HATCH RELEASE DATA/MUX STARTER CTRL DOOR STATUS BRAKE PEDAL STATUS TACHOMETER STATUS PARKING LIGHT CTRL* RAP SHUTDOWN CTRL
CHRYSLER
200 AT 11-14 2 • • • • • • • • • • • • • •
300 / 300C AT 05-07 1 or 3 • • • • • • • • • • • • • •
Aspen AT 07-10 2 • • • • • • • • • • • • • •
PT Cruiser AT 06-10 1 or 3 • • • • • • • • • • • • • •
Sebring AT 07-10 2 • • • • • • • • • • • • • •
DODGE
Avenger AT 08-14 2 • • • • • • • • • • • • • •
Caliber (with start wire) AT 07 1 or 3 • • • • • • • • • • • • • •
Caliber AT 07-12 2 • • • • • • • • • • • • • •
Charger AT 06-07 1 or 3 • • • • • • • • • • • • • •
Durango AT 07-10 2 • • • • • • • • • • • • • •
Magnum AT 05-07 1 or 3 • • • • • • • • • • • • • •
Nitro AT 07-11 2 • • • • • • • • • • • • •
Ram 1500 AT 07-08 2 • • • • • • • • • • • • •
Ram 2500 AT 07-09 2 • • • • • • • • • • • • •
Ram 3500 AT 07-09 2 • • • • • • • • • • • • •
Ram 3500 chassis cab AT 07-09 2 • • • • • • • • • • • • •
Ram 4500 chassis cab AT 08-10 2 • • • • • • • • • • • • •
Ram 5500 chassis cab AT 08-10 2 • • • • • • • • • • • • •
JEEP
Commander AT 06-07 1 or 3 • • • • • • • • • • • • • •
Compass AT 07-14 2 • • • • • • • • • • • • • •
Grand Cherokee AT 05-07 1 or 3 • • • • • • • • • • • • • •
Liberty AT 08-12 2 • • • • • • • • • • • • •
Patriot AT 07-14 2 • • • • • • • • • •••••
Wrangler AT 07-14 2 • • • • • • • • • • • • •
RAM
4500 chassis cab AT 10 2 • • • • • • • • • • • • •
5500 chassis cab AT 10 2 • • • • • • • • • • • • •
* May require additional parts.
WARNING
I Install Type 1 requires a T-harness manufactured before 2013/11/04
Install Type 3 requires a T-harness manufactured after 2013/11/05
www.autokinetix.comAutomotive Data Solutions Inc. © 2014
PAGE 2 OF 24
• 20140807
AKXCHRSCH5AKXCH5EN
DOC.: #15975

BOX CONTENTS - 1 OF 1
VS2VS2
VS1VS1
MS1MS1
MS2MS2
3
6
4
1
2
5
C
B
A
F
G
E
D
7
9
3
10
8
11
13
14
12
15
17
18
19
20
16
6
4
1
2
5
7
9
3
10
8
11
12
6
4
1
2
5
2
1
3
7
9
3
10
8
6
4
12
5
2
1
3
4
2
1
3
4
BOX CONTENTS
T-HARNESS 1
AFTERMARKET HOOD SWITCH AND CABLE
WARNING STICKER
10 PIN CONNECTOR
12 PIN CONNECTOR
BLUE
PROGRAMMING
BUTTON
LED 2
LED 1
MODULE
BLACK
BLACK
BLACK
RF PORT/
WEBLINK PORT
BLACK
BLUE
TELEMATIC
PORT
WHITE
WEBLINK CABLE (required accessory sold separately)
WEBLINK CABLE
COMPUTER
USB PORT
4 PIN BLACK CABLE
MODULE
WEBLINK PORT
www.autokinetix.comAutomotive Data Solutions Inc. © 2014
PAGE 3 OF 24
• 20140807
AKXCHRSCH5AKXCH5EN
DOC.: #15975

www.autokinetix.comAutomotive Data Solutions Inc. © 2014
PAGE 4 OF 24
• 20140807
AKXCHRSCH5AKXCH5EN
COMPATIBLE ACCESSORIES - 1 OF 1
RF KIT
RF KIT (Visit our website to see if this accessory is included with your product)
ANTENNA
FLASH RF DECODER
BEFORE INSTALLATION
RF DECODERBLUE CABLE BLACK CABLE
(NC) RED
(NC) BLACK
BLACK
BLUE
MODULE
RF PORT
TELEMATIC KIT (accessories sold separately)
(NC)
(NC)
(NC)
DIRECTED SMARTSTART
ADS-HRN(RS)-SM01
MODULE
TELEMATIC PORT
DOC.: #15975

TYPE 1 - WIRE CHART - 1 OF 1
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
CHRYSLER
300/300C 05-07
Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/DkGreen (+) Ignition switch ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~
PT Cruiser 06-10
Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/LtBlue (+) Ignition switch ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Brown/Tan (-) Switch ~
DODGE
Caliber
(with start wire) 07
Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/DkGreen (+) Ignition switch ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple/Blue (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ ~ ~ ~ ~
Charger 06-07
Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/DkGreen (+) Ignition switch ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~
Magnum 05-07
Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/DkGreen (+) Ignition switch ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~
JEEP
Commander 06-07
Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/Orange (+) Ignition switch ~
Parking Light* ~ ~ ~ 85 ~ (-) Parking light relay, engine compartment. ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~
Grand Cherokee 05-07
Control C1 Black 5 pin 2 Violet/Brown (MUX) Ignition switch ~
Starter C1 Black 5 pin 4 Pink/Orange (+) Ignition switch ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple/Blue (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~
* Requires additional parts.
www.autokinetix.comAutomotive Data Solutions Inc. © 2014
PAGE 5 OF 24
• 20140807
AKXCHRSCH5AKXCH5EN
DOC.: #15975

86
30
87
87A
85
10 AMPS
A
B
7
9
3
10
8
11
13
14
12
15
17
18
19
20
16
6
4
1
2
5
3
6
4
1
2
5
C
7
9
3
10
8
11
12
6
4
1
2
5
MS1MS1
MS2MS2
B1
A1
B1
12345 24
VS2VS2
VS1VS1
A1
A2
D
7
9
3
10
8
6
4
1
2
5
6
2
17
19
NOTE 1
NOTE 2
2013/11/04
C
B
A
F
G
E
D
DRIVER DOOR PIN (-)
WHITE/BROWN (NC)
PARKING LIGHT (-)
PARKING LIGHT (+)
12V (+)
CONNECT IF VEHICLE
IS EQUIPPED WITH
PARKING LIGHT (-)
CONNECT IF VEHICLE
IS EQUIPPED WITH
PARKING LIGHT (+)
OR
PARKING LIGHT CONNECTION
HORN (-)
OPTIONAL
CONTROL (MUX) - 02
STARTER (+) - 04
WHITE/RED
WHITE/GREEN
WHITE/YELLOW - CONTROL (MUX) OUTPUT
PURPLE - STARTER (+) OUTPUT
CUT AND INSULATE
THE WHITE/YELLOW WIRE
(NEXT TO WHITE/GRAY WIRE)
INSULATE WIRE
REMOVE THE WHITE/GREEN WIRE FROM THE BLUE
CONNECTOR AND RE-INSERT IT IN PIN 6 (AS SHOWN)
(SEE DETAILED INSTRUCTIONS ON THE NEXT PAGE)
CONNECT THE WHITE/GREEN WIRE TO THE PINK WIRE
AND CONNECT THE WHITE/RED WIRE TO THE RED WIRE
(SEE DETAILED INSTRUCTIONS ON THE NEXT PAGE)
01 BROWN/BLACK - PARKING LIGHT (-) OUTPUT
02 WHITE/RED
06 WHITE/GREEN
02 PINK
06 RED
02 GRAY - RAP SHUTDOWN (-) OUTPUT

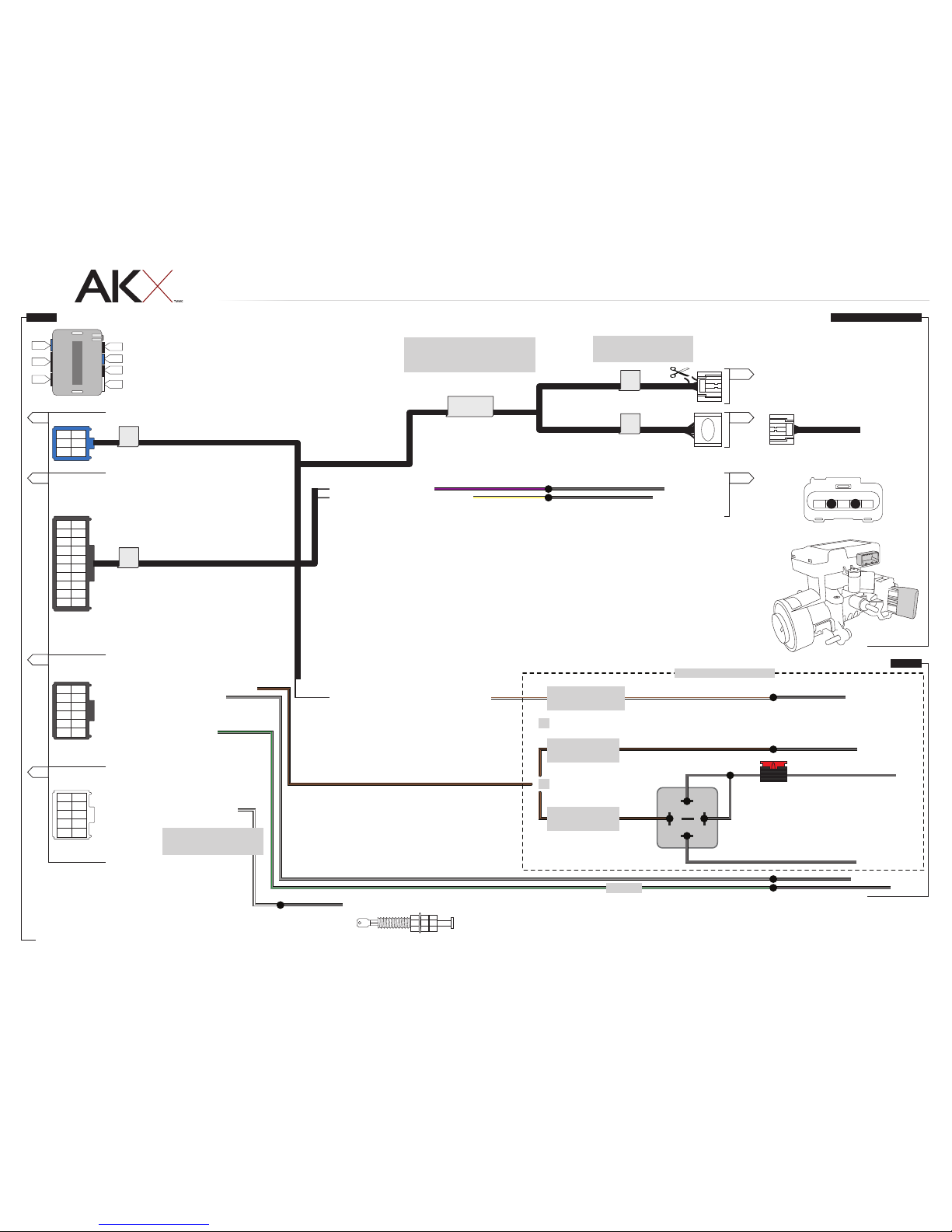

TYPE 1 - WIRING DIAGRAM - 1 OF 2
VEHICLE IGNITION SWITCHMODULE
11 GRAY/GREEN - HORN (-) OUTPUT
VEHICLE
SKIM CONNECTOR
SKIM HARNESS
AFTERMARKET HOOD SWITCH (-)
04 GRAY/WHITE - HOOD STATUS (-) INPUT
WITHOUT OEM HOOD SWITCH:
INSTALL AND CONNECT TO
AFTERMARKET HOOD SWITCH
WARNING
THIS WIRING DIAGRAM IS APPLICABLE
ONLY IF THE REVISION DATE
OF THE T-HARSNESS IS BEFORE:
TELEMATIC PORT
RF PORT/WEBLINK PORT
www.autokinetix.comAutomotive Data Solutions Inc. © 2014
PAGE 6 OF 24
• 20140807
AKXCHRSCH5AKXCH5EN
DOC.: #15975

NOTE 1 NOTE 2
3
6 4
1
2
5
4 2
3
6 4
1
2
5
6 2
WHITE/RED
WHITE/GREEN
WHITE/RED
WHITE/GREEN
STEP 1:
-REMOVE THE WHITE/GREEN WIRE FROM THE BLUE CONNECTOR CAREFULLY.
-USE A UTILITY KNIFE TO PUSH GENTLY AGAINST THE LOCKING TAB.
-DO NOT DAMAGE THE LOCKING TAB IN THE PROCESS.
STEP 1:
-IDENTIFY THE PINK (PIN 17) AND RED (PIN 19) WIRES FROM THE 20 PIN BLACK CONNECTOR OF THE T‐HARNESS.
-CAREFULLY STRIP THE PINK AND RED WIRES USING A WIRE STRIPPER.
-DO NOT CUT THE WIRES IN THE PROCESS.
STEP 2:
-CONNECT AND SOLDER THE WHITE/RED WIRE TO THE RED WIRE.
-CONNECT AND SOLDER THE WHITE/GREEN WIRE TO THE PINK WIRE.
STEP 2:
-USING A UTILITY KNIFE, LIFT THE LOCKING TAB CAREFULLY FOR IT TO BE RE-USED.
STEP 3:
-INSERT THE WIRE IN PIN 6 OF THE CONNECTOR, RIGHT NEXT TO WHERE IT USED TO BE.
STEP 3:
-INSULATE THE CONNECTIONS WITH ELECTRICAL TAPE.
TYPE 1 - WIRING DIAGRAM - 2 OF 2
WARNING
FAILURE TO PROPERLY SOLDER
CAN RESULT IN
FAULTY CONNECTIONS AND
PRODUCT MALFUNCTION
www.autokinetix.comAutomotive Data Solutions Inc. © 2014
PAGE 7 OF 24
• 20140807
AKXCHRSCH5AKXCH5EN
DOC.: #15975

TYPE 2 - WIRE CHART - 1 OF 3
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
CHRYSLER
200 11-14
Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~
Aspen 07-10
Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light ~ ~ ~ ~ Pink/Red (MUX) Switch ~
Driver Door Pin ~ ~ ~ ~ Violet (-) Driver door module ~
Hood Status ~ ~ ~ ~ Purple/Blue (-) Switch ~
Sebring 07-10
Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~
DODGE
Avenger 08-14
Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ ~ ~ ~ ~
Caliber 07-12
Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple/Blue (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~
Durango 07-10
Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light ~ ~ ~ ~ Pink/Red (MUX) Switch ~
Driver Door Pin ~ ~ ~ ~ Violet (-) Driver door module ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~
DODGE
Nitro 07-11
Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light* ~ ~ ~ ~ White/Purple + White/Green (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~
* Requires additional parts.
www.autokinetix.comAutomotive Data Solutions Inc. © 2014
PAGE 8 OF 24
• 20140807
AKXCHRSCH5AKXCH5EN
DOC.: #15975

TYPE 2 - WIRE CHART - 2 OF 3
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
DODGE
Ram 1500 07-09
Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light ~ ~ ~ ~ White/Green (MUX) Switch ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~
Ram 2500 07-09
Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light ~ ~ ~ ~ White/Green (MUX) Switch ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~
Ram 3500 07-09
Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light ~ ~ ~ ~ ~ ~ ~ ~
Driver Door Pin ~ ~ ~ ~ ~ ~ ~ ~
Hood Status ~ ~ ~ ~ ~ ~ ~ ~
Ram 4500 08-10
Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light ~ ~ ~ ~ White/Green (MUX) Switch ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~
Ram 5500 08-10
Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light ~ ~ ~ ~ White/Green (MUX) Switch ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~
JEEP
Compass 07-14
Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple/Blue (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/Blue (-) Switch ~
Liberty 08-12
Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~
* Requires additional parts.
www.autokinetix.comAutomotive Data Solutions Inc. © 2014
PAGE 9 OF 24
• 20140807
AKXCHRSCH5AKXCH5EN
DOC.: #15975

TYPE 2 - WIRE CHART - 3 OF 3
MAKE MODEL YEAR WIRE DESCRIPTION CONNECTOR NAME CONNECTOR COLOR CONNECTOR TYPE POSITION WIRE COLOR POLARITY MODULE LOCATION COMPONENT LOCATOR
JEEP
Patriot 07-14
Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light* ~ ~ ~ ~ White/Purple (+) Driver kick panel ~
Driver Door Pin ~ ~ ~ ~ Purple/Blue (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ ~ ~ ~ ~
Wrangler 07-14
Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light* ~ ~ ~ ~ White/Purple + White/Orange (+) Passenger kick pad ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~
RAM
4500 10
Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light ~ ~ ~ ~ White/Green (MUX) Switch ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~
5500 10
Mux ~ ~ ~ ~ ~ ~ ~ ~
Starter ~ ~ ~ ~ ~ ~ ~ ~
Parking Light ~ ~ ~ ~ White/Green (MUX) Switch ~
Driver Door Pin ~ ~ ~ ~ Purple (-) Driver kick panel ~
Hood Status ~ ~ ~ ~ Purple/LtBlue (-) Switch ~
* Requires additional parts.
www.autokinetix.comAutomotive Data Solutions Inc. © 2014
PAGE 10 OF 24
• 20140807
AKXCHRSCH5AKXCH5EN
DOC.: #15975
