Mopar XBM User manual

INSTALLATION INSTRUCTIONS
4280064
REV.A
11/08
K6860719
Dodge Grand Caravan
ChryslerTown & Country
(RT)
Table of Contents
• Hood Switch Wiring Harness Installation
• Feature Turn On (XBM)
Dealer Installed Factory
Remote Start Components
Technical Support - Wire Harness Only
ForAuthorized Dealers - (800) 34-MOPAR
Hours: 9:00 a.m. - 6:00 p.m. EST Monday thru Friday
10:00 a.m. - 2:00 p.m. EST Saturday
Technical Support - StarMobile Programming, Installation of:
WIN, Keys, Antenna and Hood Switch Only
For Authorized Dealers - (800) 850-STAR
Canada - [phone]
** StarMobile cable CH9404D must be used for this application **
WCM & WIN-BASED VEHICLES DIFFER IN THEIR IN-
STALLATION PROCEDURE. YOU MUST REFER TO PAGE
2 FOR IMPORTANT NOTES. INADDITION, PLEASE READ
&UNDERSTANDTHEENTIREINSTALLATIONMANUAL
BEFORE PROCEEDING.
ATTENTION!

WARNING!
XBM remote start can ONLY be installed on
vehicles that have the following factory options:
Automatic Transmission
Remote Keyless Entry
Immobilizer
Download the following Service Manual documents from Dealer Connect
before proceeding with installation.
1. WIN module replacement procedure.
The installation procedures differ between SKIM(WCM) and WinFobik
based vehicles. With the WinFobik based vehicle, the sales code must be
added to the database and the Restore Vehicle Configuration (using the
StarMobile tool) must be performed prior to installing the new WIN
module. Failure to do so will render the WIN module’s remote start
function inoperative.
The technician should wait 1/2 hour between adding XBM sales code in
DealerConnect before installing the WIN module & restoring vehicle
configuration. In the interim, the technician can install all other compo-
nents except the WIN module.
2 of 17

Update Vehicle Configuration
1.Vehicle Vin must be updated with the sales code of the added accessory in order to enable system
functionality. Using the DealerCONNECT website and a StarMobile diagnostic tool, complete the
following procedure:
a. Log on to https://dealerconnect.chrysler.com
TOOLSREQUIRED
13mm 10mm 1/4”
T-
20
KITCONTENTS
1X
2X 12X
2X 1X 1X 2X
1X
OVERVIEW
This instructional manual will discuss the installation of the hood switch harness & XBM (Remote
Start) turn-on. Other steps will include replacement procedure of the WIN, antenna installation, hood
switch installation, and uploading of vehicle configuration from Dealer Connect. Refer to the vehicle
Service Manual for specific installation procedures for all components except the hood switch har-
ness, which is covered here in detail.
3 of 17
1X 1X
VEHICLE PREPARATION
1. Lower one or more of the passenger windows so the keys do not get locked in the vehicle.
2. Disconnect and isolate the negative battery cable. The battery will need to be re-connected before
programming.
3. Disassemble and remove keys from old transmitters, install into provided new
transmitters.
StarMobile Cable CH9404D

8. Press ----- OK
9. Enter user ID, password and dealer code using On-Screen
keyboard and press ----- OK
10. Wait for vehicle configuration data to be downloaded and
press ----- NEXT
11. Press ----- NEXT
12. Confirm that vehicle configuration has been programmed
sucessfully
13. Note On-Screen instructions and press ----- FINISH
b. In the “Vehicle Option” screen under the “Global Claims System” category in the “Service” tab,
enter vehicle VIN and add sales code(s) noted below as a “Dealer Installed Option”.
XBM (REMOTE START)
c. Confirm that the new sales code has been sucessfully added to the VIN.
d. With the StarMobile diagnostic tool connected to both the internet (via Ethernet port or wire-
less connection) and the vehicle, perform the following steps from the Initial Start Up Screen:
1. Press --------- VEHICLE PREPARATION
2. Toggle Down and Highlight --- RESTORE VEHICLE
CONFIGURATION
3. Press -------- START
4. Press ------- NEXT
5. If necessary, select proper vehicle line and model year and
press ----- NEXT
6. Confirm correct selection and press ----- NEXT
7. Enter vehicle VIN using On-Screen keyboard or confirm that
auto-filled VIN plate and press ----- NEXT
4 of 17

This vehicle may be equipped with a “Factory Installed” hood switch harness. This har-
ness will not be visible but will be secured to the factory harness located just below the
TIPM. If this harness is present, Refer to step “a” in the “Hood Switch Harness Installa-
tion” section below and connect the hood pin switch as described, then proceed to “Re-
mote Start Antenna Installation” and continue with this instruction manual. If this vehicle
DOES NOT have a factory installed hood switch harness (one is supplied in the kit), pro-
ceed with the complete “Hood Switch Harness Installation” procedure.
Disconnect Ground From Battery
1. Remove ground from battery
a. Using a 10 mm socket, remove the negative battery cable.
Installation Procedure:
Validation Process
1. Press ----- ECU VIEW
2. Toggle down and highlight ----- TIPMCGW CENTRAL
GATEWAY
3. Press ----- MORE OPTIONS
4. Press ----- ECU DETAILS
5. Press ----- CONFIG INFO
6. Toggle down, verify:
Name Value
REMOTE START PRESENT SET
FactoryHarness
Location
5 of 17

1. Routing and connection of the hood switch harness.
a. Locate the hood switch bracket mounting
location in the front left fender, near the TIPM.
b. Using the provided mounting screw, secure the harness
ground and the hood switch mounting bracket to the
front fender in the location identified in the previous
step.
c. Route the hood switch harness connector up through the
mounting bracket and connect the hood switch. Push
the hood switch into the bracket until properly seated.
Hood Switch, Harness and Bracket Installation
TIPM
MountingBracket
Groundwireandprovidedmountingscrew
MountingLocation
6 of 17

b. Remove the “Secondary Lock” from the rear of the
connector.
c. Remove the weather seal from the rear
of the connector.

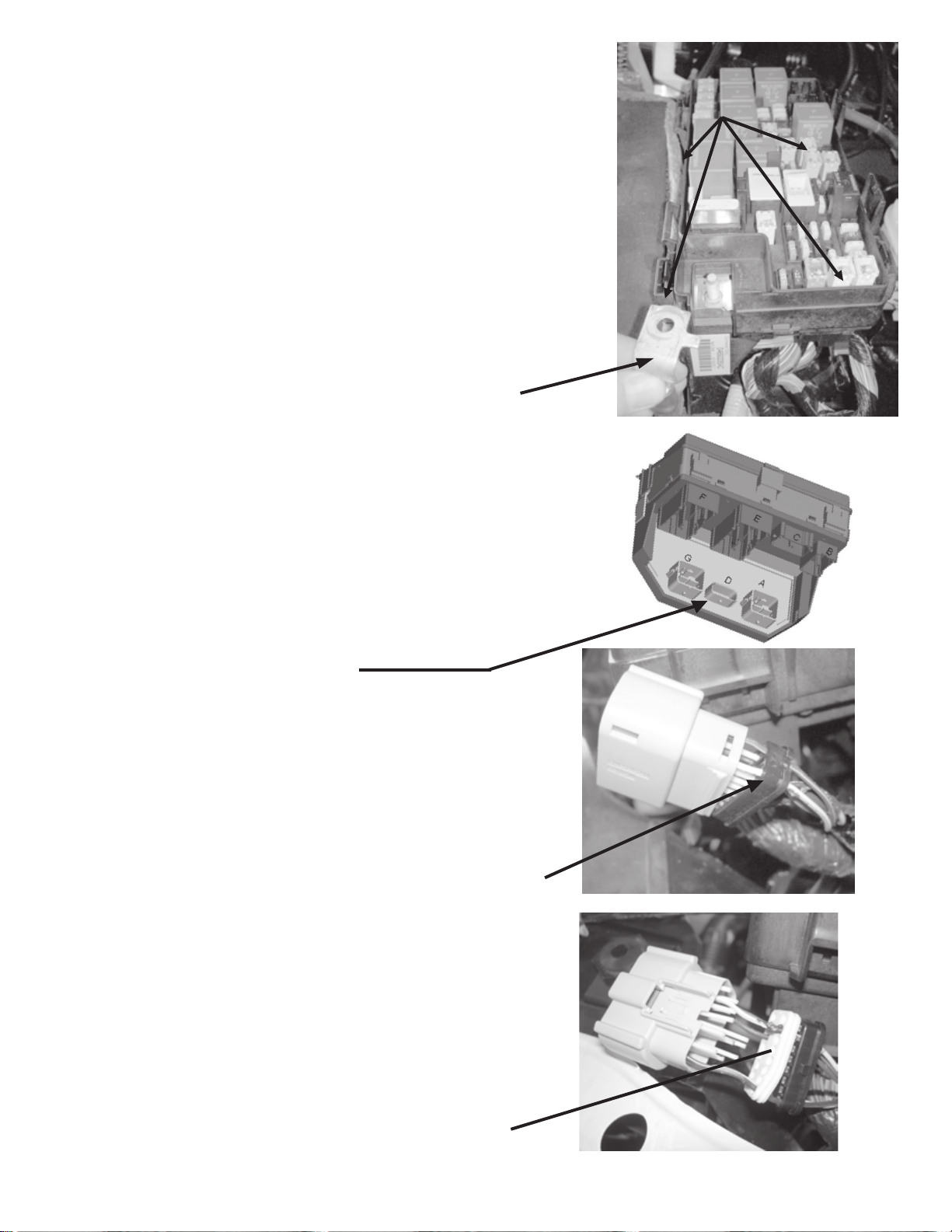

2. Access the connectors underneath the TIPM
a. Using a 13 mm socket, remove the
positive battery feed to the TIPM.
b. Access connectors at the bottom of
the TIPM by releasing the (4) tabs in the
corners of the TIPM and lifting upward.
3. Connect the hood switch wire
a. Unplug the “D” connector from the TIPM
“SecondaryLock”
Weather Seal
Positive Battery Feed
TIPMMounting tabs
“D”connector
7 of 17

Pin3(G70circuit) WireEndView
8 of 17
f. Reinstall the front portion of the connector,
observing that all terminals are seated correctly and
are in the right direction. Reinstall the weather seal
and the secondary lock.
g. Reinstall the connector into the TIPM.
d. Remove the front portion of the connector from
the connector housing. This portion of the
connector aligns the terminals properly within the
connector housing.
e. Route the Purple/White wire from the
hood switch harness through the secondary
lock, through the weather seal and into the
terminal 3 (G70 circuit) slot of the connector
housing.
Pin #3

Antenna Installation
9 of 17
4. Resecure the TIPM
a. Resecure the TIPM onto the TIPM mounting bracket by
engaging the (4) mounting tabs.
b. Using a 13 mm socket, reattach the positive battery feed.
Positive Battery Feed
TIPMMounting tabs
1. Antenna Installation Procedure.

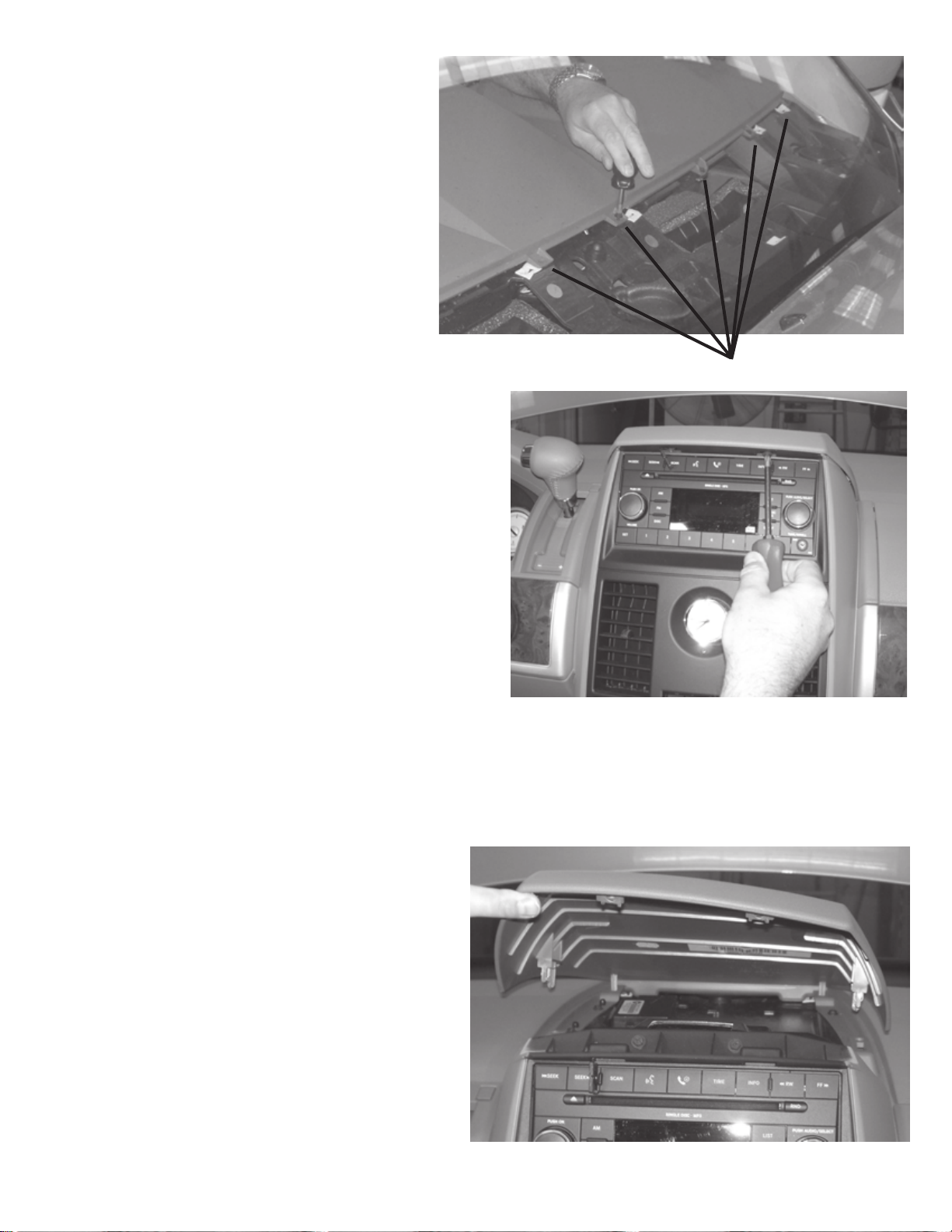

a. Remove the trim panel located at the front of the dash, near the
windshield. This panel is secured with (6) retaining clips.
RetainingClips(5shown)

b. Remove (5) phillips screws securing the
dash trim to the assembly.
c. Remove the (2) phillips screws right above the
radio. These screws secure the center trim to the
dash assembly.
d. Pry the trim upward and remove.
(5)Screws
10 of 17

e. Remove the (6) plastic retainers holding the lower console trim in
place (3 each side).
f. Remove the (4) phillips screws securing the trim around the radio
and heater controls. Remove trim.
g. Remove the (2) phillips screws under the
upper center trim panel. These screws secure
the dash trim to the assembly.
(4)Screws
(2)Screws
11 of 17
PlasticRetainers
(3each side)

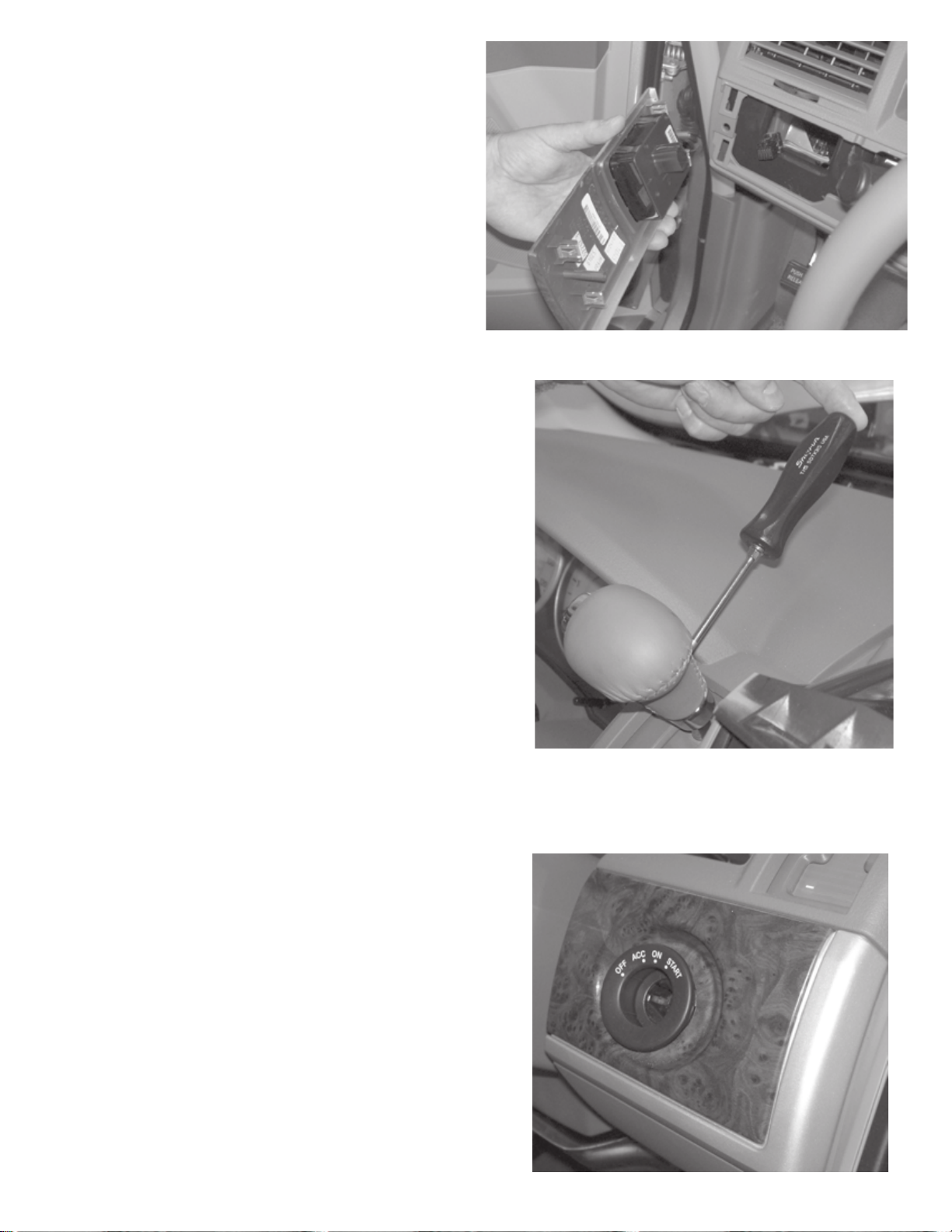

h. Remove the trim panel located on the left side of the dash,
by partially removing the door weather strip and pulling out-
ward, releasing the (4) retaining clips.
i. Remove the T-20 screw located behind the trim panel.
j. Remove the lower dash trim panel by removing (2) T-20 screws
and pulling rearward to release the (5) retaining clips.
T-20 Screw
T-20 Screws
12 of 17

k. Remove the trim piece located around the
head light switch, by pulling rearward to release
the (4) retaining clips. Unplug the headlight
switch.
l. Remove the T-15 screw securing the gear shift handle.
m. Remove the trim located around the key.
13 of 17

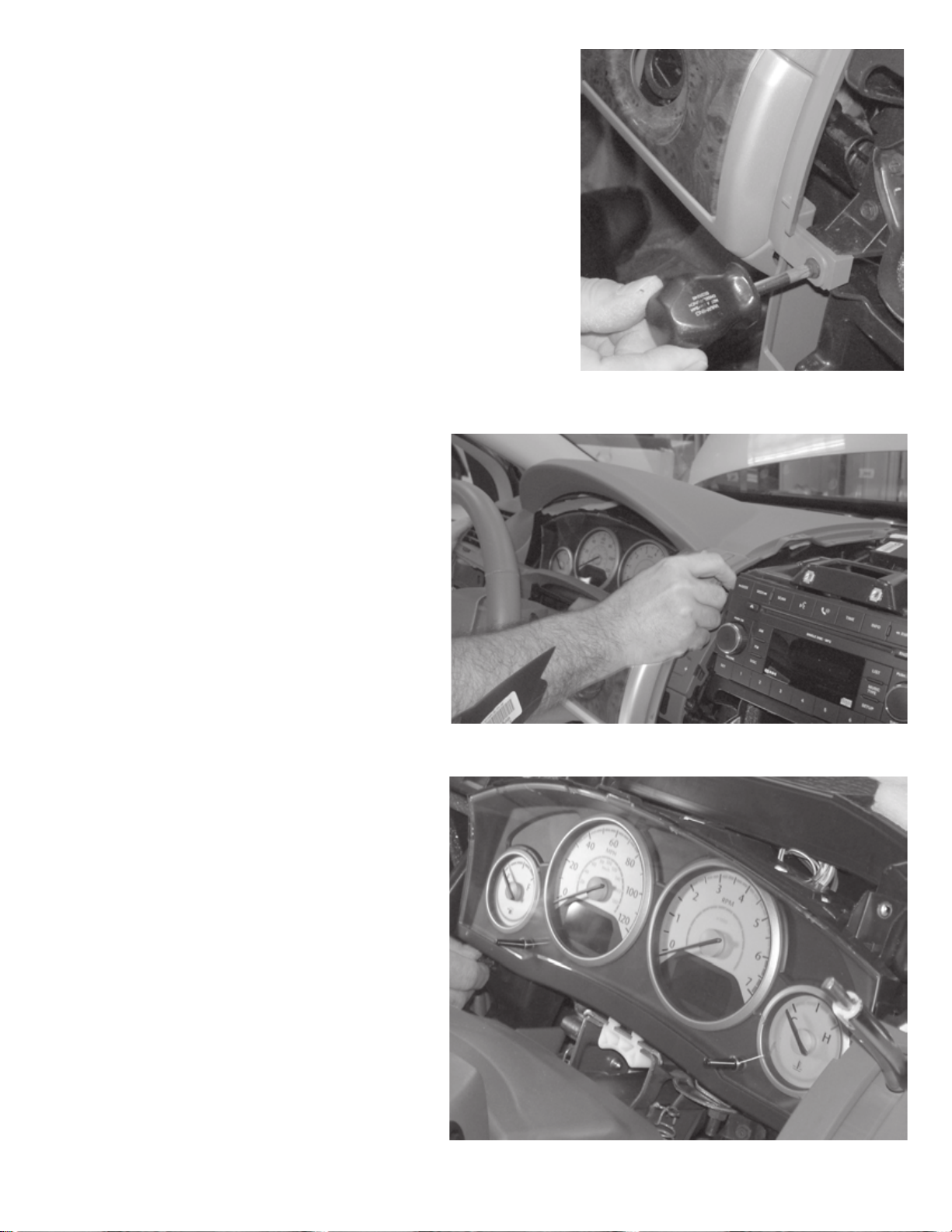

n. Remove the Phillips screw located to the right of the
key, behind the radio trim panel.
o. Remove the trim piece around the gauge
cluster.
p. Remove the (4) Phillips screws securing
the guage cluster. Do not unplug dash clus-
ter to access the antenna routing path.
14 of 17

q. Using the supplied mounting hardware, mount the
remote start antenna to the top of the dash assembly.
r. Route the antenna wire down through the dash assembly to the
WIN module.
WIN Replacement
** Orginal WIN must be removed and the new WIN must be
installed **
1. Refer to the vehicle Service Manual section 8 Electrical/
Starting/Remote StartAntenna Module/Installation - for WIN
replacement.
15 of 17

16 of 17
Reconnect Ground to Battery
1. Reconnect ground to battery
a. Using a 10 mm socket reattach the negative battery cable.
WIN Programming Procedure using StarMobile tool
1. Refer to vehicle Service Manual section 8 Electrical/Vehical Theft Security/Standard Procedure/
SKIS INITIALIZATION.

Clear All DTC’s
1. Use the StarMobile to clear all DTC’s
ECU Reset
1. With the StarMobile diagnostic tool connected to the vehicle, perform
the following steps from the Initial Start Up Screen:
a. Press ------------------- ECU VIEW
b. Toggle Down and Highlight --- WCM
c. Press ------------------ MISC FUNCTIONS
d. Toggle Down and Highlight RESET ECU
e. Press ----------------- START
f. Press ----------------- NEXT
17 of 17
Remote Start Disable Override Procedure
1. With the StarMobile diagnostic tool connected to both the internet
(via Ethernet port or wireless connection) and the vehicle, perform
the following steps from the Initial Start Up Screen:
a. Press ------------------- ECU VIEW
b. Toggle Down and Highlight --- TIPMCGW
c. Press ------------------ MISC FUNCTIONS
d. Toggle Down and Highlight REMOTE START OVERRIDE
e. Press ----------------- NEXT
f. Press ----------------- DISABLE
Program All Keys to Vehicle
1. Refer to the vehicle Service Manual for FOBIK key programming procedure.

INSTRUCCIONESDEINSTALACIÓN
Dodge Grand Caravan
ChryslerTown & Country
(RT)
Índice
• Instalación del cableado del interruptor del capó
• Función de encendido (XBM)
Componentes de arranque remoto de
fábrica instalados por el distribuidor
Soporte técnico - Arnés de cableado únicamente
Para distribuidores autorizados - (800) 34-MOPAR
Horario: De lunes a viernes, de 9:00 a.m. a 6:00 p.m. hora estándar del este (EE. UU.)
Sábados de 10:00 a.m. a 2:00 p.m. hora estándar del este (EE. UU.)
Soporte técnico - Programación de StarMobile, Instalación de:
WIN, llaves, antena e interruptor del capó únicamente
Para distribuidores autorizados - (800) 850-STAR
Canada - [phone]
** Para esta aplicación se debe utilizar el cable CH9404D StarMobile **
¡ATENCIÓN!
LOS VEHÍCULOS CON WCM Y LOS BASADOS EN ELWIN
DIFIEREN EN SU PROCEMIENTO DE INSTALACIÓN. LEA
ATENTAMENTELAS NOTASDE LAPÁGINA2.DE IGUAL
MODO, NO OMITALEER Y COMPRENDER TODO EL
MANUALDE INSTALACIÓNANTES DE PROCEDER.
4280064
REV.A
11/08 K6860719

¡ADVERTENCIA!
El encendido remoto XBM SÓLO se puede instalar en
vehículos que tengan las siguientes opciones de
fabricación:
Transmisión automática
Apertura con control remoto
Inmovilizador
Los procedimientos de instalación son diferentes en los vehículos con
SKIM(WCM) y los que se basan en WinFobik. En el vehículo basado en
WinFobik, el código de venta debe agregarse a la base de datos y se debe
realizar el Restore Vehicle Configuration (reestablecimiento de la
configuración del vehículo) (utilizando la herramienta StarMobile) antes de
instalar el módulo WIN nuevo. Si no sigue el procedimiento descrito, la
función de encendido remoto del módulo WIN permanecerá inoperante.
El técnico debe esperar media hora a partir del ingreso del código de venta
XBM en el DealerConnect antes de instalar el módulo WIN y restablecer la
configuración del vehículo. Entretanto, el técnico puede instalar todos los
demás componentes a excepción del módulo WIN.
Descargue los siguientes documentos del Manual de Servicio del portal
Dealer Connect antes de proceder a la instalación.
1. Procedimiento de reemplazo del módulo WIN.
2 de 17

HERRAMIENTAS REQUERIDAS
13mm 10mm 1/4"
T-
20
CONTENIDODELKIT
1X
2X 12X
2X 1X 1X 2X
1X
DESCRIPCIÓN GENERAL
Este manual de instrucciones proporciona información acerca de la instalación del cableado
del interruptor del capó y del encendido XBM (arranque remoto). Otros pasos incluirán el
procedimiento de reemplazo del WIN, la instalación de la antena, la instalación del interruptor
del capó y la carga de la configuración del vehículo desde Dealer Connect. Consulte el Manual
de servicio del vehículo para obtener los procedimientos de instalación específicos para todos
los componentes, excepto el cableado del interruptor del capó, que se explica detalladamente
en este documento.
3 de 17
1X 1X
PREPARACIÓN DEL VEHÍCULO
1. Baje la ventanilla o las ventanillas del lado del acompañante para tener acceso a las llaves una
vez cerrado el vehículo.
2. Desconecte y aísle el cable de batería negativo. Se deberá volver a conectar la batería antes
de la programación.
3. Desensamble y quite las llaves de los transmisores anteriores e instale los transmisores
nuevos suministrados.
Cable CH9404D StarMobile
Actualizar la configuración del vehículo
1. El VIN (Número de identificación del vehículo) se debe actualizar con los códigos de ventas
del accesorio agregado para habilitar la funcionalidad del sistema. Utilizando el sitio Web
DealerCONNECT y la herramienta de diagnóstico StarMobile, realice el siguiente procedimiento:
a. Inicie sesión en https://dealerconnect.chrysler.com.
