AL SA-100 User manual

USER MANUAL
AIR PURIFICATION AND DISINFECTION SYSTEMS
SA-100. Stand-alone devices

Airlife Swiss AG
Sarganserstrasse 44 |CH–8880 Walenstadt |Telefon [phone] |[email protected] |www.airlife.swiss
Schweizer Qualität
AL SA-100
Photocatalytic Air Purifier
User Manual
Manufacturer
Airlife Swiss AG
Dorfstrasse 38, 6340, Baar, Switzerland
Project:
54000-10
AL SA-100
Document:
54000-10-0001
Article:
Tbd
Issued:
04.01.2021
Kharis Musaleev
MUK
Reviewed:
11.01.2021
Adrian Gubser
GUA
Language:
Revision:
Document type:
Status:
Eng.
C
Technical document
In Work
Revisions
Index
Date
Code
Reason for change
Pages
A
04.01.2021
MUK
First edition
All
C
24.02.2021
MUK
Third edition
All
D

Language:
Revision:
Document:
Eng.
D
54000-10-0001
54000-10-0001 - User Manual - Final (3).docx
Page 2/30
Table of Contents
1Intended use ..............................................................................................3
2Contents .....................................................................................................4
3Design and Technical Specifications............................................................5
3.1 Overview of the Air Purifier SA-100 5
3.2 Description of the main Components 5
3.3 Technical Specifications 7
4Product use ................................................................................................8
4.1 Placement of the Product 8
4.2 Turning the Product ON 8
4.3 Turning ON after a long Break in Operation 10
4.4 Users Safety Requirements 10
5Emergency Situations ...............................................................................11
6Technical Maintenance, Repair and Replacements ....................................12
6.1 Contact of the Manufacturer 13
6.2 Replacement Description for the Owner 14
7Warranty ..................................................................................................28
8Troubleshooting........................................................................................28
8.1 Potential Malfunctions and Troubleshooting 28
9Storage and Transport ..............................................................................29
9.1 Storage and Transport Conditions 29
10 Disposal....................................................................................................29

Language:
Revision:
Document:
Eng.
D
54000-10-0001
54000-10-0001 - User Manual - Final (3).docx
Page 3/30
1Intended use
We would like to thank you for purchasing the product of Airlife Swiss AG.
This manual is an integral part of the product and must be provided to the customer
at the point of purchase.
This user manual applies to the photocatalytic air purifier AL SA-100 (hereinafter –
air purifier, product, device) designed for purification of air of any types of
microbiological contaminants (mold spores, viruses, bacteria), dust, solid and liquid
aerosols, any types of allergens, unpleasant odors, and toxic substances. The air
purifier can be used continuously indoors in the presence of humans and pets.
The aim of this manual is to provide description of proper connection, use and
maintenance of the air purifier.
The user should carefully read the manual before using the device. Danger
warnings, regarding a potential hazard associated with the use of the product, are
highlighted in the text.
Design of warnings and information
Danger
Failure to comply with this warning will result in death or serious injury.
Attention
Failure to observe this warning may result in moderate or minor injury or
affect health.
Warning
Failure to observe this warning may result in property damage.

Language:
Revision:
Document:
Eng.
D
54000-10-0001
54000-10-0001 - User Manual - Final (3).docx
Page 4/30
2Contents
The shipping contains the following items:
No.
Item Designation
Amount
1
Air Purifier
1
2
User/Maintenance Manual
1
3
Transport Packing
1
4
Packaging
1
Please, check the contents of the package before use. If any items are missing or
damaged, please contact the supplier or manufacturer. The contact information is
provided on the front page of this user manual.
Danger
IT IS PROHIBITED to use the air purifier if the housing, power cord,
power plug is damaged.

Language:
Revision:
Document:
Eng.
D
54000-10-0001
54000-10-0001 - User Manual - Final (3).docx
Page 5/30
3Design and Technical Specifications
3.1 Overview of the Air Purifier SA-100
3.2 Description of the main Components
1. Pre-filter –removes dust and particles larger than 15 μm in size.
2. Aerosols charging unit –ensures a symmetrical electrostatic field inside the
element and 99.9% filtration efficiency for particles between 0.1 and 100 μm in
size.
3. Combined polarized adsorption-photocatalytic filter –traps the
particulates up to 0.1 μm in size, adsorbs unpleasant odors, toxic chemical
substances, allergens, viruses, bacteria, etc. The technology allows using the
polarized filter as a precipitator for charged particles. The adsorption-
photocatalytic stage prevents the penetration of harmful substances by
adsorbing them on the surface of the catalytically active, modified carbon
sorbent. The technology of joint action of adsorption and photocatalysis makes
the adsorbent catalytically effective, and regeneratable during operation. The

Language:
Revision:
Document:
Eng.
D
54000-10-0001
54000-10-0001 - User Manual - Final (3).docx
Page 6/30
photocatalyst oxidizes micro-organic substances, volatile organic compounds,
and allergerns to harmless components –carbon dioxide, water and atmospheric
nitrogen.
4. UV-A emitter –UV-radiation provides energy for activation of the
photocatalyst. The device is equipped with UV-lamp with the wavelength of 320-
400 nm (spectrum A).
5. Fan –Ensures circulation of air from the room through the unit and its filters.

Language:
Revision:
Document:
Eng.
D
54000-10-0001
54000-10-0001 - User Manual - Final (3).docx
Page 7/30
3.3 Technical Specifications
No.
Parameter, units
Value
1
Use
Indoor use only
2
Cleaning capacity, m3/h
Max. 300
3
Recommended location area of operation, m2
25 - 50
4
Filtration efficiency against aerosols, %
99.96
5
Effect on the ion composition of air
None
6
Range of UV-radiation, nm
320 - 400
7
Supply voltage, V
230
8
Utility frequency, Hz
50
9
Rated input power, W
90-170
10
Size (W x D x H) , mm
334 x 334 x 1000
11
Product weight, kg
23
12
Usage temperature, ˚C
5 - 55
13
Air humidity level, %
0 - 90
14
Noise level, dBa
28 - 72
15
Shelf life, years (chapter 9.1)
3
16
Degree of protection provided by enclosure
IP20

Language:
Revision:
Document:
Eng.
D
54000-10-0001
54000-10-0001 - User Manual - Final (3).docx
Page 8/30
4Product use
4.1 Placement of the Product
SA-100 must be positioned to stand vertically on an even base.
The device has wheels on the bottom for portability. All four wheels can be locked
for convenience.
Place the device so that the furniture has the minimal impact on the course of air
flow.
The best level of air purification is achieved near the device. Therefore, it’s
recommended to place the device close to workstation or near sources of
problematic particles to prevent spreading.
Attention
Placing the device on its side and tilting is PROHIBITED during operation.
Do not cover ventilation holes with clothes, or any other materials, objects,
that may prevent circulation of air inside the air purifier!
IT IS PROHIBITED to sit or stand on the device.
4.2 Turning the Product ON
Danger
The product is not intended for the use by persons (including children) with
reduced physical, sensory, and intellectual capabilities in the absence of
supervision or without special knowledge. Do not allow children to play
with the device!
The air purifier must be grounded for safe operation! The device is grounded
using the grounding pin in the 230V outlet. Connecting the air purifier to
the socket without grounding pin is PROHIBITED.
Attention
Before using the product for the first time, make sure that it is warmed up
to room temperature and that there is no condensation on it! If the product
is transported at negative temperatures, it must be kept indoors for at least
1 hour.

Language:
Revision:
Document:
Eng.
D
54000-10-0001
54000-10-0001 - User Manual - Final (3).docx
Page 9/30
Plug the device into a grounded 230V socket. Switch on the device using the air
supply controller (Fig. 1) by turning it clockwise. Set the required level of air supply.
The continuous work time is unlimited.
SA-100 takes in the contaminated air from the bottom and let purified air out
through the upper part of the unit.
The device effectively collects contaminants on the filters inside it.
Danger
Air purifier CANNOT BE used for the purposes different from the intended
purpose, stated in the user manual.
IT IS PROHIBITED to use the device in humid environments with relative
air humidity above 90% (for example, in bathroom).
IT IS PROHIBITED to use the device for purification of air that contains
flammable gas, corrosive gas, combustible dust (wood, grain, etc.) and
conductive dust. Do not allow flammable substances to get inside the
device (e.g., hair spray).
If the product is used together with an air humidifier, do not allow water
mist to get directly inside the device!
Do not allow water inside the product! Do not place the product near water
vases or other containers! If water is penetrated, immediately unplug the
power cord from the outlet and stop using the device.
If water penetration causes a short circuit and a circuit breaker in the
distribution board of building trips, IT IS PROHIBITED to turn the electricity
back on before the source of the causes of the circuit breaker tripping is
established. To clarify the reason, contact a specialist with relevant
electrical engineering skills who maintains the building.
Do not put fingers or drop objects into the apertures of the air purifier.
Attention
Use only 230V/50Hz power supply to connect the air purifier!
Never unplug equipment from the electrical outlet by holding the cord only,
always disconnect the cord by applying force directly to the plug.

Language:
Revision:
Document:
Eng.
D
54000-10-0001
54000-10-0001 - User Manual - Final (3).docx
Page 10/30
Figure 1
No. 1: Air Supply Controller
No. 2 Shielded Enclosure
4.3 Turning the product ON after a long Break in Operation
A “sour” smell may occur in the purified air when it is turned on after long breaks.
This is not a malfunction and associated with gas adsorption on the surface of a
photocatalyst in the absence of UV-radiation. After a short time of operation, the
photocatalyst self-cleaning takes place and the smell disappears.

Language:
Revision:
Document:
Eng.
D
54000-10-0001
54000-10-0001 - User Manual - Final (3).docx
Page 11/30
5Emergency Situations
The most likely emergency events are:
−presence of unusual noise;
−foreign objects or water penetration inside the device;
−disconnection from the ground.
Attention
In the presence of faults (for example, burning smell), immediately
switch off the device! Contact the manufacturer for the following advice.
In case of an emergency situation, the air purifier must be immediately
switched off and completely disconnected from the power!
In case of emergency, the following actions should be taken:
1. Unplug the device from the outlet.
2. Provide first aid to the injured (if necessary);
3. Use emergency firefighting equipment (if necessary);
4. Call emergency (if necessary);
5. Inform the manufacturer of the air purifier about the emergency situation.

Language:
Revision:
Document:
Eng.
D
54000-10-0001
54000-10-0001 - User Manual - Final (3).docx
Page 12/30
6Maintenance, Repair and Replacement
The owner of the device is allowed to carry out maintenance. Due to safety reasons,
repair shall be carried out by a person authorised by the manufacturer.
Chapter 6.2 provides detailed maintenance description, which can be done by the
owner.
In case of questions regarding maintenance, repair or replacement, contact the
manufacturer (chapter 6.1).
Danger
IT IS PROHIBITED to introduce any unauthorised changes to modifications
and construction of the product.
IT IS PROHIBITED to perform maintenance while the power is on.
Switch off the device and unplug the power cord before cleaning or
maintenance!
IT IS PROHIBITED to use the air purifier without the filters.
IT IS PROHIBITED to carry out repairs by unauthorised personnel
unfamiliar with the required tools, equipment and potential hazards.
IT IS PROHIBITED to clean the device using flammable or toxic substances
(e.g., solvents).
Warning
When cleaning the aerosols charging unit with a high level of
contamination, it is allowed to use water and detergents but after
treatment the aerosols charging unit must be completely dried before
switching on the air purifier.
Filters must be regularly replaced once they are clogged. Untimely
replacement may lead to the device overheating and failure, as well as to
a decrease in efficiency of filtration.

Language:
Revision:
Document:
Eng.
D
54000-10-0001
54000-10-0001 - User Manual - Final (3).docx
Page 13/30
Maintenance includes the following procedures:
−keeping the housing clean outside;
−cleaning the aerosols charging unit;
−replacement of an UV-A emitter (lamp) once it depletes its resources;
−replacement of filters.
Designation
Change/Clean
Interval
UV-A emitter (lamp)
Latest after 2 Years
Pre-filters
Latest after 6 Months
Combined polarized
adsorption-photocatalytic
filter
Latest after 6 Months
Aerosols charging unit
Latest after 6 Months
Fan
-
The filters must be replaced once they become clogged. Their untimely replacement
may lead to the air purifier overheating and failure, as well as to its reduce efficiency
of filtration and disinfection.
6.1 Contact of the Manufacturer
If there is a question about the product, contact the manufacturer:
Airlife Swiss AG
Address: Sarganserstrasse 44, CH-8880 Walenstadt
Tel.: [phone]
E-Mail: [email protected]
Website: www.airlife.swiss

Language:
Revision:
Document:
Eng.
D
54000-10-0001
54000-10-0001 - User Manual - Final (3).docx
Page 14/30
6.2 Maintenance Description for the Owner
Tools for maintenance:
1. Allen Key size 3
2. Phillips Screwdriver size 2
Photocatalytic Air Purifier
AL SA-100
Step 1 (General):
Disconnect the power cable from the
power socket.
1. Maintenance door cover.
2. Screw for disassembling the cover.
3. Hand grip.

Language:
Revision:
Document:
Eng.
D
54000-10-0001
54000-10-0001 - User Manual - Final (3).docx
Page 15/30
Step 2:
1) Put the device on a flat surface, turn
the back side to yourself (the side with
the hand grip is on the top side now).
2) Remove the screw cap and dissemble
the screw with Allen key (key size 3).
Step 3:
Grounding pin.
1) Hold the hand grip (3) and pull the
maintenance door (1) towards you.
2) Disconnect the grounding pin
connector (7,7a) from the
maintenance door.
3) Pull the door up from the lower slot
and put it aside.
Step 4 (Maintenance of combined
polarized adsorption-photocatalytic filter
and UV-A lamp):
4. Filter plate
5. Combined polarized adsorption-
photocatalytic filter
6. Filter cover support
Carry out a visual inspection of the
device: integrity and absence of
defamations of the parts and components;
absence of foreign objects that can get
through the grates of the device; ensure
that the motion of the filter plate (4) is
not obstructed by anything.

Language:
Revision:
Document:
Eng.
D
54000-10-0001
54000-10-0001 - User Manual - Final (3).docx
Page 16/30
Step 5:
9, 9a, 9b, 9c. Push the bottom and take
out click connector.
Step 6:
Press from above the filter plate (8a)

Language:
Revision:
Document:
Eng.
D
54000-10-0001
54000-10-0001 - User Manual - Final (3).docx
Page 17/30
Step 7:
Pull out the filter plate towards you
Step 8:
Put the filter on a flat surface
Step 9:
Disassemble the finger nut
to weaken the clamp ring.
IMPORTANT: the filter must be grounded.

Language:
Revision:
Document:
Eng.
D
54000-10-0001
54000-10-0001 - User Manual - Final (3).docx
Page 18/30

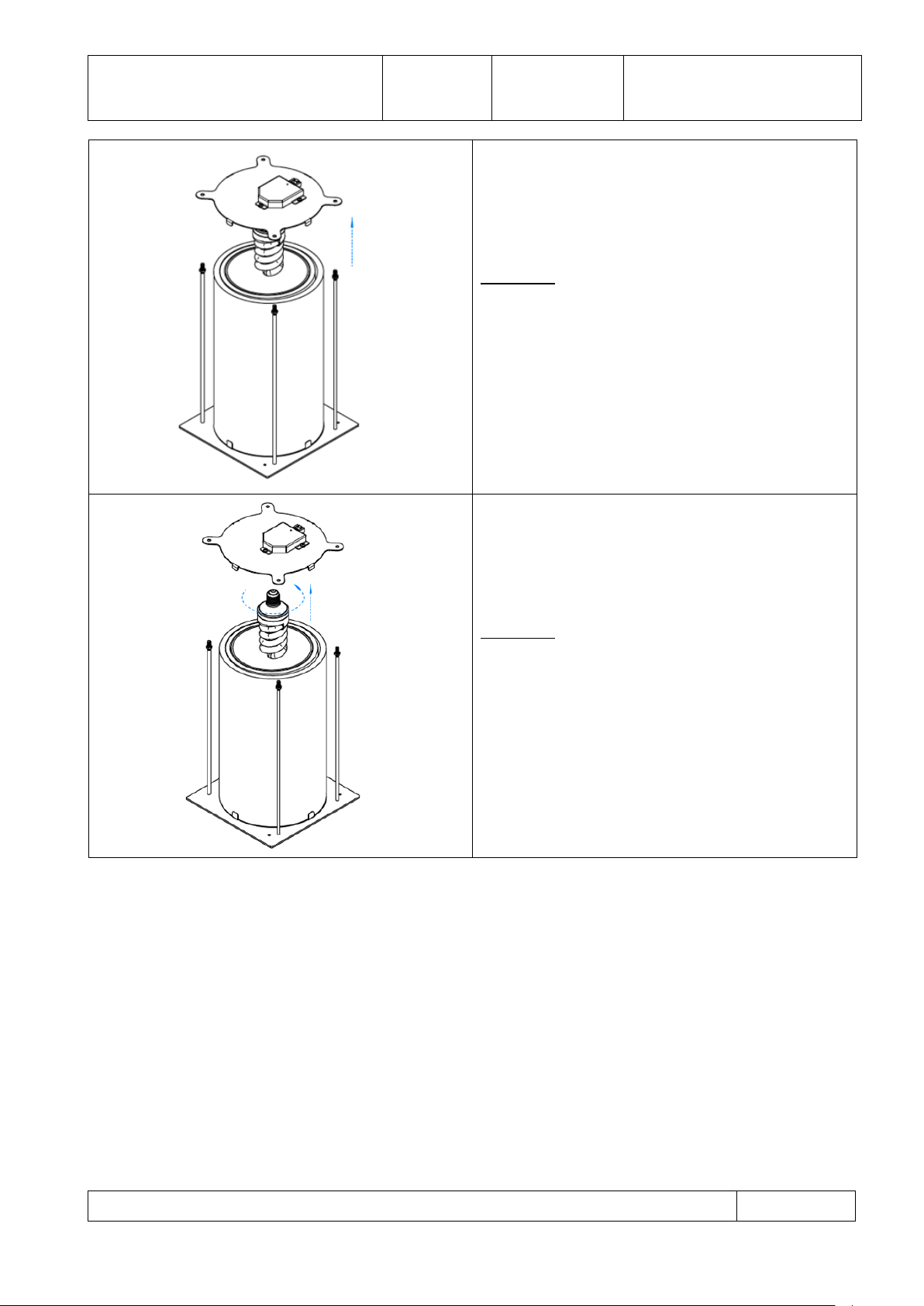

Step 10:
Pull out the clamp ring up with UV-A lamp
Step 11:
1) Screw the UV-A lamp off the clamp
ring (if needed to be changed);
2) Carry out a visible inspection of the
filtration unit, UV-A lamp.

Language:
Revision:
Document:
Eng.
D
54000-10-0001
54000-10-0001 - User Manual - Final (3).docx
Page 19/30
Step 12:
Remove the combined polarized
adsorption-photocatalytic filter.
Step 13:
Put a new combined polarized adsorption-
photocatalytic filter.
