Alcatel-Lucent 1671 Service Connect User manual

Alcatel-Lucent
1671 Service Connect
Next Generation
Multiservice Cross-Connect

2 Alcatel-Lucent 1671 Service Connect
Forward-looking businesses require solutions that allow them to
realize advanced capabilities today, while charting a clear migration
strategy from traditional equipment to next generation functionality.
They demand the features and upgradeability that will keep pace
with traffic demands regardless of how they grow over time. With the
Alcatel-Lucent 1671 Service Connect (SC), you can be assured that your
network will be well equipped, not only for present day demands, but
also for future requirements.

3Alcatel-Lucent 1671 Service Connect
Flexible to Fit Many Needs
No two customers are the same.
One may be looking for a wideband
cross-connect or a device that can
handle narrowband, wideband and
broadband traffic, another may need
hot-swappable interface cards, virtual
concatenation, or best in class channel
protection. Whatever your require-
ments, the Alcatel-Lucent 1671 SC
can be provisioned for a wide variety
of applications.
The Alcatel-Lucent 1671 SC is a
next generation, multiservice cross-
connect designed to support the
growing demand for multiple services,
including traditional SONET services
as well as Ethernet and data aggrega-
tion. Engineered for speeds from
DS1 to OC-192 and Ethernet, the
Alcatel-Lucent 1671 SC goes beyond
traditional cross-connect functionality
to provide extensive grooming capa-
bilities that maximize the efficiency
of transport networks. The new,
innovative Multi-Service Matrix
(MSM) provides unrivaled density
(4,608 DS3 equivalents) and a robust
feature set that includes narrowband,
wideband, broadband and data aggre-
gation functionalities, while retaining
the discreet Copy 0/Copy 1 redun-
dancy that continues to be a signature
feature of the Alcatel-Lucent 1671 SC.
1671 SC
1677 SL
OC-12
OC-48
OC-48
OC-192
OC-48
OC-48
1677 SL
Optical
Core
MSPP
MPLS
FR/ATM

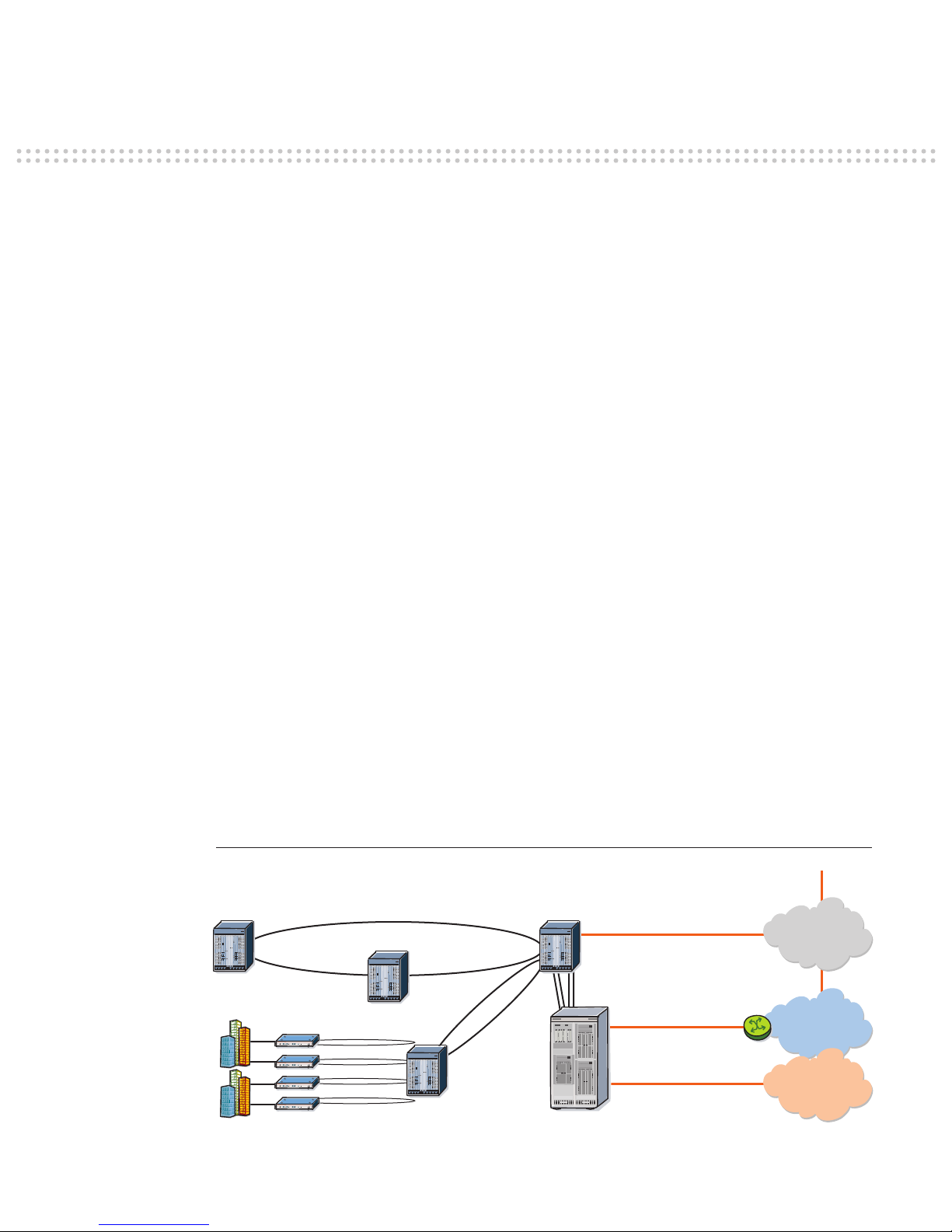

Figure 1. Alcatel-Lucent 1671 SC as the Aggregation Point in a Multiservice Network

4 Alcatel-Lucent 1671 Service Connect
The Alcatel-Lucent 1671 SC allows service providers
to maximize their network infrastructure through the
efficient grooming and filling of transport pipes. By
eliminating partially filled pipes, service providers can
maximize network bandwidth, streamline their operations,
and more cost-effectively manage and maintain their
networks. A broad range of customer interfaces enables
the Alcatel-Lucent 1671 SC to function as a multiservice
aggregation point, efficiently bringing data and voice traffic
flows into the SONET optical network. Figure 1 illustrates
the Alcatel-Lucent 1671 SC as the aggregation point in
a multiservice network.
Multi-Service Matrix
The new MSM introduces narrowband, wideband and
broadband switching in a single network element. The
Virtual Tributary (VT) capacity is increased to 4608 DS3
equivalents or 240 Gb/s (240G), as illustrated in Figure 2;
startling when one realizes that this capacity is housed in
only two bays.
IAS
VT
Matrix
Copy 0
PDU
ASP
10G
I/O
VT
Matrix
Copy 1
PDU
IAS
New
240G
Matrix
Copy 0
PDU
ASP
3 x Capacity
10G
I/O
PDU
New
240G
Matrix
Copy 1
Figure 2. The 80G Matrices Replaced with
240G Multi-Service Matrices

5Alcatel-Lucent 1671 Service Connect
Network planners believe that maximizing revenue and
minimizing cost is best achieved through the consolidation
of network elements, which in turn leads to increased
overall network efficiency. The Alcatel-Lucent 1671 SC
provides a path for central office and network optimiza-
tion by offering the features and densities needed to achieve
these goals. The MSM is available on all new Alcatel-
Lucent 1671 SC systems or can be added, in service, to
all existing Alcatel-Lucent 1671 SC systems via a simple
plug-in unit replacement, as illustrated in Figure 3.

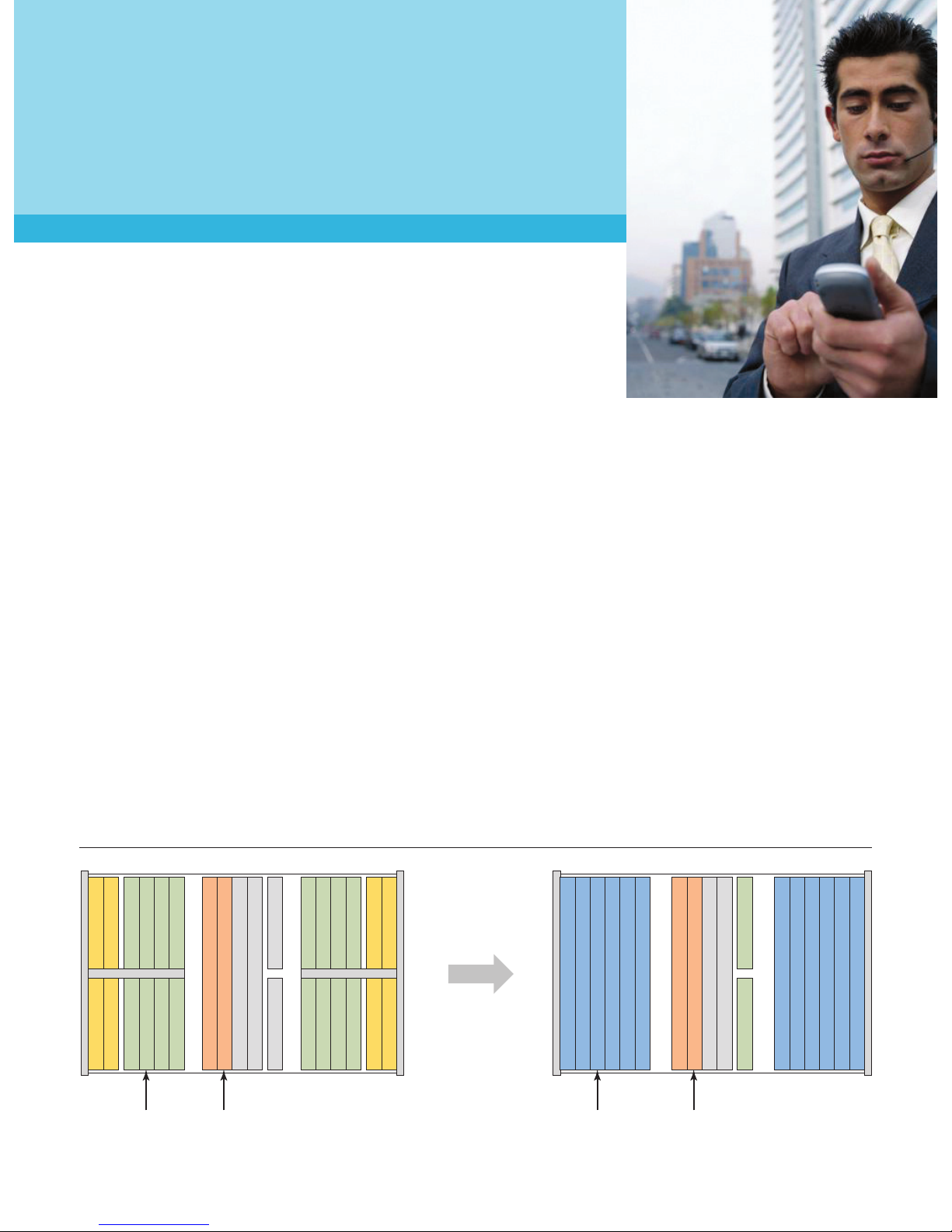

The 80G center stage can be
easily swapped out for the new
240G center stage, while the
new 20G end stage cards, shown
in blue, replace the functionality
of the previously discrete 5G link
end stage cards and switching
cards, shown in yellow and
green respectively. This allows
the Alcatel-Lucent 1671 SC to
offer 4,608 STS-1 equivalents in
only two seven-foot racks, with
Copy 0/Copy 1 redundancy, far
outclassing the density of
competitors’ devices.
4x OC-48 4x OC-48
VSCC VSCC VSCC VSCC
4x OC-48 4x OC-48
VSCC VSCC VSCC VSCC
4x OC-48 4x OC-48
VSCC VSCC VSCC VSCC
4x OC-48 4x OC-48
VSCC VSCC VSCC VSCC
Timing Card W Timing Card P
VT 40 VT 40
Common Control Card W
Common Control Card P
Timing Card W Timing Card P
BBCS BBCS
VSC20 VSC20 VSC20 VSC20 VSC20 VSC20 VSC20 VSC20 VSC20 VSC20 VSC20 VSC20
Common Control Card W
Common Control Card P
In Service
Upgrade
5G Link
End-Stage
80G Center
Stage
20G x 12 =
240G End-Stage
240G
Center Stage
Figure 3. The Multi-Service Matrix: Triple the Capacity in the Same Shelf Space

6 Alcatel-Lucent 1671 Service Connect
Flexible Matrix
In addition to a full range of inter-
faces, the Alcatel-Lucent 1671 SC
promotes network versatility by
supporting a variety of network
topologies. As a multiservice cross-
connect, the Alcatel-Lucent 1671 SC
offers a valuable solution for multi-
protocol networks. As versatile as
it is efficient, the Alcatel-Lucent
1671 SC provides VT1.5, DS0 and
STS-n grooming, enabling carriers
to maximize the productivity of
their infrastructure.

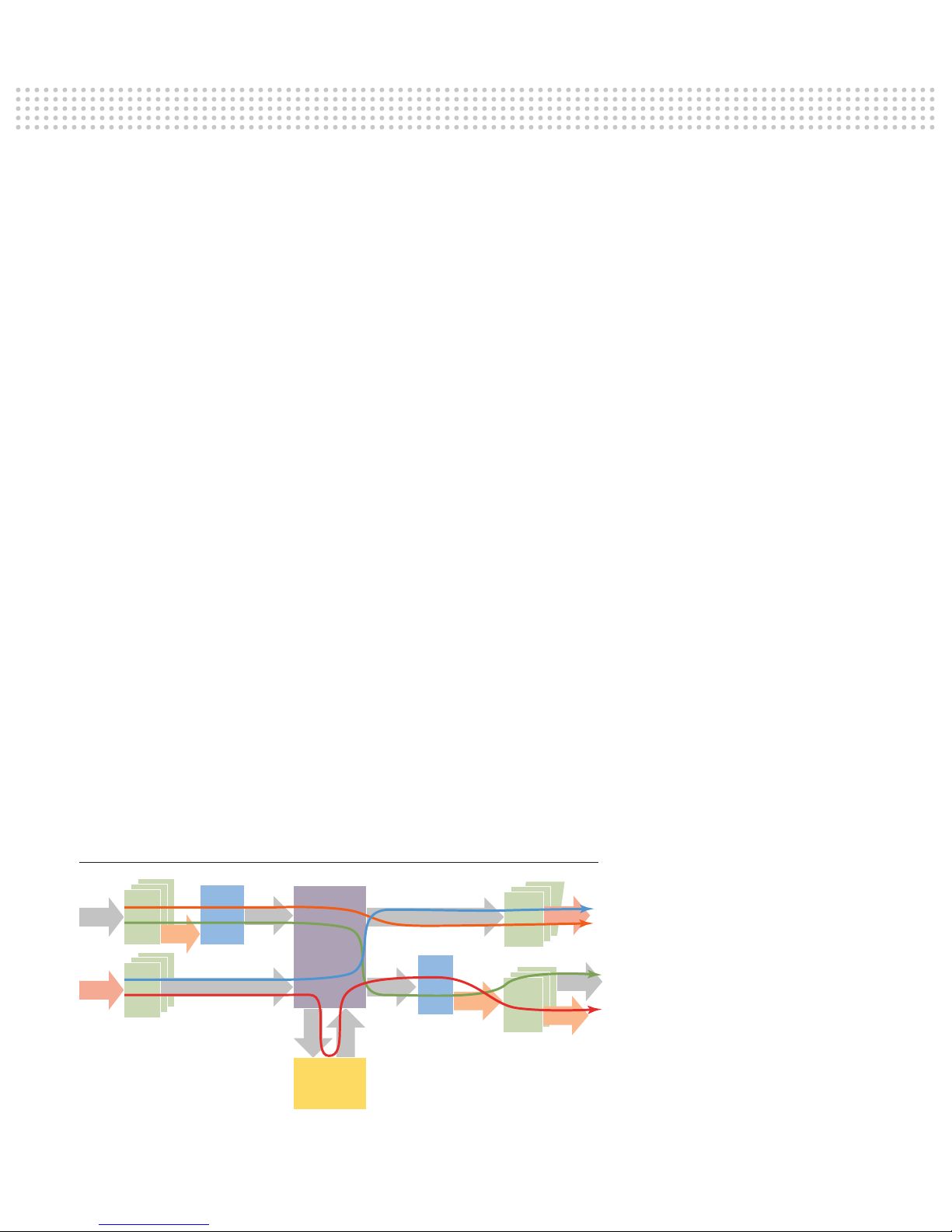

Figure 4 illustrates how various pro-
tocols at differing bandwidths are
switched by the non-blocking and
versatile MSM. For example, the
green line, which enters the I/O card
as a DS3 wideband signal, is provi-
sioned as a VT1.5 channel to pass
through the MSM. After switching
and multiplexing, it is represented as
a DS3 at the output. Correspondingly,
the blue line enters an I/O card as an
OC-12c signal which is then software
provisioned as a broadband STS-12c
clear channel. After switching, it is
presented at another output as an
OC-12c. For narrowband switching,
the red line illustrates the entry of
an OC-n signal that is software
provisioned as VT 1.5 with DS0
grooming. The MSM hands off the
VT signals to a dedicated DS0 switch
matrix that completes the switching
and then hands the signals back to
the MSM. In this example, the
narrowband signals are multiplexed
to a DS1 output. All of these connec-
tions are internal and implemented
via software commands.
Figure 4. The MSM: Stylistic Representation as Any-to-any Matrix
DS1
VT1.5
VT1.5
VT1.5
DS3 VT1.5
TMUX
TMUX
DS0
Switch
Matrix
OC-n
I/O
DS1
I/O
VT1.5
OC-n VT1.5 DS3
I/O
DS1
I/O
Multi-Service
Matrix

7Alcatel-Lucent 1671 Service Connect
Enhanced Data Shelf
The multiservice capabilities of the Alcatel-Lucent 1671 SC make it possible
to extend the data network closer to the customer and to support adaptation
to a unified multiprotocol label switching (MPLS) core. This allows the service
provider to make more efficient use of expensive router ports provisioned for
the delivery of data services, which leads to increased cost efficiencies. In fact,
with a reduced delivery cost, it may be possible to extend services to areas
where, in the past, it was not economically feasible to do so.

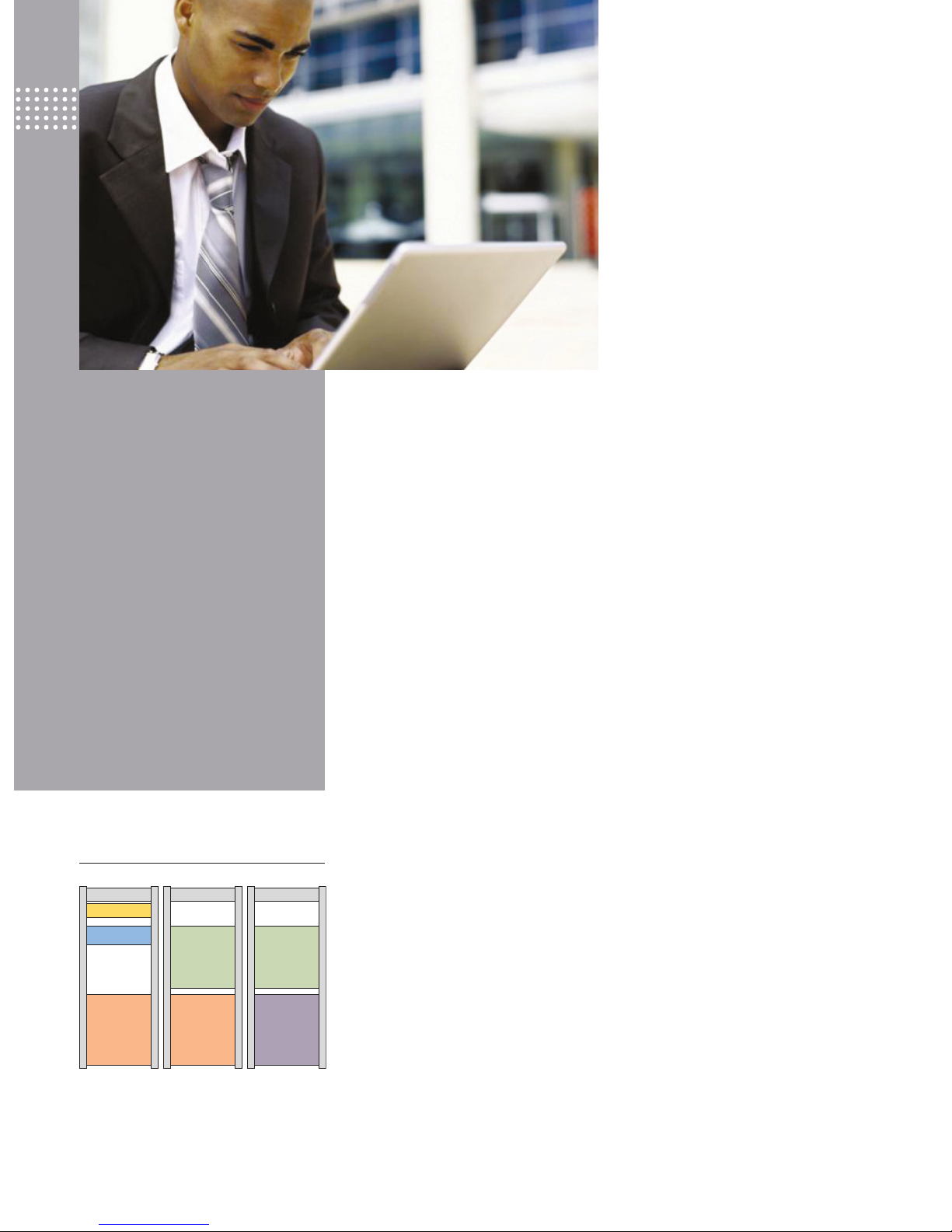

The Enhanced Data Shelf (EDS), illustrated in Figure 5, supports data
applications such as data aggregation, Layer 2 switching and circuit emulation.
By providing full SONET and data interworking, the Alcatel-Lucent 1671 SC
can support legacy functionality now, and incrementally switch capacity over
to data functionality as new services come on line; or it can be immediately
commissioned as a data transport solution. The EDS accepts signals that
include, but are not limited to, Gigabit Ethernet, clear channel and concate-
nated payloads, DS1, DS3, and OC-3 to OC-192 SONET; and this includes
any-to-any connectivity.
Figure 5. The Alcatel-Lucent 1671 SC
with Enhanced Data Shelf
IAS
240G
Matrix
Copy 0
PDU
ASP
10G
I/O
PDU
240G
Matrix
Copy 1
10G
I/O
PDU
Enhanced
Data
Shelf
(EDS)

8 Alcatel-Lucent 1671 Service Connect
Customer Benefits
Unrivaled Reliability
Reliability is critical in a next-gener-
ation network element and whether
your business is transporting voice,
data or video, the Alcatel-Lucent
1671 SC platform offers unrivaled
performance reliability while exceed-
ing NEBS Level 3 standards as defined
in GR-63-CORE. The redundancy
of all key components results in much
greater resiliency when compared to
the competition. The Alcatel-Lucent
1671 SC provides a Copy 0/Copy 1
physically diverse matrix structure
in which traffic flows through both
matrix copies while the I/O determines
the best path. This allows for seamless
scalability and ease of maintenance.
In addition, the facility naming func-
tion allows hierarchical identification
of downline facilities — right down
to the DS0 level if required.
Unparalleled Capacity
with Room to Grow
The Alcatel-Lucent 1671 SC sets
the new industry standard offering
240 Gb/s matrix capacity, with
Copy 0/Copy 1 redundancy, in only
two seven-foot I/O racks. When
developing the Alcatel-Lucent 1671
SC, Alcatel-Lucent considered all
types of businesses, large and small.
The result is a per-rack capacity that
scales in small increments promot-
ing a pay-as-you-grow philosophy.
Coupled with a wide array of cus-
tomer interfaces, the Alcatel-Lucent
1671 SC is designed to meet the needs
of a variety of customers and applica-
tions. This tremendous capacity, with
its full breadth of interfaces, is already
enabling businesses to maximize their
network capabilities from the core to
the edge, while eliminating the need
for adjunct devices or overbuilds.
MEETING YOUR TARGET
When considering how to maximize revenue from their customers,
the majority of service providers have similar objectives:
• Deliver the greatest number of services
• Respond in the shortest time
• Do this cost effectively
The Alcatel-Lucent 1671 SC makes it possible for businesses to meet
these objectives by providing superior density and unmatched scalability.

9Alcatel-Lucent 1671 Service Connect
Impressive Return on Investment
The driving forces for next genera-
tion networks are the maximization
of return on investment through the
reduction of CAPEX and OPEX, and
the expansion of the range of services
offered to end customers. The Alcatel-
Lucent 1671 SC eases the migration
from traditional services to the new,
advanced services by safeguarding
existing revenues from legacy services
while simultaneously enabling new
revenue streams. With the Alcatel-
Lucent 1671 SC, I/O bays are inter-
connected using standard optical
interfaces, simplifying installation.
This means that racks can be remotely
deployed, reducing space constraints
and increasing deployment flexibility.
Fewer bays with more flexibility
decrease both OPEX and CAPEX,
and the on-board OC-48 interface
provide the opportunity to reduce the
numbers of multiple leased circuits
running at lower speeds.
Dynamic Grooming
The 240 Gb/s MSM switching fabric
on the Alcatel-Lucent 1671 SC allows
for optimal grooming in a variety of
customer applications, including DS0
grooming. In addition to reducing
physical space requirements, the dual-
functionality of the Alcatel-Lucent
1671 SC fabric benefits network
operators by reducing the number
of network elements which must be
managed. Although new, cutting-edge
technology is important to service
providers, simplicity is still a focus.
The dynamic switching subsystem of
the Alcatel-Lucent 1671 SC creates
an efficient scenario where traffic is
categorized into narrowband, wide-
band or broadband as it traverses the
cross-connect, thus eliminating any
unnecessary grooming and the
associated cost.

10 Alcatel-Lucent 1671 Service Connect
Intelligent Network Adaptability
Next generation networks feature
intelligent network elements capable
of communicating on a common
plane for the purposes of optimizing
and routing traffic. This creates an
ideal scenario for service providers
who wish to maximize network
efficiency.
Generalized Multi-Protocol Label
Switching (GMPLS) is the protocol
that enables this enhanced level of
communication. The Alcatel-Lucent
1671 SC is a GMPLS-ready platform,
preparing service providers for the
intelligent networks that lie ahead
without compromising their current
revenue-generating services. As a
multiservice cross-connect, the
Alcatel-Lucent 1671 SC can func-
tion in a traditional or intelligent
(GMPLS) network.
A Safe Landing for
Wireless Traffic
The role the Alcatel-Lucent 1671
SC can play in a wireless service
provider’s network illustrates many
of the cross-connect’s benefits. As
more and more data traffic flows to
and from cell phones, the Alcatel-
Lucent 1671 SC cost effectively
expands wireless market presence,
providing next generation services to
the end customer. As illustrated in
Figure 6, the Alcatel-Lucent 1671 SC
multiservice cross-connect can be
networked with other Alcatel-Lucent
devices to meet wireless service
providers’ needs. Alcatel-Lucent
will be happy to provide a solution
for your requirements.
Single Alcatel-Lucent Network Manager
10/100
Ethernet
VCAT
10/100
Ethernet
OC-n
Gigabit
Ethernet
T1/T3
OC-n
TDM
Cell
Site
Cell
Site
Cell
Site
Cell
Site
1850 TSS
1850 TSS
Cell
Site 1671 SC
SONET
Network
TDM
7750 SR
Figure 6. Sample Network Including the Alcatel-Lucent 1850 TSS,
the Alcatel-Lucent 1671 SC and the Alcatel-Lucent 7750 SR

11Alcatel-Lucent 1671 Service Connect
Providing IXCs with a Converged Infrastructure
The Alcatel-Lucent 1671 SC can also be used to enable interexchange
carriers (IXCs) to collapse their narrowband, wideband and broadband
switching layers into a single, converged infrastructure, as shown in Figure 1.
In this scenario, the benefits to the IXCs include:
• High speed optical interfaces, which reduce local access fees
• Support for central office modernization to reduce hardware requirements
and maximize network efficiency
• Data adaptation and aggregation
Leadership Shows
Alcatel-Lucent continues to be recognized as an industry leader in advanced
optical networking technologies, providing telecommunications solutions to
businesses around the world. With an Alcatel-Lucent 1671 SC installed base
in excess of 100 systems and its worldwide presence, Alcatel-Lucent offers its
customers the right solutions, in the right markets, at the right times.

www.alcatel-lucent.com
Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other
trademarks are the property of their respective owners. The information presented is subject to change
without notice. Alcatel-Lucent assumes no responsibility for inaccuracies contained herein.
© 2007 Alcatel-Lucent. All rights reserved. 23187 (08)
