Alcatel Speed Touch PC User manual

SPEED TOUCH PC
ADSL Modem Card
Installation Guide
V2.1.4
47-060015-001
www.alcateldsl.com

Table of Contents
Congratulations!................................................................................................................1
Step 1 –Know your PC’s Operating System...............................................................1
Step 2 –Determine your Connection Settings...........................................................2
Step 3 –Install the ADSL Modem Card.......................................................................3
Step 4 –Install the Drivers and Make a Connection.................................................5
Windows 95A....................................................................................................................6
Windows 95B.....................................................................................................................9
Windows 98, 98SE...........................................................................................................12
Windows Millennium.....................................................................................................14
Setting the ADSL Configuration...........................................................................15
Making RFC 1483 connection-95A, 95B, 98, 98SE, Me ..................................16
Making a RFC 2364 connection-95A, 95B, 98, 98SE, Me................................19
Windows 2000.................................................................................................................20
Setting the ADSL Configuration...........................................................................22
Making a RFC 1483 connection-2000 ................................................................23
Making a RFC 2364 connection-2000.................................................................25
Windows NT4.0 -RFC 1483...........................................................................................26
Windows NT4.0 -RFC 2364...........................................................................................28
Appendix
Removing Drivers............................................................................................................32
Diagnostic Tools .............................................................................................................33
Trouble Shooting............................................................................................................35
Connector Pin-out...........................................................................................................36
System Requirements & Compliance information......................................................37
Copyright & Regulatory Information...........................................................................37

Alcatel Speed Touch PC 1
Congratulations!
You are about to accelerate into ADSL technology. Your new ADSL modem card is an
internal Asymmetric Digital Subscriber Line (ADSL) PCI modem card, which
conveniently plugs into your computer system. The
modem connects directly to your telephone line via a
standard connector.
This guide is designed to walk you through installation of
your ADSL Modem card in the easiest and quickest way
possible. Please follow the instructions carefully.
Step 1 –Know your PC’s Operating System
You will need to know the exact version of Microsoft Windows installed in your
computer. If you do not know or are unsure, please proceed as follows to determine your
version of the Microsoft Operating System.
On your desktop, right-click My Computer. Then select Properties. The version
number of the Microsoft Windows Operating System installed in your computer will be
displayed on the General tab. Refer to the following table for more detailed information.
Windows OS
System Properties Description
Release (Microsoft Web)
Win 95A 4.00.950A Windows 95 OSR1
Win 95B 4.00.950B Windows 95 OSR2
Win 98 4.10.1998 Window 98
Win 98SE 4.10.2222A 2nd Edition Windows 98 2nd Edition
Win 2000 5.00.2195 Windows 2000
Win Me 4.90.3000 Windows Millennium
Win NT 4.00.1381 Windows NT 4.0
If you have questions regarding your PC system and the Microsoft Windows Operating
System, please contact your original PC manufacturer or Microsoft for assistance.
Before Installing the ADSL PCI Modem Card, it is important to verify that the ADSL data
port RJ-11 jack is configured so that the center two pins, pins 2 and 3, are used for ADSL
data. If the ADSL data port installation uses pins 1 and 4 for data, then a wiring converter

Alcatel Speed Touch PC 2
will be required. Do not alter or remove a wiring converter if present. Consult with your
provider regarding a wiring converter or before attempting any wiring changes.

Alcatel Speed Touch PC 3
Step 2 –Determine your Connection settings
You need to know your PC systems Windows OS and Internet Protocol supplied by
your ADSL service provider. Refer to the following chart for your ADSLDriver.
Protocol Selection
RFC1483
ðBridged Ethernet over ATM
RFC2364
ðPoint-to-Point Protocol over ATM
ADSL Driver Selection RFC1483 RFC2364
Win 95A & 95B 1483w95 2364w95
Win 98 & 98SE 1483w98 2364w98
Win 2000 1483w2k 2364w2k
Win Millennium 1483wMe 2364wMe
Win NT 4.0 1483nt4 2364nt4
Having determined the ADSL Driver you will be installing, you now need to gather the
connection information supplied by your ADSL service provider.
VPI value:_________
VCI value:_________
Framing: qVC/MUX qLLC/SNAP
Mode:qANSI T1.413 qITU G.lite qITU G.dmt
For RFC 1483 For RFC 2364
Host: User Name:
Domain: Password:
Gateway: Host or IP Address:
IP Address:
Subnet Mask:
DNS or server address:

Alcatel Speed Touch PC 4
Step 3 –Install the ADSL modem card
Caution: To avoid possible damage to your modem card, touch the metal chassis of your
PC system to remove static charge from your person, and then remove your ADSL
modem card from the protective anti-static bag.
1. Shut down your computer and
switch the power off.
2. Unplug the power cordfor
your computer from the
electrical outlet.
3. Remove the cover from your
systems chassis (see your PC
manufacturer’s manual).
4. Unscrew “metal slot cover
bracket” from an unused PC
motherboard PCI connector
(usually white in color).

Alcatel Speed Touch PC 5
7. Gently and evenly insert the
PCI modem card into your
empty PCI slot.
8. Make sure the card is firmly
seated, and then secure the
card with the bracket screw.
9. Replace the cover of your
computer system and
Connect the ADSL/phone
line to the connector port
on the modem card. Then
plug the other end of the
cable into your
ADSL/phone service.

Alcatel Speed Touch PC 6
Step 4 –Install the drivers and make a connection
You will be installing drivers and then proceeding to make an Internet connection. This
process requires you to enter in information as prompted by the Microsoft Installation
Wizard.
NOTE: You may need the Microsoft Windows Operating System installation files (CAB
files) to complete the installation. The CAB files are contained in the Microsoft’s system
CD-ROM. Some systems may have already installed the CAB files to the hard drive, but
you should have the Microsoft Windows CD-ROM handy just in case.
Proceed now to the installation procedure for the Windows Operating System
installed in your computer.
Windows 95A -------------------------------------------------------------------------------Page 6
Windows 95B -------------------------------------------------------------------------------Page 9
Windows 98, 98SE------------------------------------------------------------------------- Page 12
Windows Millennium----------------------------------------------------------------------Page
14
Windows 2000 ------------------------------------------------------------------------------Page 20
Windows NT -RFC 1483 ----------------------------------------------------------------Page 26
Windows NT -RFC 2364-----------------------------------------------------------------Page 28

Alcatel Speed Touch PC 7
Windows 95A
After installing the ADSL modem card, plug the power cable back into the PC system and
turn the power on.
Before you proceed to install drivers, you will need to upgrade your Dial-Up Networking
(DUN) application to version 1.3 or above. The Microsoft DUN is conveniently
contained on your ADSL Driver CD-ROM.
1. After restart, the Newhardware found
will detect the ADSL modem as a PCI
Network Controller. CANCEL the New
hardware found window.
2. At your desktop, click Start, and then
select Run.
3. The Run window appears. Insert the
ADSL Driver CD, then click on Browse
and proceed to locate the ADSL Driver 95
CD-ROM. Then locate and select the
Msdun13.exe file. The Msdun13.exe
appears in the Open box. Click OK.
4. The Microsoft Dial-Up Networking 1.3
window appears with the message This
will install Microsoft Dial-Up
Networking 1.3 for Windows 95. Do
you wish to continue?Click Yes.
5. An End-User License Agreement will
appear. To accept, click Yes.
6. Back in the Microsoft Dial-Up
Networking 1.3 window. You will be

Alcatel Speed Touch PC 8
asked: Do you want to restart your computer now? Click Yes.

Alcatel Speed Touch PC 9
NOTE: You may need the Microsoft Windows Operating System installation files (CAB
files) to complete the installation. The CAB files are contained in the Microsoft’s system
CD-ROM. Some systems may have already installed the CAB files to the hard drive, but
you should have the CD-ROM handy just in case.

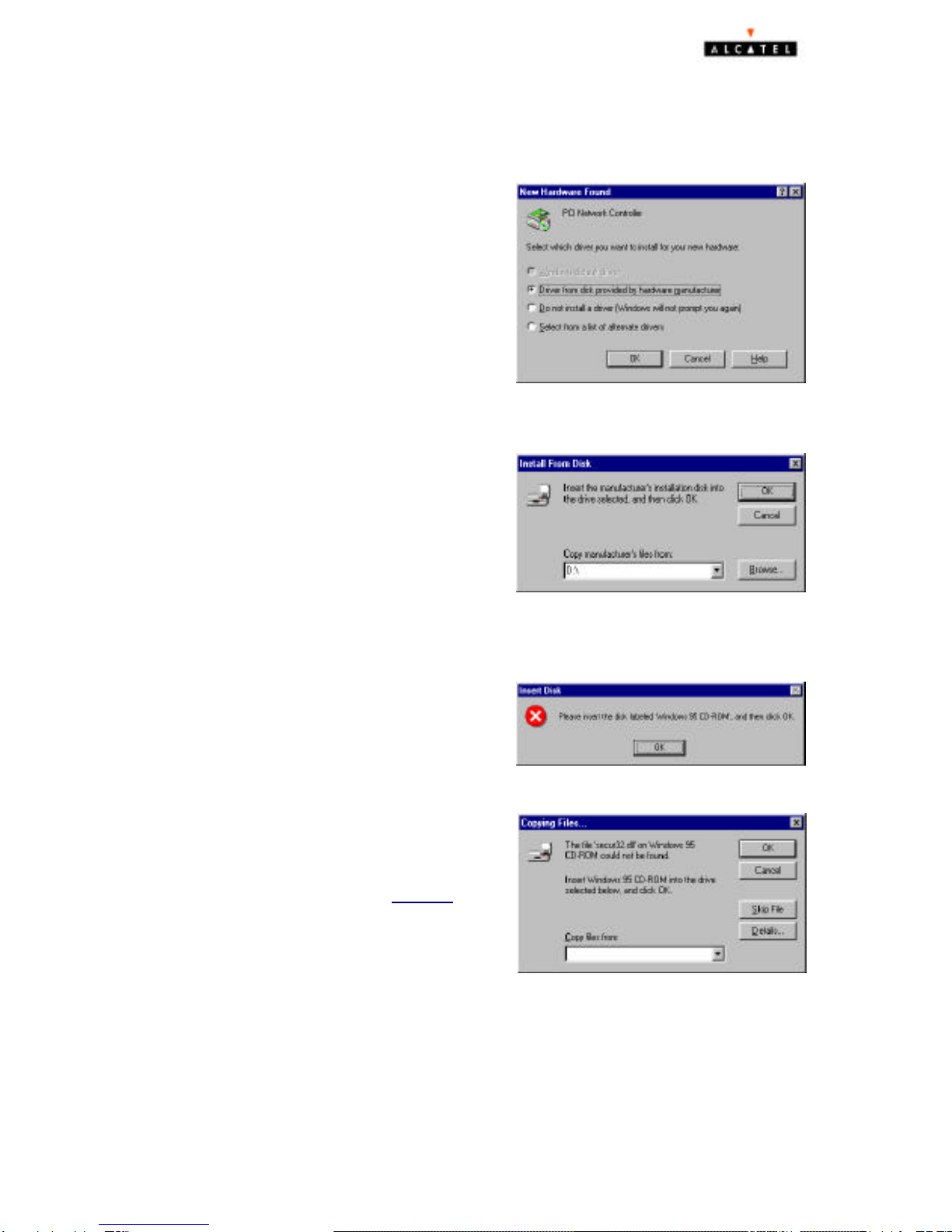

7. The New Hardware Found window will
detect the ADSL modem card as a PCI
Network Controller. Select the Driver
from disk provided by hardware
manufacturer option. Click OK.
8. Insert the ADSL Driver CD-ROM into
your systems CD drive.
9. The Install From Disk window appears.
Click Browse to locate the driver on your
CD-ROM for the protocol supported by
your ADSL provider: 1483w95 or
2364w95 (The example uses “D” as the
CD-ROM drive letter. Your drive letter
may differ.) Then click OK.
NOTE: If during the file copying process a
file is reported as “not found” enter the path
with the CD Drive letter and :\Win95
(ex:D:\Win95).
NOTE:During the installation process
you may be asked to insert your
Windows 95 CD. Insert the Windows
95 CD into the CD drive and click OK.

Alcatel Speed Touch PC 10
10. At the conclusion of the ADSL modem
driver installation, the Add New
Hardware Wizard window appears and
displays your newly installed Alcatel
Speed Touch PC software. Click
Finish.
11. The System Settings Change window
appears. F
or the PC system to set up the
Alcatel Speed Touch PC, a system
Restart is required. Click Yes.
NOTE: After restarting the system, theDiagnostic Tool icon (See Appendix)
is active and monitoring connectivity.
12. You must now set the ADSL Configuration. Go to page 15.

Alcatel Speed Touch PC 11
Windows 95B
After installing the ADSL modem card, plug the power cable back into the PC system and
turn the power on. Before you proceed to install drivers you will need to upgrade your
Dial-Up Networking (DUN) application to version 1.3 or above. The Microsoft DUN is
conveniently contained on your ADSL Driver CD-ROM.
1. After restart, the Update Device Driver
Wizard will detect the ADSL modem
card as a PCI Network Controller.
CANCEL the Update Device Driver
Wizard window.
2. At your desktop, click Start, and then
select Run.
3. The Run window appears. Insert the
ADSL Driver CD, then click on
Browse and proceed to locate the ADSL
Driver 95 CD-ROM. Then locate and
select the Msdun13.exe file. The
Msdun13.exe then appears in the Open
box. Click OK.
4. The Microsoft Dial-Up Networking
1.3 window appears with the message
This will install Microsoft Dial-Up
Networking 1.3 for Windows 95. Do
you wish to continue?Click Yes.
5. An End-User License Agreement will
appear. To accept, click Yes.
6. Back in the Microsoft Dial-Up
Networking 1.3 window. You will be

Alcatel Speed Touch PC 12
asked Do you want to restart your computer now? Click Yes.

Alcatel Speed Touch PC 13
NOTE: You may need the Microsoft Windows Operating System installation files (CAB
files) to complete the installation. The CAB files are contained in the Microsoft’s system
CD-ROM. Some systems may have already installed the CAB files to the hard drive, but
you should have the CD-ROM handy just in case.
7. The Update Device DriverWizard will
detect the ADSL modem card as a PCI
Network Controller, click Next.
8. Insert the ADSL Driver CD-ROM into
your systems CD drive.
9. The Update Device Driver Wizard will
appear and indicate that “Windows was
unable to locate a driver for this
device”. Click Other Locations.
10. The Select Other Location window
appears. Click Browse to locate the driver
on your CD-ROM for the protocol
supported by your ADSL provider:
1483w95 or 2364w95
(The example uses “E” as the
CD-ROM drive letter. Your drive may
have a different letter.) Then click OK.
11. The Update Device Driver Wizard will
then find the Alcatel Speed Touch PC.
Click Finish.
NOTE: During the installation process
you may be asked to insert your
Windows 95 CD-ROM. Insert the
Win95 CD into the drive. Click OK.

Alcatel Speed Touch PC 14
13. At the conclusion of the ADSL modem
driver installation, the Add New
Hardware Wizard window appears and
displays your newly installed Alcatel
Speed Touch PC software. Click
Finish.
14. The System Settings Change window
ap
pears. For the PC system to set up the
Alcatel Speed Touch PC, a system
Restart is required. Click Yes.
NOTE: If during the file copying
process a file is reported as “not found”
enter the path (CD Drive letter) and
:\Win95 (ex. D:\Win95)
NOTE: After restartingthe system, the Diagnostic Tool icon (See Appendix) is
active and monitoring connectivity.
15. You must now set the ADSL Configuration. Go to page 15.

Alcatel Speed Touch PC 15
Windows 98, 98SE
After installing the ADSL modem card, plug the power cable back into the PC system and
turn the power on.
1. The Add New Hardware Wizard
window will automatically appear to
indicate that a new PCI Network
Controllerhas been found. Click
Next.
2. Still in the Add New Hardware
Wizard. You will be asked “What do
you want Windows to do?” Select the
Search for the best driver for your
device option, then click Next.
3. Insert the ADSL Driver CD into your
systems CD-ROM drive.
4. Select Specify a location and click
Browse to locate the driver on your
CD-ROM for the protocol supported
by your ADSL provider: 1483w98 or
2364w98. Click Next.
5. The Add New Hardware Wizard will
appear and indicate the Alcatel Speed
Touch PC has been recognized and
will install a new driver. Click Next.

Alcatel Speed Touch PC 16
12. At the conclusion of the ADSL modem
driver installation, the Add New
Hardware Wizard window appears and
displays your newly installed Alcatel
Speed Touch PC software. Click Finish
6. If prompted to insert your Windows
CD, do so at this time, then click OK.
7. Enter the [CD drive Letter] and then
:\Win98 (e.g: E:\Win98) and click OK.
9. The System Settings Change window
appears. For the PC system to set up the
Alcatel Speed Touch PC, a system
Restart is required. Click Yes.
NOTE: After restartingthe system, the Diagnostic Tool icon (See Appendix) is
active and monitoring connectivity.
10. You must now set the ADSL configuration. Go to page 15.
