Alcatel Speed Touch PC User manual

SPEED TOUCH PC
ADSL PC Network Interface Card
Installation Guide
Microsoft Windows 95A, 98 and NT4.0
VERSION 2.1.1 – for CD-ROM Installation
November 9, 1999

SPEED TOUCH PC
ADSL PC Network Interface Card
Installation Guide
Microsoft Windows 95A, 98 and NT4.0
VERSION 2.1.1– for CD-ROM Installation
November 9, 1999

TABLE OF CONTENTS
Introduction.......................................................................................................... 1
System Requirements........................................................................................... 1
Determining Your Service Type.......................................................................... 3
Technical Support................................................................................................ 3
Before Installation................................................................................................ 4
Hardware Installation........................................................................................... 4
Software Installation and Service configuration.................................................. 4
Point to Point Protocol over ATM (PPPoA) or (RFC 2364).......................... 5
Windows 95A ........................................................................................... 5
Windows 95B............................................................................................ 7
Windows 98, 98A ..................................................................................... 9
Windows NT 4.0..................................................................................... 14
PPPoA ADSL Network Connection ....................................................... 21
Bridged Ethernet Service or (RFC 1483) ................................................... 23
Windows 95A ......................................................................................... 23
Windows 95B.......................................................................................... 25
Windows 98, 98A ................................................................................... 27
Bridged Ethernet ADSL Service Configuration...................................... 29
Windows NT 4.0..................................................................................... 31
Editing Bridged Ethernet ADSL Service Configuration......................... 34
Diagnostic Tools................................................................................................ 36
Appendix A – Upgrade Microsoft DUN Version 1.3........................................ 37
Appendix B – Verifying Dial-Up Networking (DUN) Status........................... 38
Appendix C – Removing Speed Touch PC NIC Drivers................................... 39
Windows 95, 98.......................................................................................... 39
Windows NT4.0 ......................................................................................... 39
Appendix D – System Requirements & Compliance Information..................... 41
Appendix E – Copyright & Regulatory Information......................................... 42

Alcatel Speed Touch™PC
Installation Guide
page 1
INTRODUCTION
Congratulations! You’ll soon have the fastest connection available to the
Internet – thanks to Alcatel’s Speed Touch PC. The Alcatel Speed Touch PC is
an internal Asymmetric Digital Subscriber Line (ADSL) PC Network Interface
Card (NIC), which conveniently plugs into your computer system. Alcatel’s
Speed Touch PC connects directly to your telephone line via a standard RJ-11
connector and is fully plug-and-play compatible.
This guide is designed to walk you through the installation of your Speed Touch
PC in the easiest and quickest way possible. Please follow the instructions
carefully.
SYSTEM REQUIRMENTS
Make sure your PC system meets ALL of the following minimum hardware
requirements and has one of the following software Operating Systems installed.
Note: Install this board only in UL Listed equipment that has instructions stating
that the user may install and remove boards.
Hardware:
IBM PC/AT or compatible
Pentium 100Mhz or faster
30Mbytes available hard disk space or more
2x CD-ROM drive or better
32Mbyte available system memory or more
Software: Your Operating System must be one of the following:
Microsoft Windows 95.x – 95A, 95B
Microsoft Windows 98.x – 98, 98A
Microsoft NT – NT 4.0 Service Pack 3
Provided here for your convenience is a work sheet that will help you gather all
the information you will need to install your Alcatel Speed Touch PC. Please
gather all the necessary information before continuing.
You will need to know the exact version of Microsoft Windows installed in
your computer. If you do not know or are unsure, please proceed as follows to
determine your version of the Microsoft Operating System.

Alcatel Speed Touch™PC
Installation Guide
page 2
On the desktop, right click My Computer. Then select Properties. The version
number of the Microsoft Windows Operating System installed in your computer
will be displayed. Refer to the following table for more detailed information.
Windows
Version System Description on System Properties Official Release Name (on Microsoft Web page)
Win 95A 4.00.950A Windows 95 OSR1
Win 95B 4.00.950B Windows 95 OSR2
Win 98 4.10.1998 Window 98
Win 98A 4.10.2222A 2nd Windows 98 2nd Edition

Alcatel Speed Touch™PC
Installation Guide
page 3
DETERMINING YOUR SERVICE TYPE
Contact your Internet Service Provider (ISP) for your service type and
connection configuration. Your service type is one of the following:
1) Bridged Ethernet Service or (RFC 1483)
2) Point to Point Protocol over ATM (PPPoA) or (RFC 2364)
⇒If your service is Bridged Ethernet you will need to know the following:
IP Address . . .
Subnet Mask . . .
Gateway . . .
(Domain Name Service) DNS Host
DNS Domain
1DNS Server . . .
2DNS Server . . .
3DNS Server . . .
The values of VPI and VCI VPI = ____ VCI =______
Default VPI=0, VCI=35
⇒If your service is PPPoA you will need to know the following:
User Name
Password
Logon Domain
The values of VPI and VCI VPI = ____ VCI =______
Default VPI=0, VCI=35
TECHNICAL SUPPORT
•If you have questions regarding your PC system and the Microsoft
Windows Operating System, please contact your original PC manufacturer
or Microsoft for assistance.
•If you have questions regarding Speed Touch PC, please refer to the Speed
Touch PC User Manual contained on the Alcatel CD supplied, or visit the
Web site: www.alcateldsl.com

Alcatel Speed Touch™PC
Installation Guide
page 4
BEFORE INSTALLATION
If you are installing PPPoA service for Win95A, 95B or Bridged Ethernet
service for Win95A, you need to upgrade your Dial-Up Networking (DUN)
application to version 1.3 or above. Please refer to Appendix A on how to
upgrade your system’s DUN.
HARDWARE INSTALLATION
To install the Alcatel Speed Touch PC in your PC, proceed through the
following steps:
WARNING! To avoid possible damage to your Speed Touch PC card you
need to use an anti-static grounding device or hold onto the metal chassis of the
PC to provide anti-static grounding.
1. Shut down the system and switch the power off.
2. Unplug the AC power cable from the PC.
3. Remove the cover from the PC chassis.
4. Unscrew the “slot cover bracket” from an unused PCI slot.
5. Insert the card into an empty PCI slot.
6. Firmly press the Speed Touch PC card into the
slot and secure the card to the chassis with the
chassis bracket screw.
7. Connect one end of a phone cable to the RJ-11
port on the Speed Touch PC card and plug the
other end of the cable into the ADSL data service.
8. Plug the power cable back into the PC system.
9. Power-up the PC and proceed to software installation.
SOFTWARE INSTALLATION AND SERVICE CONFIGURATION
NOTE: You may need the Microsoft Windows Operating System installation
files (CAB files) to complete the installation. The CAB files are contained in
the Microsoft’s system CD. Some systems may have already installed the CAB
files to the hard drive, but you should have the Microsoft CD handy just in case.

Alcatel Speed Touch™PC
Installation Guide
page 5
TO INSTALL POINT TO POINT PROTOCOL OVER ATM SERVICE
Win95A go to page 5
Win95B go to page 7
Win98, 98A go to page 9
NT 4.0 go to page 14
TO INSTALL BRIDGED ETHERNET SERVICE
Win95A go to page 23
Win95B go to page 25
Win98, 98A go to page 27
NT 4.0 go to page 31
POINT TO POINT SERVICE FOR WINDOWS 95A
1. After installing the Alcatel Speed
Touch PC card, power on the PC
system. The Hardware Wizard
will detect the card as a PCI
Network Controller. Select the
Driver from disk provided by
hardware manufacturer option.
Click OK.
2. Insert the Alcatel Speed Touch
PC Driver CD into the drive.
3. The Install From Disk window
appears. Enter the <CD drive
letter> :\PPPoA9x (e.g.
D:\PPPoA9x), then click OK.
4. When the Service Option window
appears, click Next for the default
installation. For Advanced
settings, please consult your
ADSL service provider for
detailed information.

Alcatel Speed Touch™PC
Installation Guide
page 6
NOTE: If you clicked
Advanced, the Service Options
window shows the Connection
Address. Enter the service
Connection Address, click OK.
The previous Service Option
window will appear, click Next.
NOTE: During the installation
process you may be asked to
insert your Windows 95. Insert
the Windows 95 CD into the CD
drive and click OK.
NOTE: If during the file
copying process a file is reported
as “not found” enter the path
<CD Drive letter> :\Win95 (e.g.
D:\Win95)
5. At the conclusion of the Speed Touch PC driver installation, the Diagnostic
Tools icon is active and monitoring connectivity. The Diagnostic Tools –
found on the task bar – with blinking (or solid) Black or Green lights
indicates a good connection. Diagnostic Tools with Red lights indicate a
connection error or driver load error. Verify that the cable is properly
connected to the data port of the service and the Speed Touch PC card.
6. You must now make a network connection, go to page 21.

Alcatel Speed Touch™PC
Installation Guide
page 7
POINT TO POINT SERVICE FOR WINDOWS 95B
1. After installing the Alcatel Speed Touch PC card, power-up the PC
system. The Hardware wizard will detect the Alcatel Speed Touch PC as a
PCI Network Controller, click Next
2. Insert the Alcatel Speed Touch
PC Device Driver CD into the
CD drive. Then click Other
Locations.
Note: If the driver is not detected,
click Back, insert the Speed
Touch PC disk, then click
NEXT.
3. When Select Other Location
window appears, enter <CD drive
letter> :\PPPoA9x (e.g.
D:\PPPoA9x) and click OK.
4. The Update Device Driver
Wizard window appears. Click
Finish. The Insert Disk window
appears. Click OK.
5. The Copying Files window
appears. Enter <CD drive letter>
:\PPPoA9x (e.g. D:\PPPoA9x)
and click OK.

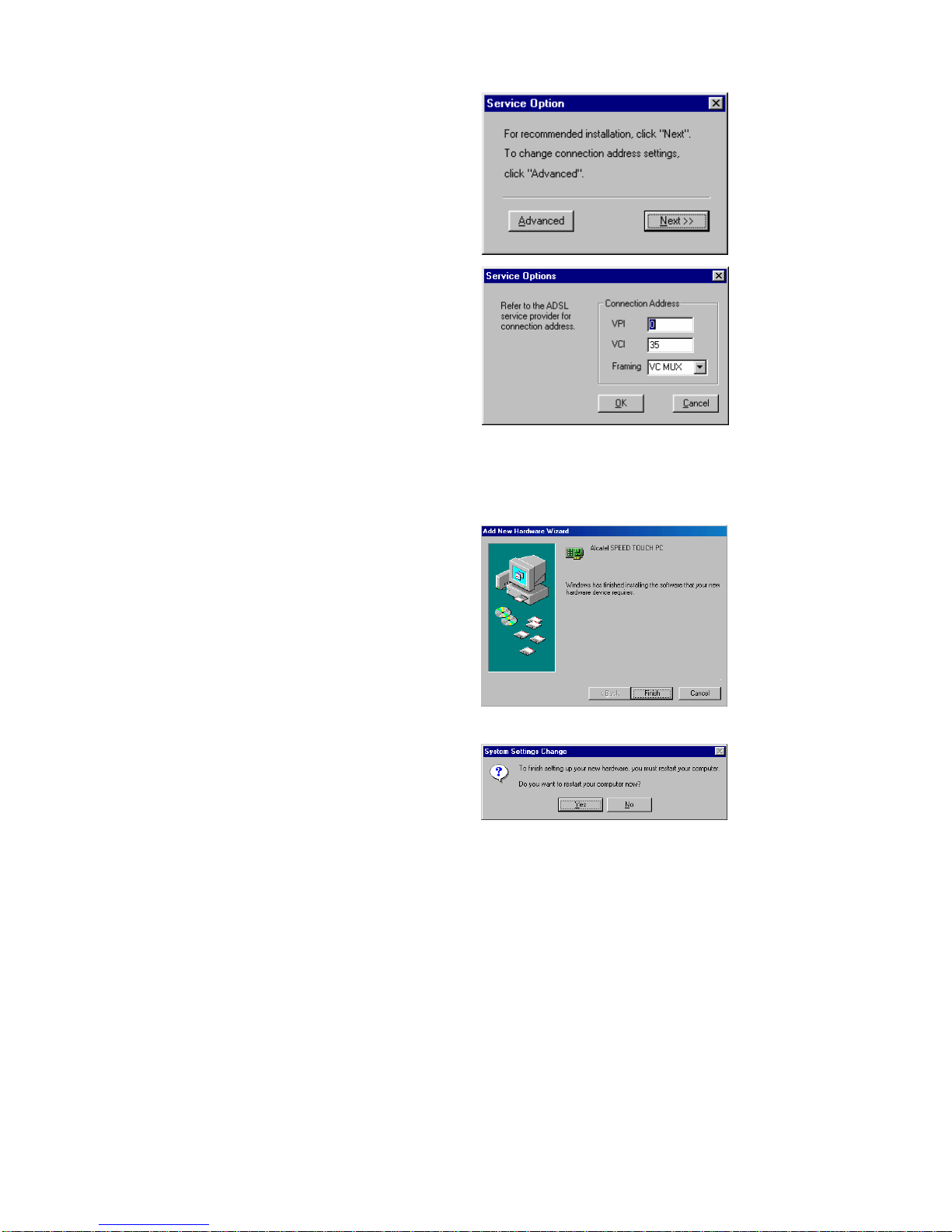

6. When the Service Option window
appears, click Next for the default
installation. For Advanced
settings, please consult your
ADSL service provider for
detailed information.

Alcatel Speed Touch™PC
Installation Guide
page 8
NOTE: If you clicked
Advanced, the Service Options
window shows the Connection
Address. Enter the service
Connection Address, click OK.
The previous Service Option
window will appear, click Next.
Note: During the installation
process you may be asked to
insert your Windows 95. Insert
the Windows 95 CD into the CD
drive and click OK.
7. The Copying Files window will
now appear. Enter <CD driver
letter> :\WIN95 (e.g. D:\WIN95)
and click OK.
8. At the conclusion of the Speed Touch PC driver installation, the Diagnostic
Tool icon is active and monitoring connectivity. Diagnostic Tool with
blinking or solid Black or Green lights indicates a good connection.
Diagnostic Tool with Red lights indicates a connection error or driver load
error. Verify that the cable is properly connected to the data port of the
service and Speed Touch PC card.
9. You must now make a network connection, go to page 21.

Alcatel Speed Touch™PC
Installation Guide
page 9
POINT TO POINT SERVICE FOR WINDOWS 98, 98A
1. After installing the Speed Touch PC card and restarting the system, the
Add New Hardware Wizard window will automatically appear and
indicate that a new PCI Network Controller has been found. Click Next.
2. Then select Search for the best
driver for your device.
(Recommended), click Next.
3. Insert the CD labeled Alcatel
Speed Touch PC Driver into
your CD drive.
4. Then select Specify a location
and enter <CD drive letter>
:\PPPoA9x (e.g. D:\PPPoA9x)
and click OK. Click Next.
5. The Add New Hardware
Wizard will find the Alcatel
SPEED TOUCH PC driver.
Click Next.

Alcatel Speed Touch™PC
Installation Guide
page 10
6. When the Service Option
window appears, click Next for
the default installation. For
Advanced settings, please consult
your ADSL service provider for
detailed information.
NOTE: If you clicked Advanced,
the Service Options window
shows the Connection Address.
Enter the service Connection
Address, click OK. The previous
Service Option window will
appear, click Next.
7. Additional files are copied from
the Speed Touch PC disk to the
hard drive. In addition, files are
now copied from the Windows
CD (system CAB files) to the
hard drive.
8. If prompted to insert the CD do so
at this time then click OK. Enter
the <CD drive Letter>: \Win98
(e.g. D:\Win98) and click OK.
9. At the conclusion of the Speed
Touch PC driver installation,
click Finish.
10. For the PC system to properly set
up the Speed Touch PC, a system
Restart is required. Click Yes.

Alcatel Speed Touch™PC
Installation Guide
page 11
11. After restarting the system, the Diagnostic Tools icon is active and
monitoring connectivity. The Diagnostic Tools – found on the task bar –
with blinking (or solid) Black or Green lights indicate a good connection.
Diagnostic Tools with Red lights indicate a connection error or driver load
error. Verify that the cable is properly connected to the data port of the
service and Speed Touch PC card.

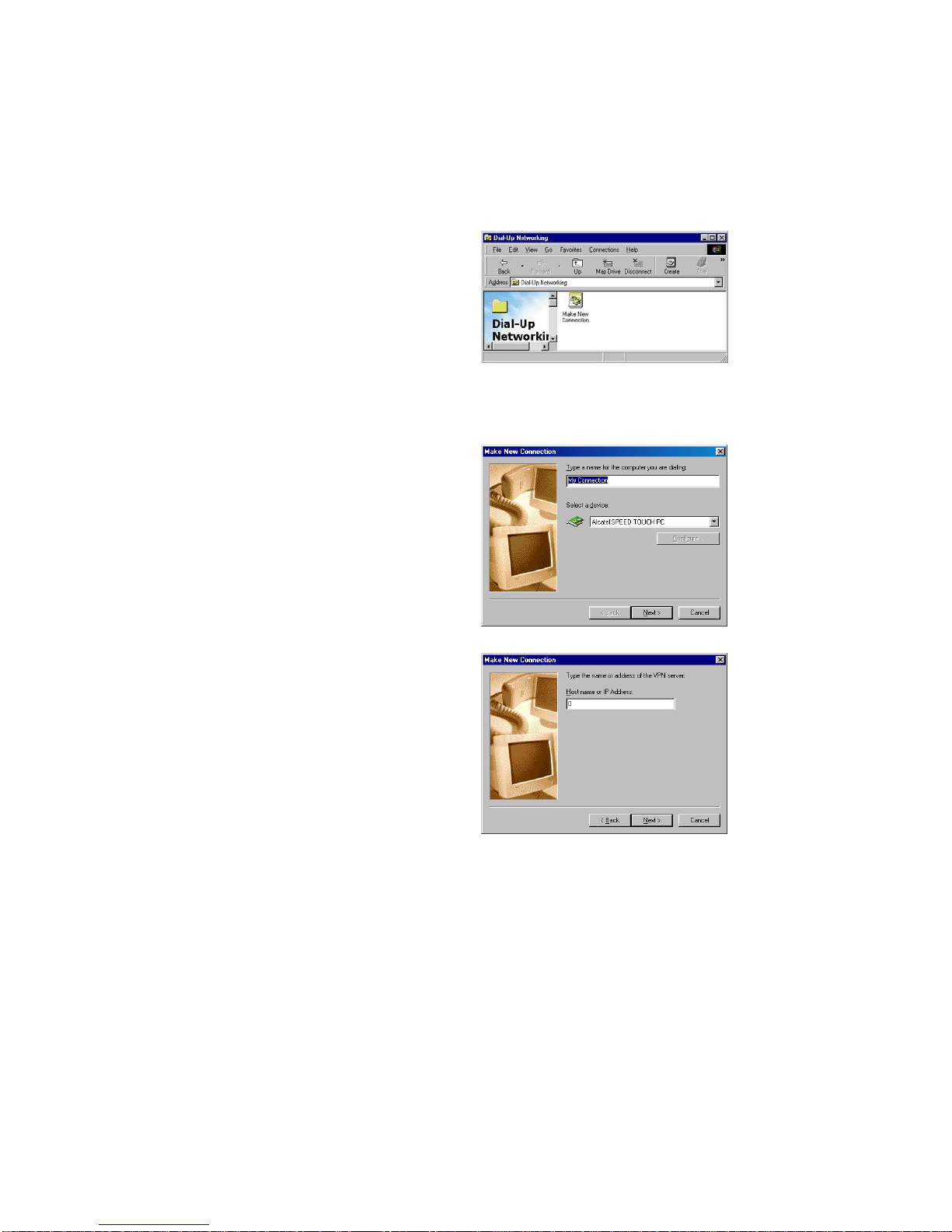

12. You must now make a dial-up
network connection. At the task
bar, click on the Start icon, and
then select Programs,
Accessories, Communications,
followed by Dial-Up
Networking. Double-click the
Make New Connection icon.
Note: Another dialog window
may prompt for the entry of the
Area Code if this is a first time
Dial-Up Network connection.
Enter the Area code and click
OK.
13. Enter the connection name (e.g.
My Connection) and set the
connection device to the Alcatel
SPEED TOUCH PC.
NOTE: use the scroll down menu
to locate Alcatel SPEED
TOUCH PC; then click Next.
14. Enter the Host Name or IP
Address if provided by your ISP,
otherwise enter (0) zero, and then
click Next.

Alcatel Speed Touch™PC
Installation Guide
page 12
15. Make New Connection is
complete. Click Finish.
16. The new connection will appear
in the Dial-Up Networking
window.
17. Double-click the My Connection
icon to begin a Dial-Up session.
18. Enter the User Name and
Password supplied by the
Internet service provider. Click
Connect.
19. The message Logging on to
network confirms a valid user
name, password, and VPN IP
address. Please wait for the
Connection Established window
before proceeding.
Note: If logon domain is required,
enter username, password and
logon domain supplied by your
ISP.

Alcatel Speed Touch™PC
Installation Guide
page 13

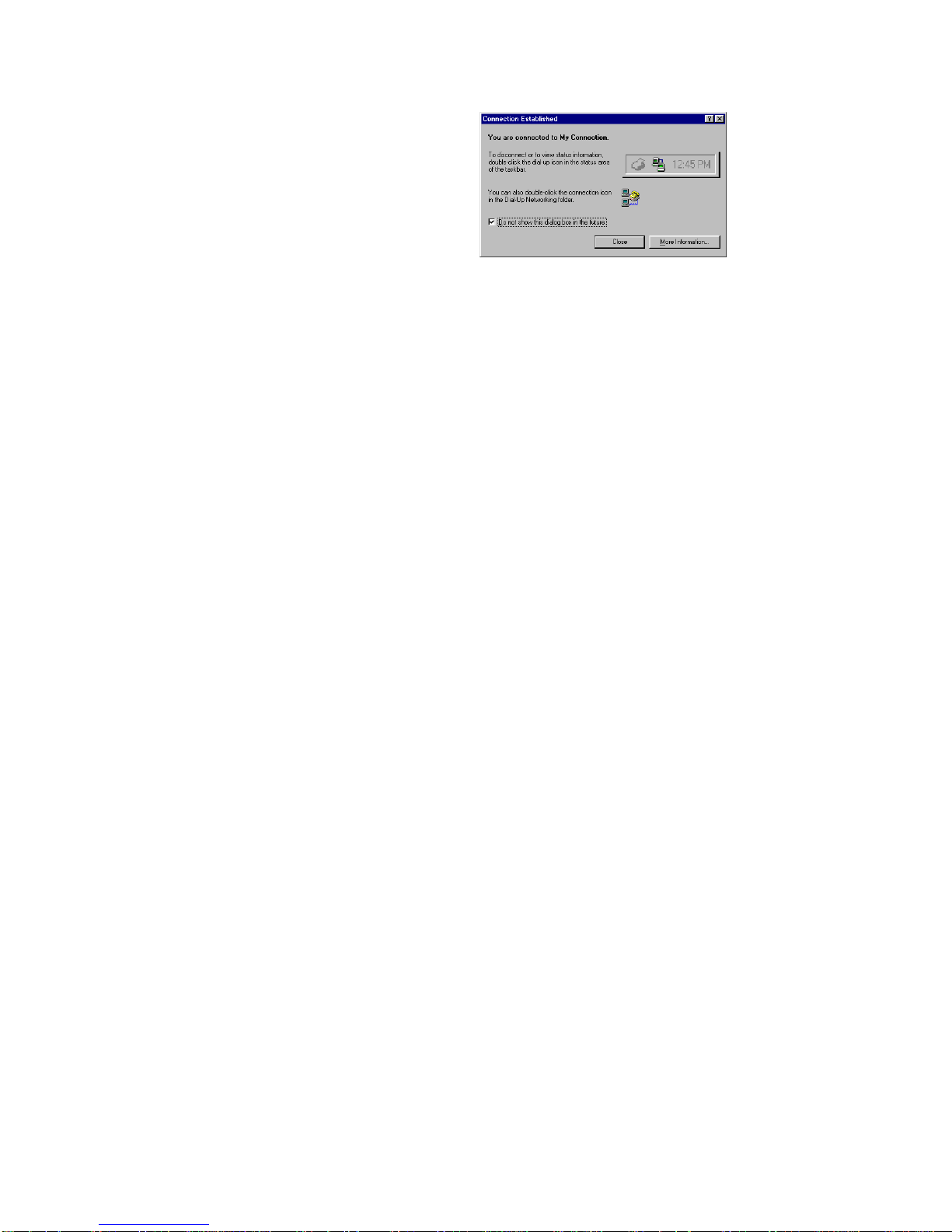

20. The PPPoA service connection is
now established. Click Close and
the PPPoA icon appears on the
task bar.
Congratulations, you are
done. Your Speed Touch to
the Internet is established!

Alcatel Speed Touch™PC
Installation Guide
page 14
POINT TO POINT SERVICE FOR WINDOWS NT 4.0
Note: To perform the installation
logon as Administrator. Also the
TCP/IP protocol must be installed
prior to the driver installation.
1. At the desktop, double click My
Computer, then double click
Control Panel.
2. In the Control Panel window,
double click the Network icon
then select the Adapters tab.
3. Click Add (to add new adapters).
4. In the Select Network Adapter
window click Have Disk.
5. Insert the Alcatel Speed Touch
PC Device Driver CD into the
CD-ROM drive, enter the < CD
drive letter> :\PPPoANT4 (e.g.
D:\PPPoANT4), then click OK.
6. The Select OEM Option window
will find the Alcatel SPEED

Alcatel Speed Touch™PC
Installation Guide
page 15
TOUCH PC driver, Click OK. The system will copy the drivers to the hard
drive.
7. When the Service Option window appears, click Next for the default
installation. For Advanced settings, please consult your ADSL service
provider for detailed information.
NOTE: If you clicked
Advanced, the Service Options
window shows the Connection
Address. Enter the service
Connection Address. Click OK.
The previous Service Option
window will appear, click next.
8. Next the Remote Access Services
(RAS) will need to be installed.
Click OK to continue.
9. Insert the Windows NT4.0 CD
into the drive and in the space provided enter the path <CD drive
letter>:\i386 (e.g. D:\i386) then click Continue.
10. The Add RAS Device window
appears. Click OK
11. The Remote Access Setup will
appear showing the Alcatel
Speed Touch PC card. Click
Network to display the network

Alcatel Speed Touch™PC
Installation Guide
page 16
configuration.
12. Select the protocol (e.g. TCP/IP),
if a protocol has not been loaded
the Windows NT 4.0 CD will be
required. Click OK.
13. The Network window will appear
at the conclusion of the
installation to confirm installation
of the Alcatel SPEED TOUCH
PC.
14. Click on Protocols tab and verify
that the ADSL Management and
Monitor Interface is present.

Alcatel Speed Touch™PC
Installation Guide
page 17
15. Still in the Network window,
click on the Services tab to verify
that the Remote Access Service
is present. Click Close.
Note: To review the Network
window properties at any time,
right-click the Network
Neighborhood icon and select
Properties.
Note: If no previous network
devices have been installed, then
the Network Neighborhood icon
will not be present on the
desktop. To open the Network
window, double-click My
Computer then Control Panel
then Network.
16. The PC system needs to be
restarted for the changes to take
effect. Click Yes
