Alcatel Home V102 User manual

1
QUICK GUIDE
About more help information and Frequently Asked
Question please browse the website
www.alcatelonetouch.com
CJB19N0ALAAA

2
Contents
1. YOUR DEVIDE ............................................................. 3
What’s in the box ............................................... 3
Appearance illustration...................................... 3
Installation ............................................................ 4
2. QUICK START TO MIRROR...................................... 5
3. MEDIA SHARE.............................................................. 7
4. UPGRADE...................................................................... 8
5. SAFETY AND USE ..................................................... 11
This product meets applicable national
SAR limits of 2.0 W/kg. The specific
maximum SAR values can be found on
page 13 of this quick guide.
When carrying the product or using it
while worn on your body, either use an
approved accessory such as a holster or
otherwise maintain a distance of 10 mm
from the body to ensure compliance with
RF exposure requirements. Note that
the product may be transmitting even if
you are not making a phone call.
PROTECT YOUR HEARING
To prevent possible hearing damage, do not
listen at high volume levels for long periods.
Exercise caution when holding your device near
your ear while the loud speaker is in use.
www.sar-tick.com

3
1. YOUR DEVIDE
What’s in the box
Appearance illustration

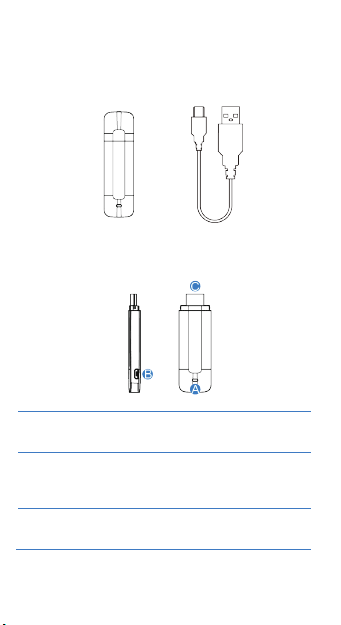

A Indicator LED
The LED will light when V102 starts up.
B Micro USB Port
Connect V102 to USB port of TV or
charger(5V, 1A) using an USB cable
C HDMI Port
Connect V102 to the HDMI port of TV

4
Installation
Connect to TV
a) Connect the Micro USB port of the USB cable to
Micro port of V102;
b) Connect one end standard USB port of the USB
cable to the back/side of your TV;
c) Plug HDMI Port into TV’s HDMI port;
Turn on your TV
Turn on your TV and set to the input source of your
TV as HDMIport which you plugged into TV.

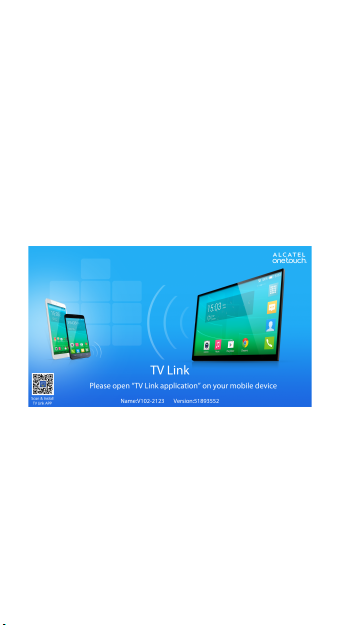

TV will display the main UI after V102 be installed
to TV successfully several seconds.
Install “TV Link” application
a) Scan the QR code in the lower left corner of main
UI;
b) Download “TV Link” application follow the web
site to your mobile device;
c) Install application to Android mobile device.

5
2. QUICK START TO MIRROR

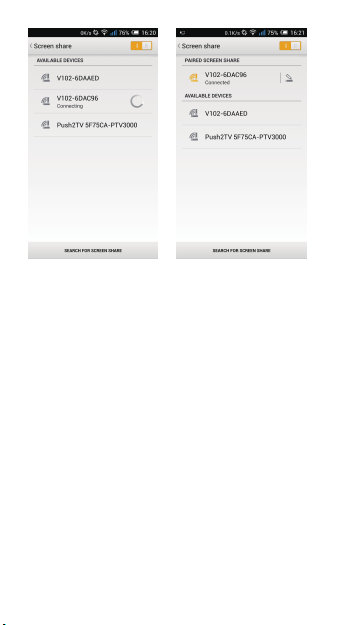

Open “TV Link” application on your mobile device:

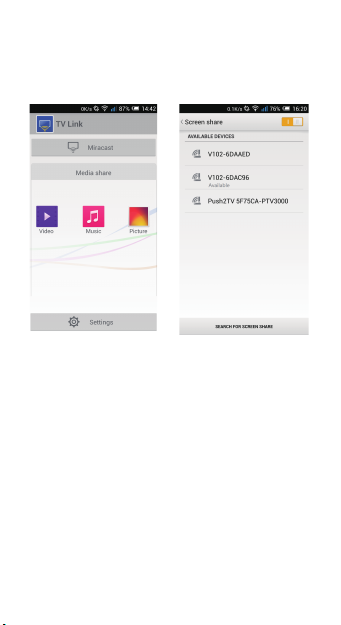

1) Click “Miracast” button to enter searching list.
2) Please click available “V102-****” device (you can
check the detail name from main UI of V102), then
you can see the connection status, seconds later
the screen of mobile device will be displayed on
the TV.

6
3) When you don’t use it please disconnect on the
mobile device follow below step: click “Miracast” ->
“V102-****”, choose “yes”; or open notification of
mobile device, choose “disconnection”,TV picture
will return main UI in 20 seconds.
Tips:
a) The Android mobile devices(smart phone or
tablet) connected with V102 must support
Miracast function;
b) Please unplug the USB port connected with TV if
you don’t use V102 for a long time in order to
avoid V102 too hot;
c) V102 can only connect with mobile device one
to one, so please disconnect the current mobile
device when you want to connect with another
mobile device.

7
3. MEDIA SHARE

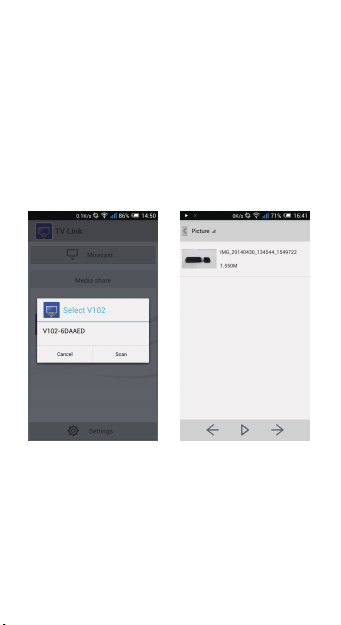

1) Open “TV Link” application on your mobile device;
click “video/music/picture” icon which you want to
show on TV, this application will automatically
search all “V102-****” devices when you use it for
the first time.
2) Select your device “V102-****” to connect (you
can check the detail name from main UI of V102). If
you can’t find the device, please click the “Scan”
and wait for seconds.
3) Select the media content you would like to share,
this video/music/picture will be displayed on TV. If
the device is not connected, the settings menu will
pop up and ask you to make the connection.
4) You can control the playing progress of media file
by “TV Link” application.
Tips:After click “homepage” icon of mobile device,
V102 will continue to play media file on TV, you can do
another operations on mobile device.

8
4. UPGRADE
1) Enter our website www.alcatelonetouch.com, click
“support”, download the firmware of V102 to your
mobile device and record the storage directory of
new Firmware.
2) Open the “TV Link” application, then click “settings”
button to enter picture as below:
3) Click the “upgrade” button, browse the storage
directory of new Firmware, choose the new
Firmware and click “OK” button to start upgrade.
FW upgrade
Resize the picture
dis
p
la
y
ed on TV
Display product and
sof
t
ware information
Select the language of V102

9

10

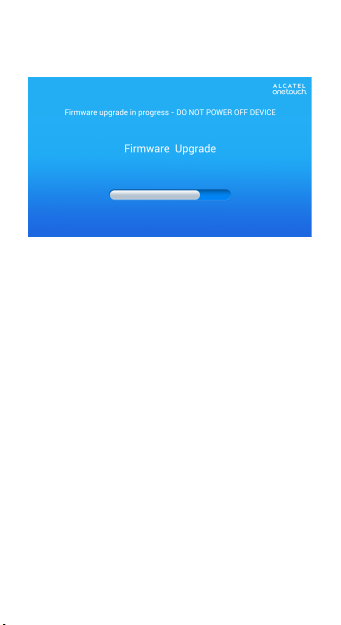

4) TV screen also will show the upgrade interface,
waiting for a moment you can see upgrade result in
mobile device and TV picture.
5) V102 will automatically restart to finish whole
upgrade process in several minutes. Don’t power
offotherwise V102 will be damaged!

11
5. SAFETY AND USE
We recommend that you read this chapter carefully
before using the Device. The manufacturer disclaims
any liability for damage, which may result as a
consequence of improper use of the Device or of use
contrary to the instructions contained herein.
Traffic Safety
When driving, do not use the Device.
When switched on, the Device emits electromagnetic
waves that can interfere with the vehicle’s electronic
systems such as ABS anti-lock brakes or airbags. To
ensure that there is no problem:
- Do not place the Device on top of the
dashboard or within an airbag deployment area.
- Check with your car dealer or the car
manufacturer to make sure that the dashboard is
adequately shielded from Dongle RF energy.
Conditions of Use
- Switch the Device off before boarding an
aircraft.
- Switch the Device off when you are in health
care facilities, except in designated areas.As with
many other types of equipment now in regular
use, the Device can interfere with other
electrical or electronic devices, or
equipment-using radio frequencies.
- Switch the Device off when you are near gas or
flammable liquids. Strictly obey all signs and
instructions posted in a fuel depot, petrol station,
chemical plant, or in any potentially explosive
atmosphere.
- When the Device is switched on, it should be
kept at least 15 cm from any medical device such
as a pacemaker, a hearing aid or insulin pump, etc.

12
- Do not let children use the Device without
supervision.
- When replacing the cover, please note that the
Device may contain substances that could create
an allergic reaction.
- Always handle the Device with care and keep it
in a clean and dust-free place.
- Do not allow the Device to be exposed to
adverse weather or environmental conditions
(moisture, humidity, rain, infiltration of liquids, dust,
sea air, etc). The manufacturer’s recommended
operating temperature range is -15°C to +55°C.
- Do not open, dismantle or attempt to repair the
Device yourself.
- Do not drop, throw or bend the USB Dongle.
- Do not paint it.
WEEE Approval
The Device is in compliance with the essential
requirements and other relevant provisions of the
Waste Electrical and Electronic Equipment Directive
2002/96/EC (WEEE Directive).
RoHs Approval
The Device is in compliance with the restriction of
the use of certain hazardous substances in electrical
and electronic equipment Directive 2011/65/EU
(RoHs Directive).
Radio Waves
Proof of compliance with international standards
(ICNIRP) or with European Directive 1999/5/EC
(R&TTE) is required of all dongle models before they
can be put on the market. The protection of the
health and safety for the user and any other person is
an essential requirement of these standards or this
directive.
THIS DEVICE MEETS INTERNATIONAL GUIDELINES
FOR EXPOSURE TO RADIO WAVES.

13
Your device is a radio transmitter and receiver. It is
designed not to exceed the limits for exposure to
radio waves (radio frequency electromagnetic fields)
recommended by international guidelines. The
guidelines were developed by an independent
scientific organization
(ICNIRP) and include a substantial safety margin
designed to assure the safety of all persons, regardless
of age and health.
The radio wave exposure guidelines use a unit of
measurement known as the Specific Absorption Rate,
or SAR. The SAR limit for mobile devices is 2 W/kg.
Tests for SAR are conducted using standard operating
positions with the device transmitting at its highest
certified power level in all tested frequency bands.
The highest SAR values under the ICNIRP guidelines
for this device model are:
Maximum SAR for this model and conditions
under which it was recorded.
Body-worn SAR 0.076 W/kg
During use, the actual SAR values for this device are
usually well below the values stated above. This is
because, for purposes of system efficiency and to
minimize interference on the network, the operating
power of your device is automatically decreased when
full power is not needed for the call. The lower the
power output of the device, the lower its SAR value.
Body-worn SAR testing has been carried out at a
separation distance of 10 mm. To meet RF exposure
guidelines during body-worn operation, the device
should be positioned at least this distance away from
the body. If you are not using an approved accessory
ensure that whatever product is used is free of any
metal and that it positions the device the indicated
distance away from the body.

14
Organizations such as the World Health Organization
and the US Food and Drug Administration have
stated that if people are concerned and want to
reduce their exposure they could use a hands-free
device to keep the phone away from the head and
body during phone calls, or reduce the amount of
time spent on the phone.
For more information you can go to
www.alcatelonetouch.com. Additional information
about electromagnetic fields and public health are
available on the following site:
http://www.who.int/peh-emf.
Your device is equipped with a built-in antenna. For
optimal operation, you should avoid touching it or
degrading it.
As the devices offer a range of functions, they can be
used in positions other than against your ear. In such
circumstances the device will be compliant with the
guidelines when used with headset or USB data cable.
If you are using another accessory ensure that
whatever product is used is free of any metal and that
it positions the device at least 10 mm away from the
body.
The Wi-Fi Logo is a certification mark of
the Wi-Fi Alliance. Your device uses
non-harmonized frequency and is intended
for use in all European countries
.
The WLAN can be operated in the EU without
restriction indoors, but cannot be operated outdoors
in France.
General Information
Internet address: www.alcatelonetouch.com
TCT Mobile Limited address: Room 1910-12A,
Tower 3, China HK City, 33 Canton Road,
Tsimshatsui, Kowloon, Hong Kong.

15
Hot Line Number: see “TCT Mobile Services”
leaflet or go to our website.
On our website, you will find our FAQ (Frequently
Asked Questions) section. You can also contact us by
e-mail to ask any questions you may have.
An electronic version of this quick star guide is
available in English and other languages according to
availability on our website.
Your device is a transceiver that operates on Wi-Fi
with 2.4GHz and 5GHz, but the band
4(5.725-5.825GHz) don’t be used in Europe.
Disclaimer
There may be certain differences between the user
manual description and the device’s operation,
depending on the software release of your device or
specific operator services.
TCT Mobile shall not be held legally responsible for
such differences, if any, nor for their potential
consequences, which responsibility shall be borne by
the operator exclusively.
This handset may contain materials, including
applications and software in executable or source
code form, which is submitted by third parties for
inclusion in this handset (“Third Party Materials”).
All third party materials in this handset are provided
“ as is”, without warranty of any kind, whether
express or implied, including the implied warranties of
merchantability, fitness for a particular purpose or
use/third party application, interoperability with other
materials or applications of the purchaser and
non-infringement of copyright. The purchaser
undertakes that TCT Mobile has complied with all
quality obligations incumbent upon it as a
manufacturer of mobile devices and handsets in

16
complying with Intellectual Property rights. TCT
Mobile will at no stage be responsible for the inability
or failure of the Third Party Materials to operate on
this handset or in interaction with any other devices
of the purchaser. To the maximum extent permitted
by law, TCT Mobile disclaims all liability for any claims,
demands, suits or actions, and more specifically – but
not limited to – tort law actions, under any theory of
liability, arising out of the use, by whatever means, or
attempts to use, such Third Party Materials. Moreover,
the present Third Party Materials, which are provided
free of charge by TCT Mobile, may be subject to paid
updates and upgrades in the future; TCT Mobile
waives any responsibility regarding such additional
costs, which shall be borne exclusively by the
purchaser. The availability of the applications may vary
depending on the countries and the operators where
the handset is used; in no event shall the list of
possible applications and software provided with the
handsets be considered as an undertaking from TCT
Mobile; it shall remain merely as information for the
purchaser. Therefore, TCT Mobile shall not be held
responsible for the lack of availability of one or more
applications wished for by the purchaser, as its
availability depends on the country and the operator
of the purchaser.TCT mobile reserves the right at any
time to add or remove Third Party Materials from its
handsets without prior notice; in no event shall TCT
Mobile be held responsible by the purchaser for any
consequences that such removal may have on the
purchaser regarding the use or attempt to use such
applications and Third Party Materials.

17
EC declaration of conformity / Déclaration de
conformité CE
Product / Produit : Device
Product identification / Identification du produit :
ALCATEL ONETOUCH HOME V102/V102 type STUDIO
We / Nous TCTMobileEuropeSAS
55,avenuedesChampsPierreux
92000 Nanterre France
Declare under our sole responsibility that the
product above mentioned is conform to the
applicable essential requirements of the directive
1999/5/EC and that all essential radio test suites have
been carried out. Conformity assessment procedure :
annex IV of the directive. / déclarons sous notre entière
responsabilité que le produit ci-dessus est en conformité
avec les exigences essentielles applicables de la directive
1999/5/CE et que toutes les séries d'essais radio
essentielles ont été effectuées. Procédure d'évaluation de
conformité : annexe IV de la directive.
Applied standards / Normes appliquées :
-Item 3.1.a ( protection of the health and of the
safety of the user ) / Article 3.1.a ( protection de la
santé et de la sécurité de l'utilisateur)
-EN 60950-1:2006 + A11:2009 + A1:2010 +
A12:2011
-EN 62311 : (2008)
Council recommendation 1999/519/EC (July
99 )
-Item 3.1.b ( protection requirements with
respect to electromagnetic compatibility ) /
Article 3.1.b ( exigences de protection en ce qui
concerne la compatibilité électromagnétique )

18
- EN 301 489-1 v.1.9.2 ,EN 301 489-3 v.1.6.1，EN
301 489-17 v.2.1.1
-Item 3.2 ( effective use of spectrum so as to
avoid harmful interferences ) / Article 3.2
(utilisation efficace du spectre radioélectrique de
façon à éviter les interférences dommageables)
-EN 300 328 v.1.7.1 ，EN 300 440-1v.1.6.1，EN
300 440-2v.1.4.1，EN 301 893 v.1.7.1
This product also conforms to the applicable
requirements of following directives, / Ce produit est en
conformité avec la directive,
- directive 2011/65/EU (RoHS - restriction of the use
of certain hazardous substances)
Conformity of this product has been reviewed by the
following Notified body of directive 1999/5/EC / La
conformité de ce produit a été vérifiée par l’organisme de
certification (notify body) suivant.
Konigswinkel 10, D-32825 Blomberg, Germany
Identification number: 0700
Date :2014-07-09
Signature
Christophe Benoit
TCT Mobile Europe SAS / Deputy General Manager,
EMEA
