ALDEN Satlight Track 60 User manual

Specications may change without notice

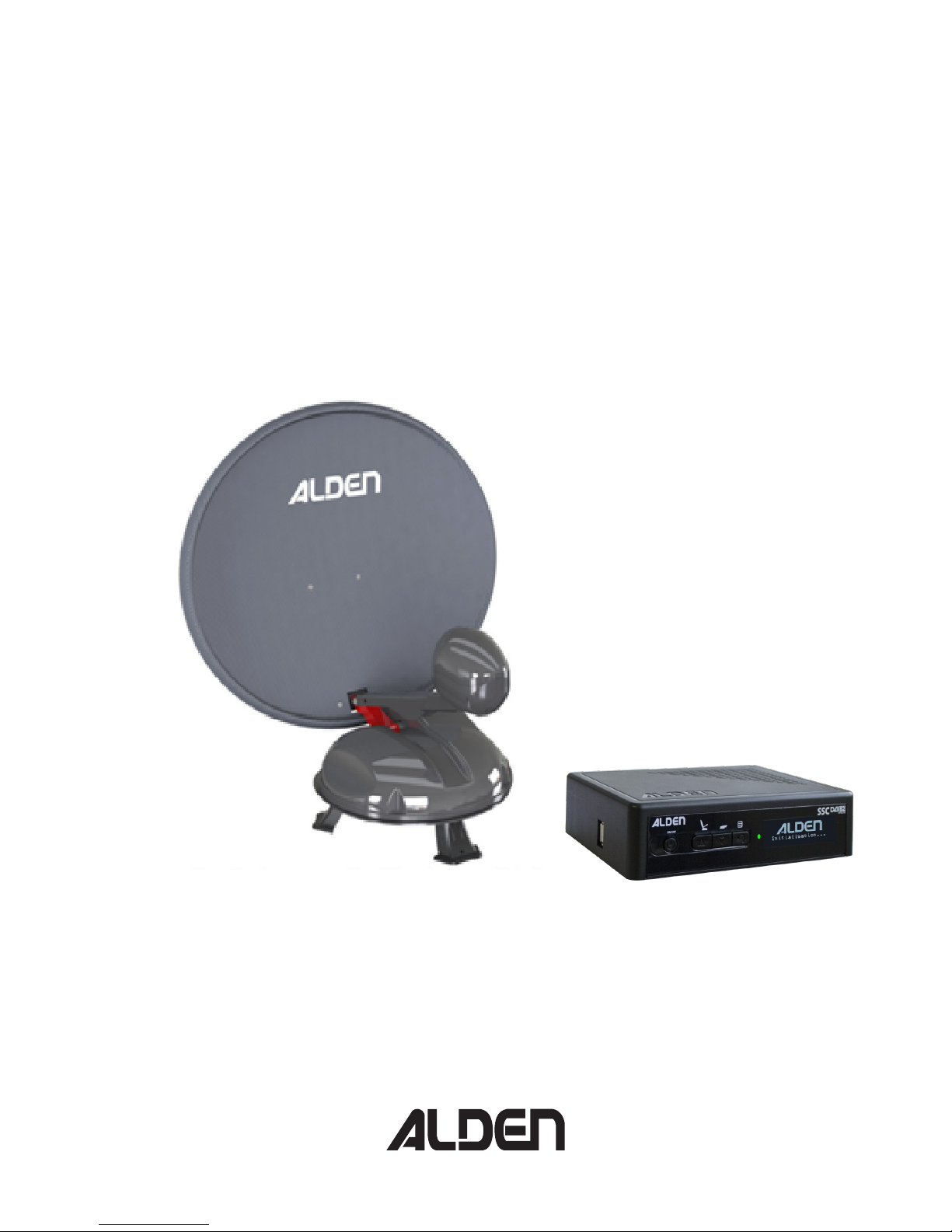

Portable Satellite Antenna
Satlight Track 60 HD
Installation and user’s guide
050718ALD-14717
[email protected]
Alden Australia, PO Box 7520 Garbutt QLD 4814

2
The reproduction of whole or part of this guide is strictly forbidden without Aldens agreement.
Alden draws your attention to the risks that may occur if the mounting is not correct.
Alden declines all responsability if the product is not mounted in the correct way and especially if it is installed by
a non professional person.
The retailer is ment to know installation rules and to apply them. He will especially respect the installation location,
the cable connection, the gluing and screwing of the Alden satellite system.
By selling and installing an Alden product, the retailer is obliged to inform his customer on how the product works
and perhaps how to install the product in some cases. He will also give his customer the user’s guide.
The retailer must inform the customer about security matters.
The retailer must inform the customer that the product can only be used for the intended matter.
The retailer must also inform the end user about the current laws applicable in the country where the product is
going to be used.
Each product with electronic components has to be protected from undervoltage (under 10.5 volts) and overvoltage
(over 15 volts).
It is strictly forbidden to open, interfer, repair and/or modify the product without Aldens agreement. The warranty
will become void if you undertake such an action.
If any changes occur concerning the emission frequencies or the power of emission from the satellites, neither the
salesperson nor the manufacturer can be held for responsible
Neither the salesperson nor the manufacturer can be held for responsible if a satellite or a programme come to
disappear, if a free-to-air channel becomes scrambled or for any other modification that may affect the emission.
Unpredictable events can not lead to any exchange, refund or compensation from the salesperson nor the
manufacturer.The reception areas of the satellites are given as a guidance.
Alden declines all responsibility in the event of incidents or accidents if they are due to a non observation of the
installation instructions or the way the product is used.
It is strictly forbidden to open a product. The warranty will be come void if you do so.
Do not use the + after ignition, which means starting the vehicle, to close the system down. Before starting the
vehicle, make sure the satellite system is folded down in the folding down position.
Remove the fuse from the electric circuit board of the satellite system and receiver/AIO before interfering on the
general circuit board, or changing or connecting the battery. If the vehicle is equipped with a solar panel, also
remove the fuse.
If the wind gets up or by gale force, we recommend to fold the satellite system down. Refer to page 44 of this
manual. You must therefore fold the satellite system down when the wind is above 50 km per hour.
Never unfold the satellite system when it has snowed or by freezing rainfalls. Always make sure nothing will block
the opening of the satellite system (nor ice, nor snow...). Remove if this is the case.
Always switch the receiver/AIO off before unplugging the power supply.
You must ALWAYS fold the satellite system down before starting the engine of the vehicle. Go through the folding
down procedure. Before starting the engine, make sure the satellite system is completely down. .
We advise to withdraw the fuse supplying the receiver in case of long periods without driving or to disconnect the
power supply.
If you leave the vehicle, never leave the satellite system open.
Warning

3
For a good quality picture, do not use the existing coax. cable circuits. Generally, it is recommanded to avoid all
connections.
You must provide a separate power supply equipped with a 5 Amp. fuse directly from the board battery to the
S.S.C®/receiver/A.I.O®.
You must provide a separate power supply equipped with a 3 Amp. fuse directly from the main electric board to
the S.S.C®/receiver/A.I.O®for the Plus after ignition connection (only with Alden automatic satellite systems).
You must protect the ends of the motor and coax. cables with paper tape during installation (especially when
threading the cables through furniture).
Only connect the LNB when the system is not connected to the power supply: the receiver/S.S.C®must be unplugged
before being connected to the LNB (low noise block converter). If not this could cause serious dammage to the LNB
circuit.
The warranty will become void if original or certified parts are not used. All repairs must be made by qualified
technicians.
When connecting the cables, make sure the satellite system and S.S.C®/receiver/A.I.O®are not connected to the
power supply. Wait a few seconds after having switched the systems off before moving them or disconnecting
them.
After having followed the instructions, if the system does not work, contact your dealer.
• If you accept to install the equipment, you also accept the above rules. •
WEEE Directive (European Union and EEA only).
This symbol indicates that this product is not to be disposed of with your household waste, according to the WEEE Directive
(2002/96/EC) and your national law. This product should be handed over to a designated collection point, E.G., on an authorized
one-for-one basis when you buy a new similar product, or to an authorized collection site that recycles waste electrical and
electronic equipment (EEE). Improper handling of this type of waste can have a negative impact on the environment and human
health due to potentially hazardous substances that are generally associated with EEE. By respecting this directive, you will
contribute to the effective usage of natural ressources. For more information about where you can dispose of your equipment for recycling, please
contact your local city office, or other authority, approved WEEE scheme or your household waste disposal service.
(EEA : Norway, Iceland and Liechtenstein)

4
Pre-installation warnings
Never connect your satellite equipments (SSC®, receiver) to a line controlled by the camping car central control
panel. In all cases, Alden recommends a direct line on the battery with a 5A fuse.
If it was technically not possible to draw an independent line, it will be mandatory to ensure accessibility
of the demodulator switch and to inform the customer of the need to switch the receiver off in case of
storing the vehicle in a garage or parking under an obstacle, tree, porch, bridge, etc.
Never take the D + on the fridge, step-board, etc. or on any device that can be turned off by the camping car
central control panel.

5
N
S
E
O
Poser l’antenne sur une surface plane, stable, ou directement sur le sol.
La tête LNB doit être obligatoirement dirigé vers le sud.
Aucun obstacle doit etre
Zone de recherche
Rotation
360°
q
0
Sat. OPTUS D3
Search...
SSC
q
0
SSC
q
0
SSC
q
0
Sat. OPTUS D3
Pointing OK
SSC

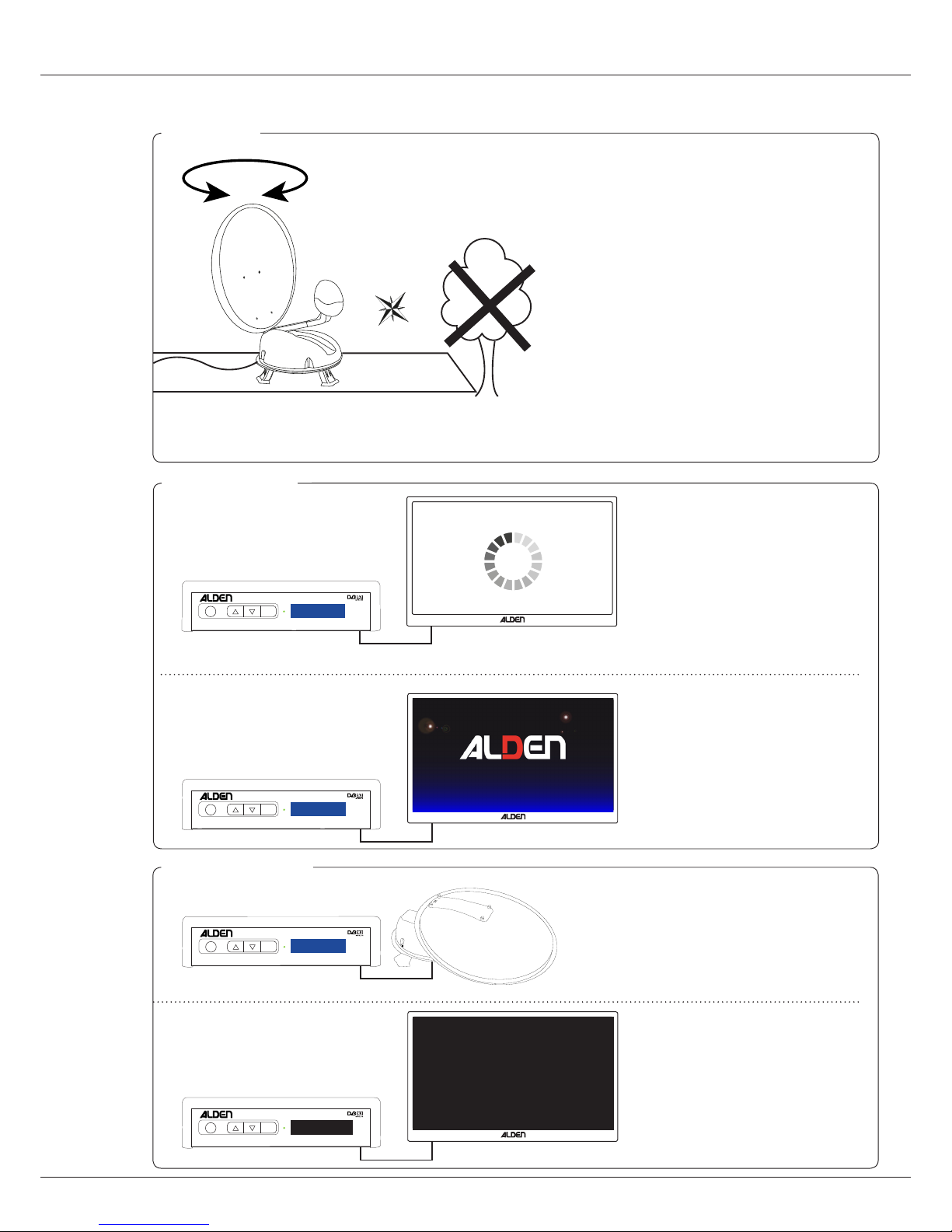

Installation and use of the antenna with SSC HD module
Place your portable VANSAT satellite
antenna on a stable area on the oor.
Orientate approximately your antenna
to the south. The search area is ope-
rated 360 °, make sure there is no obs-
tacle located near the antenna.
Once the antenna is locked on the sa-
tellite, the message «Poinng valid!» Is
displayed and an image appears.
Turn q on your SSC HD search module,
and select the desired satellite, using
the sw. buons. Report to
the page 10 for satellite selecon.
When the wkey is released, the selec-
ted satellite ashes a few seconds. The
message «Search ...» appears: indica-
ng that the antenna is searching for
the selected satellite.
Press the skey of the search module,
the message «Closing» appears. It will
disappear only when the antenna will
be completely closed.
Switch q the receiver o, the module
S.S.C. HD and the TV set. Disconnect
the antenna from the module to repack
the antenna.
Installation
Follow the wiring diagram on the next page
Starting
Deactivation
Sat. OPTUS D3
Closing...

6

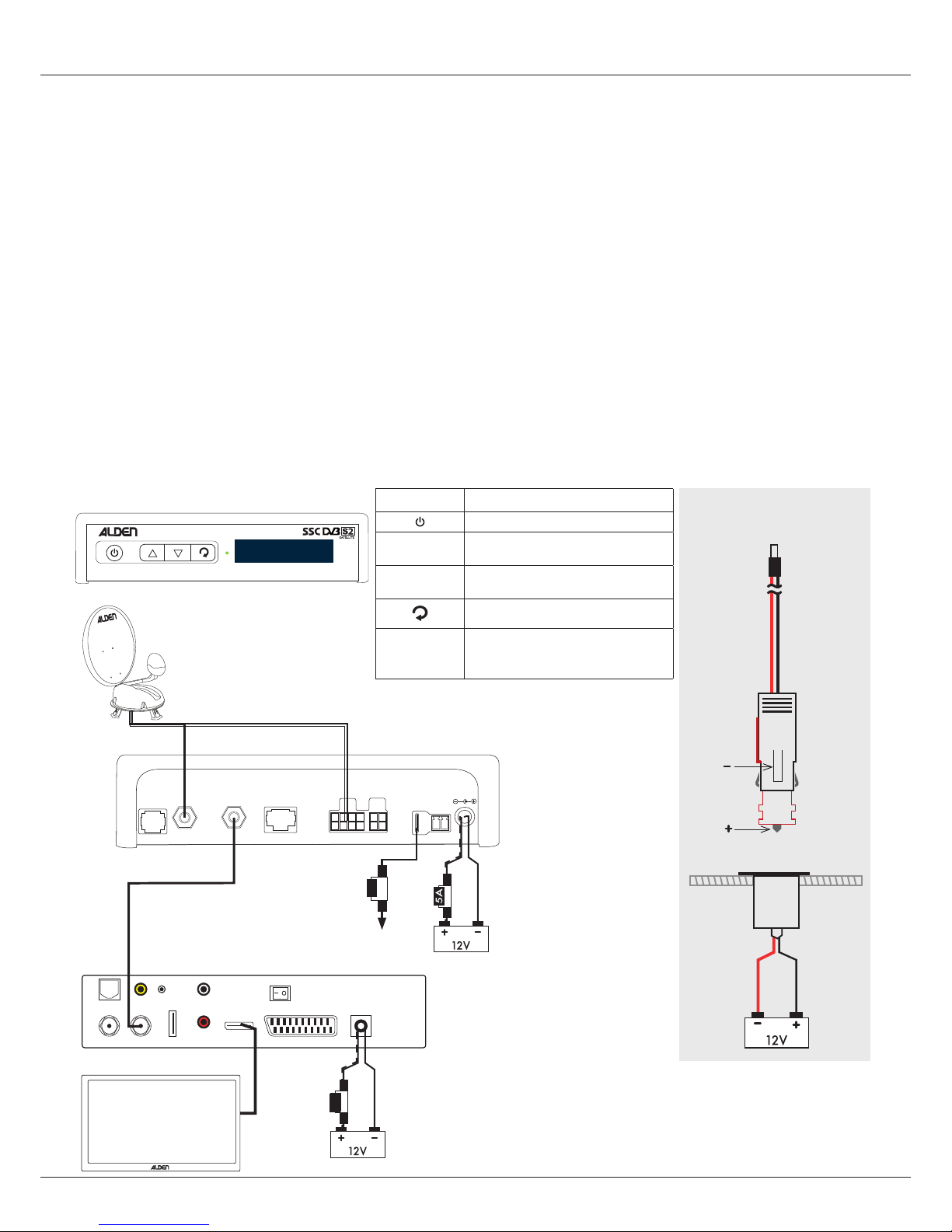

Satlight Track60 - Quick Setup and User Guide
DATA
OUT TO
DEMO
LNB IN
14/18V 300mA
RC
10 - 15VDC
TV OUT
CONTACT
MOTOR SKEW
Coax cable
Coax cable
+ after ignition
(1,5A. min.)
3A
Motor cable
L
TV INOUT
VIDEO
HDMI
IR
ON OFF
USB
S/PDIF
R
AUDIO
DC12V/5A
HDMI Cable
3A
1. Connect and Setup the Satlight Track60 as illustrated by the Diagram Below. The Satlight track60 is a portable auto dish, in which it’s base “dish unit”
can be mounted /installed on a vehicle or be temporarily placed on a at surface or be held down on a grass area with the tent pegs supplied.
2. On the SSC HD Unit (Control unit / black box) press the “Power On” button.
3. By default OptusD3 (For VAST and PayTV) will be seen ashing on the SSC LCD screen and no other press of a button is required . If “OptusD3” is Not
ashing , Keep Pressing the UP Button once at a time and Stop when you see “OptusD3” ashing on the LCD. The Dish will deploy Up and start searching,
when “OptusD3 is found the LCD will display “Pointing OK”and the green LED will be on.
4. When nished Usage, Press the “Off” button to fold the Dish Down ,disconnect cabling and Stow away.
Other relevant Information :
a) 1st time (out of the box) or out of the same location area’s (250km radius) satellite searches will result in longer “Pointing Ok” times, approx
- 3 mins or so, subsequent same area searches approx- 1 minute.
b) When the Green LED is “On” the unit is in Standby mode and consumes approx- 4 watts power.
c) Other satellites selectable via the “Up” button. Set with 4 satellites and 4 Empty/Not used parameters in memory
d) Skew (lnb rotation for current position) is automatically achieved via the units GPS, auto Skew Set function.
e) The LNB (twin Output) value used is 10700 *Make sure your satellite receivers lnb value is set to 10700
f) Every satellite is programmed with 3 transponder frequency settings in memory. The extra’s are used as backups
g) The OptusD3 satellite selection / parameter is the strongest and best to use with VAST and PayTV services.
h) If the OptusD3 selection in an area has persistent weak signal, try using the Optus C1 selection instead.
i) The satellite parameters are modiable manually from the SSC units “Menu System” or by upgrading them via it’s USB port.
*Simple and Quick Satellite parameters and rmware Upgrade via the usb port !
Satellite/Vast Receiver (Rear view)
ALDEN SSC (Rear View)
Designation Function
Switch the module on/off.
wSelect the satellite/navigate
in the menu.
sClose the dish/navigate
in the menu.
Access to the setting menu.
SKEW option management.
Green Led •
On: The S.S.C. is in stand by mode
Off: The S.S.C. is off
(Power intake = 0 Amps)
ALDEN SSC (Front View)
*Optional Not supplied
«Female end» cigarette lighter Socket
with Alligator Clip
* Supplied with a «Male end»
cigarette lighter plug with a
internal 5Amp fuse
Red wire= posite «+»
Black wire= negatice «-»
Red clip
N
S
E
O
Poser l’antenne sur une surface plane, stable, ou directement sur le sol.
La tête LNB doit être obligatoirement dirigé vers le sud.
Aucun obstacle doit etre
Zone de recherche
Rotation
360°
Sat. OPTUS D3
ON/OFF Up Down Menu-Select
Black clip
Note : Regarding the “+ after ignition” connection
*If the Dish is to be Permanently Installed on a RV Vehicle as a Safety
measure it is highly recommended this feature be utilized as the dish
Automatically folds down when the vehicles ignition key is turned on.

7

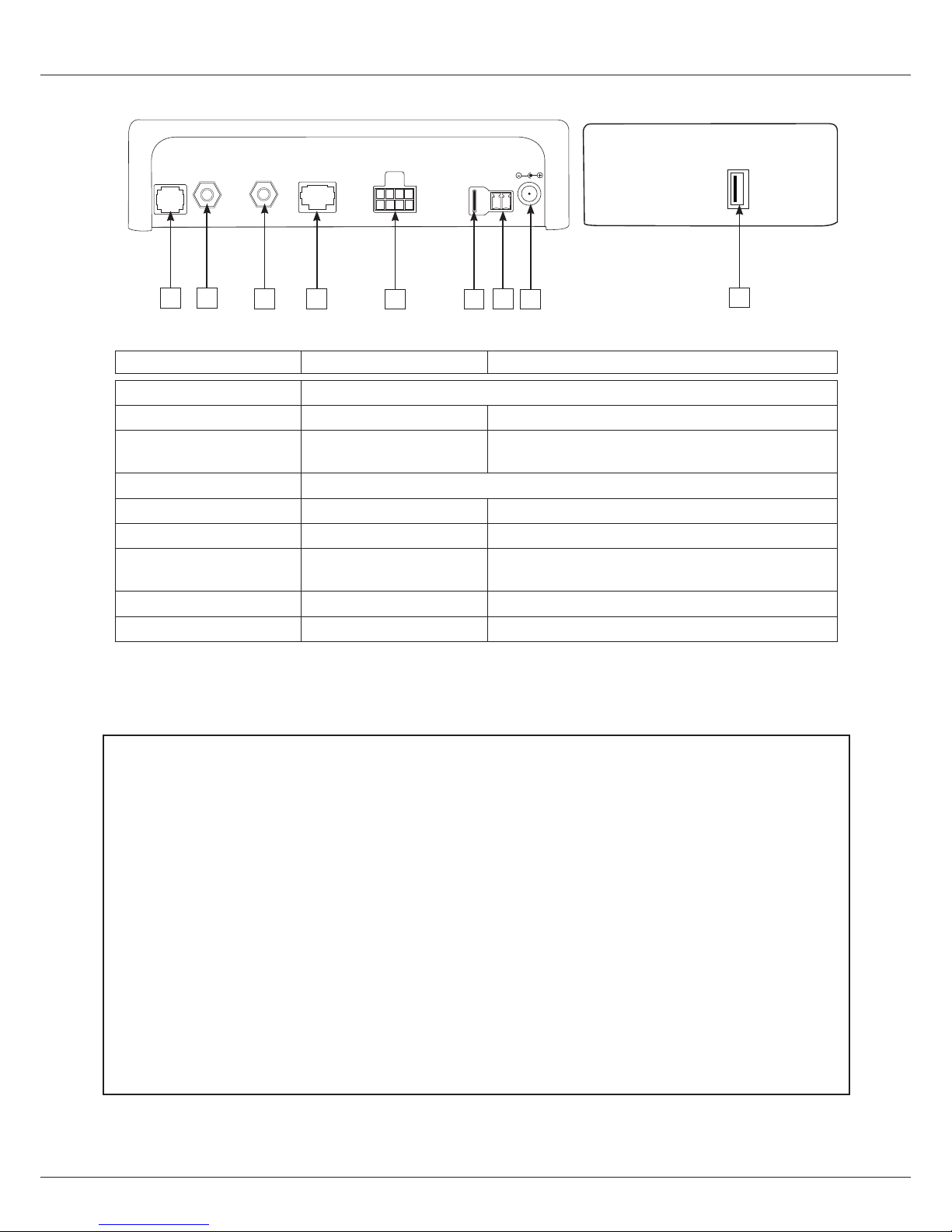

S.S.C. wiring diagram
DATA
OUT TO
DEMO
LNB IN
14/18V 300mA
RC
10 - 15VDC
TV OUT
CONTACT
MOTOR SKEW
N° : description Type of connection Input and output description
1 : RC Optionnel: Interface utilisateur déportée.
2 : LNB in F Type coaxial Connection with the sat-unit’s LNB.
3 : Out to demo F Type coaxial Connection used to connect the SSC module to the
receiver or satellite TV.
4 : Data For Alden’s use only
5 : USB USB Used to update the data.
6: MOTOR Power Used for the motorisation of the sat-unit.
7: CONTACT Spade connector Folding security system connected to the car
ignition.
8 : TV OUT TV output Used to power up a 12V/3A max. TV
9 : 10-15V DC Jack DC 12V SSC Power supply
Warning - Reminder :
• The system must be in a vertical position in a well ventilated space.
• Do not place the unit near a source of heat or humidity.
• Do not leave the unit direclty in the sunlight.
• The ventilation grille must be free. Do not block.
• Do not use existing coaxial circuits. The quality of the picture can be affected. Each link will weaken the
signal. Cables of a different type can also change the quality of the picture.
• In all cases :
- A direct wiring (no links) with a 5A fuse must go from the unit to the battery for the + wire.
- A direct wiring (no links) must go from the unit to the battery for the - wire.
- A direct wiring (no links) with a 3A fuse must go from the S.S.C. module to the + after ignition
located on the ignition key or on the fuse module.
• When installating with existing wiring, make sure the 3 cases above are respected.
• Always use the provided cables
• The warranty will no longer be applicable if these instructions are not followed.
1 2 345
6789

8

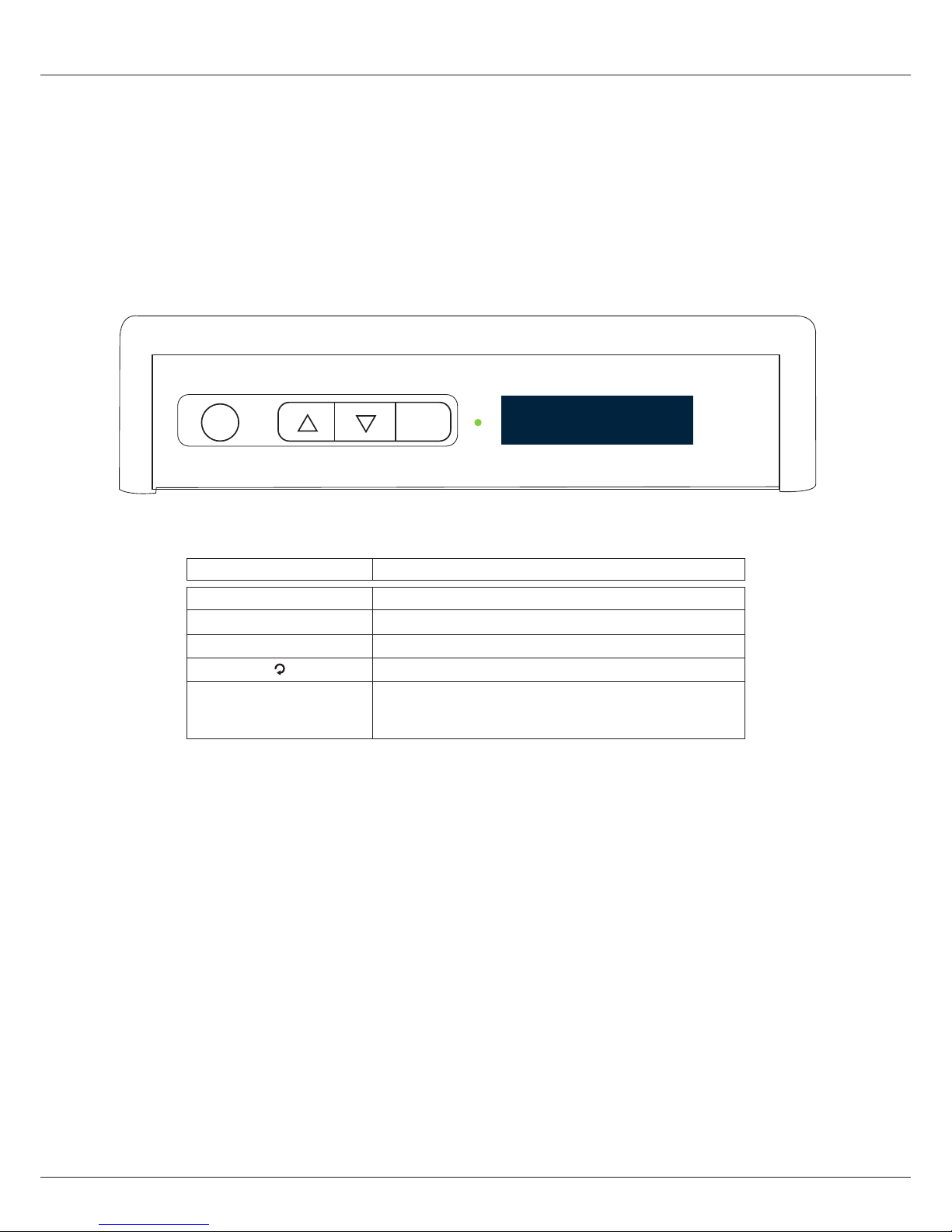

Working principle
Designation Function
qSwitch the module on/off.
wSelect the satellite/navigate in the menu.
sClose the dish/navigate in the menu.
Access to the setting menu.
Green Led •On: The S.S.C. is in stand by mode
Off: The S.S.C. is off
(Power intake = 0 Amps)
q
0
Sat. Optus D3
The S.S.C. HD Module (Satellite Search Control) is a module designed to search for satellites such as OPTUS C3 - OPTUS C1
- OPTUS D2 - INTELSAT 19. The module can be used with all Alden’s satellite systems and connected to any digital receiver
allowing the reception of the broadcasted programmes on the chosen satellite.
The S.S.C. module is specially adapted for a use in a leisure vehicule.
Description

9
How to use the S.S.C. HD
How to change satellites when using the system
1. By using w,select the chosen satellite.
2. Once wreleased, the chosen satellite LED will flash a few seconds, then will stay on display.
3. The message «Search...» will appear : meaning that the satellite system is searching the chosen satellite. Once
the satellite found, the message «Pointing OK!» will appear.
1. Turn the S.S.C. Module on by pressing q.
2. By using w, choose the satellite.
Keep pressing this button to switch from one satellite to another.
Each time you change satellites you will hear a beep tone.
The satellites are programmed in the following order:
OPTUS D3 •OPTUS C1 •OPTUS D2 •INTELSAT 19 •
Satellite Description
OPTUS D3 VAST, FOXTEL, FTA (Free To Air) SERVICES
OPTUS C1 VAST, FOXTEL, FTA (Free To Air) SERVICES
OPTUS D2 MULTICULTURAL FTA/PAYTV SERVICES
INTELSAT 19 MULTICULTURAL PAYTV/FTA SERVICES
3. Once wreleased, the chosen satellite LED will flash for a few seconds, then will stay on display.
The message «Search...» will appear : meaning that the satellite system is searching the chosen satellite.
Once the satellite found, the message «Pointing OK!» will appear.
4. Power on the receiver and TV, choose a programme on the corresponding satellite.
Warning : Every time you use the S.S.C, the last chosen satellite will automatically be selected
Closing principle
1.Press the s button on the S.S.C. module, the message «Close» will appear. The message will disappear once the
satellite system will be fully closed.
2. Switch the receiver, S.S.C module and television off.

10
Setting Menu
To reach the SETUP menu, fold the antenna and then press the button. Select one of the sub-menus using the ws keys
and confirm by pressing the key.
1. TRANSP. MOD : Search data settings.
This menu enables to select and set the data used for the search of the satellite.
Caution: if not used correctly you may cause the module to dysfunction. Do not use without Alden’s or your dealer’s
advice.
2. EXT. BOOT : when used, this function enables you to launch an automatic search on the chosen satellite when using
the module connected to the OUT TO DEMO output on your S.S.C.
Caution: prior to this, the S.S.C. has to be in stand by modus (green LED on) for the function to be accepted.
3. ANT STATUS : When set on «NO», when switching the system off, the satellite system will remain open, orientated
towards the satellite. On the opposite, when set on «YES», the satellite system will close itself automatically when you
switch the installation off.
4. POWER OPTION : When this menu is set on «YES», it enables to put the S.S.C. in stand by mode when the externale
receiver connected to the OUT TO DEMO input is not used. When this menu is set on «NO», the S.S.C. switch itself off
(power consumption = 0amps) when the externale receiver connected to the OUT TO DEMO input is not used.
5. LANGUAGE : Select your language to visualize the different menus.
6. VERSION : Provides information on the software version and product.
7. MEC. ANTENNA : Indicates the kind of satellite system which is connected to the S.S.C.
This menu also enables you to change the kind of automatic satellite system (only Alden brand). Using ws
choose the corresponding satellite system. Press to confirm your choice.
8. DiseqC MENU : When this function is active, a number will be assigned to a satellite (DiseqC standard) and this
information will also be available in the receiver/television connected to the OUT TO DEMO on the S.S.C..This function
enables you to search automatically for a satellite when changing satellites on you receiver/television.
Example: if the receiver is programmed as the following :
OPTUS D3 -> DiseqC 1.1 : 1
OPTUS C1 -> DiseqC 1.1 : 2
Match a number to a satellite by using ws
Press to confirm each of the 8 satellites.
Caution: only one number per satellite, one satellite can not have several numbers.
NB: if your receiver is only compatible DiseqC 1.0, refer to the following details:
Letter Corresponding number
A 1
B 2
C 3
D 4
Caution: the receiver or television must be compatible with a DiseqC 1.0 or 1.1 to enable you to use this function on the
S.S.C..
9. ES/Nb N° Menu : Indicates the level of reception of the satellite system. The higher the level, the better the quality of
the reception.
Caution: The value is given as an indication.
10. Upgrade : This menu allows you to update the SSC HD using a USB key.
11. Advanced Setting-> display orientation: Activating this function will rotate the display of the screen giving you the
possibility to fix the module upside-down in the storage cabinet
12. Exit: close the menu
Sat. OPTUS D3 Sat. OPTUS C1

11

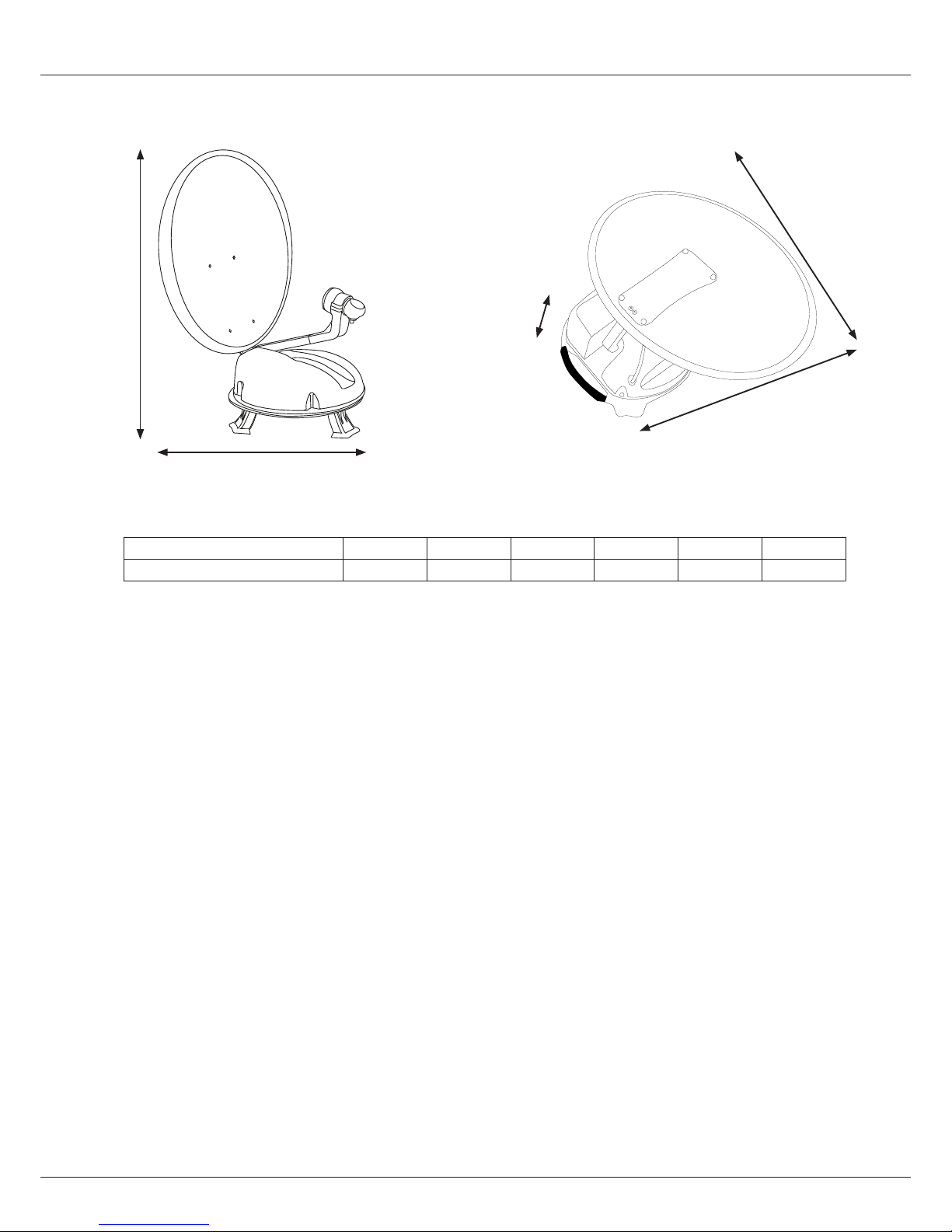

Dimensions and weight
1 2 3 4 5 weight
Satlight Track 60 cm platinium 63 cm 49 cm 22 cm 65 cm 60 cm 8 kg
Cable length 10 m
N
S
E
O
Poser l’antenne sur une surface plane, stable, ou directement sur le sol.
La tête LNB doit être obligatoirement dirigé vers le sud.
Aucun obstacle doit etre
Zone de recherche
Rotation
270°
1
2
3
4
Handle
5

12
Technical features
Frequencybord : KU
Frequency : 10,7 à 12,75 GHz
Polarization : Horizontal and Vertical
Power supply : 12 V DC
Power : 13 W maximum
Operating temperature : 15°C a +50°C
Humidity rate : 85 % maximum
Dimensions : l = 167 mm
h = 110 mm
p = 45 mm
Weight : 0,30 kg
Stand by consumption : 0,03 A
What to do if the system breaks down
Problem Solution
The message «LNB Short-cut!» is displayed There is a short circuit on the coax cable between the LNB
on the satellite system and the LNB IN on the S.S.C.
Check the corresponding cable.
The message «NB Error! » is displayed The coax cables connected to the LNB IN and OUT TO
DEMO are inverted.
The message «LNB Disconnected» is displayed There is no connection between the sat unit LNB and the
LNB IN on the S.S.C.
Check the corresponding cable.
The message «Antenna is stuck» is displayed The S.S.C has detected a steering problem on the
automatic sat unit.
Check the motor cable between the S.S.C. and the
automatic sat unit.
The message «Low Battery!» is displayed The voltage on the battery or on the power supply is too
low.
Charge the battery or change the power supply.
The message «-> Secu contact» is displayed The S.S.C. has detected the presence of the security
contact. The automatic sat unit will not be able to open.
Stop the vehicle’s engine to use the S.S.C..
The satellite system does no longer find the satellite Make sure there is no obstacle in front of the satellite unit
(building, tree...).
When the transmitter changes the frequencies, the
positionning will not be done properly. Contact a technician
or connect to our website [email protected]

13
Garantie ALDEN
The ALDEN warranty covers the following:
Alden warrants to the initial Buyer the products for a standard period of two years from the original date of purchase of the product by
the end user. The end user must return the warranty form that is enclosed in the user’s guide with a copy of the invoice to Alden. If this
document is not returned, the warranty will begin at the date of purchase by the initial Buyer.
Warning: If the Buyer decides to undergo reparation without Alden agreement, he will have to support all the consequences and
the warranty will become void. Nor the buyer nor the end user can demand compensation for privation of the product for less than
30 days. Alden can under no circomstance be held responsible for accidents or damage due to non observation of the installation
instructions. We remind you that any electric installation must be protected with an adapted fuse.
In any case, general installation rules must be followed. The installer and the end user are supposed to know rules and laws (such as
the driving rules) and legal rules about heavy loads. The installer and the end user must inform themselves about installation rules. The
installer and the end user can not demand compensation or further guarantee if these rules are not followed.
Nevertheless you will beneficy from the general legal warranty especially concerning hidden manufacturing faults.
Warning: The application of the warranty and any aftersales return must be authorized by Alden before. The buyer shall bear all
shipping, packing and insurance costs and all other costs excluding labour and parts necessary to carry out repairs under this warranty
(Alden will cover transport costs back to the customer). If you demand express delivery, the costs will remain yours.
The following are excluded from the ALDEN warrantee:
- replacement of any parts and spare parts;
- abnormal or non-conforming use of the products. We invite you to consult carefully f the operating instructions
provided with the products;
- breakdowns due to accessories or due to incorrect installation;
- the defects and their consequences due to the intervention of a repairer not approved by ALDEN;
- defects and their consequences related to use not in accordance with the use for which the product is
intended;
- defects and their consequences related to any external cause.

14
Warranty
Alden recommends that the installation should be done by a professional technician.
If you choose to install the product yourself, you will be responsible for security matters.
In this case,you are ment to have the necessary competence.You will have to respect rules that apply to professional installers. Respect
the law. The product will only be used for the intended matter.
Warranty:
The buyer will contact his retailer if problems occur with the product.
WARNING:
The warranty will be cancelled if you interfer on the product without Alden’s agreement.
Complete the following form and send it back to the following address with a copy of the purchasing invoice:
[email protected]
Alden Australia, PO Box 7520 Garbutt QLD 4814
Warranty form
NAME, First name: ....................................................................................................................................................................................................................................
Full address: ................................................................................................................................................................................................................................................
Post code: ....................................................................................................................................................................................................................................................
Town: .............................................................................................................................................................................................................................................................
Country: .......................................................................................................................................................................................................................................................
Retailer: .........................................................................................................................................................................................................................................................
Date of purchase: ......................................................................................................................................................................................................................................
Product:.........................................................................................................................................................................................................................................................
Serial number: ............................................................................................................................................................................................................................................
