Alemite 7340 User manual

Service Guide
SER 7340
7340
7341
Alemite Corporation
PO Box 473515, Charlotte, North Carolina 28247-3515
www.alemite.com
Copyright © 2003 by Alemite Corporation
This document contains confidential information that is the property of Alemite Corporation
670783 and is not to be copied, used, or disclosed to others without express written permission. Revision (2-03)
Description
Mounting
High-capacity reel models 7340 and 7341 are
designed for severe environments, such as a lubrication
truck. They can also mount to a ceiling* or wall.
NOTE: The Hose Guide Arms can attach
to the Base Assembly in five (5) different
positions.
These reels mount as a single unit or in banks of as
many as required. See Figure 4 for details.
Operation
Each model reel is spring-powered and self-
retracting. When the hose is extended, the reel can be
latched on either of two ratchet sections per revolution
of the sheave. A pull releases the latch from the ratchet
and allows the hose to retract onto the reel.
Reel Models 7340 and 7341
Reel model 7340 contains a high-pressure swivel
assembly. The reel is designed to dispense grease
through a 3/8 " ID two-wire braid delivery hose.
A medium-pressure swivel assembly is included
with model 7341. This reel is designed for 1/2 " ID
hose to dispense fluid lubricants (such as motor and
gear oil and automatic transmission fluid) and air.
Delivery Hose
Each model reel manages a maximum length of
delivery hose as indicated in Table 1.
High-Capacity Reel

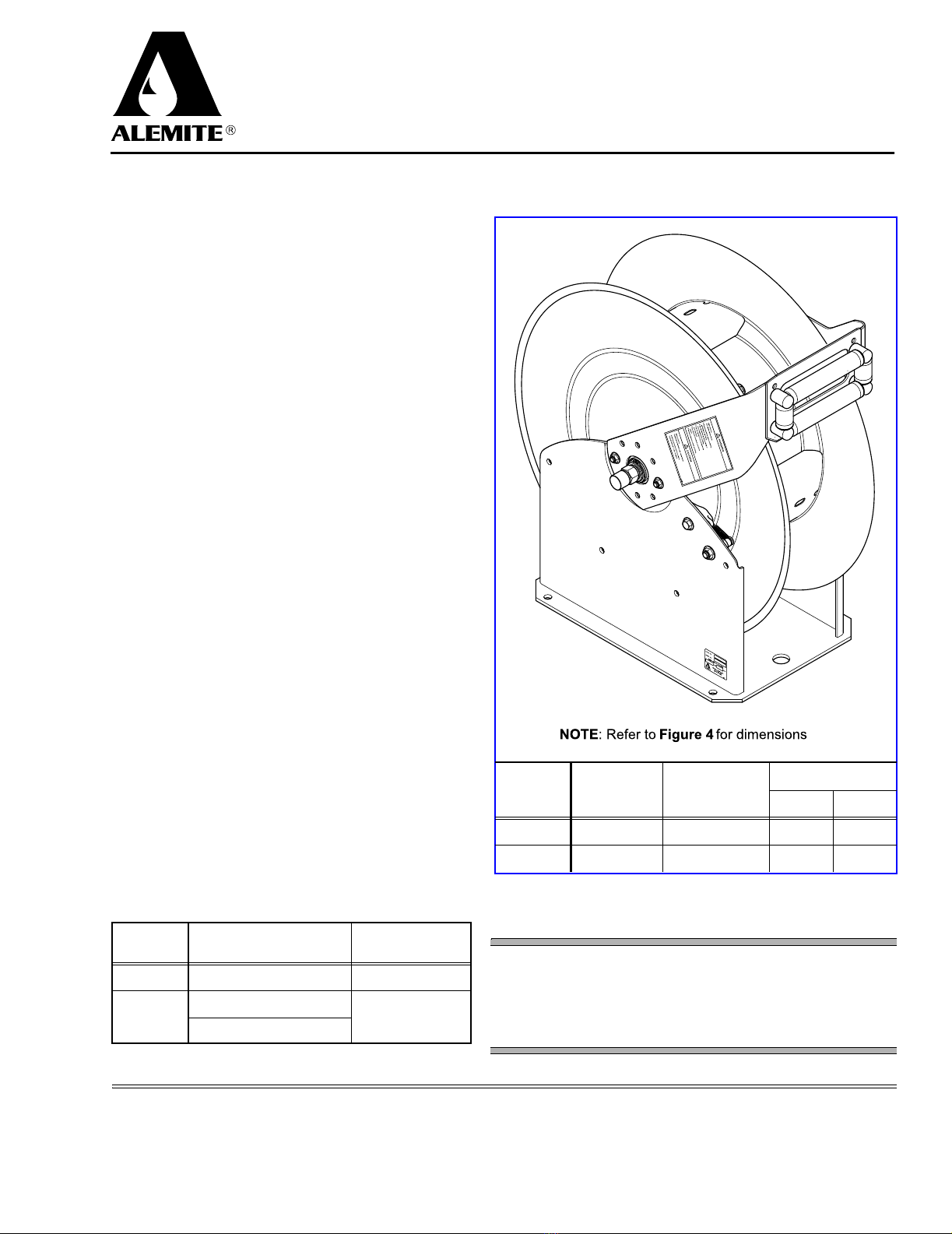

Figure 1 High-Capacity Reel Model 7340 and 7341
Reel Model Inlet
(Swivel) Outlet
Reel Max. Pressure
psi Bars
7340 3/8 " NPTF (f) 3/8 " NPSM (f) 6000 414
7341 1/2 " NPTF (f) 1/2 " NPSM (f) 1500 103
CAUTION
* The base of the reel must be at a height no greater
than 16 feet (4.9 m) from the floor to comply with the
warranty.
Reel
Model
Delivery Hose
Description
Maximum Length
of Hose in Feet
7340 3/8 " ID Two-Wire Braid 80
7341
1/2 " ID Single-Wire Braid
100
1/2 " ID Air
Table 1 Reel Model Comparison to Delivery Hose

SER 7340 High-Capacity Reel
Revision (2-03) 2 Alemite Corporation

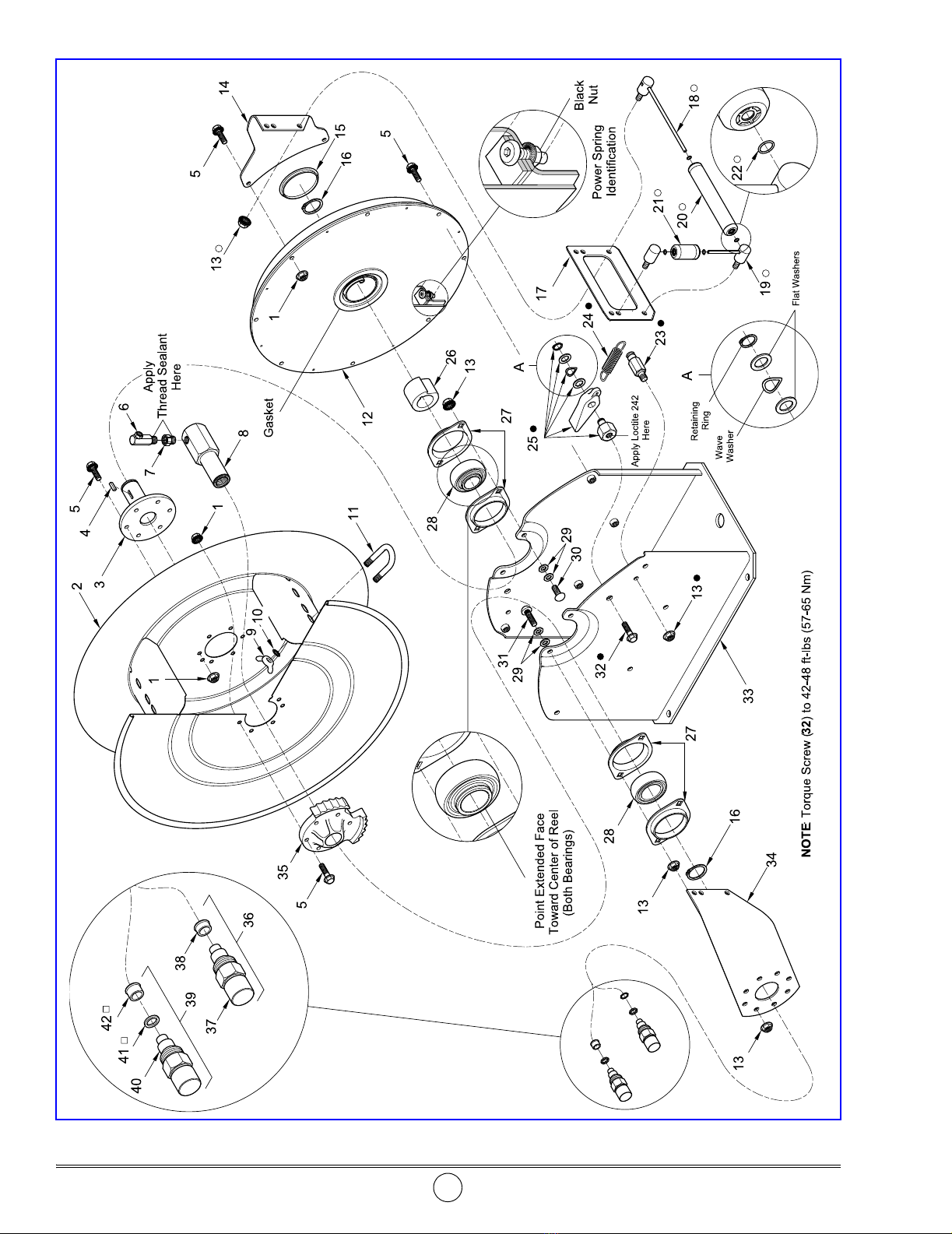

Figure 2 High-Capacity Reel Model 7340 and 7341 - Exploded View

High-Capacity Reel SER 7340
Alemite Corporation 3 Revision (2-03)
Item
No. Part No. Description and Model Qty Notes Numeric Order Part # (Item #)
1 Nut, Flange 5/16 " -18
All
16 (37)
2 Sheave Assembly 1 (40)
3 339464 Shaft and Flange Assembly 1 14534 (10)
4 339521 Key, Square 1 50876 (9)
5 Screw, 5/16 " -18 x 3/4 " 20 131586 (7)
6339459-1 Union, 90 °, 3/8 " NPTF x 3/8 " NPSM 7340 1 X171000-5 (22)
339459-2 Union, 90 °, 1/2 " NPTF x 1/2 " NPSM 7341 1 171007-33 (16)
7 131586 Bushing 7340 1 172190-32 (42)
8 339458 Shaft
All
1 339197 (26)
9 Nut, Wing, 1/4 " -20 2 339208 (29)
10 Washer, 5/16 " 2 339210 (24)
11 339219 U-Bolt 7340 1 339219 (11)
339219-4 U-Bolt 7341 1 339219-4 (11)
12 339469-1 Spring Assembly, Power
All
1 Includes Gasket 339226 (39)
13 Nut, Flange 3/8 " -16 11 4 in kit, 1 in kit 339227 (36)
14 Arm, Short 1 339233 (41)
15 339455 Plug, Button 1 339435 (33)
16 171007-33 Ring, Retaining 2 339439 (25)
17 Plate, Hose Guide 1 339441 (23)
18 Post and Shaft Assembly, Long 2 339442 (2)
19 Post and Shaft Assembly, Short 2 339446 (14)
20 Roller Assembly, Long 2 Includes Item 22 339447 (34)
21 Roller Assembly, Short 2 339448 (17)
22 X171000-5 O-Ring, 1/4 " ID x 3/8 " OD 8 Pack of Ten 339451-2 (20)
23 Post, Spring 1 339451-3 (21)
24 339210 Spring, Extension 1 339455 (15)
25 Pawl and Shaft Assembly 1 339456 (28)
26 339197 Arbor, Spring 1 339457 (27)
27 339457 Housing, Bearing 2 Includes Two Halves 339458 (8)
28 339456 Bearing 2 339459-1 (6)
29 Washer, 0.445 " ID x 0.75" OD 8 339459-2 (6)
30 Bolt, Ribbed-Neck, 3/8 " -16 x 3/4 " 2 339460 (32)
31 Bolt, Ribbed-Neck, 3/8 " -16 x 1-1/4 " 2 339461 (5)
32 Screw, 1/2 " -13 x 3/4 " 1 339462 (13)
33 Base Assembly 1 339463 (30)
34 Arm, Long 1 w/o Decal 339464 (3)
35 339467 Ratchet 1 339467 (35)
36 339227 Swivel Assembly, Medium-Pressure
7341
1 339469-1 (12)
37 Body and Stud Assembly, Swivel 1 339484 (31)
38 393530-24 Seal, 1/2 " ID x 3/4 " OD 1 Pack of Five 339516-2 (18)
39 339226 Swivel Assembly, High-Pressure
7340
1339516-3 (19)
40 Body and Stud Assembly, Swivel 1 339521 (4)
41 Washer, Back-Up (Brass) 1 393530-24 (38)
42 Seal, 3/8 " ID x 3/4 " OD 1 387370 (1)
Legend:
Part numbers left blank (or in italics) are not available separately
designates a repair kit item
Repair Kits
Part No. Kit Symbol Description
393723 Kit, Hose Guide
393724 Kit, Pawl and Shaft Assembly
393695 Kit, High-Pressure Swivel Repair

SER 7340 High-Capacity Reel
Revision (2-03) 4 Alemite Corporation
IMPORTANT: Prior to performing any main-
tenance procedure, the following safety pre-
cautions must be observed. Personal injury
may occur.
WARNING
Release all pressure within the system prior
to performing any overhaul procedure.
• Disconnect the air supply line to the pump’s
motor.
• Into an appropriate container, operate the con-
trol valve to discharge remaining pressure
within the system.
Read each step of the instructions carefully. Make
sure a proper understanding is achieved before
proceeding.
Overhaul
IMPORTANT: Make sure all pressure is
released within the system.
NOTE: Refer to Figure 2 for component
identification on all overhaul procedures.
Disassembly
IMPORTANT: Prior to disassembly, release
tension on the power spring.
1. Remove the hose stop and the control valve from the
delivery hose.
2. Pull on the delivery hose to unlatch the reel.
3. Allow the delivery hose to retract onto the reel.
4. Turn the reel in the same direction until the power
spring bypasses Spring Arbor (26).
• A pronounced “click” will sound.
Medium- and High-Pressure Swivel Assemblies
5. Unscrew Swivel Assembly (36 or 39) from Shaft (8).
NOTE: The body and stud assemblies for
these swivels cannot be repaired. However,
the sealing and back-up components are
available in a repair kit.
Hose Guide Assembly
6. Remove Nuts (13) that secure Post and Shaft
Assemblies (18) and (19) to Hose Guide Plate (17).
• Remove each Post and Shaft Assembly from the
Hose Guide Plate.
7. Remove Roller Assemblies (20) and (21) from each
Post and Shaft Assembly as required.
8. Remove O-Rings (22) from each Roller Assembly as
required.
HINT: Use an small flat-head screwdriver.
Arms and Power Spring Assembly
9. Remove Nuts (13) that secure Long Arm (34) to Bolts
(31).
• Remove the Arm from the Bolts.
10. Remove Nuts (1) and Screws (5) that secure Short
Arm (14) to Power Spring Assembly (12) as required.
• Remove the Arm from the Power Spring Assembly.
11. Remove Screws (5) that secure the Power Spring
Assembly to Base Assembly (33).
• Remove the Power Spring Assembly from the Base
Assembly.
WARNING
Do not attempt to disassemble the Power
Spring Assembly. Personal injury can occur.
Delivery Hose
12. Pull the delivery hose from Sheave Assembly (2).
13. Remove Wing Nuts (9) and Washers (10) that secure
U-Bolt (11) to the Sheave Assembly.
• Remove the U-Bolt from the Sheave Assembly.
14. Disconnect the delivery hose from 90 ° Union (6).
• Remove the delivery hose from the Sheave
Assembly.
Arbor and Bearings
15. Remove Retaining Ring (16) that secures Arbor (26)
to Shaft and Flange Assembly (3).
• Remove the Arbor from the Shaft and Flange
Assembly.
16. Remove Square Key (4) from the Shaft and Flange
Assembly.

High-Capacity Reel SER 7340
Alemite Corporation 5 Revision (2-03)
17. Remove Retaining Ring (16) that secures Shaft (8) to
Bearing (28).
• Do not remove the Shaft at this time.
18. Remove Nuts (1) that secure Bearing Housings (27) to
the Base Assembly.
• Remove each set of Bearing Housings and Bearings
from the Base Assembly.
Sheave Assembly
19. Remove the Sheave Assembly (with attached
components) from the Base Assembly.
20. Remove the Shaft (with attached components) from
Ratchet (35).
21. Remove 90 ° Union (6) from the Shaft [or Bushing (7)]
as required.
• Remove the Bushing from the Shaft as required.
22. Remove Screws (5) and Nuts (1) that secure the Ratchet
to the Sheave Assembly.
• Remove the Ratchet from the Sheave Assembly.
23. Remove Screws (5) and Nuts (1) that secure the Shaft
and Flange Assembly to the Sheave Assembly.
• Remove the Shaft and Flange Assembly from the
Sheave Assembly.
Base Assembly
Pawl and Shaft Assembly
24. Remove Nut (1) that secures Spring Post (23) to the
Base Assembly.
• Remove the Spring Post from the Base Assembly.
25. Remove Extension Spring (24) from Pawl and Shaft
Assembly (25).
• Remove the Extension Spring from the Spring Post.
26. Remove Screw (32) that secures the Pawl and Shaft
Assembly to the Base Assembly.
• Remove the Pawl and Shaft Assembly from the Base
Assembly.
27. Remove Bolts (31 and 30), and Washers (29) from the
Base Assembly as required.
Clean and Inspect
NOTE: Use the appropriate repair kit for
replacement parts. Make sure all the compo-
nents are included in the kit before discard-
ing used parts.
Clean all metal parts in a modified petroleum-based
solvent. The solvent should be environmentally safe.
Make sure to remove the old sealant from the threads
of all components.
Assembly
NOTE: Prior to assembly, certain compo-
nents require lubrication. Refer to Tab le 2
for details.
Base Assembly
NOTE: Refer to Figures 2 and 3for com-
ponent identification on all of the assembly
procedures.
Pawl and Shaft Assembly
1. Apply Loctite 242 to the threads of Pawl and Shaft
Assembly (25).
NOTE: Make sure to attach the Pawl and
Shaft Assembly to the upright without the
captive nuts.
2. Secure the Pawl and Shaft Assembly to Base
Assembly (33) with Screw (32).
• Tighten the Screw to 42 - 48 ft-lbs (57 - 65 Nm).
3. Install Extension Spring (24) into the eye on the Pawl
and onto Spring Post (23).
4. Secure the Spring Post to the Base Assembly with
Nut (1).
•RefertoFigure 2 for the proper hole location.
• Tighten the Nut securely.
Item No. Description Item No. Description
22 O-Ring, 1/4 " ID x 3/8 " OD 35 teeth on Ratchet
24 hooks of Pawl Spring 38 Seal, 1/2 " ID x 3/4 " OD
43 Seal, 3/8 " ID x 3/4 " OD
Table 2 Components Lubricated in Lithium Grease

SER 7340 High-Capacity Reel
Revision (2-03) 6 Alemite Corporation
Ribbed-Neck Bolts
IMPORTANT: Make sure the longer Bolts
(31) mount on the Pawl Assembly side of the
Base Assembly.
5. Install Bolts (31 and 30) and Washers (29) onto the
Base Assembly as required.
Sheave Assembly
6. Secure Shaft and Flange Assembly (3) to Sheave
Assembly (2) with Screws (5) and Nuts (1).
7. Secure Ratchet (35) to the Sheave Assembly with
Screws (5) and Nuts (1).
Model Dependent Step
8. Screw Bushing (7) [with thread sealant] into Shaft (8).
• Tighten the Bushing securely.
9. Screw 90 ° Union (6) [with thread sealant] into the
Shaft {or Bushing}.
• Make sure the 90 ° Union orients properly.
See Figure 2.
• Tighten the 90 ° Union securely.
10. Install the Shaft and 90 ° Union assembly into the
Ratchet.
11. Position the Sheave Assembly (with attached
components) onto the Base Assembly.
• Make sure the Ratchet side faces the Pawl.
Bearings and Arbor
12. Install Bearing (28) into Bearing Housing (27).
IMPORTANT: Make sure the extended por-
tion of the Bearing faces inward. See Fig-
ure 2.
13. Install the first Bearing and Housing assembly
(extended side first) onto Shaft (8) and onto the Bolts.
14. Attach the Bearing and Housing assembly to the Base
Assembly with Nuts (1).
• Do not tighten the Nuts at this time.
15. Install the second Bearing and Housing assembly
(extended side first) onto the Shaft and Flange
Assembly and onto the Bolts.
16. Secure the Bearing assembly to the Base Assembly
with Nuts (1).
• Tighten the Nuts alternately and evenly.
17. Tighten the Nuts on the opposite Bearing alternately
and evenly.
18. Install Retaining Ring (16) onto the Shaft.
• Make sure the hex on the Shaft engages the hex
socket in the Ratchet and the 90 ° Union orients
properly with the Sheave Assembly. See Figure 2.
19. Install and hold Square Key (4) into the slot of the
Shaft and Flange Assembly.
20. Slide Spring Arbor (26) [flat side first] onto the Shaft
and onto the Key.
21. Install Retaining Ring (16) onto the Shaft and Flange
Assembly.
Power Spring Assembly and Arms
22. Remove Button Plug (15) from the Power Spring
Assembly.
• Use a blunt tool from behind the Plug to “pop” it
from the case.
HINT: Orient the hook on the Power
Spring’s inner coil to properly engage the
recess in the Arbor. Lift and center the coil
within the case during installation.
23. Install the Power Spring Assembly onto the Arbor.
• Make sure the end of the power spring properly
engages the Arbor.
IMPORTANT: Use care not to damage the
gasket.
24. Align the bolt holes in the Power Spring Assembly
with the Base Assembly.
25. Secure the Power Spring Assembly to the Base
Assembly with Screws (5).
26. Install the Button Plug into the case of the Power
Spring Assembly.
NOTE: The Hose Guide Arms can attach to
the Base Assembly in five (5) different posi-
tions. Select the required relationship of the
Guide to the mounting plate of the Base
Assembly.
27. Secure Long Arm (34) to the Base Assembly with Nuts
(13).
• Do not tighten the Nuts at this time.
28. Secure Short Arm (14) to the Power Spring Assembly
with Screws (5) and Nuts (1) as required.
• Do not tighten the Screws at this time.

High-Capacity Reel SER 7340
Alemite Corporation 7 Revision (2-03)
Hose Guide
29. Install each Roller Assembly (20) onto each Post and
Shaft Assembly (18).
30. Install each Roller Assembly (21) onto each Post and
Shaft Assembly (19).
31. Install each Roller and Post subassembly into one
another to create a rectangle.
32. Install the Roller and Post subassembly into Hose
Guide Plate (17).
33. Install the hose guide assembly into each Arm.
34. Secure the hose guide assembly to the Arms with Nuts
(13).
35. Tighten the Long Arm Nuts, the Short Arm Screws, and
the hose guide assembly Nuts securely.
Swivel Assembly
Model Dependent Step
36. Install and seat Back-Up Washer (41) and Seal (42)
[heel end first] onto Body and Stud Assembly (40)
[model 7340].
Install and seat Seal (38) [heel end first] onto Body and
Stud Assembly (37) [model 7341].
37. Screw Swivel Assembly (36 or 39) into the Shaft.
• Tighten the Swivel Assembly securely.
38. Check to ensure the Swivel Assembly moves freely.
Figure 3 High-Capacity Reel - Section View - Model 7340 Shown

SER 7340 High-Capacity Reel
Revision (2-03) 8 Alemite Corporation
1. Mount the reel assembly with the proper hardware.
CAUTION
Never connect rigid piping to the Swivel assembly.
Damage to components can occur.
2. Screw a connecting hose (with thread sealant) into the
Swivel Assembly.
3. Attach the connecting hose to the supply line.
IMPORTANT: Anchor the connecting hose
to a suitable surface to prevent the hose from
flexing at the Swivel Assembly.
The anchor should be in-line with the inlet of
the Swivel to minimize side loading. See Fig-
ure 4.
Setting Power Spring Tension
4. Make sure there is no tension on the Power Spring
Assembly.
IMPORTANT: Wear non-slip gloves when
handling the Sheave Assembly.
5. While facing the Ratchet, turn the Sheave Assembly
clockwise to set the tension suggested for the type and
length of delivery hose used.
•SeeTable 3 for details.
6. Allow the reel to latch.
Bench Test
While facing the Ratchet, turn the reel in a clockwise
direction and allow the Ratchet to latch the Pawl.
If the reel does not tension or latch properly, refer to
the Troubleshooting Chart.
Installation
WARNING
Do not exceed the lowest pressure rating
of any component in the system.
Never point a control valve at any portion of your
body or another person. Lubricant discharged at
high velocity can penetrate the skin and cause
severe injury. Should any fluid appear to puncture
the skin, get medical care immediately.
Ensure all components are in operable condition.
Replace any suspect parts prior to operation. Per-
sonal injury can occur.
Hold the delivery hose securely until the reel is
securely latched or fully retracted. Uncontrolled
retraction can result in personal injury.
Reel Mount
HINT: Should the reel mount to the ceiling
or a wall, it may be advantageous to lessen
its weight with the removal of the Power
Spring Assembly.
Follow the appropriate procedural steps
within the section entitled Overhaul.
Delivery Hose Description Length of Hose in Feet Number of Turns
3/8 " ID Two-Wire Braid
80
23
1/2 " ID Single-Wire Braid
20
100 23
1/2 " ID Air
80 19
100 23
Table 3 Delivery Hose Type and Length Comparison to Power Spring Tension in Number of Turns

Alemite Corporation 9 Revision (2-03)
High-Capacity Reel SER 7340
8. Connect the delivery hose to the 90 ° Union.
• Make sure the connection is secure.
HINT: Orient the hose to allow its natural
curve to match the Sheave.
This reduces torque load on the Power
Spring Assembly and eliminates the ten-
dency of the hose to stack on one side of the
Sheave.
9. Install U-Bolt (11) onto the delivery hose and to the
Sheave Assembly.
10. Install Washers (10) and Wing Nuts (9) onto the U-
Bolt.
• Tighten the Wing Nuts securely.
Delivery Hose Attachment
WARNING
Precautions must be taken to ensure the
Sheave Assembly remains engaged with the
Ratchet. To prevent movement either:
• instruct an assistant to grip the Sheave
securely with non-slip gloved hands or
• install a clamp on the Sheave. See Figure 5.
Personal injury can occur.
Once the Sheave Assembly is secure:
7. Install the delivery hose through the guide assembly.
Figure 4 Space Required for Banked Reels (with Bolt Pattern Dimensions)

SER 7340 High-Capacity Reel
Revision (2-03) 10 Alemite Corporation
Accessories Attachment and Pressurization
11. Install the control valve onto the delivery hose.
12. Pressurize the system.
• Check for leaks.
13. Install and secure the hose stop to the delivery hose at the
desired position.
14. Make sure the reel is latched then:
• instruct the assistant to let go of the Sheave Assembly
or
• carefully remove the clamp from the Sheave Assembly
15. Pull the delivery hose to disengage the Ratchet.
16. Allow the delivery hose to slowly retract onto the Sheave
Assembly.
Checking Spring Tension
17. Check to ensure the tension on the power spring is sufficient
to properly hold the hose stop against the hose guide.
Should the power spring tension require
adjustment:
Adjusting Spring Tension
CAUTION
Do not overwind the power spring. Too much
tension reduces the life of the spring.
When the hose is fully extended from the
reel, the power spring should be a minimum
of 1/2 turn from a fully wound condition.
18. Release all pressure within the system.
WARNING
Disconnect the air supply line to the
pump’s motor.
Into an appropriate container, operate the
control valve to discharge remaining
pressure within the system.
19. Remove the control valve and the hose stop
from the delivery hose.
20. Pull the free end of the delivery hose through
the guide.
21. Rotate the Sheave Assembly in the required
direction.
22. Install the control valve and the hose stop.
23. Pressurize the system.
24. Check to ensure the tension on the power spring
is sufficient to properly hold the hose stop
against the hose guide.
25. Repeat steps 18 - 24 until the proper tension is
achieved.

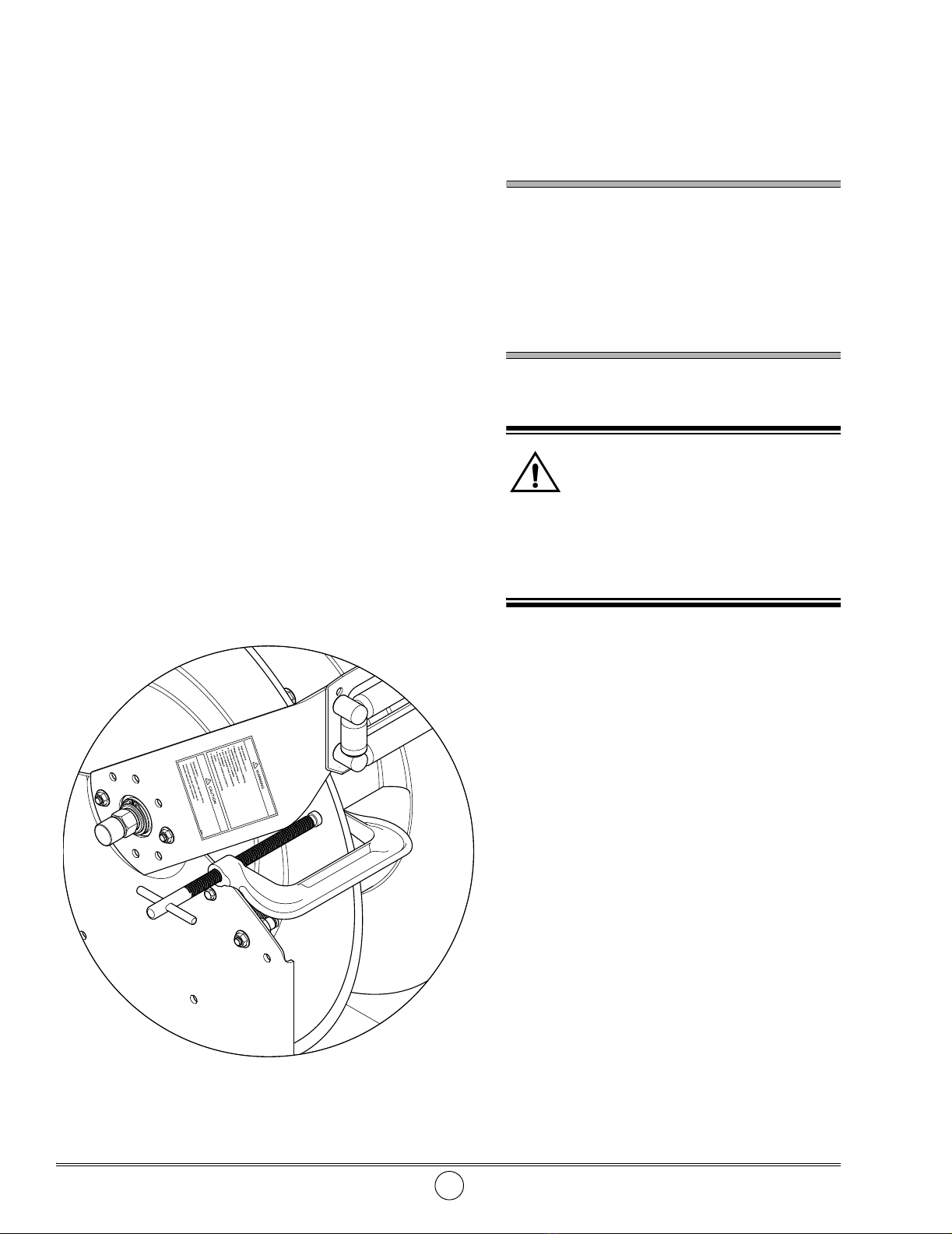

Figure 5 Clamp Attached to Sheave Assembly
